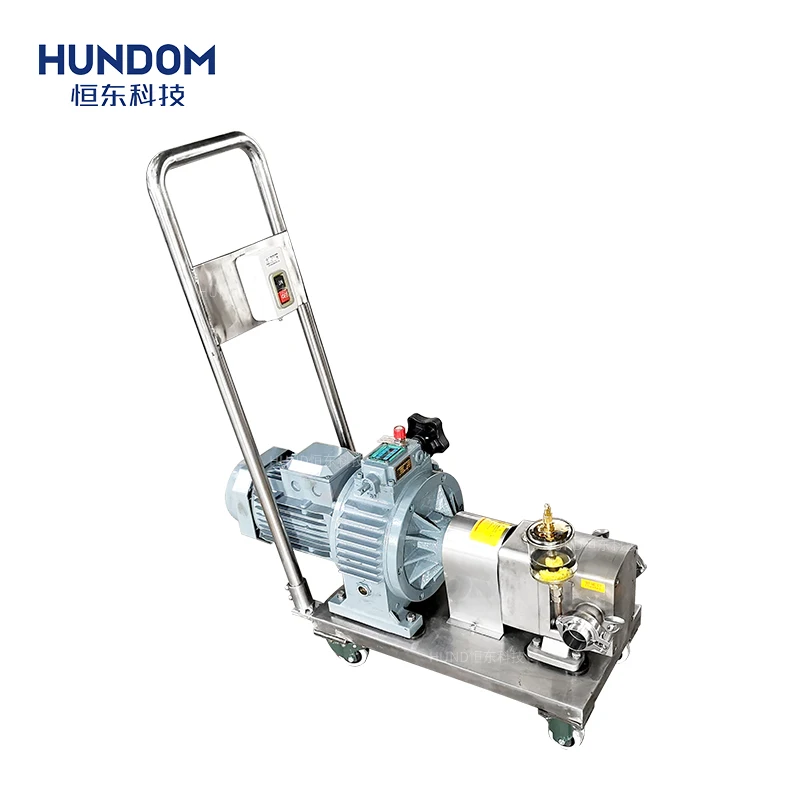

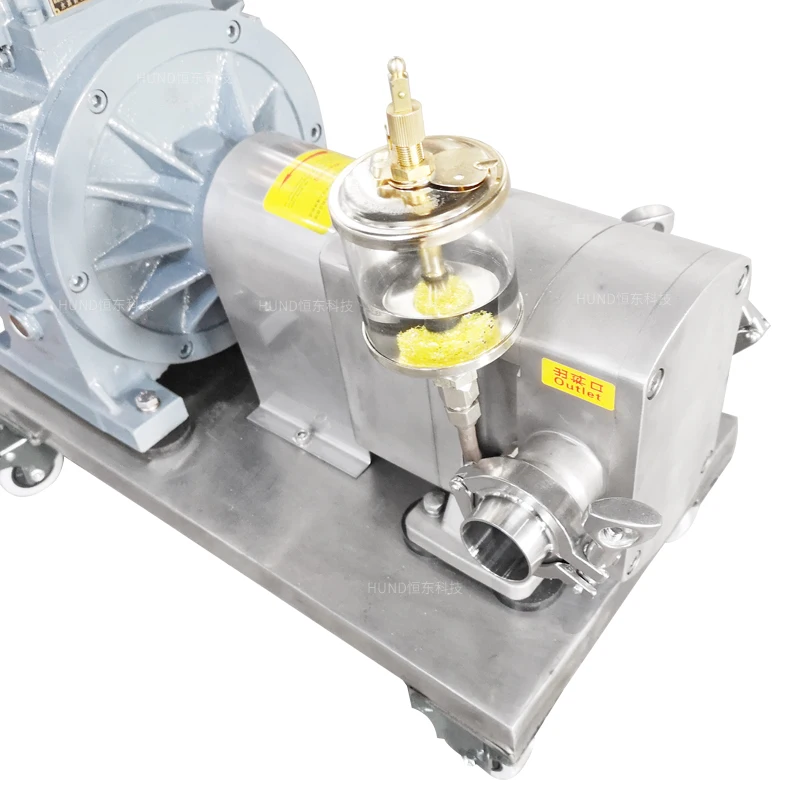

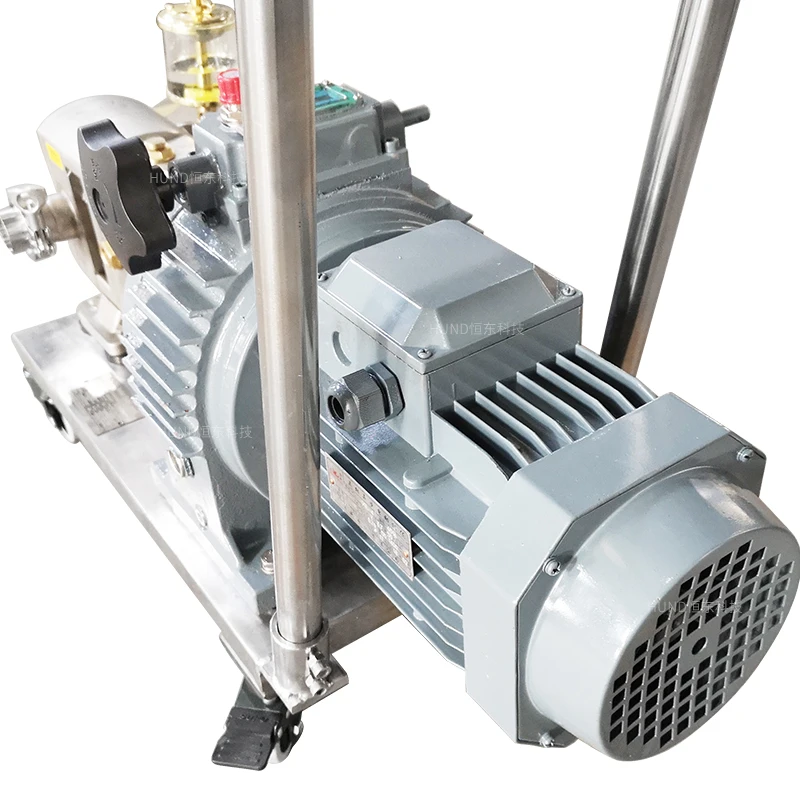

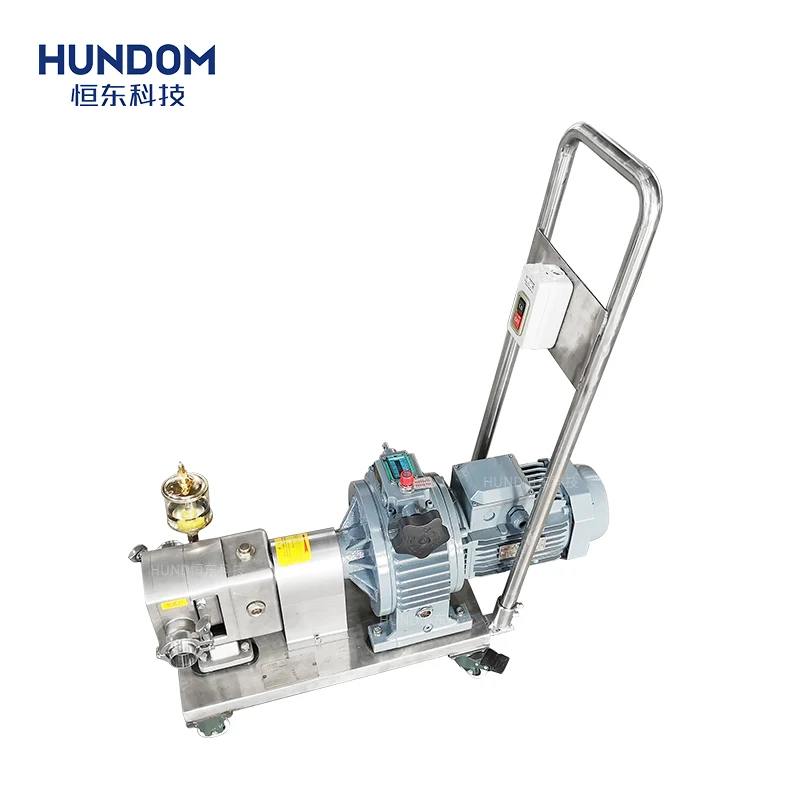

HUNDOM High viscosity paste transfer pump three lobe cam rotor stator pump with trolley
- Category: >>>
- Supplier: Zhejiang Hengdong Stainless Steel Co. Ltd.
Share on (1600439751606):
Product Overview
Description
Products Description

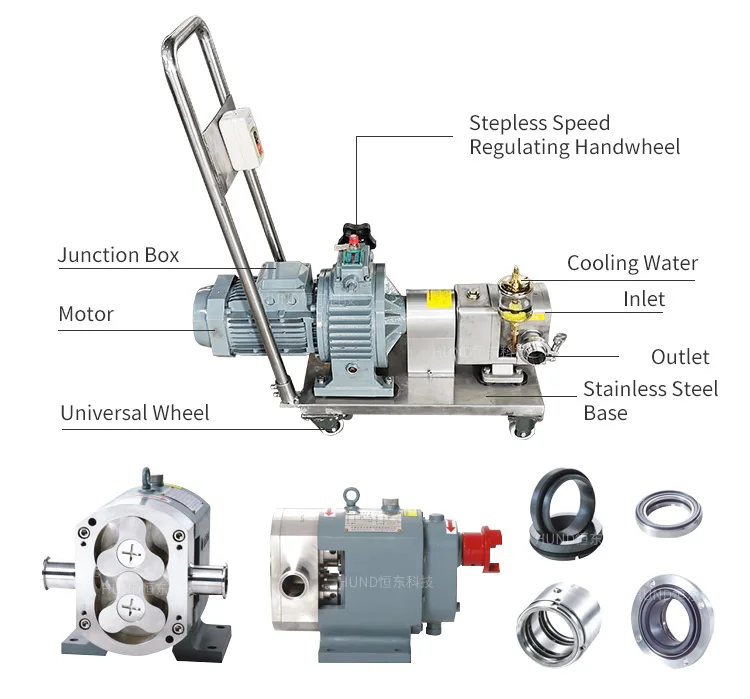

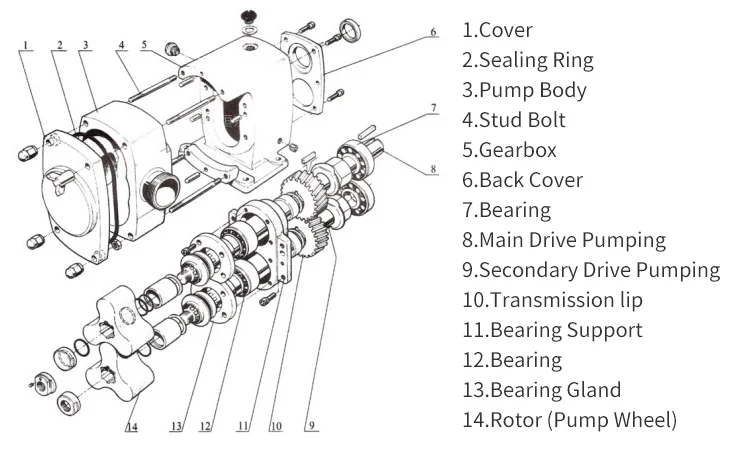

Structure:

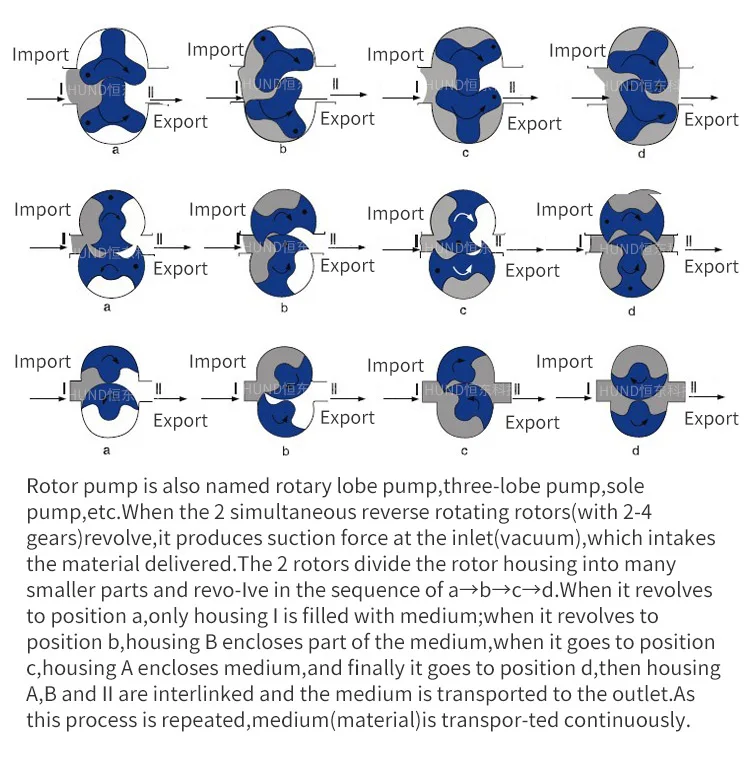

Operation Principle
Driving System
Stepless Speed Regulation:
The speed regulator changes the speed by manual adjustment, which is safe, reliable and infinitive flow adjustment. But the non-automatic adjustment is also troublesome. Speed regulating should be done in operation not in shut-off state.
Fix Speed Output Reducer:
The driving is easy with constant rotary speed of the rotor, which also leads to non-adjust of flow.
Variable Frequency Motor:
It realizes both automatic adjusting and infinitive adjustment of flow. It is highly automatic and has large torque in low speed.
Characteristic:
Stainless steel material | SS304 or 316L | ||||||
Capacity/Flow | 0-100T (Customized) | ||||||
Pressure | 0-8bar | ||||||
Viscosity | 1~1,000,000 CPS | ||||||

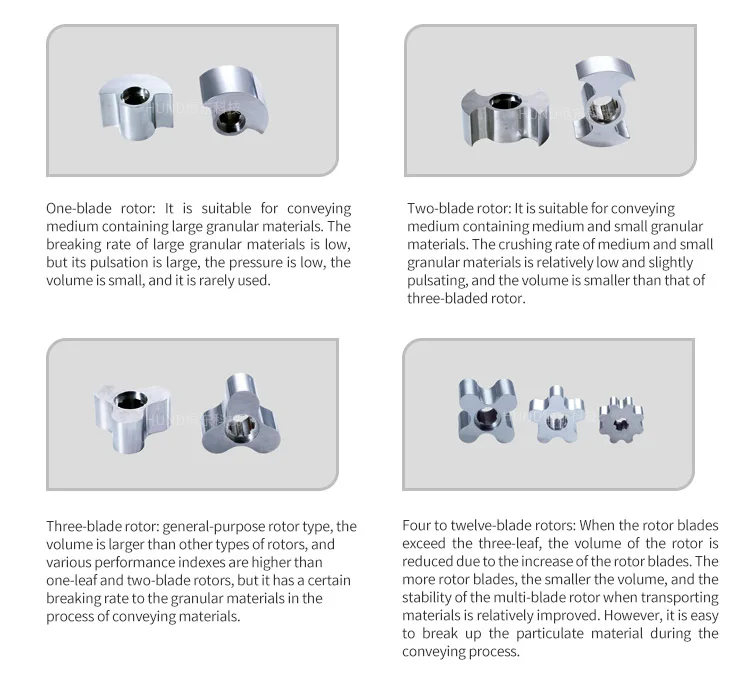

Rotors type | butterfly rotors/Trefoil rotors | ||||||
Temperature | -30 °C to 180°C | ||||||
Mechanical seal type | Single | Double flushed | |||||
Inlet outlet direction | Left and right | Up and down | |||||
Jacket | Yes(hot water) | No | |||||
Connection type | Clamp | Union | Flange | ||||
Motor type | Normal | Planetary | inverter | ||||
Speed | 0-500rpm | ||||||
Application:
1). Food and beverage: dairy, chocolate, syrup, cream, cereal mash, beer and latex.
2). Fruit concentration: tomato paste, pudding, juice, jam and jelly.
3). Paste products: fats, grease and etc.
4). Cosmetics: face washing, lotions, shampoo, liquid soap, cream and so on.
5). Medicine: extract, emulsion and pill plasm.
6). Chemical industry: dyes, grease, dissolvant, resin and polymer.
2). Fruit concentration: tomato paste, pudding, juice, jam and jelly.
3). Paste products: fats, grease and etc.
4). Cosmetics: face washing, lotions, shampoo, liquid soap, cream and so on.
5). Medicine: extract, emulsion and pill plasm.
6). Chemical industry: dyes, grease, dissolvant, resin and polymer.
Parameters：
Model | Relution (L/100R) | Speed(rpm) | Flow (L/h) | Power(kw) | Inlet(Φ) |
HD-3 | 3L | 200-500 | 300-800 | 0.55 | Φ25*1.5mm |
HD-6 | 6L | 200-500 | 650-1600 | 0.75 | Φ25*1.5mm |
HD-8 | 8L | 200-500 | 850-2160 | 1.50 | Φ38*1.5mm |
HD-12 | 12L | 200-500 | 1300-3200 | 2.20 | Φ38*1.5mm |
HD-20 | 20L | 200-500 | 2100-5400 | 3.00 | Φ51*1.5mm |
HD-30 | 30L | 200-400 | 3200-6400 | 4.00 | Φ51*1.5mm |
HD-36 | 36L | 200-400 | 3800-7600 | 4.00 | Φ51*1.5mm |
HD-52 | 52L | 200-400 | 5600-11000 | 5.50 | Φ63*1.5mm |
HD-66 | 66L | 200-400 | 7100-14000 | 7.50 | Φ63*1.5mm |
HD-78 | 78L | 200-400 | 9000-18000 | 7.50 | Φ76*2mm |
HD-100 | 100L | 200-400 | 11000-22000 | 11.00 | Φ76*2mm |
HD-135 | 135L | 200-400 | 15000-30000 | 15.00 | Φ76*2mm |
HD-160 | 160L | 200-400 | 17000-34000 | 18.50 | Φ76*2mm |
HD-200 | 200L | 200-400 | 21600-43000 | 22.00 | Φ76*2mm |

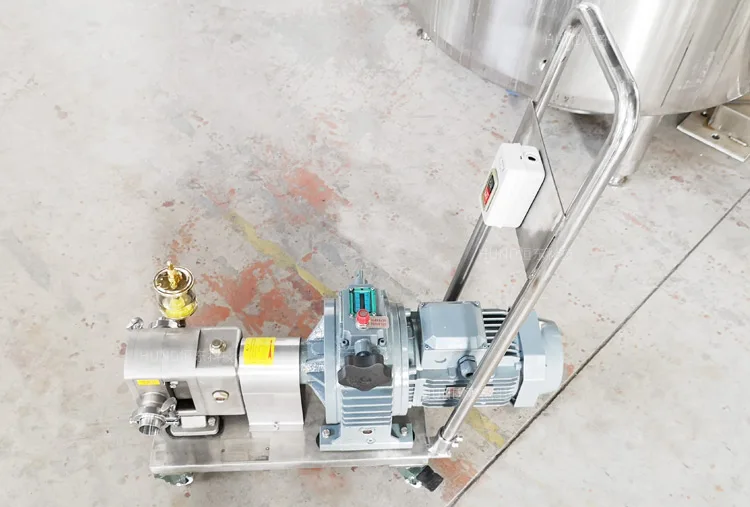

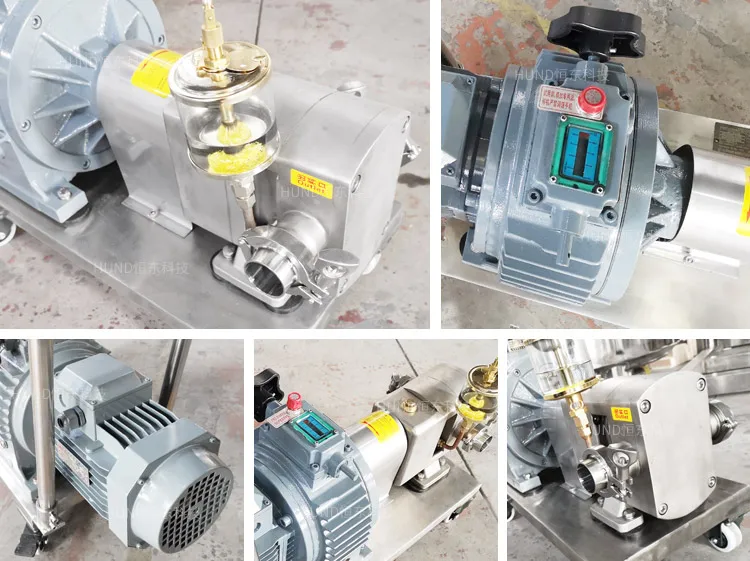

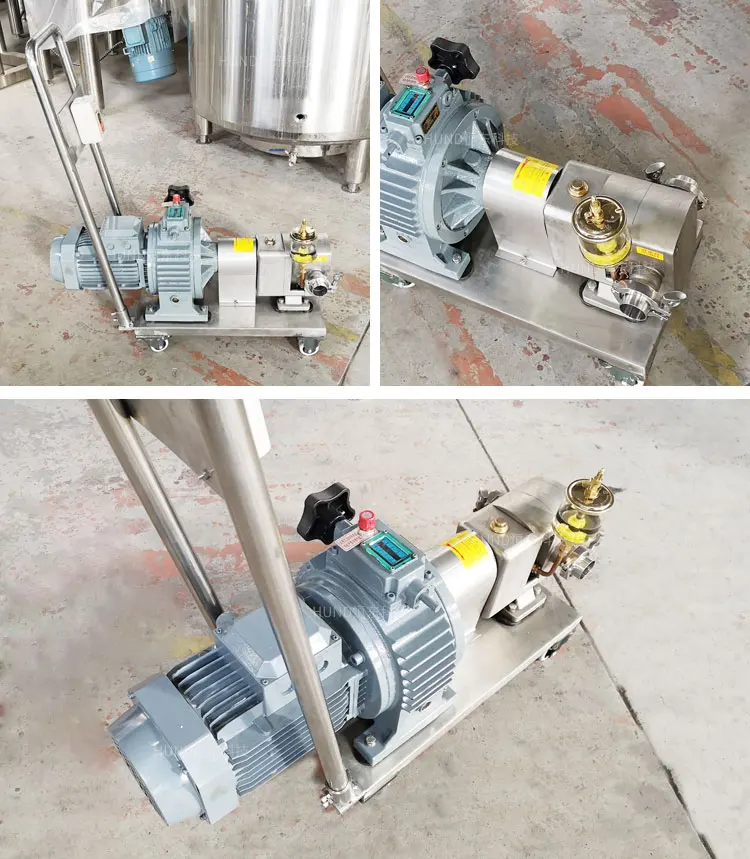

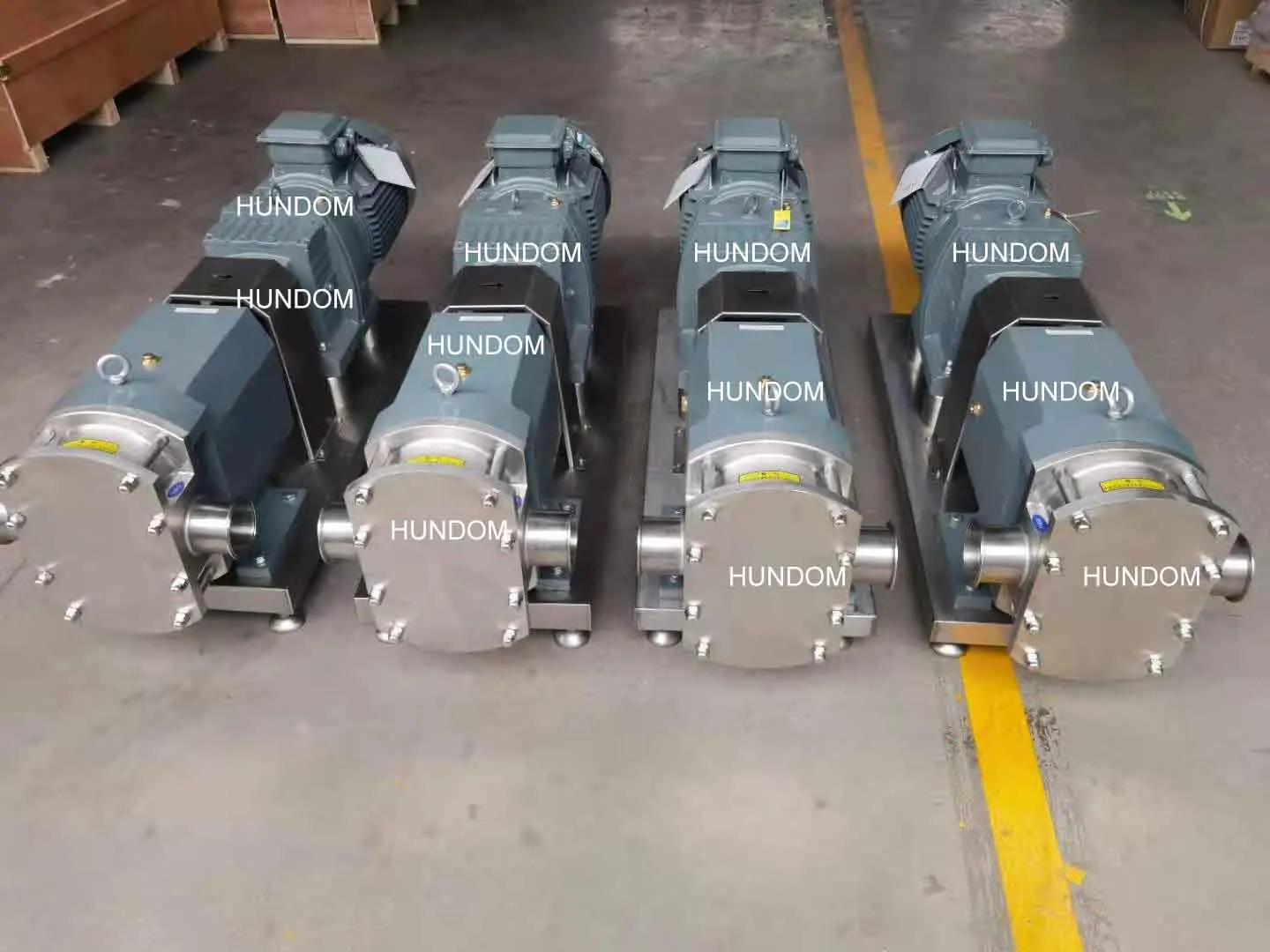

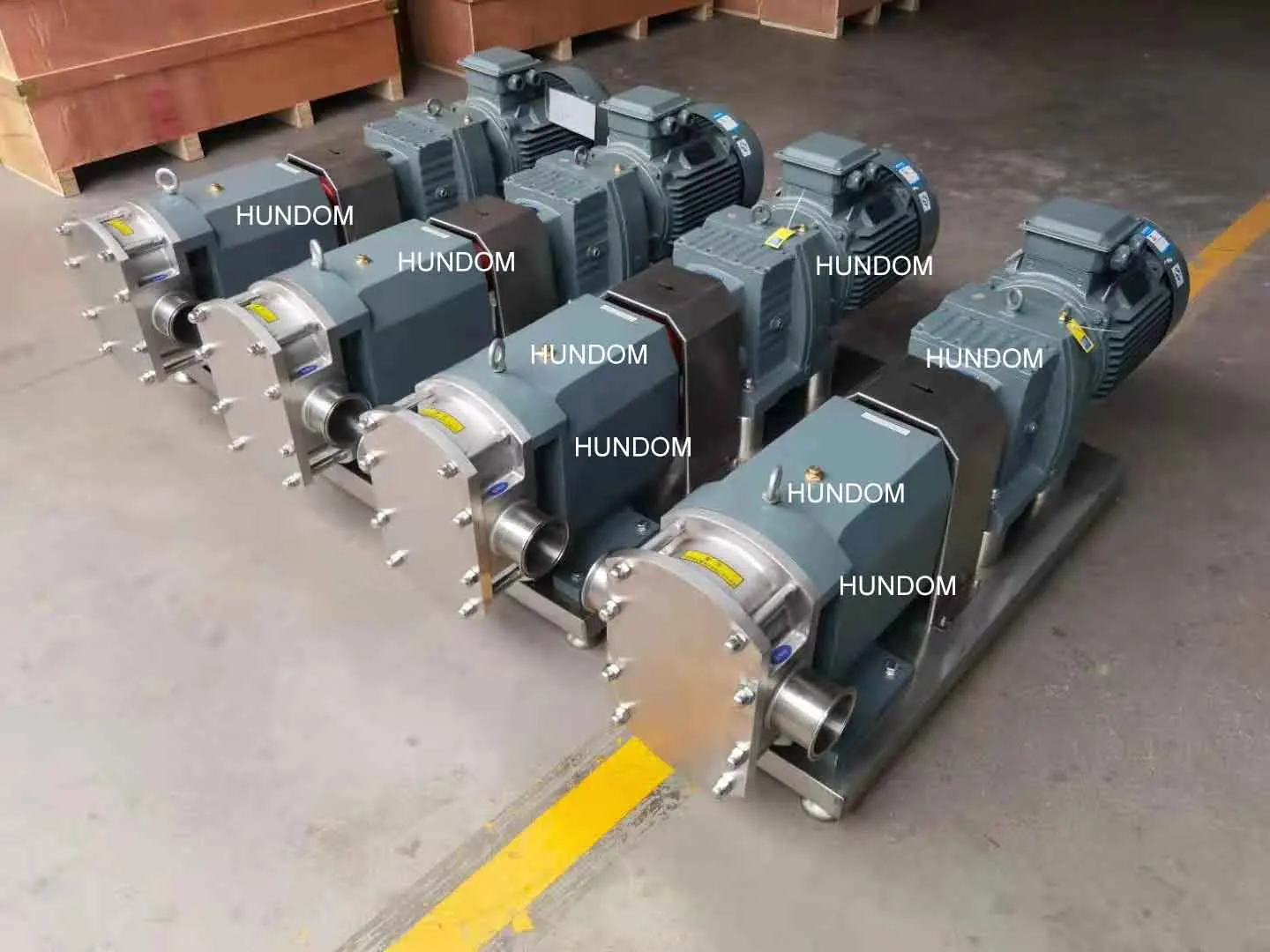

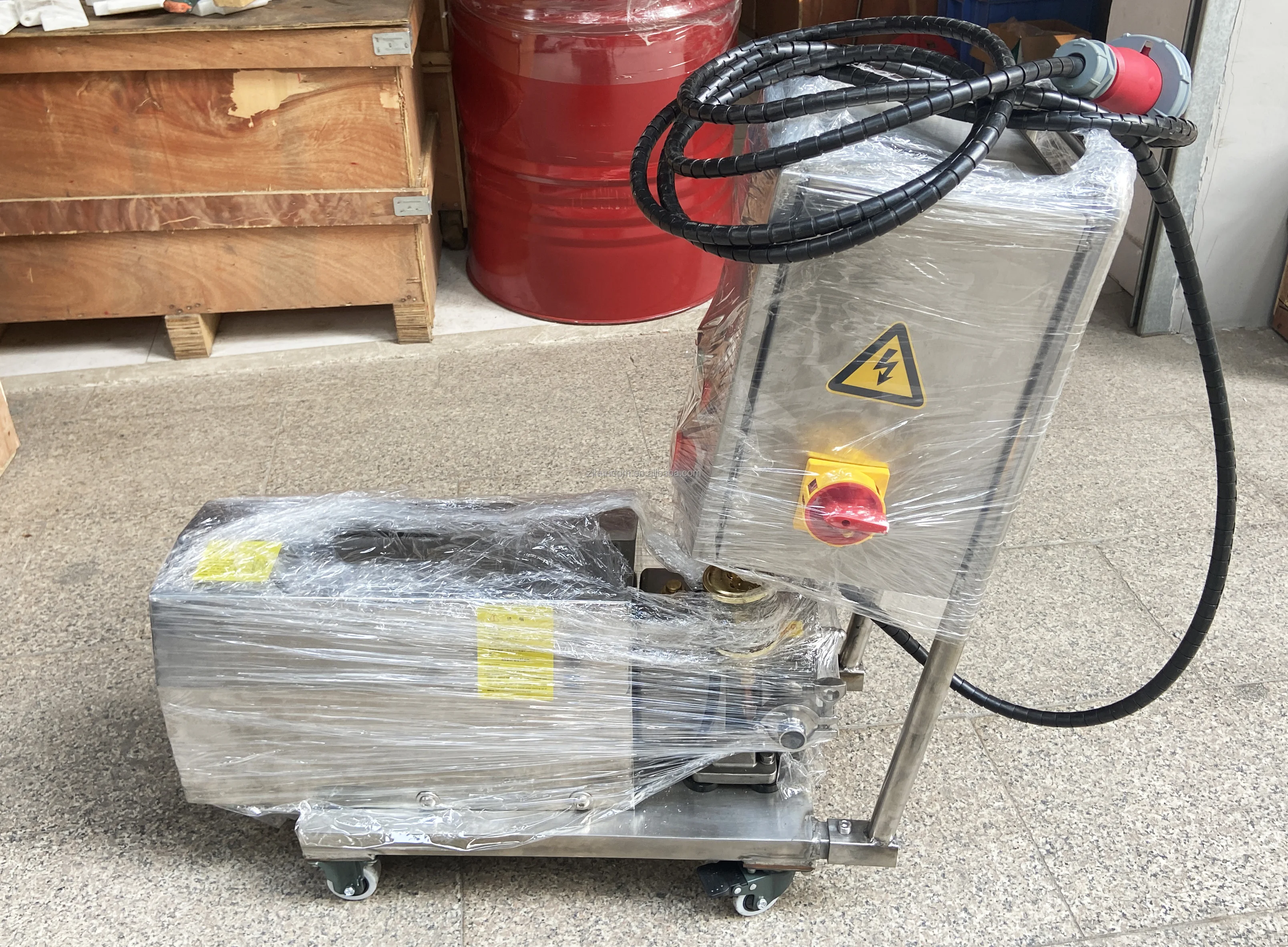

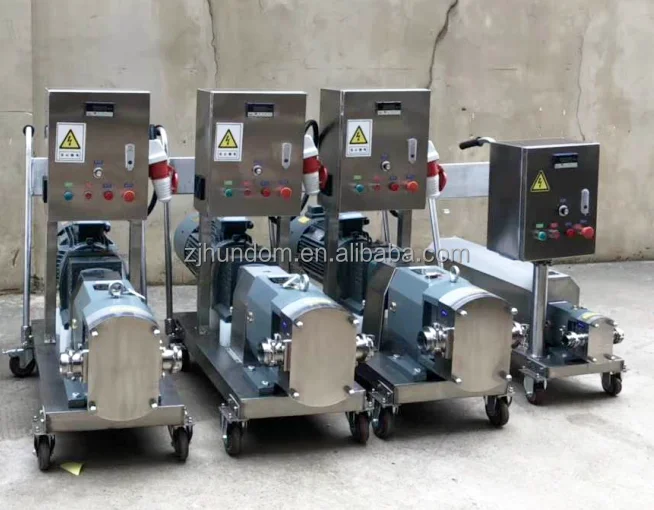

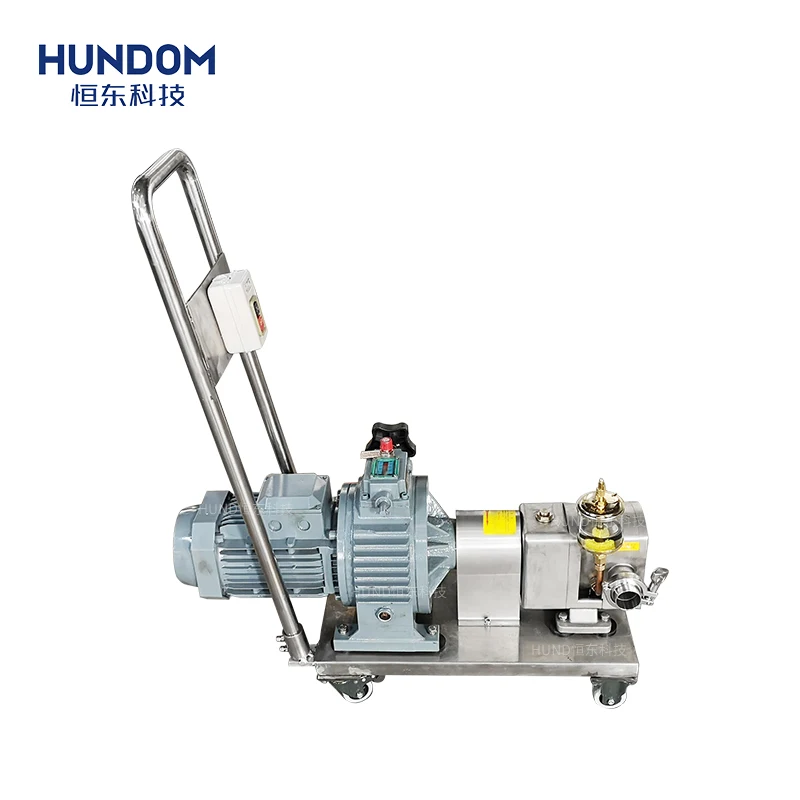

Product showing:
