Handheld Best Valued Clamp Earth Tester Clamp on Ground Resistance Tester Earth Resistance Meter
- Category: Resistance Meters >>>
- Supplier: Run Test Electric Manufacturing Co. Ltd
Share on (1600439756809):
Product Overview
Description
Product Paramenters
Function | earth resistance measurement, loop resistance measurement,AC leakage current measurement |
Range of Resistance | 0.010Ω-1200Ω |
Range of Current | 0.00mA-20.0A |
Resolution of Resistance | 0.001Ω |
Resolution of Resistance | 0.05mA |
Data Storage | 99sets |
Acousto-optic Alarm | “du--du—du—” for alarming, press AL for on/off |
Alarm Threshold Setting rang | resistance: 1-199Ω; current:1-499mA |
Power | 6VDC(4 PCS of LR6 alkaline batteries) |
Working Temperature and Humidity | -20℃-55℃;10%RH-90%RH |

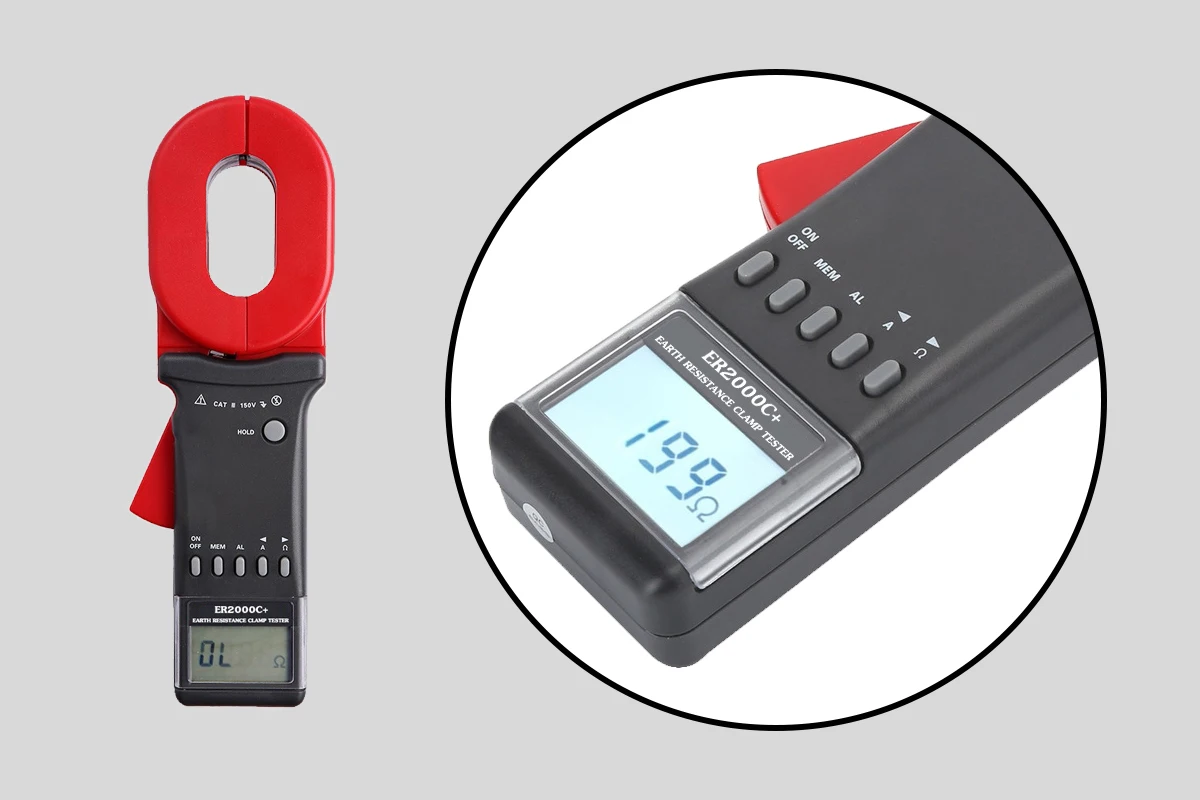

LCD screen | 4 digits LCD display, screen L×W: 47mm×28.5mm |

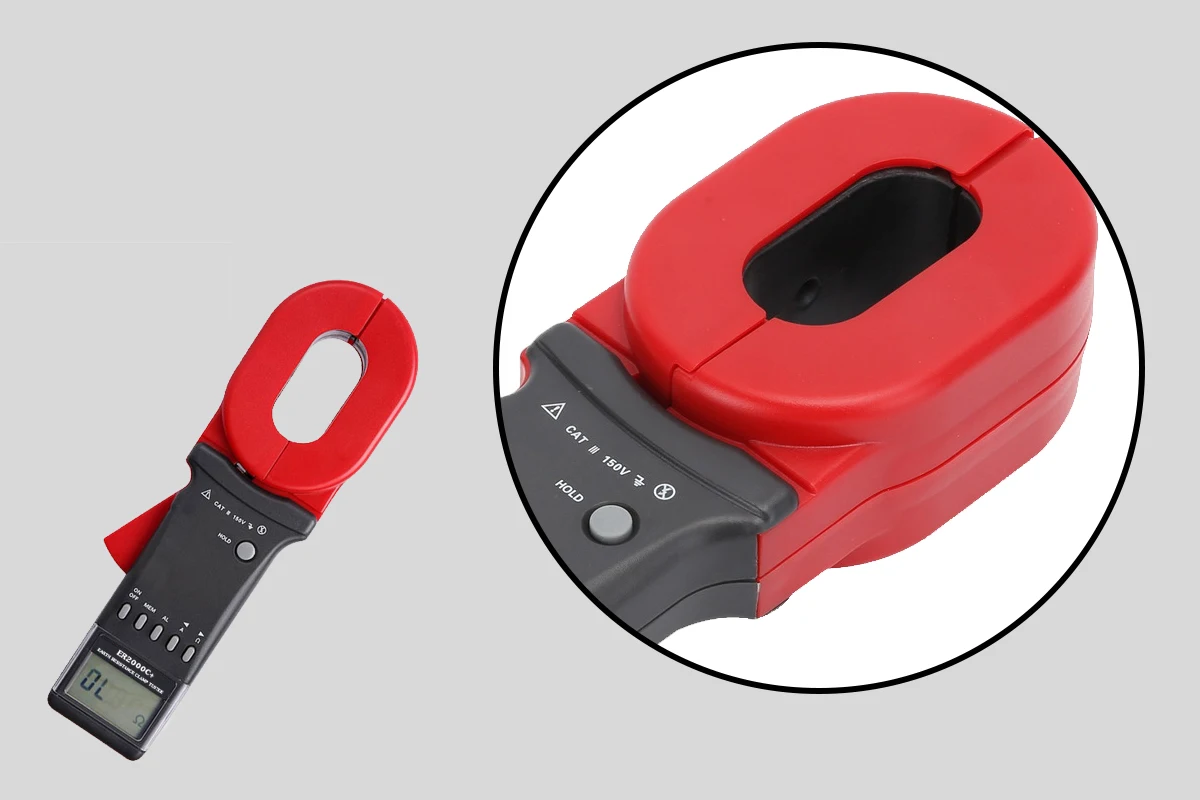

Size of Clamp | 65mm×32mm |
Size of Open Clamp | 32mm |
Weight of Tester | 1160g(including battery ) |

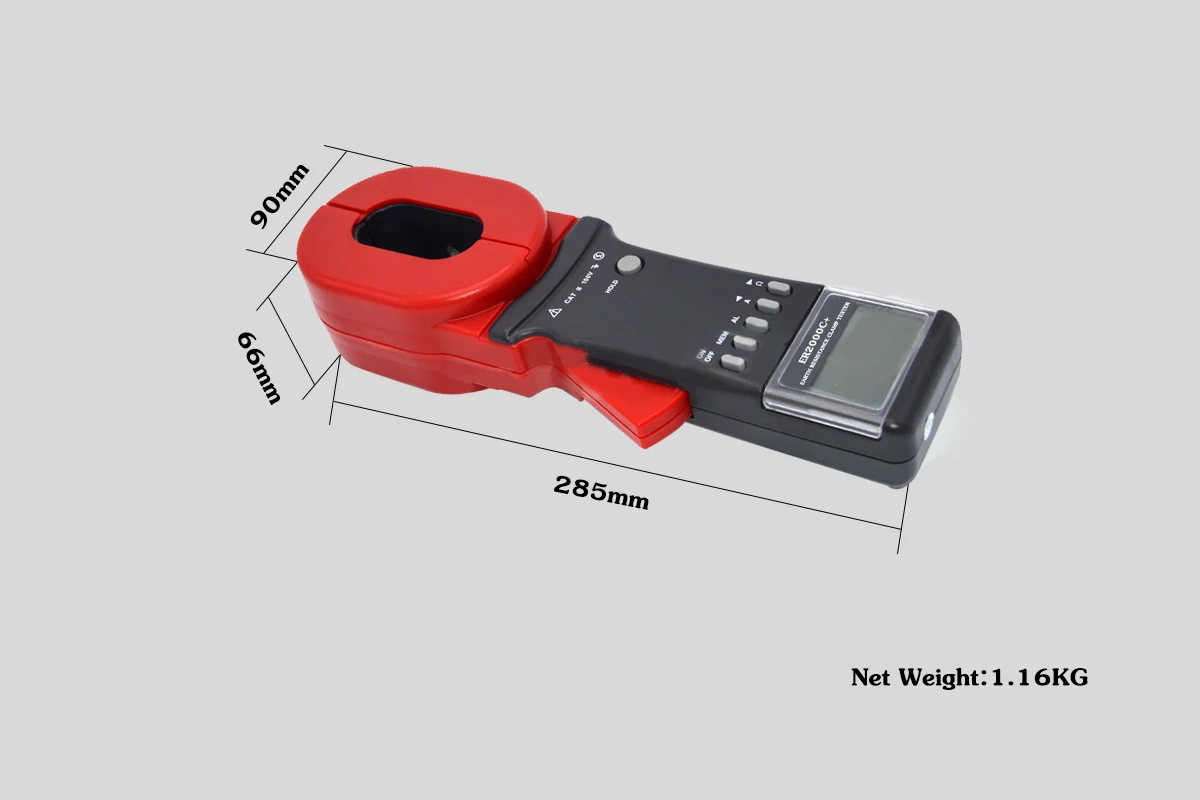

Size of Tester | L×W×H:285mm×85mm×56mm |
Protection Class | double insulation |
Feature of Dimension | CT clamp |
Shift | automatically |
External Magnet/Electric Field | <40A/m;<1V/m |
Time for Single Measurement | 0.5second |
Frequency for Resistance Test | >1KHz |
Frequency for Current Test | 50/60Hz automatically |
Accessories | Meter:10 piece; Test ring:1 piece; Meter Suitcase:1 piece |
Products Description
Handheld Best Valued Clamp Earth Tester Clamp-on Ground Resistance Tester Earth Resistance Meter
Earth Resistance Soil Resistivity Tester is specially designed and manufactured for measuring earth resistance, soil resistivity, earth voltage, AC voltage. Adopting the latest digital and micro-processing technology, precise 4-pole, 3-pole and simple 2-pole method for earth resistance measurement, importing FFT and AFC technology, with a unique function of anti-interference capability and the ability to adapt to the environment, consistency of repeat testing, to ensure high precision, high stability and reliability for prolonged measure, which is widely used in electric power, telecommunications, meteorology, oil field, construction, lightning protection, industrial electrical equipment and other earth resistance, soil resistivity, earth voltage, AC voltage measurement.
Delivery&Payments

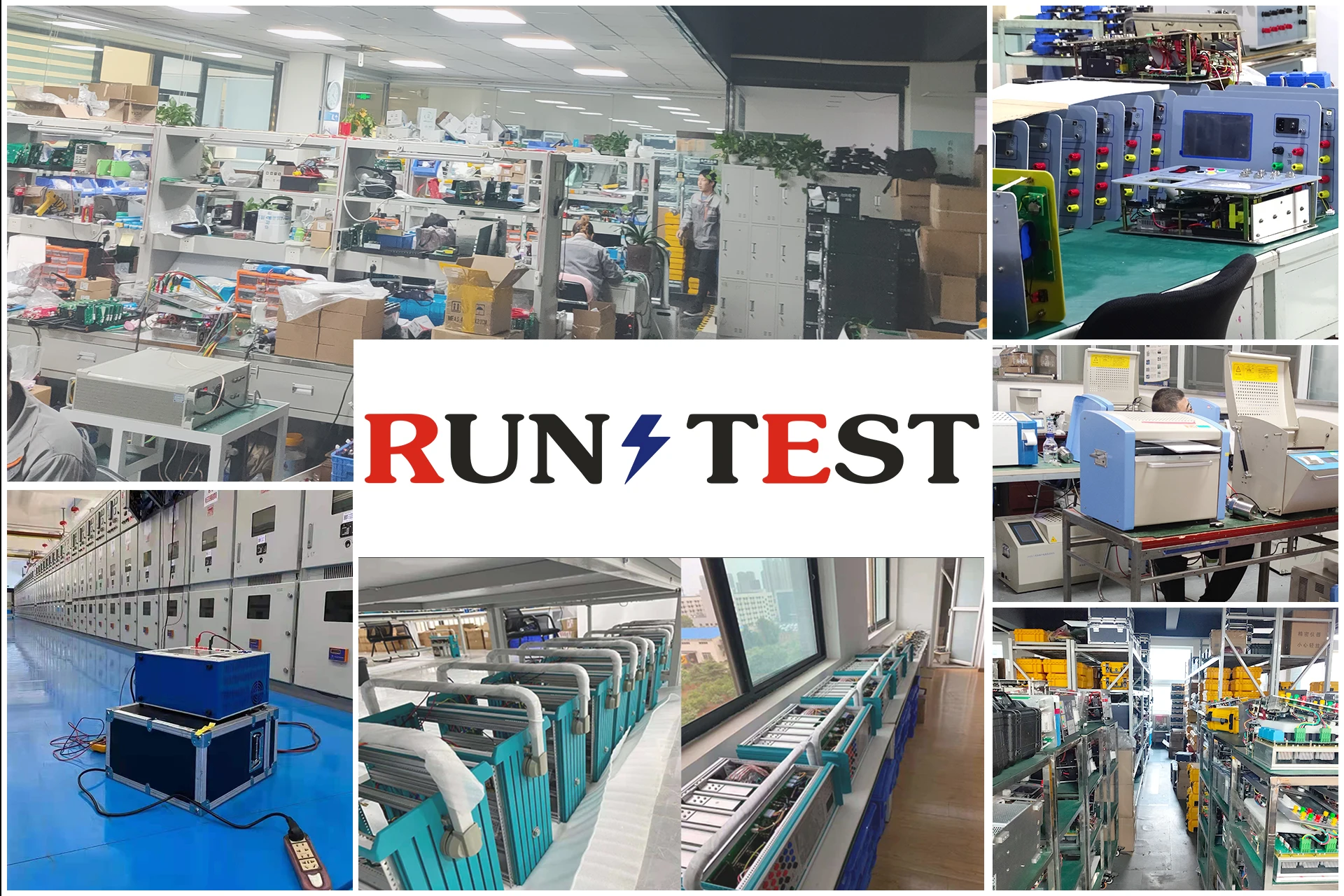

Company Profile
Run Test Electric Manufacturing Co., Ltd, located in High-Tech Industrial Development Zone, Baoding, China. It is a joint venture which is invested by Zhongchuang Electric and Dongrun Technology. We have been in electric testing industry more than 10 years, specialized in design, manufacture and test service. We are qualified supplier and service provider of State Grid in China.
We have our own R&D department which is specialized both in hardware and software, at the same time, our R&D department is cooperating with high technology institute such as Chinese Academy of Sciences,North China Electric Power University etc.
Our main products including: Partial discharge tester, transformer tester, transformer oil test series, high voltage test series, safety product test series, cable fault location system, relay & microcomputer protection test, etc. All our products comply with international quality standard and customizable.
We sincerely invite clients and friends all over the world to visit our company. We will and always provides nice products and service.
Certifications
FAQ
After-sale Service: 100% quality guaranteed.
One year warranty from the date of purchase, customers enjoy a free repair or replacement service.
Lifetime maintenance and free remotely technical support.
Payments: all kinds of payment to meet your requirement.
Delivery: Ocean, Railway, Air or Express
One year warranty from the date of purchase, customers enjoy a free repair or replacement service.
Lifetime maintenance and free remotely technical support.
Payments: all kinds of payment to meet your requirement.
Delivery: Ocean, Railway, Air or Express
