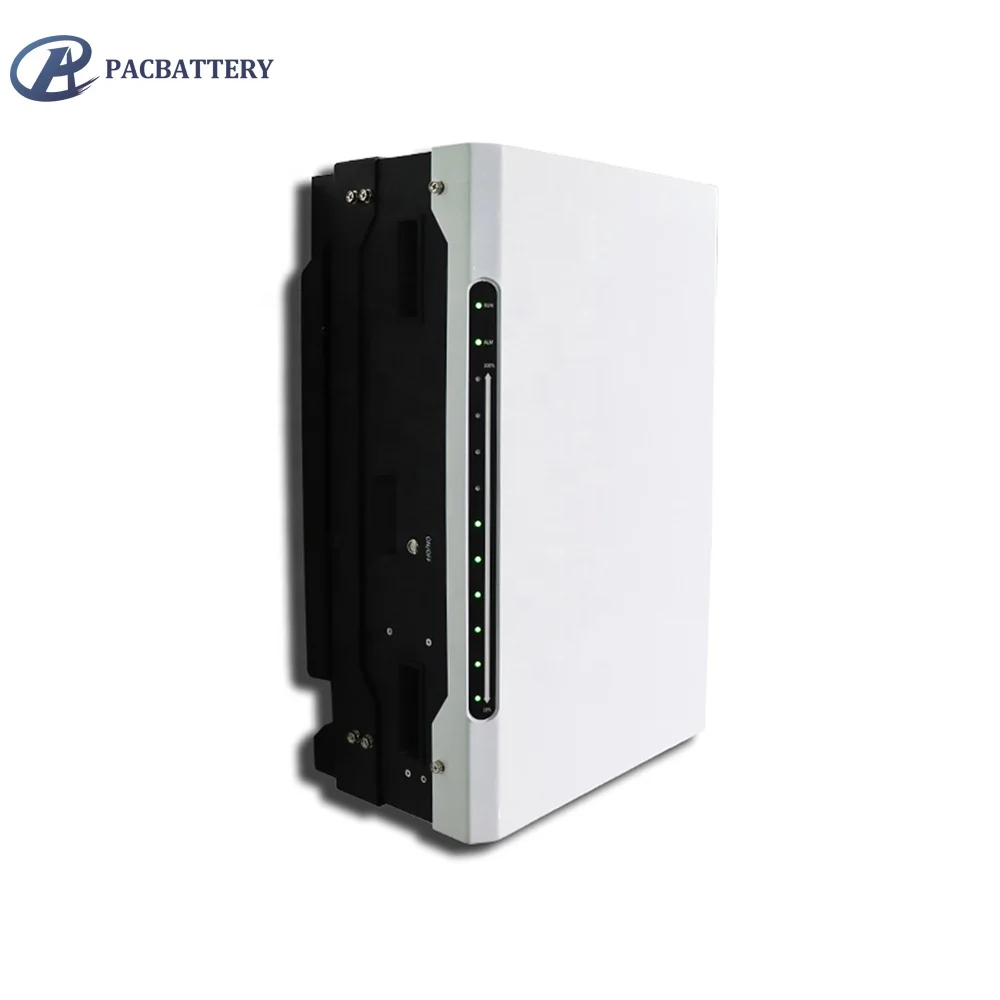

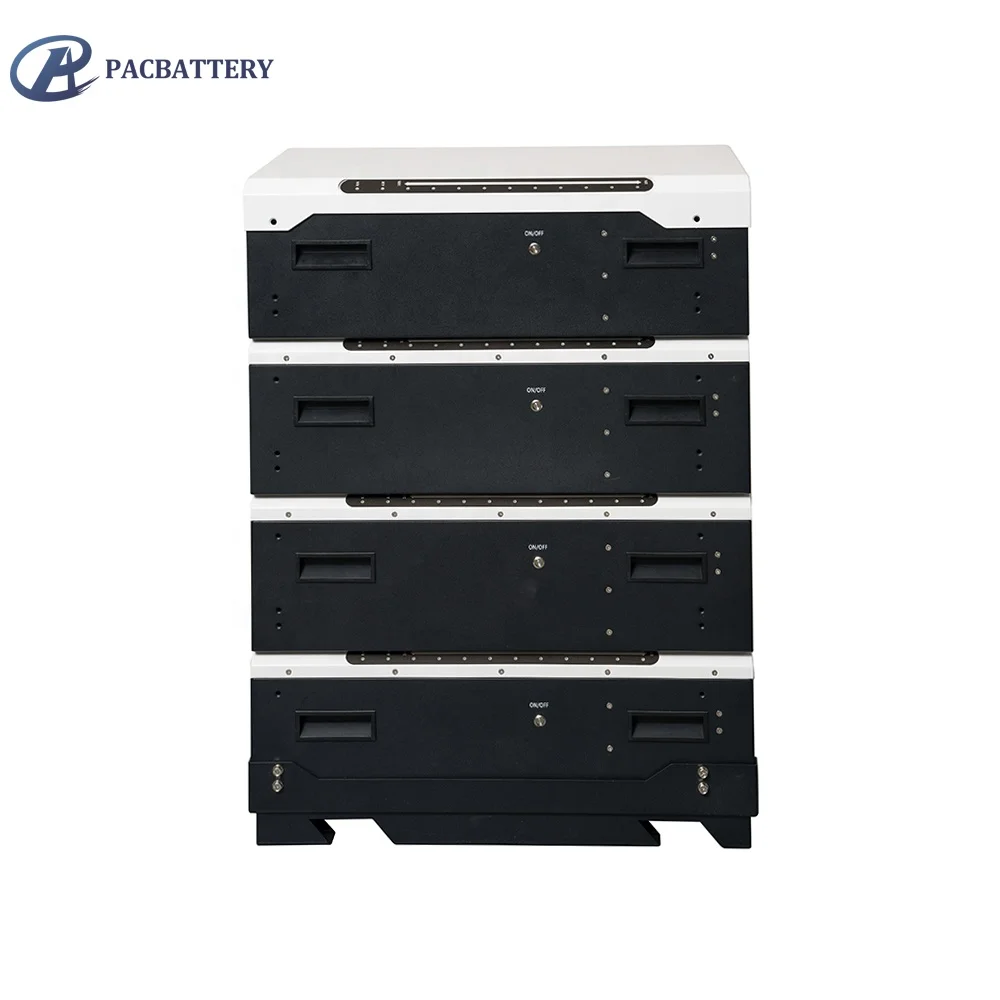

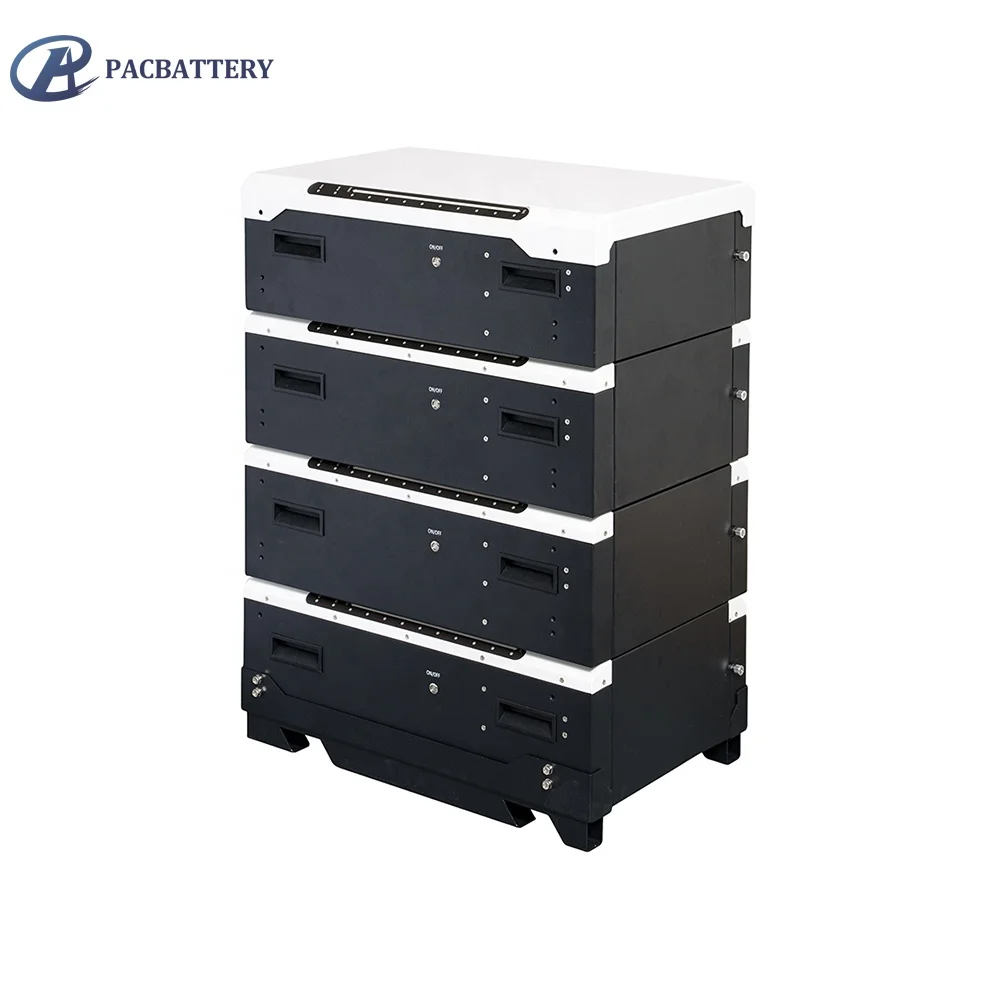

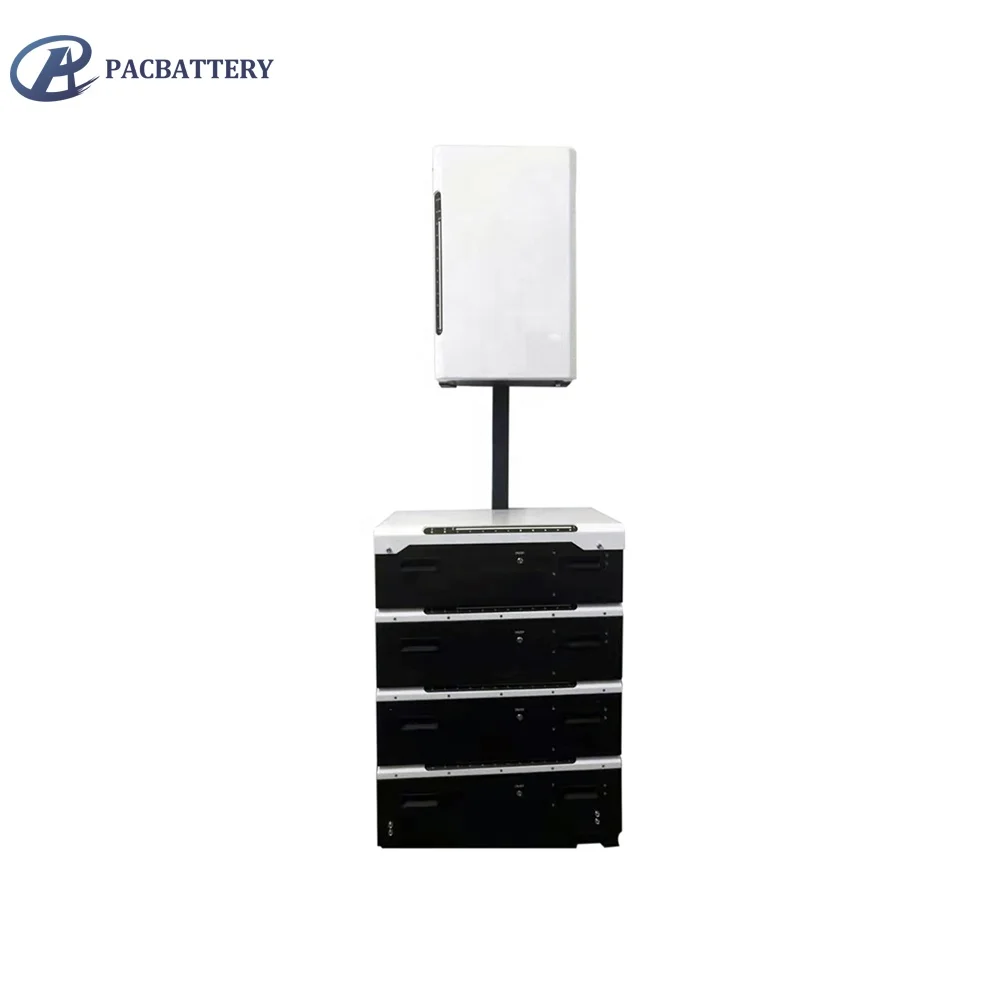

PAC Global hot selling Stacked Energy Storage Battery solar lithium electronic storage system off grid battery storage
- Category: >>>
- Supplier: Shenzhen PAC Technology Co. Ltd.
Share on (1600439764577):
Product Overview
Description
Product Description
Specification
Battery Specifications | ||||||||||
Model No. | PAC-5KWH | PAC-7KWH | PAC-10KWH | PAC-15KWH | PAC-20KWH | |||||
Nominal Parameters | ||||||||||
Nominal Voltage | 48V/51.2V | 48V/51.2V | 48V/51.2V | 48V/51.2V | 48V/51.2V | |||||
Nominal Capacity | 100Ah | 150Ah | 200Ah | 300Ah | 400Ah | |||||
Energy | 4.8kWh/5.12kWh | 7.2kWh/7.68kWh | 9.6kWh/10.24kWh | 14.4kWh/15.36kWh | 19.2kWh/20.48kWh | |||||
Dimensions (H x L x W) | 680x480x180(220)mm | 920x730x235mm | ||||||||
Weight | 58.5kg/60.5kg | 75kg/78kg | 96.5kg/105.5kg | 140kg/150kg | 235kg/250kg | |||||
Basic Parameters | ||||||||||
Life time(25°C) | 15~20 years | |||||||||
Life cycles(80% DOD, 25°C) | 6000 Cycles | |||||||||
Storage time / temperature | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | |||||||||
Operation temperature | -20°C to 60°C @60+/-25% Relative Humidity | |||||||||
Storage temperature | 0°C to 45°C @60+/-25% Relative Humidity | |||||||||
Battery standard | UL1973/UL2580(CELL), IEC62619, UN38.3, CE-EMC | |||||||||
Enclosure protection rating | IP21 | |||||||||
Electrical Parameters | ||||||||||
Operation voltage | 42-54 Vdc/44.8-57.6 Vdc | |||||||||
Max. charging voltage | 54 Vdc/57.6 Vdc | 54 Vdc/57.6 Vdc | 54 Vdc/57.6 Vdc | 54 Vdc/57.6 Vdc | 54 Vdc/57.6 Vdc | |||||
Max. constant charging/discharging current | 100A | 100A | 100A | 200A | 200A | |||||
Key Features
●LiFePO4 composition – provides exceptional safety and longevity
●High safety and reliability
●6,000cycles/more than 15 years’ service life
●Consistent performance over wide temperature range
●Wall-mounted/Wheel stand, convenient installation
●Integrated state-of-the-art BMS to manage and monitor battery information including voltage,
current and temperature as well as balance cell charging/discharging rates
●5-10 years warranty
●High safety and reliability
●6,000cycles/more than 15 years’ service life
●Consistent performance over wide temperature range
●Wall-mounted/Wheel stand, convenient installation
●Integrated state-of-the-art BMS to manage and monitor battery information including voltage,
current and temperature as well as balance cell charging/discharging rates
●5-10 years warranty

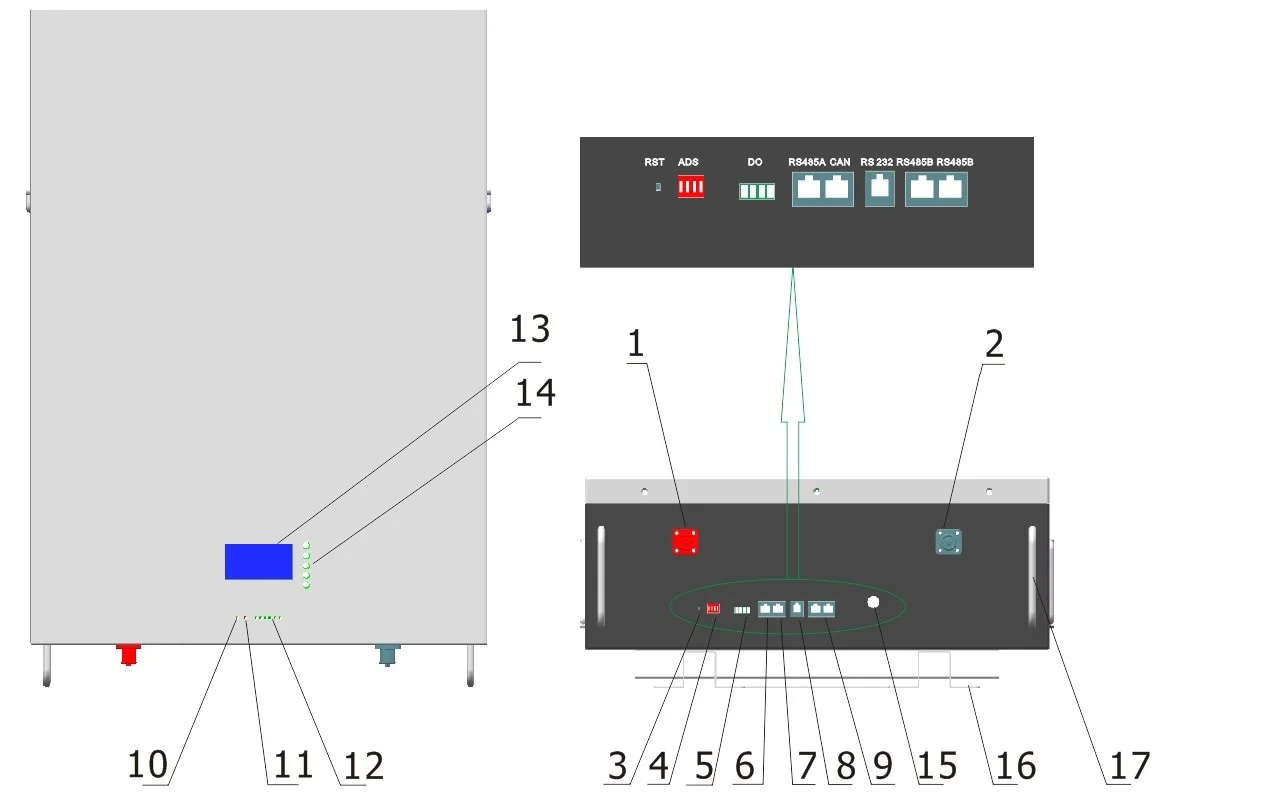

Interface Introduction
●This section details the interface functions of front and back panel.
●Front interface:
●Front interface:
No. | Description | Silk-screen | Remark |
1 | UES0800 | P+ | Output terminal |
2 | UES0800 | P- | Output terminal |
3 | port Reset button | RST | Reset the battery |
4 | Dial switch | ADS | Set the address |
5 | Do | ||
6 | RS485A Port | RS485A | RS485 and inverter connection port |
7 | CANbus Port | CAN | CANbus and inverter connection port |
8 | RS232 Port | RS232 | RS232 communication port |
9 | RS485B port | RS485B | RS485 parallel communication interface |
10 | LED | RUN | Operation indicator |
11 | LED | ALM | Alarm indicator |
12 | LED | CAPACITY | Capacity indicator |
13 | LCD | ||
14 | LCD Key | ||
15 | switch | ||
16 | Bracket | ||
17 | Handle |
Projects
PAC 60kWh
Residential solar power system 60kWh all in one storage lithium battery 15kW output
PAC 38.4kWh 48V 800Ah
PAC Rack Type 30kwh + Wall-mount type 20kwh Solar Storage Battery Installed in the USA
PAC 12kWh 400V 32Ah
PAC 400V Powerwall battery 12kwh with high voltage GoodWe inverter for residential energy storage in Thailand
PAC 30kWh 48V 200Ah
PAC solar storage battery 48V 30kwh powerwall+8kW split phase hybrid inverter for residential
PAC 150kWh 384V
PAC 150kWh Solar LiFePO4 battery with 40kW solar panels 15kW windmill for dairy farm in New Zealand
PAC 40kWh 48V 800Ah
PAC 40kWh 48V 800Ah all-in-one solar battery system 8kva hybrid inverter for outdoor use
PAC 80kWh 48V 200Ah
PAC 48V 80kWh Off-grid Commercial Solar Project in USA 48V 200Ah 8pcs Batteries in Parallel
PAC 10kWh 51.2V 200Ah
PAC 10kwh powerwall 51.2V 200ah lifepo4 storage battery for solar hybrid system with Victron inverter
PAC 10kWh 51.2V 200Ah
PAC 48V Powerwall home storage battery 10kwh with Goodwe hybrid inverter for residential solar power system in Thailand

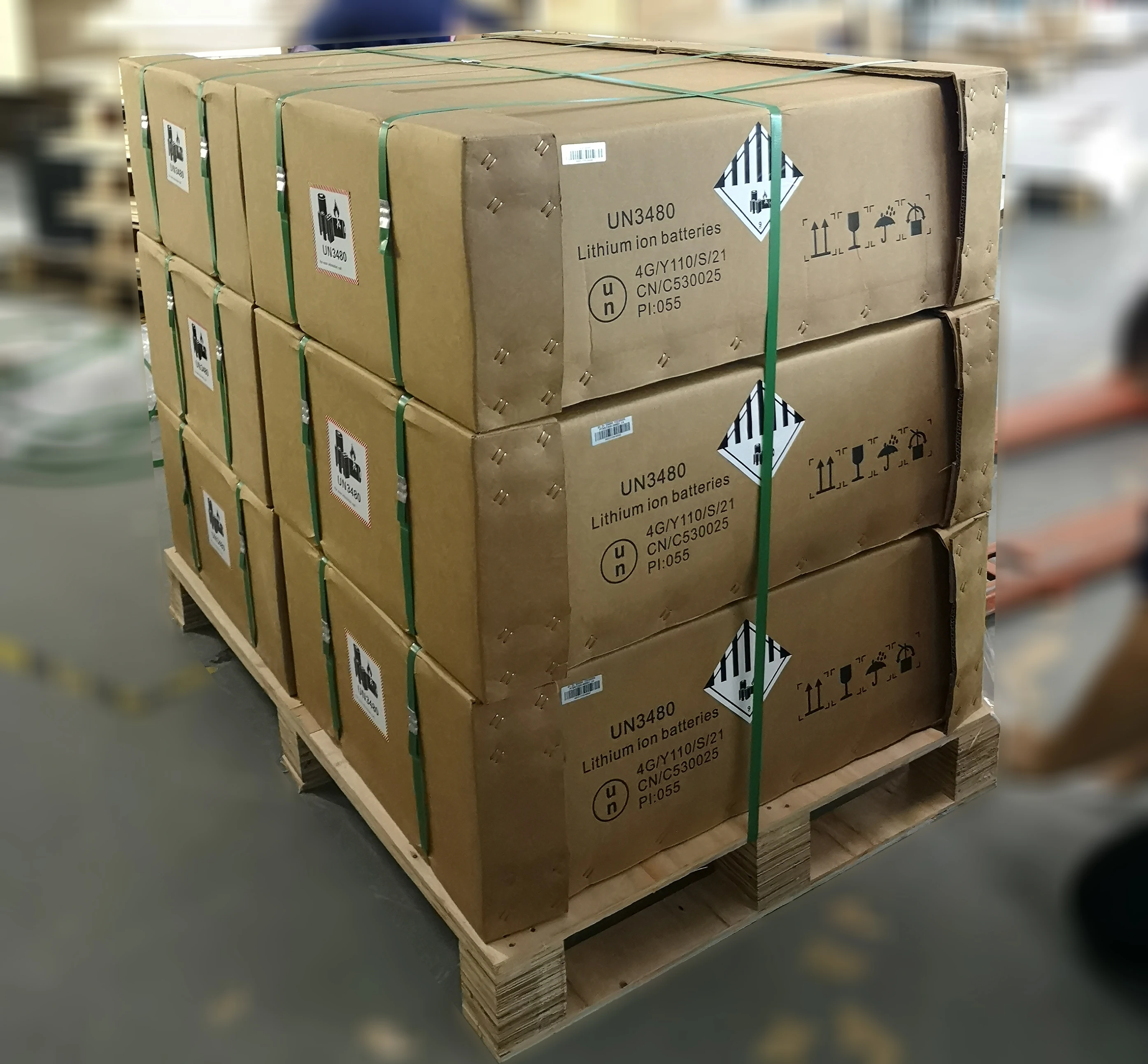

Packing & Delivery
1set/carton, 100 sets/20GP.
Company Profile
PAC Technology Co.,Limited has been in the lithium battery industry since 2010. The company was founded primarily to
make a difference in the changing global environment and contribute our strength to make a "clean, efficient, friendly" world.
With the company development, now PAC Battery has abundant manufacturing experience and strong new product R&D
capability in LiFePO4/Lithium ion batteries and solar energy storage systems, including 12v battery, 24v battery, 48v battery and high voltage storage batteries.
With self-developed key technologies, PAC dedicates to ESS(Energy Storage System) applications, which cover home
energy storage system and commercial energy storage system.
Our goal is to establish long-term cooperation with worldwide customers on the basis of "stable quality, professional
technology, and good service".
make a difference in the changing global environment and contribute our strength to make a "clean, efficient, friendly" world.
With the company development, now PAC Battery has abundant manufacturing experience and strong new product R&D
capability in LiFePO4/Lithium ion batteries and solar energy storage systems, including 12v battery, 24v battery, 48v battery and high voltage storage batteries.
With self-developed key technologies, PAC dedicates to ESS(Energy Storage System) applications, which cover home
energy storage system and commercial energy storage system.
Our goal is to establish long-term cooperation with worldwide customers on the basis of "stable quality, professional
technology, and good service".
FAQ
1. Can you provide a sample for quality test?
---Yes, we can provide samples.
2. Can you accept OEM and ODM Service?
---Yes, Most of our batteries are customized, so please tell me your requirements, we will provide the best solution for you.
---Yes, we can provide samples.
2. Can you accept OEM and ODM Service?
---Yes, Most of our batteries are customized, so please tell me your requirements, we will provide the best solution for you.
3. What’s the minimum order MOQ?
---This depends on the battery model. For power storage wall battery, power storage brick battery and rack Lifepo4 battery module, we don’t have MOQ requirements.
---This depends on the battery model. For power storage wall battery, power storage brick battery and rack Lifepo4 battery module, we don’t have MOQ requirements.
4. What’s your payment term?
---TT, LC, West Union, Paypal etc.
---TT, LC, West Union, Paypal etc.
5. What’s your warranty for products?
---5~15 years, depends on different batteries. For quality problems, we can send new ones for replacement.
---5~15 years, depends on different batteries. For quality problems, we can send new ones for replacement.
6. How long will be the delivery?
---Generally delivery time is 15-30 days, depends on the shipping method.
---Generally delivery time is 15-30 days, depends on the shipping method.
7. How do you control your product quality.

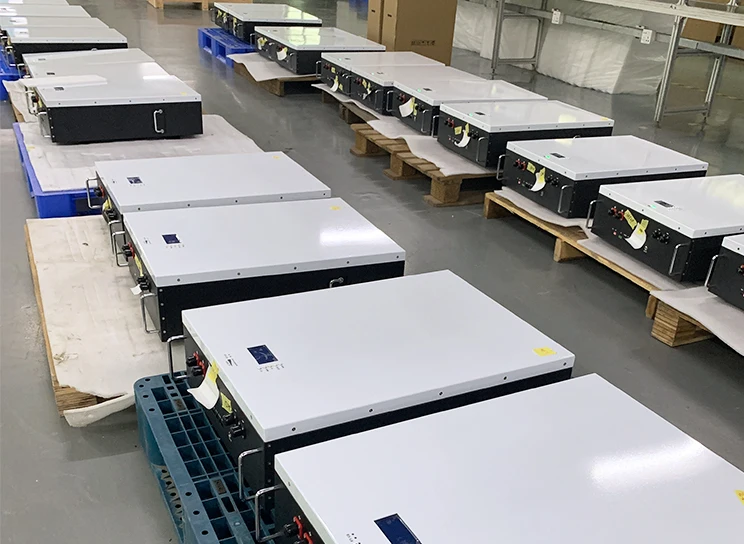

---We control quality from the source. We choose the top quality electric vehicle grade battery cells with best consistency, use advanced assembly technology and modular design, do 100% inspection after each process.
---We control quality from the source. We choose the top quality electric vehicle grade battery cells with best consistency, use advanced assembly technology and modular design, do 100% inspection after each process.
8. How can you send batteries to our address?
---We can send the lithium batteries by sea, by air, by express, by train and by truck, with DDU/DDP service.
---We can send the lithium batteries by sea, by air, by express, by train and by truck, with DDU/DDP service.
