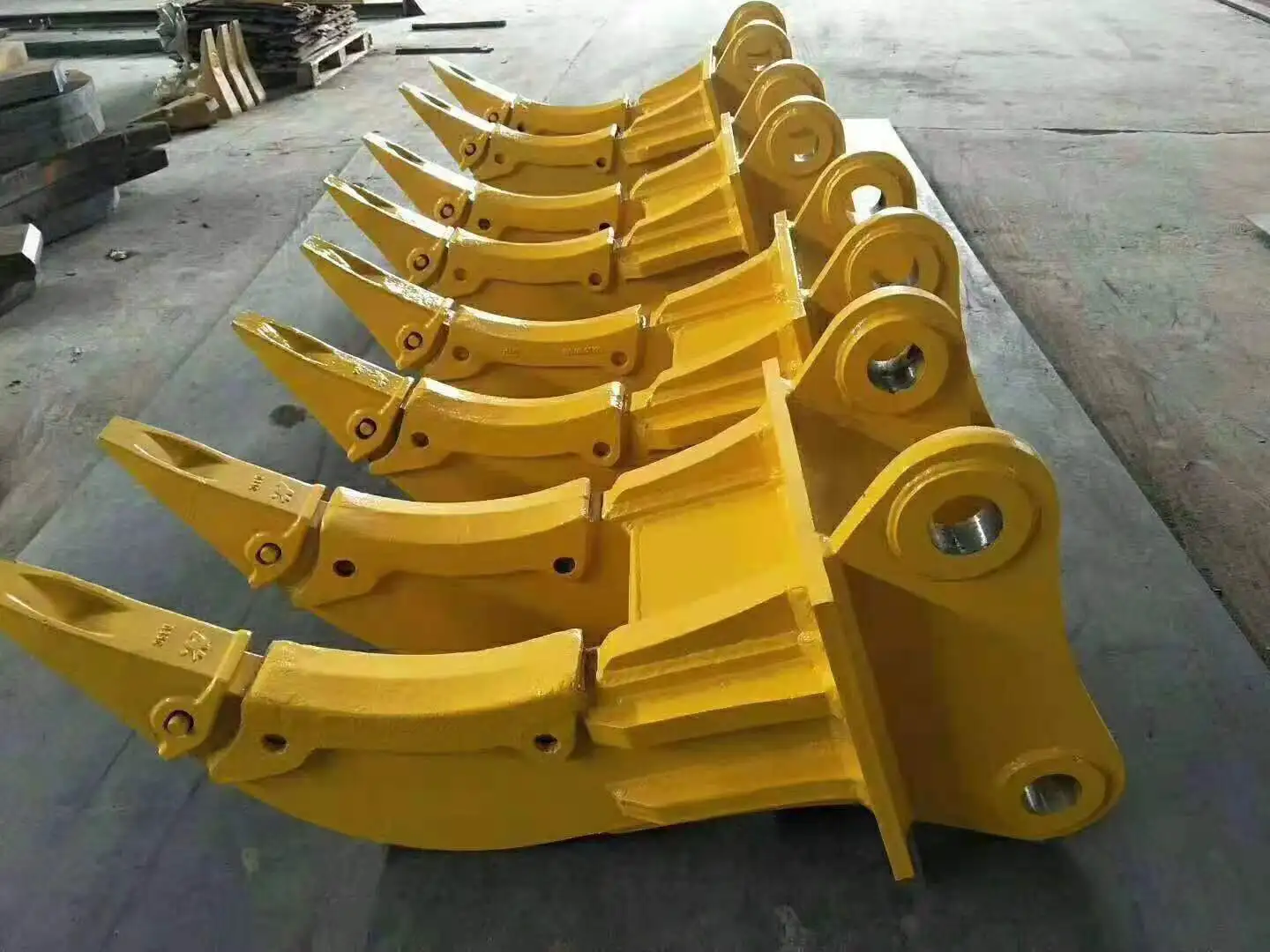

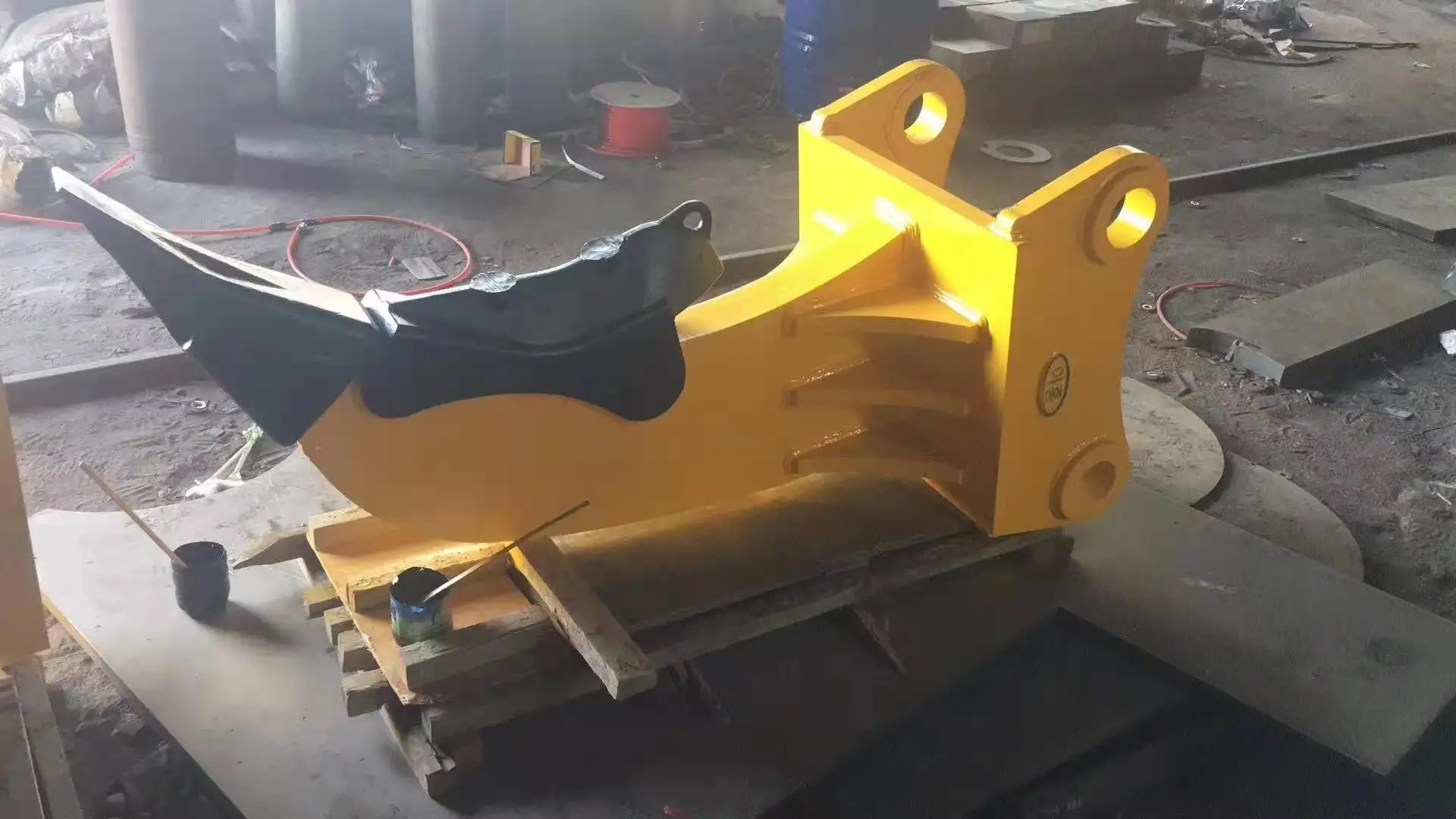

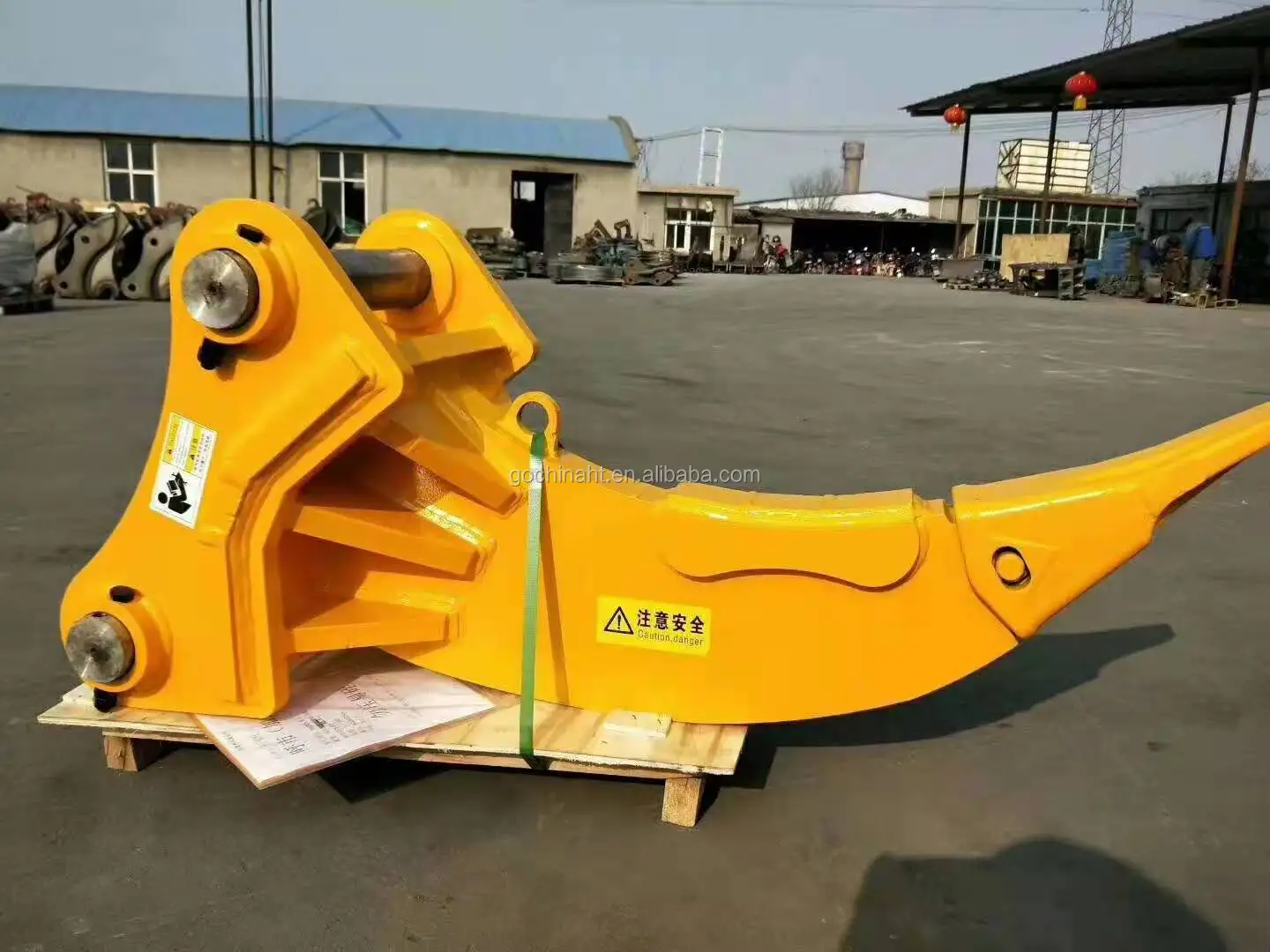

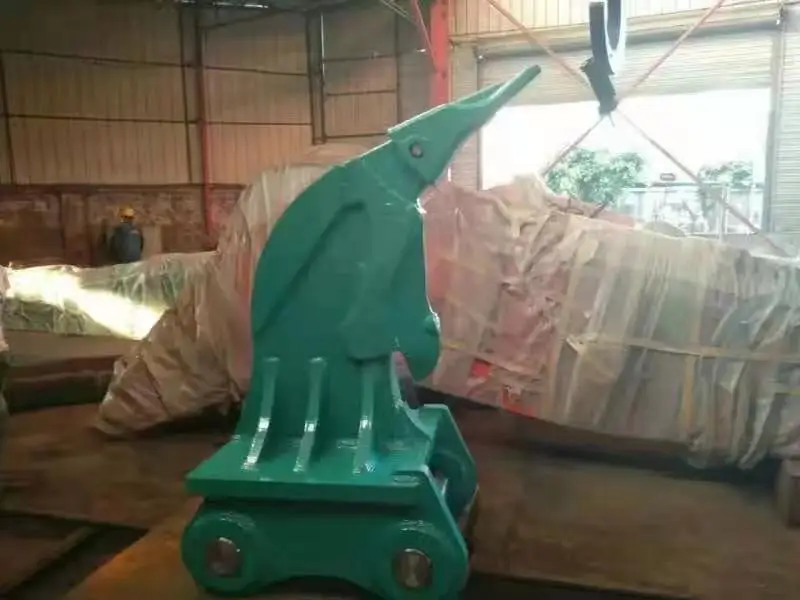

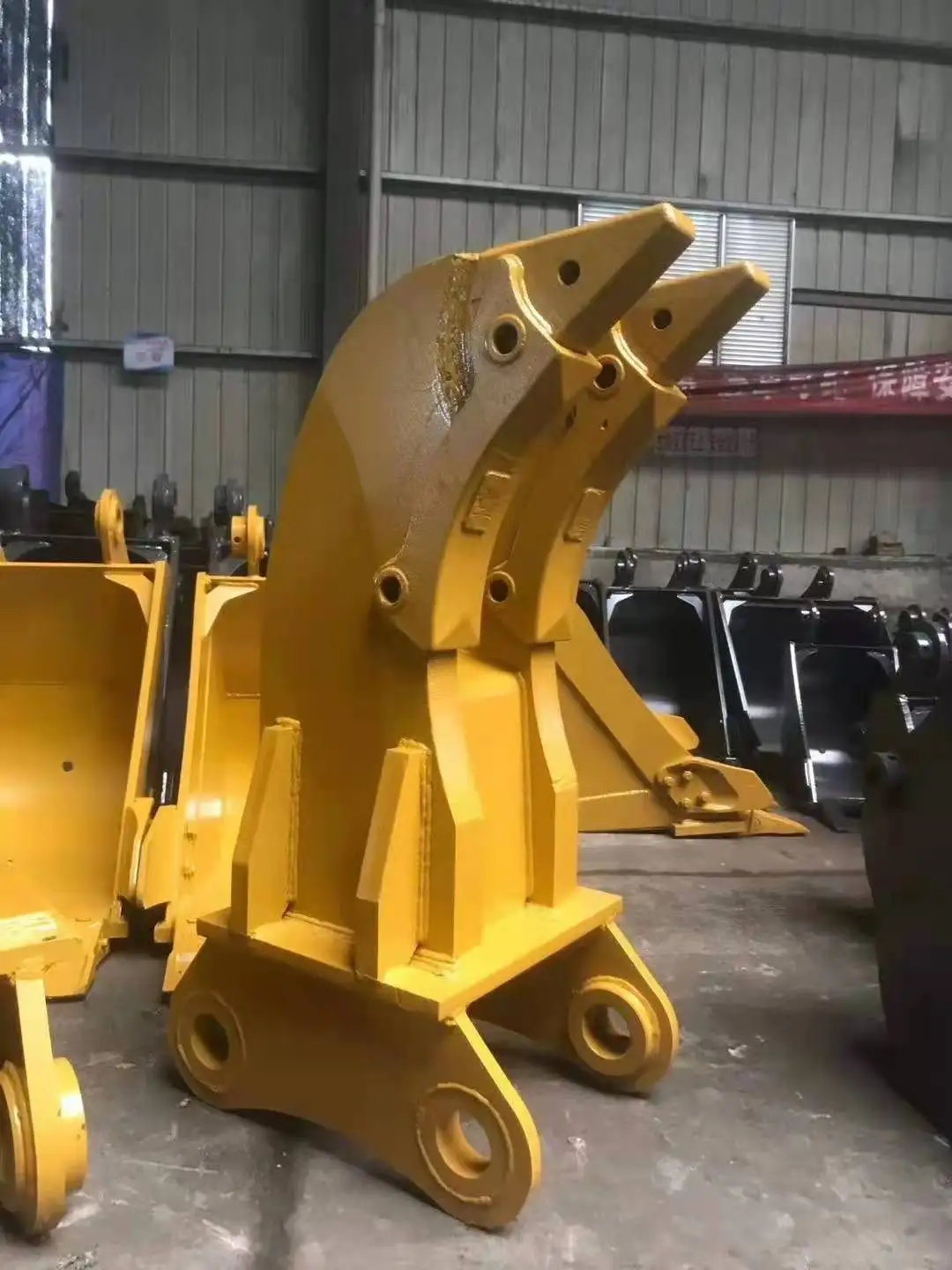

SANY Doosan CAT One Tooth Excavator Ripper Hydraulic Vibrate Ripper of Excavator Attachments
- Category: >>>
- Supplier: Guangzhou Huitong Machinery Co. Ltd.Guangzhou Ltd.
Share on (1600439779576):
Product Overview
Description
Production Description

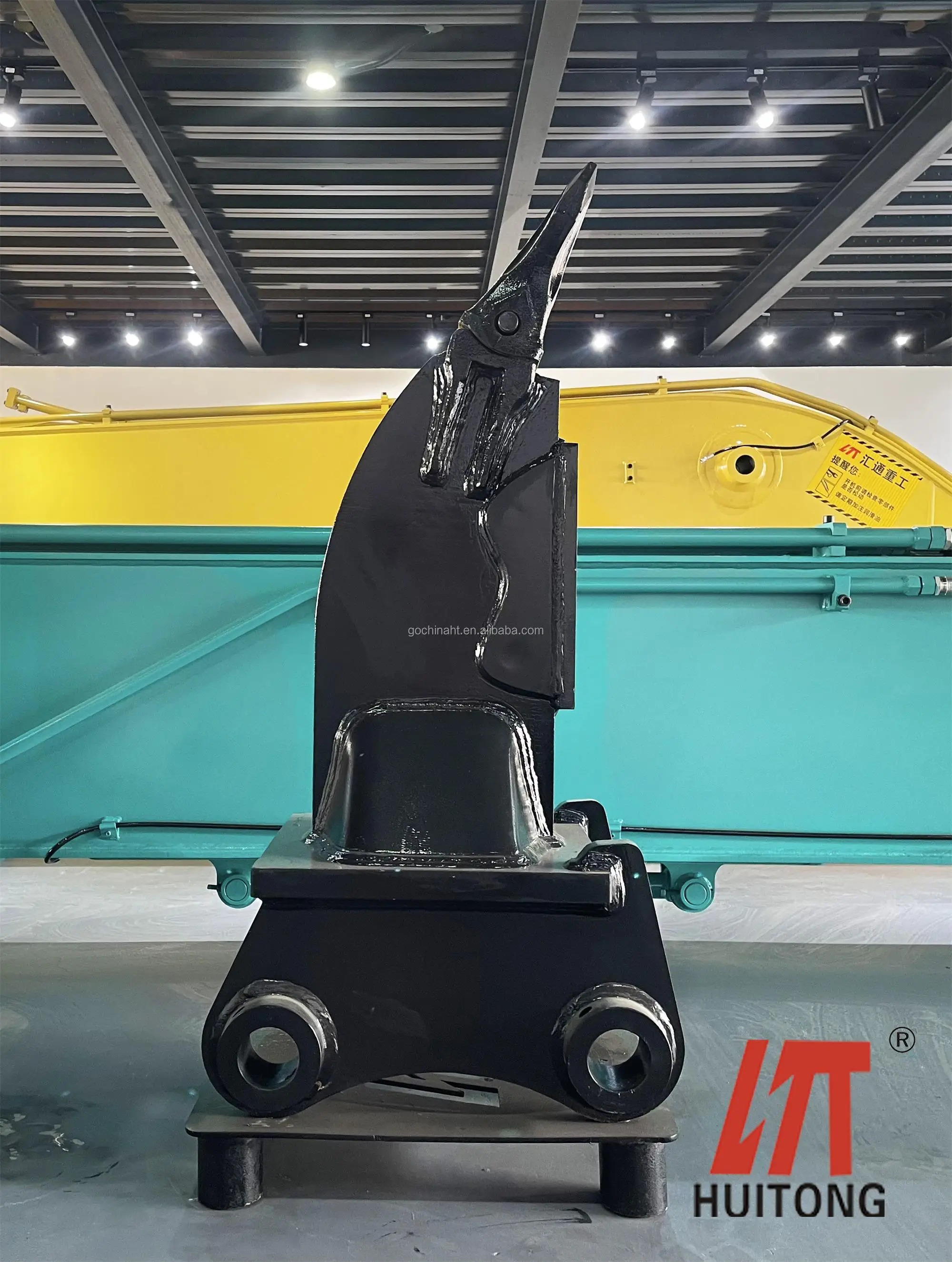

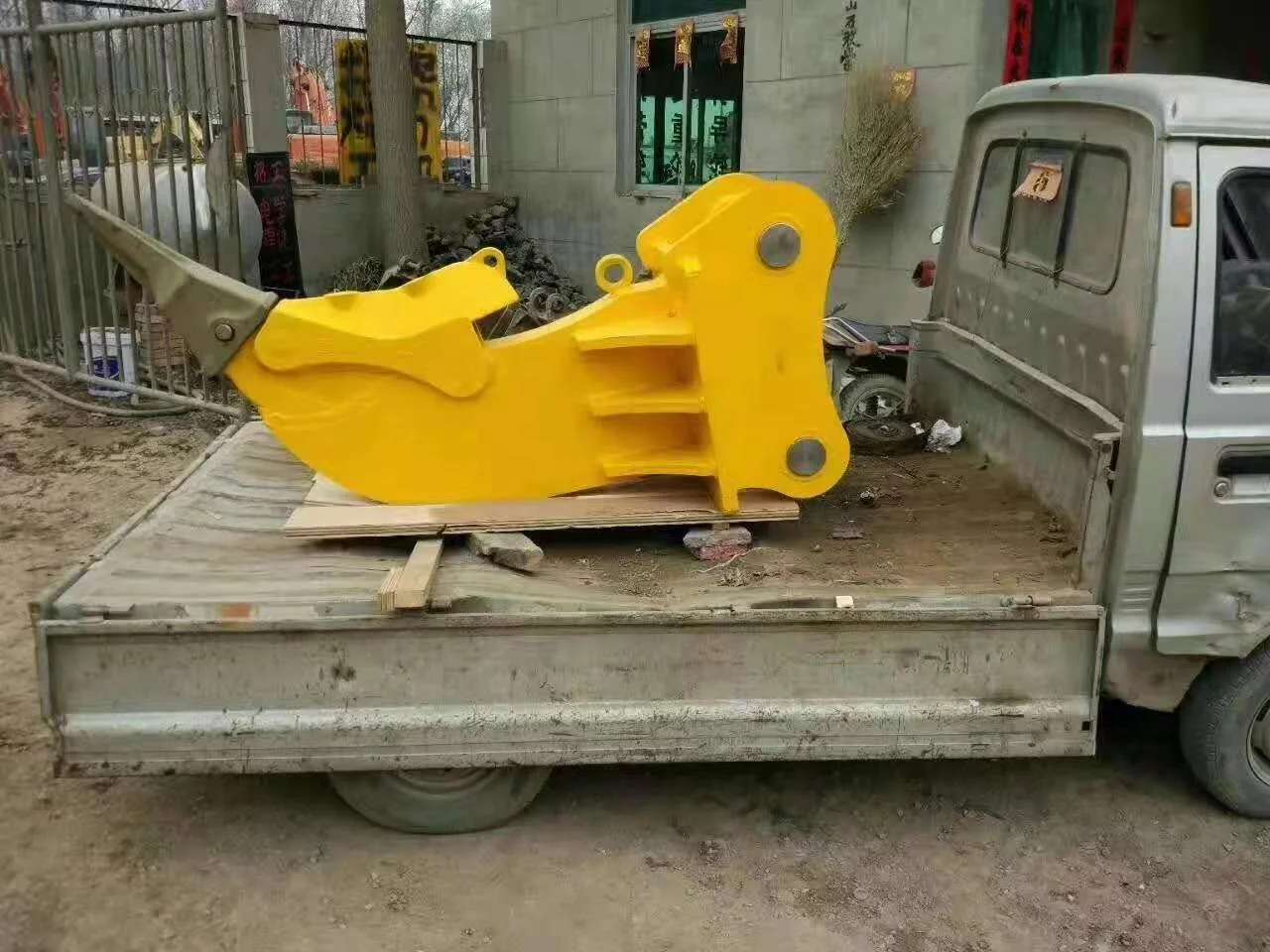

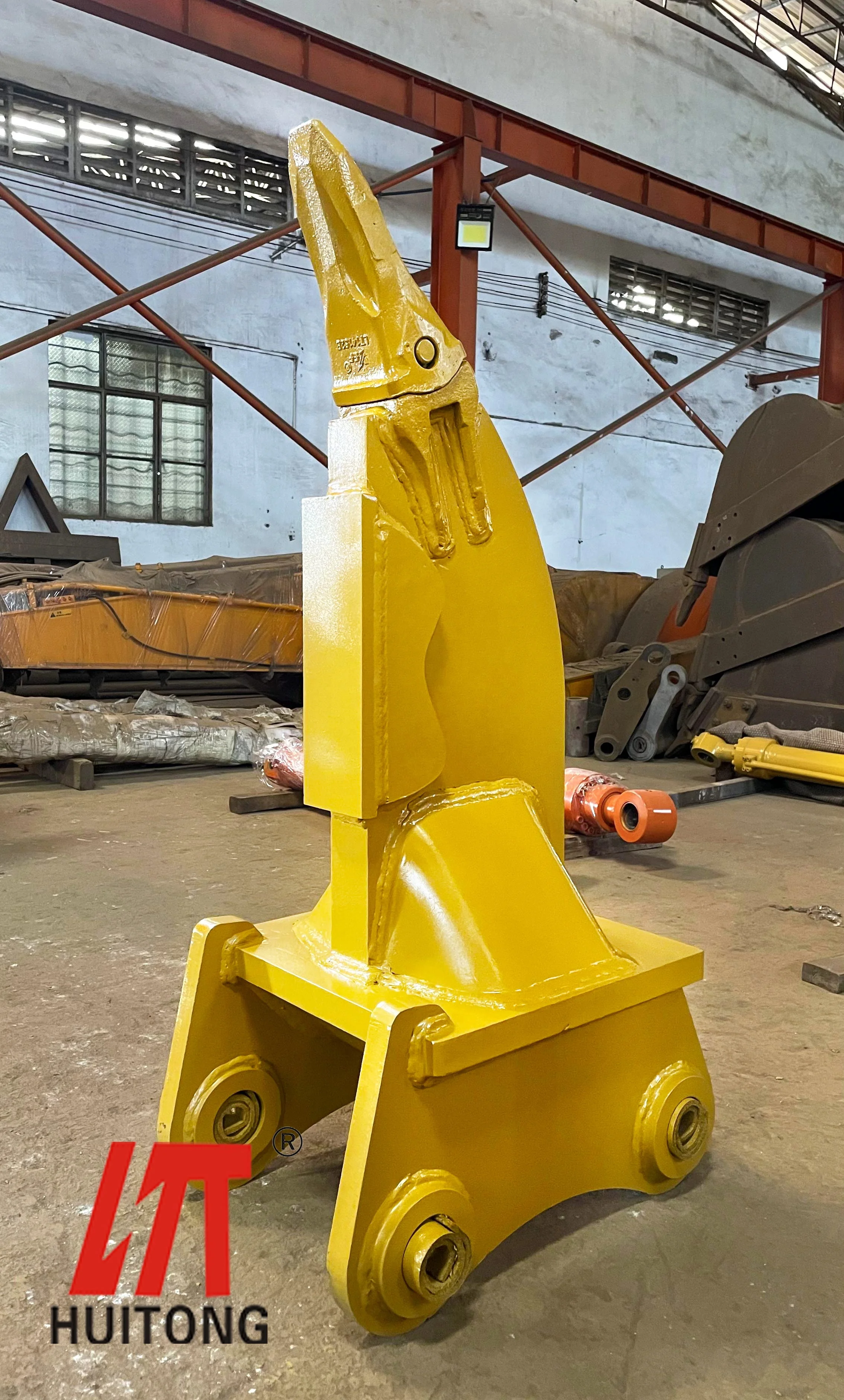

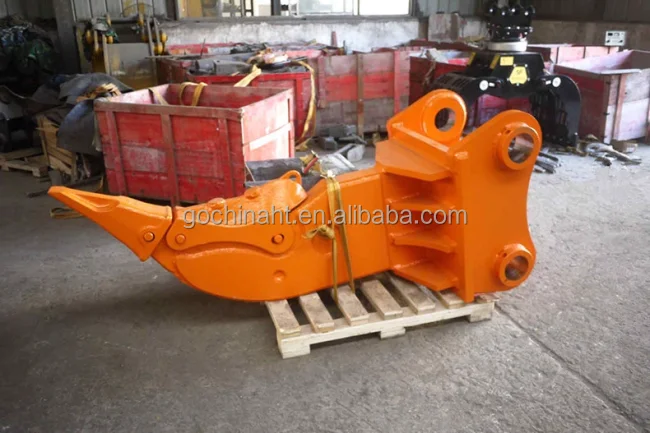

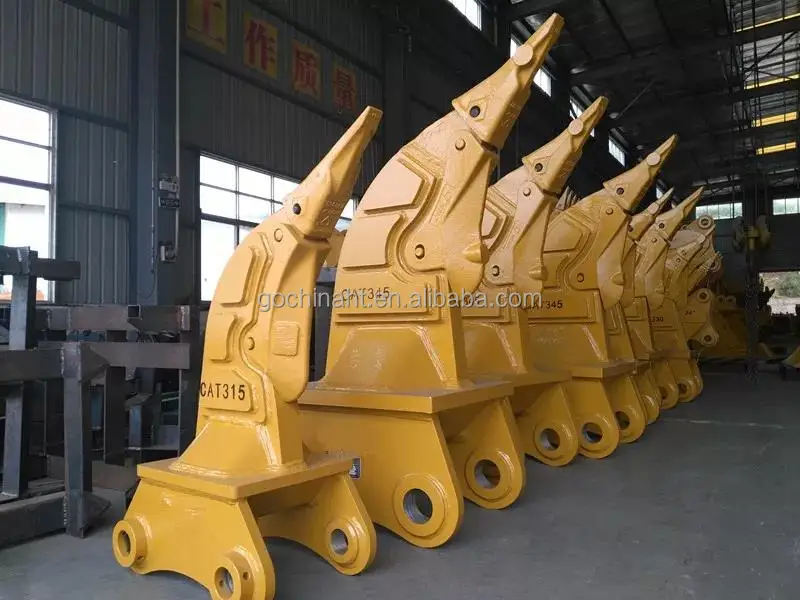

Huitong Excavator Ripper, also went by Stump Ripper, Frost Ripper, is a convertible breaking and scarifying Equipment.
It could be divided into excavator ripper and bulldozer ripper. Comparatively speaking, Excavator ripper has stronger cuting power. It's highlyl efficient when it came to break hard ground, freezing ground or other hard-packed material. Moreover, multi-teeth ripper is also available.
Machine Weight (lbs) | Main plate thickness (in) | Weight (lbs) | Teeth (Optional) | Material |
13220-22040 | 2.4 | 837 | PC100 | Q355B |
24250-35270 | 3.1 | 1190 | PC200 | Q355B |
37470-44090 | 3.9 | 1499 | PC300 | Q355B |
46290-52910 | 3.9 | 1587 | PC300 | Q355B/Q460/NM360 |
55110-66130 | 3.9 | 1719 | PC400 | Q355B/NM360 |
68340-77160 | 3.9 | 1807 | PC400 | Q355B/Hardox500 |
Material | Code | Hardness(HB) | Extension(%) | Drag and extension intensity (N/mm2) | Bend Intensity (N/mm2) |
Alloy | Q355B | 163-187 | 21 | 470-660 | 355 |
Chinese High-Strength alloy | NM360 | 360 | 16 | 1200 | 1020 |
High-Strength alloy | HARDOX-500 | 470-500 | 8 | 1550 | 1300 |
A: Heavy-duty teeth
Fitted heavy-duty replaceable tooth to ensure the best results and wear resistance;
B: Nose protector
Ransun ripper add a blade to protector ripper to prevent fracture, broken.
NM400 material used in this plate to ensure the using life
Reinforced the whole structure, prevent the ripper body separate with ear plate
