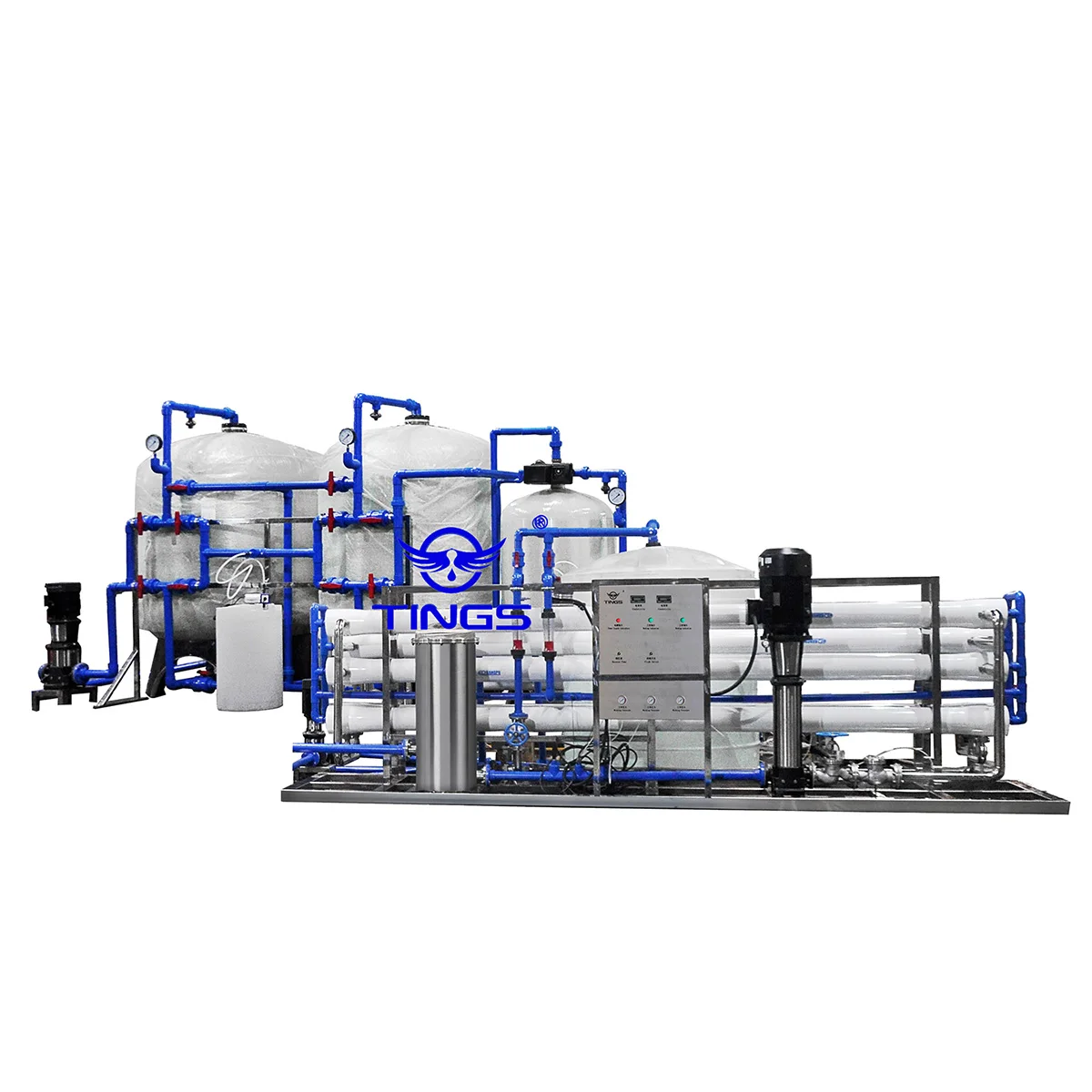

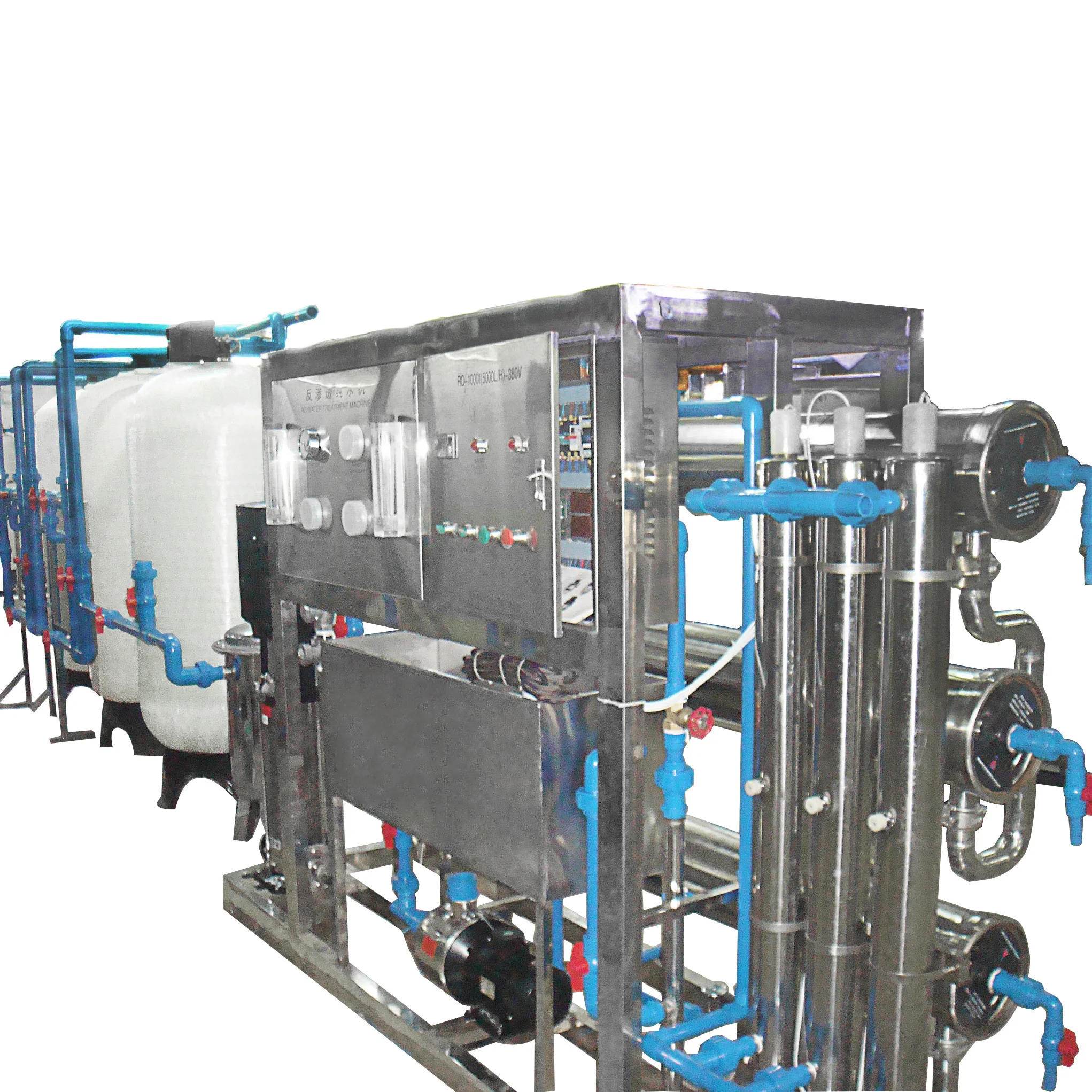

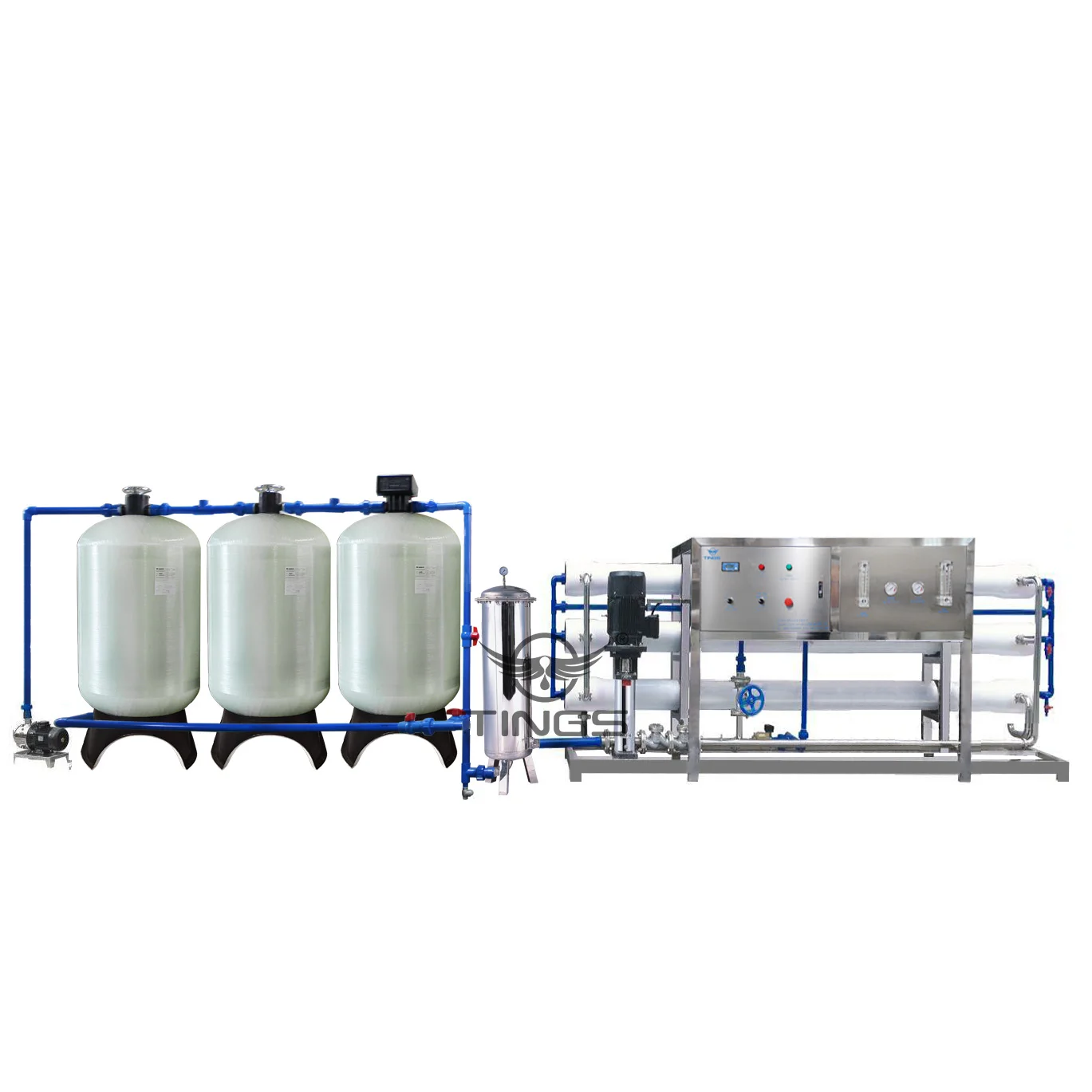

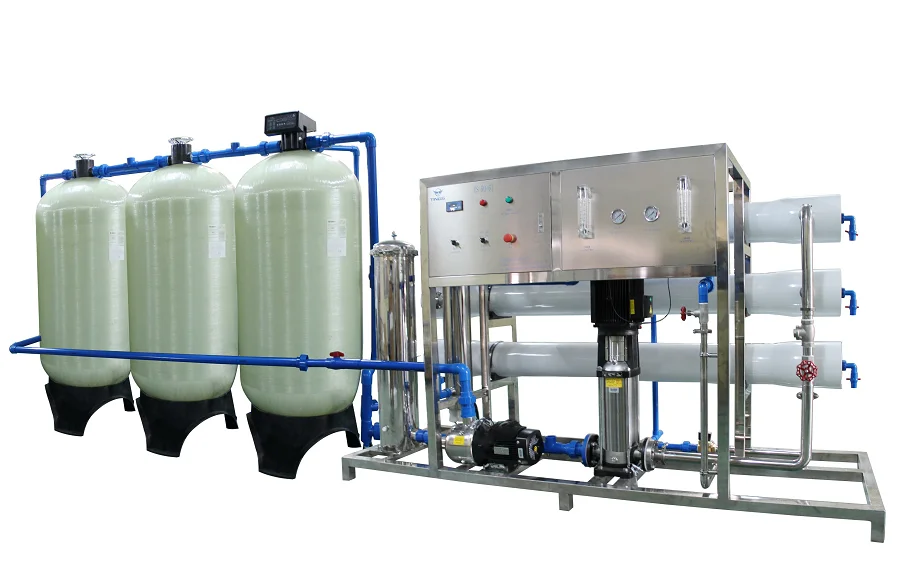

10000LPH large capacity osmosis reverse ro system water water plant manufacturing
- Category: >>>
- Supplier: Jiangmen Tings Drinking Water Equipment Co. Ltd.
Share on (1600439786676):
Product Overview
Description

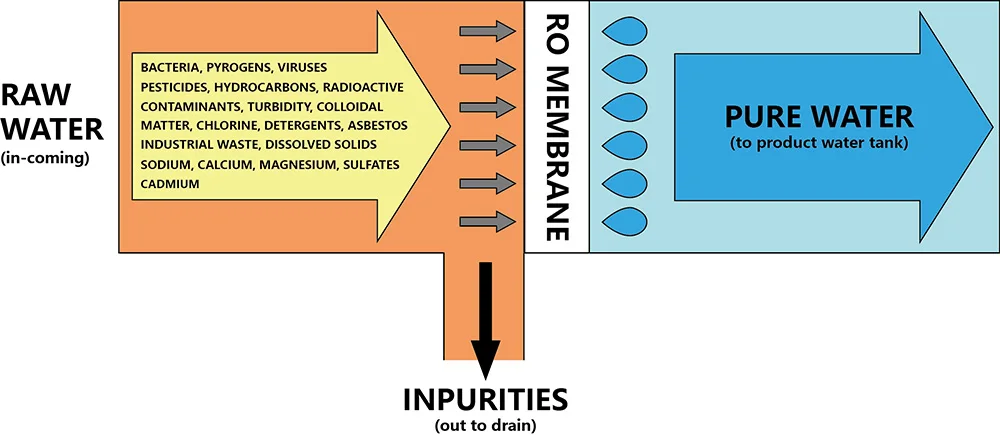

About RO Water Treatment
The RO (Reverse Osmosis) water treatment plant removes unwanted particles (salts), hardness, microorganism and impurities in the water in order to improve the color, odour, taste or properties of the fluid.
The product water is pure water for a specific use, such as daily use, direct drinking, industrial water use, commercial beverage production (bottled water, juice, tea, carbonated drinks, wine, beer, etc.), cosmetic production, food processing, hotels and restaurants, pharmaceutical and hospital use, and so on.
Technical Data
Production Name | 10000LPH large capacity osmosis reverse ro system water water plant manufacturing |
Capacity | 10000 liter(25℃) |
Power | 3kw |
Working Voltage | 380V/50Hz (Can be customized) |
Booster pump | BLC70/075 type, 0.75kw, 1set |
Quartz sand filter | Ф1600X1800mm, 1 set, Quartz sand 800kgs |
Activated carbon filter | Ф1600X1800mm, 1 set, Activated carbon 550kgs |
Water Softener | Ф760X1800mm, 1 set, cation 250L |
Precise filter | Ф195×500mm, 1 set, stainless steel 304 |
Multistage pump | CDL2-180 type, 2.2KW |
RO membranes | 8040 type, 9pcs |
Details Images
Control Panel & Gauges
Electric Box

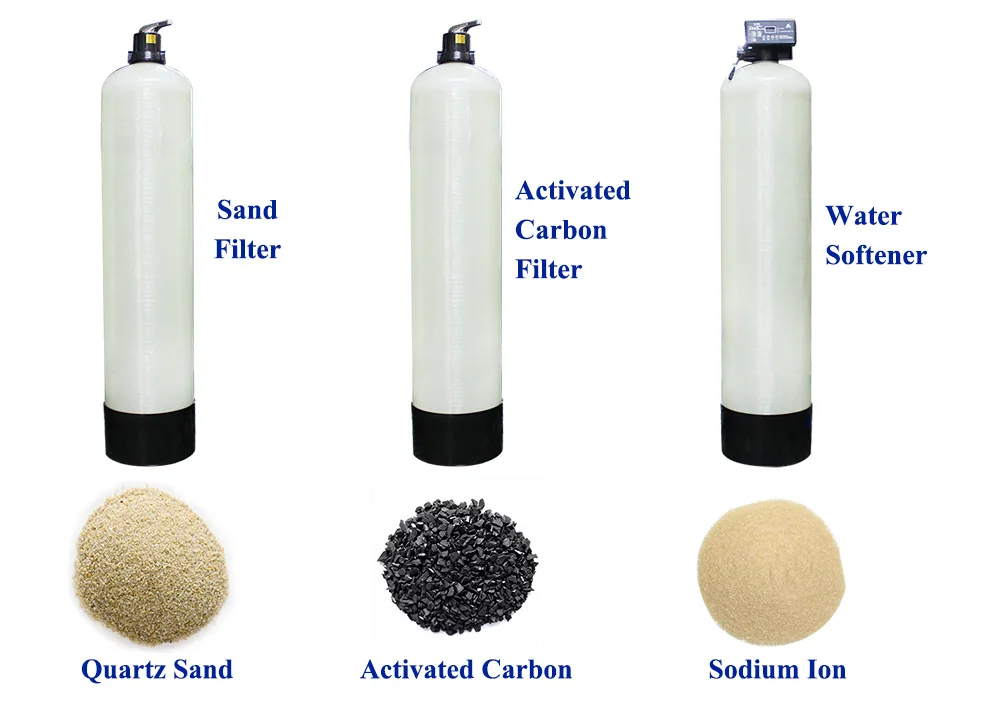

Prefilter

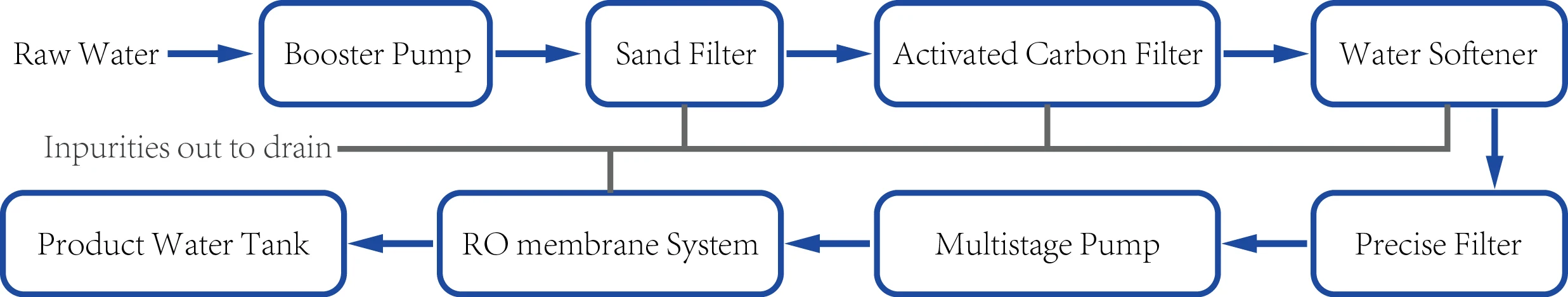

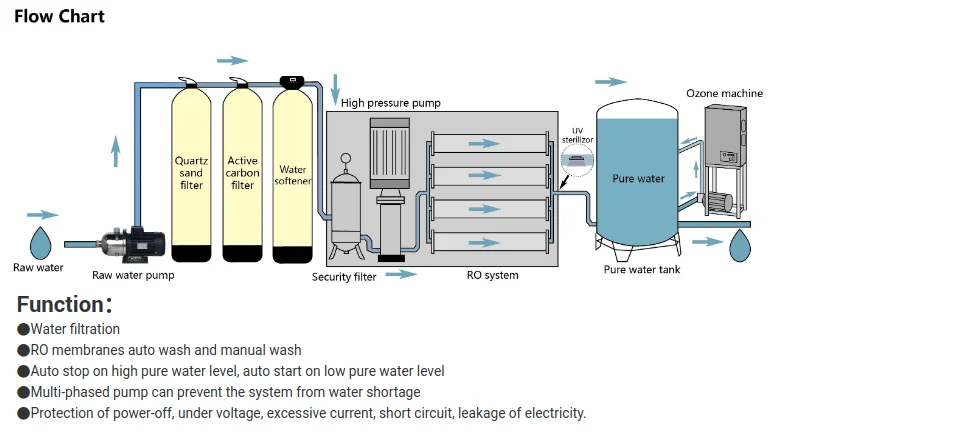

Technical Process
Process Description

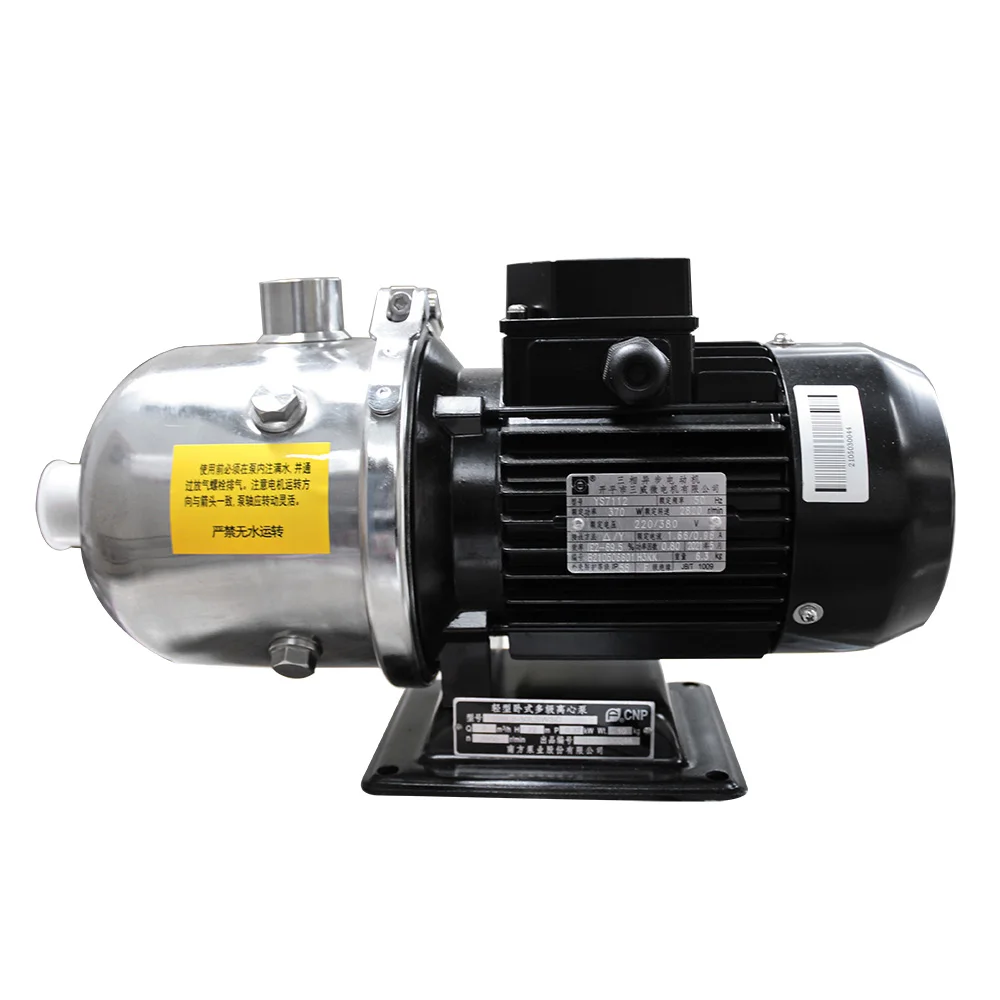

► Booster Pump
The device provides stable water source and pressure to the back-end treatment system.
▶ Prefilter
▷ Quartz Sand Filter
The device filters the impurity substance and disposes of the divalent iron and manganese ion in the raw water. It is equipped with automatic control valve, which can discharge the sediment by its automatic back washing function.
▷ Activated Carbon Filter
This filter removes the colors and smells of the raw water to improve the water's flavor.
▷ Water Softener
This device soften the water by oxidizing the calcium ion and magnesium ion in the raw water with cation.

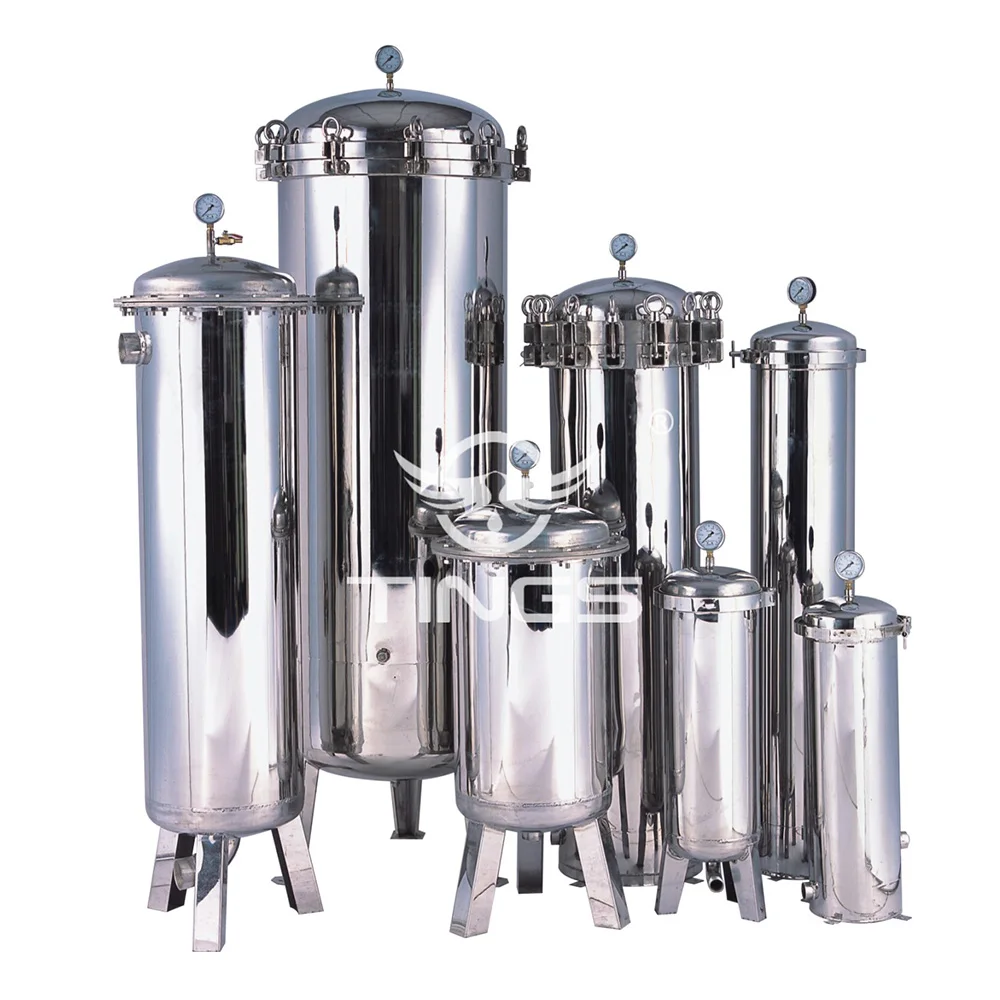

▶ Precise filter
With the filtering accuracy of ≤5μm, the precise filter can filter the particle impurity substance in the raw water from the front-end filters. It can prevent impurity substance from flowing into and thus blocking up the reverse osmosis membrane system, so as to decrease power consumption more effectively.

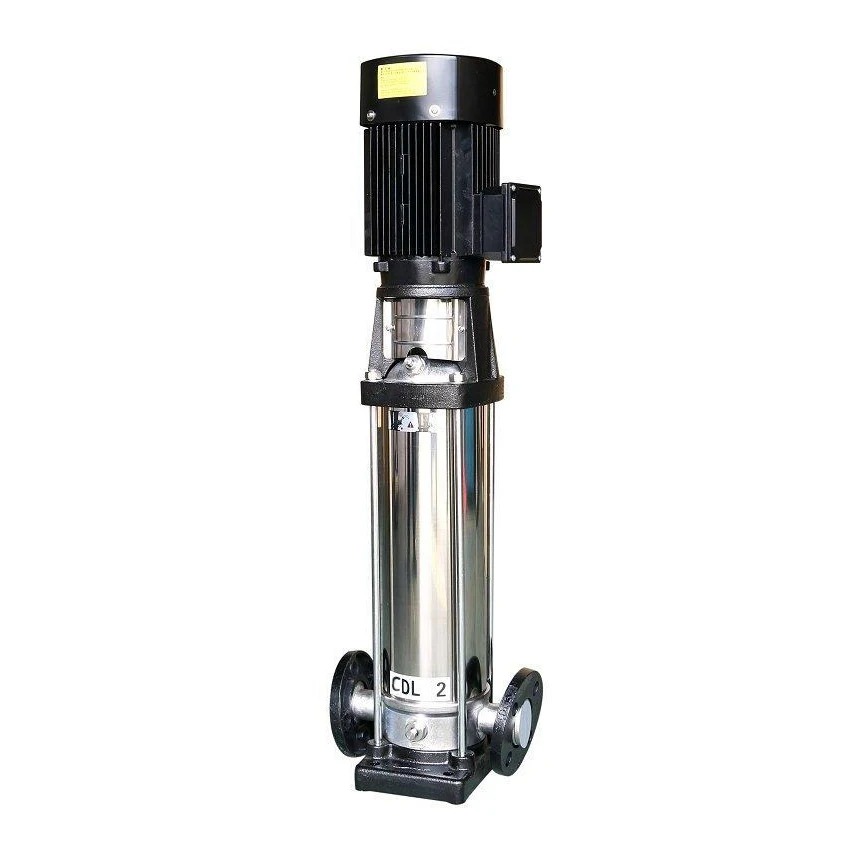

▶ Mutistage Pump
to the reverse osmosis membrane system.
▶ RO Membrane System
Function Of The Machie
● RO membranes auto wash and manual wash
● Auto stop on high pure water level, auto start on low pure water level
● Multi-phased pump can prevent the system from water shortage
● Protection of power-off, under voltage, excessive current, short circuit, leakage of electricity.
● Auto stop on high pure water level, auto start on low pure water level
● Multi-phased pump can prevent the system from water shortage
● Protection of power-off, under voltage, excessive current, short circuit, leakage of electricity.
Optional Devices
Dosing Machine
● By dosing flocculant into the water, it enhance the sediment of the unwanted impurities and colloidal matters, etc.
● By dosing scale inhibitor into the water, it prevents the Calcium and magnesium ion from forming scale, so as to protect the membrane filtration system.
● By dosing PH adjusting agent, it changes the water PH value into the
ideal result
● By dosing scale inhibitor into the water, it prevents the Calcium and magnesium ion from forming scale, so as to protect the membrane filtration system.
● By dosing PH adjusting agent, it changes the water PH value into the
ideal result
Ozone Mixing Tower
Function:
fully mixing of the ozone and water, making it the best ozone sterilizing effect.
UV Sterilizing Device
Function: sterilize the bacteria in the water
Capacity: 2000L per hour
Water Tank
Material: stainless steel 304
Function:
Function:
Raw water or product water storing. It is better to connect with a ozone machine to sterilize the bacteria in the water.
Volume: 1000L to 15000L or more
Volume: 1000L to 15000L or more
Ozone Machine
Material: stainless steel 304
Ozone output: 3 to 32g/H
Function: to produce ozone and pump it to the water tank or ozone mixing tower, so that the ozone can fully sterilize the disinfect the water in the mixing circulation process.
Ozone output: 3 to 32g/H
Function: to produce ozone and pump it to the water tank or ozone mixing tower, so that the ozone can fully sterilize the disinfect the water in the mixing circulation process.
Application
Mineral Water Production Industry
Soft Drink Production Industry
Wines & Beers Production Industry
Daily Drinking Water
Irrigation
Breeding Industry
Food Processing Industry
Cosmetic Industry
Paper Making Industry
Canton fair
This is the photos we were in the 2019 canton fair
Product Packaging & Delivery
FAQ
Are you manufacturer or trader?
We are manufacturer in Jiangmen City (the neibour city of Guangzhou and Foshan), Guangdong Province, China.
Do you have any certificate?
Yes, we have SGS and CE cetificates.
How long does the production take?
Normally, 15 to 60 days. It depends on what kind of products you are ordering.
What products are you specialized in?
We are specialized in all equipment for water treatment system and beverage production line.
What about your machines' quality?
All of our machine are made of high quality materials, such as stainless steel 304/316 of national standard (nickel ≥8%). All other parts are integrated formed and processed by our own workshop. We have a group of experience technicians who have been working in this field for over 15 years, and all machine will be perfectly made by their mature technology and manufacturing experience.
Is there any quality guarantee about your machines?
We promise one year quality guarantee for all our machine.
