Wisnetworks Dual 2.4&5GHz 1750Mbps internet acess wireless wifi cloud indoor ceiling access point AP for Ubiquiti UniFi AP LR
- Category: >>>
- Supplier: WIS NETWORKS LIMITED
Share on (1600439818143):
Product Overview
Description
Products Description
The WisCloud Access Point is the innovative series of products with remarkable performance in their features. All configur
ation and management is centrally and effectively operated by the same set of WisCloud Controller. It would be much easi
er to monitor the massive APsand more efficient to maintain the enterprise networks
ation and management is centrally and effectively operated by the same set of WisCloud Controller. It would be much easi
er to monitor the massive APsand more efficient to maintain the enterprise networks
Integrated Fit AP + AC Architecture
WisCloud Controller is refined designed to suit all Wisnetworks enterprise class AP equipments. A single controller can centrally supervise and manage the WiFi networks and multiple, distributed APs could be taken care and work in a more effective way.

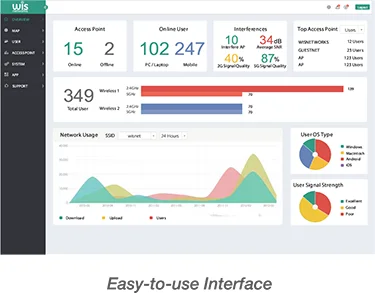

Easy-to-use Interface
No special training is required to operate the controller system. The main parameters of one/multi-WU\\N networks is available on the dashboard. Simple design would also help to easily realize the real-time status monitoring and customized
One minute network configuration
Using the intelligent centrally management between
Ac and AP can quickly synchronize wireless configuration into each AP to complete a unified construction of the wireless network.
Ac and AP can quickly synchronize wireless configuration into each AP to complete a unified construction of the wireless network.
Powerful and Various APs Optional
The wireless speed of WisCloud AP varies from
300Mbps to 1167Mbps due to different requirements. The diverse tx power, antenna gain and installation method of AP features can adapt to different environments.
300Mbps to 1167Mbps due to different requirements. The diverse tx power, antenna gain and installation method of AP features can adapt to different environments.
Remarkable Performance
WisCloud AP possess enterprise class features and
outstanding characters . Comparing to the same
performance products in the market, WisCloud AP
has significantly competitive price.
outstanding characters . Comparing to the same
performance products in the market, WisCloud AP
has significantly competitive price.
On-site & Cloud Management
The controller hardware can be installed either in
networking room/rack or in the cloud bundled with
software for local or remote management.
networking room/rack or in the cloud bundled with
software for local or remote management.

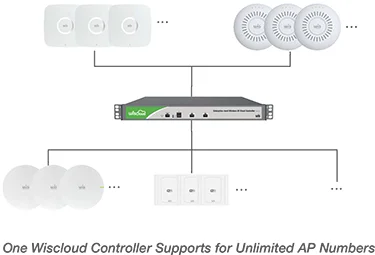

Unlimited AP Numbers
Unlimited AP numbers controlled by WisCloud controller would provide best experience for customers to plan and expand the WLAN networks.
Enterprise Level Radio Chipset
The high speed 720MHz Atheros CPU and 128MB DDR makes WisCloud access points much powerful
to provide a stable connectivity and multifunctional wireless networks.
to provide a stable connectivity and multifunctional wireless networks.
Supports Fat AP & Fit AP Mode
Fit AP has “zero-config”and all wireless network
solution is completed by integrated fit ap and
controller. While fat AP is quite perfect for users who
owns a few APs,working with standalone. Fit AP is
more suitable for enterprise / ISP level wireless
network and massive deployment. WisCloud AP
supports both alternatives.
solution is completed by integrated fit ap and
controller. While fat AP is quite perfect for users who
owns a few APs,working with standalone. Fit AP is
more suitable for enterprise / ISP level wireless
network and massive deployment. WisCloud AP
supports both alternatives.
Easy Installation
With our mounting kits, customers can easily mount
it in different indoor conditions. While the AP is
mounted on the ceiling or on the wall, you can avoid
most interference and extend your Wi-Fi coverage.
it in different indoor conditions. While the AP is
mounted on the ceiling or on the wall, you can avoid
most interference and extend your Wi-Fi coverage.
Support for Standard/Passive PoE
WisCloud Access Point is able to be supplied power by a power injector using 24VDC or 802.3af(48 VDC) PoE technology and make it more flexible to deploy the device in indoor ceiling environment.
Various APs Optional
To meet different requirements from customers, we
provide corresponding AP with different feature
parameters including frequency, speed, tx power
and installation method etc.
provide corresponding AP with different feature
parameters including frequency, speed, tx power
and installation method etc.
Product Paramenters
Physical Characteristics | ||
Processor | Atheros SoC 720MHz | |
Flash / Memory | 128MB DDR, 16MB Flash | |
LAN Port | 1*10/100/1000M Gigabit | |
Button | Reset | |
Power | 48VDC/0.32A 802.3af | |
Max Power Consumption | 15W | |
Working Temperature | -10C 〜60C | |
Working Humidity | 0%〜95% non-condensing | |
Dimension | φ180*56mm | |
Mounting | Ceiling Mount/Wall Mount | |
Certification | CE/RoHS | |
Wireless Characteristics | ||
Wi-Fi Standard | 802.11ac/n/a/g/b | |
Frequency | 2.4GHz&5GHz | |
Speed | 1750Mbps | |
Max Tx Power | 27dBm | |
Antenna | 3dBi Dual Omni | |
Multi-SSID | up to 4 SSID Per Radio | |
Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WRA/WPA2, TKP/AES) | |
Concurrent Clients | 150+ | |
Coverage Range | 200m | |
Advanced Characteristics | ||
Mode | FatAP/Fit AP | |
VLAN | 802.1q | |
Guest Policy | Web Portal/Password | |
MAC Filter | Blacklist | |
User QoS | Speed Limit by User Group | |
Traffic History | Duration/Download/Upload | |
Load Balance | Online User / Bandwidth | |
Wireless Uplink | Supported | |
