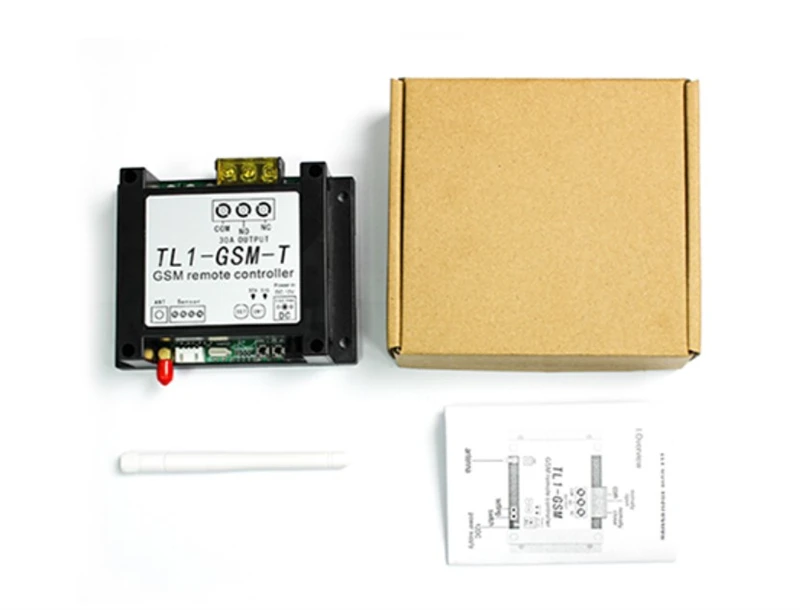

30A Load Electrical Appliances Remotely Turning On/Off GSM Remote Controller Switch 1/2 Output Relay with Temperature Sensor

Product Overview

Description

30A Load Electrical Appliances Remotely Turning On/Off GSM Remote Controller Switch 1/2 Output Relay with Temperature Sensor





Main Features:

1) 30A Max, Support High-power Household Electric Appliances.

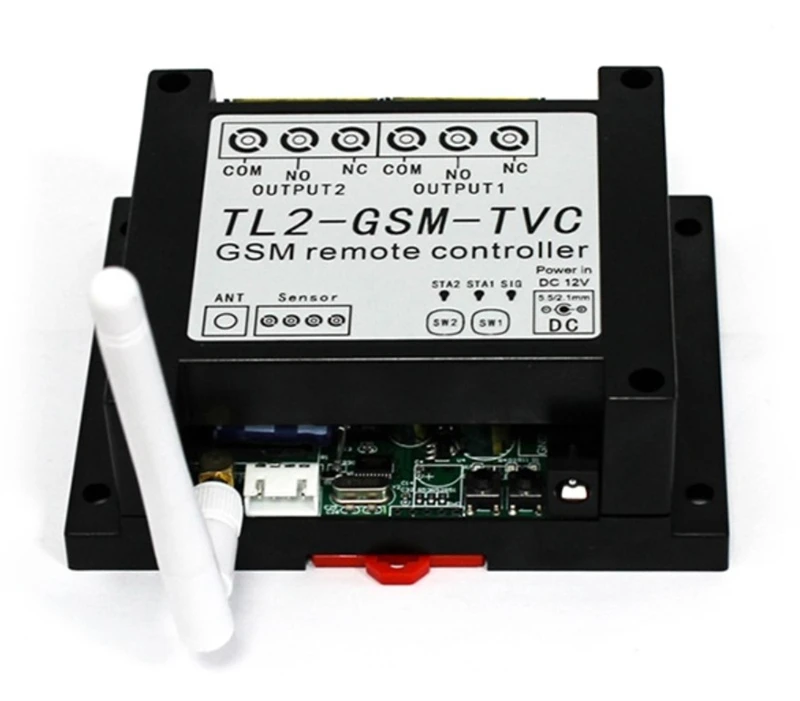

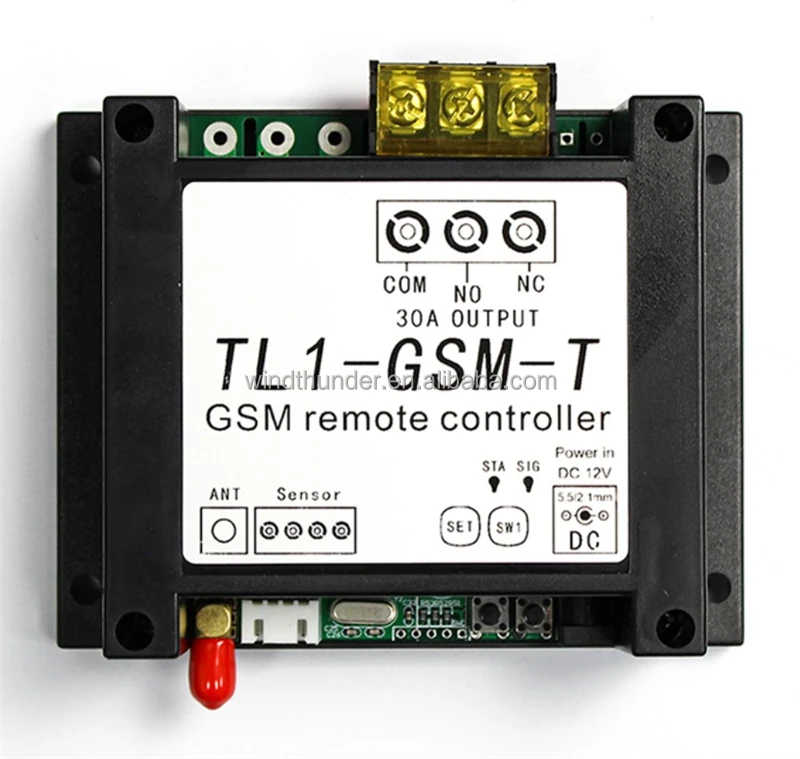

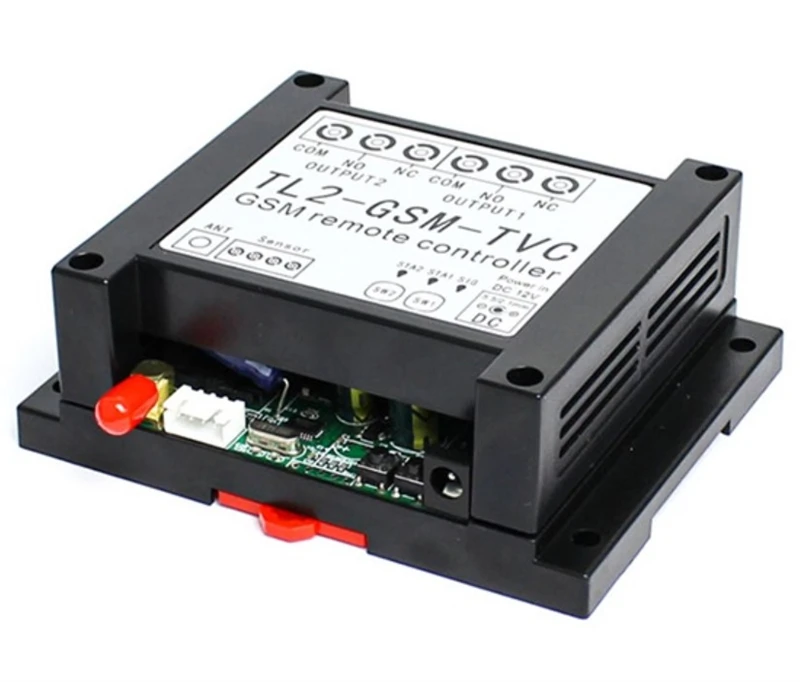

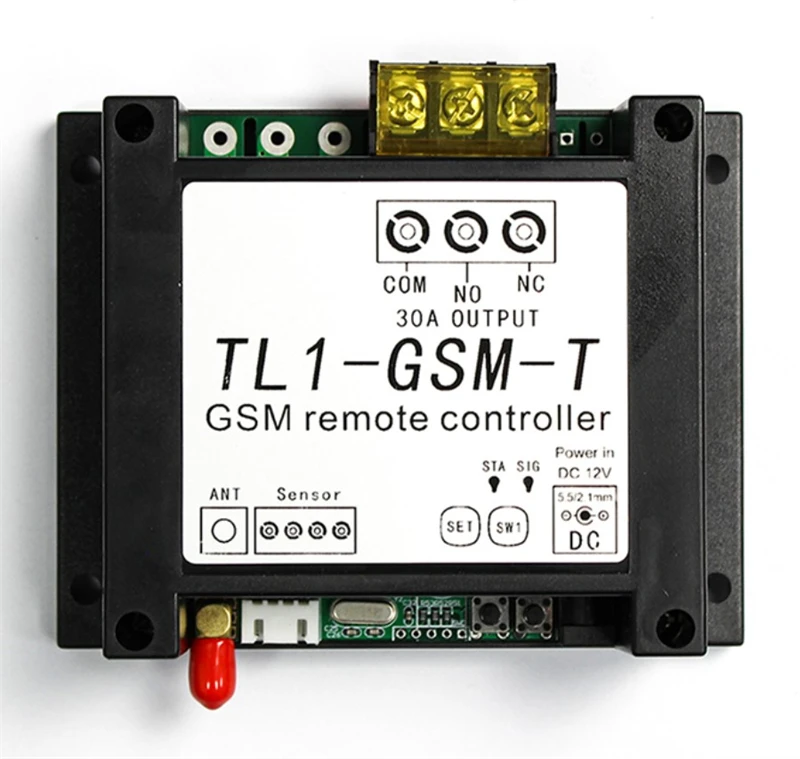

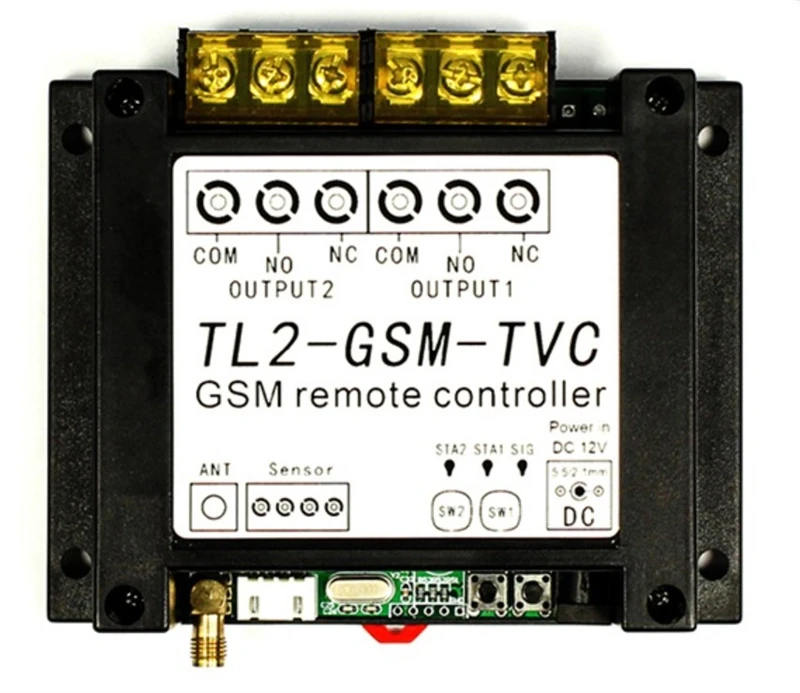

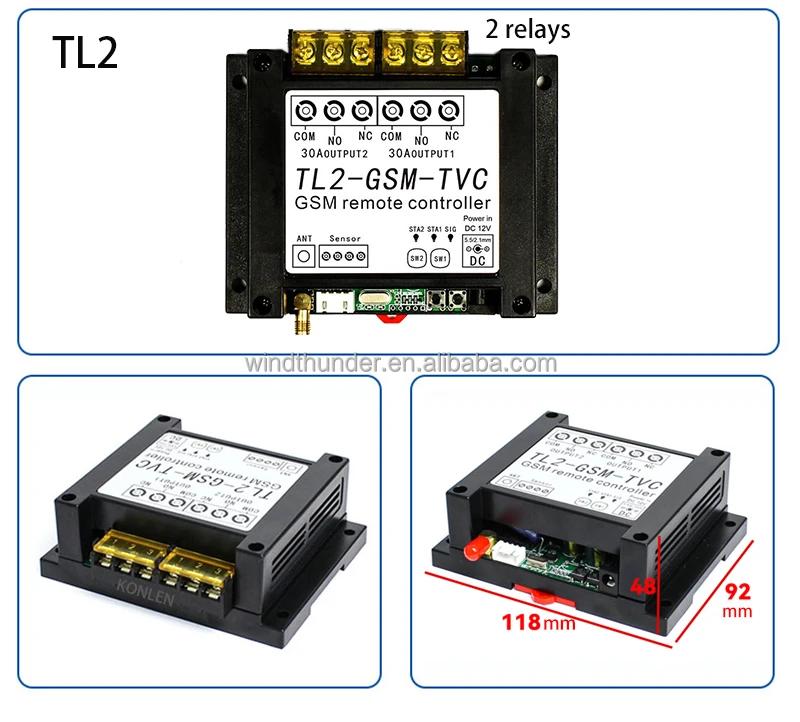

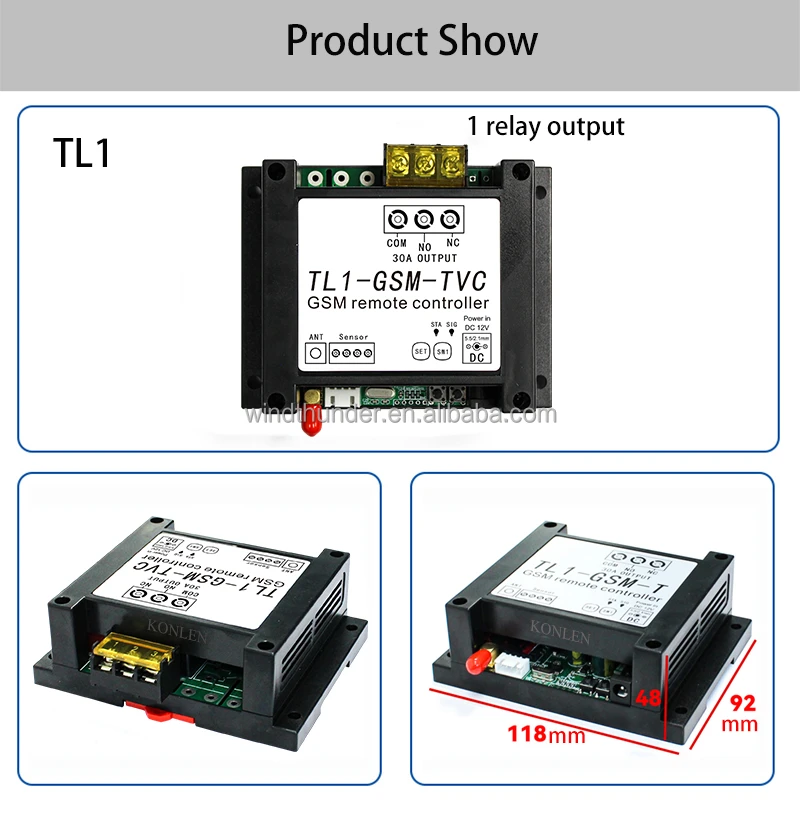

2) TL1 with one relay output, TL2 with two relay outputs. Each relay output is 30A/30VDC, 30A/250VAC

3) SMS/Free Call Control Relay On or Off via 2G GSM Network

4) SMS/Free Call Control Electric Door Gate from on to off (0.5 to 9 seconds), then back to on, or off to on (0.5 to 9 seconds), then back to off via T and XL Command.

Note: Call control is only available for first Relay output.

5) Timed control other electric devices from on to off (001 to 240 minutes), then back to on or off to on (from 001 to 240minutes), then back to off via SMS L Comand.

6) Temperature sensor linkage control relay on or off

7) Power outage or power recovery SMS notification: Will send SMS alert to user phone when power fails or recover.
