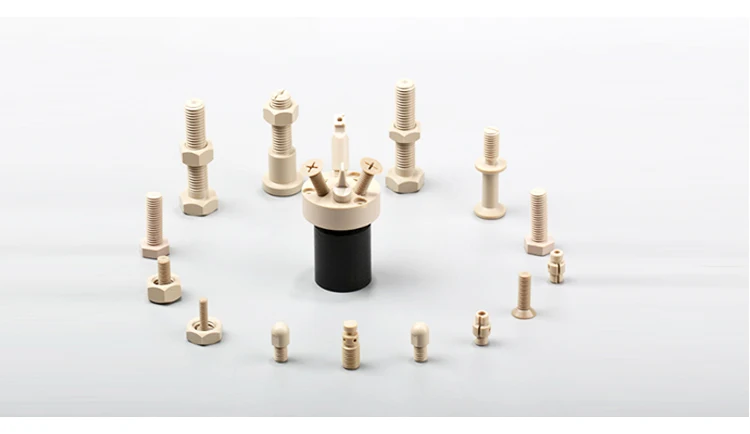

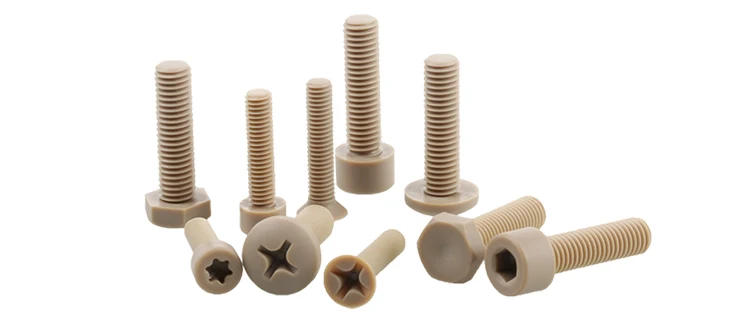

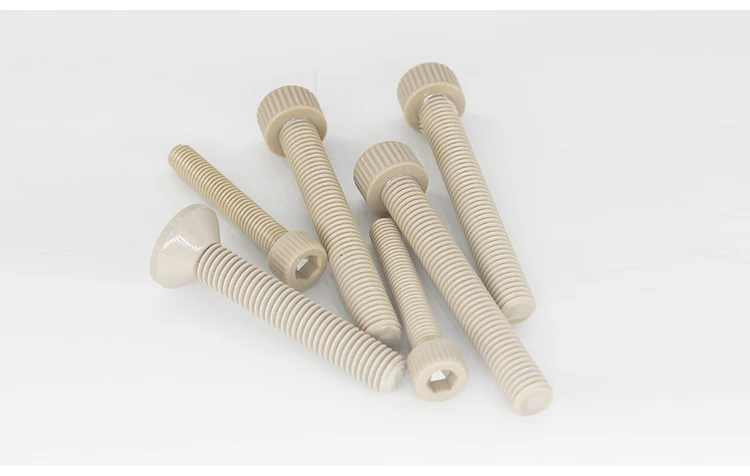

PEEK bolt plastic high temperature flame retardant high strength PEEK screw custom nut peek screw
- Category: Screws >>>
- Supplier: Guangzhou Engineering Plastics Industries (Group) Co. Ltd.
Share on (1600439842010):
Product Overview
Description
product description
PEEK is a kind of heat-resistant, high performance thermoplastic special engineering plastics. It has good mechanical
properties and chemical resistance, abrasion resistance, and hydrolysis resistance properties etc.; it has a light proportion
and self-lubricating properties.
properties and chemical resistance, abrasion resistance, and hydrolysis resistance properties etc.; it has a light proportion
and self-lubricating properties.
Property | Item No. | Unit | PEEK-1000 | PEEK-CA30 | PEEK-GF30 | |||||
1 | Density | g/cm3 | 1.31 | 1.41 | 1.51 | |||||
2 | Water absorption(23℃ in air) | ％ | 0.20 | 0.14 | 0.14 | |||||
3 | Tensile strength | MPa | 110 | 130 | 90 | |||||
4 | Tensile strain at break | ％ | 20 | 5 | 5 | |||||
5 | Compressive stress(at 2%nominal strain) | MPa | 57 | 97 | 81 | |||||
6 | Charpy impact strength (unnotched) | KJ/m2 | No break | 35 | 35 | |||||
7 | Charpy impact strength (notched) | KJ/m2 | 3.5 | 4 | 4 | |||||
8 | Tensile modulus of elasticity | MPa | 4400 | 7700 | 6300 | |||||
9 | Ball indentation hardness | N2 | 230 | 325 | 270 | |||||
10 | Rockwell hardness | -- | M105 | M105 | M99 | |||||
Mechanical Properties | ||||||||||
PEEK, can be used to produce all kinds of parts in the planes instead of aluminium and other metals. With its excellent
flame retardant, the inner parts, made of PEEK, can reduce the damage degree of fire in the planes. PEEK has successfully
test in Chinese “Shenzhou” Spaceships series and widely applied in Boeing and Airbus airliner at present.
flame retardant, the inner parts, made of PEEK, can reduce the damage degree of fire in the planes. PEEK has successfully
test in Chinese “Shenzhou” Spaceships series and widely applied in Boeing and Airbus airliner at present.
Product performance
Heat-resistance
PEEK has a higher glass transition temperature and melting point (334℃). It is one of the reasons that it can be a
reliable application in the requirement of the heat. Its heat load variable-temperature can be 316℃, continuous
use temperature is 260℃.
PEEK has a higher glass transition temperature and melting point (334℃). It is one of the reasons that it can be a
reliable application in the requirement of the heat. Its heat load variable-temperature can be 316℃, continuous
use temperature is 260℃.
Self-lubricating
PEEK has outstanding sliding characteristics in all plastics; it is suitable for stringent requirements for low coefficient
of friction and resistance to friction used. Especially, the self-lubricating properties of PEEK will be better if it is
modified by carbon fiber and graphite mixed in the proportion of each of them.
PEEK has outstanding sliding characteristics in all plastics; it is suitable for stringent requirements for low coefficient
of friction and resistance to friction used. Especially, the self-lubricating properties of PEEK will be better if it is
modified by carbon fiber and graphite mixed in the proportion of each of them.
Fatigue Resistance
PEEK has the best fatigue resistance among all resins.
PEEK has the best fatigue resistance among all resins.
Hydrolysis Resistance
PEEK and its composites will not be affected chemically by water and high-pressure steam. The products that are
made from this material will maintain the outstanding characteristics in continuous use in high temperature and
high pressure water.
PEEK and its composites will not be affected chemically by water and high-pressure steam. The products that are
made from this material will maintain the outstanding characteristics in continuous use in high temperature and
high pressure water.
Application field

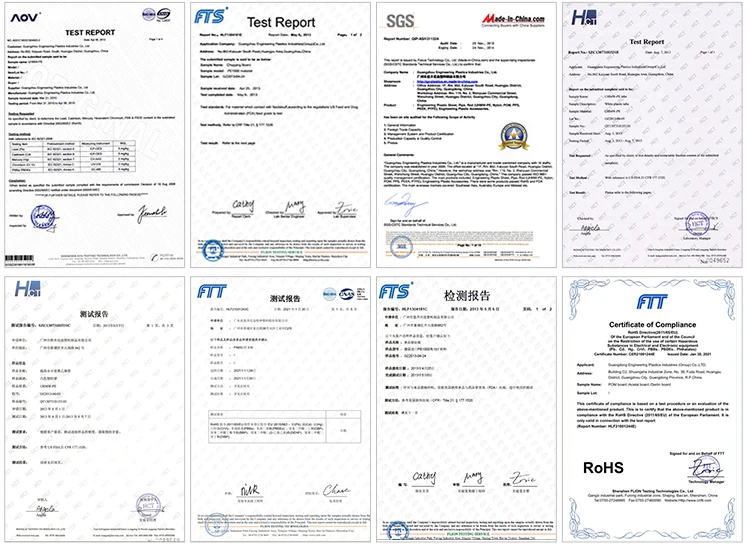

Certification certificate
Companies strictly enforce the ISO9001(2008)international quality certification system,
the product quality conforms to the eu RoHS standard.
the product quality conforms to the eu RoHS standard.
professional team
The company has professional product technical consultation and after-sales service;Good
market reputation (quality assurance, reasonable price, timely delivery!)We will wholeheartedly
provide you with the best quality products, the most thoughtful service!
market reputation (quality assurance, reasonable price, timely delivery!)We will wholeheartedly
provide you with the best quality products, the most thoughtful service!

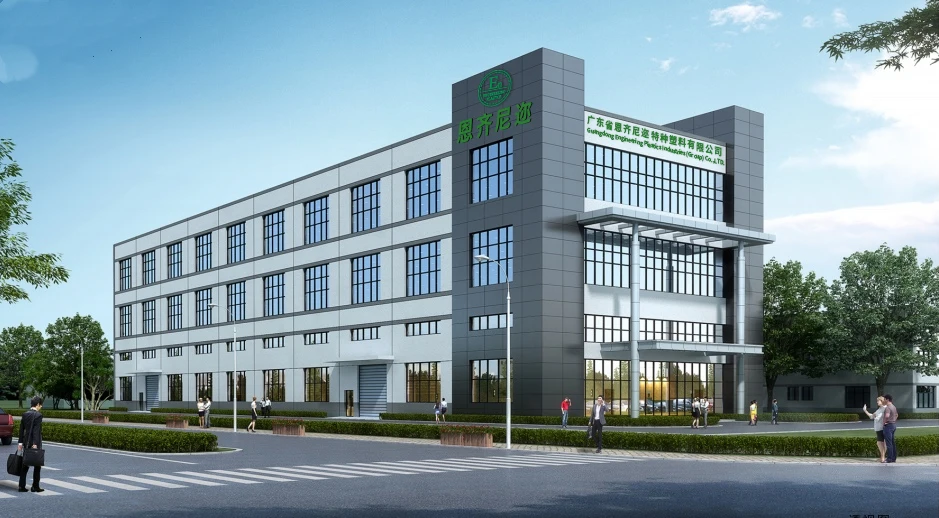

Guangdong Engineering Plastics Industries (Group) Co.,LTD. ! We have the professional engineer teams and sales teams, and we have technology and experiences in engineeringplastic industry for morethan 15 years! Our company is located in Huangpu District, Guangzhou City, China, where the logistics is developed! With the rich experiences and technology for manufacture,
design, research and development ability, support personalized customization. We have
full set of high efficiency producing equipment and advanced numerical control machines,
such as: molding injection machines, CNC molding manufacture machines, fine carving
machines, Horizontal lathes, milling machines. We can customize all kinds ofEngineering
plastics products according to our customers’drawings or samples. Such as:
full set of high efficiency producing equipment and advanced numerical control machines,
such as: molding injection machines, CNC molding manufacture machines, fine carving
machines, Horizontal lathes, milling machines. We can customize all kinds ofEngineering
plastics products according to our customers’drawings or samples. Such as:

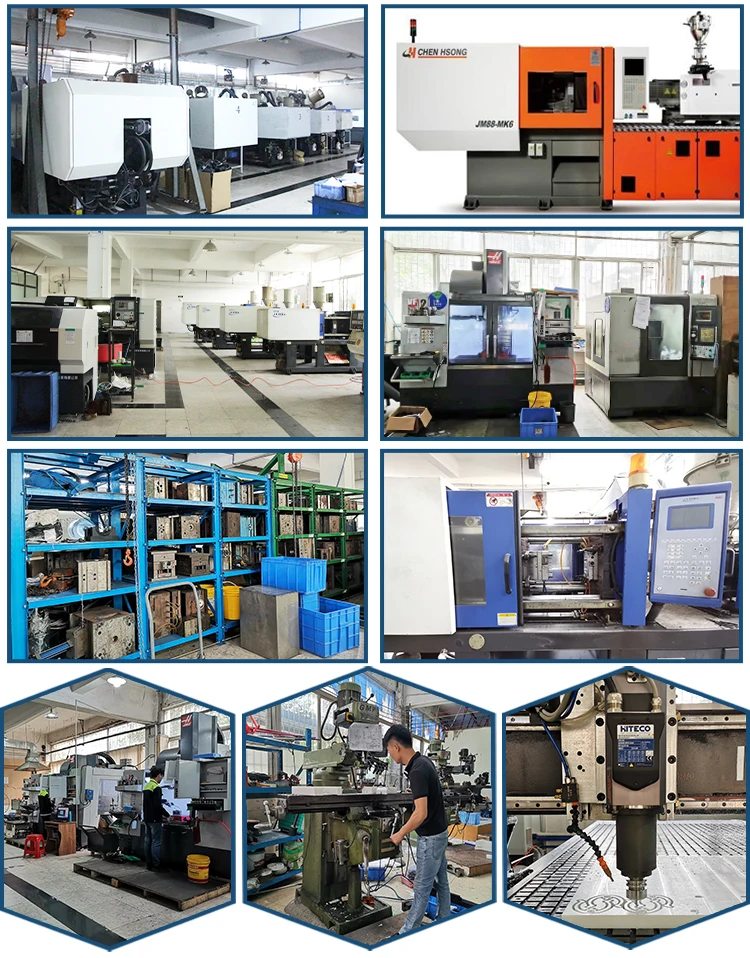

Our factory
Our strength
The company has rich experience, strong strength and participated in many high-end
exhibitions;Many partners from other countries are visiting
exhibitions;Many partners from other countries are visiting
cooperation
Cooperate with many well-known companies
