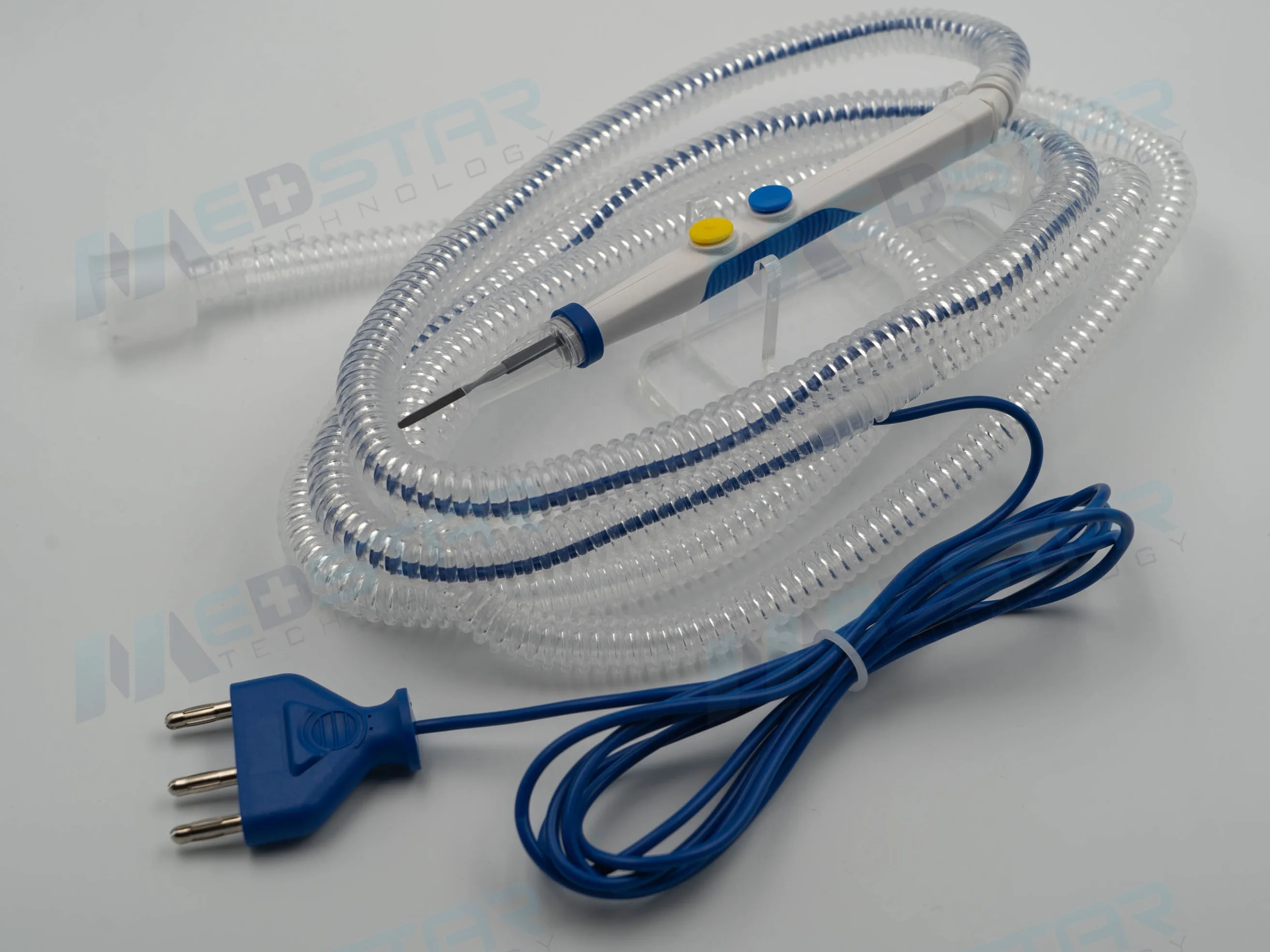

CE ISO (G) Single Use Finger switch Electrosurgical Smoke Evacuation Pencil

Produce Code

PS07-K70GY

Smoke Evacuation Pencil with Holster

Description

Smoke Evacuation Pencil with Holster

70mm  Non-stick Teflon Coated Blade electrode

3.0m(10 ft) Tubing with 22mm female connector

3.0m(10 ft) Cable with 3-prong plug

Product Function

Medstar smoke evacuation pencil, the ultimate combination of electrosurgery and removal of hazardous smoke in one instrument. Press “CUT/Yellow” button for cutting.  Press “COAG/Blue” button for coagulation.

Style

Button switch

Material

Electrode: Stainless Steel (AISI 304)

Body, button and electrode insulation: ABS

Cable insulation: PVC

Cable core: Copper

Smoke nozzle: Polypropylene

Corrugated Tubing : EVA

Cable length

3m (5m length cable are also available )

Plug type

3-prong plug

Electrode type

70mm Non-stick Teflon coated blade electrode

Electrode shaft

Diameter is 2.36mm, the end of electrode shaft exposed 16.5mm

Device Classification

Class IIb

Sterilisation Method

EO

Product Shelf Life

3 years from date of sterilisation

Packaging

1PC/ TYVEK Pouch, 20PCS/ Box, 40PCS/Carton

Compatibility

Compatible with various types of electrosurgical generators.

Customized

OEM service can be available

Materials Data

Latex Free, BPA Free, Phthalate Free

Certifications

CE, ISO 13485, ISO 9001 from TUV
