For 212 E-bicycle hub motor, it could be used for electric scooter

e.g. Electric Scooter

E-Scooter weight, approx 120kg+80kg

Speed: 72V 45km/h

Climbing slope: 12°@200kg 20kph

Feature

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Product Description

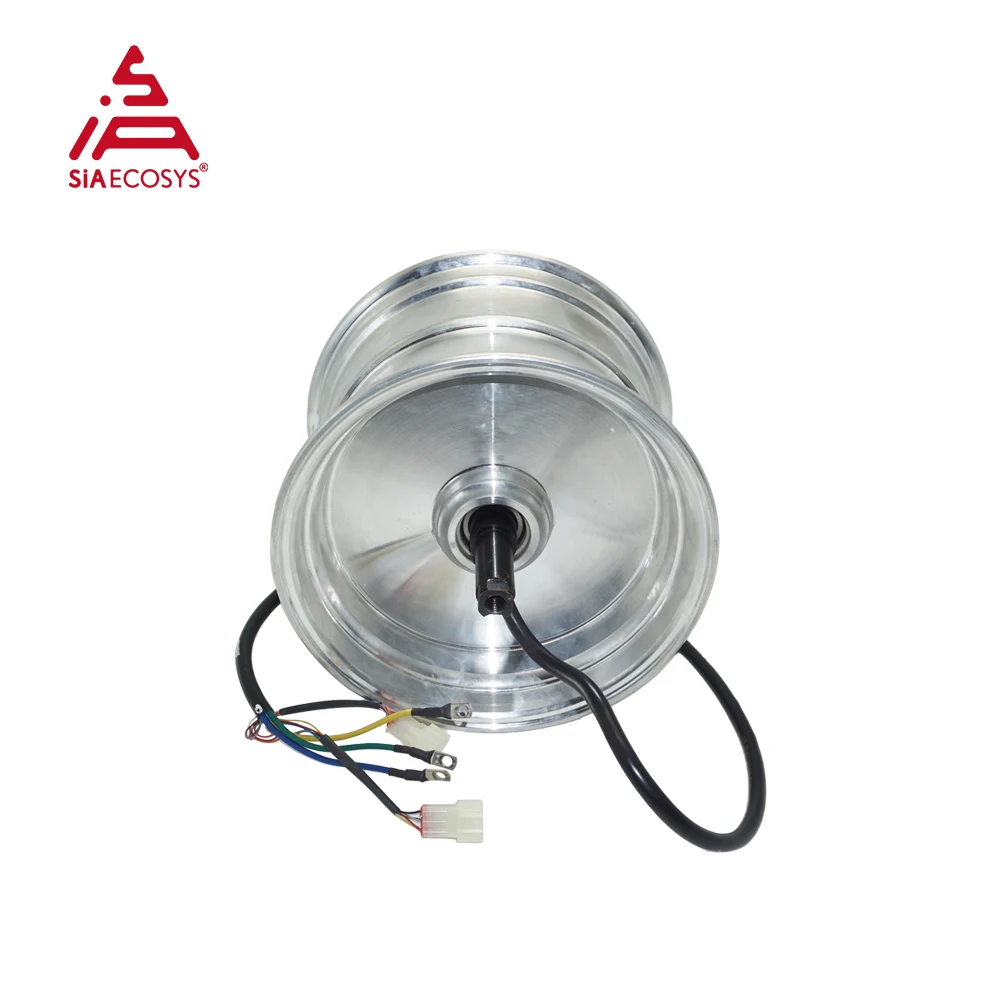

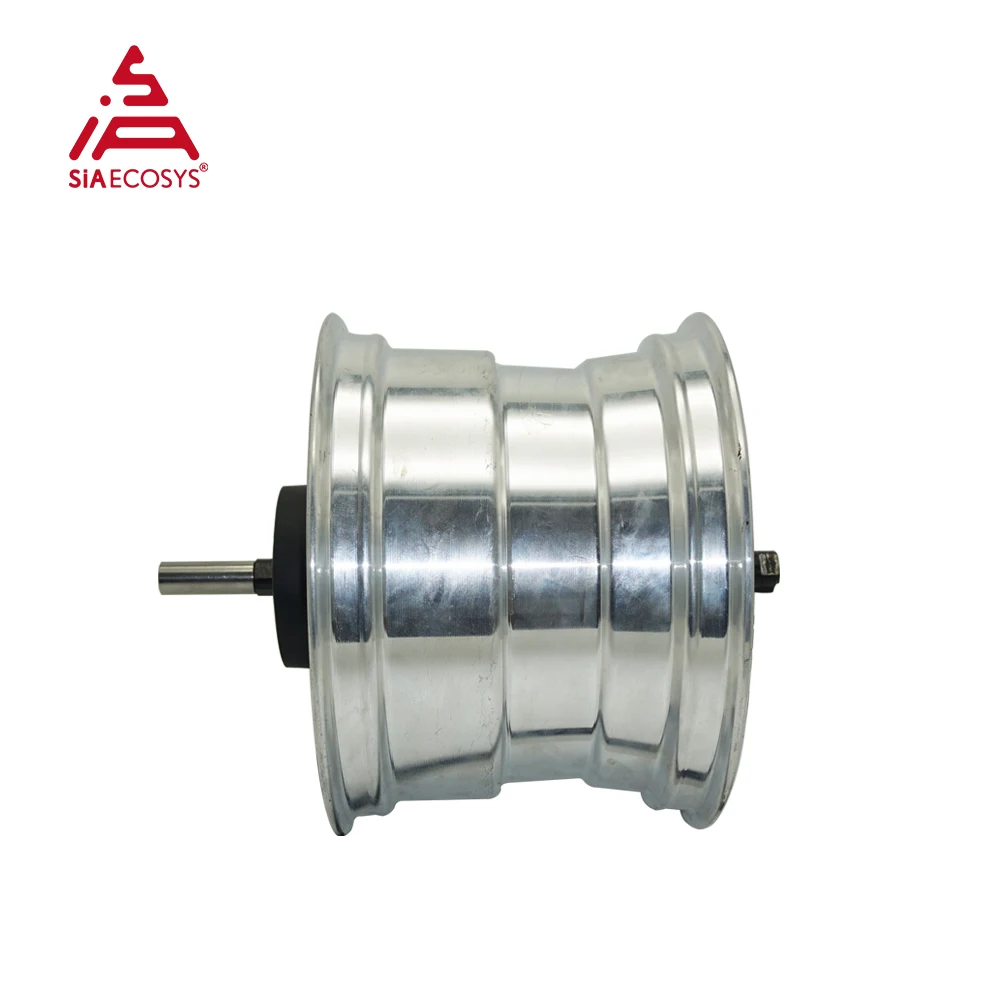

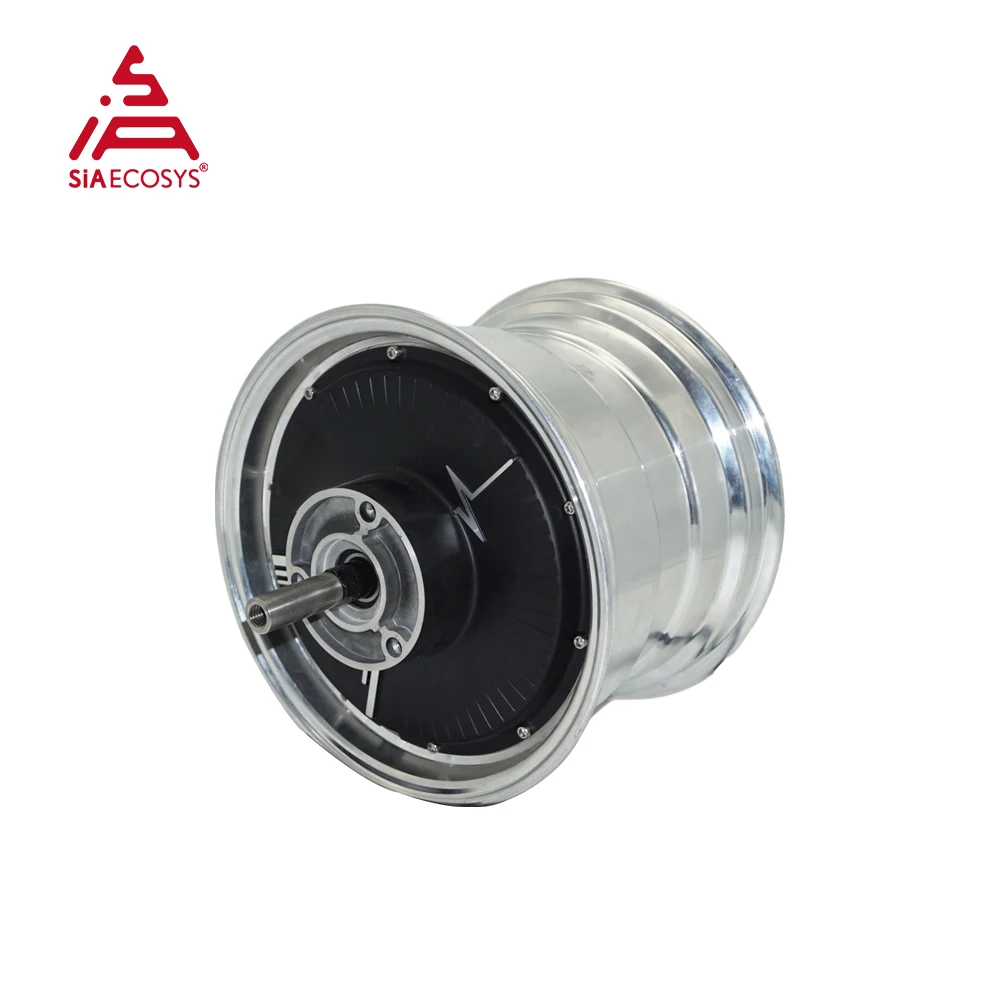

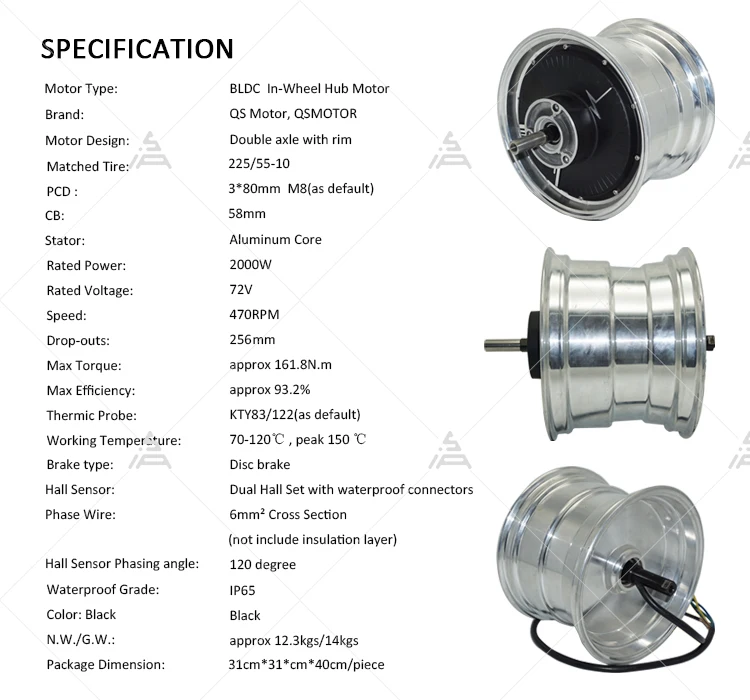

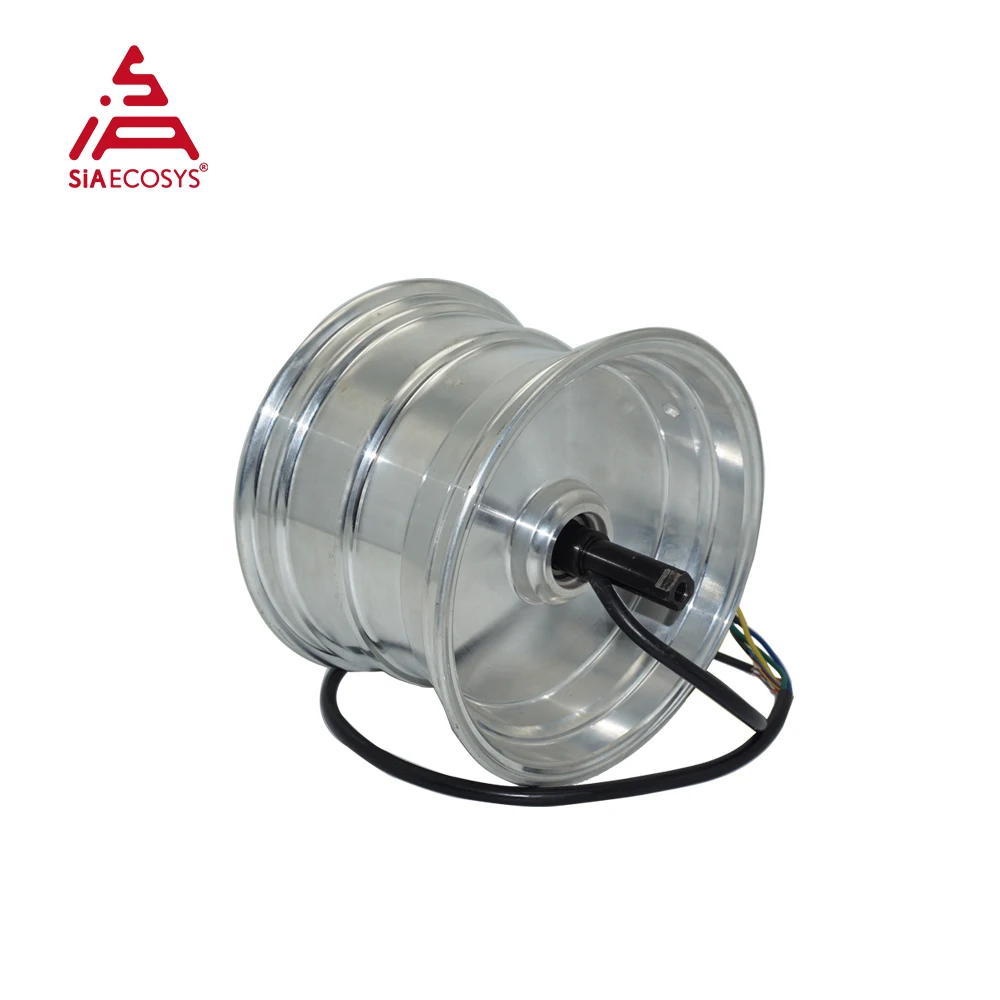

 QSMOTOR 212 10x7.0inch 2000W V1.1 hub motor

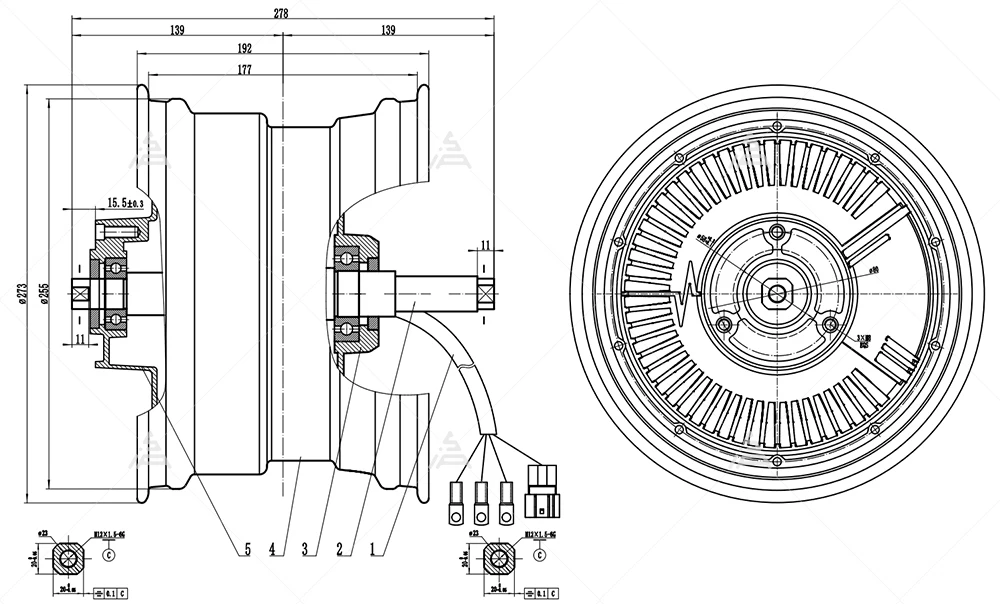

Drawing

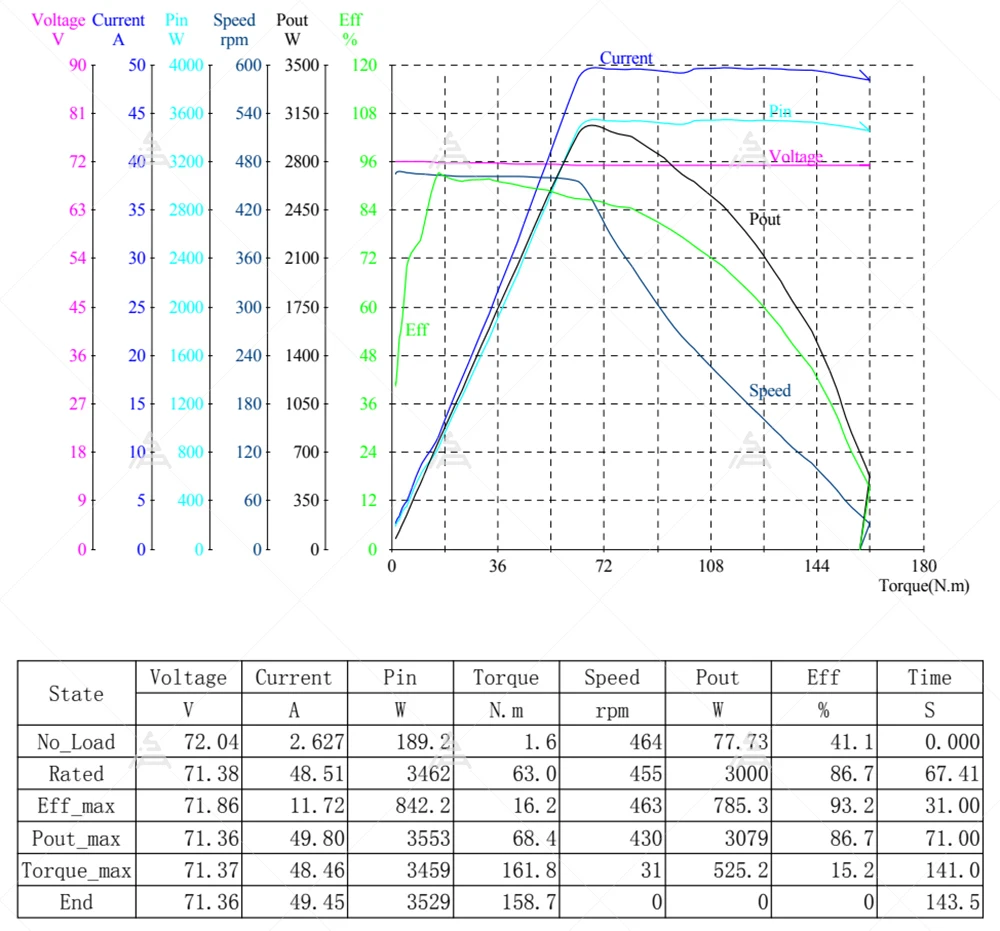

Test Report

212 10x7.0inch 2000W V1.1 hub motor with EM50sp

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

We're able to supply adaptable more motor kits, e.g. speedometer, throttle. Please contact with us for details.

Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.

How to Recommend you suitable motors?

Firstly, To customize a suitable electric hub motor for your vehicle, could you please inform the points in below?

1. E-bike, E-scooter, E-tricycle or E-car?

2. Weight of vehicle with battery, loading weight (weight with load only)?

3. Tire model/diameter?

4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?

5. Battery nominal voltage, peak voltage, capacity and vehicle range?

6. What's the drop-outs/rear fork width of your frame?

Within your details information, we could make assessment and calculation accordingly for your project

Q1. Are you trader or manufacture?

A: We're manufacture.

Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).

The specific delivery time depends on the items and the quantity of your order.

Q3. How long is your warranty time?

A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.

Q4. About Customs Clearance

For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.

Special countries list:

Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.

Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.

05. Does your products with CE certification?

Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
