Product Overview

Description





Mode
ETCR1800A Wireless High Voltage Electroscope
Function
Wireless high voltage electricity test, high voltage line voltage test
Power Supply
Receiver: DC6V, alkaline battery LR03X 4PCS; Detector: zinc-manganese dry battery 6F22, 9V
Wireless Frequency
433Hz
Wireless Transmission Distance
Straight-line transmission distance about 30M
Electricity Test Level
330V ～ 220kV
Electricity Test Level
380V、6.6kV、10kV、35kV、66kV、110kV、220kV
Voltage to Earth Display Range
0.1kV ～ 150kV（Voltage to earth）
Voltage to Earth Display Accuracy
±15%rdg±5dgt
Line Voltage Display Range
0.1kV ～ 220kV (display line voltage, according to the voltage to earth multiply √3 )
Line Voltage Display Accuracy
±15%rdg±5dgt
Current Test (only B model)
Range：0.1A ～ 6000A；Accuracy：±3%rdg±5dgt，Resolution：0.1A
Probe Length (only A model)
110mm
LCD Size
47mm×28.5mm (with backlight)

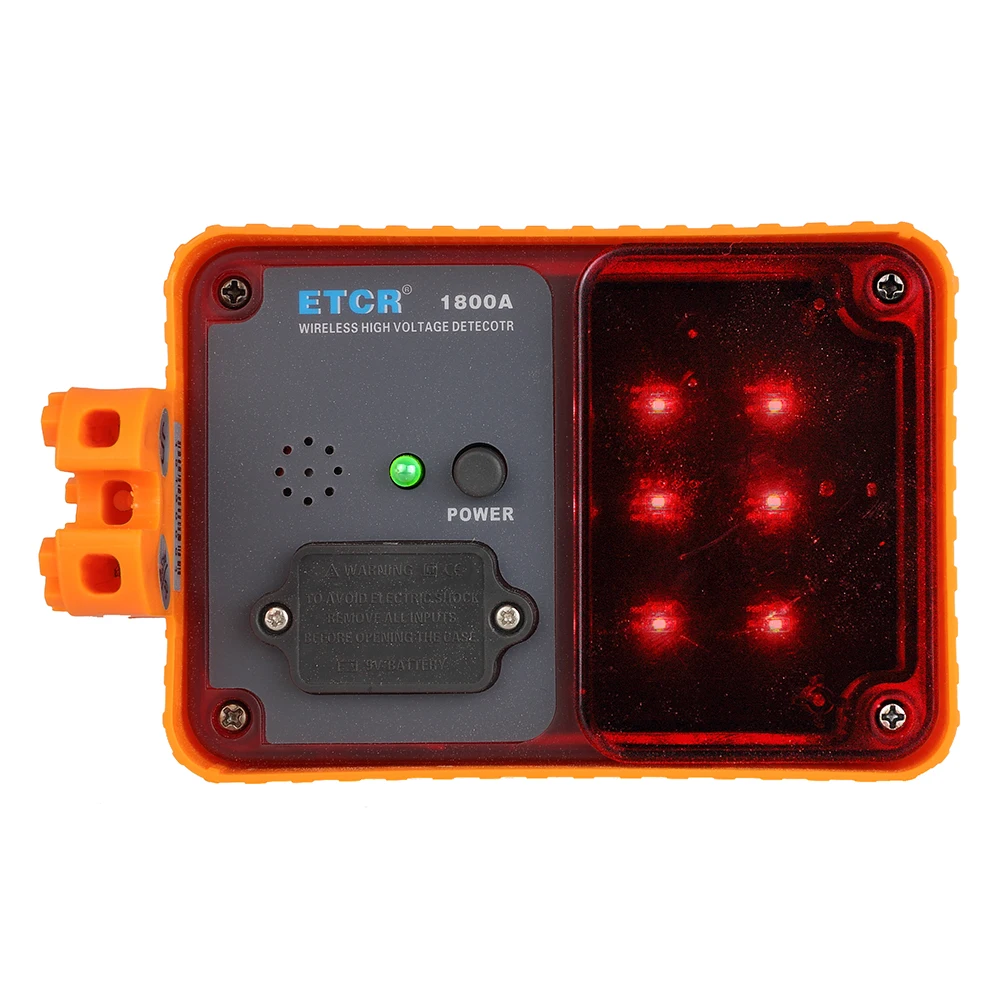

Electricity Test Indication
In electricity test, the detector with sound and light indication function, red double flash indicator and “beep - beep - beep”buzzing sound.
Display Speed
2 Times/Second
Data Storage
99 groups (Power down or replace the battery will not lose data)
Automatic Shutdown
10 minutes after boot up, the meter shuts down automatically without any operation

Low Battery Voltage Indication
When the detector battery voltage is lower than 7.2V±0.1V, the green power indicator flashes; when the receiver voltage lower than 4.8V±0.1V, low battery voltage symbol  will display and remind to replace battery.
Rated Current
Detector: 75mA max; Receiver: 35mA max
Hook Caliber
Φ50mm（1800A）；Φ60mm（1800B）
Instrument Dimension
Receiver：78mm×165mm×42mm；Detector: 300mm×237mm×85mm
Instrument Weight
Instrument: 660g; Package and insulation rod total weight: 6kg
Insulation Rod Length
Max Diameter:Φ45mm; Length: Contraction state 850mm; Stretched state 4500mm

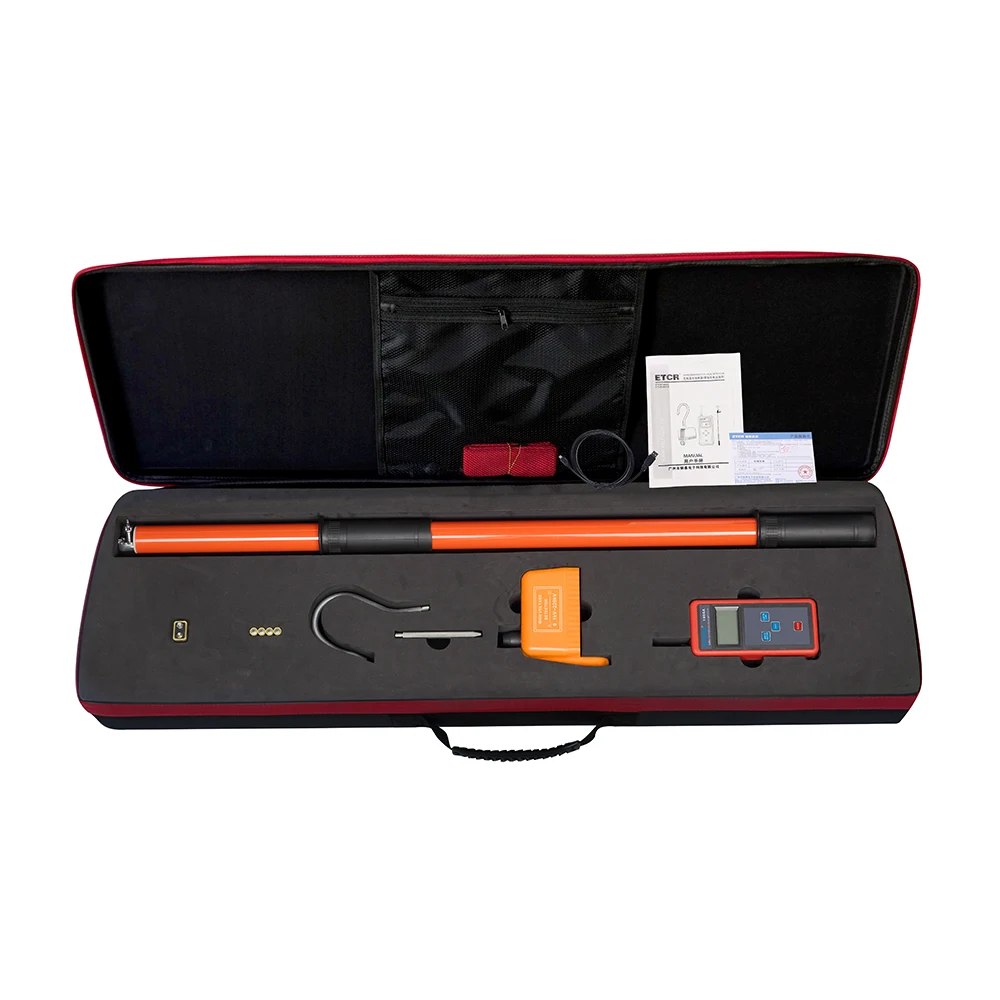

Accessories
Detector:1PCS; Receiver: 1PCS, Probe: 1PCS (only A model); Probe Hook: 1PCS; Insulation Rod: 1PCS ; USB communication cable:1PCS; Cloth Bag: 1PCS








Product Function
380v ~ 220kV high voltage line electricity test, high voltage line voltage to ground test, induction voltage test, high voltage
line current test.


Product Feature

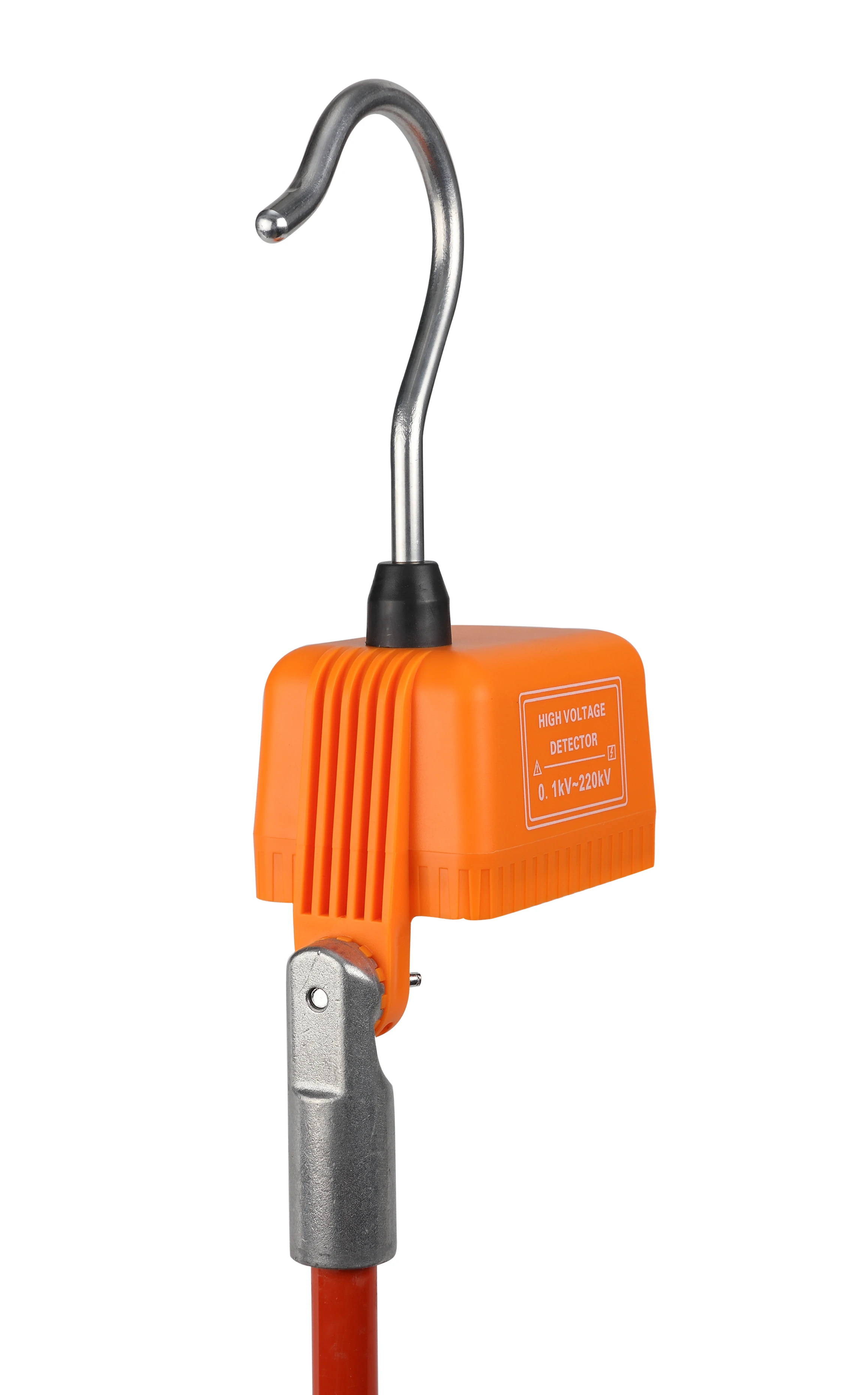

1.Hang the detector on the high voltage line with insulation rod, and then can be electricity tested and displayed.
2.High voltage line voltage and current test. Safe and fast, essential tools of power transmission line maintenance.
3.Below 220KV full voltage level coverage, no need to be equipped with many electroscope.
4.Wireless transmission, audible and visible alarm function and data upload function.
