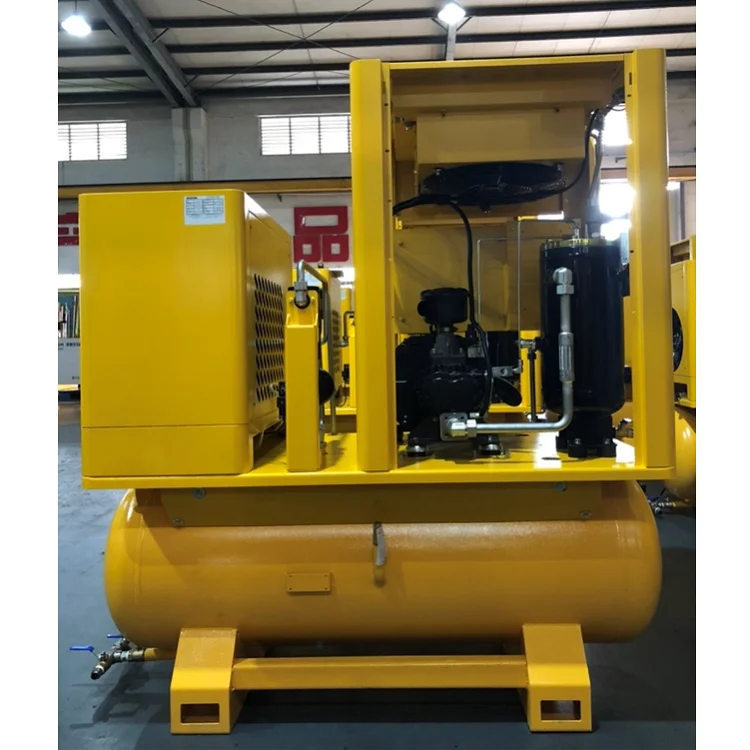

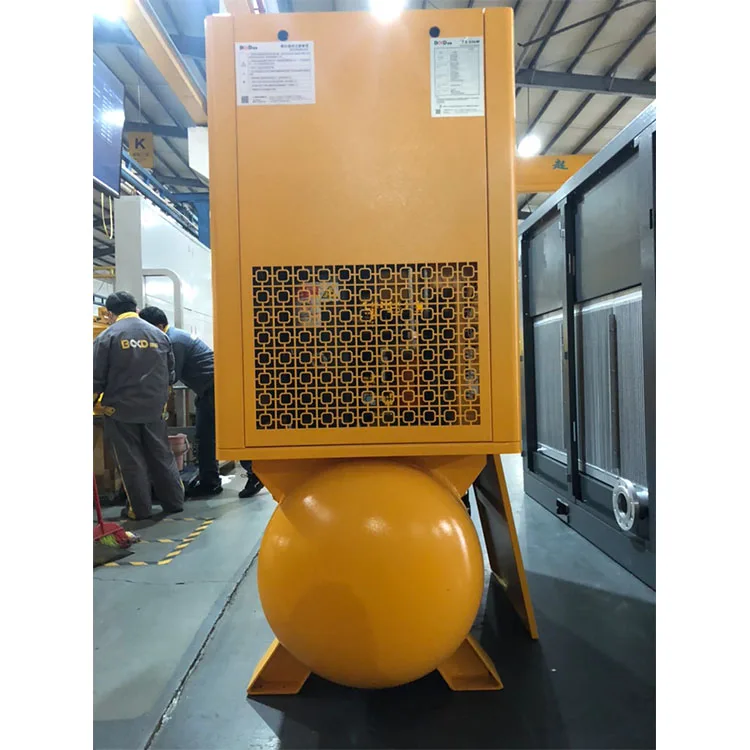

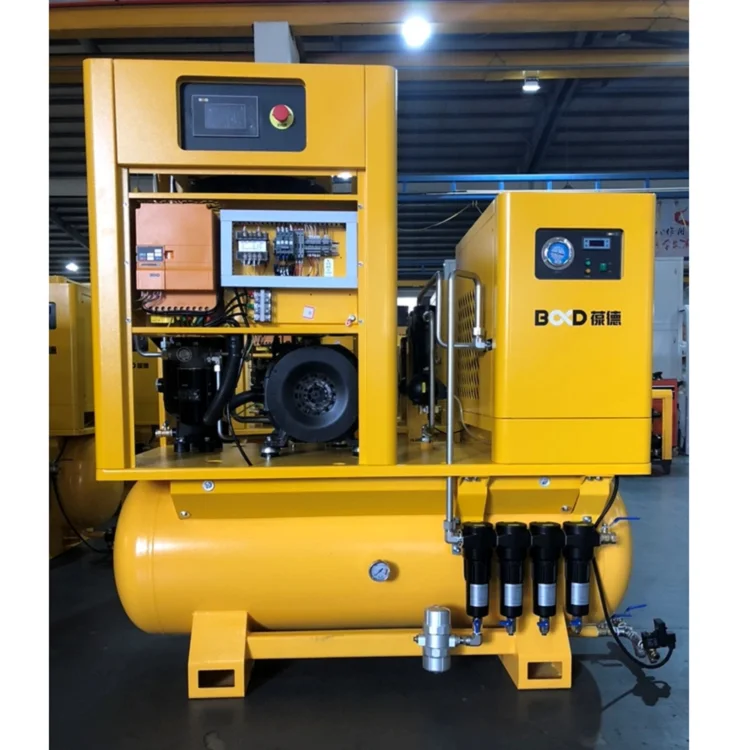

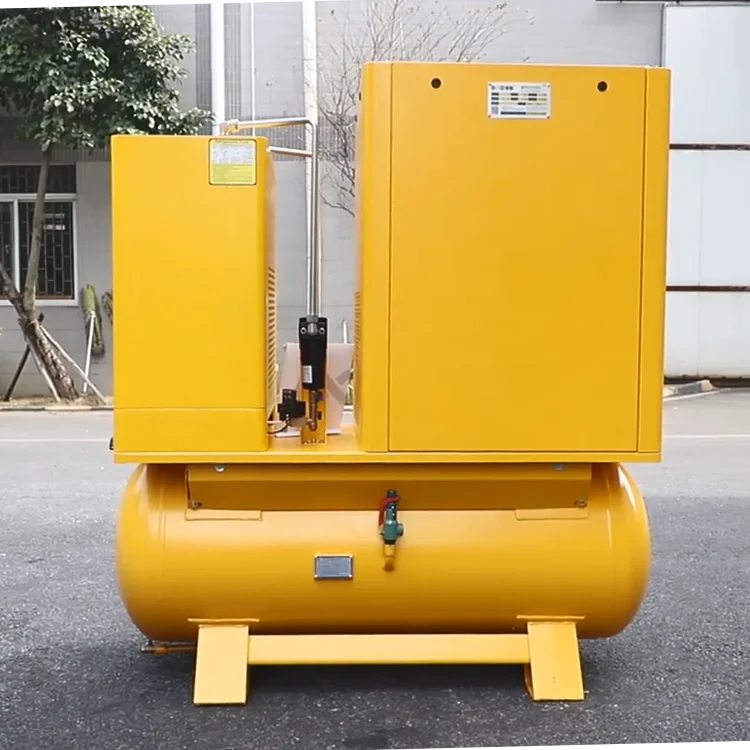

BD PM 22 TK 8 bar Configure All in one Screw Air Compressor for Laser Cutting Machine
- Category: >>>
- Supplier: Guangdong Baldor-Tech Co. Ltd.
Share on (1600440247968):
Product Overview
Description
Tank-mounted Air Compressor-TK Series
●Tank-mounted, easy installation.
●The start-up and shutdown of the cooling fan can be setaccording to different seasons to better control the oiltemperature and avoid its emulsification.
●Vibration reduction design and flexible piping are adoptedto effectively reduce vibration and noise, and the operatingnoise <70dB(A).
●Stainless steel piping is used for the post-treatment to avoidsecondary pollution.
●PM VSD screw air compressor ensures stable working pressure.
●Highly effective refrigerated air dryer and 4-stage precision filtersare used to ensure the purity of the compressed air, with thepressure dew point as low as 2-8℃.
●Centralized drainage adopted to the post-treatment.to keep the surroundings clean.
Digital Operation Management System
Equipped with B&D Cloud digital management system with humanized operation.
Equipped with B&D Cloud digital management system with humanized operation.
Air Compressor Airend
The highly effctive PM motor has a long service lifetime. The transmission efficiency is 100%, low noise, low energy consumptionand low maintenance cost guaranteed.
Efficient Air/Oil Separator
Customized for laser cutting air compressors. The highly efficient cyclone separation structure with precise calculation is
equipped with an effective separation core. The separation efficiency is high, and the oil content of the compressed air is lower.
Line Filter
Using 4-stage rotary type precise line filters with filtering paper, which can completely filter out the dust and the impurities
in the lubricating oil to ensure the quality of the compressed air. The oil content of the compressed air is as low as
0.001PPM,and the particle removal accuracy reaches 0.01μm.
Efficient Cooling System
High efficiency refrigerated air dryer is equipped. The well-designed dewatering structure is used in conjunction with the timing
solenoid drain valve, which can ensure the pressure dew point as low as 2-8°C, and the compressed air is dry enough.
Air Receiver
Customized for the laser cutting air compressor. The compression size is scientifically calculated, and the buffering, the
cooling, the water drainage and the air pressure are all stable. The bottom is equipped with a drain, so it is convenient to use.
The highly effctive PM motor has a long service lifetime. The transmission efficiency is 100%, low noise, low energy consumptionand low maintenance cost guaranteed.
Efficient Air/Oil Separator
Customized for laser cutting air compressors. The highly efficient cyclone separation structure with precise calculation is
equipped with an effective separation core. The separation efficiency is high, and the oil content of the compressed air is lower.
Line Filter
Using 4-stage rotary type precise line filters with filtering paper, which can completely filter out the dust and the impurities
in the lubricating oil to ensure the quality of the compressed air. The oil content of the compressed air is as low as
0.001PPM,and the particle removal accuracy reaches 0.01μm.
Efficient Cooling System
High efficiency refrigerated air dryer is equipped. The well-designed dewatering structure is used in conjunction with the timing
solenoid drain valve, which can ensure the pressure dew point as low as 2-8°C, and the compressed air is dry enough.
Air Receiver
Customized for the laser cutting air compressor. The compression size is scientifically calculated, and the buffering, the
cooling, the water drainage and the air pressure are all stable. The bottom is equipped with a drain, so it is convenient to use.
Forklift Slot
The bottom is designed with a forklift slot, which is convenient for moving. The widened base is solid and durable, and it can reduce the vibration, so it is safe and reliable.
The bottom is designed with a forklift slot, which is convenient for moving. The widened base is solid and durable, and it can reduce the vibration, so it is safe and reliable.
item | value |
Applicable Industries | Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Local Service Location | Italy, Viet Nam, Indonesia, Pakistan, Malaysia, Colombia, Algeria, Uzbekistan |
Showroom Location | Italy, Viet Nam, Thailand, Colombia, Uzbekistan, Malaysia |
Condition | New |
Type | Screw |
Configuration | Stationary |
Power Source | AC POWER |
Lubrication Style | Lubricated |
Mute | Yes |
Place of Origin | Guangdong, China |
Brand Name | B&D |
Model Number | BD-PM15TK |
Voltage | 220/380/415/440/460/480V, 50/60Hz, 3ph |
Dimension(L*W*H) | 1592*750*1586mm |
Weight | 550kg |
Certification | CE/ISO |
Warranty | 1.5 years |
After-sales Service Provided | Online support |
Working Pressure | 14 bar, 7 bar, 8 bar, 13 bar, 6 bar, 12 bar, 10 bar |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | Hot Product 2019 |
Warranty of core components | 1.5 years |
Core Components | PLC, Engine, Motor, Bearing |
Gas Type | Air |
Product name | Intergrated air compressor |
Cooling method | Air Cooling/Water Cooling |
Model | Rated Working Pressure (Mpa) | F.A.D rage | Rated Power (Kw) | Weight kg | Dimension L*W*H mm |
PM7.5TK | 0.8 | 0.54~1.35 | 7.5 | 450 | 1300*625*1410 |
PM7.5TK | 1 | 0.41~1.03 | |||
PM7.5TK | 1.25 | 0.33~0.83 | |||
PM11TK | 0.8 | 0.8~1.8 | 11 | 450 | 1300*625*1410 |
PM11TK | 1 | 0.54~1.34 | |||
PM11TK | 1.25 | 0.41~1.03 | 532 | 1592*750*1611 | |
PM11TK | 1.5 | 0.39~0.97 | |||
PM15TK | 0.8 | 1.04~2.6 | 15 | 450 | 1300*625*1410 |
PM15TK | 1 | 0.83~2.07 | |||
PM15TK | 1.25 | 0.7~1.76 | 532 | 1592*750*1611 | |
PM15TK | 1.5 | 0.51~1.27 | |||
PM22TK | 0.8 | 1.52~3.8 | 22 | 550 | 1500*700*1550 |
PM22TK | 1 | 1.28~3.21 | |||
PM22TK | 1.25 | 1.12~2.79 | 657 | 1712*800*1860 | |
PM22TK | 1.5 | 0.92~2.3 | |||
PM22TK | 2.5 | 0.6~1.2 | 710 | 1716*830*1862 |
Why choose our laser cutting integrated air compressor?
Economy:
Save space and cost, integrated air compressor, refrigeration dryer, air storage tank, filter. It avoids the trouble of users purchasing pipes and fittings separately. The installation is ready to use immediately. Reduce equipment investment and save space.
Stability:
Modular structure design. The parts are durable and have little vibration. Ergonomic design. Low noise, maintenance and maintenance are more convenient.
Energy saving:
The air compressor adopts permanent magnet frequency conversion technology, and the whole machine is optimally designed. The power is strong, safe and leak-free, more energy-saving.
Environmental protection:
The refrigeration and dryer adopts high-quality environmentally friendly refrigerants with a pressure dew point of 2-8 degrees. Ensure the heat dissipation effect. The electronic drain valve is more convenient to drain water.
Save space and cost, integrated air compressor, refrigeration dryer, air storage tank, filter. It avoids the trouble of users purchasing pipes and fittings separately. The installation is ready to use immediately. Reduce equipment investment and save space.
Stability:
Modular structure design. The parts are durable and have little vibration. Ergonomic design. Low noise, maintenance and maintenance are more convenient.
Energy saving:
The air compressor adopts permanent magnet frequency conversion technology, and the whole machine is optimally designed. The power is strong, safe and leak-free, more energy-saving.
Environmental protection:
The refrigeration and dryer adopts high-quality environmentally friendly refrigerants with a pressure dew point of 2-8 degrees. Ensure the heat dissipation effect. The electronic drain valve is more convenient to drain water.
1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Southeast Asia(30.00%),North America(28.00%),South Asia(20.00%),South America(10.00%),Africa(4.00%),Mid East(3.00%),Domestic Market(3.00%),Eastern Europe(00.00%),Southern Europe(00.00%). There are total about 201-300 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Screw Air Compressor,Scroll Air Compressor,Air Treatment Equipment
4. Why should you buy from us not from other suppliers?
20 years R&D experience
Leader in PM air compressor
On-time delivery and after-sale service
Worldwide sales network
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2010,sell to Southeast Asia(30.00%),North America(28.00%),South Asia(20.00%),South America(10.00%),Africa(4.00%),Mid East(3.00%),Domestic Market(3.00%),Eastern Europe(00.00%),Southern Europe(00.00%). There are total about 201-300 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Screw Air Compressor,Scroll Air Compressor,Air Treatment Equipment
4. Why should you buy from us not from other suppliers?
20 years R&D experience
Leader in PM air compressor
On-time delivery and after-sale service
Worldwide sales network
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
