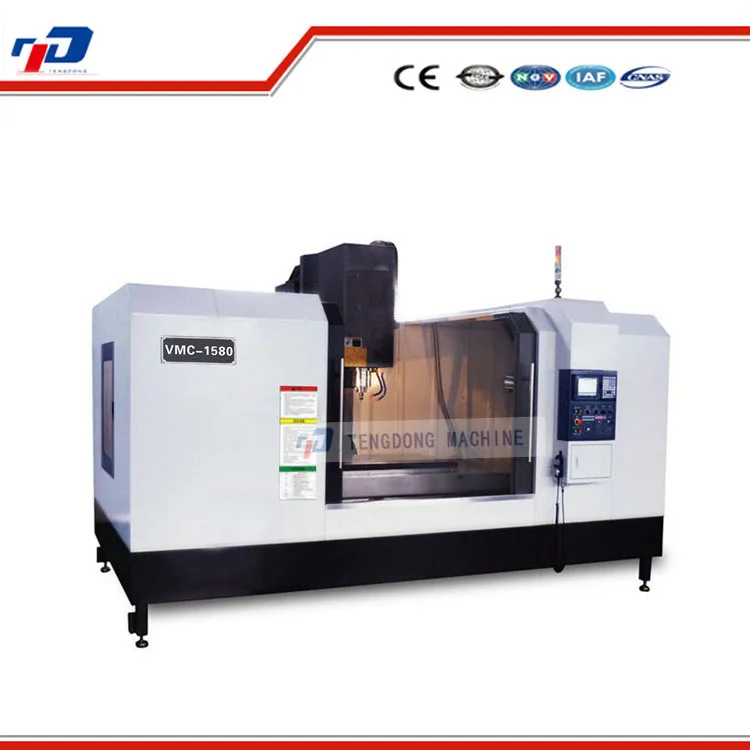

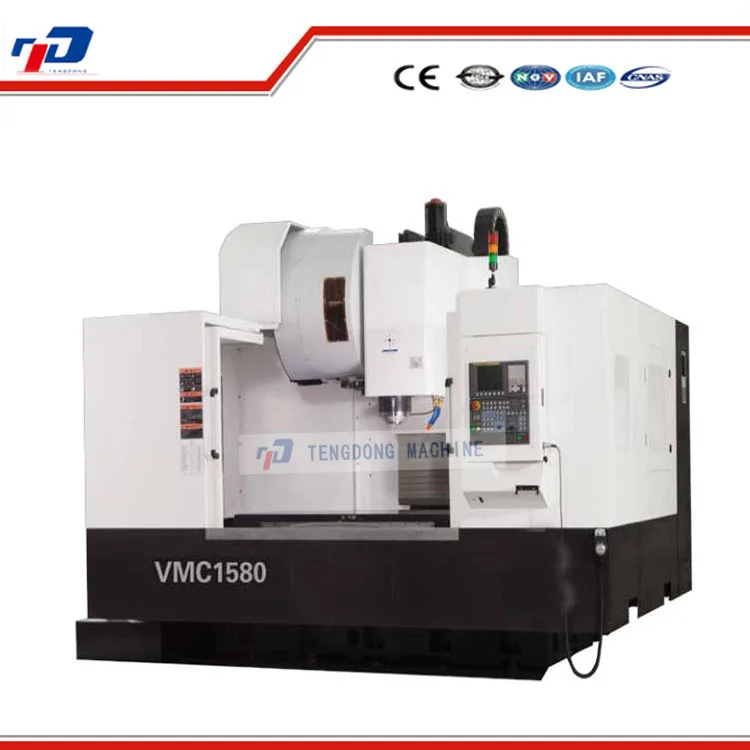

High Precision Milling VMC1580 4 Axis/5 Axis Cnc Milling Machine Price
- Category: >>>
- Supplier: Zaozhuang City Tengdong Machine Tool Co. Ltd.
Share on (1600440261957):
Product Overview
Description
Product Description
specifications | unit | VMC1580 | ||
Table size | mm | 1700*800 | ||
Table maximum load | kg | 1500 | ||
X/Y/Z axis travel | mm | 1500*800*700 | ||
Distance between spindle center and column surface | mm | 810 | ||
Distance between spindle end face and worktable surface | mm | 170-870 | ||
X/Y/Z max. feed speed | mm/min | 10000 | ||
X/Y/Z max.rapid traverse | m/min | 15/15/15 | ||
Max. spindle speed | r/min | 8000 | ||
Spindle taper | BT50 | |||
Spindle motor | kw | 15/18.5 | ||
X/Y/Z axis servo motor | kw | 4/7.5/4 | ||
X/Y/Z motor connection | direct | |||
X/Y/Z guide rail form | hard rail | |||
T slot(number-width-pitch) | 5-22-135 | |||
Repeat positioning accuracy | mm | ±0.004 | ||
Tools type | arm | |||
Tool magazine capacity | arm:24 | |||
Max.tool weight | kg | 15 | ||
Max. tool length | mm | 350 | ||
Electric capacity | KVA | 30 | ||
Machine dimension | mm | 4260*3545*3200 | ||
Machine weight | kg | 12000 |
