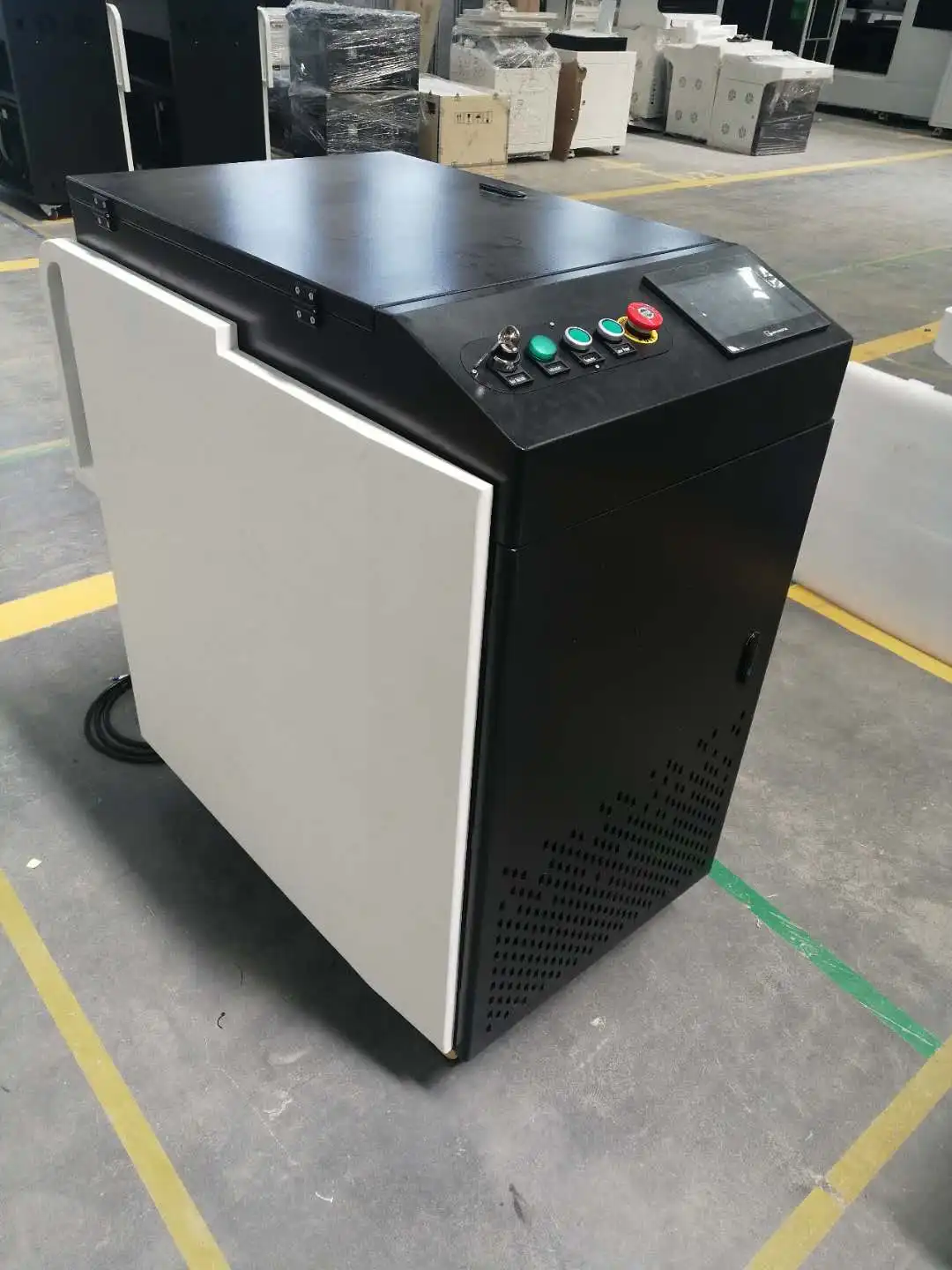

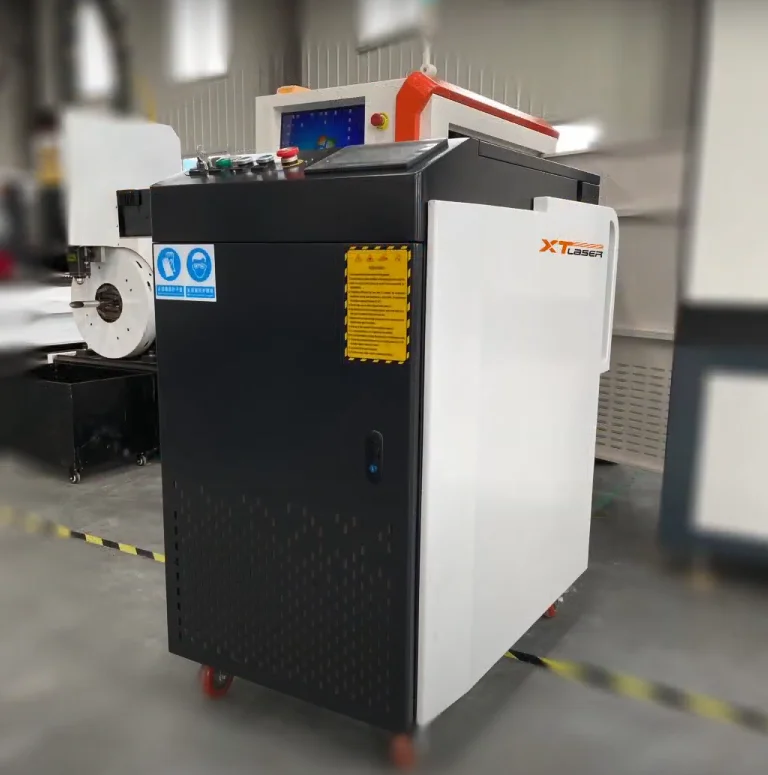

Fiber laser cleaning machine with Qilin laser cleaning head for rust/paint/oil removal
- Category: >>>
- Supplier: Jinan Xintian Technology Co. Ltd.
Share on (1600440342627):
Product Overview
Description
Fiber laser cleaning machine with Qilin laser cleaning head for rust/paint/oil removal
Product Details

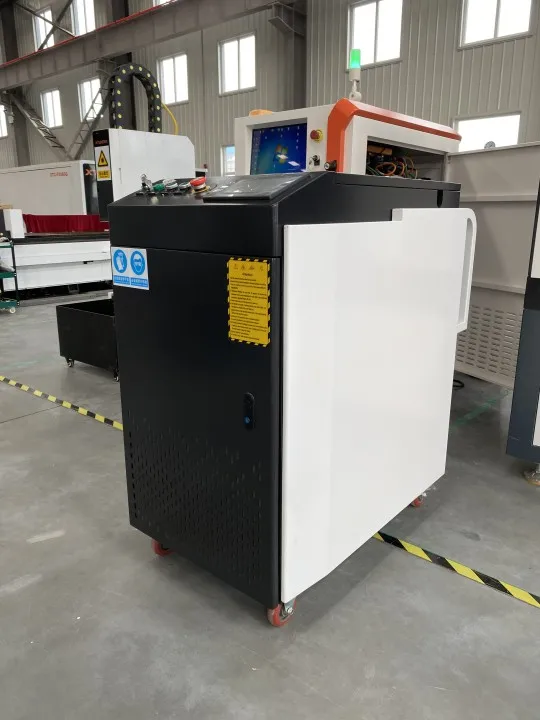

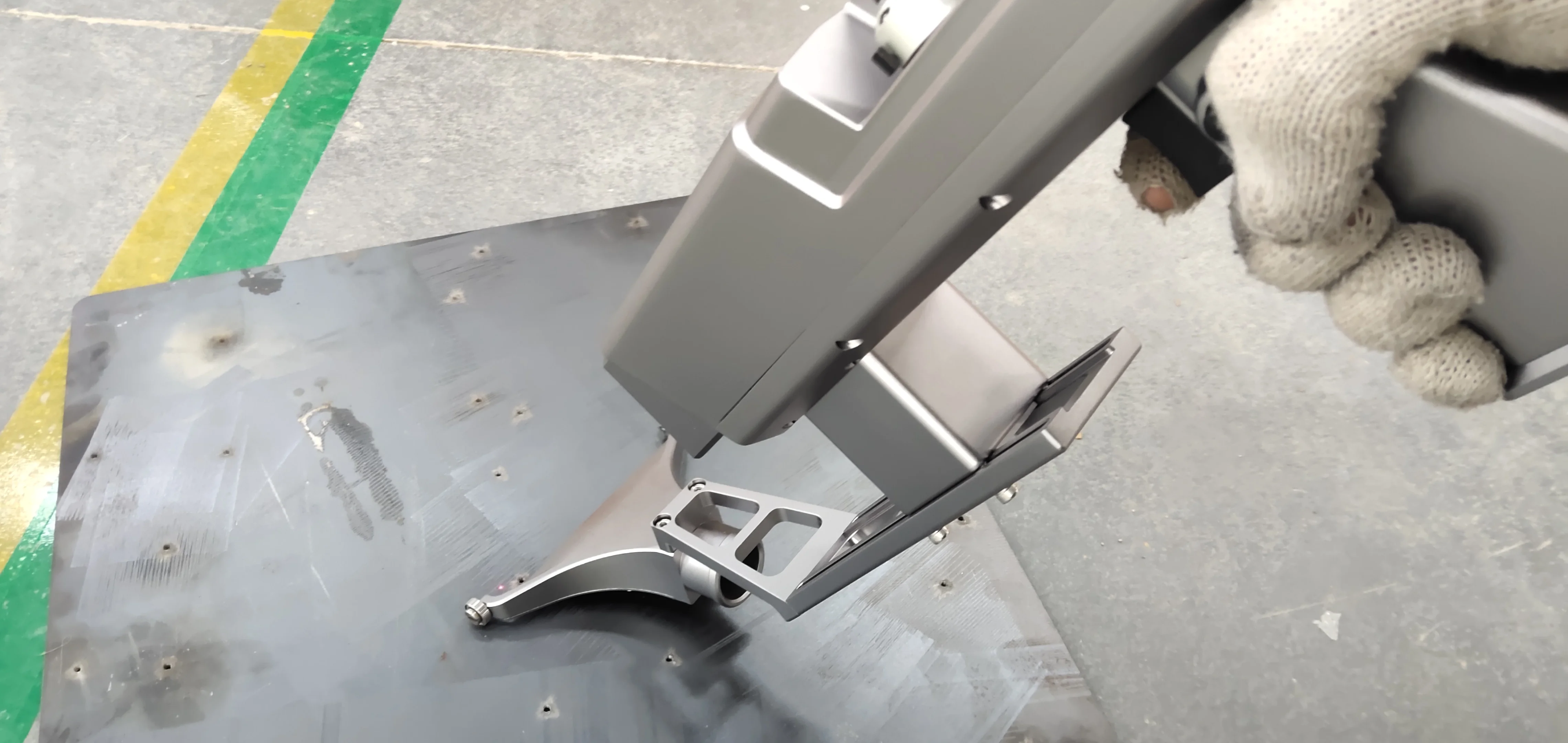

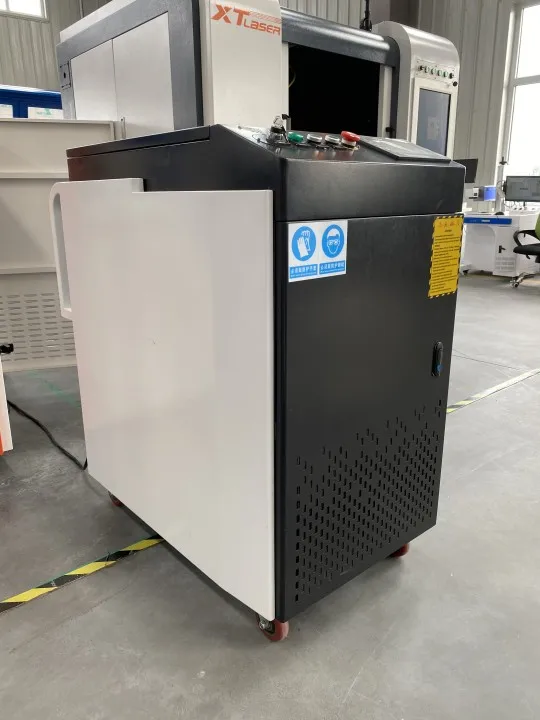

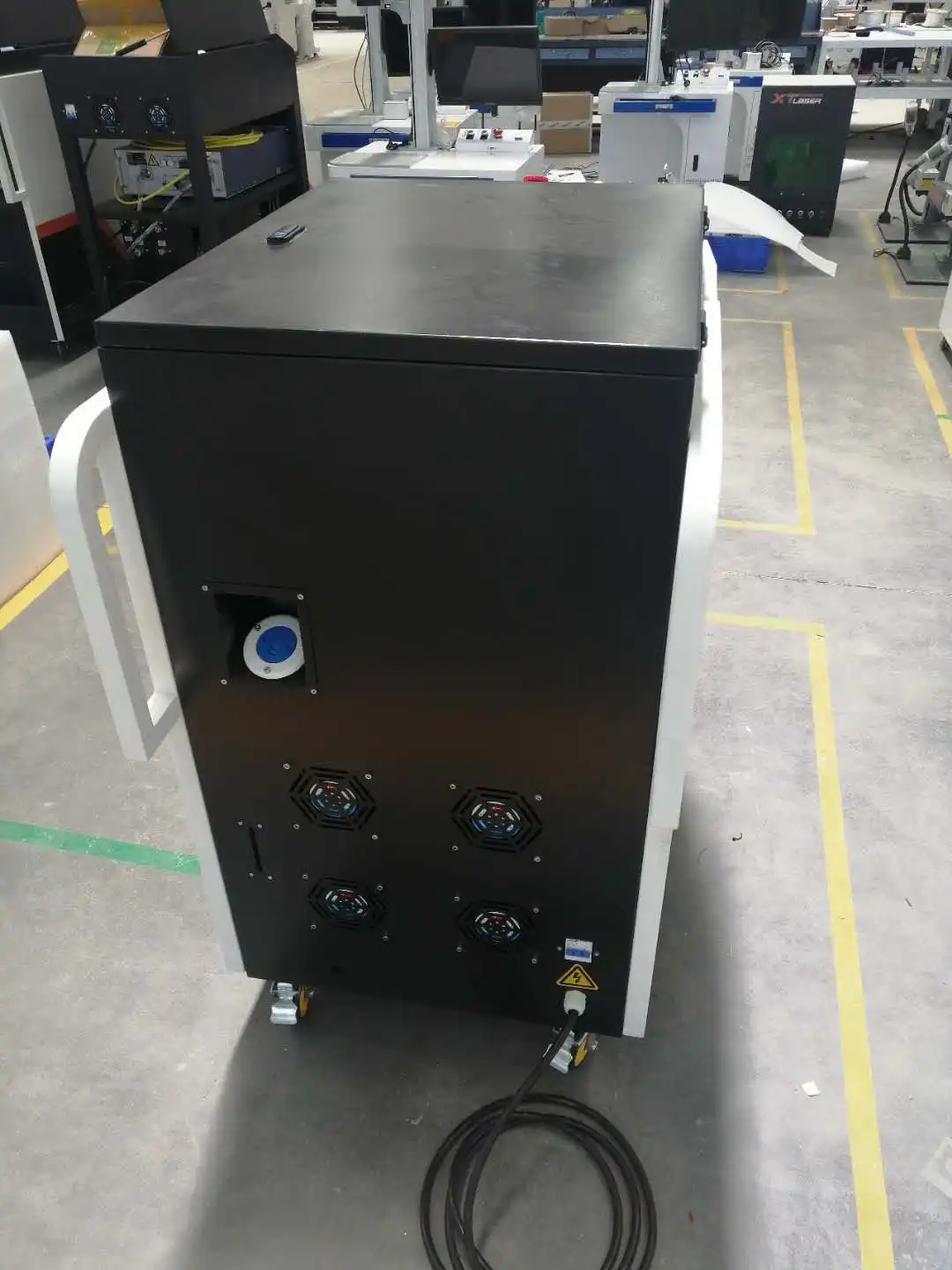

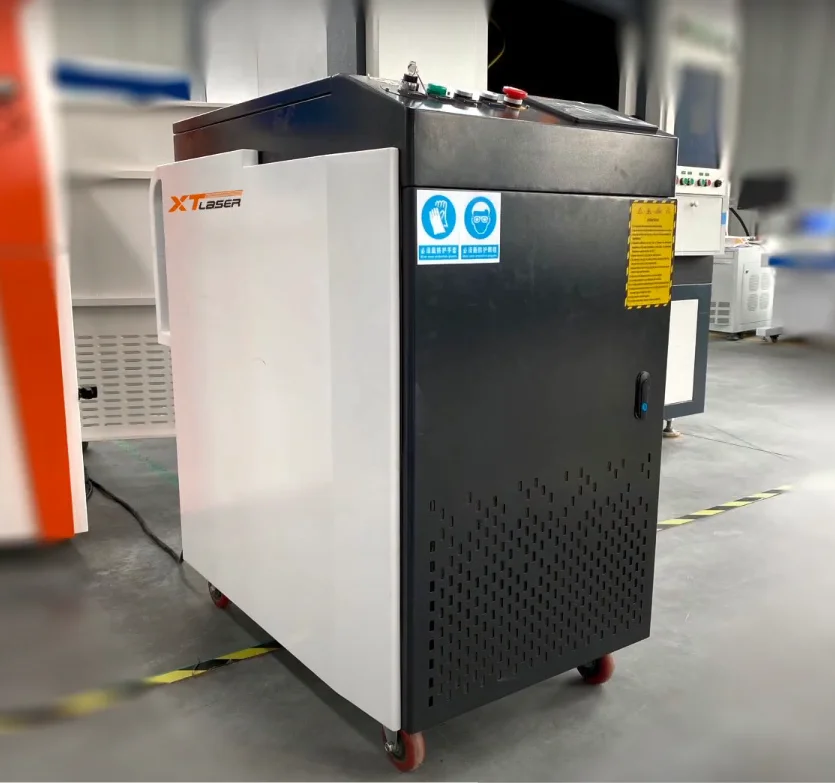

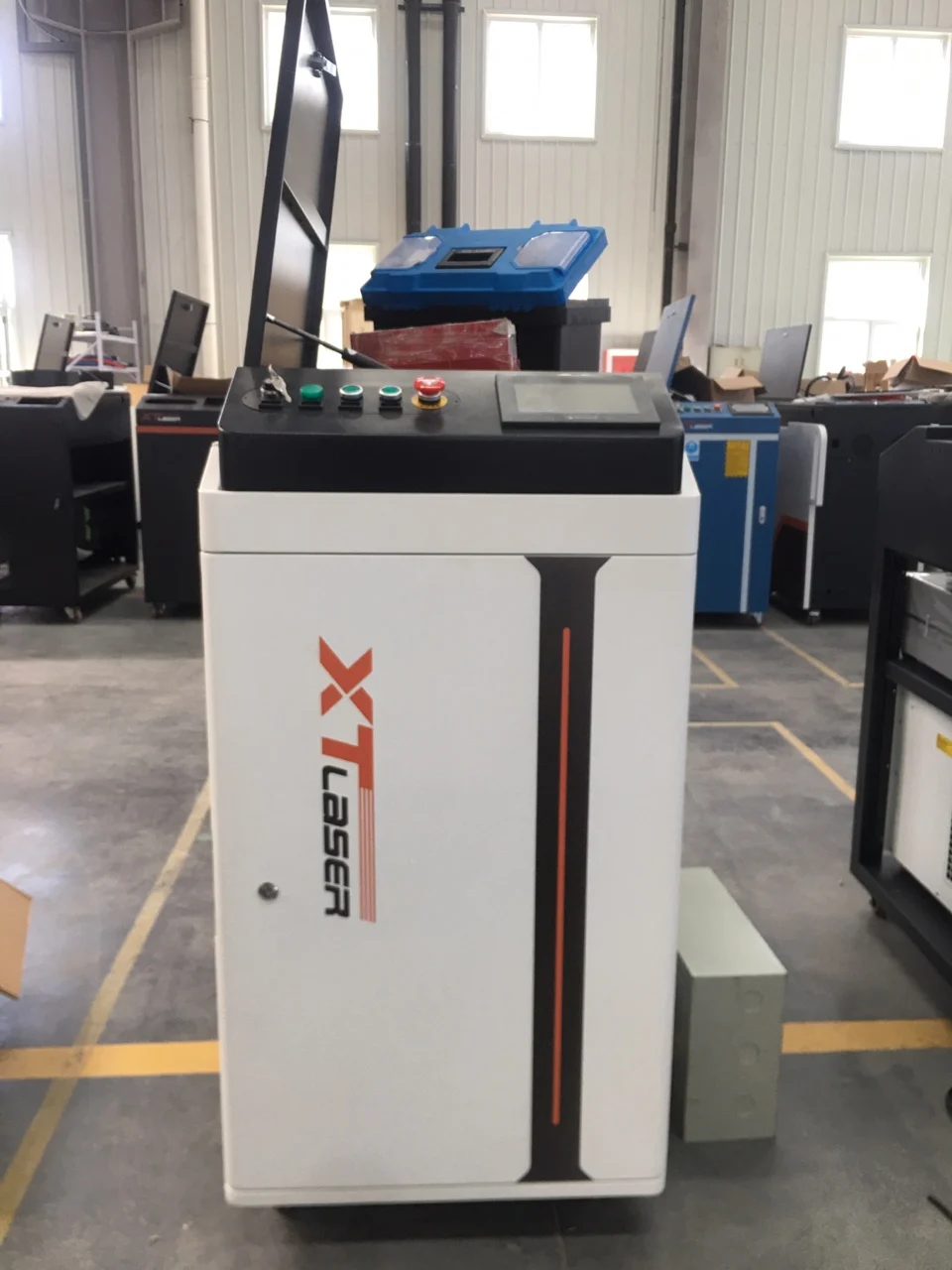

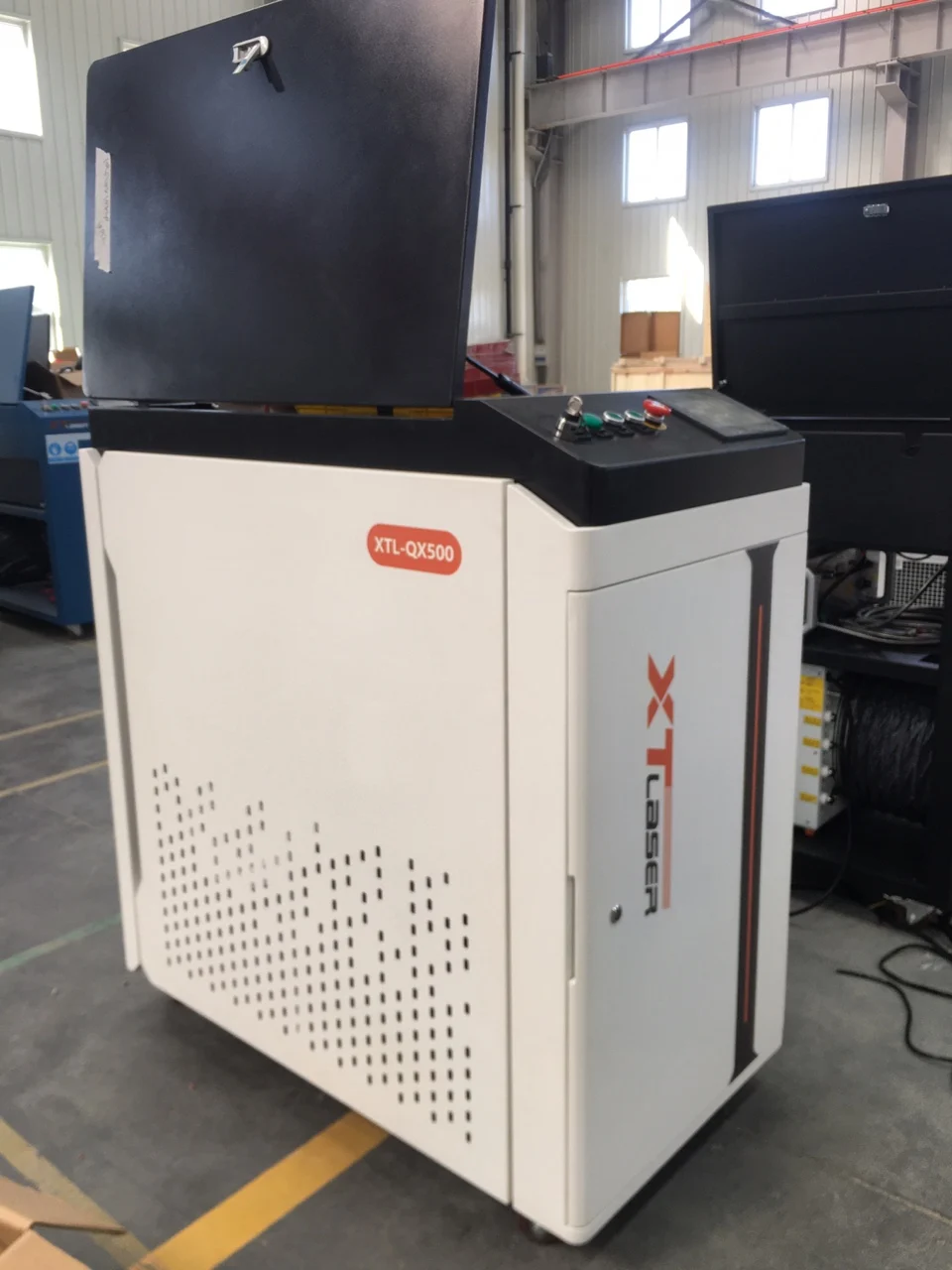

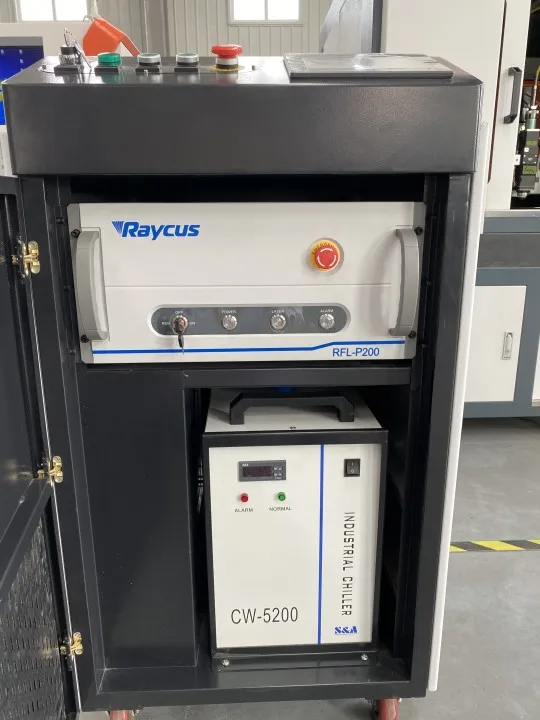

Detailed Images
 |  |  |  |
 |  |  |  |
Working Videos

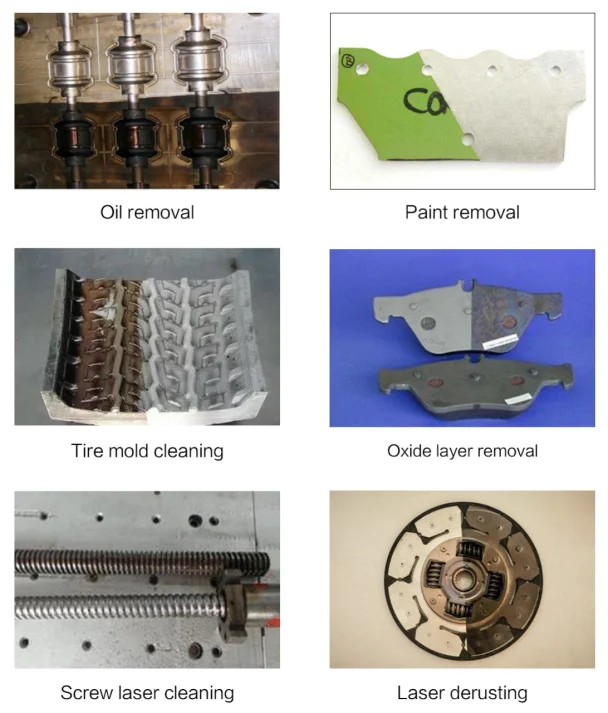

Cleaning sample
Packaging & Shipping
 |  |
Company Information
XT LASER,China.Jinan city in Shandong province
We focus on fiber laser machine for 17 years with CE.
Exhibitions
If you are interested, or would like to know more information and products,
please feel free to leave a message in the following blank space!
Welding ability thickness(Weld from one side)-1000w laser welder | ||||
Max welding depth | ||||
No. | Material | 1kw | 1.5kw | 2kw |
1 | Stainless Steel | ≤2mm | ≤3mm | ≤5mm |
2 | Mild steel/Iron | ≤3mm | ≤4mm | ≤6mm |
3 | Aluminum/brass | ≤2mm | ≤3mm | ≤4mm |
Technical Parameter - 1000w laser welder | ||
√ Handheld model √ Raycus/Max laser source √Cable length:8m √ Laser head:0.9KG | ||
Model | XTW-1000/1500/2000 | |
I.Laser source | ||

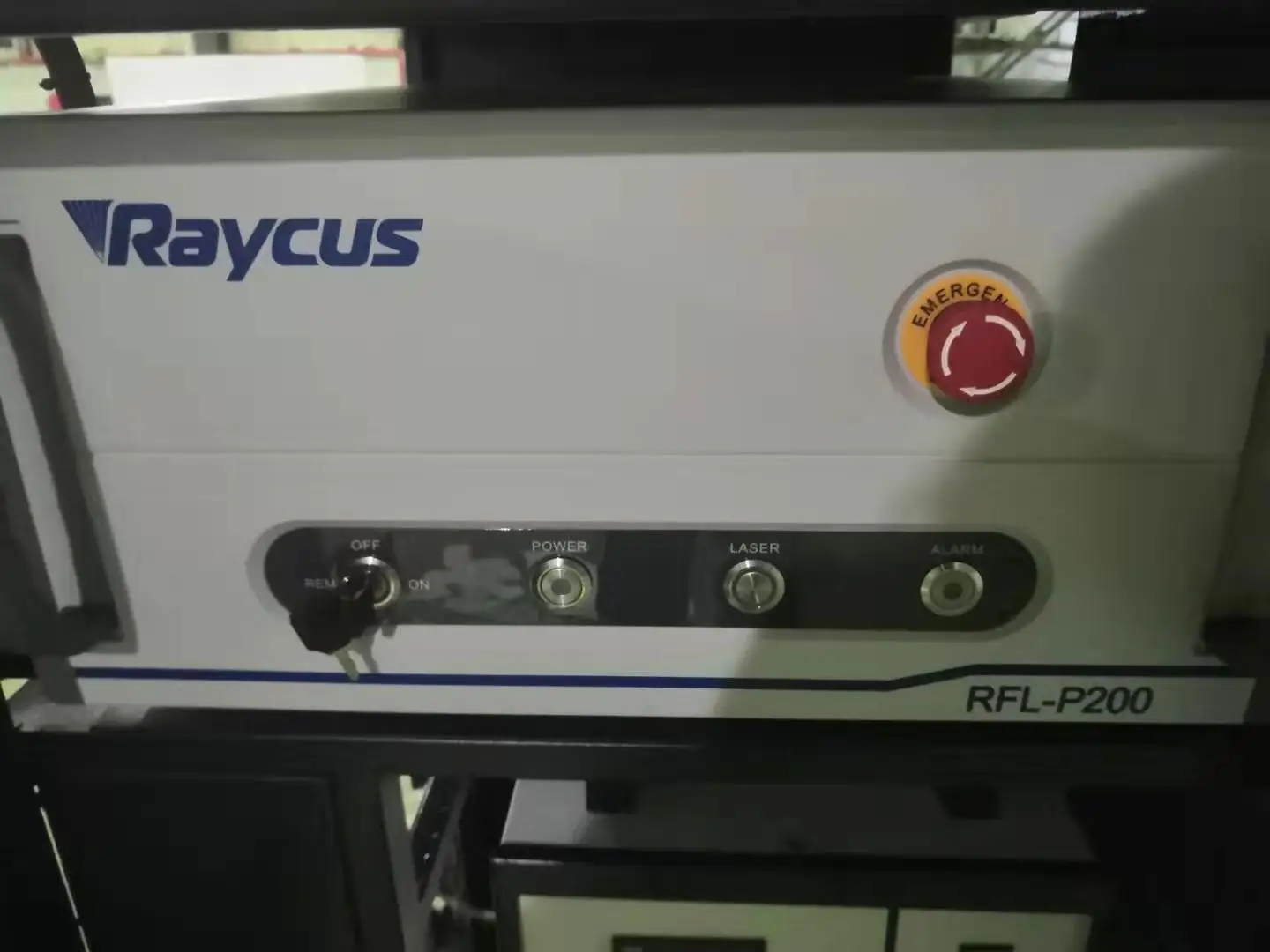

1 | Brand | Raycus/Max/IPG |
2 | Output power | 1kw/1.5kw/2kw |
3 | Center wavelength | 1080nm±5 |
4 | Fiber Cable length | 8m,50μm |
5 | Laser pulse Frequency | 20KH |
II.Water Cooling | ||

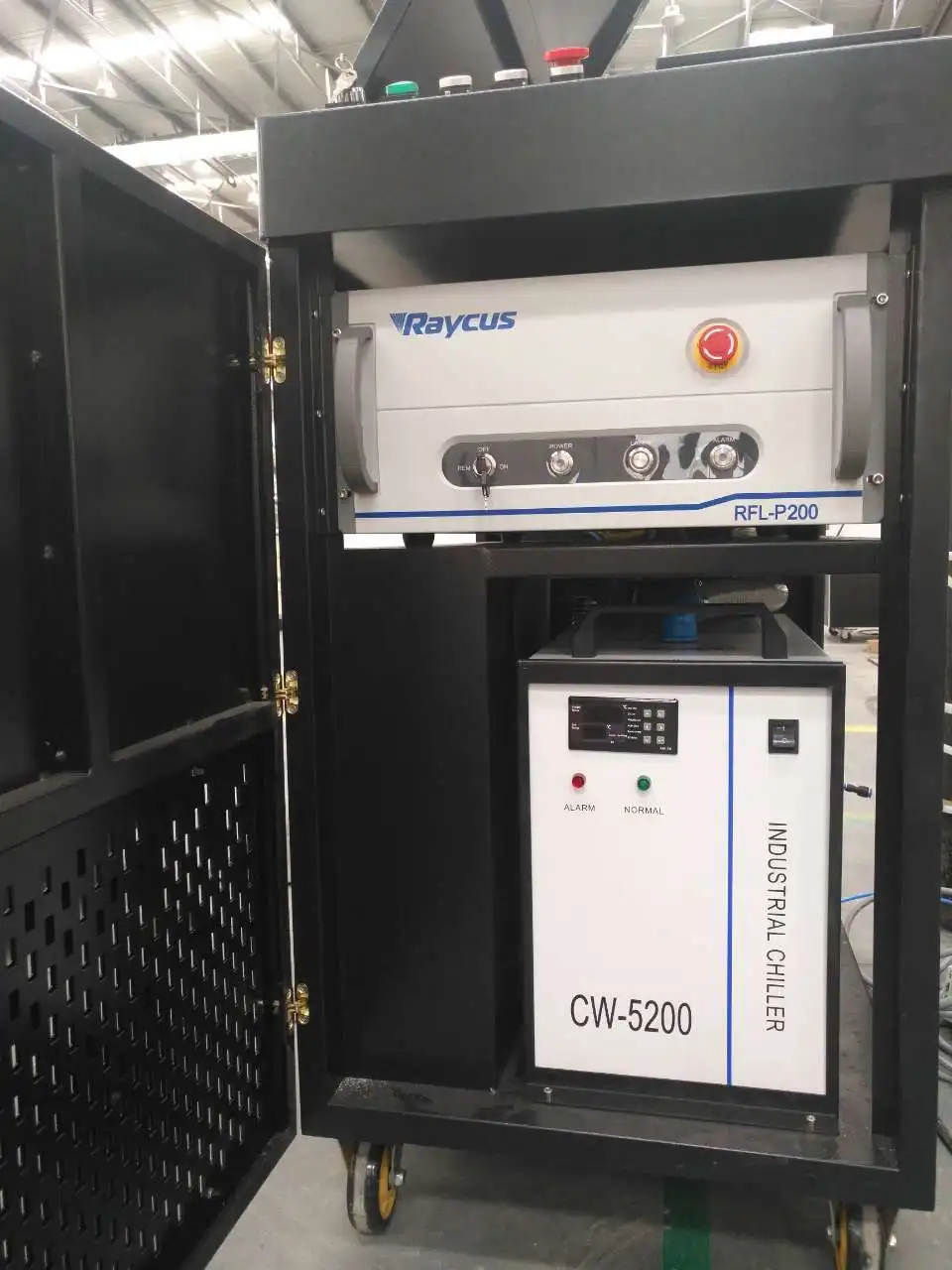

1 | Water chiller | 1.5P/2P/2.5P ,built-in chiller |

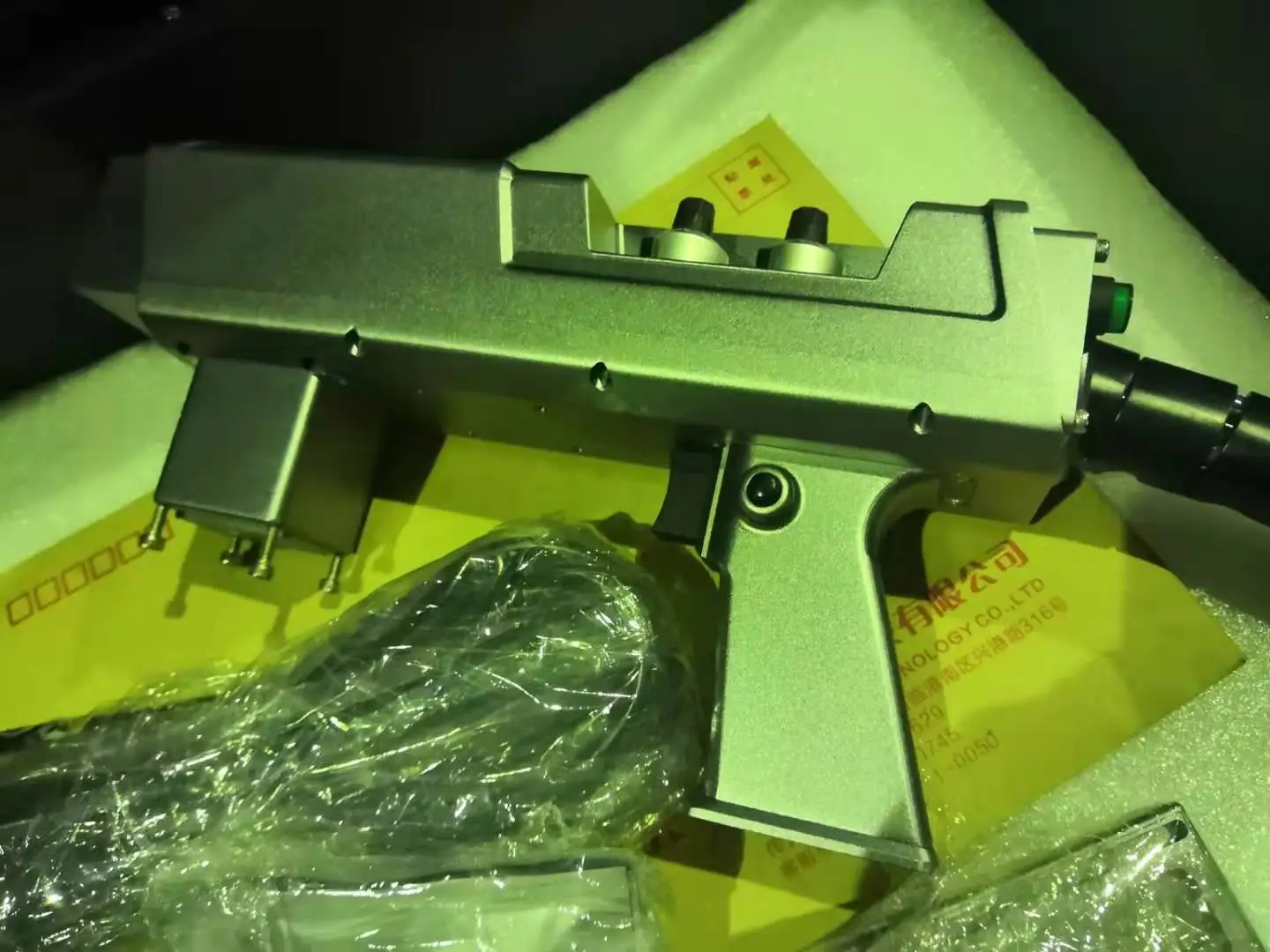

III.Laser head | ||
1 | Brand | Shenzhen Hanwei (standard model) |
2 | Spot size(mm) | 1.5/2.5mm , ”O”mode |
3 | Protective Lens | D20*2 |
4 | Auto Wire-feeder | Optional |
IV. Gas | Nitrogen/Argon | |
V.Total Power Consumption | 5/7.5/9.5KW | |
VI.Voltage | 1kw and 1.5kw:220V±20%,single phase,50Hz 2kw: 380V±20%,3 phase,50Hz | |
VII.Dimension (CM) | ||
Machine dimension(L*W*H) | 124*63*116 cm | |
Machine Net Weight | 210kg/18kg(auto-wire feeder) | |
Package size | 135*76*131cm/75*35*64cm | |
Gross weight | 250kg/24kg | |

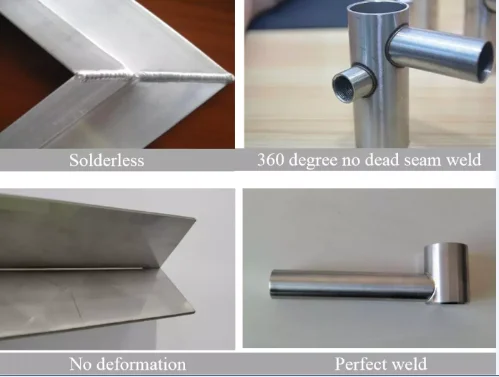

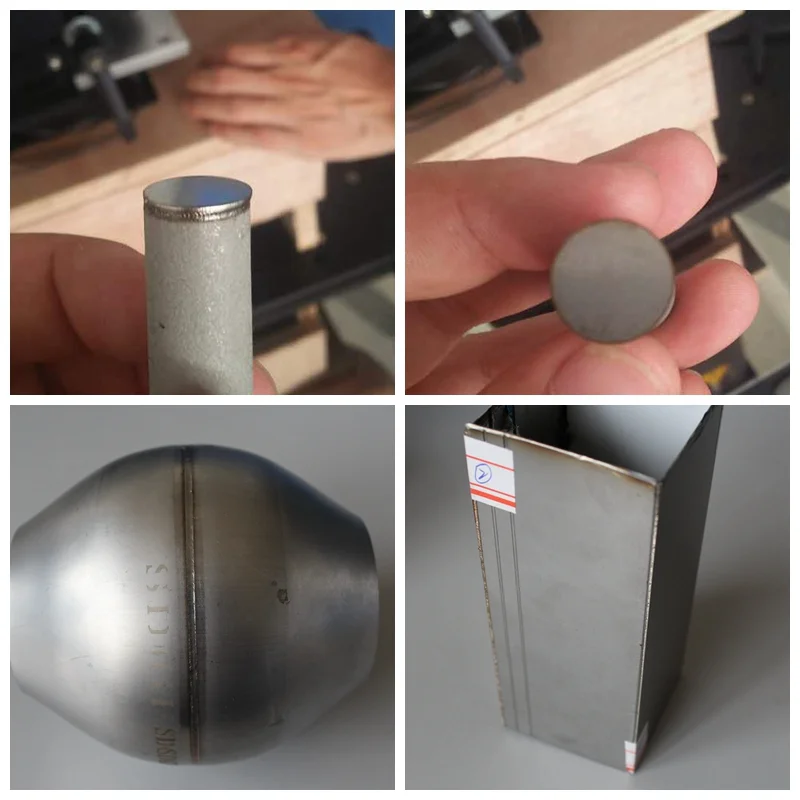

Welding samples
 |  |
