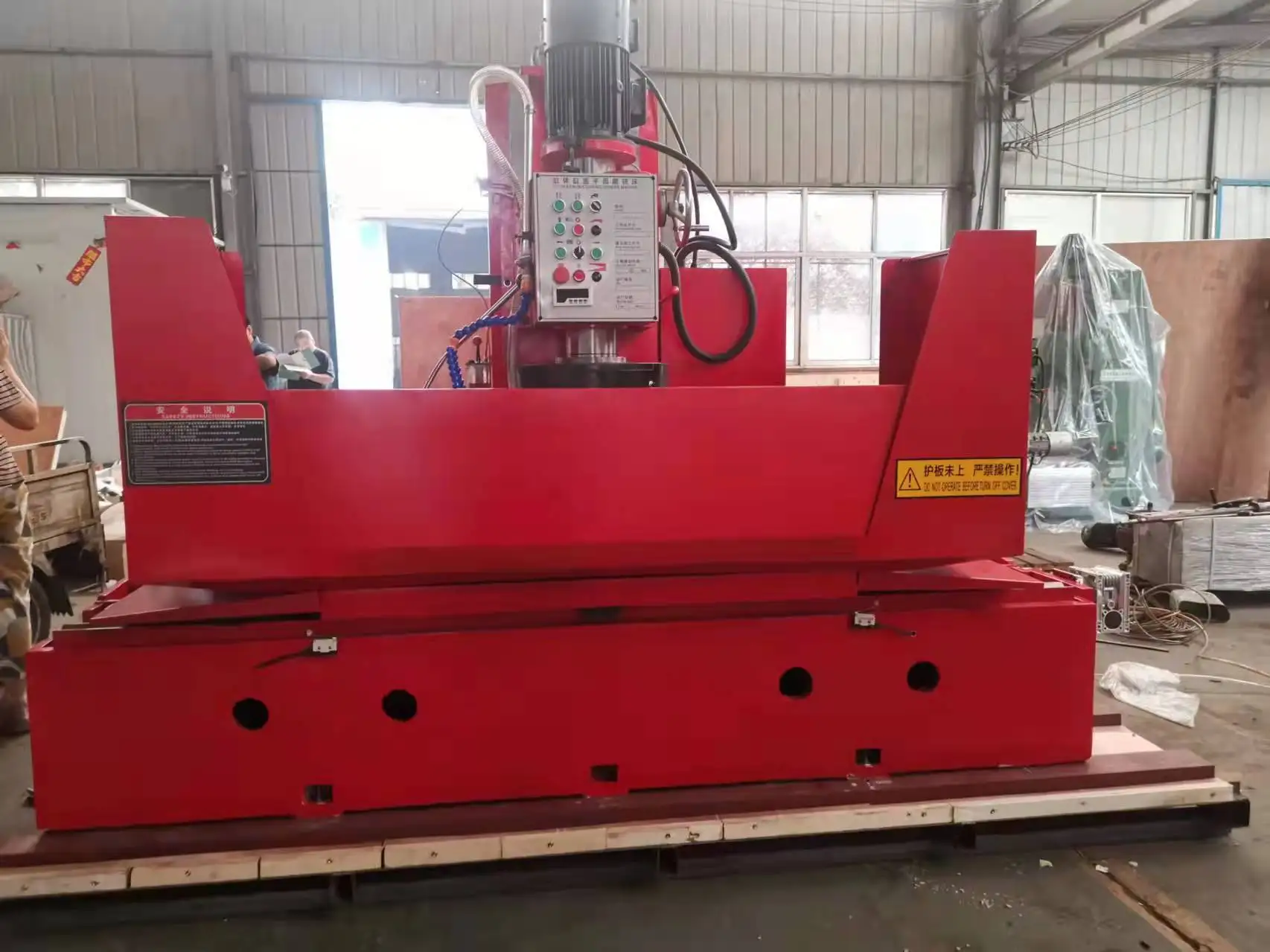

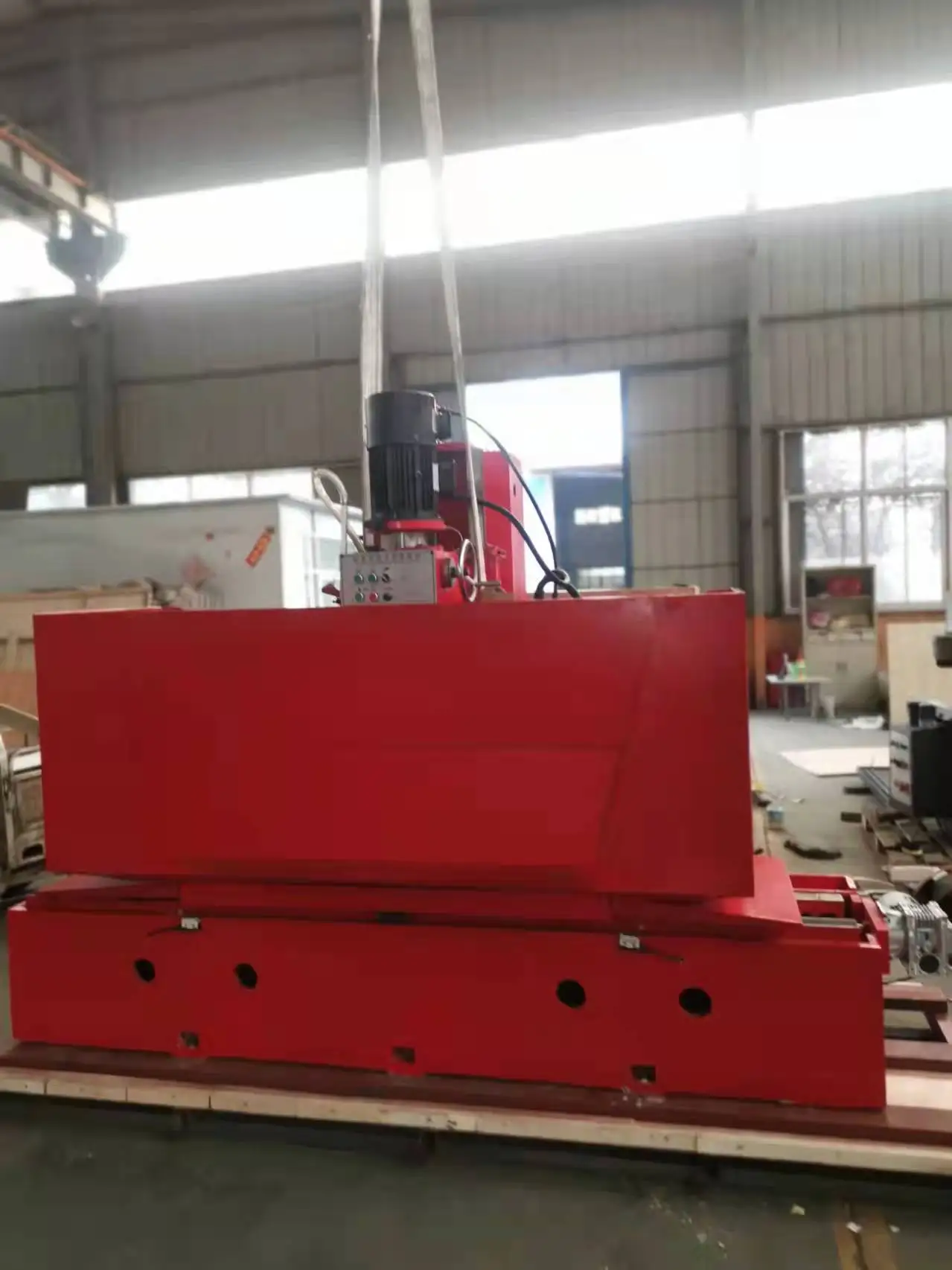

Cylinder block and head grinding machine 3M9735BX150
- Category: >>>
- Supplier: Anhui Shangyi Precision Machinery Technology Co. Ltd.
Share on (1600440375455):
Product Overview
Description
MODEL | 3M9735*1300 | 3M9735*1500 | ||||
Table size | 1300*500MM | 1500*500MM | ||||
Maximum machining length | 1300MM | 1500MM | ||||
Maximum machining width | 350MM | 350MM | ||||
Spindle travel | 600MM | 600MM | ||||
Maximum machining height | 600MM | 600MM | ||||
Vertical stroke of grinding wheel | 100MM | 100MM | ||||
Diameter of sand tile disc | 360MM | 360MM | ||||
Spindle motor speed | 100-1400r/min | 100-1400r/min | ||||
Sand tile number | 10 | 10 | ||||
Spindle motor power | 4KW | 4KW | ||||
Feed motor power | 0.75KW | 0.75KW | ||||
Cooling motor power | 40W | 40W | ||||
Weight | 2600KG | 2800KG | ||||
Overall dimensions | 2900*1150*2200MM | 3000*1150*2200MM | ||||
3M9735
Cylinder block grinding-milling machine suitable for grinding every kind of motor’s cylinder body and cover plane.
Structure characteristic:

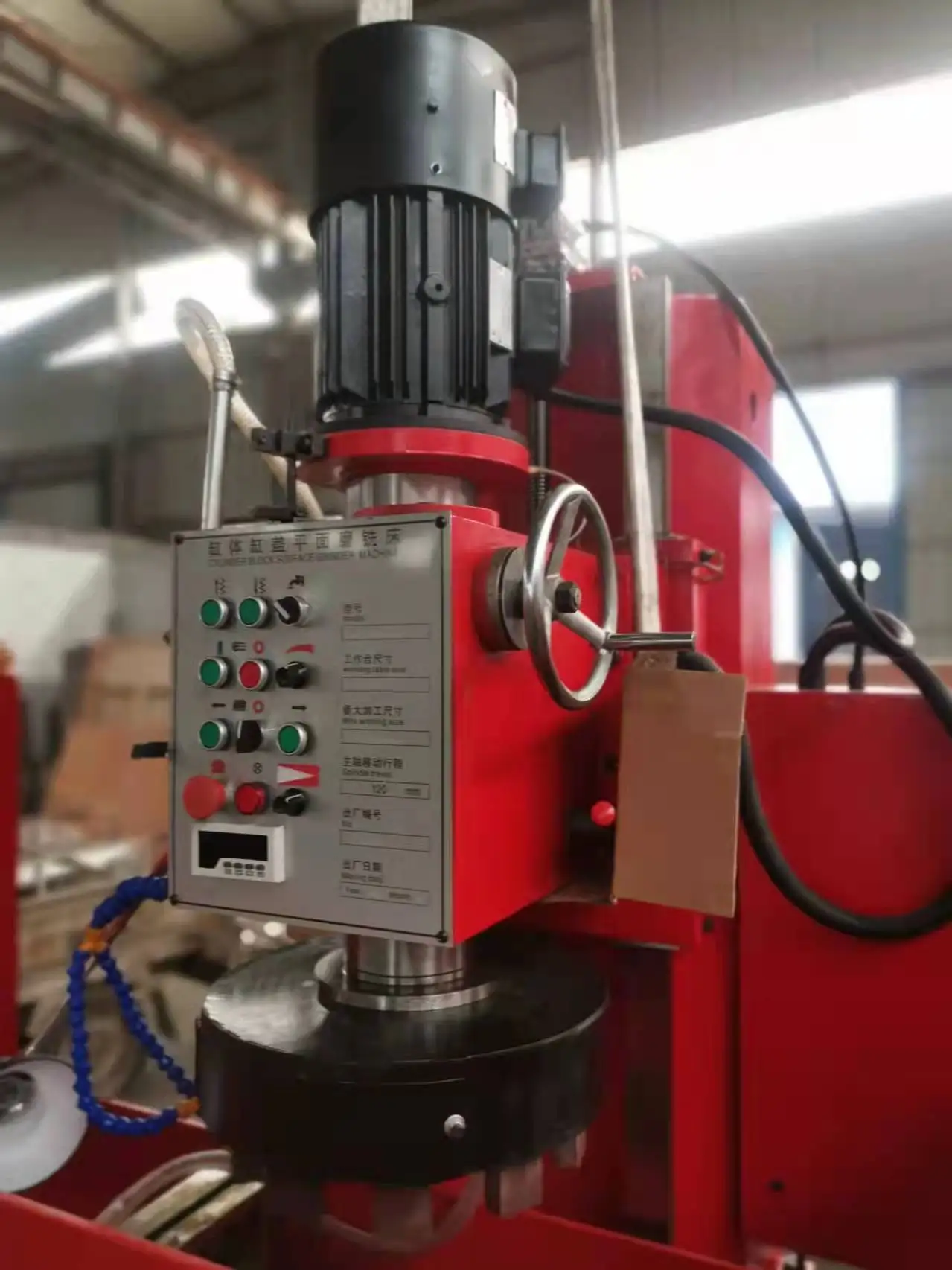

1. Spindle use high precision bearing with high machining precision.
2. machine run smoothly and with small resistance.
3. working table movement use frequency conversion stepless variable speed, suitable for machine different material parts.,
Structure characteristic:
1. Spindle use high precision bearing with high machining precision.
2. machine run smoothly and with small resistance.
3. working table movement use frequency conversion stepless variable speed, suitable for machine different material parts.,
Q1: How long guarantee period you offer?/ how is warranty?
A1: 12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period. Cost-value replacing parts available beyond the warranty period. Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customer requirements(relative cost born by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! So you can rest assured on our quality products and our best services.
