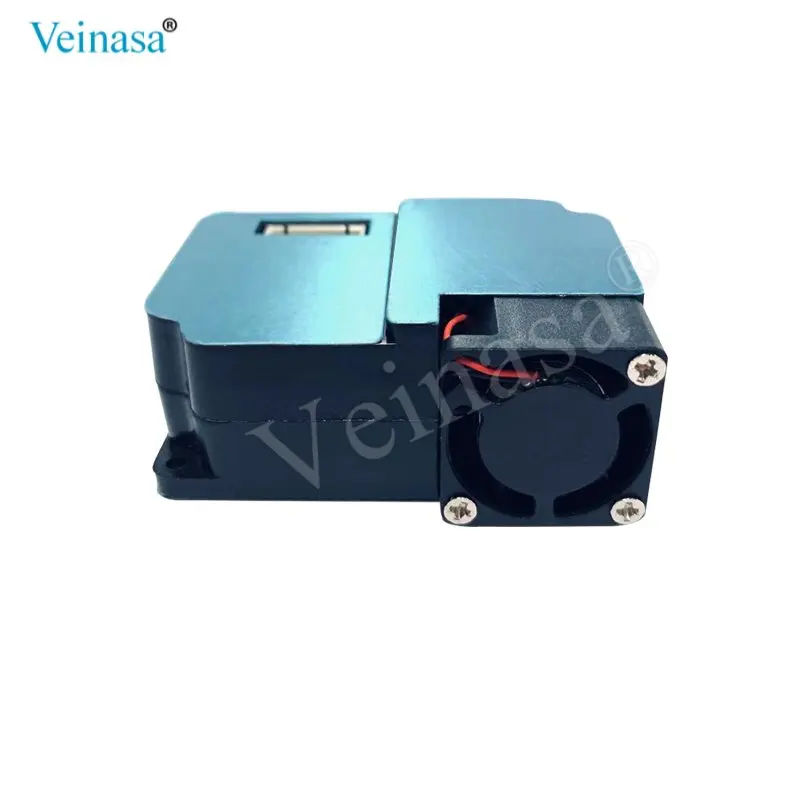

Veinasa D3 Particle Module Laser Air Quality Counters PM2.5 PM10 Dust Sensor Device Measuring Air Pollution
- Category: >>>
- Supplier: Sichuan Weinasa Technology Co. Ltd.
Share on (1600440386248):
Product Overview
Description
Veinasa-D3 Particle Module Laser Air Quality Counters PM2.5 PM10 Dust Sensor Device Measuring Air Pollution

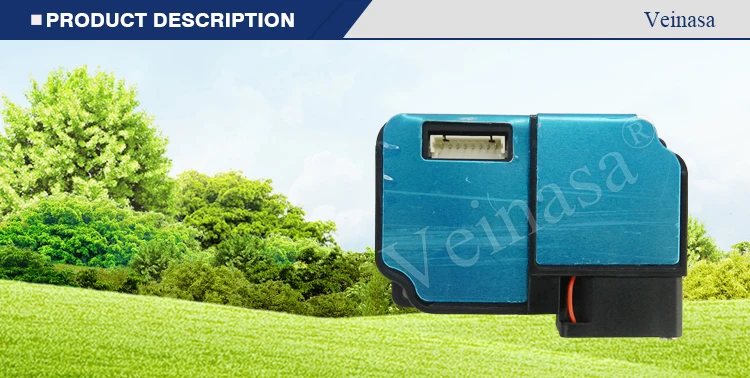

Products Description
Veinasa-D3 Particle Module Laser Air Quality Counters PM2.5 PM10 Dust Sensor Device Measuring Air Pollution is a type of laser particle sensor module. It can measure the quantity of different size of dust and it can be converted to μg/m3 according to the mathematical algorithm and output μg/m3 directly. The range of particle can be measured from 0.3 to 10μm.
It can provide 2 types of optional signal output and has a unique startup self-calibration function. The sensor consists of laser emitting module and optical detection lens. It is crossed and placed within the structure. The sensor has good consistency, good stability, small size and easy integration. The sensor can be embedded in a variety of instruments or devices related to particulate concentration to provide accurate real-time data.
Product Paramenters
Item | Min | Typ | Max | Unit |
Detection size | 1.0 | 2.5 | 10 | μm |
Concentration range | 0 | - | 999 | μg/m3 |
Resolution | - | 1 | - | μg/m3 |
Source Voltage | 4.90 | 5 | 5.10 | V |
IO LEVEL | 2.7 | 3.3 | 3.6 | V |
Current | - | - | 70 | mA |
Response Time | 0 | 5 | 10 | S |
Operating Temperature | -10 | 25 | 60 | ℃ |
Storage Temperature | -30 | 25 | 80 | ℃ |
Operating humidity (Non-Condensing) | 5% | 40% | 80% | RH |
Storage humidity (Non-Condensing) | 0% | 40% | 95% | RH |
Accuracy（0~100 ug/m3） | - | ±10 | - | ug/m3 |
Accuracy（≥100 ug/m3） | - | ±10% | - | ug/m3 |

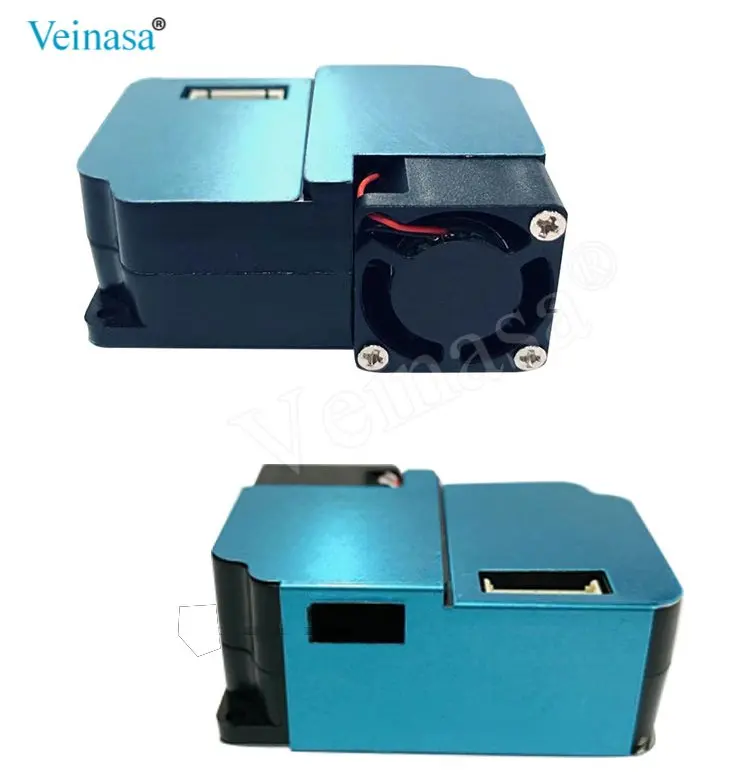

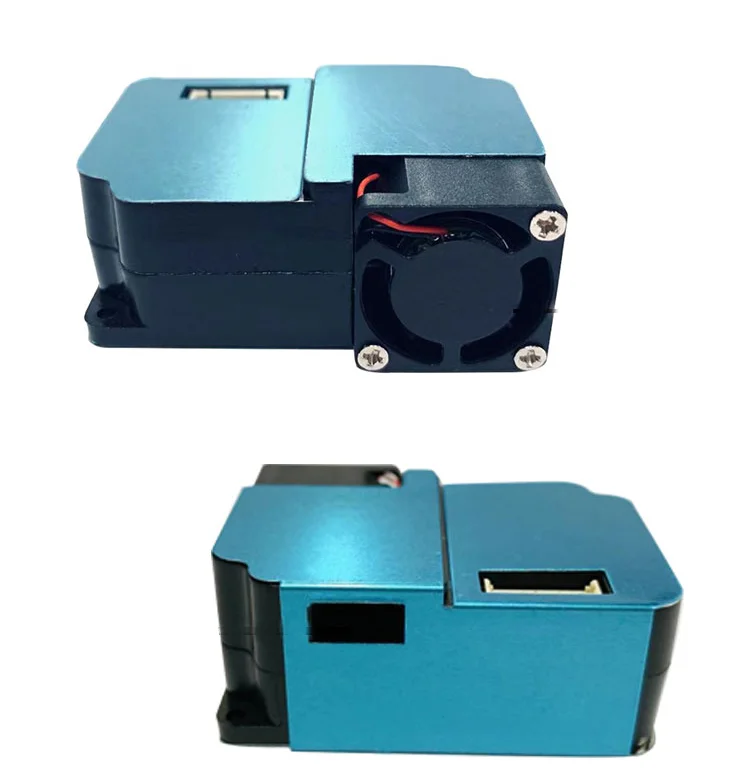

Product Display
Features of Veinasa-D3 Particle Module Laser Air Quality Counters PM2.5 PM10 Dust Sensor Device Measuring Air Pollution:

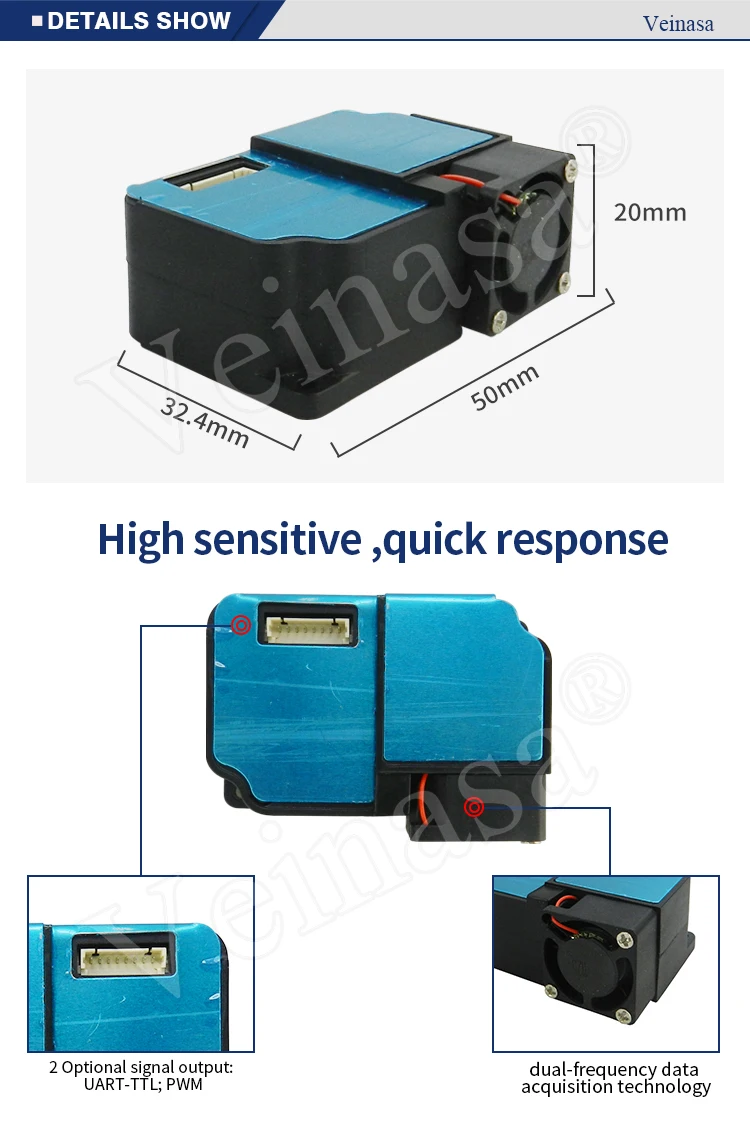

Small Size：50*36*20mm
Digital display prioritized and high accuracy
Smallest size of available measurement : 0.3μm
Use the dual-frequency data acquisition technology
Unique laser calibration technology
2 types of optional signal output: UART-TTL; PWM
High sensitive, quick response and provide continuous acquisition
Smallest size of available measurement : 0.3μm
Use the dual-frequency data acquisition technology
Unique laser calibration technology
2 types of optional signal output: UART-TTL; PWM
High sensitive, quick response and provide continuous acquisition
Application case
The application of Veinasa-D3:
Air quality monitoring equipment,
Air quality test instruments
Air purifiers
Fresh air ventilation systems,
Air conditioners
Smart home equipment
Hospitals, hotels, schools and other public places
Related Products
Company Introduction
FAQ
Q: Are you a factory/manufacturer?
A: Yes, we are a professional factory/manufacturer of water quality sensors. We also have hot
sale and widely used weather sensors Veinasa-D5.
sale and widely used weather sensors Veinasa-D5.
Q: What are the common signal output?
A: The common power supply output and signal output is UART-TTL; PWM.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.
If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this air dust sensor?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
