10/100/1000M 60W POE one Port IEEE802.3af/at Standard Gigabit 48v 60W POE Injector
- Category: >>>
- Supplier: Shenzhen CREDEK Technology Co. LTD
Share on (1600440404457):
Product Overview
Description
10/100/1000M 802.3af/at 60W POE Injector
Descriptions:

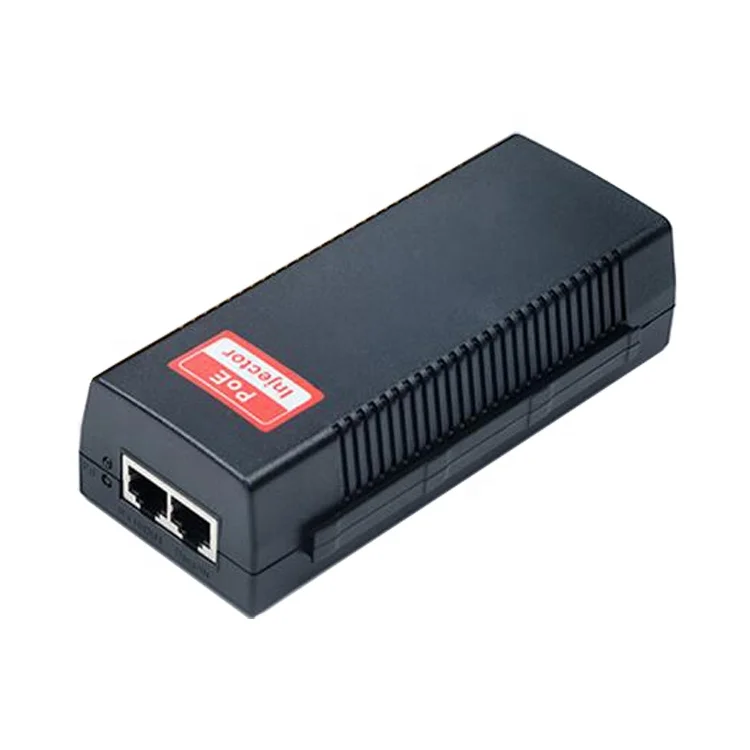

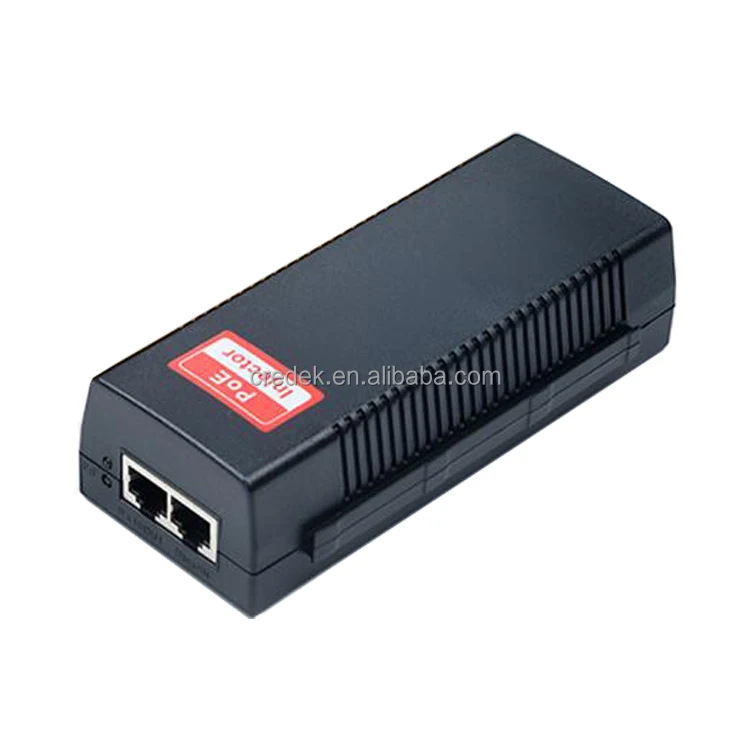

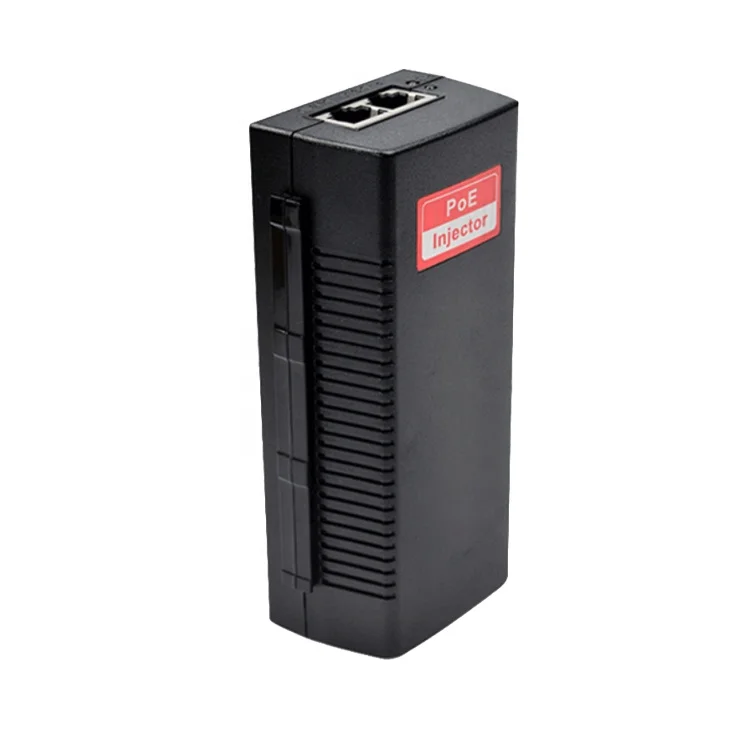

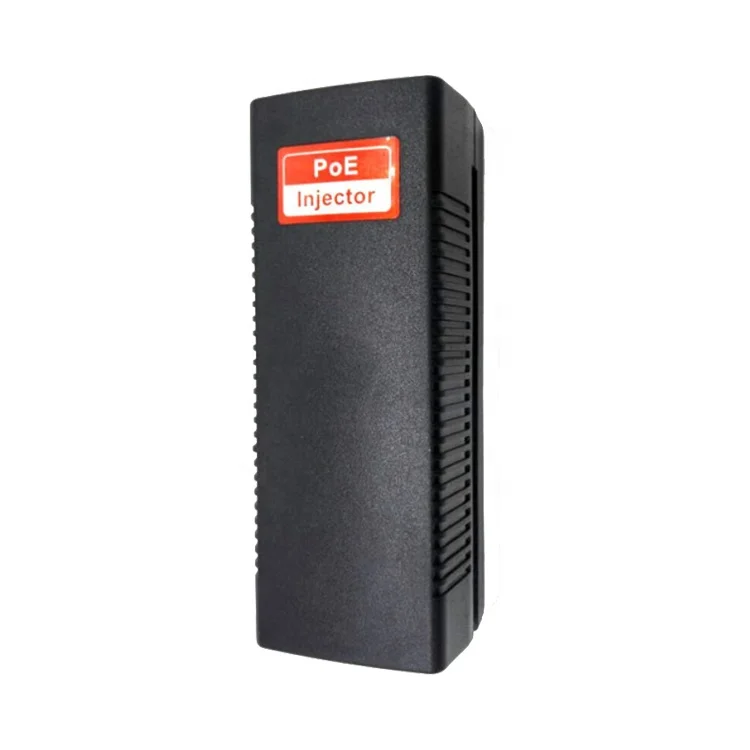

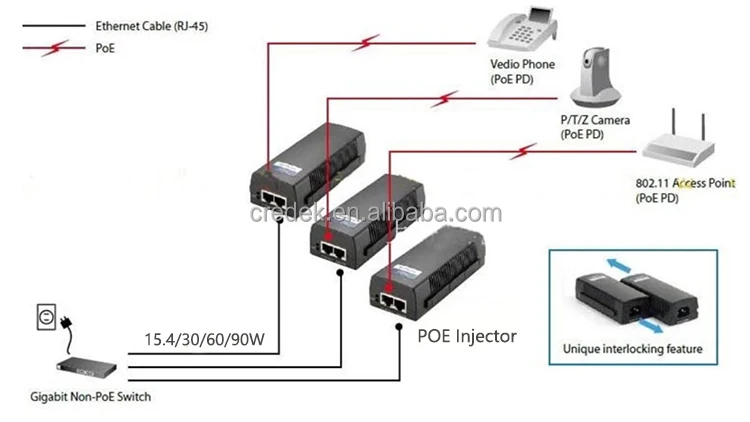

The PI-60001AT+ is a Gigabit Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. The PI-60001BT supplies remote power for new applications such aswireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3bt PoE standard.
The PI-60001AT+ is a Gigabit Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. The PI-60001BT supplies remote power for new applications such aswireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3bt PoE standard.
It can work with 10/100/1000Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. By adding a PoE Splitter to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators don’t need to use AC power adapters anymore. For all the function featured in PI-60001BT, people can get the benefit of flexible network installation at lower cost, less downtime.
Features:
* Up to 60W of Power on IEEE 802.3BT
* Safe on Low Power Devices Receive Only the Power They Need
* Safe and Reliable Power to WLAN Access Points
* Automatic Detection and Protection of Non–standard Ethernet Terminals
* Supports 10/100/1000Base-T LAN environment
* Unique interlocking feature for easy installation
* Safe on Low Power Devices Receive Only the Power They Need
* Safe and Reliable Power to WLAN Access Points
* Automatic Detection and Protection of Non–standard Ethernet Terminals
* Supports 10/100/1000Base-T LAN environment
* Unique interlocking feature for easy installation
Product Paramenters
Name | PoE injector |

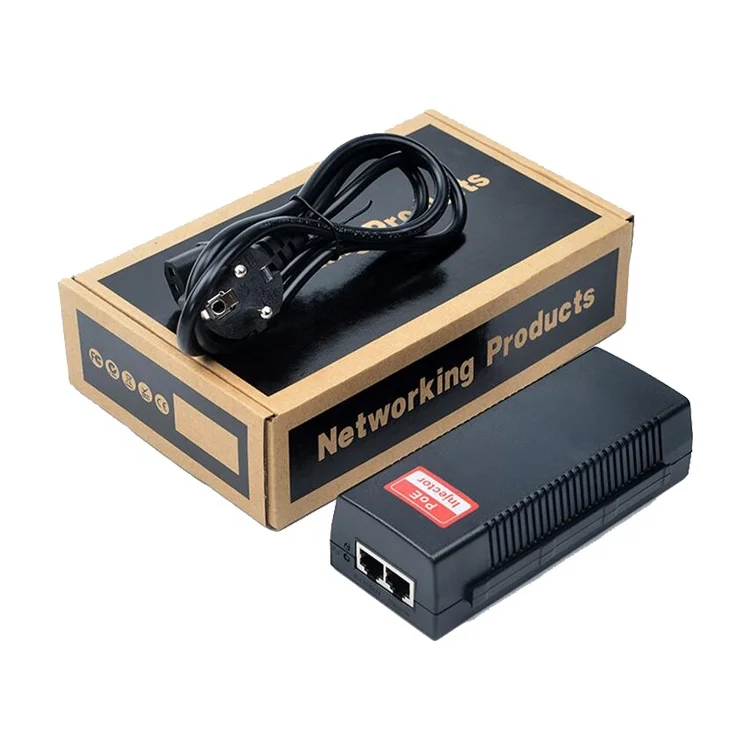

Features | ●Conforms to IEEE802.3af/at/bt standard RJ-45 ●Data Input Interface RJ-45 10/100Base-TX ●Output Port Power Cable Included |
Data Rate | 10/100/1000 Mbps |

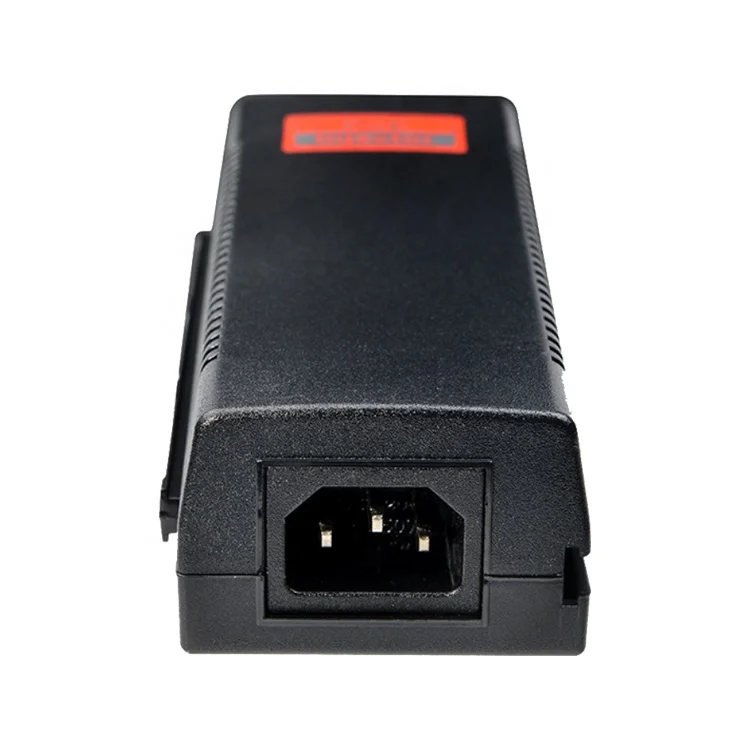

Input Power | 90-240VAC ,50-60Hz |
Output Power | 60W Max |
Wiring | Data provide dover pairs 1/2（+）and3/6（-） Power over spare pairs 4/5 (+)and 7/8 (-) |
LED Display | YES |
Operating Temperature | -10 to +60°C, Humidity max. 95% RH(non-condensing) |
Dimension | 62.7×39×12(H×D×W) |
Weight | 500g |
