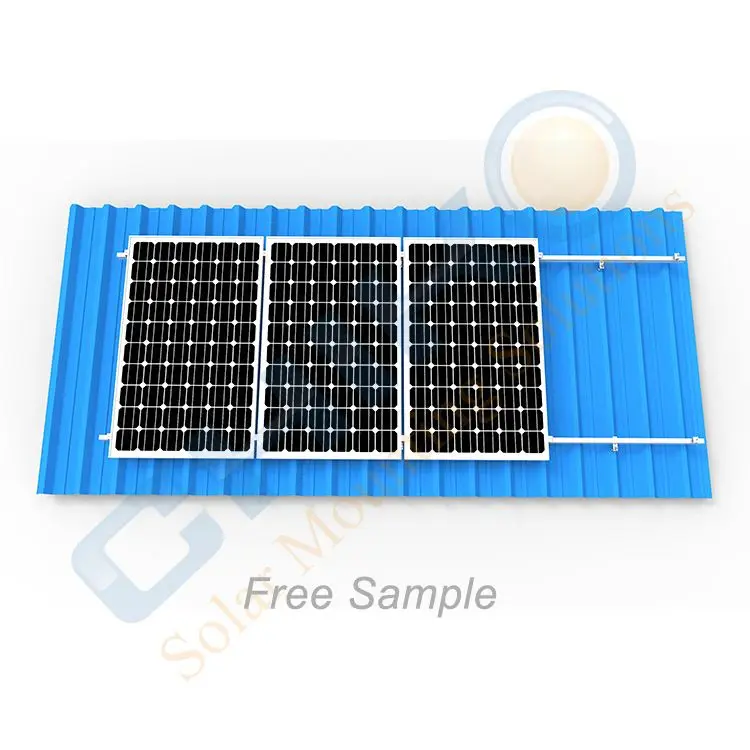

Solar roof mounting aluminium Hanger Bolts for Metal Roof
- Category: >>>
- Supplier: Shanghai Chiko Solar Technology Co. Ltd.
Share on (1600440430184):
Product Overview
Description
Product Description

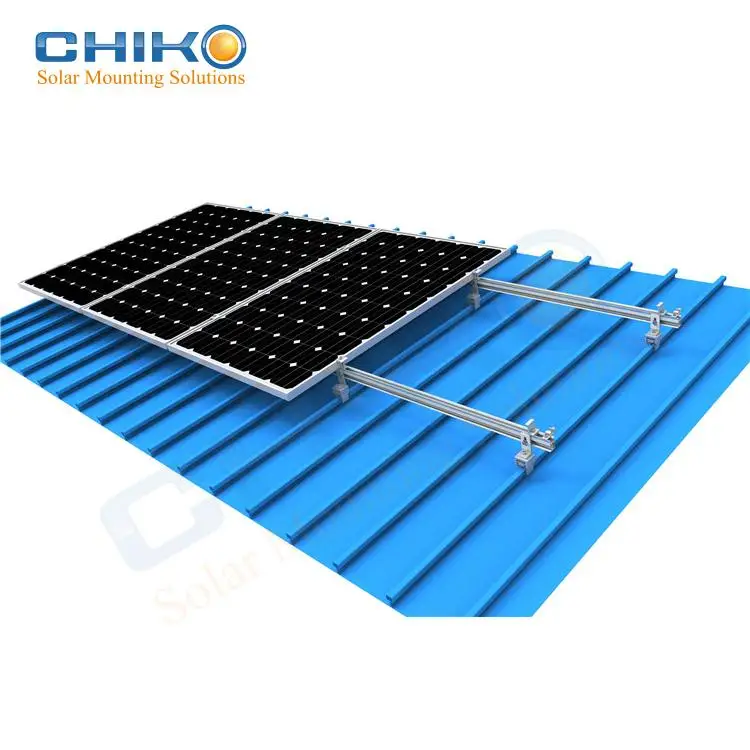

CHIKO Metal Roof Solar Mounting Solutions
* rWith innovative design to provide fast & easy installation solutions for tile roof and sheet metal roof.
* Made of extruded anodized aluminum & stainless steel to make the products, light, strong durable, anticorosion of antirust
* Flexible application for any residential and industrial solar panel installation
* Made of extruded anodized aluminum & stainless steel to make the products, light, strong durable, anticorosion of antirust
* Flexible application for any residential and industrial solar panel installation
Features
* Enables simple,fast and cost-effective installation.
* Al6005-T5,high class anodized aluminum
* Al6005-T5,high class anodized aluminum
* Water-proof EPDM rubber pad,no need extral rail.
* Fasteners and rail nut fully configured to save extra parts purchasing.
* Fasteners and rail nut fully configured to save extra parts purchasing.

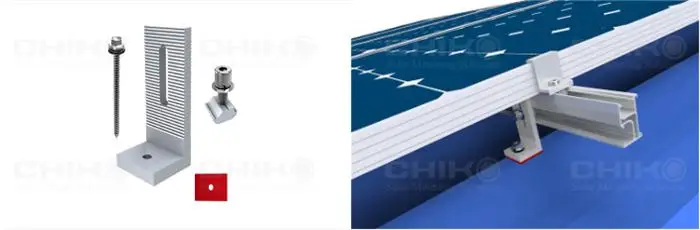

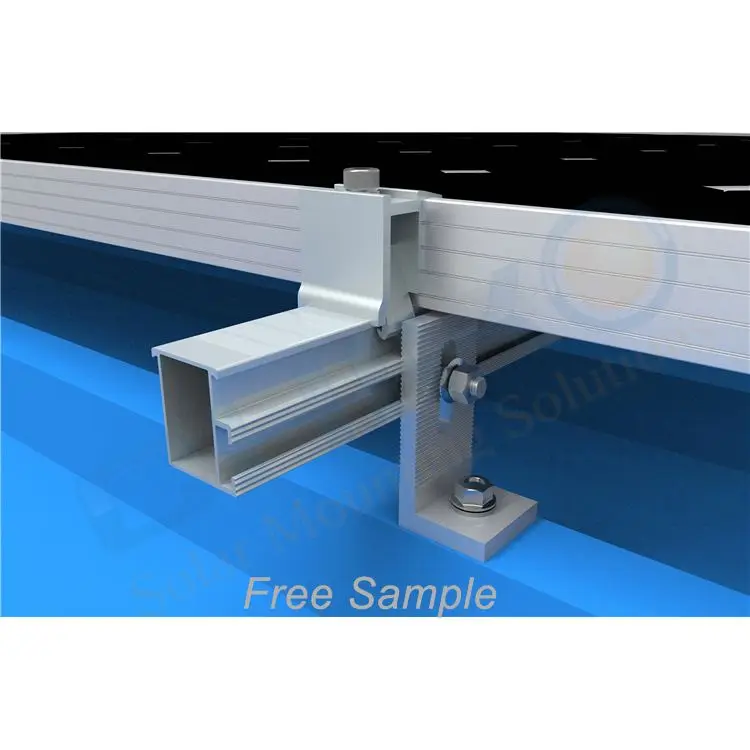

L Feet Mount CK-IL Series
CHIKO L feet have been widely used on universal corrugated metal sheet roof. It can fix to the roof rafter directly. Also, it can be applied with hanger bolts and CHIKO deigning roof clamps.

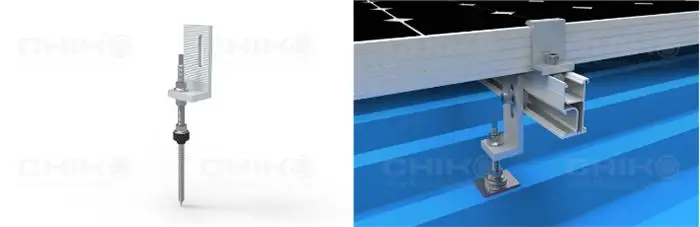

Hanger Bolt Mount CK-IH Series
CHIKO hanger bolt apply to install on both wooden rafter and steel purlin. Both types can be applied with L feet and plate

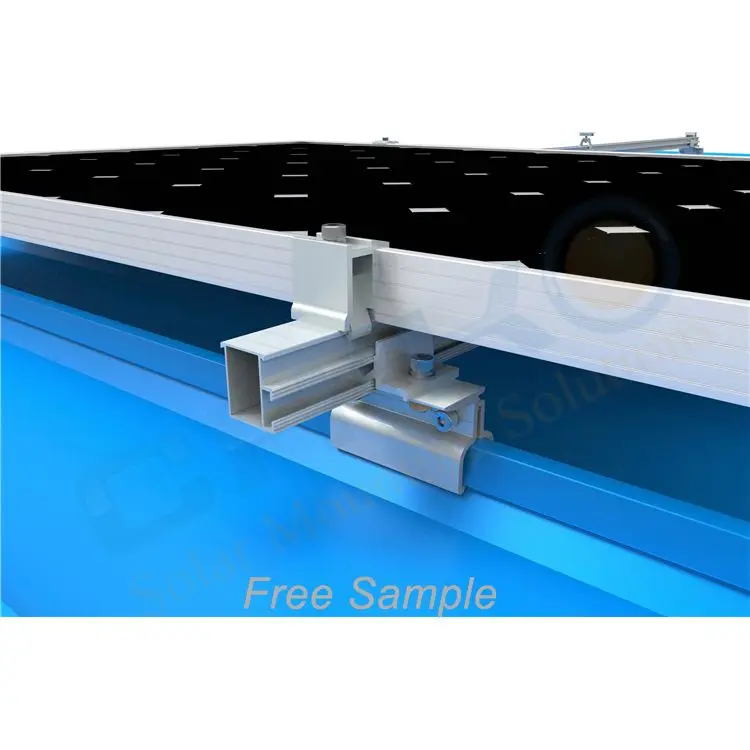

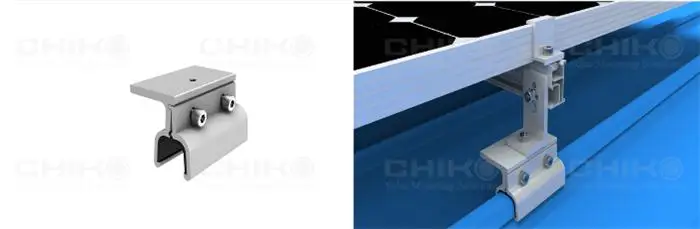

Lysaght Klip-lok 406 & 700 Mounts
CHIKO 406 & 700 Clamp is designed for Lysaght Klip-lok 406 and 700 roofings. The smart design allows for easy and fast installation.

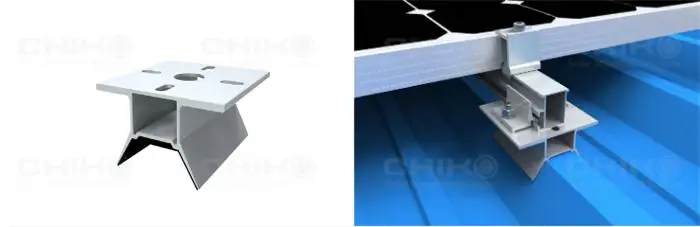

Trapezoidal Metal Sheet Mounts
This hook is designed for trapezoid metal roofs allowing it to be fixed directly to the purlin, providing a strong and robust solution.

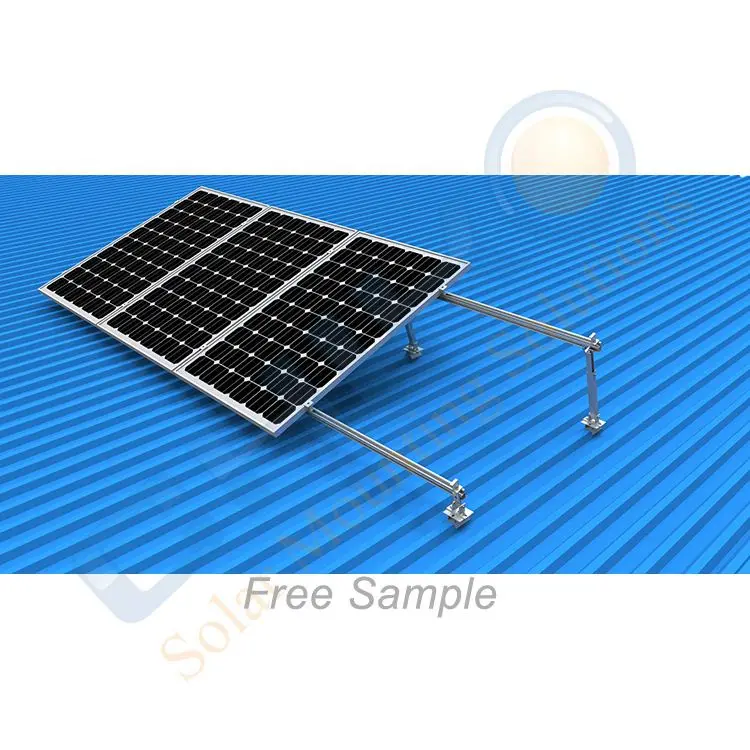

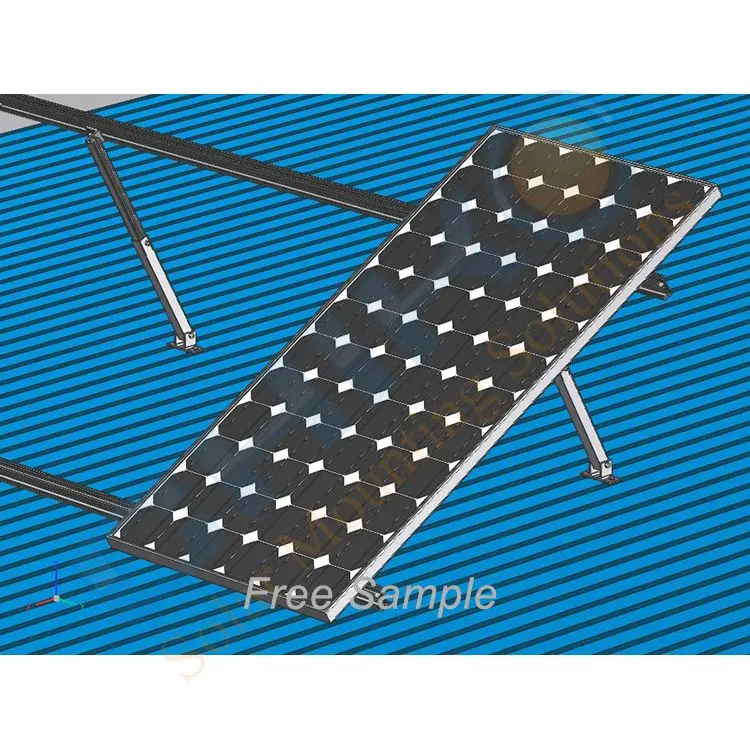

Adjustable Tilt Kits Mount CK-IT Series
Adjustable Tilt Mount is designed to allow the system to be tilted from 10-15, 15- 30 or 30-45 degrees.

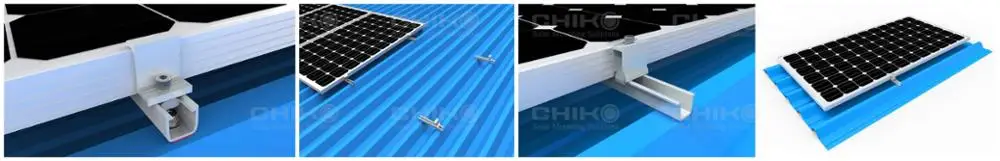

Rail-free Mount CK-RF Series
CHIKO rail free mount is designed for Features trapezoid and corrugated sheet metal roofing enabling you to install without railing.
Specification
Module orientation | Landscape or vertical |
Survival wind load | Up to 130mph(60m/s) |
Survival snow load | Up to 30psf(1.4kn/m2) |
Warranty | 10 years |
Material | Aluminum |
Fasteners material | Stainless steel |

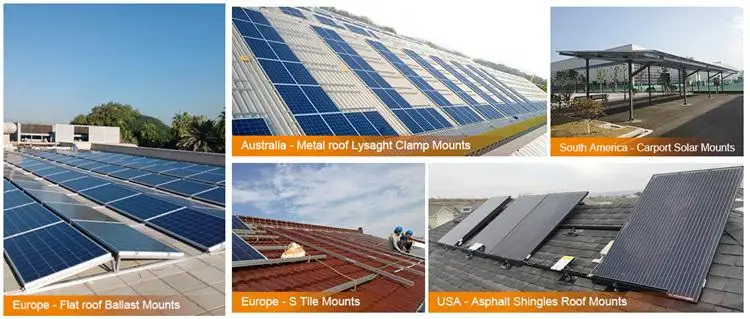

CHIKO Project for Reference
CHIKO focus on manufacturing and design Solar Mounting System for more than 9 years, CHIKO products was installed in more than 60 countries.The customer design is available.
Anything further question and more solution, contact us!
Anything further question and more solution, contact us!
Our service
Please provide Project informations as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
WHY CHOOSE CHIKO ?
• Cost-effective - Factory manufacturing
• Installation - Special design is available
• Guarantee - Warranty 10 years and service life up to 30 years
• Delivery - Globally warehouse
• Guarantee - Warranty 10 years and service life up to 30 years
• Delivery - Globally warehouse
Product packaging
CHIKO Packaging: Put Warranty Chiko solar mounting products into CHIKO standard carton/ wooden pallet/ other customized packages for pitched roof/ tile roof solar mounting brackets/ solar racking/ solar installation/ solar instruction
CHIKO Shipping Lead-time: 1-2 weeks after the order payment confirm.
CHIKO Shipping Lead-time: 1-2 weeks after the order payment confirm.
Rail | 8 Pcs/Pkg320 Pcs/Pallet |
Rail Splice Kit | 50 Pcs/Box10000 Pcs/Pallet |
Mid Clamp | 100 Pcs/Box20000 Pcs/Pallet |
End Clamp | 100 Pcs/Box20000 Pcs/Pallet |
Hanger Bolt | 100 Pcs/Ctn10000 Pcs/Pallet |
Grounding Lug | 140 Pcs/Box28000 Pcs/Pallet |
Our Advantages
Company Profile
CHIKO Solar designs and manufactures high quality solar mounting systems for pitched roof, flat roof and ground open areas.
Whether for small or large-scale projects, standard models or tailor-made systems, we deliver what your need.
We are working with companies from USA, Mexico, Germany, UK, Brazil, Korea, Thailand, Australia, South Africa,Japan etc to provide
best services.
We are proud of the fact that more than 4GW solar project from worldwide used CHIKO mounting systems.
Whether for small or large-scale projects, standard models or tailor-made systems, we deliver what your need.
We are working with companies from USA, Mexico, Germany, UK, Brazil, Korea, Thailand, Australia, South Africa,Japan etc to provide
best services.
We are proud of the fact that more than 4GW solar project from worldwide used CHIKO mounting systems.
