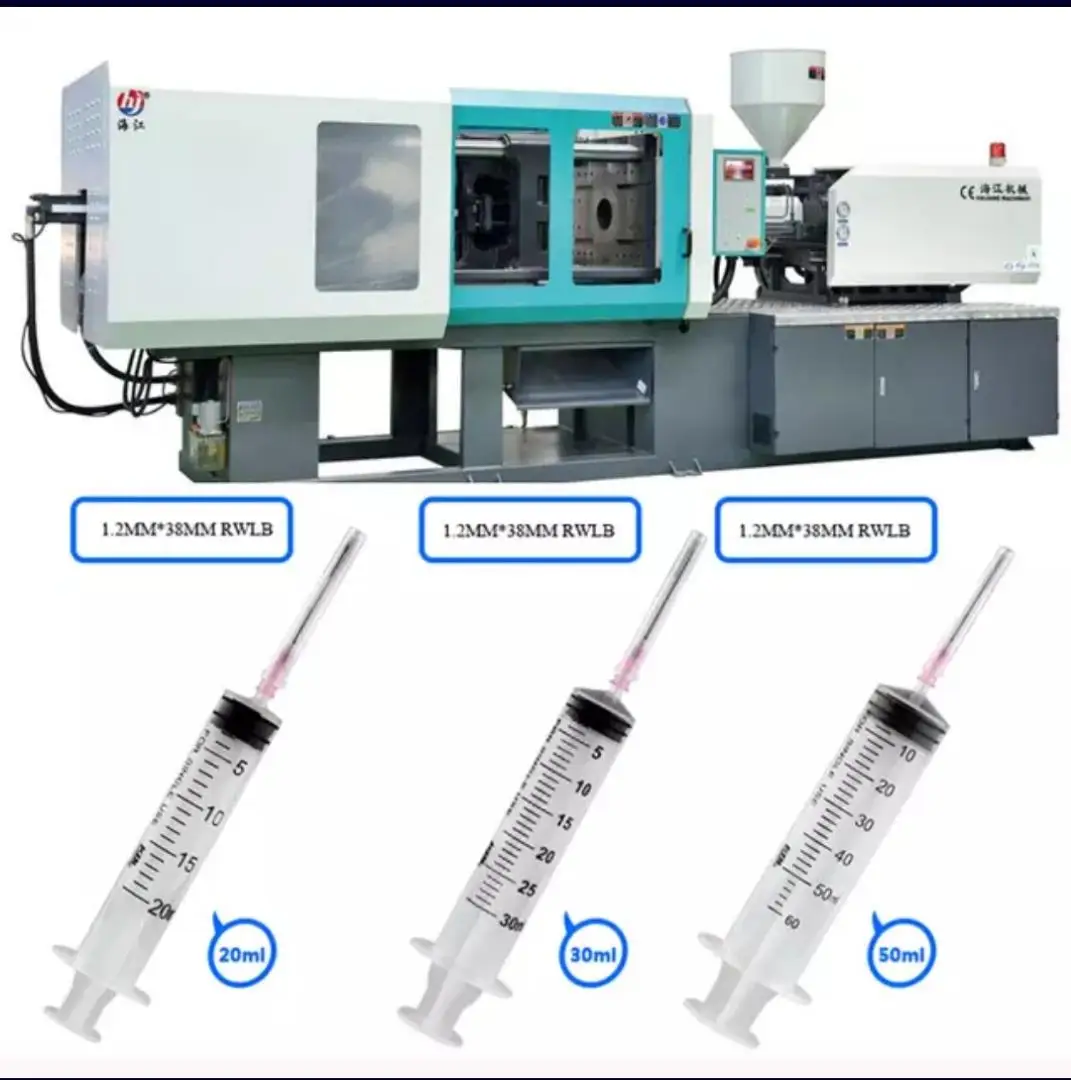

Automatic medical disposable syringe making injection molding machine
- Category: >>>
- Supplier: Ningbo Haijiang Machinery Manufacturing Co. Ltd.
Share on (1600440435197):
Product Overview
Description
SIMILAR PRODUCTS
Product Overview

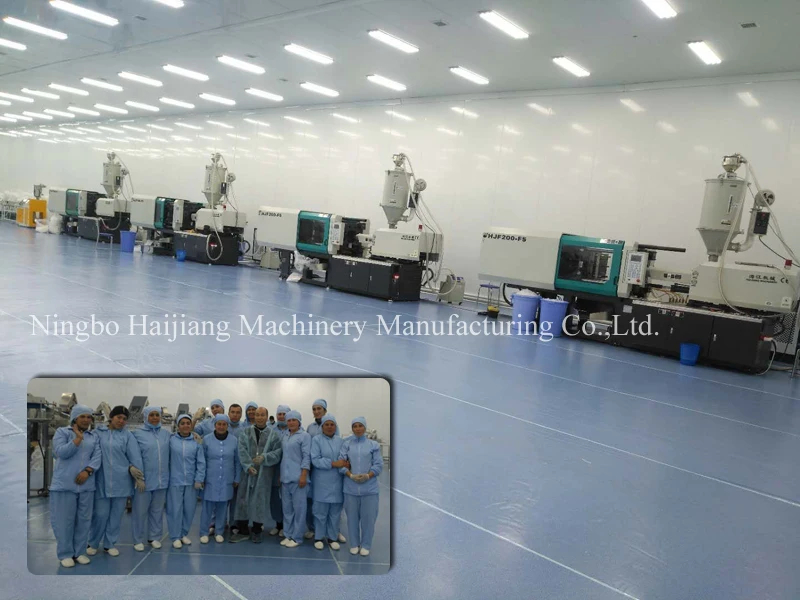

COMPANY INFORMATION
Haijiang is a professional disposable syringe equipment supplier, we have abundant experience in the disposable syringe research,production and marketing by decade years working and cooperation with our clients, and enjoy high reputation for our reliable equipment and sincerely service. Our company have 50% of the local Chinese syringe producing market, and export to modern industry country like Uzbekistan, USA, and so on in recently years. We are not only the supplier of the syringe production equipment, but also provide the whole solution of the syringe production. We will make the total plan of building a plant for disposable syringe,supply all the necessary machines, give after sales service, technical support and the know-how to produce the high quality syringe, and continue to supply the raw material such as syringe gasket, needle, packing material and syringe special silicon oil needed for the production.Our target is to help our customer to set up a syringe plant with effective production ability in a low cost, to produce the high quality products, and finally to benefit the local people who can get those high quality products with low cost.
plastic disposable medical stool urine blood feces testing container tube collector making injection moulding molding machine
Clamping Unit:
1.) Optimized Platen Design with high rigidity and enlarged space between tie bars
2.) Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds
3.) New ejection system design with longer ejection stroke, bigger space and better rigidity
4.) Hydraulic drivien gear-type mold height adjustion mechanism
5.) Relocation of mechanical safety interlock for easier operation
6.) linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.
Injection Unit:
1.) High Quality Linear Motion Guide ensure the smooth & accuracy of injection process
2.) High Speed & Pressure injection structure can improve the injection speed
3.) Twin nozzle cylinder ensures more even & stable structure
4.) Specilized screw barrel design for various appliance
Hydraulic System:
1.) The double proportional compound valve control system pressure & flow, highly sensitive & stable
2.) Imported high quality Pump, low in noise, long in lifespan & stable in performance
3.) World-famous servo hydraulic system optional, better performance in lower noise & energy saving
4.) The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision
5.) High performance hydraulic valve, less failure, fast switch, convenient maintenance
6.) Low pressure mold protect system, which is more suitable for the precise mould
7.) Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation
1.) Optimized Platen Design with high rigidity and enlarged space between tie bars
2.) Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds
3.) New ejection system design with longer ejection stroke, bigger space and better rigidity
4.) Hydraulic drivien gear-type mold height adjustion mechanism
5.) Relocation of mechanical safety interlock for easier operation
6.) linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.
Injection Unit:
1.) High Quality Linear Motion Guide ensure the smooth & accuracy of injection process
2.) High Speed & Pressure injection structure can improve the injection speed
3.) Twin nozzle cylinder ensures more even & stable structure
4.) Specilized screw barrel design for various appliance
Hydraulic System:
1.) The double proportional compound valve control system pressure & flow, highly sensitive & stable
2.) Imported high quality Pump, low in noise, long in lifespan & stable in performance
3.) World-famous servo hydraulic system optional, better performance in lower noise & energy saving
4.) The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision
5.) High performance hydraulic valve, less failure, fast switch, convenient maintenance
6.) Low pressure mold protect system, which is more suitable for the precise mould
7.) Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation
FEATURES AT A GLANCE
Medical injection molding machine
→ bigger space between tie-bars
→ central-clamping structure
→ famous components
→ energy saving with servo motor
→ low noise, fast respons
→ high precision, Stable and super long life
→ T-Slot Platen
→ abundant Spare Parts
→ better price
stool cup
urine cup
test tube

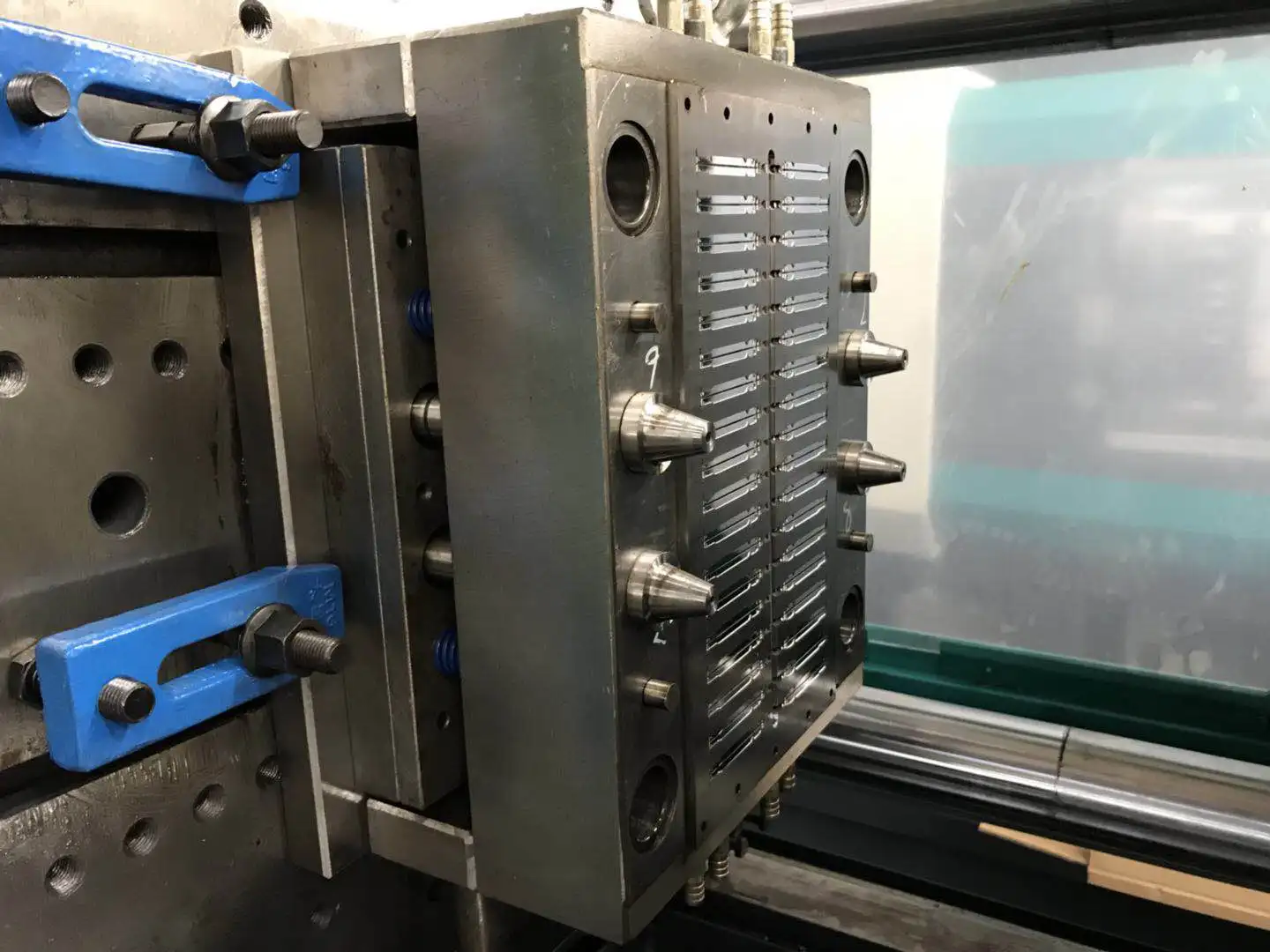

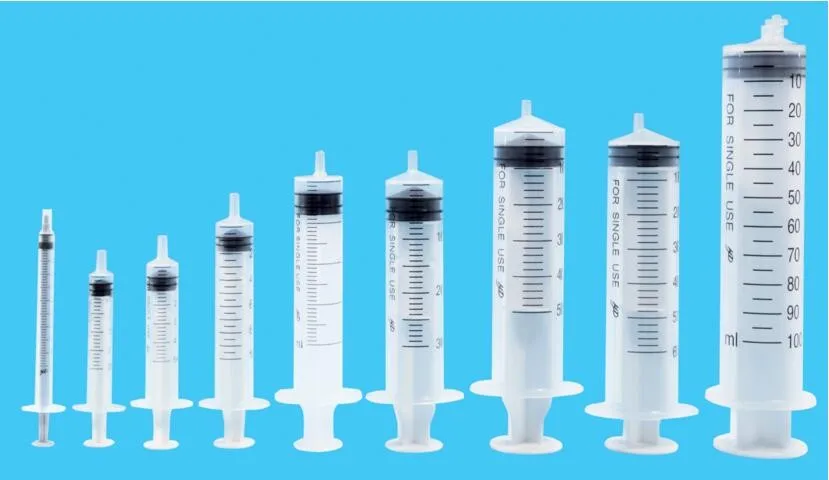

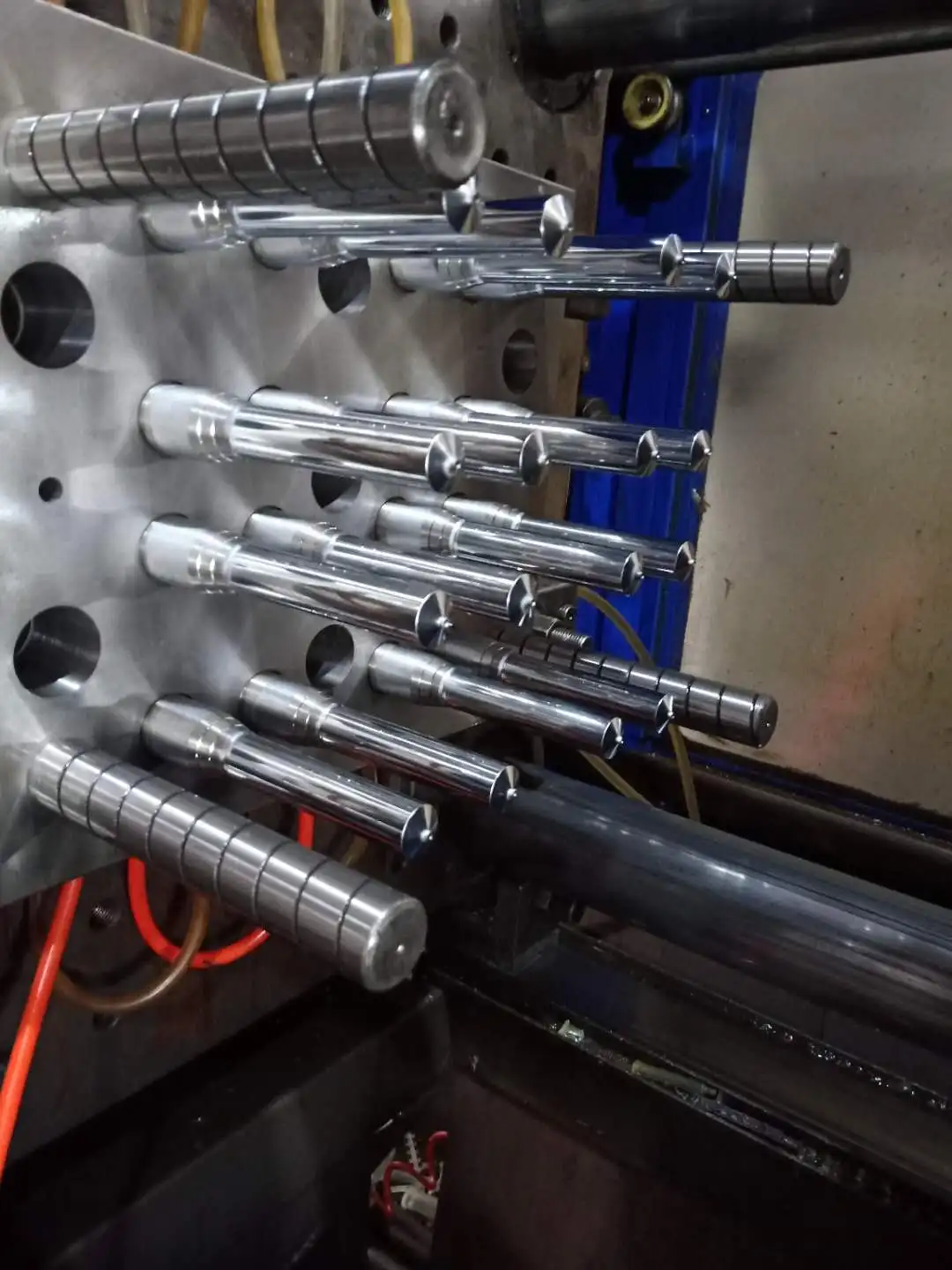

Medical disposable syringe injection mold for 1ml,2ml,3ml,5ml,10ml and 20ml.
Reasonably customize the machine model according to your production requirements.
Can support customized voltage according to your country's supply capacity

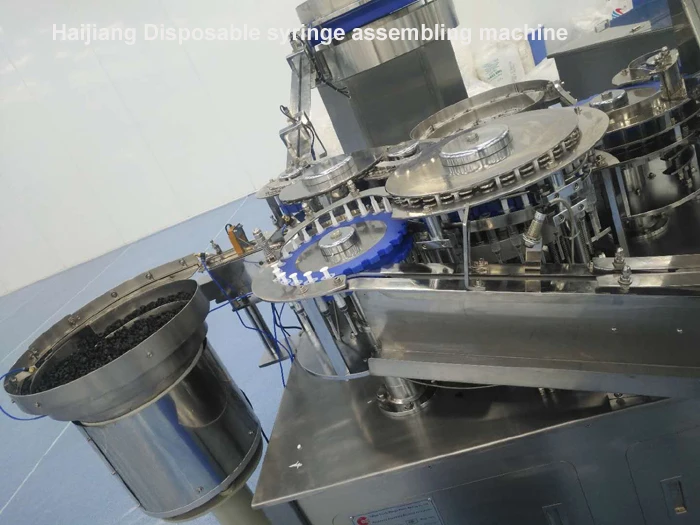

Disposable syringe fully automatic assembly machine
Full-automatic assembly machine of injector is a kind of automatic equipment that is specially designed for medical instrument industry. Pinpoint, drum body, piston and core rod of injector are assembled organically
together, the machine adopts rotary disc drum pulley type rotating movement, and the assembly of injector is automatic completely.Operating panel with touch screen, finished products are of electronics counting, high efficient, simple to operate,
and running is stable without noise. It meets the demand of high-purified space. It has gotten practial new style patent
certificate

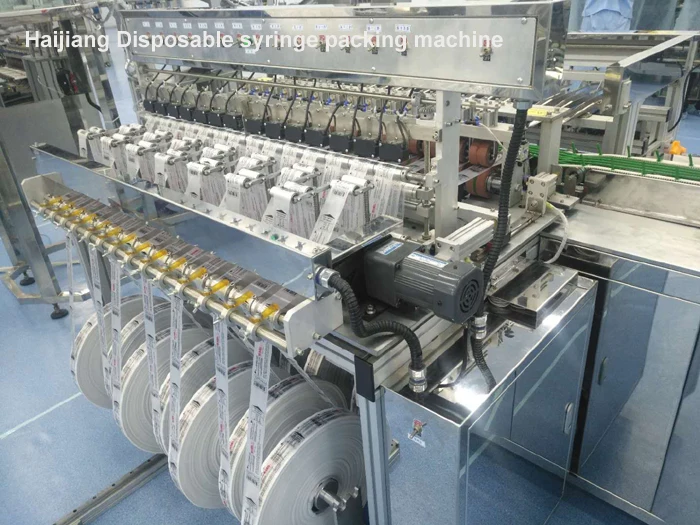

Disposable syringe packing machine
1) Machine with GMP standard , adopts PLC control system .
2) Uses the servo motor-driven and the main motor is adopts frequency control
3) Specially automatic feeder for syringe , ampoule , vial
4) Equipped blister forming detection ,feeding detect rejection
5) Uses the safety cover protection devices to ensure operator safety
PRODUCT SPECIFICATIONS
SPECIFICATION | HJF240 | ||||||
Screw Type | A | B | C | ||||
Screw Diameter | Mm | 50 | 55 | 60 | |||
Screw L/D Ration | L/D | 22.2 | 20 | 18.2 | |||
Shot Size(Theoretical) | cm3 | 508 | 593 | 706 | |||
Injection Weight(PS) | g | 462 | 534 | 642 | |||
Injection Rate | g/s | 148 | 179 | 202 | |||
Injection Pressure | MPa | 1180 | 160.8 | 128 | |||
Screw Speed | rpm | 0-180 | |||||
Clamping Force | KN | 2400 | |||||
Opening stroke | mm | 490 | |||||
Space Between Tie Bars | mm | 530*510 | |||||
Max.Mold Height | mm | 530 | |||||
Min.Mold Height | mm | 200 | |||||
Ejector Stroke | mm | 165 | |||||
Ejector Tonnage | KN | 70 | |||||
Max.Pump Pressure | MPa | 16 | |||||
Pump Motor Power | KW | 18.5 | |||||
Heater power | KW | 11.65 | |||||
Machine Dimension(L*W*H) | M | 5.4*1.5*2 | |||||
Machine weight | T | 7 | |||||
Oil Tank Capacity | L | 340 | |||||
PRODUCT CONFIGURATION
SHENZHEN/ TAIWAN/AUSTRIA PLC
Stronger Nodular cast iron template
Imported cnc processing
USA ALBERT servo motor
USA VICKES directional valve
Infrared nano heater-optional
SALES AND SERVICE NETWORK
Product Delivery
1
2
3
4
5
6
FAQ
Q1. What is the warranty for the plastic injection molding machine
A1:Total 18 month,Included machine platen,base,injection unit,clamping unit.
Q2:Can you sending engineer to oversea install machine and trainning customer's workers.
Q2: Yes,We will send engineer to customer factory install the machine or trainning customer's workers. in one week,total free. After one week, 50$ per day
Q3:How Many spare parts you will prepare for customer?
A3: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual,Tool box,Lubricate Oil,Sealing,Filter etc.
Q4:Computer sytem,Except English, can you change other language,say: French,Spanish,Arabic,Russian.
A1:Yes,when you place order,please tell us the language which you required. Standard one with English,Japanese,Chinese,Korea.
Q5:Can you change the power source for us? Say:we need 3 Phase 220V 60HZ
A5: When you place order,please write clearly.Then we will change the electric system for you.
Q6:If i Need Green Color machine,can you do it for us?
Q7: Yes,please give us the color sample.So we can do it for you
A1:Total 18 month,Included machine platen,base,injection unit,clamping unit.
Q2:Can you sending engineer to oversea install machine and trainning customer's workers.
Q2: Yes,We will send engineer to customer factory install the machine or trainning customer's workers. in one week,total free. After one week, 50$ per day
Q3:How Many spare parts you will prepare for customer?
A3: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual,Tool box,Lubricate Oil,Sealing,Filter etc.
Q4:Computer sytem,Except English, can you change other language,say: French,Spanish,Arabic,Russian.
A1:Yes,when you place order,please tell us the language which you required. Standard one with English,Japanese,Chinese,Korea.
Q5:Can you change the power source for us? Say:we need 3 Phase 220V 60HZ
A5: When you place order,please write clearly.Then we will change the electric system for you.
Q6:If i Need Green Color machine,can you do it for us?
Q7: Yes,please give us the color sample.So we can do it for you
