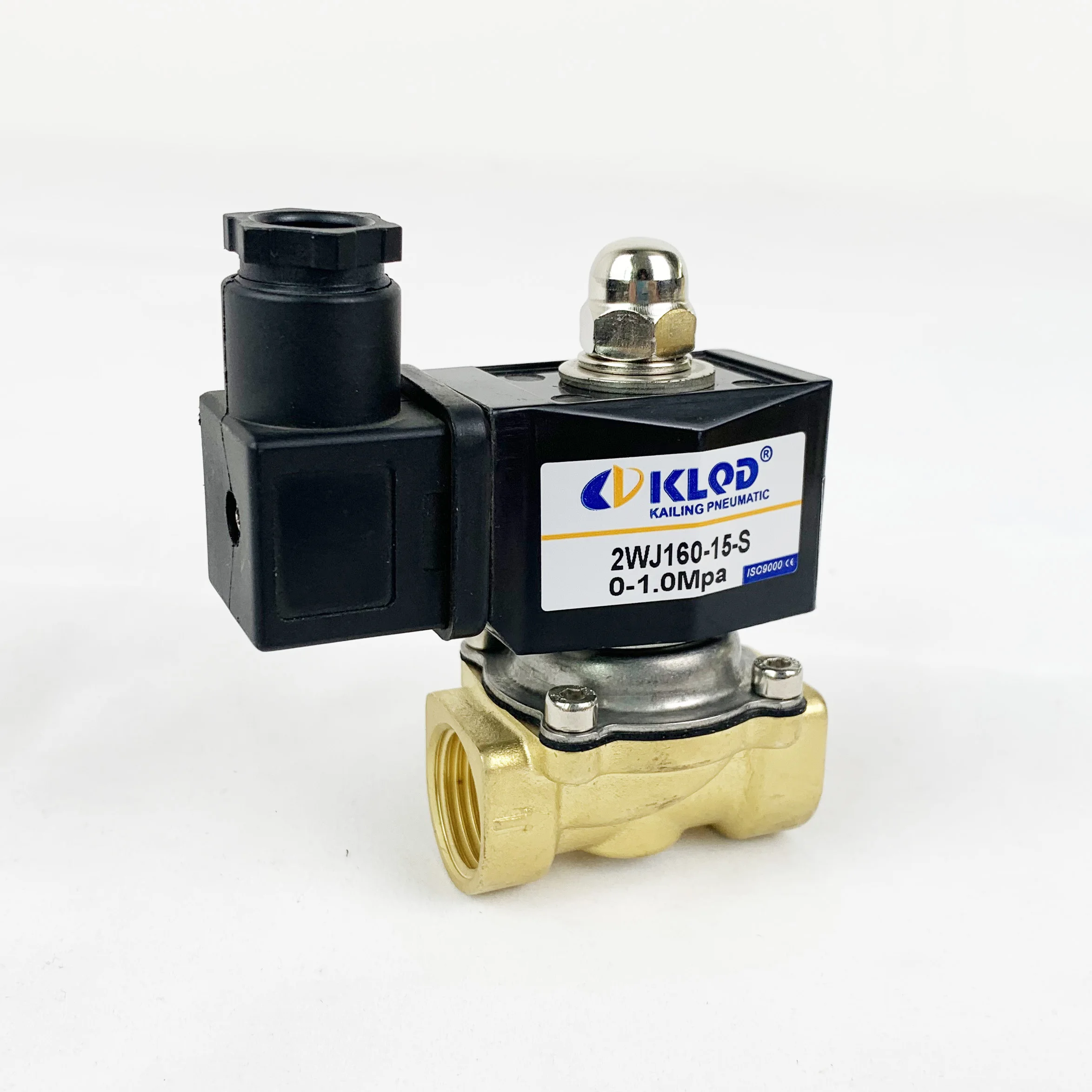

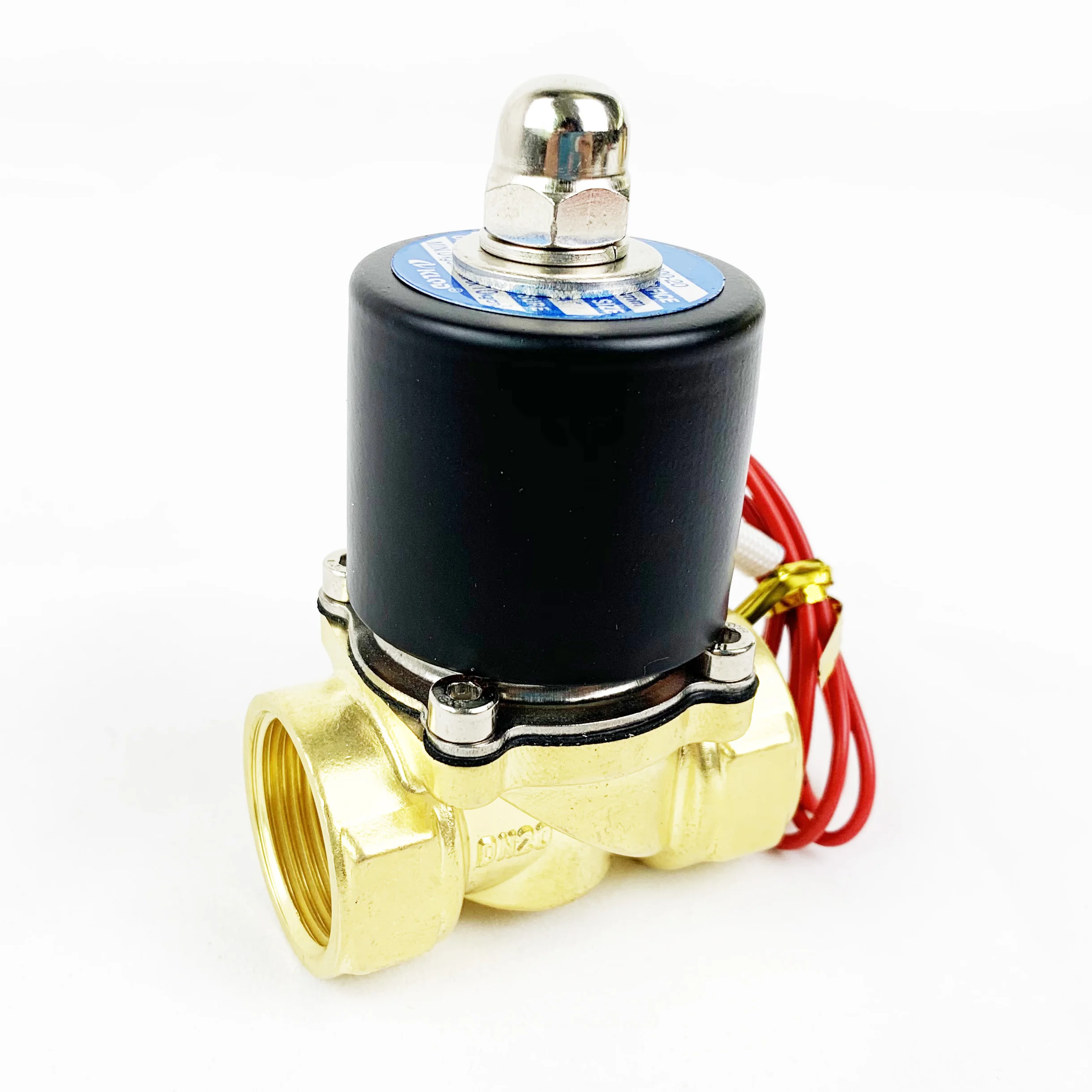

New Type small size Economic Type Low Price 2WJ 32 Water Oil Air Solenoid Valve
- Category: >>>
- Supplier: Ningbo Kailing Pneumatic Co. ltd.
Share on (1600440449637):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

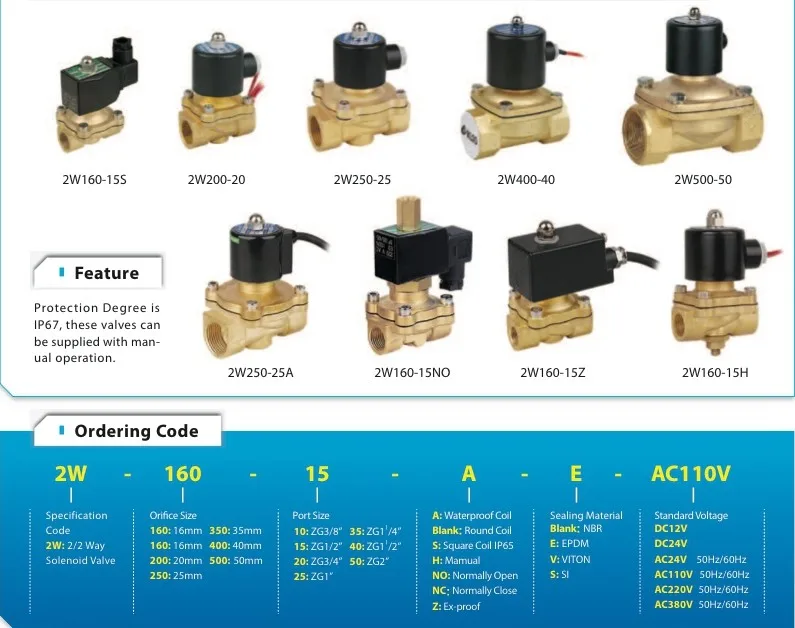

Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | |||||
Working Medium | Air,Water,Oil,Gas | ||||||||||
Operation | Direct Acting | ||||||||||
Acting Type | 16 | 20 | 25 | 35 | 40 | ||||||
CV Value | 4.8 | 4.8 | 12 | 24 | 29 | ||||||
Port Size | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | |||||
Operation Fluid Viscosity | 20 CST Below | ||||||||||
Operating Pressure | Air:0~1.0Mpa Water:0~0.7Mpa Oil:0~0.9Mpa | ||||||||||
Max.Pressure Resistance | 1.0Mpa(Normal Open Type Max.Pressure 0.8Mpa) | ||||||||||
Operating Temperature | NBR for -5~80°C and VITON for -5~150°C | ||||||||||
Voltage Range | -10%~+10% | ||||||||||
Material of Body | Brass | ||||||||||
Material of Oil Seal | NBR,EPDM,VITON,SI | ||||||||||
\t\t\t\t\t\t\t\t\tProduction Processes \t\t\t\t\t\t\t
Warehouse
Wide range of product.
Standard Product in stock.
\t\t\t\t\t\t\t\t\tAbout KLQD \t\t\t\t\t\t\t
1.Since 2002.About 20 years of manufacturing and export.8 years Gold Supplier of Alibaba.
2.Main products:Solenoid Valve,Actuator,Air cylinder,Air source treatment
3. Main markets: America, Europe, Brazil and so on.
4.we accept Paypal, Western Union, bank T.T,LC payment.
5. Expert packing to protect products in shipment
6. OEM is accepable.
7. Sample order is accepable
8. Fast responsilbe to all your questions.
9. 100% quality test before packing.Short delivery time for standard products.
10. The size of the company is expanding,product types will be more and more.
Laboratory
The introduction of the latest test machine.
More accurate testing of the flow rate,pressure,leaking,temperature.
\t\t\t\t\t\t\t\t\tCertificate \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tPayment \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tPacking&Delivery \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t
Pneumatic actuator/Ball valve/butterfly valve
Electric actuator/Ball valve/butterfly valve
Pneumatic angle seat valve
Solenoid valve
Mechanical valve
Pneumatic cylinder
Tube
Pneumatic fitting
Air source treatment
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q1. Is sample order acceptable?
A: Yes.It's ok.
Q2. How to place the order?
A: You can send us email or inquiry at alibaba directly.
Q3. How many days for delivery?
A: We have stock for standard products.
Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C,
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
