Hydraulic press customization shape cubic hookah shisha charcoal machine price coconut charcoal press machine
Introduction of coconut charcoal press machine
This coconut charcoal press machine is used to compress various shapes and sizes of briquette from peanut shell, wood, palm shell, etc, final product can use for bbq fuel, shisha hookah briquette, other boiler fuel.
If you need to compress other material not charcoal, this coconut charcoal press machine also can help you, customized mould shape and size, according to customer requirement.
There are many useless material in the world, like coconut shell, palm shell, waste wood, olive slag, etc, people thrown away waste in many places. In fact, these waste material can also be turned into waste and made into charcoal and sold on the market. The profits are very large.
This coconut charcoal press machine is used to compress various shapes and sizes of briquette from peanut shell, wood, palm shell, etc, final product can use for bbq fuel, shisha hookah briquette, other boiler fuel.
If you need to compress other material not charcoal, this coconut charcoal press machine also can help you, customized mould shape and size, according to customer requirement.
Mould | LT-900 | LT-1000 | |
Material | Charcoal powder, coal powder, sawdust, any powder from materials | ||
Capacity | 9-12 pieces/time, 20 times/min | 33-48 pieces/time, 4-6 times/min | |
Motor | 5.5 kw | 15+2.2+0.75 kw | |
Diameter of briquettes | 20-40 mm(round), 20-30 mm (cubic) | 20-40 mm(round), 20-30 mm(cubic) | |
Feeding materials | ＜1 mm | ＜1 mm | |
Briquette shape | Round, cube, or customized | Round, cube, or customized | |
Pressure | 40 tons | 100-200 tons | |
Overall size | 2500*950*1550 mm | 3500*2000*1800 mm | |
Weight | 1500 kg | 2000 kg | |
Characteristics of coconut charcoal press machine
1. This coconut charcoal press machine is particulary suitable for pressing of large diameter, large filling quantity of tablets.
2. Specially designed forced feeder, can compress charcoal pure powder material with light weight, small density.
3. Specially designed auxiliary equipment, can realize automatic feeding, automatic discharging tablets.
4. Humanized design, the coconut charcoal press machine is easier to clean and maintain.
5. Special installation structure, make the down rail guide and pressure wheel replacement and maintain convenient.
6. Drive system is airtight in the worm box at the bottom of the main body, is a completely seperated and independent part, neither pollution each other, and make the drive system get sufficient lubrication, reducing noise and wearing.
1. This coconut charcoal press machine is particulary suitable for pressing of large diameter, large filling quantity of tablets.
2. Specially designed forced feeder, can compress charcoal pure powder material with light weight, small density.
3. Specially designed auxiliary equipment, can realize automatic feeding, automatic discharging tablets.
4. Humanized design, the coconut charcoal press machine is easier to clean and maintain.
5. Special installation structure, make the down rail guide and pressure wheel replacement and maintain convenient.
6. Drive system is airtight in the worm box at the bottom of the main body, is a completely seperated and independent part, neither pollution each other, and make the drive system get sufficient lubrication, reducing noise and wearing.

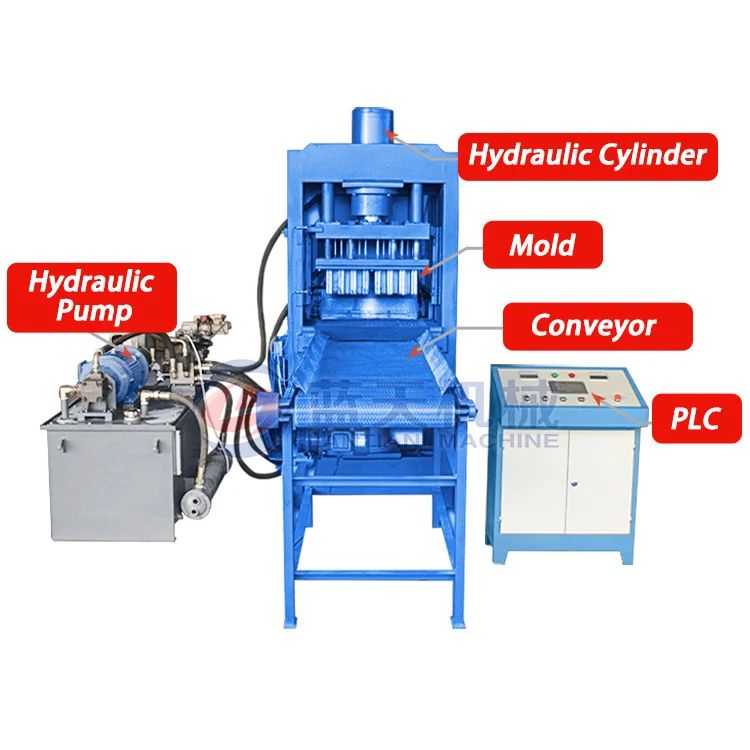

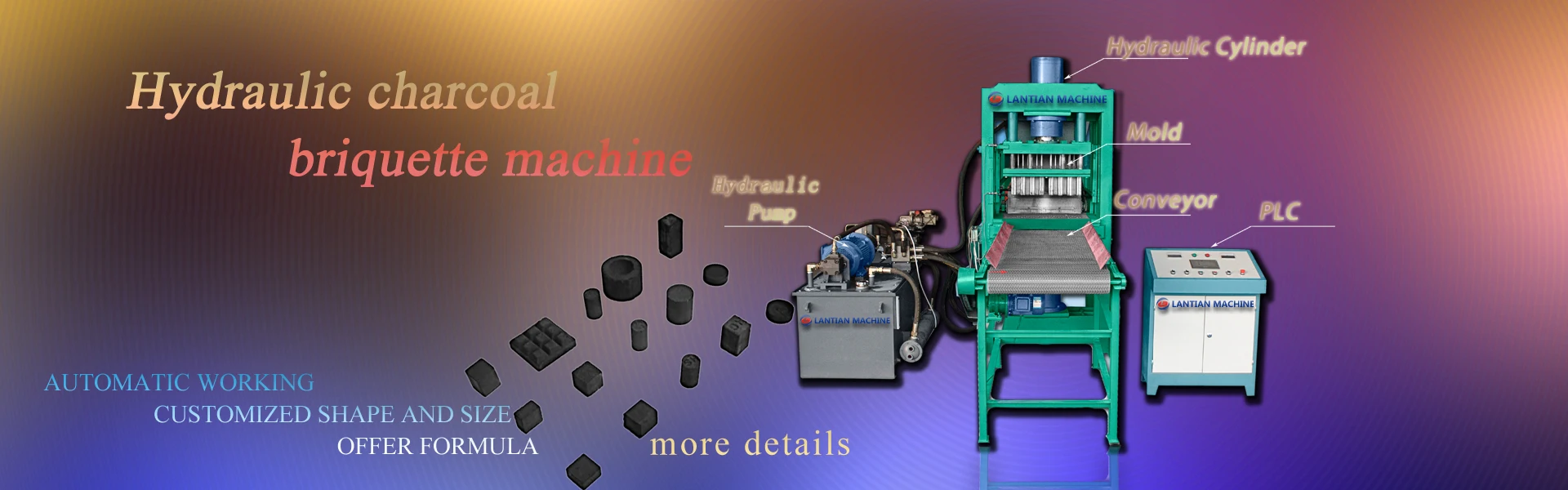

Machine details
Hydraulic pump station
Owing to coconut charcoal press machine use hydraulic type, so it have hydraulic pressure station. Pressure can reach 100-200 tons, so that final briquette is very hard, and the density is very good. And have pressure gage on the hydraulic station. Also there have pump outside, can ensure the safety, with cooling system.
PLC system
The PLC system enable this coconut charcoal press machine work automatically or manually, the pressure and pressing times can also be adjusted.

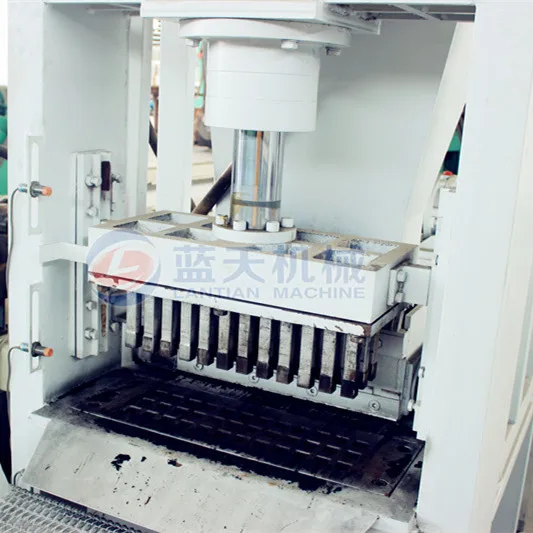

Mould
Mould shape can be cylinder, round, hexagonal, finger shape or customized. Also you can use this coconut charcoal press machine with different mould for different shape of briquette.
Hydraulic cylinder
This part is used to offer pressure, so that final briquette will have high density and very hardness.
Owing to coconut charcoal press machine use hydraulic type, so it have hydraulic pressure station. Pressure can reach 100-200 tons, so that final briquette is very hard, and the density is very good. And have pressure gage on the hydraulic station. Also there have pump outside, can ensure the safety, with cooling system.
PLC system
The PLC system enable this coconut charcoal press machine work automatically or manually, the pressure and pressing times can also be adjusted.
Mould
Mould shape can be cylinder, round, hexagonal, finger shape or customized. Also you can use this coconut charcoal press machine with different mould for different shape of briquette.
Hydraulic cylinder
This part is used to offer pressure, so that final briquette will have high density and very hardness.

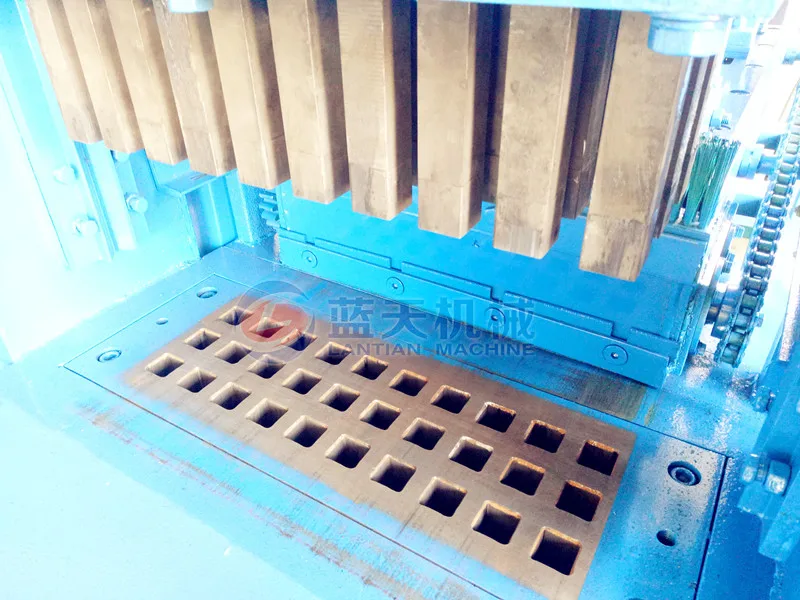

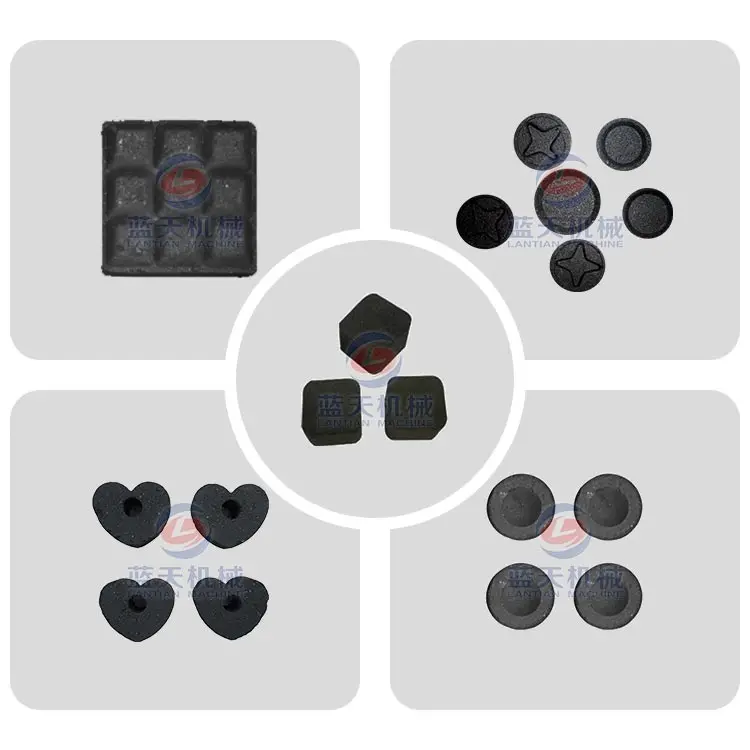

Coconut charcoal press machine mould shape and size can be design according to customer requirement. By changing the height sensor, briquette highest can be 120mm, but for bbq, normal 50mm or 70mm is more customer requirement, and this size is market need, but if you want higher, we also can make for you. It have round, square, restabgle, triangle, cylinder, diamond, cone, etc, various kinds. You can also make words, trademark, logo on them, even can press double-layer, double-color and other abnormity shapes. The density can be adjusted by regulating the pressure.
Suitable material can be coconut shell, peanut shell, waste wood charcoal, bamboo, etc,

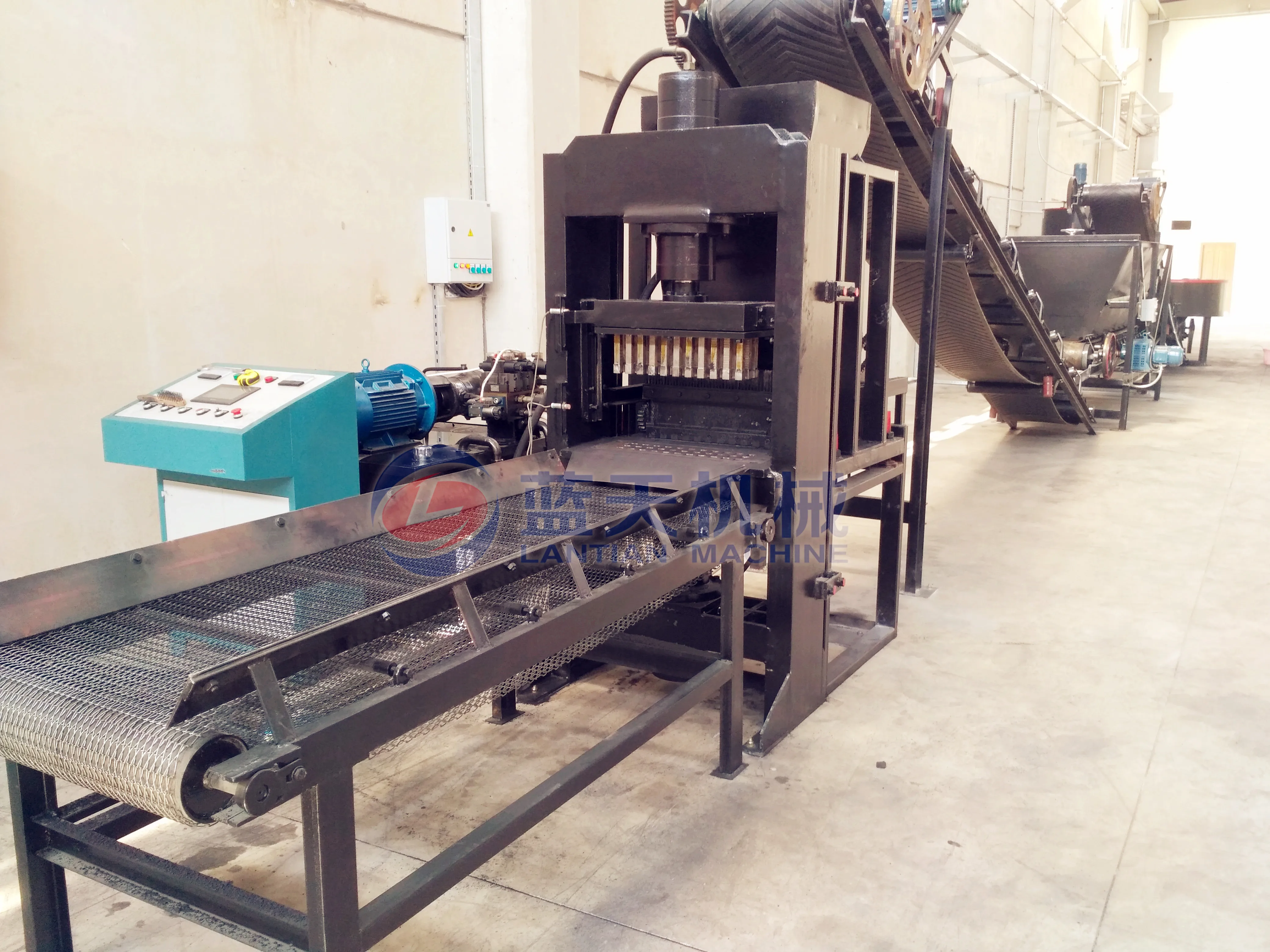

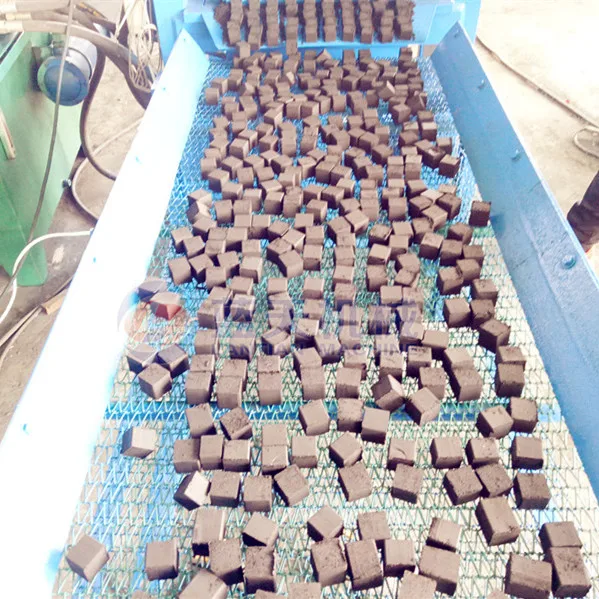

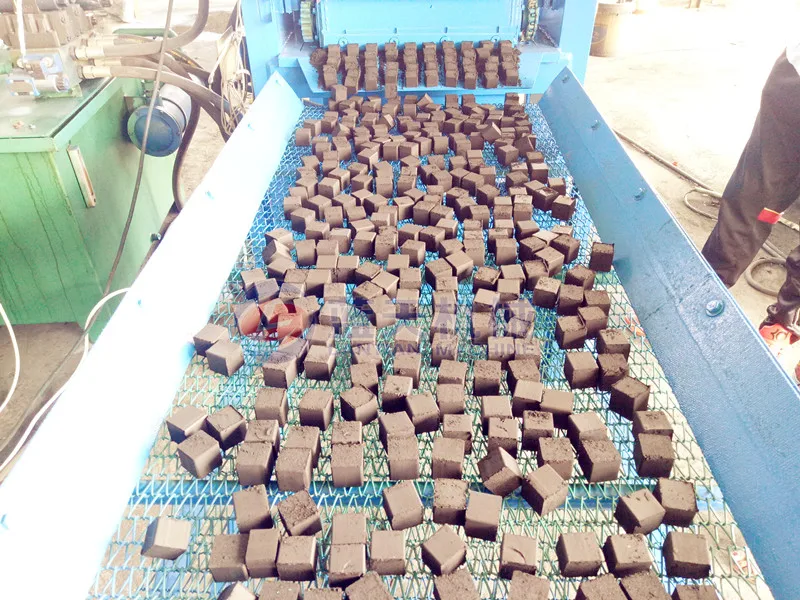

Customer site

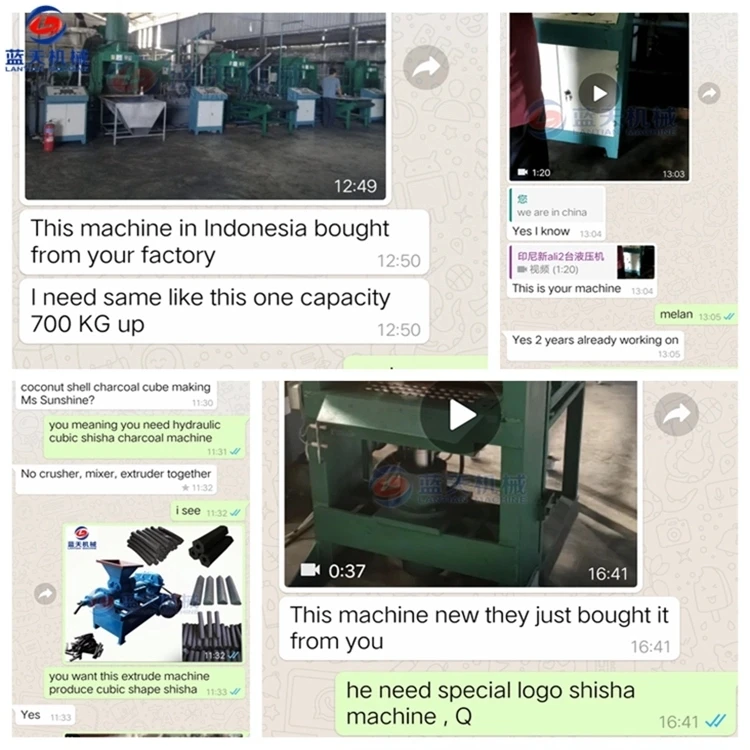

Customer feedback

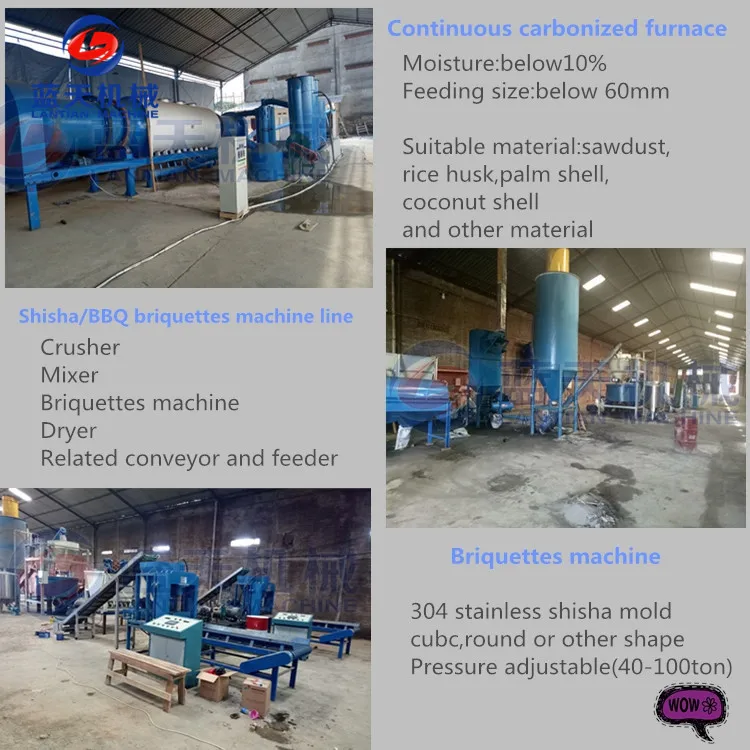

Production Line

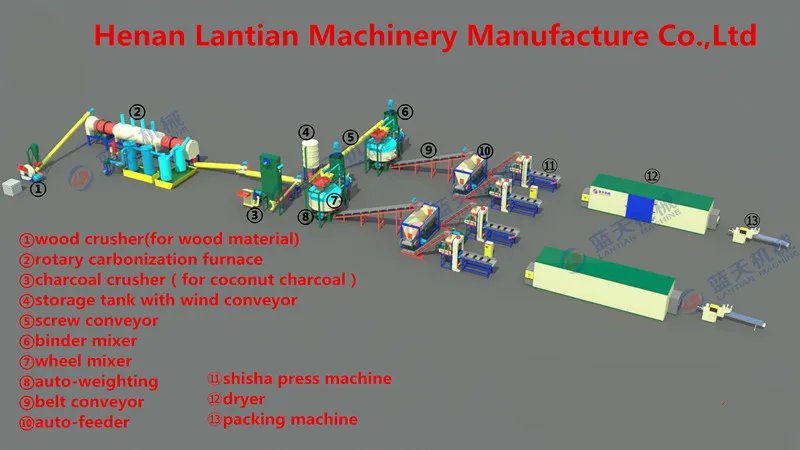

For coconut charcoal press machine we also have all stainless production line machine, you can check on this picture, also we can offer normal steel material production line machine according to customer budget, or other requirement. Now i can explain roughly production line for you, exact production design is according to customer material and other needs, we can free design.
1. Make your material become charcoal by carbonizing, if your material is ready charcoal, will no need carbonizing.
2. Crush charcoal into powder less than 2mm.
3. Owing to charcoal powder have no stickiness, so you need add some binder into it and mix.
4. Use coconut charcoal press machine forming into different shape and size.
5. The last step is dry briquettes, you can choose our drying machine, or you can choose sunshine.
1. Make your material become charcoal by carbonizing, if your material is ready charcoal, will no need carbonizing.
2. Crush charcoal into powder less than 2mm.
3. Owing to charcoal powder have no stickiness, so you need add some binder into it and mix.
4. Use coconut charcoal press machine forming into different shape and size.
5. The last step is dry briquettes, you can choose our drying machine, or you can choose sunshine.
Related product
Sawdust charcoal press machine, used to forming sawdust, rice husk, peanut shell or other biomass material, final product can use for boiler fuel or BBQ fuel.

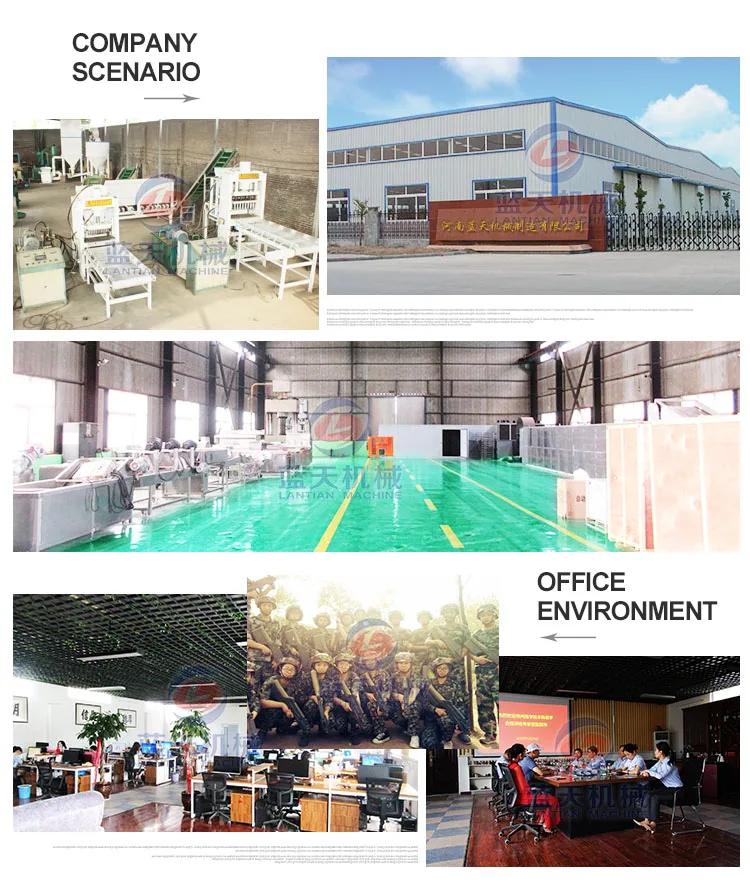

Company Profile

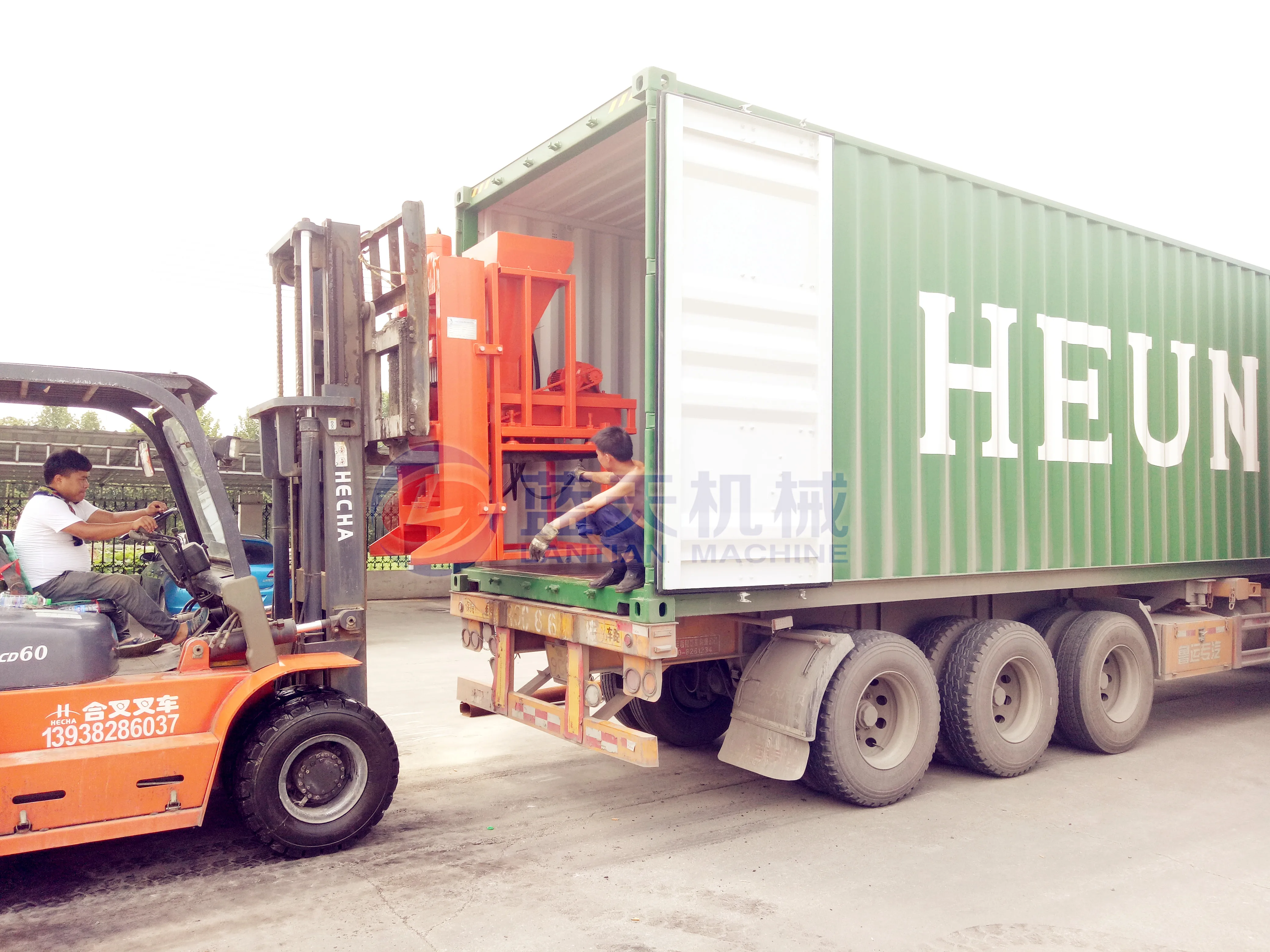

Shipping

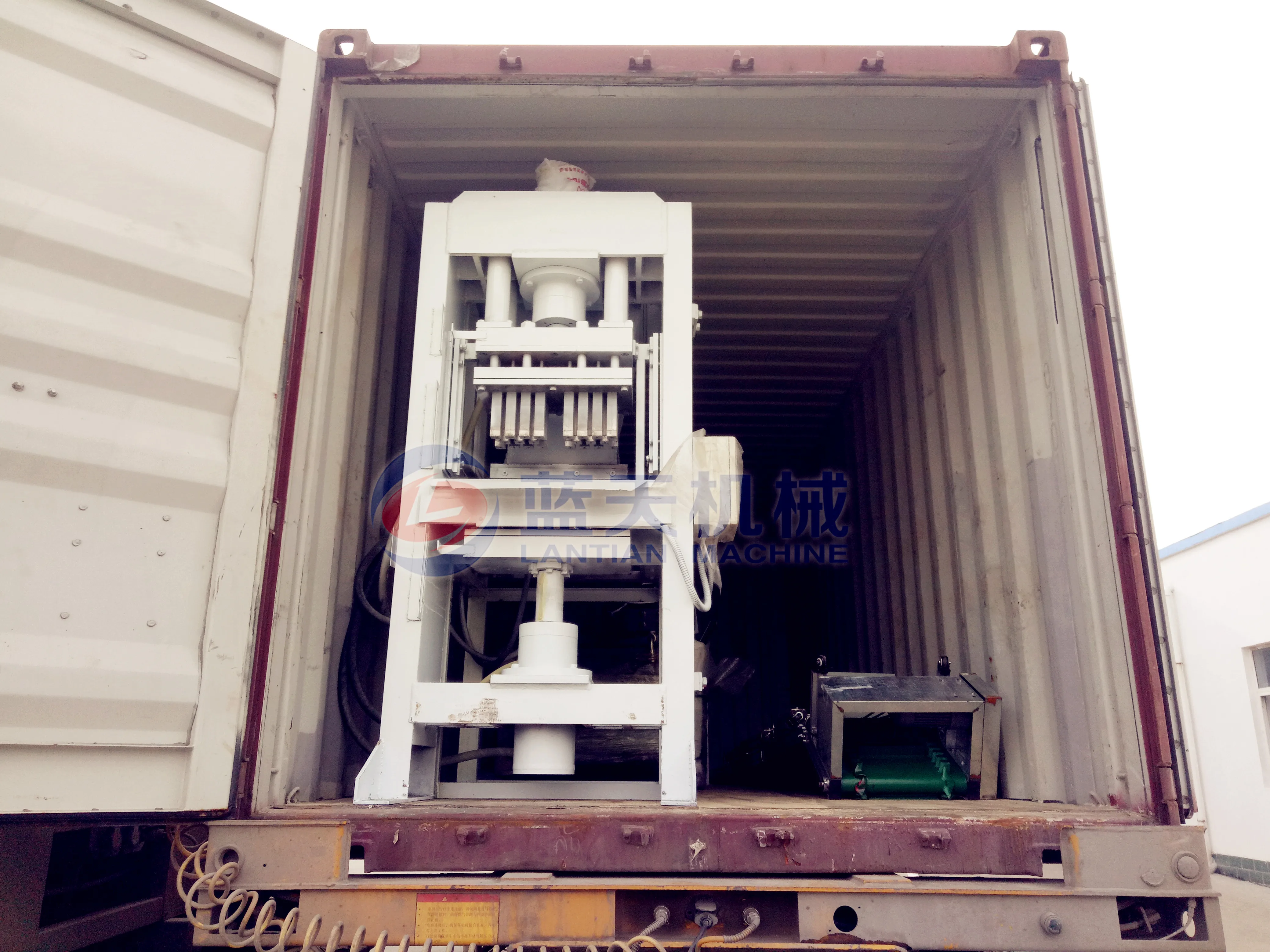

Packing
* All the coconut charcoal press machine will be wrapped up with plastic film first (including the motor).
* The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
* The coconut charcoal press machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
Payment
40% down payment, balance payoff before delivery.
* All the coconut charcoal press machine will be wrapped up with plastic film first (including the motor).
* The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
* The coconut charcoal press machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
Payment
40% down payment, balance payoff before delivery.
