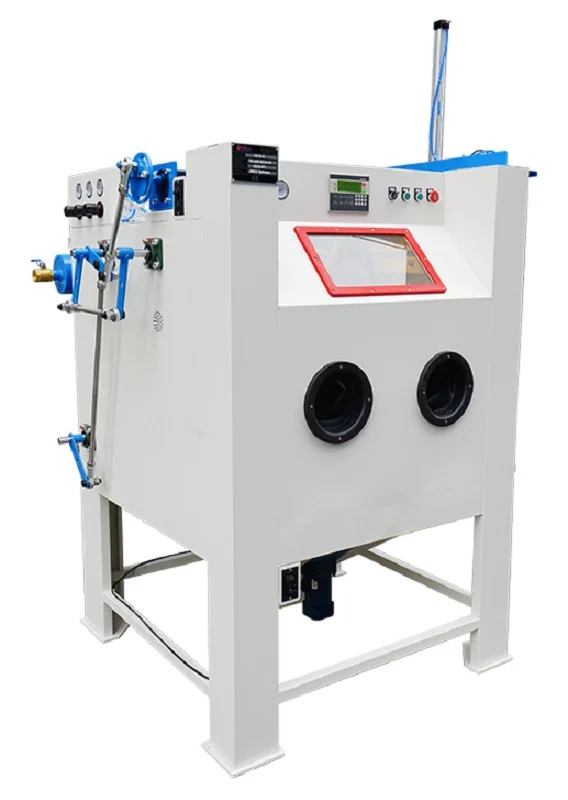

Turntable sand blasting machine with automatic door
- Category: >>>
- Supplier: Hangzhou Kafan Machinery & Equipment Co. Ltd.
Share on (1600440542343):
Product Overview
Description
Product Description

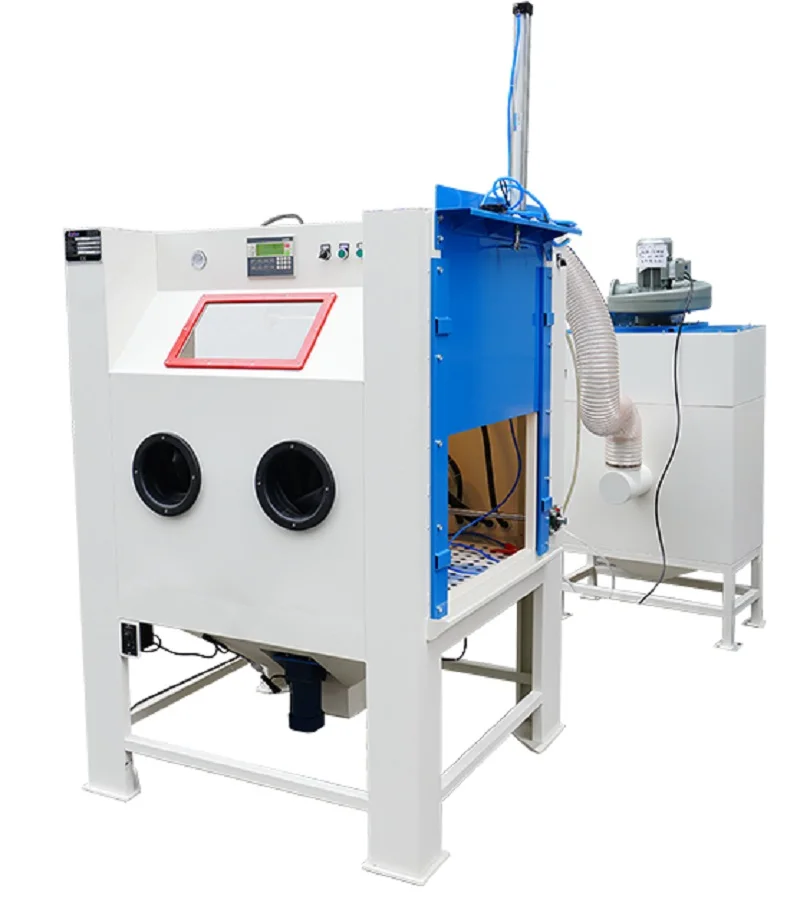

Turntable sand blasting machine with automatic door

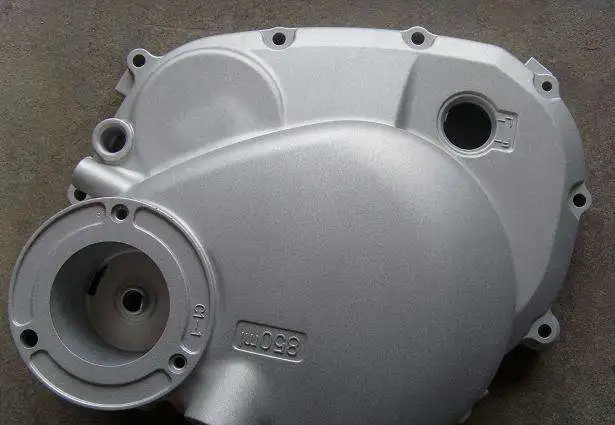

1. This automatic turntable sand blasting machine suitable for kinds of workpieces less than 100kgs, such as various type of mold tree, statue, castings, motor and turbos.
2. Specially designed 4 automatic sandblasting guns and one drum to match one machine, comvenient and quick. Operation and maintenance easy to learn.
3. Maybe base on customer demand, select manual or automatic rotary tables.
2. Specially designed 4 automatic sandblasting guns and one drum to match one machine, comvenient and quick. Operation and maintenance easy to learn.
3. Maybe base on customer demand, select manual or automatic rotary tables.
Details Images

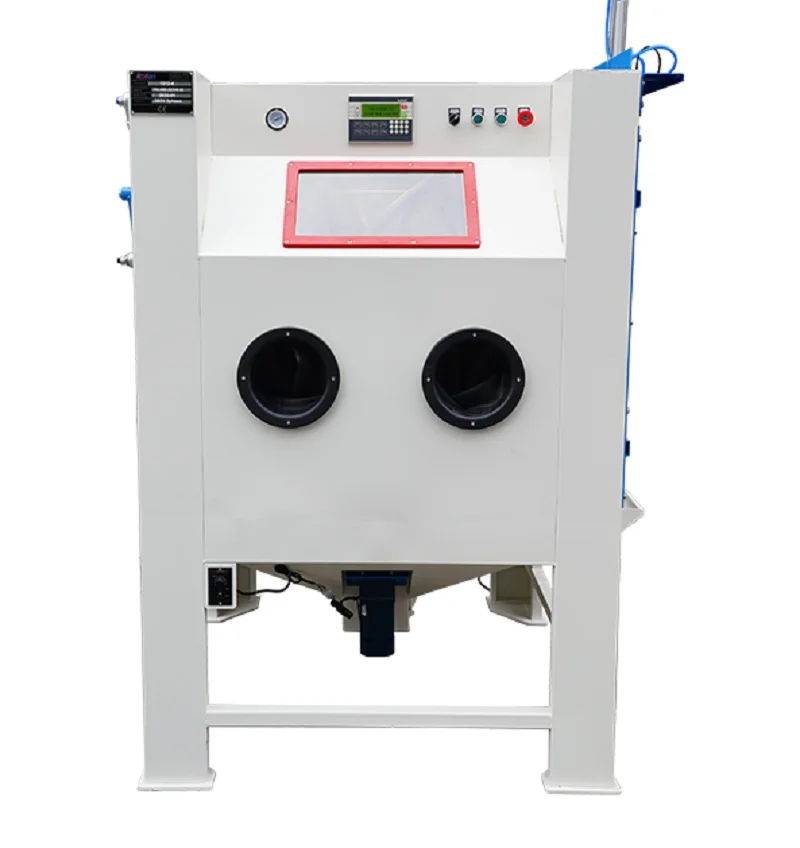

Automatic Sandblasting Cabinet Features
* Control panel at the front gives you easy access to set blasting time, select gun blasting mode and dust removing.
* The blasting guns can be set both manual or automatic operation to meet your various needs.
* Heavy-duty turntable is ideal to load large, irregular shaped workparts.
* Blasting time can be set as required, the machine will automatically stop when time arrives.

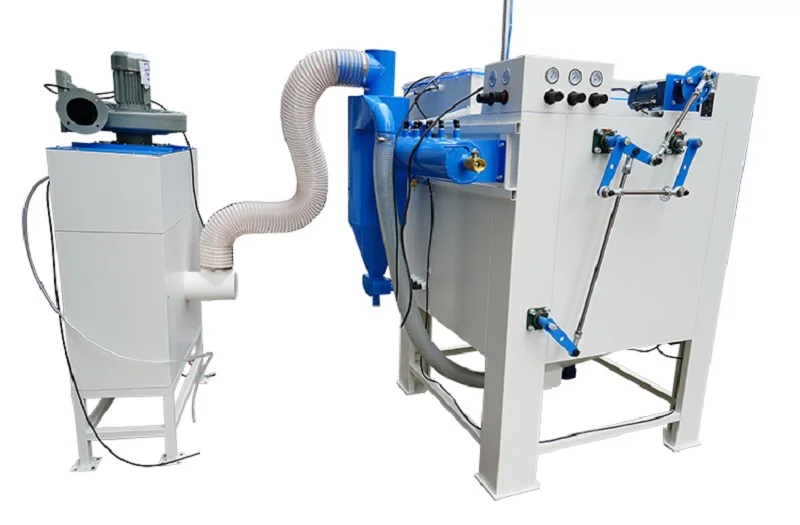

* The removed dust is collected through a cartridge filter dust collector, which is cleaned by pulse-jet valve.
* Used abraives can be recycled to the funnel beneath the working chamber
* Control panel at the front gives you easy access to set blasting time, select gun blasting mode and dust removing.
* The blasting guns can be set both manual or automatic operation to meet your various needs.
* Heavy-duty turntable is ideal to load large, irregular shaped workparts.
* Blasting time can be set as required, the machine will automatically stop when time arrives.
* The removed dust is collected through a cartridge filter dust collector, which is cleaned by pulse-jet valve.
* Used abraives can be recycled to the funnel beneath the working chamber

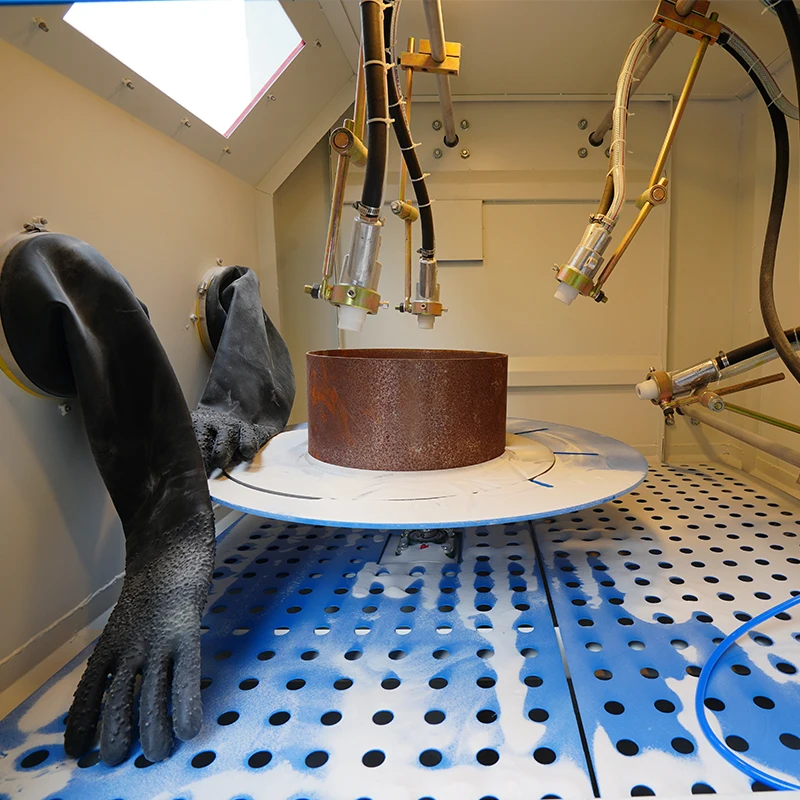

Blasting Chamber

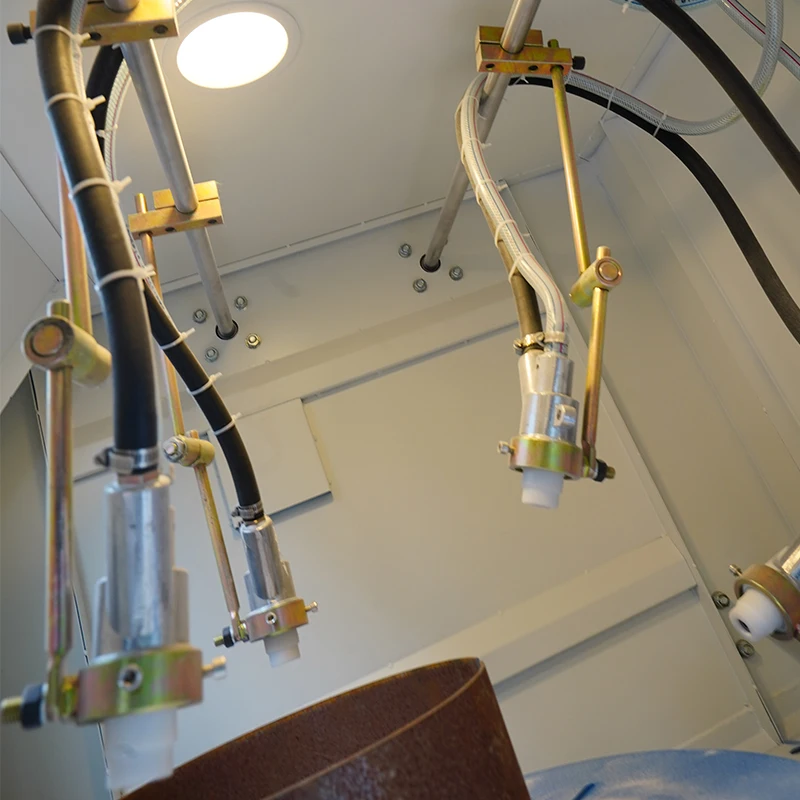

Blasting Gun
Dust-Extraction Unit
Abrasive Net
Pressure Regulating Valve
Motor Fan
Model: | KF-1212-4A |
Working chamber dimension(L*W*H): | 1200mm*1200mm*850mm |
Power supply： | 220V, 50HZ (voltage can be customized as local) |
Machine light power： | 220V, LED* 2 |
Compressed air source： | 5-7bar(kg/㎡) |
Air flow： | 0.8-3m3/min dry and clean compressed air |
Separator air volume： | 8.5m3/min |
Dust removal method | Cartridge Filter Type |
Blasting Gun Qty | 4 pcs |
Blasting Nozzle | Boron Carbide |
Application

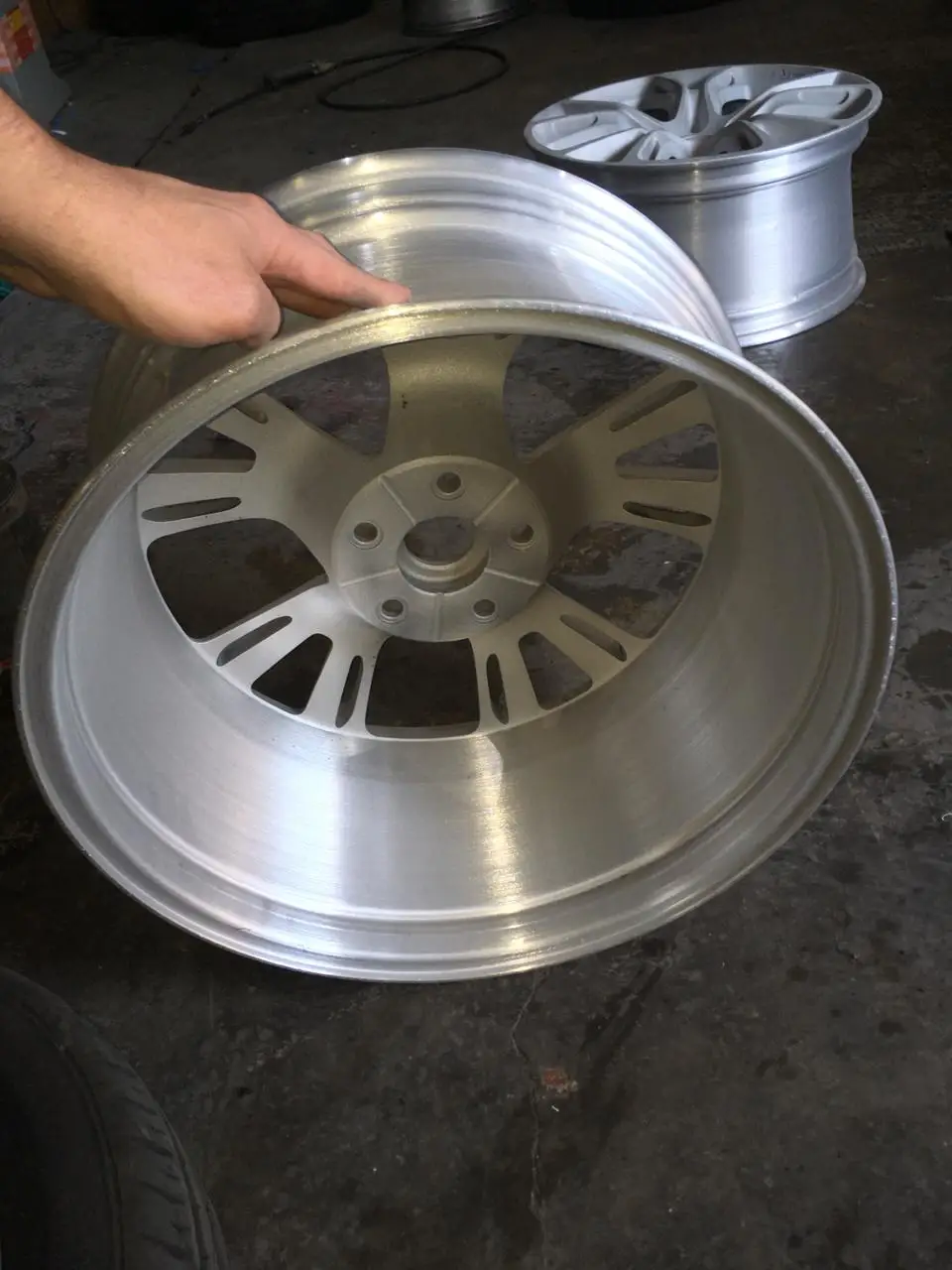

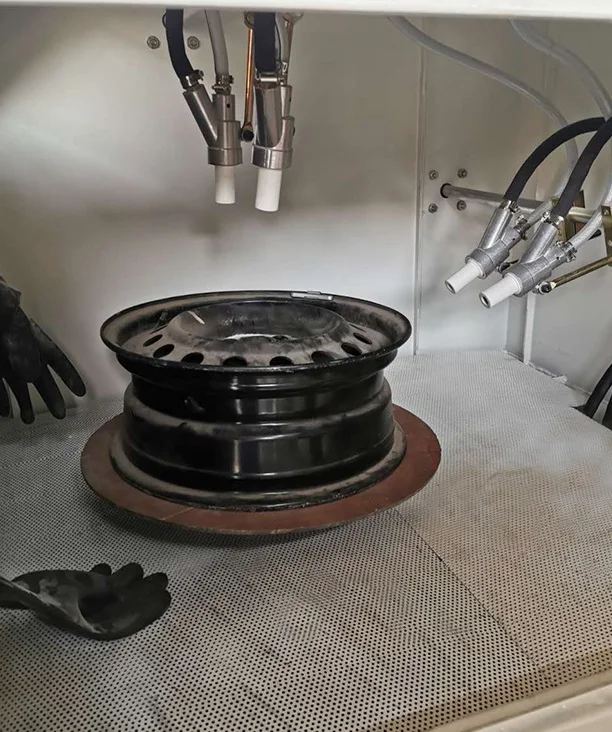

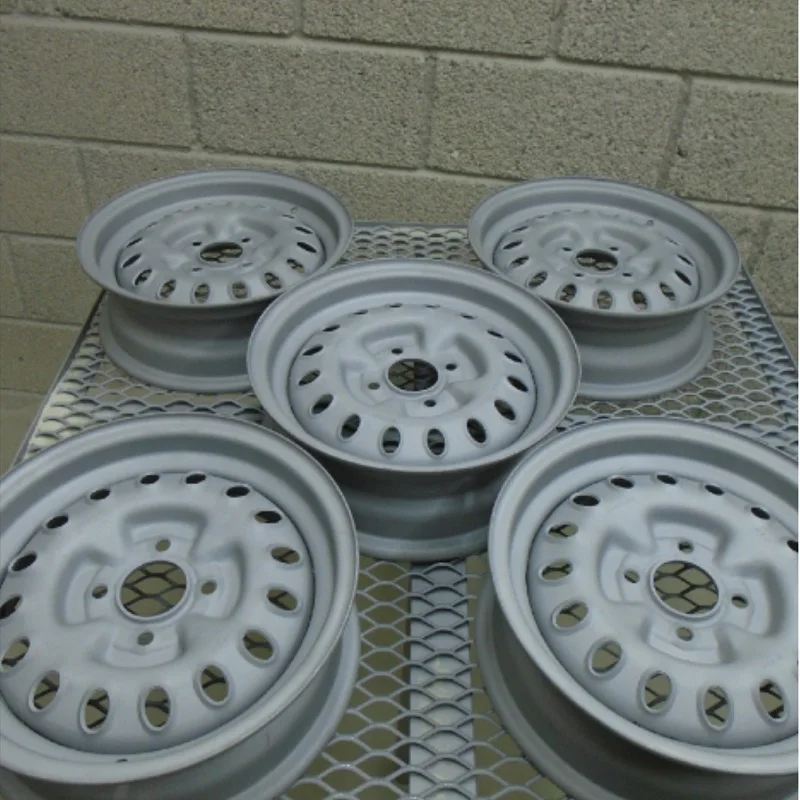

This automatic blasting cabinet developed by KAFAN incorporating many years' experience of customers' practice, specially suitable for wheel finish, such as stripping old paints and creating a clean adhesive surface before powder coating. It requires 20 minutes by using white corundum.
Recommend Products
All sandblasting machine sizes can be customized according to your needs
Model Loading weight (kg) | Turntable | Loading weight (kg) | Right door W*H(mm) | Outside size L*W*H(mm) | Cabin Size L*W*H(mm) |
KF-9080 | Φ600mm | 100 | 500*560 | 1250*950*1580 | 900*800*800 |
KF-1010 | Φ800mm | 150 | 650*780 | 1420*1050*1900 | 1000*1000*800 |
KF-1212 | Φ800mm | 200 | 750*780 | 1620*1250*2000 | 1200*1200*800 |
Product packaging
Company Profile
FAQ
1.What is the air pressure and air consumption of each blasting gun?
The input air pressure for the sandblasting machine is 8 bar and air consumption of each gun is about 1m3/min.
2.What is the abrasive and size to be applied?
Sand size ranges from mesh 16 to mesh 320 is all workable, like garnet, aluminum oxide, glass beads, corundum, steel grit, stainless steel shot, etc.
3.Can the abrasive be recycled?
Yeah, the abrasive is reused and circulates inside the blasting cabinet. Add some more from time to time. Don’t need to replace.
4. Can the machine be made to 220v 3-phase voltage?
Yes, we can customize 220v, 3 phase according to customer requirements. And voltage from 100V to 480V can all be made.
5.Is there dust outside the cabinet?
No, there isn’t. The blasting cabinet is equipped with dust collection system itself. It is sealed and closed. Outside is dustless and clean.
6. How long does it take for the machine to be delivered?
It can be delivered within 15-20 working days after receiving the advance payment.
7. Does the machine have a warranty?
Except for wearing parts, the machine is guaranteed for one year.
8. Do you have customers in the US? I would like to confirm more information from local customers.
We have cooperative customers in many countries and can provide customer contact information.
9. Are you a factory?
Yes, our factory locates in Hangzhou, and we have been in this industry for nearly 20 years.
10. Is there a possibility for us to send a sample to your company and give us a test of the equipment
Yes, you can send us work-pieces, we will provide free samples testing according to your requirements.
The input air pressure for the sandblasting machine is 8 bar and air consumption of each gun is about 1m3/min.
2.What is the abrasive and size to be applied?
Sand size ranges from mesh 16 to mesh 320 is all workable, like garnet, aluminum oxide, glass beads, corundum, steel grit, stainless steel shot, etc.
3.Can the abrasive be recycled?
Yeah, the abrasive is reused and circulates inside the blasting cabinet. Add some more from time to time. Don’t need to replace.
4. Can the machine be made to 220v 3-phase voltage?
Yes, we can customize 220v, 3 phase according to customer requirements. And voltage from 100V to 480V can all be made.
5.Is there dust outside the cabinet?
No, there isn’t. The blasting cabinet is equipped with dust collection system itself. It is sealed and closed. Outside is dustless and clean.
6. How long does it take for the machine to be delivered?
It can be delivered within 15-20 working days after receiving the advance payment.
7. Does the machine have a warranty?
Except for wearing parts, the machine is guaranteed for one year.
8. Do you have customers in the US? I would like to confirm more information from local customers.
We have cooperative customers in many countries and can provide customer contact information.
9. Are you a factory?
Yes, our factory locates in Hangzhou, and we have been in this industry for nearly 20 years.
10. Is there a possibility for us to send a sample to your company and give us a test of the equipment
Yes, you can send us work-pieces, we will provide free samples testing according to your requirements.
