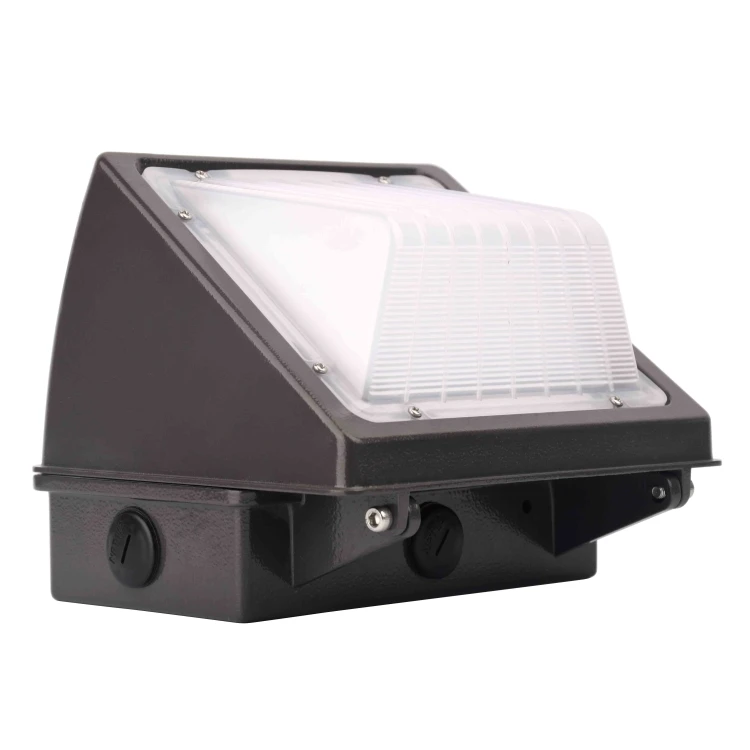

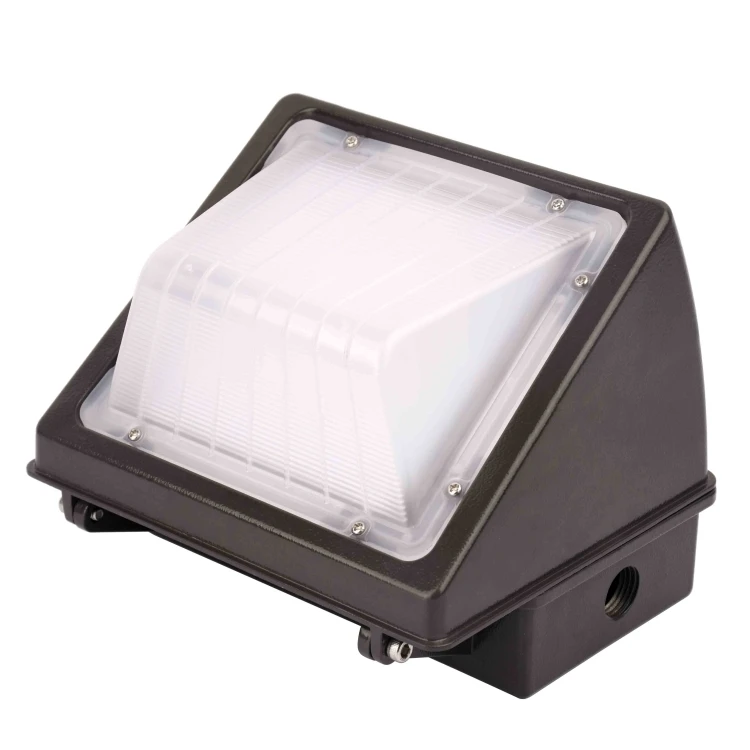

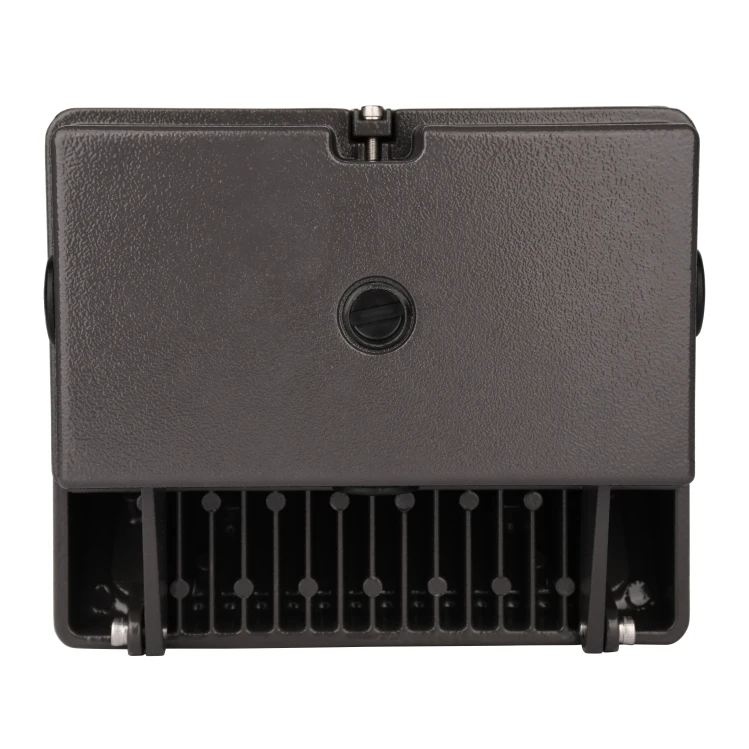

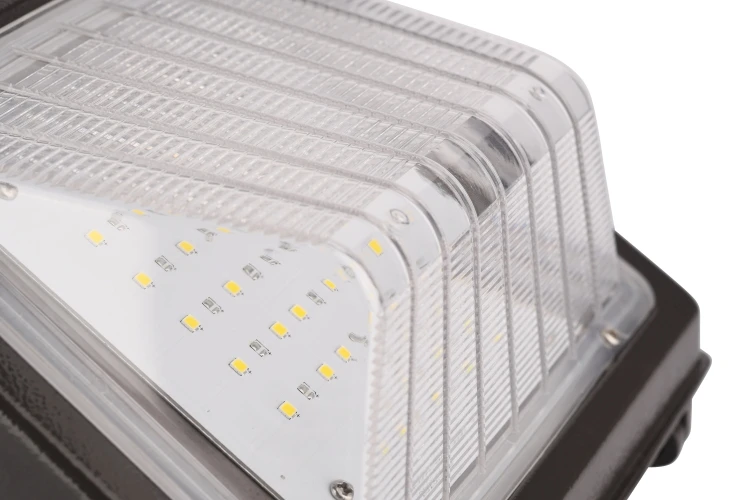

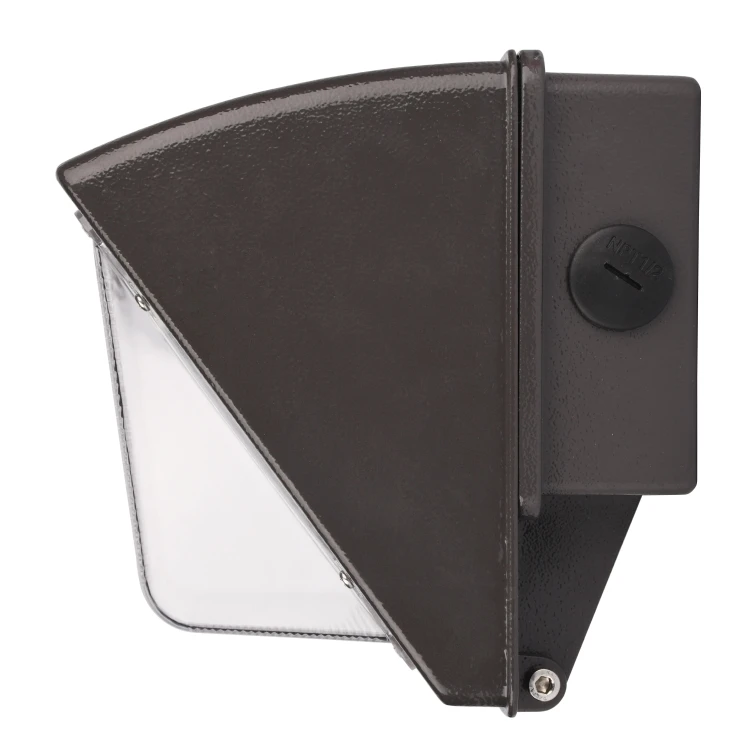

FCC ETL DLC led wall washer light 15w 24w 26w High light transmittance wall pack LED light for Villa exterior
- Category: >>>
- Supplier: Shenzhen Yaorong Technology Co. Ltd.
Share on (1600440551283):
Product Overview
Description
Yaorong outdoor wall led lights Advantages
—————
1.High safety factor: Yaorong Technology LED garden lights do not need high voltage when working, the working current is small, and the heat generation is correspondingly small. Moreover, the light emitted is non-radiation and harmless to human eyes.
2.Low light decay: The luminous decay of the LED garden lights of Yaorong Technology is still less than 10% after 36,000 hours of operation. While traditional lamps work for 10,000 to 15,000 hours, the light decay is as high as 30%, and the LED courtyard light decay is lower, ensuring good lighting effects.
3.Improve safety: LED garden lights are widely used in outdoor public places lighting, intelligent sensor switches, high brightness, wide lighting range, and improve the safety of night travel.
4.Long lifespan: Yaorong Technology LED garden lights are made of solid-state semiconductor chips, and the exterior is encapsulated with epoxy resin, which can withstand high-strength mechanical shocks and has a lifespan of up to 50,000 hours.
5.High lumens: The lumens value of the LED chip is as high as 100lm/w, high brightness, good luminous efficiency, sufficient light, and high lighting efficiency to meet the lighting needs of various occasions.
6.High luminous efficiency: Yaorong Technology's LED courtyard lighting efficiency is as high as 100lm/W, far exceeding energy-saving lamps, metal halide lamps and induction lamps, and 10% higher than traditional high-pressure sodium lamps for lighting fixtures.
Yaorong outdoor wall led lights Certification
—————
Yaorong outdoor wall led lights Parameters
—————
| Slim LED Wall Pack light | |||
| Model | CRI | Luminous Flux | Power |
| YR-WL196-W015 | ≥70 | 1570LM | 15W |
| YR-WL196-W024 | ≥70 | 2459LM | 24W |
| YR-WL196-W048 | ≥70 | 4090LM | 48W |
| YR-WL268-W070 | ≥70 | 8644LM | 70W |
| YR-WL268-W090 | ≥70 | 10118LM | 90W |
| CCT | 30K/40K/50K/57K | ||
| Warranty | 5 years | ||
| Temperature | -40°~50° | ||
| Power Efficiency | ≥0.9 | ||
| Protection level | IP65 | ||
| Shell Color | Bronze/Black/Customized Color | ||
| Certification | FC/UL/DLC/CE/ROHS | ||
Yaorong LORA-IOT Single controller Parameters
—————
| LORA-IOT Single controller | |||
| Name | YR-LR73-12 single controller | Temperature | -40°~85° |
| Power | DC12V | Sensitivity | -135dBm |
| Communication | LR-IOT wireless network communication interface Custom Lora Narrowband Communication Standard | Interface | Support telecommunications, mobile China Unicom Internet of Things cards |
| Switch output | 1 way, contact 12V/16A | Frequency | LTE NB-IOT B3/B5/B8/B26 Support the use of all channels by the three major domestic operators |
| Dimming output | 1 way, 0-10V/PWM | Transmit power | 23dBm |
| Elec Parameter | Voltage, current, power, factor, electric energy | Protection level | IP65 |
| Dimensions | 84*84*97mm | Antenna type | Built-in |
| Advantages | 1. Grouping, time control, light control, induction, latitude and longitude switch lights; 2. Dimmable from 0 to 100%; 3. With system monitoring function and positioning alarm function; 4. The self-built base station is convenient and safe and reliable. | ||

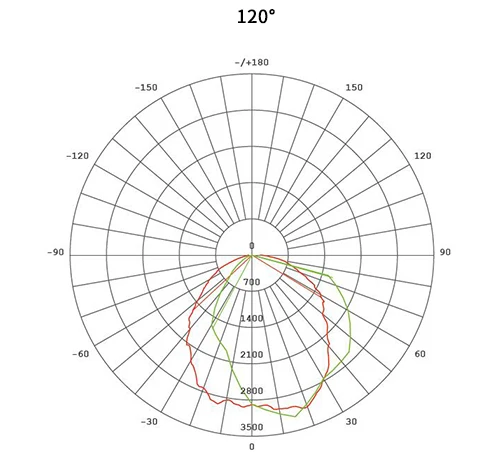

Yaorong outdoor wall led lights Distribution Curve
—————
Yaorong outdoor wall led lights Distribution Curve

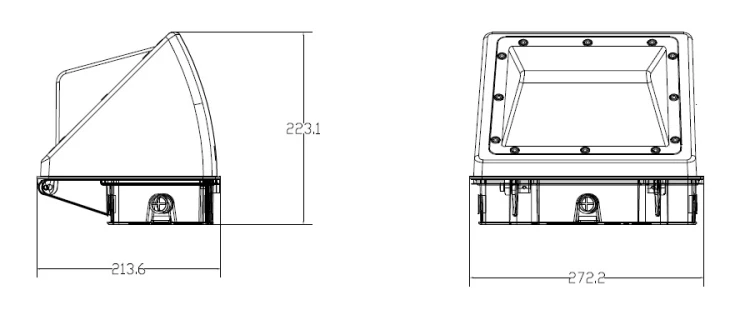

outdoor wall led lights Size Atlas
—————

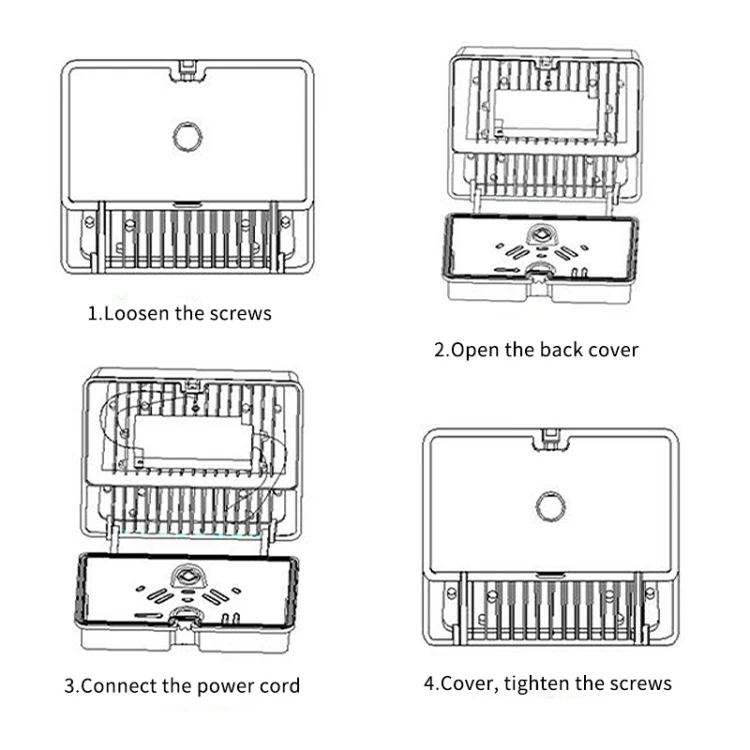

outdoor wall led lights Installation Method Atlas
—————
Precautions For The Installation Of outdoor wall led lights
—————
- Please cut off the power before installation and make sure that the installation part can bear the weight of the lamp.
- In order to prevent the lamp from falling off, please make sure that the installation is correct.
- Please do not use it in a place with corrosive gas.
- Please do not cover any material on the lamp.
- For safety, please connect the ground wire securely.
- This LED lamp has a five-year warranty from the date of purchase.
- However, failures caused by disassembly, modification, or improper construction of this product are not within the scope of this warranty.
Five-year warranty
—————
- Yaorong Technology is committed to providing customers with cost-effective LED lighting products. And provide high-quality after-sales service ahead of peers.
- Yaorong Technology provides a 5-year warranty. However, unauthorized disassembly or destruction of Yaorong Technology LED lighting products will not be eligible for warranty service.
- If you need after-sales service support, please contact our after-sales staff during the warranty period. Yaorong Technology after-sales engineers communicate with you about after-sales matters.

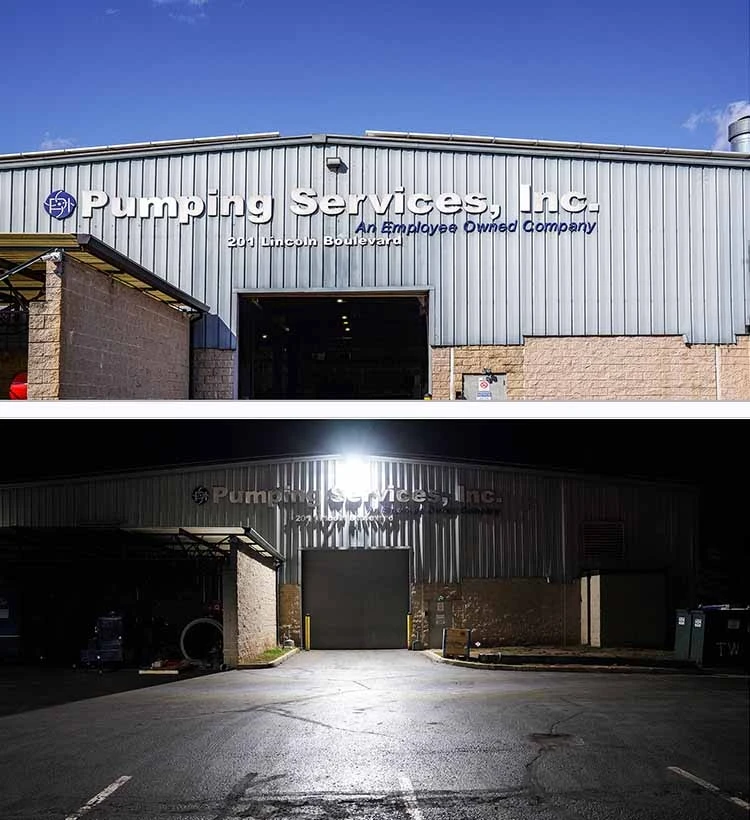

Yaorong outdoor wall led lights Case
—————
Yaorong outdoor wall led lights Case
About Yaorong Company
—————
Why Choose Yaorong
—————
Yaorong Company Scene
—————
Yaorong Office Front Desk
Yaorong Exhibition Hall--LED Post Top Light
Yaorong Factory Scene
—————
Yaorong R&D Workshop
Yaorongyan Integrating Sphere
