dolycon high quality CT100 220v 1 phase or 380v 3 phase inverter 0.75kw 1.5kw 2.2kw 4kw 5kw vfd to 1000kw variador de frecuencia
- Category: Power Supplies >>>
- Supplier: Shenzhen Dolycon Technology Co. Ltd.
Share on (1600440559463):
Product Overview
Description

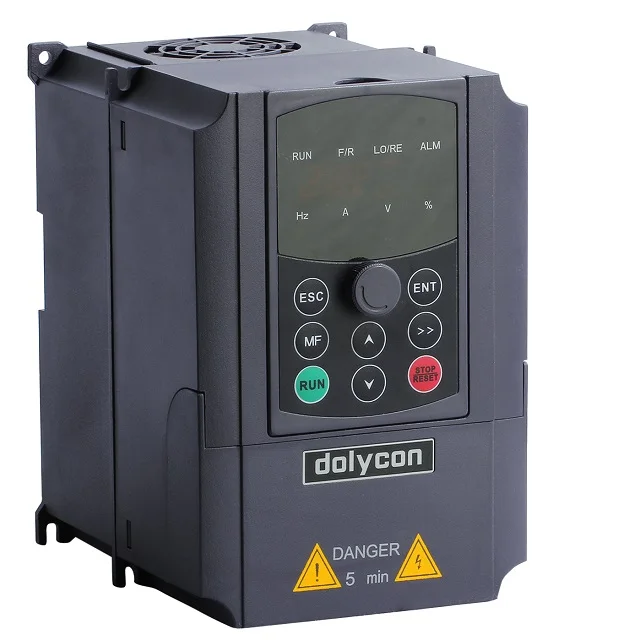

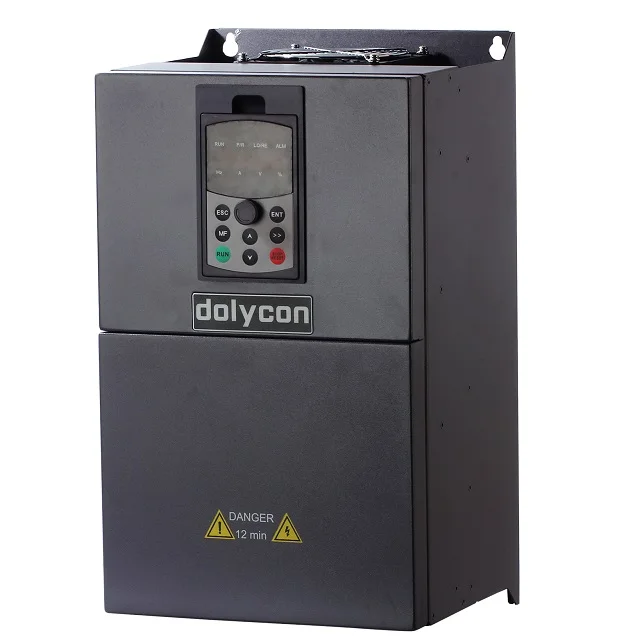

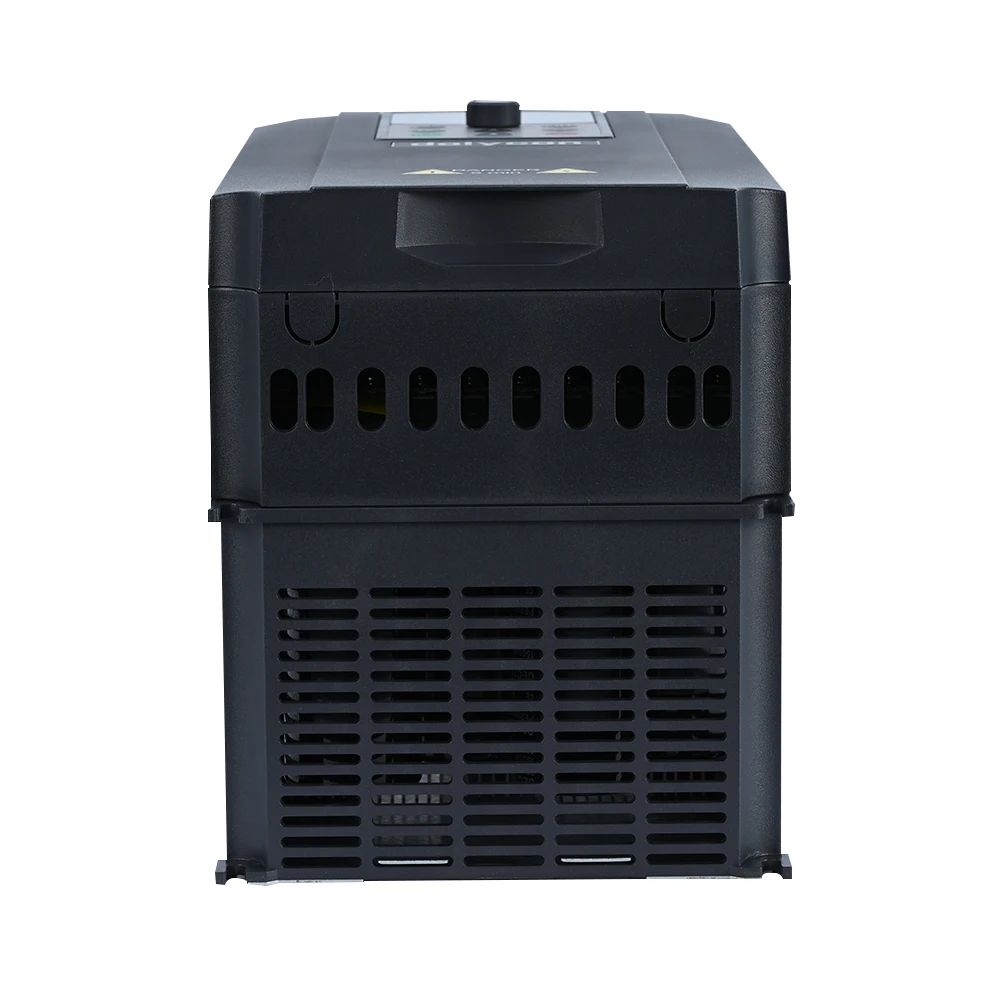

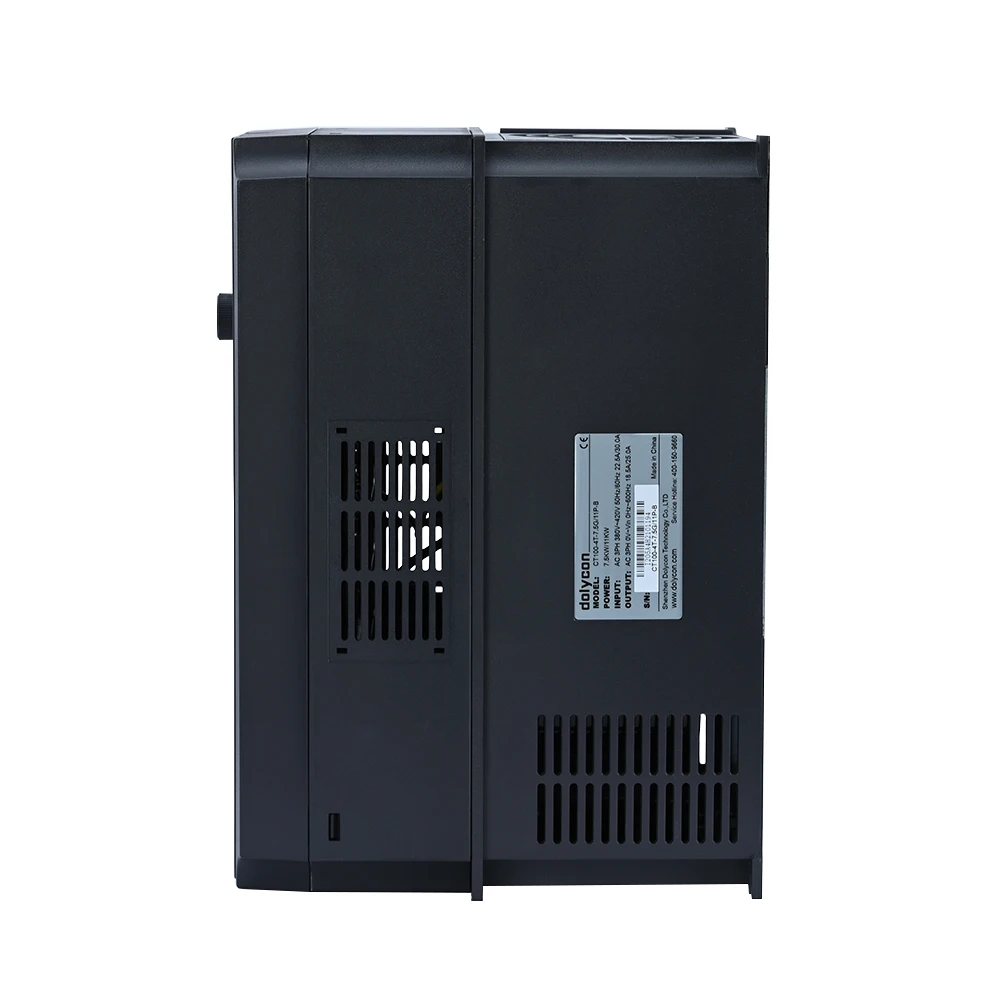

dolycon high quality CT100 220v 1 phase or 380v 3 phase inverter 0.75kw 1.5kw 2.2kw 4kw 5kw vfd to 1000kw variador de frecuencia

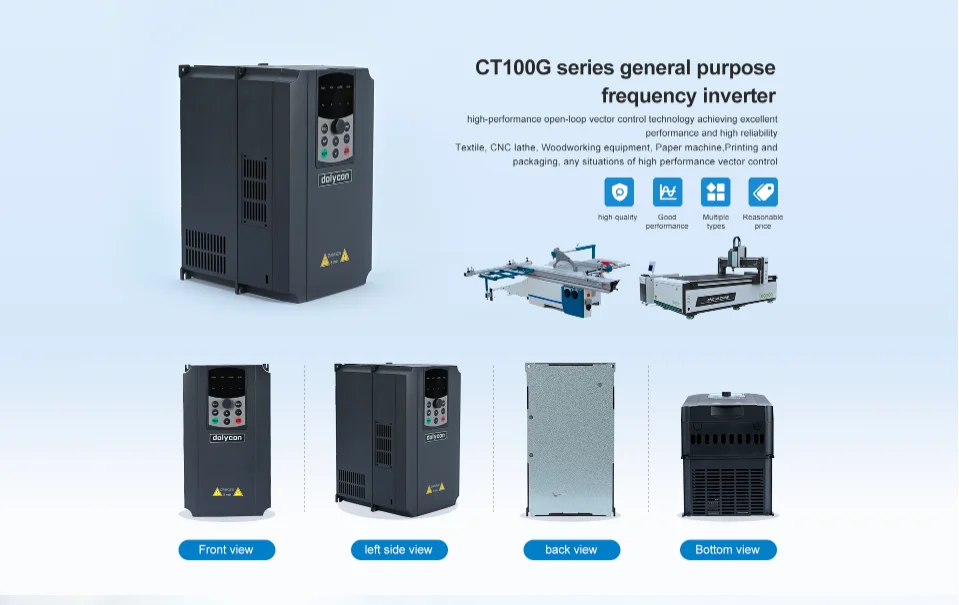

CT100 Series can be widely applied in lifting/printing and packaging/metal products/wire and cable/Plastics/textile/building materials/metallurgy/mining/water supply/gas supply/automotive and other industries.

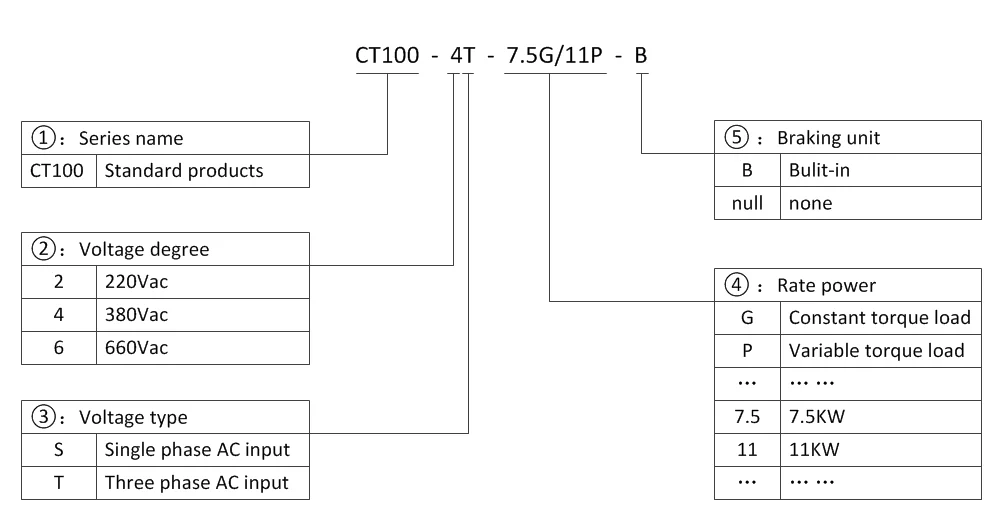

Models explain, size:
| CT100 Series Inverter Specification | |||||||
| Mode | Power(kW) | Input current(A) | Output current(A) | Dimension(mm) | Cabinet | Braking unit | DC reactor |
| CT100-2S-0.7G-B | 0.75 | 8.2 | 4.5 | 126*186*155 | C0 | Built-in by default | / |
| CT100-2S-1.5G-B | 1.5 | 14 | 7 | ||||
| CT100-2S-2.2G-B | 2.2 | 23 | 10 | ||||
| CT100G-2S-4.0G-B | 4 | 36 | 16 | 140*230*172 | C1 | ||
| CT100G-2S-5.5G-B | 5.5 | 46 | 20 | 165*285*200 | C2 | ||
| CT100G-2S-7.5G-B | 7.5 | 68 | 30 | ||||
| CT100-4T-0.7G-B | 0.75 | 3.4 | 2.5 | 126*186*155 | C0 | ||
| CT100-4T-1.5G-B | 1.5 | 5 | 3.7 | ||||
| CT100-4T-2.2G-B | 2.2 | 5.8 | 5.3 | ||||
| CT100G-4T-4.0G-B | 4 | 12 | 9.5 | ||||
| CT100G-4T-5.5G-B | 5.5 | 18.5 | 14 | ||||
| CT100G-4T-7.5G-B | 7.5 | 22.5 | 18.5 | 140*230*172 | C1 | ||
| CT100G-4T-11G-B | 11 | 30 | 25 | 165*285*200 | C2 | ||
| CT100G-4T-15G-B | 15 | 39 | 32 | ||||
| CT100-4T-4.0G/5.5P-B | 4/5.5 | 12/18.5 | 9.5/14 | 140*230*172 | C1 | ||
| CT100-4T-5.5G/7.5P-B | 5.5/7.5 | 18.5/22.5 | 14/18.5 | ||||
| CT100-4T-7.5G/11P-B | 7.5/11 | 22.5/30 | 18.5/25 | 165*285*200 | C2 | ||
| CT100-4T-11G/15P-B | 11/15 | 30/39 | 25/32 | ||||
| CT100-4T-15G/18.5P-B | 15/18.5 | 39/45 | 32/38 | 214*410*203 | C3 | ||
| CT100-4T-18.5G/22P-B | 18.5/22 | 45/54 | 38/45 | ||||
| CT100-4T-22G/30P-B | 22/30 | 54/68 | 45/60 | Built-in by default | |||
| CT100-4T-30G/37P | 30/37 | 68/84 | 60/75 | 250*450*230 | C4 | none by default, optional built-in | |
| CT100-4T-37G/45P | 37/45 | 84/98 | 75/92 | ||||
| CT100-4T-45G/55P | 45/55 | 98/123 | 92/115 | 300*600*280 | C5 | peripheral | |
| CT100-4T-55G/75P | 55/75 | 123/157 | 115/150 | ||||
| CT100-4T-75G/90P | 75/90 | 157/188 | 150/180 | 330*660*330 | C6 | peripheral | |
| CT100-4T-90G/110P | 90/110 | 188/221 | 180/215 | ||||
| CT100-4T-110G/132P | 110/132 | 221/267 | 215/260 | ||||
| CT100-4T-132G/160P | 132/160 | 267/309 | 260/305 | 485*850*355 | C7 | ||
| CT100-4T-160G/185P | 160/185 | 309/344 | 305/340 | ||||
| CT100-4T-185G/200P | 185/200 | 344/384 | 340/380 | ||||
| CT100-4T-200G/220P | 200/220 | 384/429 | 380/425 | ||||
| CT100-4T-220/250P | 220/250 | 429/484 | 425/480 | 680*940*355 | C8 | ||
| CT100-4T-250G/285P | 250/285 | 484/539 | 480/530 | ||||
| CT100-4T-285G/315P | 285/315 | 539/612 | 530/600 | ||||
| CT100-4T-315G/355P | 315/355 | 612/665 | 600/650 | ||||
| CT100-4T-355G | 355 | 665 | 650 | 600*1900*600 | C9 | ||
| CT100-4T-400G | 400 | 715 | 720 | ||||
| CT100-4T-500G | 500 | 890 | 860 | ||||
Note: G meas heavy load and P means light load, respectively corresponding to different parameters.
Optional out parts suggestion:
| Inverter mode | Braking uint | Braking resistor (100%braking torque) | Braking resistor (50%braking torque) | |||
| Order No. | Quantity | Specification | Quantity | Specification | Quantity | |
| CT100-2S-0.7G-B | Built-in by default | 150Ω/300W | 1 | 150Ω/300W | 1 | |
| CT100-2S-1.5G-B | 150Ω/300W | 1 | 150Ω/300W | 1 | ||
| CT100-2S-2.2G-B | 150Ω/300W | 1 | 150Ω/300W | 1 | ||
| CT100G-2S-4.0G-B | 150Ω/300W | 1 | 150Ω/300W | 1 | ||
| CT100G-2S-5.5G-B | 150Ω/300W | 1 | 150Ω/300W | 1 | ||
| CT100G-2S-7.5G-B | 150Ω/300W | 1 | 150Ω/300W | 1 | ||
| CT100-4T-0.7G-B | 150Ω/300W | 1 | 150Ω/300W | 1 | ||
| CT100-4T-1.5G-B | 150Ω/300W | 1 | 150Ω/300W | 1 | ||
| CT100-4T-2.2G-B | 150Ω/300W | 1 | 150Ω/300W | 1 | ||
| CT100G-4T-4.0G-B | 100Ω/450W | 1 | 100Ω/450W | 1 | ||
| CT100G-4T-5.5G-B | 75Ω/600W | 1 | 75Ω/600W | 1 | ||
| CT100G-4T-7.5G-B | 68Ω/2kW | 1 | 47Ω/2kW | 1 | ||
| CT100G-4T-11G-B | 47Ω/2kW | 1 | 68Ω/2kW | 2 | ||
| CT100G-4T-15G-B | 33Ω/6kW | 1 | 33Ω/6kW | 1 | ||
| CT100-4T-4.0G/5.5P-B | 100Ω/450W | 1 | 100Ω/450W | 1 | ||
| CT100-4T-5.5G/7.5P-B | 75Ω/600W | 1 | 75Ω/600W | 1 | ||
| CT100-4T-7.5G/11P-B | 68Ω/2kW | 1 | 47Ω/2kW | 1 | ||
| CT100-4T-11G/15P-B | 47Ω/2kW | 1 | 68Ω/2kW | 2 | ||
| CT100-4T-15G/18.5P-B | 33Ω/6kW | 1 | 33Ω/6kW | 1 | ||
| CT100-4T-18.5G/22P-B | 33Ω/6kW | 1 | 18Ω/6kW | 1 | ||
| CT100-4T-22G/30P-B | 47Ω/2kW | 2 | 18Ω/6kW | 1 | ||
| CT100-4T-30G/37P | none by default, optional built-in | 18Ω/6kW | 1 | 33Ω/6kW | 2 | |
| CT100-4T-37G/45P | 18Ω/6kW | 1 | 33Ω/6kW | 3 | ||
| CT100-4T-45G/55P | 33Ω/6kW | 2 | 33Ω/6kW | 3 | ||
| CT100-4T-55G/75P | 18Ω/6kW | 2 | 33Ω/6kW | 4 | ||
| CT100-4T-75G/90P | DDB-4T-110 | 1 | 18Ω/6kW | 3 | 33Ω/6kW | 6 |
| CT100-4T-90G/110P | 1 | 18Ω/6kW | 3 | 33Ω/6kW | 6 | |
| CT100-4T-110G/132P | 1 | 18Ω/6kW | 4 | 33Ω/6kW | 8 | |
| CT100-4T-132G/160P | DDB-4T-200 | 1 | 18Ω/6kW | 4 | 33Ω/6kW | 10 |
| CT100-4T-160G/185P | 1 | 18Ω/6kW | 5 | 33Ω/6kW | 12 | |
| CT100-4T-185G/200P | 1 | 18Ω/6kW | 6 | 33Ω/6kW | 12 | |
| CT100-4T-200G/220P | 1 | 18Ω/6kW | 6 | 33Ω/6kW | 14 | |
| CT100-4T-220/250P | DDB-4T-315 | 1 | 18Ω/6kW | 7 | 33Ω/6kW | 16 |
| CT100-4T-250G/285P | 1 | 18Ω/6kW | 8 | 33Ω/6kW | 18 | |
| CT100-4T-285G/315P | 1 | 18Ω/6kW | 9 | 33Ω/6kW | 20 | |
| CT100-4T-315G/355P | 1 | 18Ω/6kW | 10 | 33Ω/6kW | 24 | |
| CT100-4T-355G | DDB-4T-315 | 2 | 18Ω/6kW | 11 | 33Ω/6kW | 28 |
| CT100-4T-400G | 2 | 18Ω/6kW | 12 | 33Ω/6kW | 30 | |
| CT100-4T-500G | 2 | 18Ω/6kW | 16 | 33Ω/6kW | 36 | |
| Inverter mode | 3PH 380V AC input reactor | 3PH 380V AC output reactor | DC reactor | |||
| current(A) | inductance(mH) | current(A) | inductance(mH) | current(A) | inductance(mH) | |
| CT100-4T-0.7G-B | 5 | 2.8 | 5 | 1.4 | / | / |
| CT100-4T-1.5G-B | 5 | 2.8 | 5 | 1.4 | / | / |
| CT100-4T-2.2G-B | 7 | 2 | 7 | 0.92 | / | / |
| CT100G-4T-4.0G-B | 10 | 1.4 | 10 | 0.5 | / | / |
| CT100G-4T-5.5G-B | 15 | 0.93 | 15 | 0.12 | / | / |
| CT100G-4T-7.5G-B | 20 | 0.75 | 20 | 0.08 | / | / |
| CT100G-4T-11G-B | 30 | 0.6 | 30 | 0.065 | / | / |
| CT100G-4T-15G-B | 40 | 0.35 | 40 | 0.05 | / | / |
| CT100-4T-4.0G/5.5P-B | 10 | 1.4 | 10 | 0.5 | / | / |
| CT100-4T-5.5G/7.5P-B | 15 | 0.93 | 15 | 0.12 | / | / |
| CT100-4T-7.5G/11P-B | 20 | 0.75 | 20 | 0.08 | / | / |
| CT100-4T-11G/15P-B | 30 | 0.6 | 30 | 0.065 | / | / |
| CT100-4T-15G/18.5P-B | 40 | 0.35 | 40 | 0.05 | / | / |
| CT100-4T-18.5G/22P-B | 50 | 0.35 | 50 | 0.05 | / | / |
| CT100-4T-22G/30P-B | 60 | 0.24 | 60 | 0.04 | 80 | 0.3 |
| CT100-4T-30G/37P | 80 | 0.17 | 80 | 0.034 | 105 | 0.54 |
| CT100-4T-37G/45P | 90 | 0.16 | 90 | 0.032 | 105 | 0.54 |
| CT100-4T-45G/55P | 120 | 0.12 | 120 | 0.025 | 95 | 0.54 |
| CT100-4T-55G/75P | 150 | 0.095 | 150 | 0.018 | 115 | 0.45 |
| CT100-4T-75G/90P | 200 | 0.07 | 200 | 0.015 | 160 | 0.36 |
| CT100-4T-90G/110P | 250 | 0.065 | 250 | 0.011 | 180 | 0.33 |
| CT100-4T-110G/132P | 250 | 0.065 | 250 | 0.011 | 215 | 0.3 |
| CT100-4T-132G/160P | 290 | 0.048 | 290 | 0.008 | 250 | 0.26 |
| CT100-4T-160G/185P | 330 | 0.042 | 330 | 0.006 | 305 | 0.17 |
| CT100-4T-185G/200P | 390 | 0.044 | 390 | 0.006 | 340 | 0.17 |
| CT100-4T-200G/220P | 390 | 0.036 | 390 | 0.005 | 400 | 0.12 |
| CT100-4T-220/250P | 490 | 0.035 | 490 | 0.005 | 460 | 0.09 |
| CT100-4T-250G/285P | 490 | 0.028 | 490 | 0.003 | 525 | 0.08 |
| CT100-4T-285G/315P | 530 | 0.026 | 530 | 0.003 | 650 | 0.072 |
| CT100-4T-315G/355P | 600 | 0.023 | 600 | 0.002 | 850 | 0.045 |
| CT100-4T-355G | 660 | 0.021 | 660 | 0.002 | 920 | 0.04 |
| CT100-4T-400G | 800 | 0.0175 | 800 | 0.002 | 1000 | 0.05 |
| CT100-4T-500G | 1000 | 0.014 | 1000 | 0.001 | 1200 | 0.04 |
| Inverter mode | Input filter | Output filter |
| CT100-2S-0.7G-B | CIF-01 | COF-01 |
| CT100-2S-1.5G-B | CIF-01 | COF-01 |
| CT100-2S-2.2G-B | CIF-02 | COF-02 |
| CT100G-2S-4.0G-B | CIF-02 | COF-02 |
| CT100G-2S-5.5G-B | CIF-03 | COF-03 |
| CT100G-2S-7.5G-B | CIF-03 | COF-03 |
| CT100-4T-0.7G-B | CIF-01 | COF-01 |
| CT100-4T-1.5G-B | CIF-01 | COF-01 |
| CT100-4T-2.2G-B | CIF-02 | COF-02 |
| CT100G-4T-4.0G-B | CIF-02 | COF-02 |
| CT100G-4T-5.5G-B | CIF-03 | COF-03 |
| CT100G-4T-7.5G-B | CIF-03 | COF-03 |
| CT100G-4T-11G-B | CIF-04 | COF-04 |
| CT100G-4T-15G-B | CIF-04 | COF-04 |
| CT100-4T-4.0G/5.5P-B | CIF-02 | COF-02 |
| CT100-4T-5.5G/7.5P-B | CIF-03 | COF-03 |
| CT100-4T-7.5G/11P-B | CIF-03 | COF-03 |
| CT100-4T-11G/15P-B | CIF-04 | COF-04 |
| CT100-4T-15G/18.5P-B | CIF-04 | COF-04 |
| CT100-4T-18.5G/22P-B | CIF-05 | COF-05 |
| CT100-4T-22G/30P-B | CIF-05 | COF-05 |
| CT100-4T-30G/37P | CIF-06 | COF-06 |
| CT100-4T-37G/45P | CIF-07 | COF-07 |
| CT100-4T-45G/55P | CIF-07 | COF-07 |
| CT100-4T-55G/75P | CIF-08 | COF-08 |
| CT100-4T-75G/90P | CIF-08 | COF-08 |
| CT100-4T-90G/110P | CIF-09 | COF-09 |
| CT100-4T-110G/132P | CIF-10 | COF-10 |
| CT100-4T-132G/160P | CIF-10 | COF-10 |
| CT100-4T-160G/185P | CIF-11 | COF-11 |
| CT100-4T-185G/200P | CIF-12 | COF-12 |
| CT100-4T-200G/220P | CIF-12 | COF-12 |
| CT100-4T-220/250P | CIF-13 | COF-13 |
| CT100-4T-250G/285P | CIF-13 | COF-13 |
| CT100-4T-285G/315P | CIF-14 | COF-14 |
| CT100-4T-315G/355P | CIF-14 | COF-14 |
| CT100-4T-355G | CIF-15 | COF-15 |
| CT100-4T-400G | CIF-16 | COF-16 |
| CT100-4T-500G | CIF-17 | COF-17 |
| Inverter mode | Cables(m2) | Circuit breaker(A) | contactor(A) |
| CT100-2S-0.7G-B | 2.5 | 16 | 10 |
| CT100-2S-1.5G-B | 4 | 20 | 16 |
| CT100-2S-2.2G-B | 4 | 32 | 25 |
| CT100G-2S-4.0G-B | 4 | 40 | 32 |
| CT100G-2S-5.5G-B | 4 | 63 | 40 |
| CT100G-2S-7.5G-B | 4 | 63 | 40 |
| CT100-4T-0.7G-B | 2.5 | 10 | 10 |
| CT100-4T-1.5G-B | 2.5 | 16 | 10 |
| CT100-4T-2.2G-B | 2.5 | 16 | 10 |
| CT100G-4T-4.0G-B | 4 | 25 | 16 |
| CT100G-4T-5.5G-B | 4 | 32 | 25 |
| CT100G-4T-7.5G-B | 4 | 40 | 32 |
| CT100G-4T-11G-B | 4 | 63 | 40 |
| CT100G-4T-15G-B | 6 | 63 | 40 |
| CT100-4T-4.0G/5.5P-B | 4 | 25 | 16 |
| CT100-4T-5.5G/7.5P-B | 4 | 32 | 25 |
| CT100-4T-7.5G/11P-B | 4 | 40 | 32 |
| CT100-4T-11G/15P-B | 4 | 63 | 40 |
| CT100-4T-15G/18.5P-B | 6 | 63 | 40 |
| CT100-4T-18.5G/22P-B | 6 | 100 | 65 |
| CT100-4T-22G/30P-B | 10 | 100 | 65 |
| CT100-4T-30G/37P | 16 | 125 | 80 |
| CT100-4T-37G/45P | 16 | 160 | 80 |
| CT100-4T-45G/55P | 25 | 200 | 95 |
| CT100-4T-55G/75P | 35 | 200 | 125 |
| CT100-4T-75G/90P | 50 | 250 | 160 |
| CT100-4T-90G/110P | 70 | 250 | 160 |
| CT100-4T-110G/132P | 95 | 350 | 350 |
| CT100-4T-132G/160P | 150 | 400 | 400 |
| CT100-4T-160G/185P | 185 | 500 | 400 |
| CT100-4T-185G/200P | 240 | 630 | 400 |
| CT100-4T-200G/220P | 150*2 | 630 | 630 |
| CT100-4T-220/250P | 150*2 | 630 | 630 |
| CT100-4T-250G/285P | 185*2 | 800 | 630 |
| CT100-4T-285G/315P | 150*3 | 800 | 800 |
| CT100-4T-315G/355P | 150*3 | 800 | 800 |
| CT100-4T-355G | 150*3 | 1280 | 960 |
| CT100-4T-400G | 150*4 | 1380 | 1035 |
| CT100-4T-500G | 150*4 | 1720 | 1290 |
