Crawler Type Mobile Heavy Duty Screening Plant Station for Sale Tracked Mobile Crusher Vibrating Screen Price
- Category: >>>
- Supplier: Shanghai Dongmeng Road & Bridge Machinery Co. Ltd.
Share on (1600440567741):
Product Overview
Description
Product Overview
Shanghai Dongmeng Tracked Mobile Inclined/Heavy Duty Screen Advantages:
1, It is widely used in quarry, mining, demolition, topsoil processing recycling, sand and gravel screening, coal mine and
aggregate screening.
aggregate screening.
2, The ultra- wide and ultra- high conveyor belts can be hydraulically folded, which is convenient for transportation.
3, The high- performance screen box can be installed with grizzly bars, punch plate, grid mesh, needle screens, wire mesh and etc.
4, The vibrating screen can be raised and lowered hydraulically, which is convenient for maintenance and screen replacement. The belt conveyors' discharge angle can be adjusted by hydraulic.
5, The intelligent wireless remote control is used to control the track walking, one person can operate the track unit up and down the flat trailer for rapid working site transition.

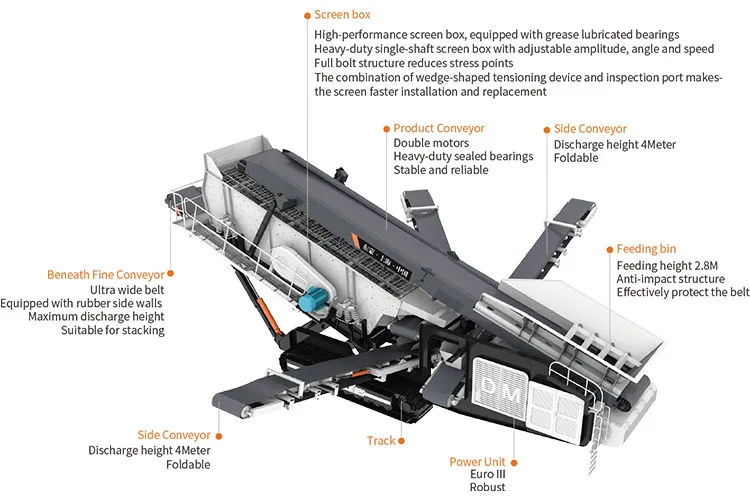

DMS620C/CH Parameters:
Hybrid is optional, to meet different working condition requirements.
Model | DMS620C | DMS620CH |
Feeding Capacity(tph) | 150 - 400 | 150 - 400 |
Hopper volume(cbm) | 2.5 | 2.5 |
Screenbox size(mm) | 6000 x 2000 | 6000 x 2000 |
Max. Capacity(tph) | 380 | 380 |
Engine power(kw) | 93 | 100 |
External power(kw) | 70 | 70 |
Transport size(LxWxH, M) | 15 x 3.75 x 3.8 | 15 x 3.75 x 3.8 |
Weight(tons) | 33 | 35 |

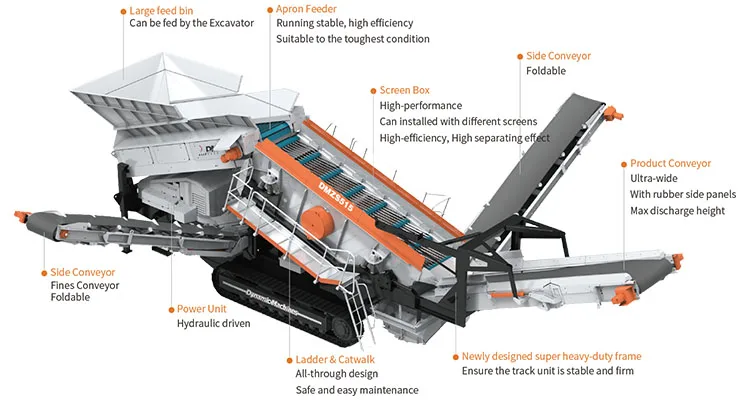

DMZS515 Parameters:
Equipped with Heavy- duty vibrating screen, the inclined angle can be adjust between 13°- 19°
Model | DMZS515 |
Feeding capacity(tph) | 150 - 400 |
Hopper volume(cbm) | 7 |
Screenbox layers | 2 |
Screenbox inclined angle(°) | 13 - 19 |
Max capacity(tph) | 500 |
Engine power(kw) | 93 |
Transport size(LxWxH, M) | 15 x 3.2 x 3.5 |
Weight(tons) | 33 |
* Working principle:
Mobile Vibrating Screen with Capacity 100 tons per hour dual vibration motor, vibration motor when the two do synchronous, counter rotation, the eccentric excitation force generated cancel each other in the direction parallel to the axis of the motor, the motor shaft in the direction of a vertical stack together, so the trajectory of the screening machine is a straight line. Two oppositely arranged a reverse synchronous motor excitation exciting force, forcing the driver to do mesh body vertical movement, thus periodically excitation force shaker and materials thrown forward a range of work to complete the screening material screening.

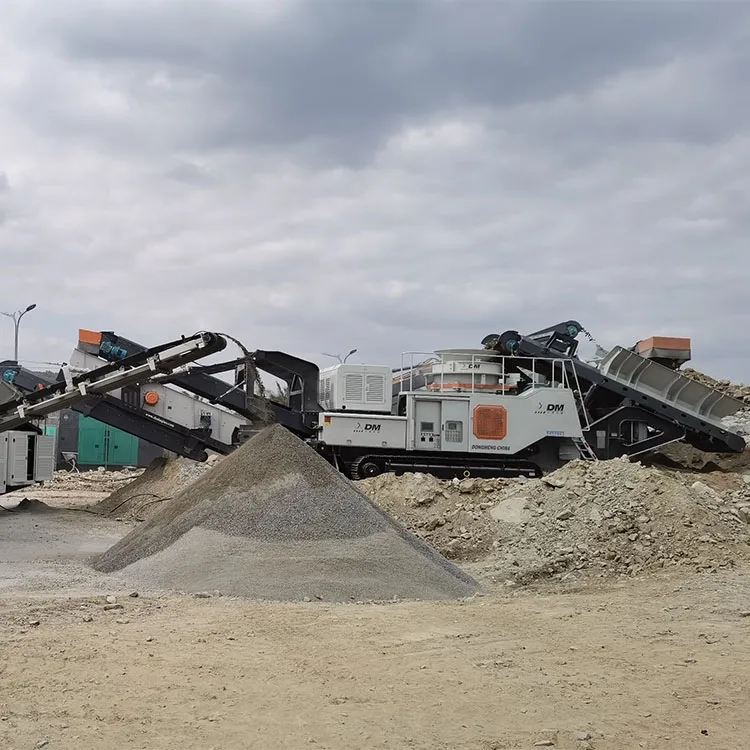

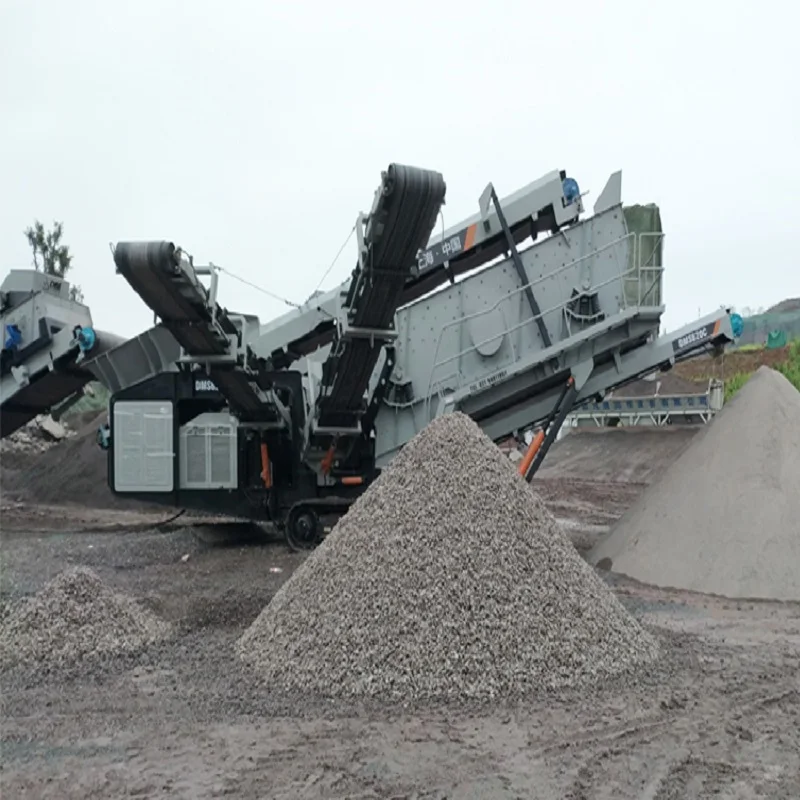

Successful Projects
DM Mobile Screening Plant 5 Big Advantages:
1, Modular assembly, compact structure, quite save working space.
2, Small turning radius, convenient transportation, Moving flexible between different work environments
3, Shorter transportation time and lower installation cost
4, Equipped with generator systems. Conveyor angle can be adjusted, can be flipped and folded
5, Versatile body combining alternative equipment, meet customers personalized needs
Small Working Space Urban Construction Waste Treatment.
Compact Structure, Save Working Space.
Walking Smoothly at Complex Field Conditions.
Moving Flexible Between Different Work Environments.
Shorter Transportation Time and Lower Installation Cost.
Reduces High Material Transportation Cost.
Versatile Body Combining Alternative Equipment.
Meet Customers Personalized Needs
PRODUCT SPECIFICATIONS
Product Details:
Wide Range of Applications, suitable for more than 200 kinds of Stones:
Our Service:
Our Service:
1) Pre-sale service:Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed
process, and complete process of export
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
Service supervision:
Any dissatisfaction on service attitude, service skills, quality and morality of our technical staff, please feel free to contact
us by dialing 24 hours hot line :0086-021-68911957
2) Medium-sales service: Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed
process, and complete process of export
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
Service supervision:
Any dissatisfaction on service attitude, service skills, quality and morality of our technical staff, please feel free to contact
us by dialing 24 hours hot line :0086-021-68911957
SIMILAR PRODUCTS
Certifications

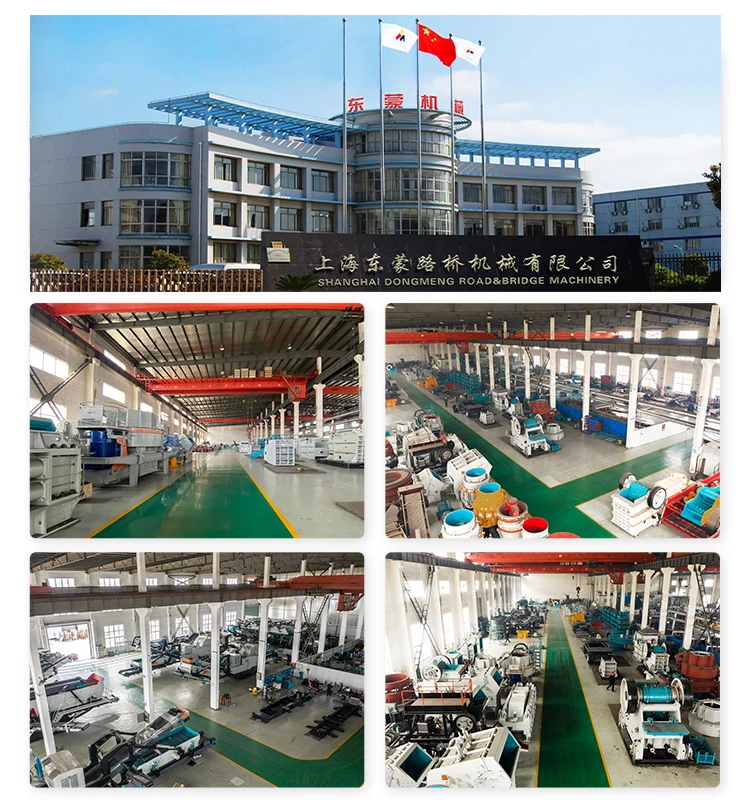

Company Profile
Shanghai Dongmeng Road&Bridge Machinery Co., Ltd.
Which is a high technology company specializing in R&D and manufacturing large crusher, screen and crawler mobile
crushing and screening plants for more than ten years.We have more than 200 employees, 30 technical staff, with
factory area of more than 20,000 square meters.
Exhibition&Visitors

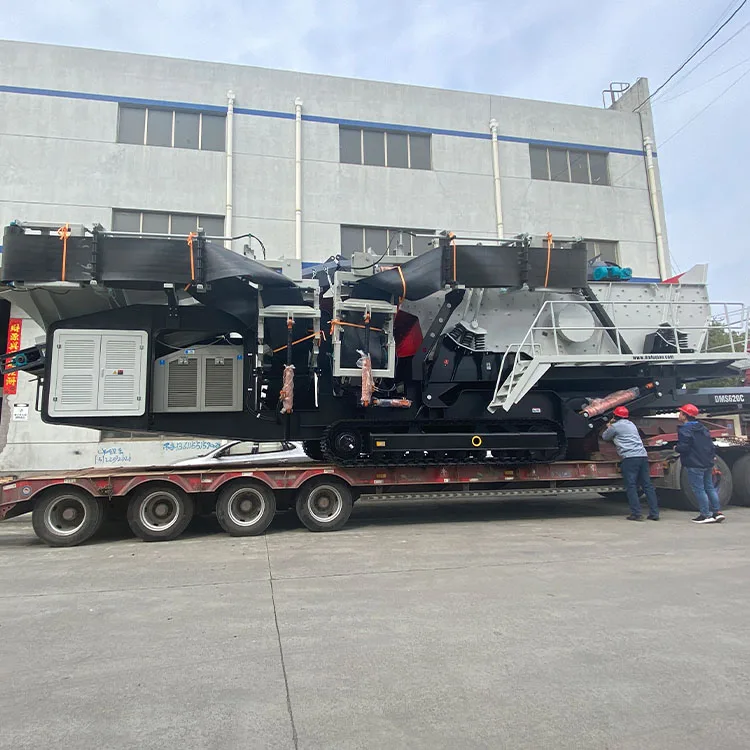

Packing&Shipping
FAQ
Q1:Installation?
Answer:At the client’s request, DongMeng can provide installation Technicians to supervise and assist in the assembly and commissioning of the equipment. Travel and accommodation costs.
Q2:Payment?
Answer:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the DongMeng factory.
Q3:What about Warranty? what will we do if the machine is broken down?
Answer:The warranty period for all of DongMeng’s structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q4:What should we need to do for if we want to get a best quotation?
Answer:Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )?
2).output size?
3).Max.Input Size?
4).stone type?
Q5:What could you help me to do for the business?
Answer:Many thanks for your trust , we can provide you with proposal chart for complete production lines ,
spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you
choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on .
Q6:What's your After sales Service?
Answer:All equipment manufactured by DongMeng is of the highest standard and very rarely have our clients experienced any mechanical problems. Should any problems occur, our team of Engineers and Technicians will respond within12 hours of notice by the client.
Q7:Delivery time?
Answer:Standard delivery time for stationary crusher plant is 30 days from receipt of deposit,the mobile crusher plant is 45 days.
Answer:At the client’s request, DongMeng can provide installation Technicians to supervise and assist in the assembly and commissioning of the equipment. Travel and accommodation costs.
Q2:Payment?
Answer:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the DongMeng factory.
Q3:What about Warranty? what will we do if the machine is broken down?
Answer:The warranty period for all of DongMeng’s structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q4:What should we need to do for if we want to get a best quotation?
Answer:Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )?
2).output size?
3).Max.Input Size?
4).stone type?
Q5:What could you help me to do for the business?
Answer:Many thanks for your trust , we can provide you with proposal chart for complete production lines ,
spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you
choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on .
Q6:What's your After sales Service?
Answer:All equipment manufactured by DongMeng is of the highest standard and very rarely have our clients experienced any mechanical problems. Should any problems occur, our team of Engineers and Technicians will respond within12 hours of notice by the client.
Q7:Delivery time?
Answer:Standard delivery time for stationary crusher plant is 30 days from receipt of deposit,the mobile crusher plant is 45 days.
