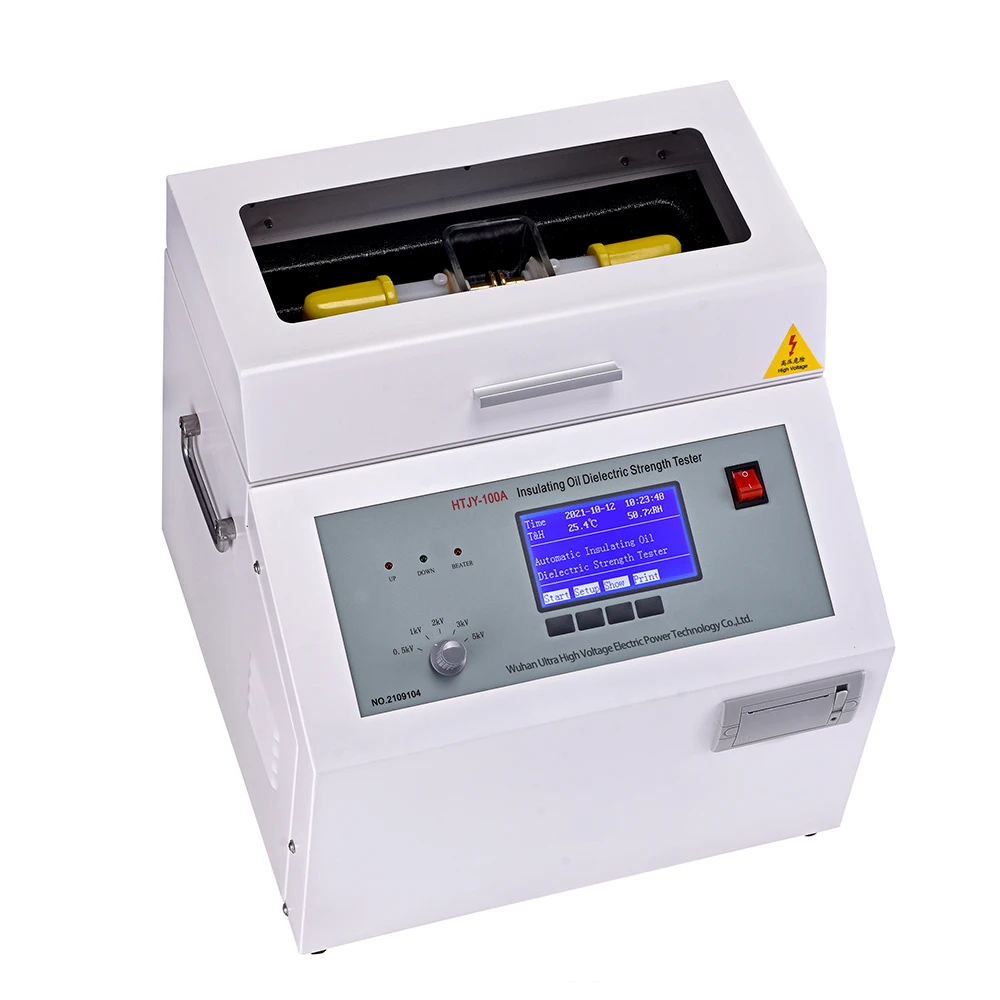

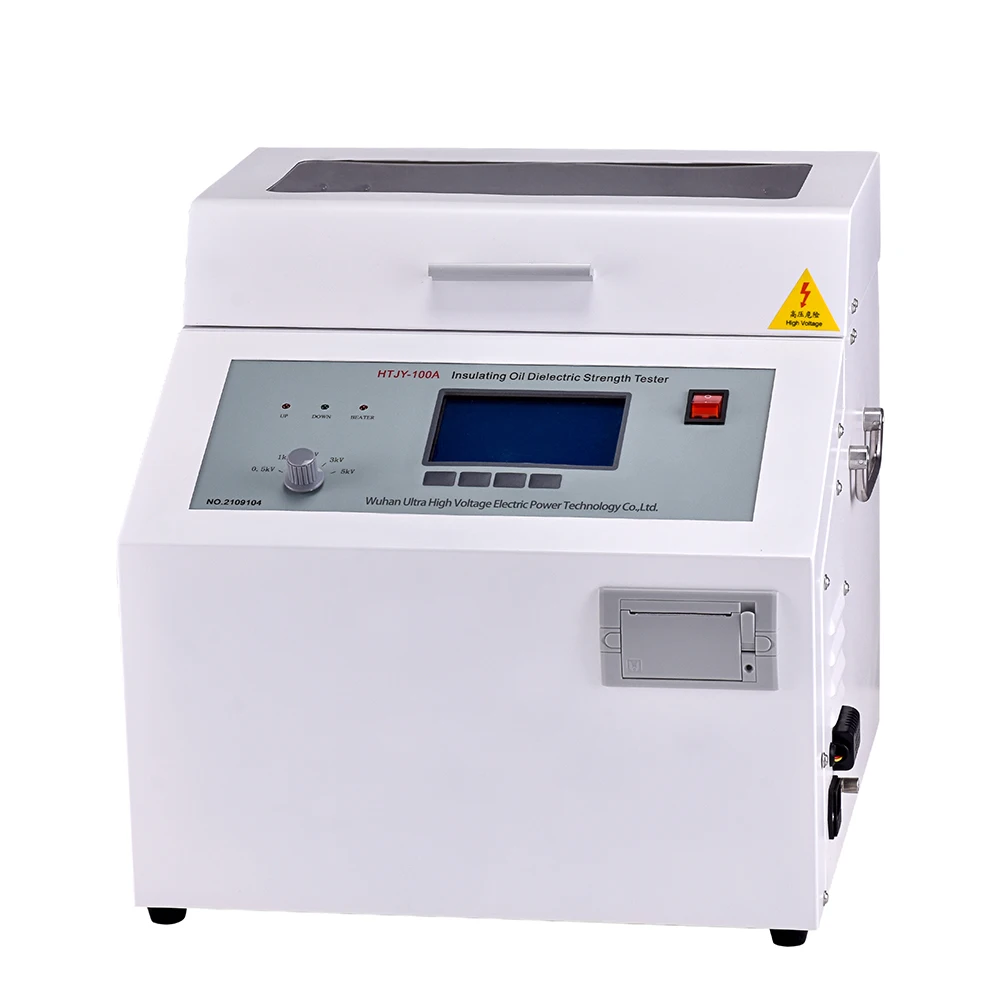

HTJY 80A 80kV 100kV Transformer Oil Breakdown Voltage BDV Meter Insulating Oil Dielectric Strength Test Device

Product Overview

Description



Related products











Introduction

The automatic insulating oil dielectric strength tester is our company’s scientific research and technical personnel, according to the relevant regulations of the national standard GB507-86 and the industry standard DL-474·4-92DL/T596-1996, exerting its own advantages, after many on-site tests and Long-term unremitting efforts, meticulously researched and developed high-accuracy, fully digital industrial instruments. The machine is easy to operate and beautiful in appearance. Due to the fully automatic digital microcomputer control, the measurement accuracy is high, the anti-interference ability is strong, and it is safe and reliable.



Features

1. The instrument is controlled by a large-capacity single-chip microcomputer, and the work is stable and reliable;

2. A wide-range watchdog circuit is installed in the instrument to prevent crashes;

3. A variety of operation options, the instrument program is equipped with GB1986 and GB2002 two national standard methods and custom operations, which can adapt to multiple options of different users;

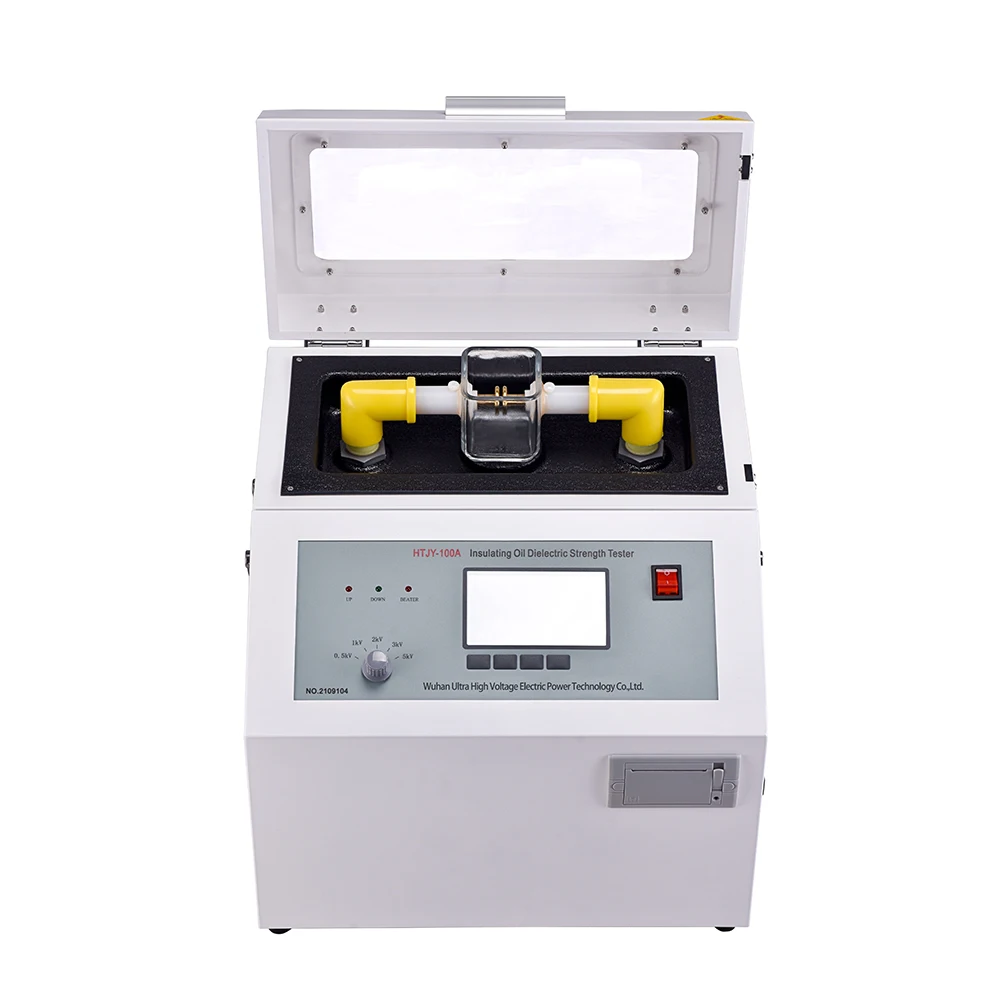

4. The instrument oil cup is made of special glass by one-time casting to prevent the occurrence of interference phenomena such as oil leakage;

5. The unique high-voltage end sampling design of the instrument allows the test value to directly enter the A/D converter, avoiding the error caused in the analog circuit, and making the measurement result more accurate;

6. The instrument has functions such as over-current, over-voltage, short-circuit protection, etc., and has strong anti-interference ability and good electromagnetic compatibility;

7. Portable structure, easy to move, very convenient for indoor and outdoor use.



Parameter

Technical parameters

power supply voltage	AC 220V±10%
Power frequency	50 Hz ± 5 Hz
Power consumption	<200 W
Output voltage	0-80kV
Booster capacity	1.5kVA

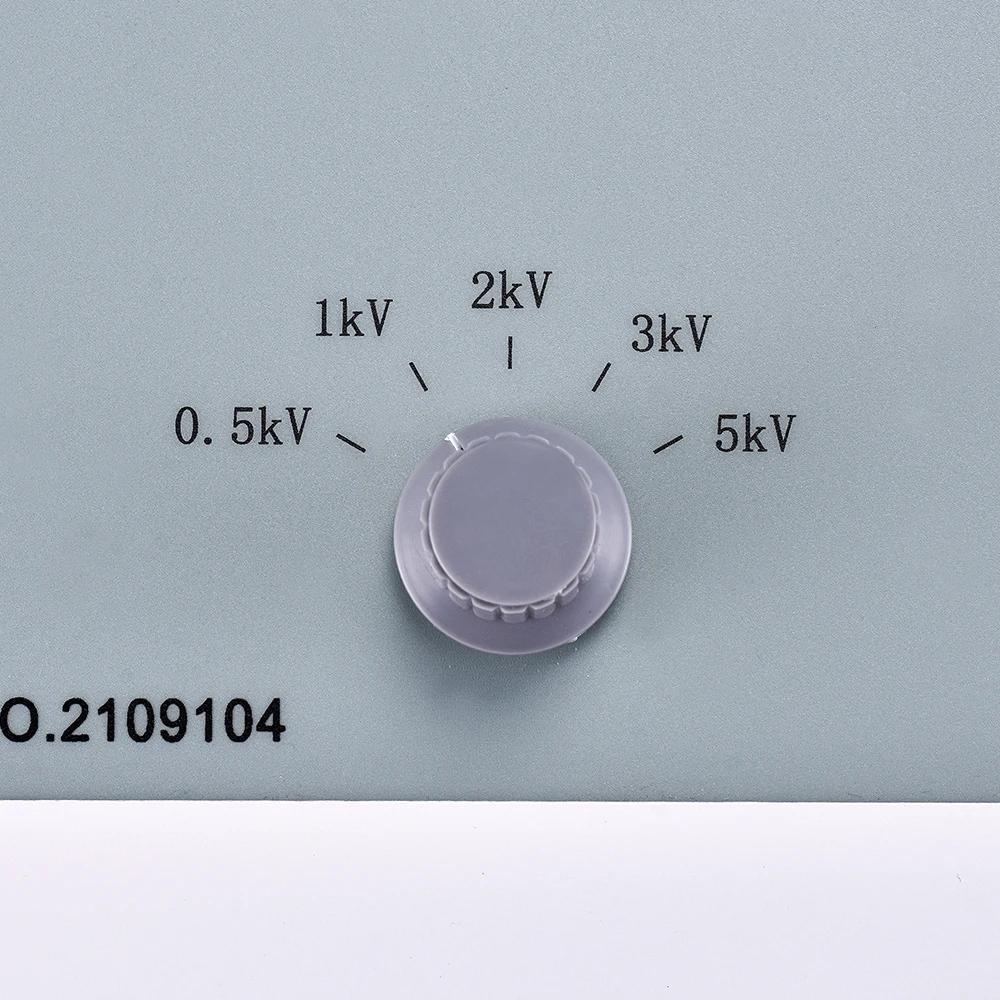

Booster speed	2.0 kV/s, 2.5 kV/s, 3.0 kV/s, 3.5 kV/s four gear options
Measurement accuracy	2%
Resting time	0-15min(Optional)
Interval time	0-10min(Optional)
Pressure times	1-6 times (optional)
Stiring time	0-90S (optional)
Resolution	0.1kV
Power distortion rate	<1%

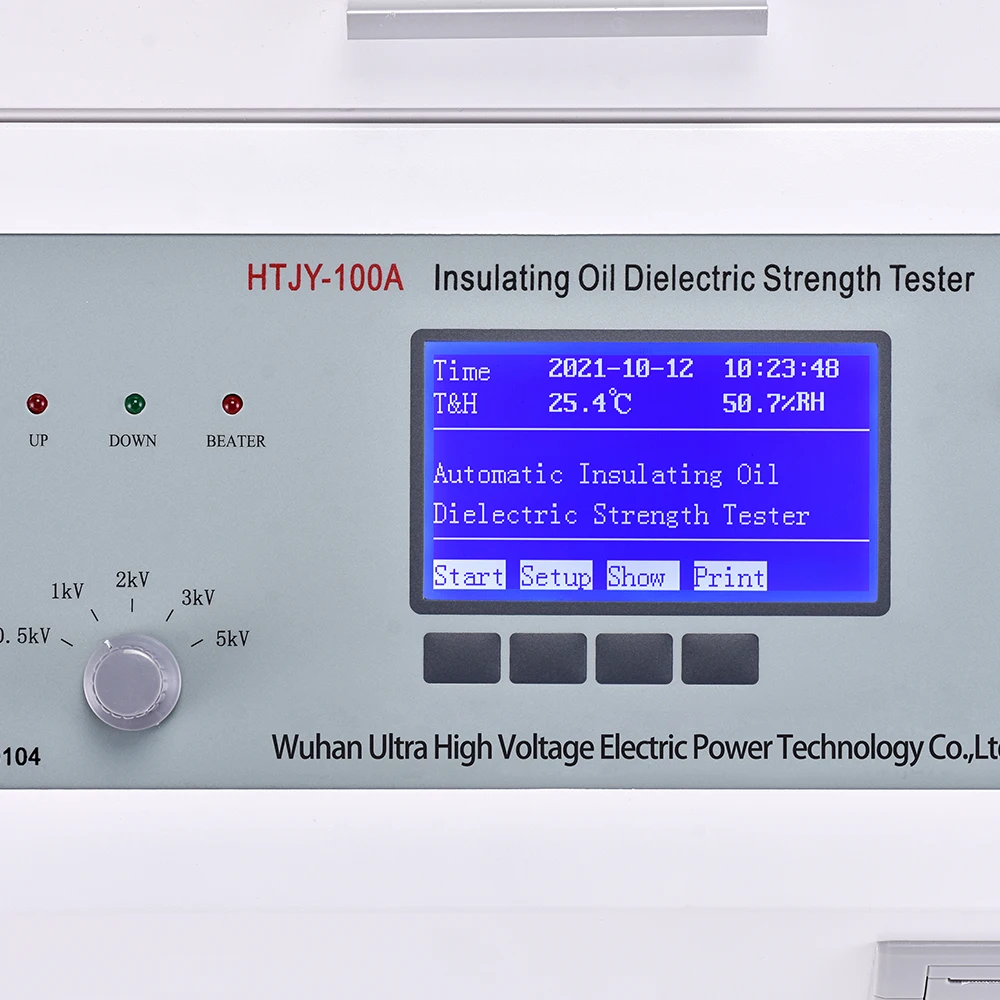

Display	Large-screen LCD display
Electrode gap	Standard 2.5 mm
Weight	32kg
Size	409 mm×393 mm×388 mm

Conditions of use

environment temperature	0℃~+40℃
Relative humidity	<85%
