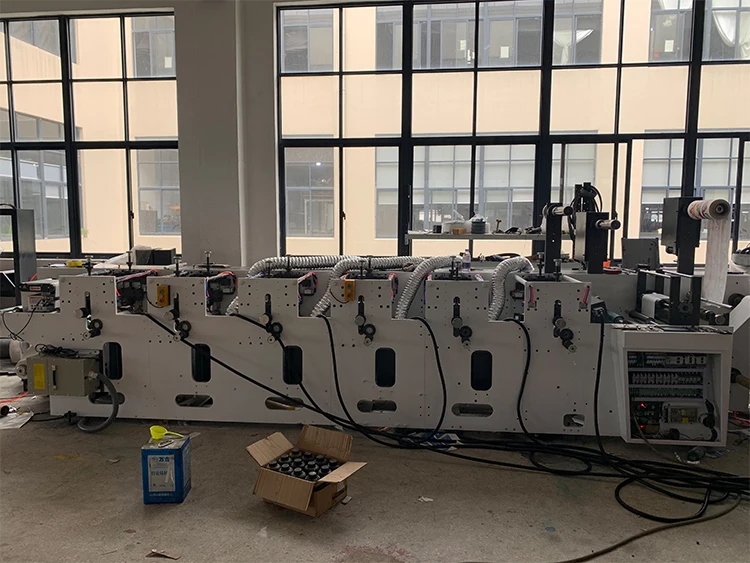

Factory sale 4 5 6 7 colors label paper plastic film roll printer horizontal flexographic flexo printing machine
- Category: >>>
- Supplier: Hangzhou Colon Digital Technology Co. Ltd.
Share on (1600440594676):
Product Overview
Description

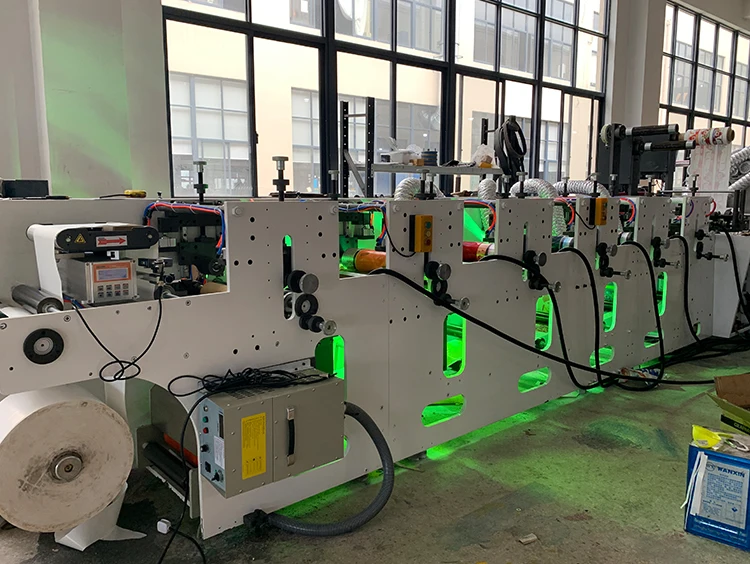

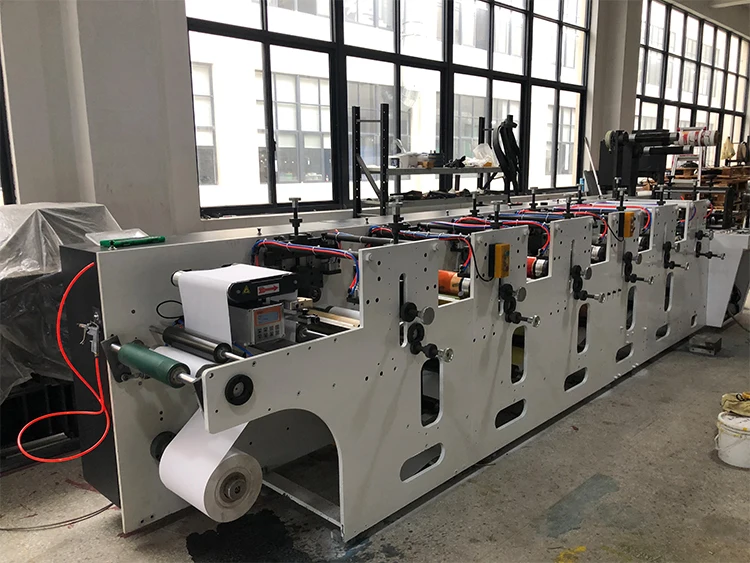

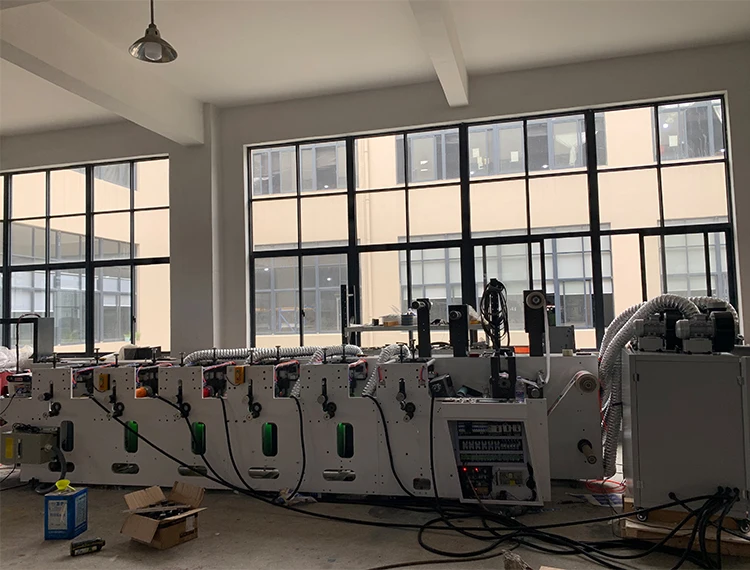

CE approved 4 5 6 7 8 colors adhesive sticker label horizontal flexographic printing machine price
Product Description
Features
1.From the discharge to the receipt of the short distance.
2.The ceramic stick is equipped with a scraper,which is printed and moist,and had a clear color.
3.Repeatedly printing the circumference of 190.5-635mm,filling the blank of the cascading flexographic printing machine,the slanting trademark printing machine,the petal printing machine and the printing length.
4.The use of gear color to solve the 360 degree coloring device gap,assembly,wear,ect,affecting the color accuracy and printing instability.
5.From left to right:coil feeding,printing,automatic infrared drying winding a coherent completion.
6.Water-based ink (UV ink)printing,pollution-free,environmentally friendly,printing speed caries according to the network
cable,the speed is also different,the fastest speed of printing labels is 90 meters per minute.
7.Printing bills,labels,cardboard,high-grade stickers,clothing tags,ect.
8.Printing materials:paper 20-250gsm self adhesive soft coil and other materials.
2.The ceramic stick is equipped with a scraper,which is printed and moist,and had a clear color.
3.Repeatedly printing the circumference of 190.5-635mm,filling the blank of the cascading flexographic printing machine,the slanting trademark printing machine,the petal printing machine and the printing length.
4.The use of gear color to solve the 360 degree coloring device gap,assembly,wear,ect,affecting the color accuracy and printing instability.
5.From left to right:coil feeding,printing,automatic infrared drying winding a coherent completion.
6.Water-based ink (UV ink)printing,pollution-free,environmentally friendly,printing speed caries according to the network
cable,the speed is also different,the fastest speed of printing labels is 90 meters per minute.
7.Printing bills,labels,cardboard,high-grade stickers,clothing tags,ect.
8.Printing materials:paper 20-250gsm self adhesive soft coil and other materials.
Process
discharging——automatic constant tension—— scraper——printing unit——traction——automatic constant tension——center receiving
Main Technical Parameter
Model | CFPM-N-230 | CFPM-N-320 |
Printing speed | 10m/min-80m/min | 10m/min-80m/min |
Mechanical speed | 10m/min-100m/min | 10m/min-100m/min |
Max width of raw material | 230mm | 320mm |
Printing width | 50-230mm | 50-320mm |
Printing repeat | 190.5-635mm | 190.5-635mm |
Plate thickness | 1.7/2.28mm (if different,pls tell me) | 1.7/2.28mm (if different,pls tell me) |
Anilox roller specifications | φ85*250*4 | φ85*350*4 |
Aluminum guide roller specification | φ70*250 | φ70*350 |
Printing bottom roller | φ85*250 | φ85*350 |
Max unwinding diameter | φ500mm | φ500mm |
Max rewinding diameter | φ500mm | φ500mm |
Max oven temperature | 80℃ | 80℃ |
Shaft diameter | 74mm | 74mm |
Total power | 10kw | 15kw |
Drying heat source | electric heating | electric heating |
Weight | 2500kg | 3200kg |
Dimensions | 3500(L)*900(W)*1200(H)mm | 4700(L)*1200(W)*1200(H)mm |
Machines Details
Unwinding
With 1 pc 3" air expanding shaft, can accept max diameter 600mm material jumbo roll. (can be customized)
Rewinding
With 1 or 2 pc 3" Air expanding shaft, can accept max diameter 600mm material jumbo roll. (can be customized)
Web Guide System
Control paper move straightly.
Control Panel
Power supply, stop button, start button,emergency stop
Printing Unit
Printing station comes with ink rubber roller, ceramic anilox cylinder, printing plate cylinder, scrapper blade and ink container.helical gear
Auto Tension Controller
With 1 set ZXT-600 auto constant tension controller for unwinding
Optional Parts
IR Dryer
UV Dryer
Slitting Unit
Die Cutting Unit
Lamination
Video Inspection System
Corona Treater
Turn Bar
Sample
Suitable Material: Self Adhesive label, Self -Adhesive Film , Laminating Film, Paper, Opp, Alumium Foil, CPP, PET......
All kind of labels
Film (OPP,PET,PVC......)
Paper
Company Profile

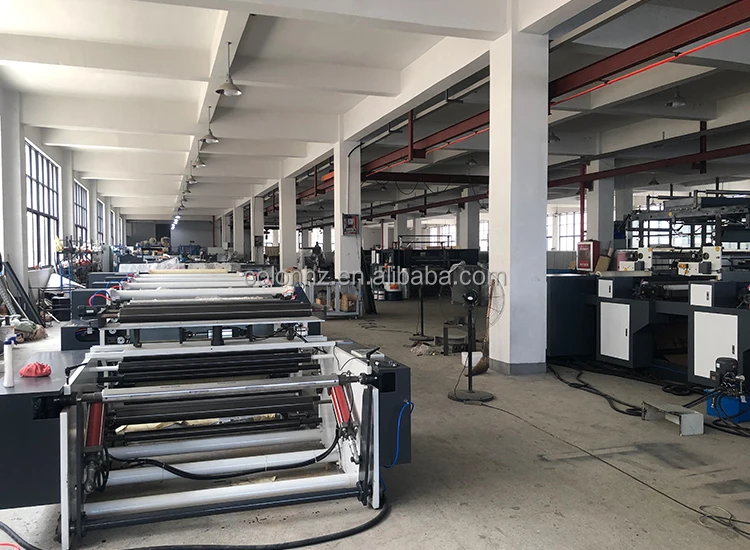

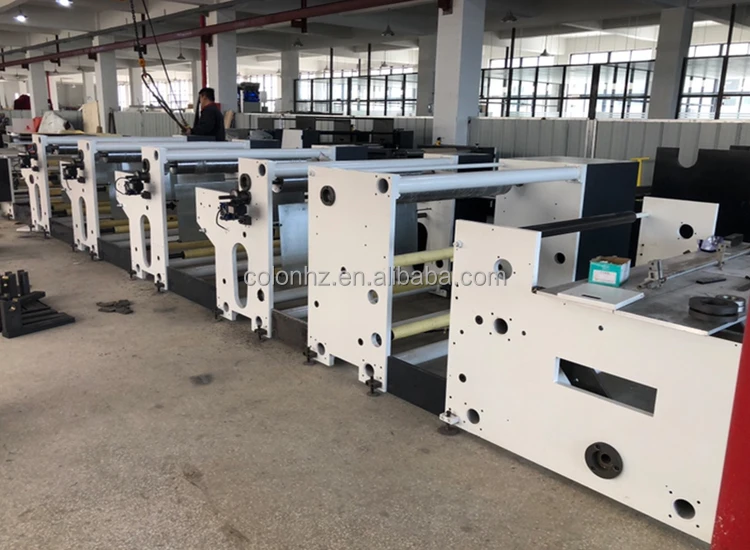

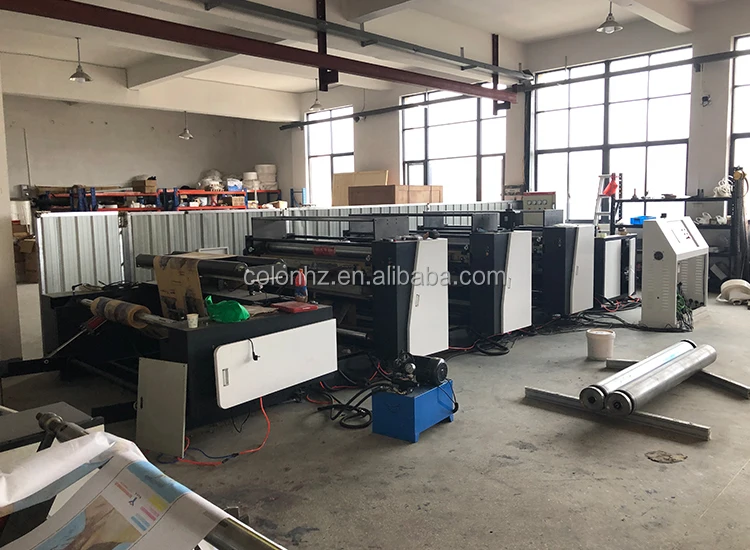

Our Factory
Sales Team
Certificates
Packing & Delivery

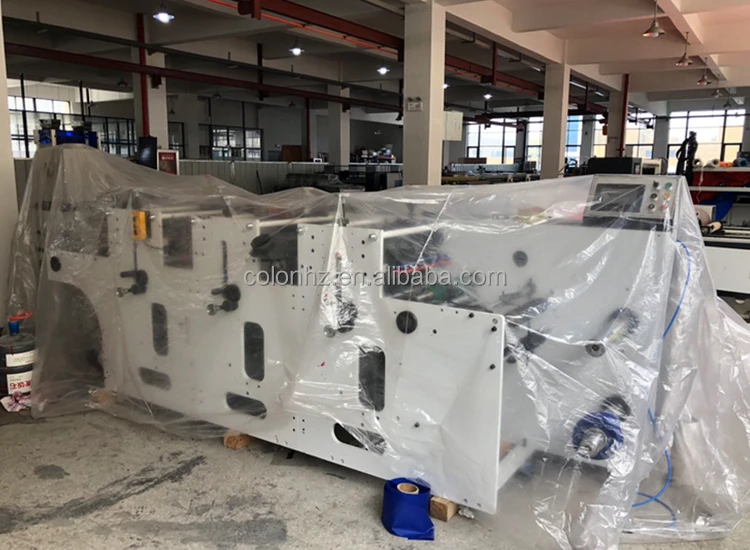

Interior: Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
FAQ
Q1: How does your factory do regarding quality control ?
A1: Quality is priority.We always regard great importance to quality controlling from the very small thing (even a samll screw we will choose the best quality) from the beginning.
Q2: What is your after-sales service ?
A2: Our after-sales service is first class.We have a powerful team to help you solve problems.The warranty is one year and if the machine is damaged by natural not by human,we can send the new parts to you for free.
Q3: What is the terms of payment you accept ?
A3: 30% T/T in advance,70% T/T balance before delivery.We also accept LC.
Q4: Does the machine power voltage meet buyer's factory power source ?
A4: We can do it as your request.
Q5: Can you offer some video or pictures of the printing machine ?
A5: Yes,of course.Besides,we can help you to have your products to print if you are available to send us some of your product and then record a video for your reference.
A1: Quality is priority.We always regard great importance to quality controlling from the very small thing (even a samll screw we will choose the best quality) from the beginning.
Q2: What is your after-sales service ?
A2: Our after-sales service is first class.We have a powerful team to help you solve problems.The warranty is one year and if the machine is damaged by natural not by human,we can send the new parts to you for free.
Q3: What is the terms of payment you accept ?
A3: 30% T/T in advance,70% T/T balance before delivery.We also accept LC.
Q4: Does the machine power voltage meet buyer's factory power source ?
A4: We can do it as your request.
Q5: Can you offer some video or pictures of the printing machine ?
A5: Yes,of course.Besides,we can help you to have your products to print if you are available to send us some of your product and then record a video for your reference.
