PACIFIC high quality hydraulic cnc press brake with DA53 System for sale
- Category: >>>
- Supplier: Nantong Pacific CNC Machine Tool Co. Ltd.
Share on (1600440610048):
Product Overview
Description

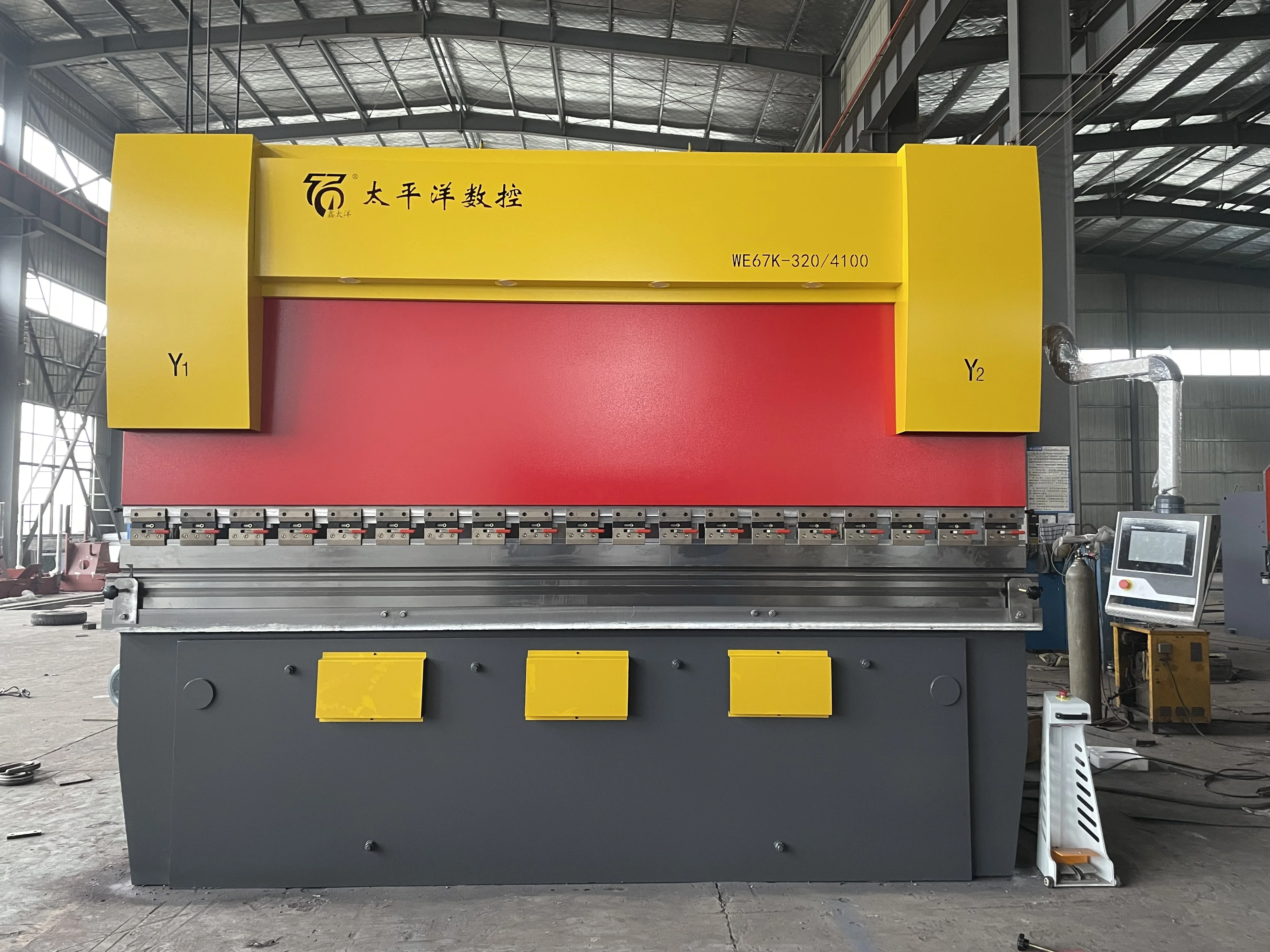

CNC PRESS BRAKE MACHINE
Electro-hydro Servo Synchro CNC Press Brake
1. integrated welding and vibratory stress relief;electro-hydro servo valve and grating ruler for closed loop control;
2.high precision of backgauge position and re-positioning;
3.maximum 6 backgauge axis;
4.auto hydraulic crowning controlled by controller;
5.CNC system including DELEM (Netherlands), CYBELEC (Switzerland) etc.
2.high precision of backgauge position and re-positioning;
3.maximum 6 backgauge axis;
4.auto hydraulic crowning controlled by controller;
5.CNC system including DELEM (Netherlands), CYBELEC (Switzerland) etc.

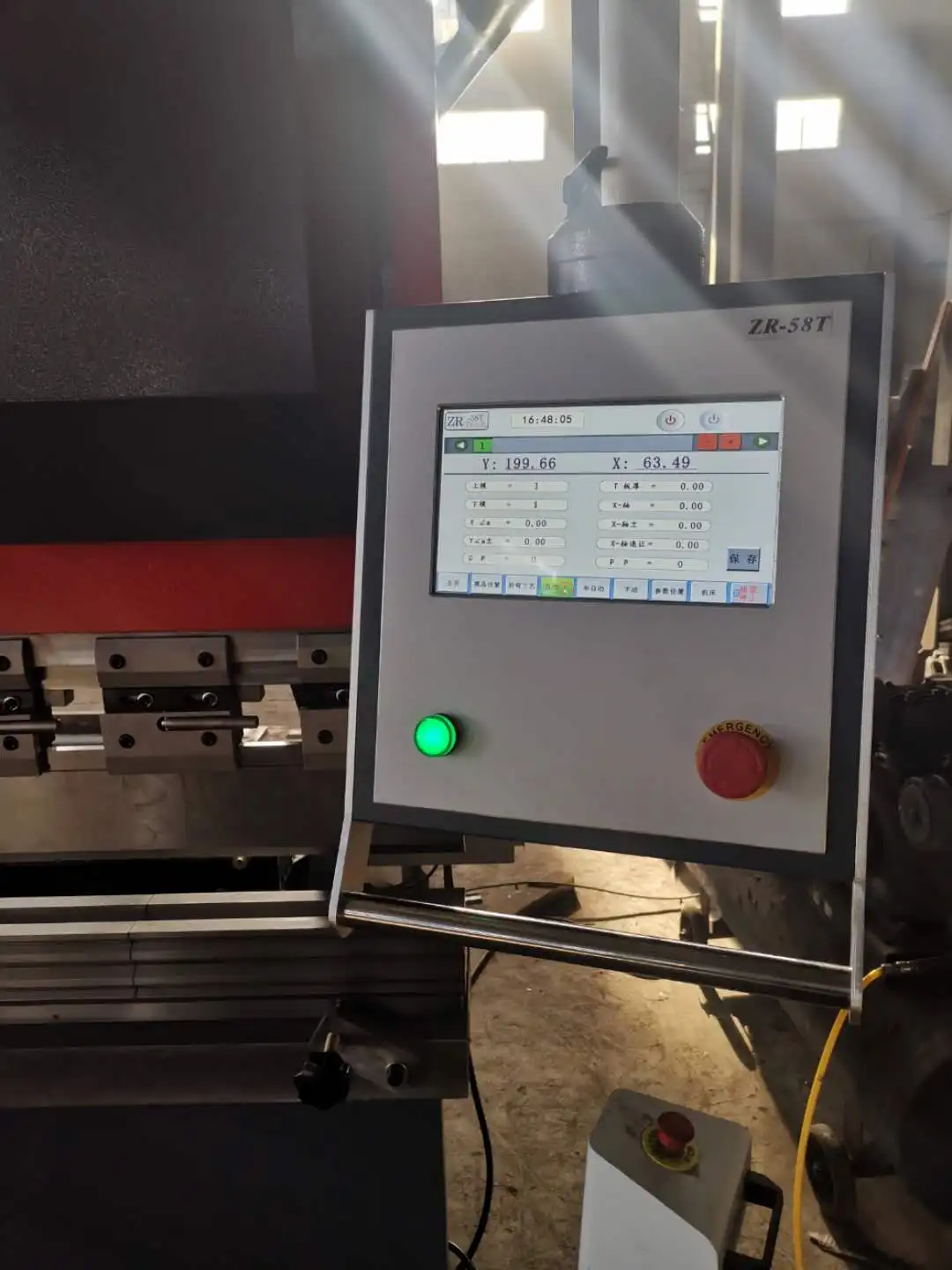

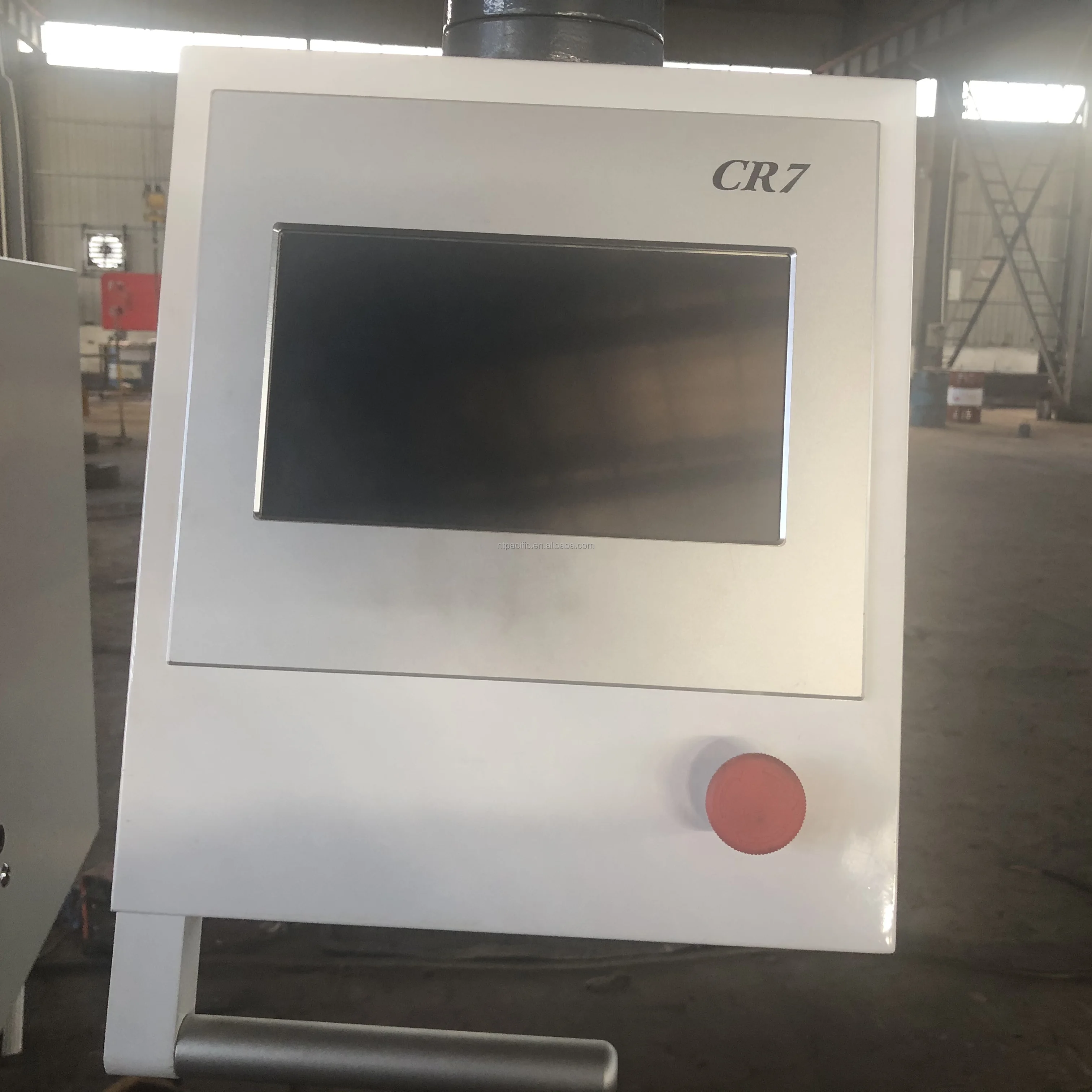

Press Brake Controller

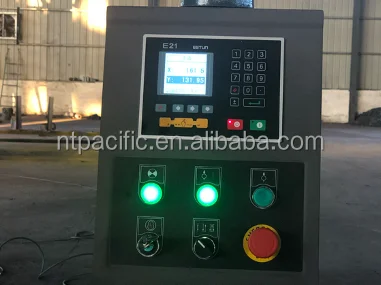

For torsion bar synchro NC hydraulic press brake, we provide the RT200,E21 with steppor motor or E200, E300, DA41 and DA41s controller with servo system.

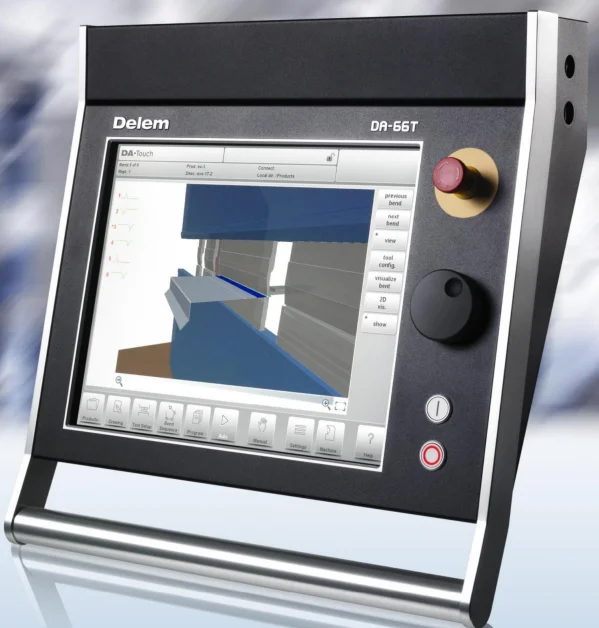

For electro-hydro servo synchro CNC press brake, we provide DA52s, DA53,DA58T, DA66T and CybTouch 8, CybTouch 12 controller.
For electro-hydro servo synchro CNC press brake, we provide DA52s, DA53,DA58T, DA66T and CybTouch 8, CybTouch 12 controller.
Quick Clamp
Opltional mechanical quick clamps,improving the clamping accuracy

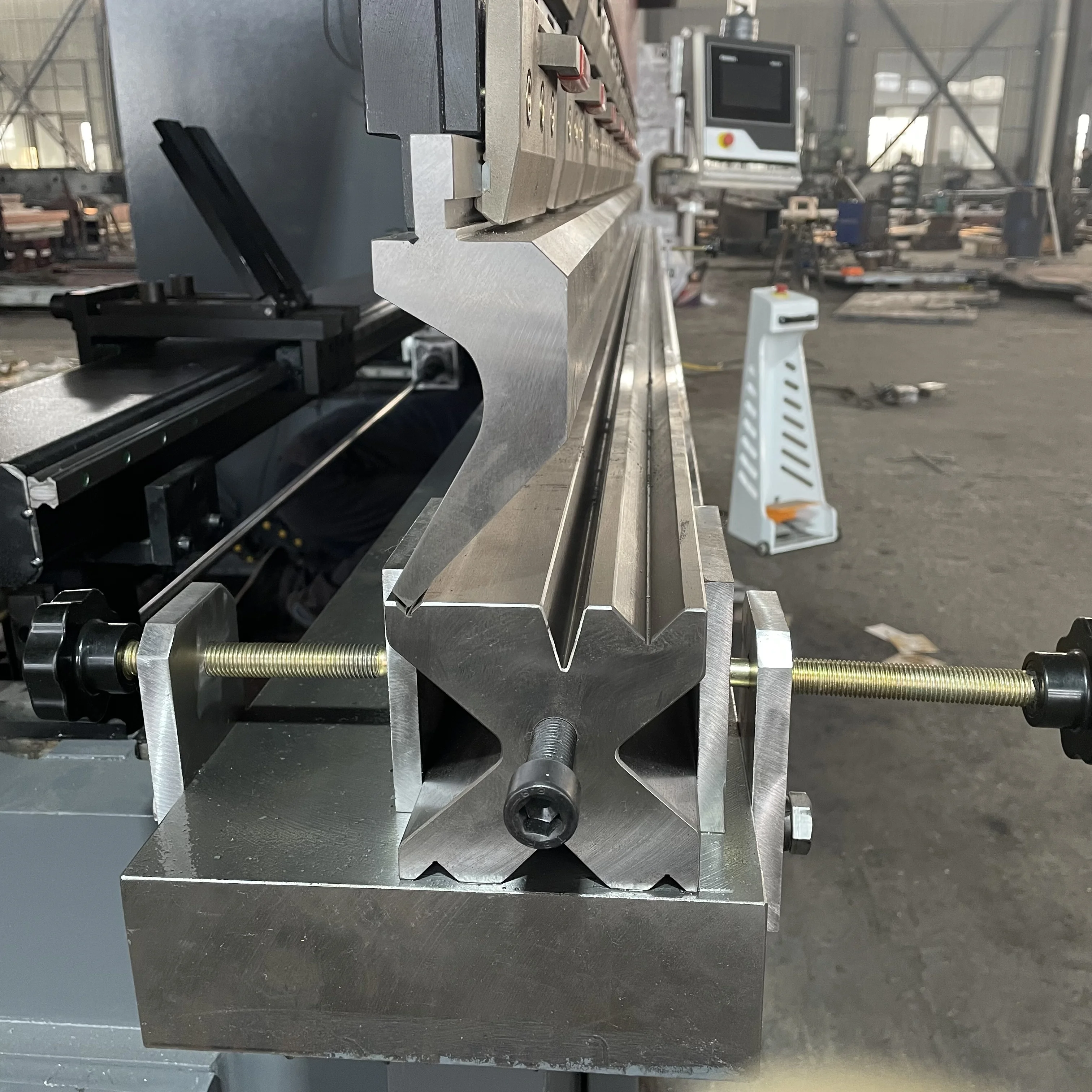

Double V Toolings
Standard double-V lowerdies with different size andvarious shaped slots forchoice,convenient forexchanging dies,capablefor bending
regular plates.
regular plates.
Front Arm
Front arm with featuresof simple structure,powerful functions,can beadjusted up and down,ormoved along the workbenchfrom side to
side.
side.

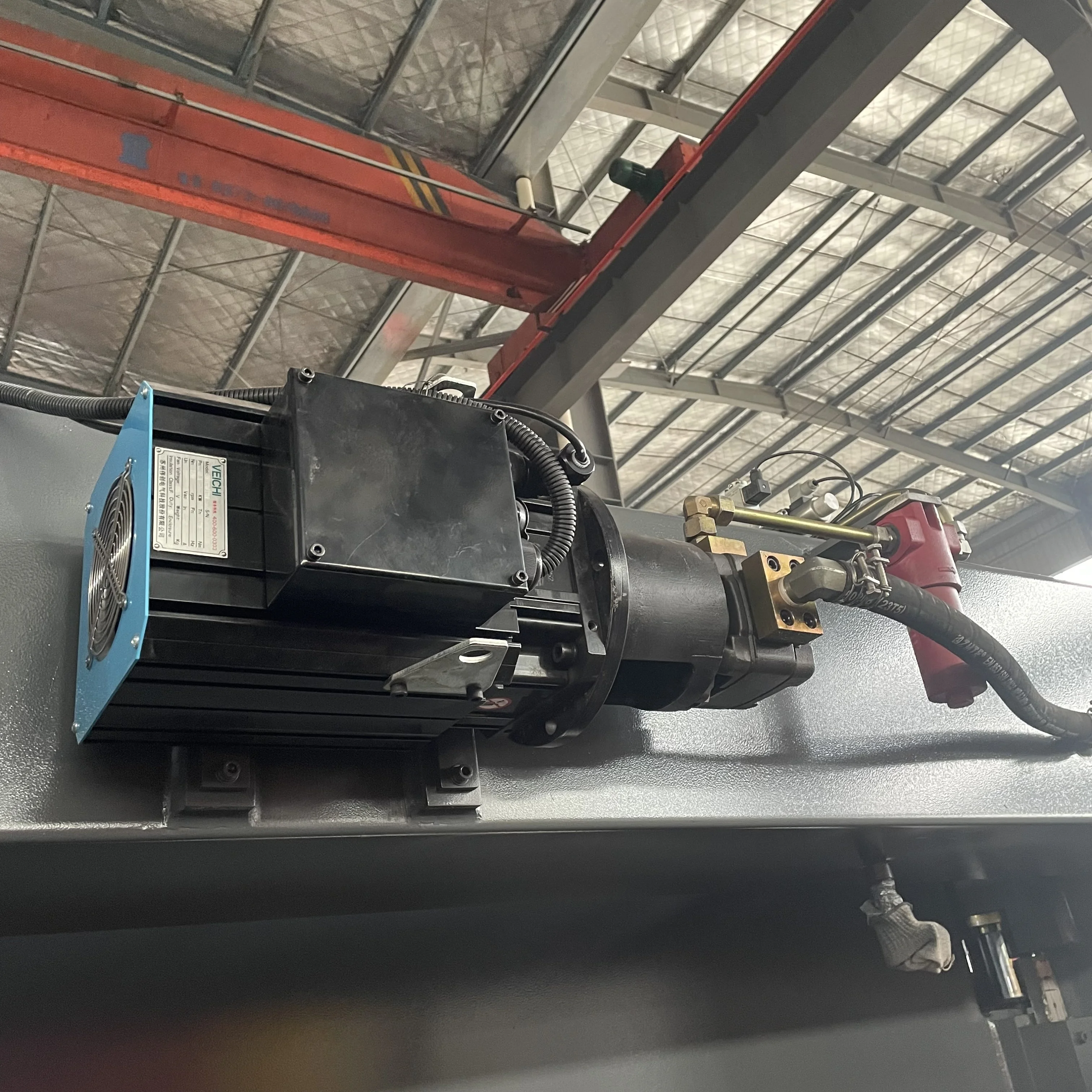

Servo Motor
Using Siemens motor guarantees the machine service life and reduce the noise when working.

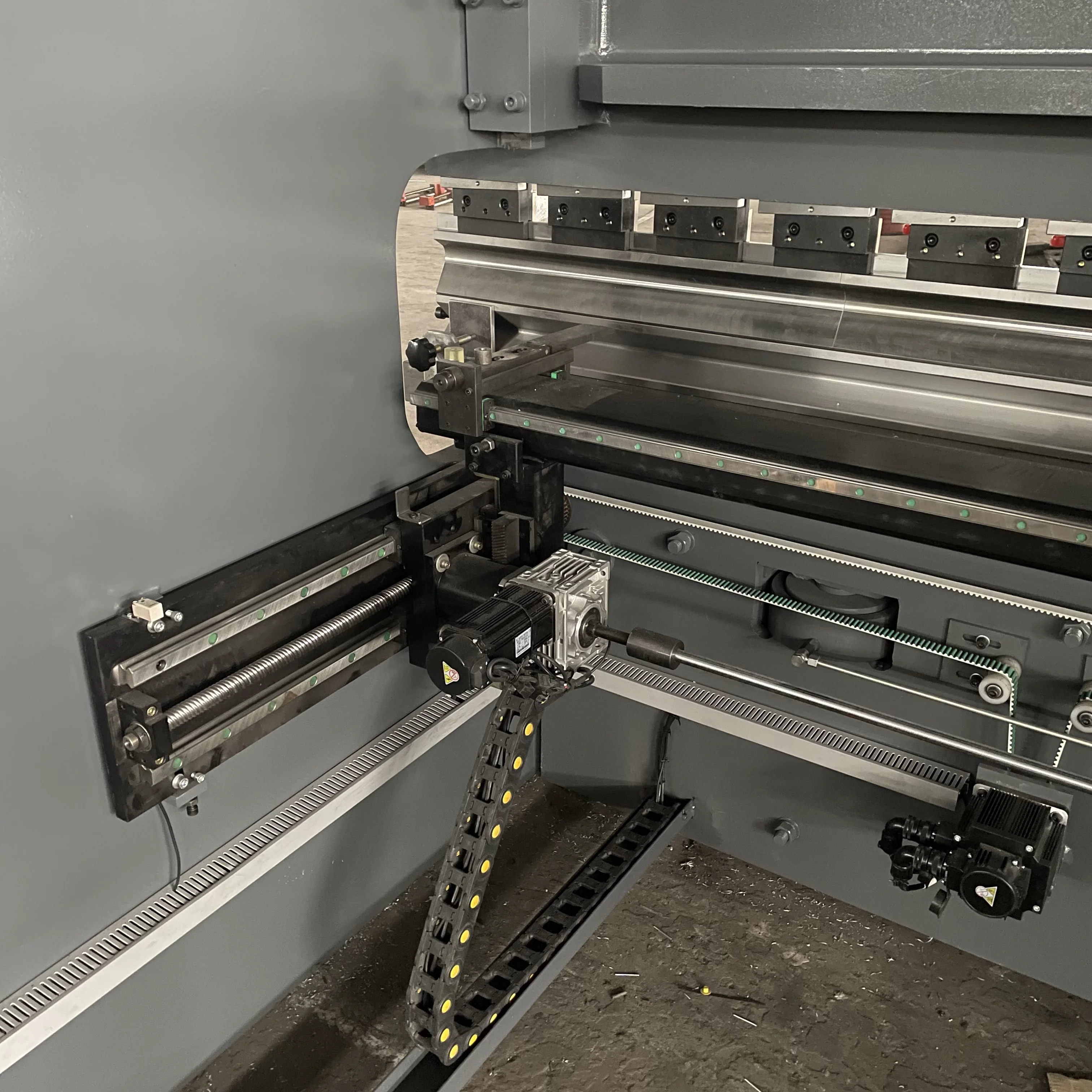

Back gauge system
Back gauge system driven by AC servo
Hydraulic System
The reasonably designedhydraulic system canensure the stability ofhydraulic system.Concise hydraulic control,enhancing highly
thereliability of the machine.
thereliability of the machine.
Trolley Workbench
Grating ruler

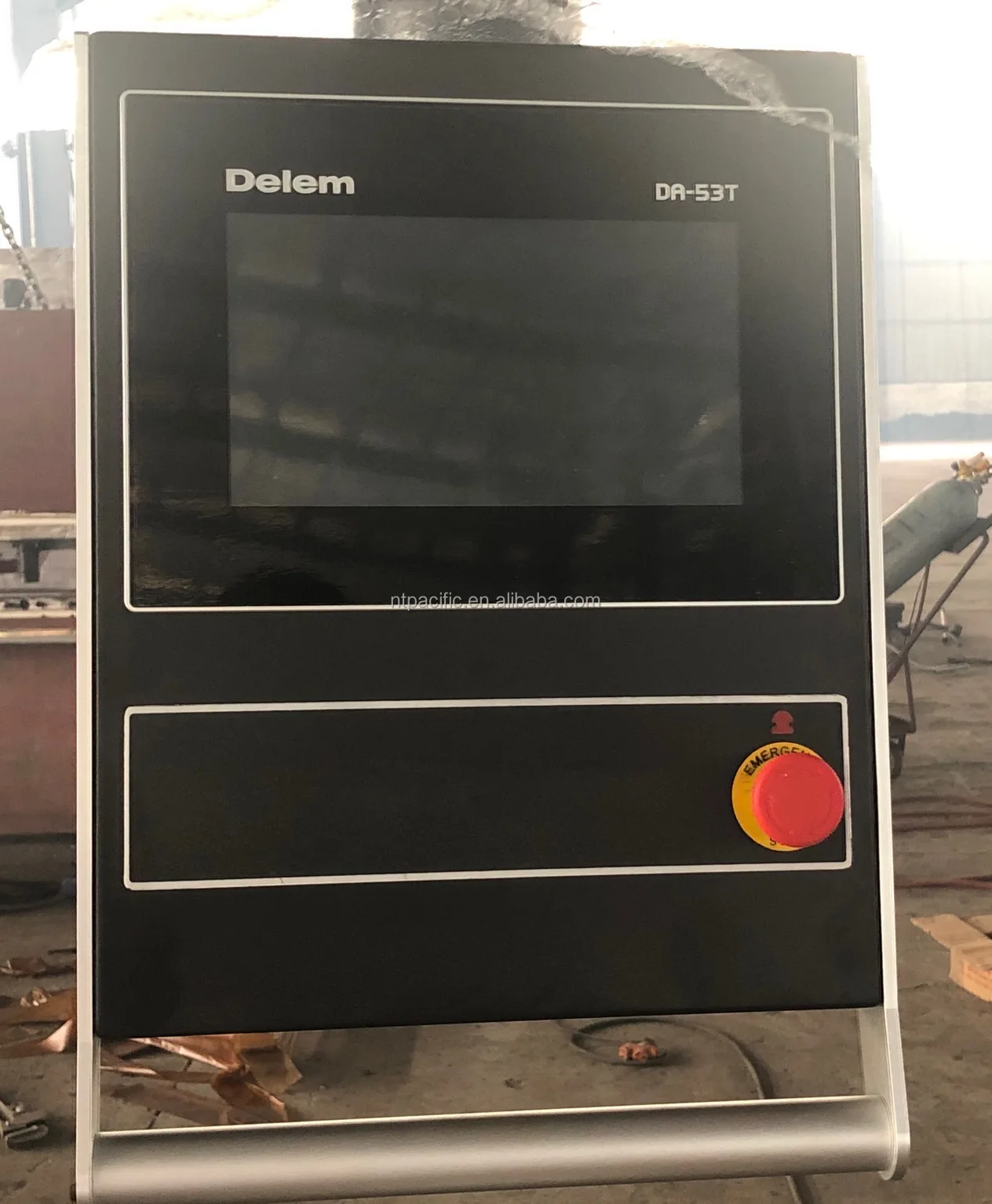

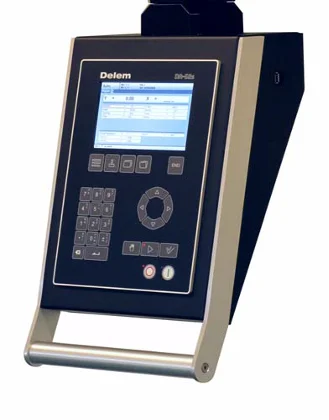

Controller

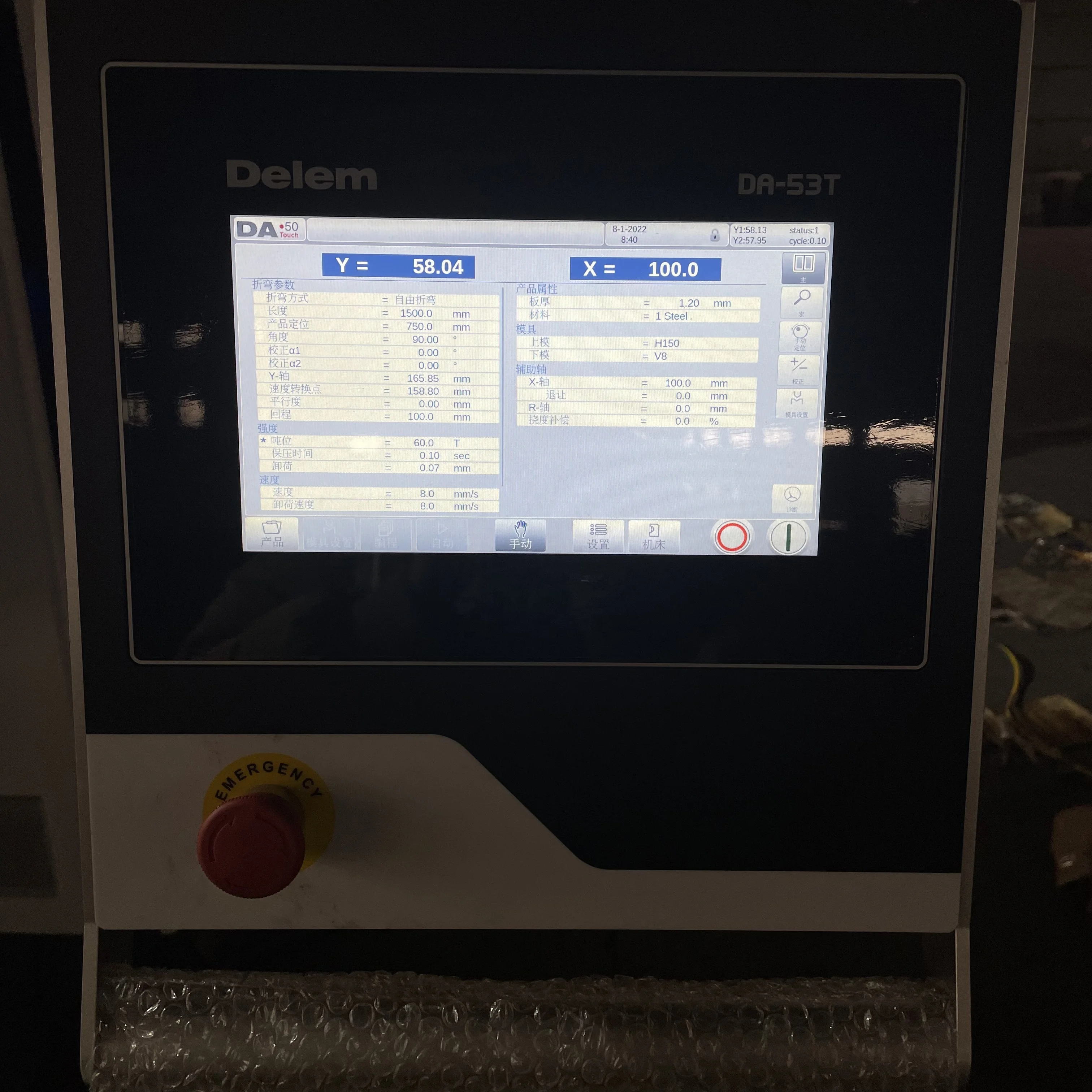

The da53 control provides a complete solution for conventional press brake applications for 3+1,4+1axes
NC press brake | WC67Y | CNC press brake | WC67K/WE67K |
Control system | RT200, Estun, DA41 | Gear pump | Shanghai |
Crescent gear pump | America sunny | Seal ring | Japan NOK |
Hydraulic system | Germany HAWE | Control system | Delem, CYB,ESA etc |
Oil tank seal ring | Japan NOK | Grating ruler | OPKON/ GV |
Bite type fittings | Germany JS | Main motor | Germany Siemens |
Motor | Germany Siemens | Servo motor | Nanjin Estun |
Electrical components | Germany Siemens | Main electronic components | Germany Siemens |
Mould | Material (42CrMo) | Oil cylinder | Nantong |
Cylinder | Nantong | guide rail | Taiwan Hiwin |
Model | Nominal Pressure (KN) | Length of Table (mm) | Distance between frames (mm) | Throat Depth (mm) | Stroke (mm) | Open Height (mm) | Main Motor (KW) | Weight (KG) | Overall Dimensions LXWXH(mm)) |
WC67Y/K-40/1600 | 400 | 1600 | 1150 | 200 | 100 | 340 | 5.5 | 2000 | 1750x1350x1900 |
WC67Y/K-40/2000 | 400 | 2000 | 1590 | 200 | 100 | 340 | 5.5 | 3000 | 2545x1510x2050 |
WC67Y/K-40/2200 | 400 | 2200 | 1590 | 200 | 100 | 340 | 5.5 | 2500 | 2300x1350x1900 |
WC67Y/K-40/2500 | 400 | 2500 | 2090 | 200 | 100 | 340 | 5.5 | 2800 | 2600x1400x1950 |
WC67Y/K-63/2500 | 630 | 2500 | 2050 | 250 | 100 | 360 | 5.5 | 4500 | 2600x1400x2000 |
WC67Y/K-63/3200 | 630 | 3200 | 2600 | 250 | 120 | 360 | 5.5 | 5400 | 3300X1450X2100 |
WC67Y/K-80/2500 | 800 | 2500 | 2050 | 250 | 120 | 380 | 7.5 | 5800 | 2650X1420X2120 |
WC67Y/K-80/3200 | 800 | 3200 | 2600 | 250 | 120 | 380 | 7.5 | 6100 | 3300X1450X2100 |
WC67Y/K-100/2500 | 1000 | 2500 | 2050 | 320 | 120 | 385 | 7.5 | 6100 | 2650X1450X2200 |
WC67Y/K-100/3200 | 1000 | 3200 | 2600 | 320 | 120 | 385 | 7.5 | 6600 | 3300X1450X2200 |
WC67Y/K-100/4000 | 1000 | 4000 | 3200 | 320 | 120 | 385 | 7.5 | 8000 | 4100X1450X2200 |
WC67Y/K-125/2500 | 1250 | 2500 | 2050 | 320 | 120 | 385 | 7.5 | 6300 | 2650X1550X2200 |
WC67Y/K-125/3200 | 1250 | 3200 | 2600 | 320 | 120 | 385 | 7.5 | 7000 | 3300X1550X2200 |
WC67Y/K-125/4000 | 1250 | 4000 | 3200 | 320 | 120 | 385 | 7.5 | 8200 | 4100X1550X2200 |
WC67Y/K-125/5000 | 1250 | 5000 | 4000 | 320 | 120 | 410 | 7.5 | 11500 | 5100x1400x2660 |
WC67Y/K-160/3200 | 1600 | 3200 | 2600 | 320 | 200 | 470 | 11 | 10000 | 3300X1780X2500 |
WC67Y/K-160/4000 | 1600 | 4000 | 3200 | 320 | 200 | 470 | 11 | 12000 | 4100X1800X2350 |
WC67Y/K-200/3200 | 2000 | 3200 | 2600 | 320 | 200 | 485 | 15 | 12000 | 3300X1750X2680 |
WC67Y/K-200/4000 | 2000 | 4000 | 3200 | 320 | 200 | 485 | 15 | 13800 | 3300X1750X2680 |
WC67Y/K-250/3200 | 2500 | 3200 | 2600 | 320 | 250 | 560 | 18.5 | 13600 | 3300X2100X2880 |
WC67Y/K-250/4000 | 2500 | 4000 | 3200 | 320 | 250 | 560 | 18.5 | 15000 | 4100X2050X2980 |
WC67Y/K-300/3200 | 3000 | 3200 | 2600 | 350 | 250 | 560 | 22 | 16000 | 3300X2050X3000 |
WC67Y/K-300/4000 | 3000 | 4000 | 3200 | 350 | 250 | 560 | 22 | 20000 | 4100X2080X3100 |
WC67Y/K-300/6000 | 3000 | 6000 | 4700 | 350 | 250 | 560 | 22 | 28000 | 6100X2080X3250 |
WC67Y/K-400/3200 | 4000 | 3200 | 2600 | 350 | 250 | 580 | 37 | 20000 | 3300X2000X3000 |
WC67Y/K-400/4000 | 4000 | 4000 | 3200 | 350 | 250 | 580 | 37 | 26000 | 4100X2080X3150 |
WC67Y/K-400/6000 | 4000 | 6000 | 4750 | 400 | 250 | 580 | 37 | 37500 | 6100X2180X3580 |
WC67Y/K-500/4000 | 5000 | 4000 | 3200 | 350 | 250 | 580 | 37 | 26000 | 4100X2080X3150 |
WC67Y/K-500/6000 | 5000 | 6000 | 4750 | 400 | 250 | 580 | 37 | 37500 | 6100X2180X3580 |
Q1. How about the quality of your machines?
Our company is the key backbone enterprise of the national machinery industry, with a group of experienced professional engineering and technical personnel, production and testing equipment, with 20 years of product manufacturing experience.We are committed to customer satisfaction is our pursuit, quality must make customers satisfied.
Q2. Can you give me a better price for the machine?
1.The quality of the company's products is always good, and we know that the overseas market is more important and difficult than the domestic market.Due to the time cost of after-sales communication, our machines are always of higher quality to ensure that they can work beyond the true warranty period.
2.We will definitely provide quality = price, price = quality, and the matching price is acceptable to the customer.We welcome you to negotiate with us and obtain good satisfaction.
3.As a factory, we have an advantage in price.
Q3. How can we provide you efficient services (metal processing solution)?
There are Three Steps as following:
Our company is the key backbone enterprise of the national machinery industry, with a group of experienced professional engineering and technical personnel, production and testing equipment, with 20 years of product manufacturing experience.We are committed to customer satisfaction is our pursuit, quality must make customers satisfied.
Q2. Can you give me a better price for the machine?
1.The quality of the company's products is always good, and we know that the overseas market is more important and difficult than the domestic market.Due to the time cost of after-sales communication, our machines are always of higher quality to ensure that they can work beyond the true warranty period.
2.We will definitely provide quality = price, price = quality, and the matching price is acceptable to the customer.We welcome you to negotiate with us and obtain good satisfaction.
3.As a factory, we have an advantage in price.
Q3. How can we provide you efficient services (metal processing solution)?
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional
recommendations ;reg. non-standard products, we can offer professional designing.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional
recommendations ;reg. non-standard products, we can offer professional designing.
