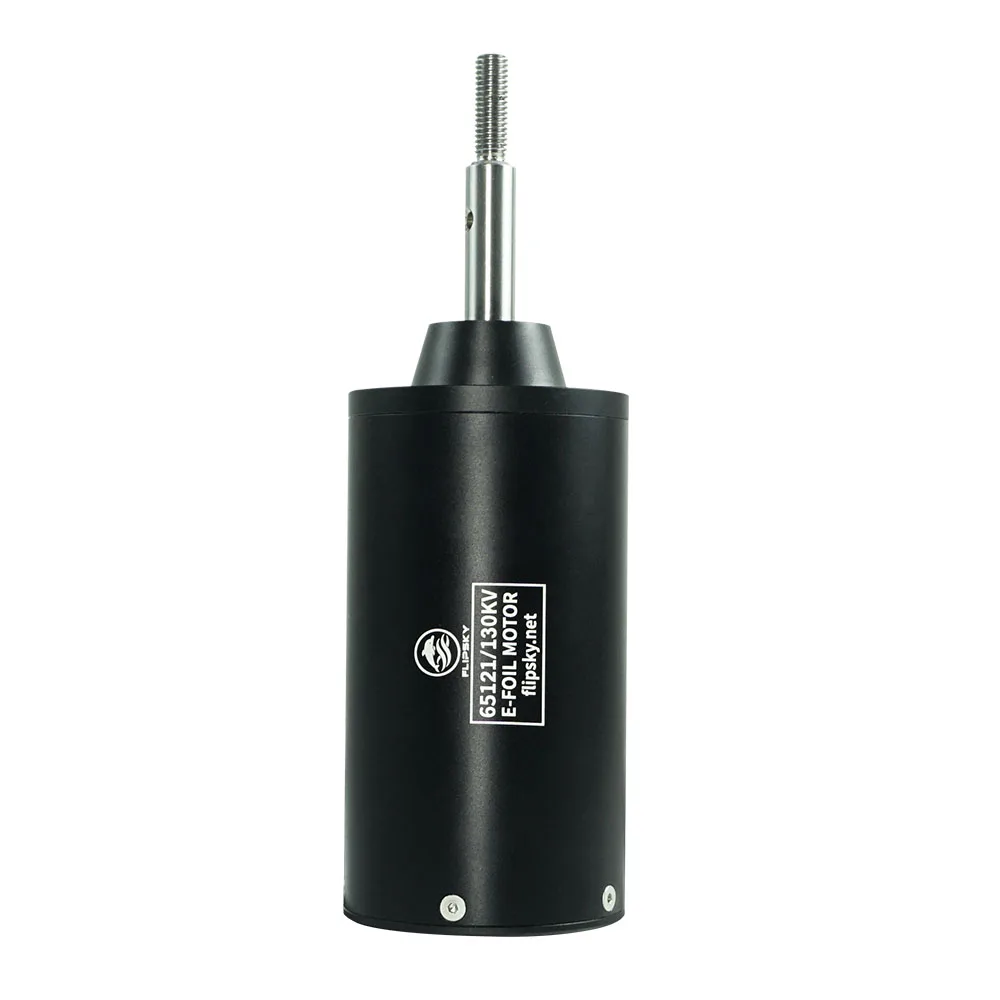

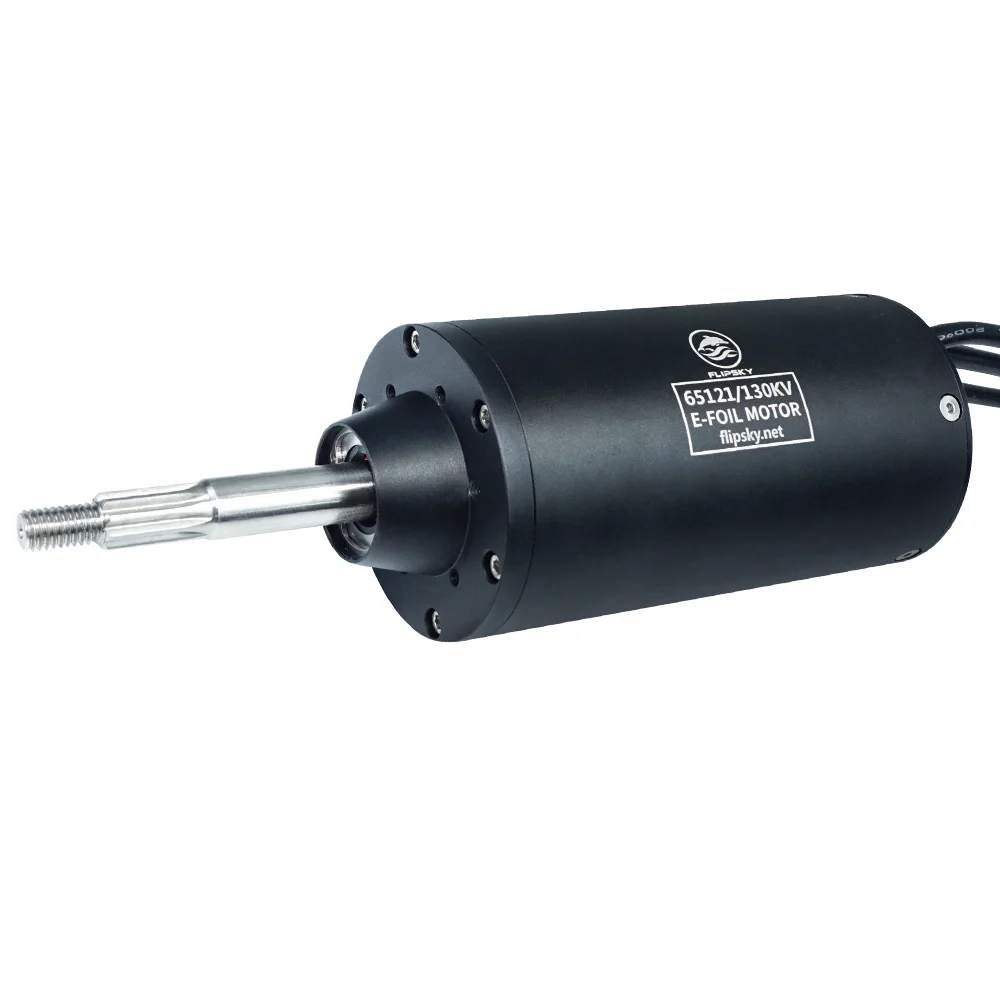

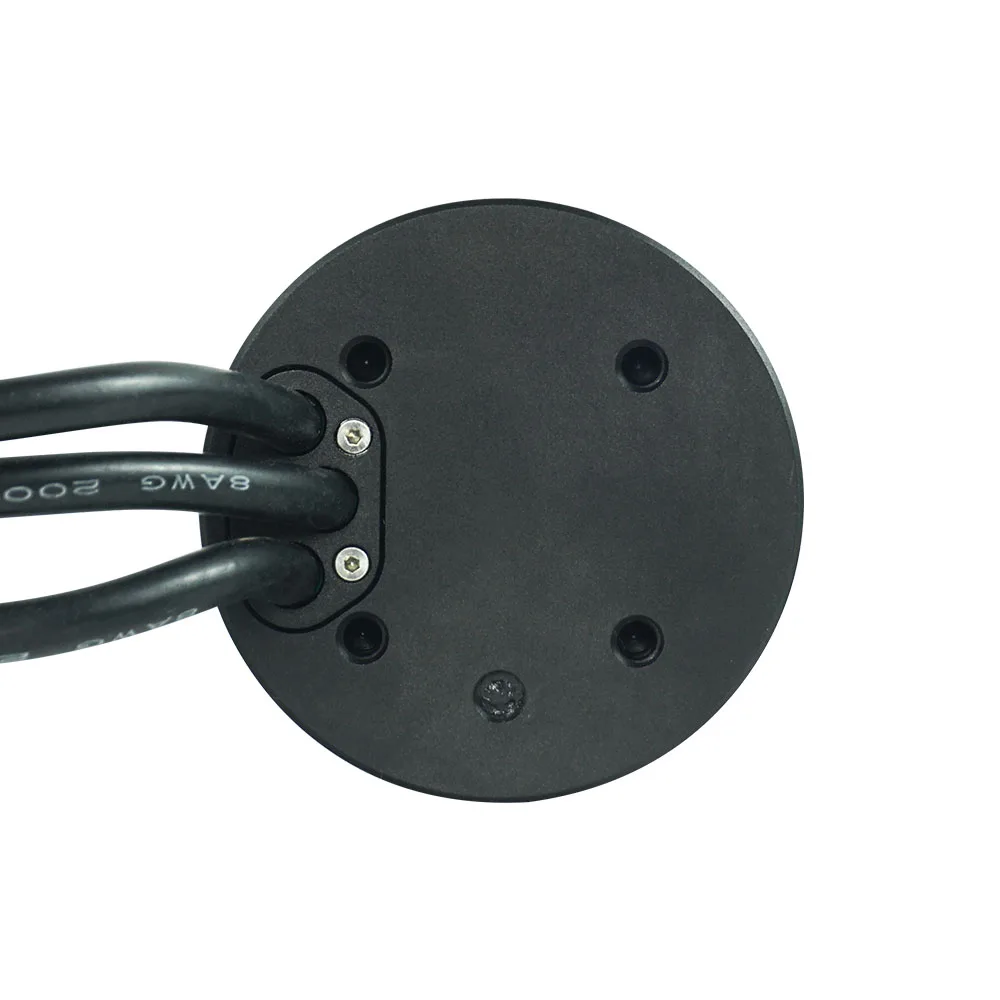

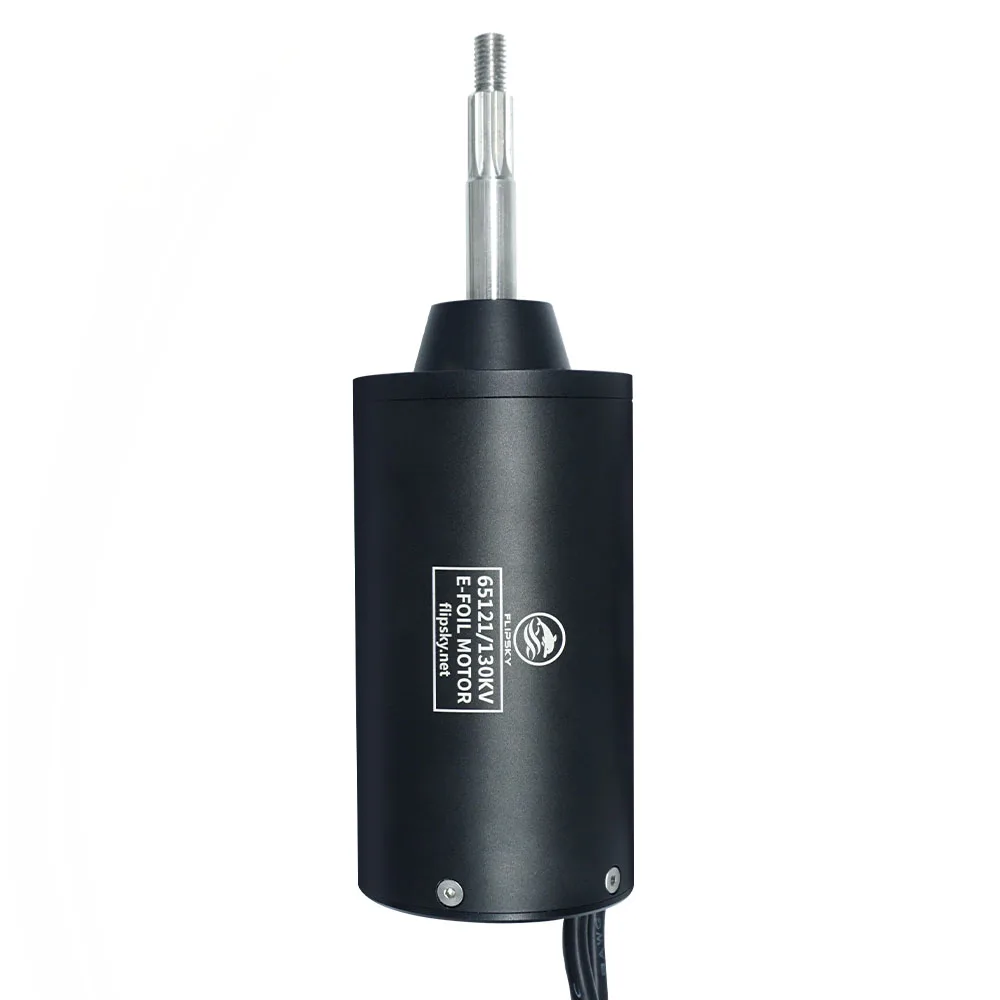

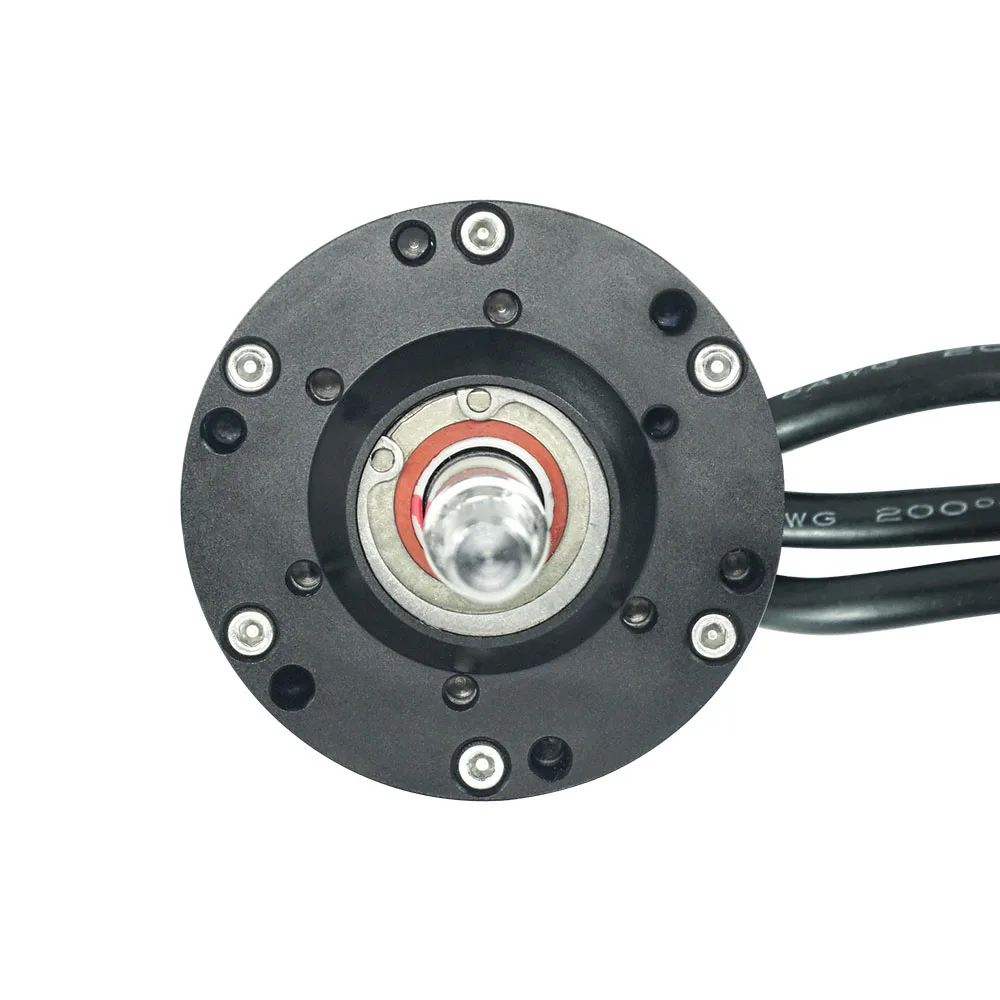

Flipsky Inrunner Brushless DC 65121 Motor 130KV 3700W for Surfing Boat Underwater Thruster |Hydro | Efoil

Product Overview

Description

Flipsky Inrunner Brushless DC 65121 Motor 130KV 3700W for Surfing Boat Underwater Thruster |Hydro | Efoil

• Voltage range: 6-20S (25.2-84V)


• Max power: 3700W; Continuous power: 2000W


• Peak current: 100A;


• Motor KV: 130KV


• Size: OD65*L121mm


• Shaft diameter: 12mm*m8


• Max output torque:5.5N*M


• Waterproof rate: IP68


• Connectors:8mm plug


• Weight:1.62KG


• Structure:18N/P


• Lead wires extension: 8AWGx500mm



Motor Type	Surfboard Motor	Construction	18N/P
Voltage Range	6-20S (25.2-84V)	Lead Wires Extension	8AWG*500mm
Motor KV	130KV	Shaft	12mm
Max Power	3700W	Max Working Temperature	120
Peak Current	100A	Dimension	D65*L121mm
Max Torque@60%	5.5N.m	Weight	3KG



Wiring Diagram





Patents&Certificates







FCC&CPSC Reports



Packing&Shipping







Company Information

Company Profile

  FLIPSKY Technology Co., Ltd was set up in 2017. It grows up quickly and powerfully. We have our own design team, manufacture team including the workshop, marketing and sales department. FLIPSKY mainly focus on second innovation research and development basing on the latest international electronic intelligence technology, manufactures and sells electronic intelligent control products and peripheral accessories.

  The co-founders of FLIPSKY is a group of passionate and innovative post-80s technology enthusiasts. They have been in the electronics intelligent automation industry for nearly 10 years and are skillful from circuit design to PCB layout, embedded software&hardware development, component selection and performance evaluation, product testing, SMT/DIP production and process quality control. Each process is fully experienced and well performed. In addition, the product mechanical designer is from TTI, who designed the RYOBI Brushless Driver Kits and other well-known products.

  The vision of FLIPSKY is to maximize the use of latest international technology and to change life by it. FLIPSKY's products can be applied in electric skateboards, electric vehicles, scooters, car models, ship models, robots and industrial equipment and other industries.

  We hope that more and more international companies and consumers will truly feel the progress that technological innovation has brought to our lives.





Contact Information

E-mail/Skype: fs_sales02(at)flipsky.net

Wechat/Tel.: +86 13538135917





FAQ

1.  Q: Can the KV value be customizable?

     A: Yes, and the extra cost is about 0USD per unit.



2.  Q: Can you do the motor without logo?

     A: Yes. Both logo customization or no logo can be acceptable if the order q'ty can fulfill the MOQ.



3.  Q: Is it FOC capable?

     A: Yes. FOC (sinusoidal) is capable.
