4 Wheel Drive Electric Golf Cart 4 Seats remote control electric golf buggy
- Category: >>>
- Supplier: Rariro(guangzhou)vehicle Co. Ltd.
Share on (1600440615631):
Product Overview
Description
Products Description
Product Paramenters
POWER SUPPLY | ||||||
Battery | Trojan 8*6V 170AH Free Maintenance | |||||
Power of Motor | 48V 5KW Curtis Mahle AMT7193 | |||||
Controller | American Curtis Electronics Controller 1232SER-5422 | |||||
Charger | On Board Charger, Full Automic Effciency Pulse Charger | |||||
Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | |||||
SUSPENSION | ||||||
Front-Suspension | McPherson Independent Suspension | |||||
Rear-Suspension | Leaf Spring with Hydraulic Shock Absorbers | |||||
Steering | Self Compensating "Rack&Pinion" Steering | |||||
Brakes | Rear Wheel Mechanical Drum Brake and Regeneration Brake | |||||
PERFORMANCE | ||||||
Passenger Capacity | 4 Seats | Recharge Time | 6-8 hours | |||
Max Speed | 45 km/H | Max Range | 100km | |||
Climbing Capacity | 35% | Brake Range | ≤3m | |||
Min.Clearance | 170mm | Max Noise | 50dB | |||
Carrying Capacity | 400 KG | Net Weight | 550 KG | |||
CHASSIS | ||||||
Chassis Material | Steel | Wheelbase | 1680mm | |||
Dimension | 2600*1250*1950mm | |||||
CONFIGURATION LIST | ||||||
Battery | Huge capacity deep cycle lead-acid battery 8V/piece 6 pieces | |||||
Body & Roof | Injection molding design separable replacement | |||||
Windshield | Foldable organic plastic | |||||

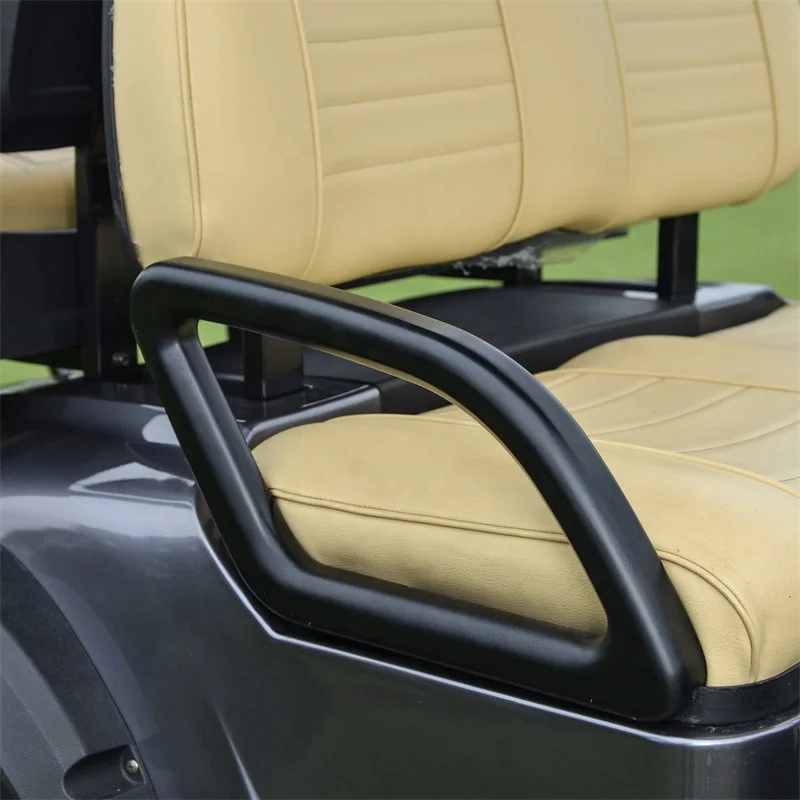

Seats | Ergonomic design, Sponge and artificial Leather with flexible three-point belt | |||||
Bumper | Front and Rear bumper | |||||

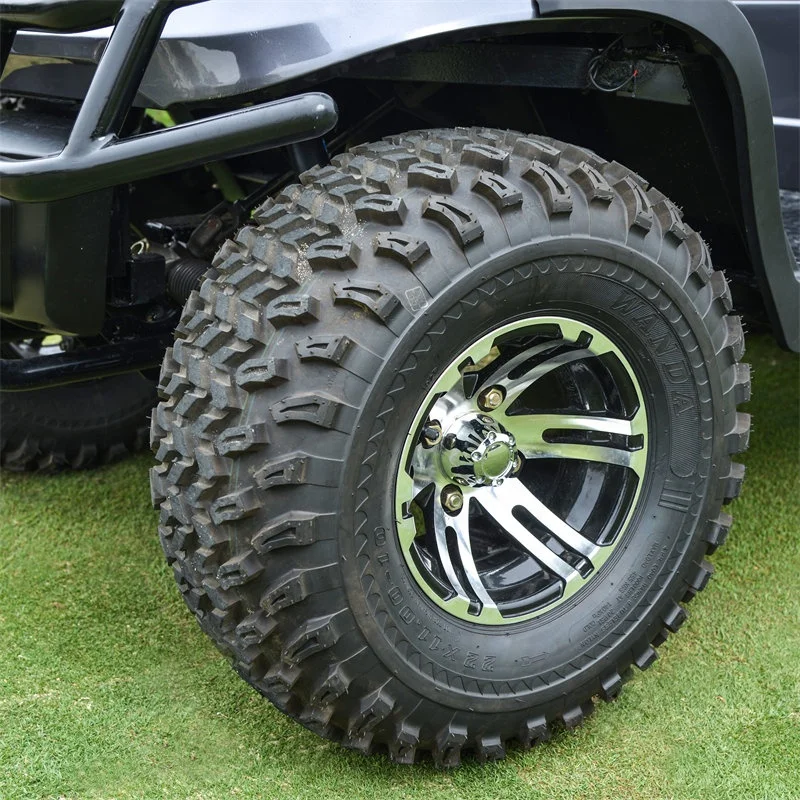

Tire | 23*10.5-12 Sand tire | |||||
Chassis | High strength structural steel | |||||
Steering | Gear Steering, auto Backlash Compensation | |||||
Brake System | Rear Brake+ Composite Pedal Brake | |||||
Front Axle | Non Independent Suspension, Leaf Spring + Cylindrical Hydraulic Shock Absorb | |||||
Rear Axle | Integral Rear Axle, Non Independent Suspension, Spring, Sylinder Type Hydraulic Shock Absorb | |||||

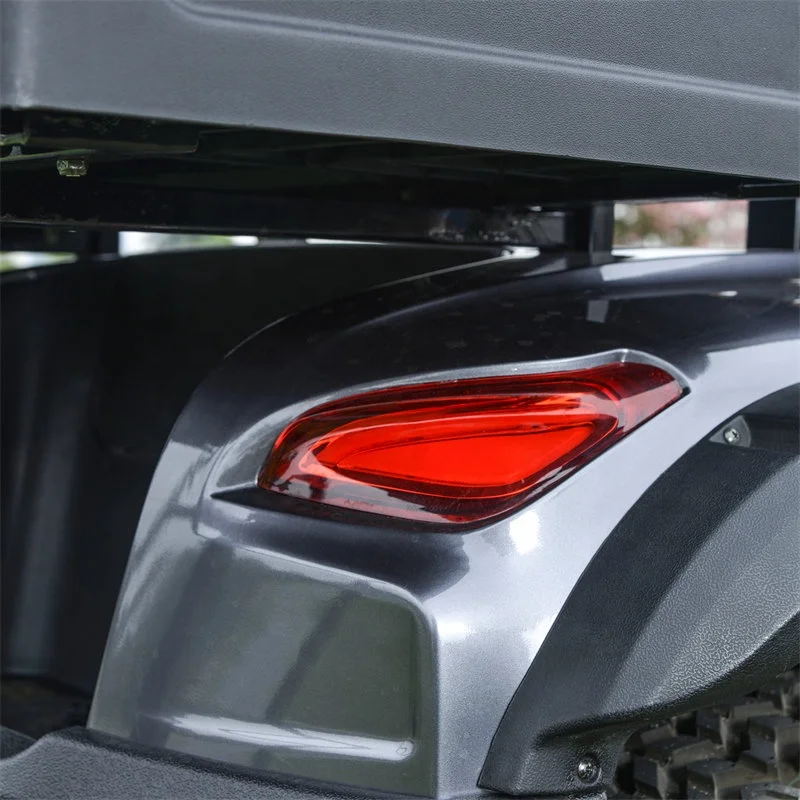

Light System | Combination front light (turning light, high beam, dipped light) rear lighting (turning light, brake light) driving & reverse buzzer. | |||||

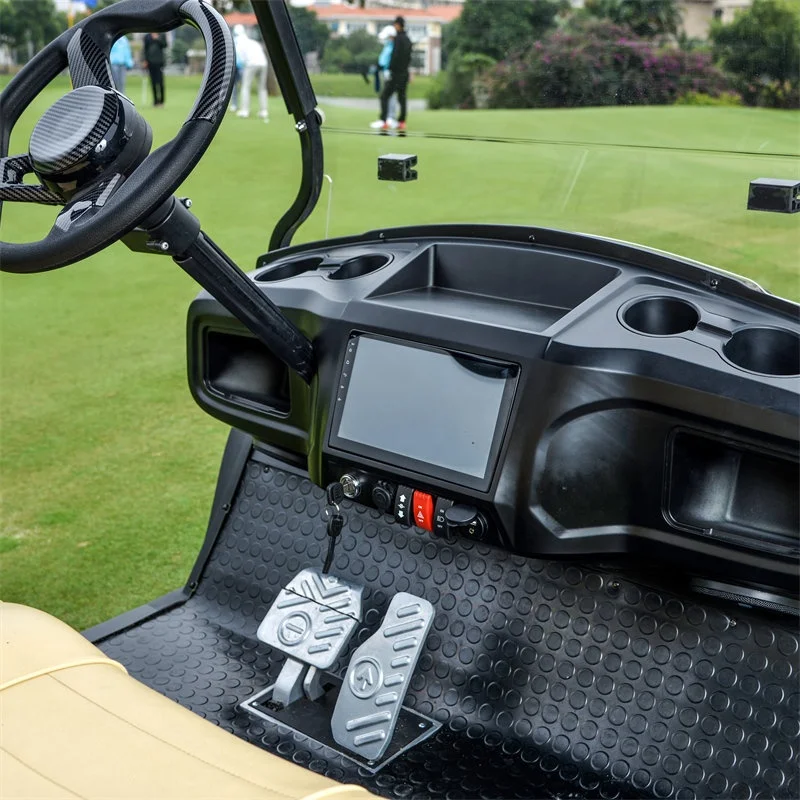

Dashboard | Plastic molding instrument board with volt meter, ammeter,electricity indicator, speedometer,electric key switch, radio with blue tooth, storage box, cup holder,turn signal indicator,forward and Revise indicator. | |||||

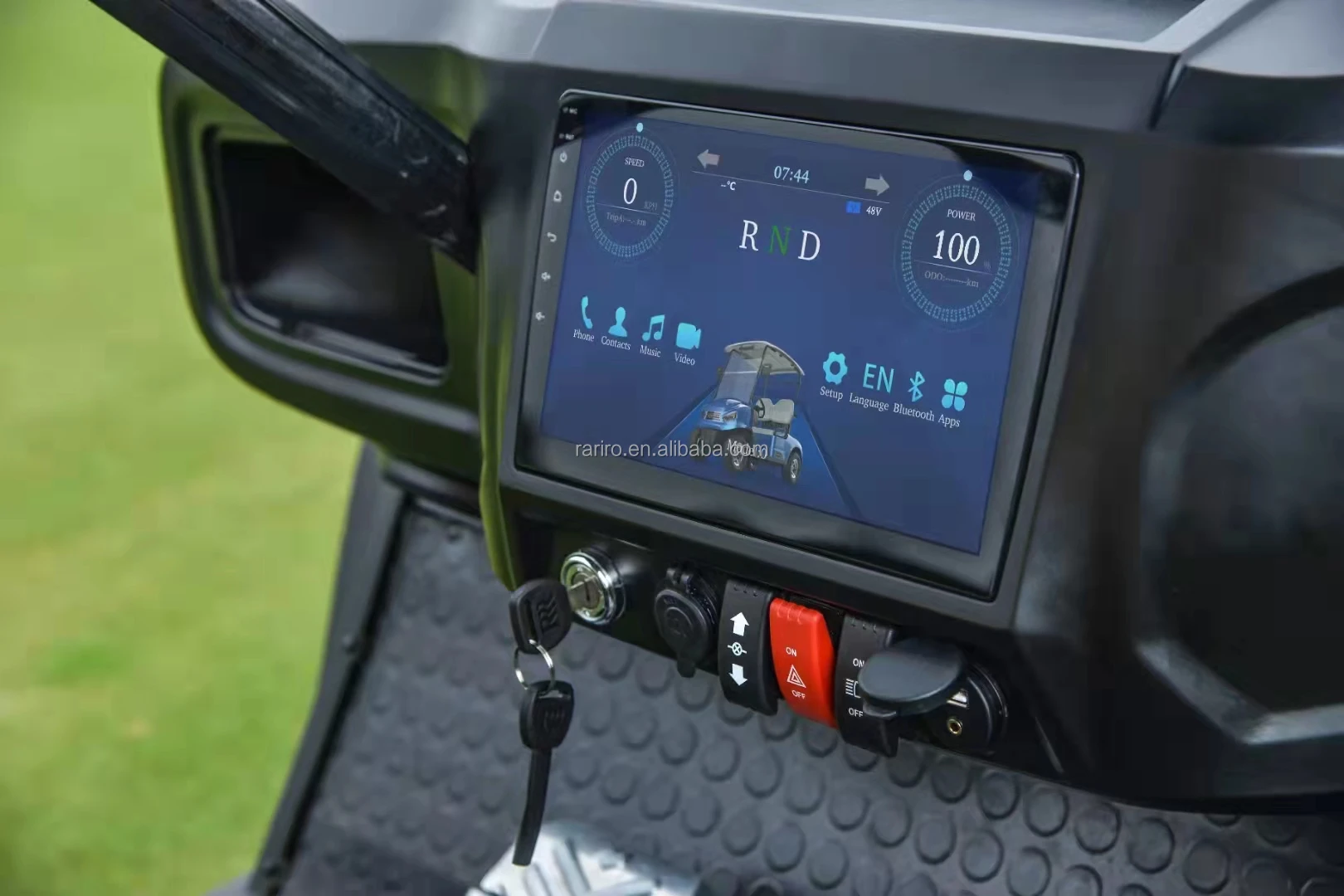

Multi-Media | Touch screen, FM Radio, Video, Music, Bluetooth music, Airplay | |||||
Recommend Products
Company Profile
Rariro(Guangzhou) Vehicle Co., Ltd. was established in March 2009. It is a high-tech enterprise integrating R&D, production and sales of high-power new energy motorcycles and new energy four-wheel tracked vehicles. Has more than ten years of research and development experience and strength in the new energy industry.
The company has owned 51 invention patents, 73 utility model patents, and 31 industrial design patents. It has successively obtained dozens of various certifications, qualifications and awards issued by the State Administration of Quality Supervision,Inspection and Quarantine of the State Administration of Quality Supervision, "Special Equipment Inspection Certificate of the State Administration of Quality Supervision, Inspection and Quarantine, etc.". Inspection certificate issued by Construction Machinery Quality Supervision and Inspection Center and Security Electronic Quality Inspection Center Subordinate products PublicSecurity, Science and Technological innovation Police Award equipment in China,Guangzhou science and technology innovativeenterprise Development Plan. It is also the drafting unit of China's new energy police electric motorcycle standards.
The company had dedicated developping , manufacturing and sales for more than 50 types of four-wheel electric vehicle series,including golf buggy ,electric vintage car ,electric sightseeing car series, patrol car series, fire engineering vehicle series,sanitation operation vehicle series, logistics freight car series and other customized special vehicle series.
The company has owned 51 invention patents, 73 utility model patents, and 31 industrial design patents. It has successively obtained dozens of various certifications, qualifications and awards issued by the State Administration of Quality Supervision,Inspection and Quarantine of the State Administration of Quality Supervision, "Special Equipment Inspection Certificate of the State Administration of Quality Supervision, Inspection and Quarantine, etc.". Inspection certificate issued by Construction Machinery Quality Supervision and Inspection Center and Security Electronic Quality Inspection Center Subordinate products PublicSecurity, Science and Technological innovation Police Award equipment in China,Guangzhou science and technology innovativeenterprise Development Plan. It is also the drafting unit of China's new energy police electric motorcycle standards.
The company had dedicated developping , manufacturing and sales for more than 50 types of four-wheel electric vehicle series,including golf buggy ,electric vintage car ,electric sightseeing car series, patrol car series, fire engineering vehicle series,sanitation operation vehicle series, logistics freight car series and other customized special vehicle series.
Our Team
Customer Photos
Wood cover with steel frame, sunroof, wheels and windshield are removed.
Certifications
FAQ
Q1: Are you factory or trading company?
A: We are factory in Guangzhou City, Guangdong Province, China.
Q2: What kind of certificate you have accreditted ?
A: ISO9001 Certification, CE Certification. Manufacture license of special equipment and ERP Intra Program Management.
Q3: Do you accpet customized products?
A: Yes, we can make the customized products as per your drawings and other requirements including OEM.
Q4: How long is for the lead time of the product?
A: Generally within 15 days after receipt of the deposit.
Q5: How about the trading term and payment term?
A: We can accept FOB or CIF,T/T and L/C at sight payment.
Q6: How about the warranty term and post service
A: One year warranty,offer FOC components by EXW cost shipped term,full weather post service .
A: We are factory in Guangzhou City, Guangdong Province, China.
Q2: What kind of certificate you have accreditted ?
A: ISO9001 Certification, CE Certification. Manufacture license of special equipment and ERP Intra Program Management.
Q3: Do you accpet customized products?
A: Yes, we can make the customized products as per your drawings and other requirements including OEM.
Q4: How long is for the lead time of the product?
A: Generally within 15 days after receipt of the deposit.
Q5: How about the trading term and payment term?
A: We can accept FOB or CIF,T/T and L/C at sight payment.
Q6: How about the warranty term and post service
A: One year warranty,offer FOC components by EXW cost shipped term,full weather post service .
