PUTF201 DN2 ~6000 Clamp On Ultrasonic Digital Flow Meter with SD card for Water supply and drainage
- Category: >>>
- Supplier: Shanghai Panda Machinery (group) Co. Ltd.
Share on (1600440625994):
Product Overview
Description
Product Description
China Clamp On Ultrasonic Digital Ultrasonic Water Flow Meter Liquid Flowmeter
Summary
PUTF201 series clamp-on transit-time ultrasonic flow meter utilizes transit-time principle. The transducer is mounted outside surface of the pipe without requirements of flow stop or pipe cutting. It’s very simple, convenient for installation, calibration and maintenance. Different sizes of transducers satisfy different measuring demand. Plus, select thermal energy measuring function to achieve completely energy analysis. It is widely applied in processing monitoring, water balance test, district heating balance test, energy efficiency monitoring as easy installation and simple operation advantages.
Features
l 4 Lines Display Velocity, Flow Rate, Volume And Meter Status

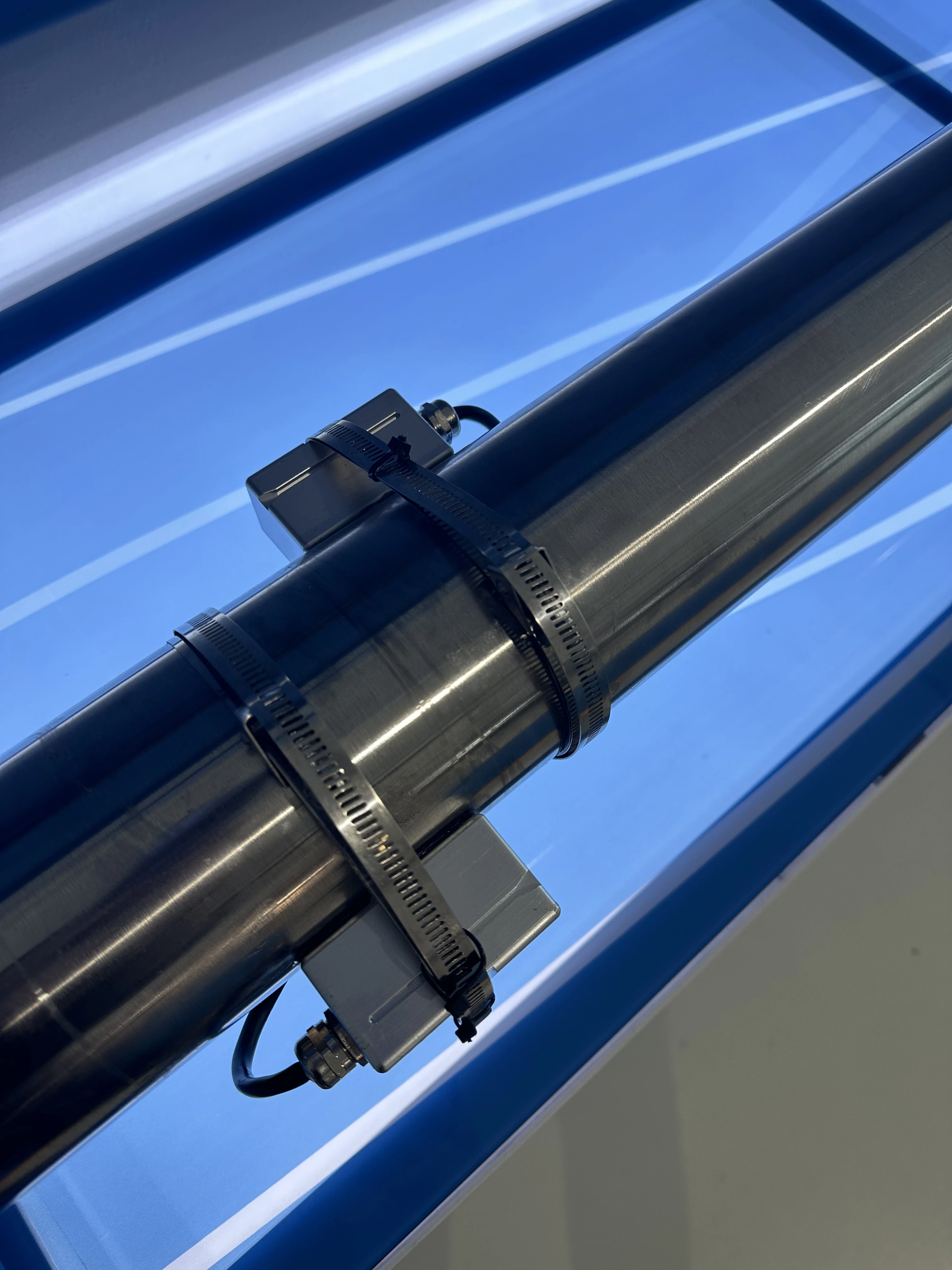

l Clamp-on Mounted, Unnecessary Pipe Cutting Or Processing Interruption
l Acceptable Fluid Temperature Range -40℃~260℃
l Built-in Data Storage Is Optional
l Selecting Temperature Sensor PT1000 To Achieve Thermal Energy Measurement Function
l Suitable For DN20-DN6000 Flow Measurement By Selecting Different Size Transducers
l Flow Range From 0.01m/s To 12m/s
Specification
Transmitter
Measuring Principle | Transit-time |
Velocity | 0.01 - 12 m/s, Bi-directional Measurement |
Resolution | 0.25mm/s |
Repeatability | 0.1% |
Accuracy | ±1.0% R |
Response Time | 0.5s |
Sensitivity | 0.003m/s |
Damping | 0-99s(settable by user ) |
Suitable Fluid | Clean or tiny amounts of solids, air bubbles liquid , Turbidity <10000 ppm |
Power Supply | AC: 85-265V DC:12-36V/500mA |
Installation | Wall Mounted |
Protection Class | IP66 |
Operating Temperature | -40℃ to +75℃ |
Enclosure Material | Fiberglass |
Display | 4X8 Chinese Or 4X16 English,Backlit |
Measuring Unit | meter,ft,m³,liter,ft³ ,gallon,barrel etc. |
Communication Output | 4~20mA, OCT, Relay, RS485 (Modbus-RUT), Data Logger ,GPRS |
Energy Unit | Unit :GJ,Opt: KWh |
Security | Keypad Lockout, System Lockout |
Size | 244*196*114mm |
Weight | 2.4kg |
Transducer
Protection Class | IP67 |
Fluid Temperature | Std. transducer : -40℃~85℃(Max.120℃) |
High Temp : -40℃~260℃ | |
Pipe Size | 20mm~6000mm |
M 40mm~1000mm | |
L 1000mm~6000mm | |
Transducer Material | Std. Aluminum alloy, High Temp.(PEEK) |
Temperature Sensor | PT1000 |
Cable Length | Std. 10m (customized) |

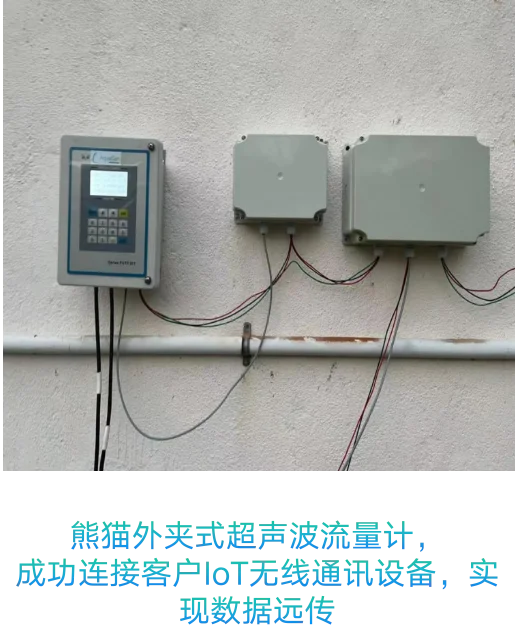

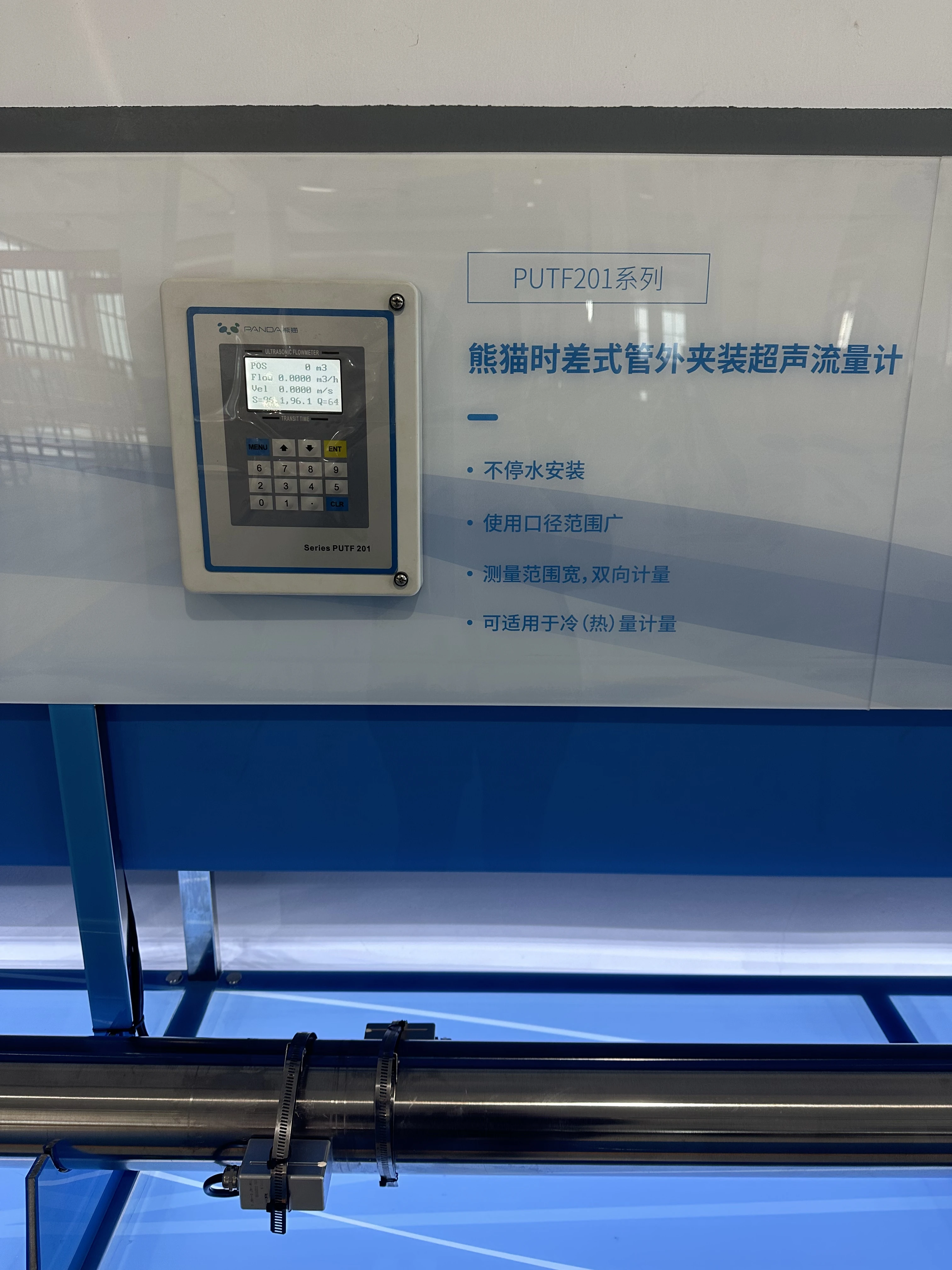

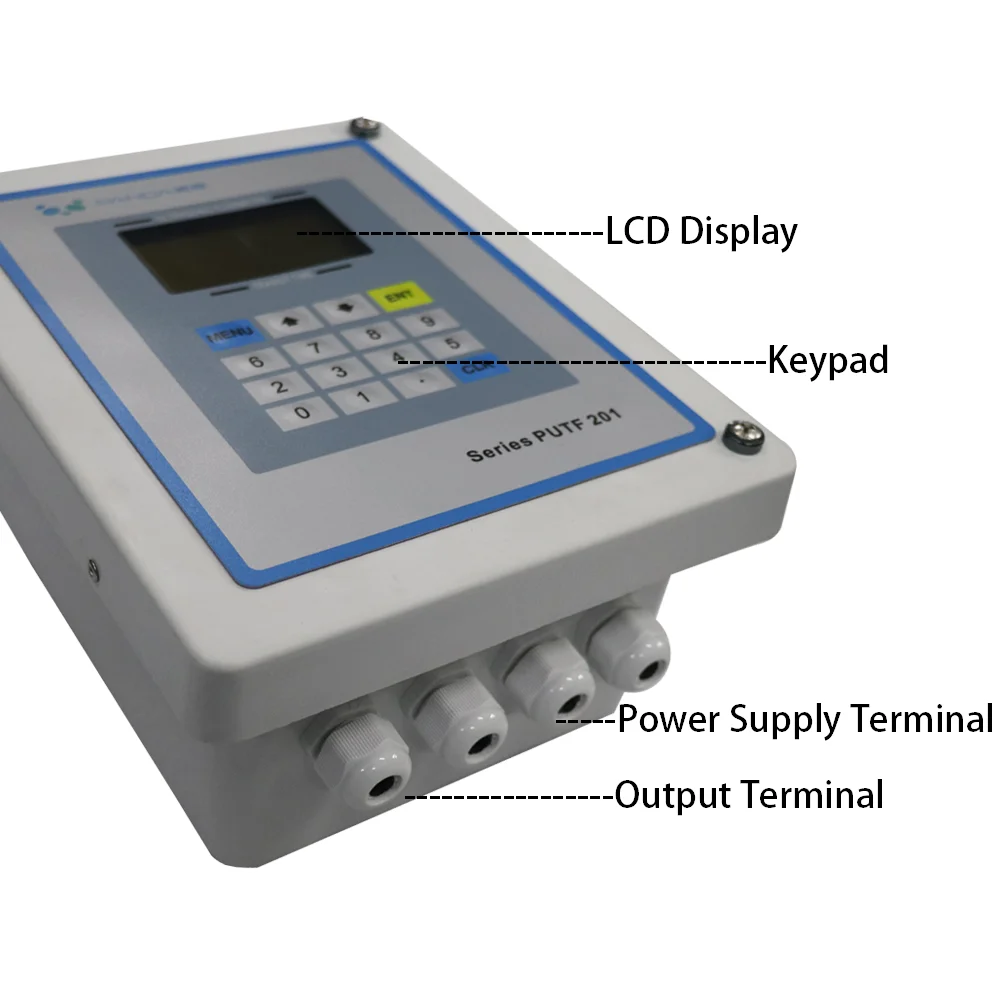

Detailed Images
