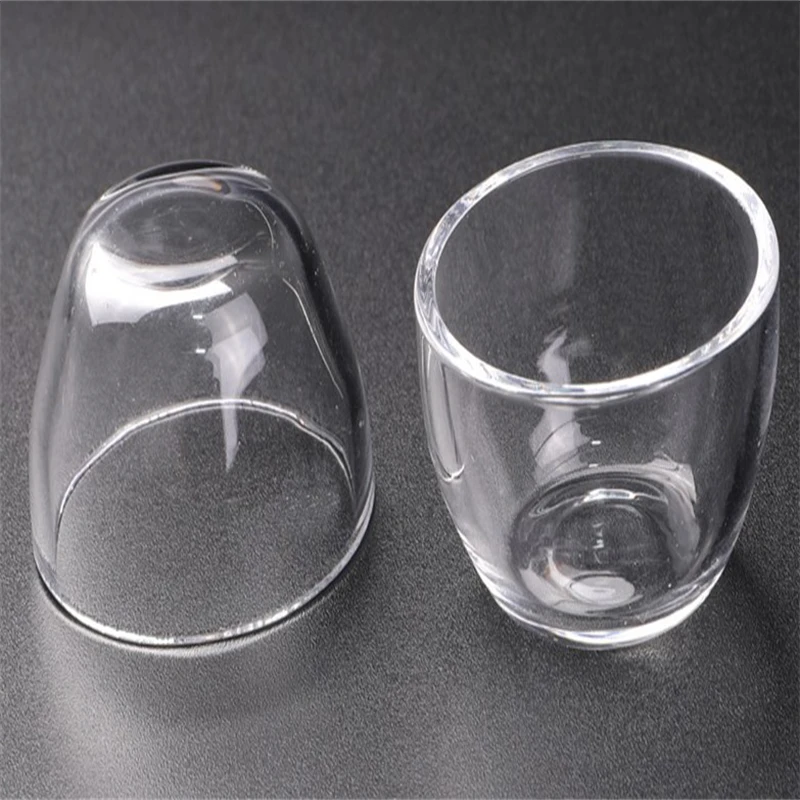

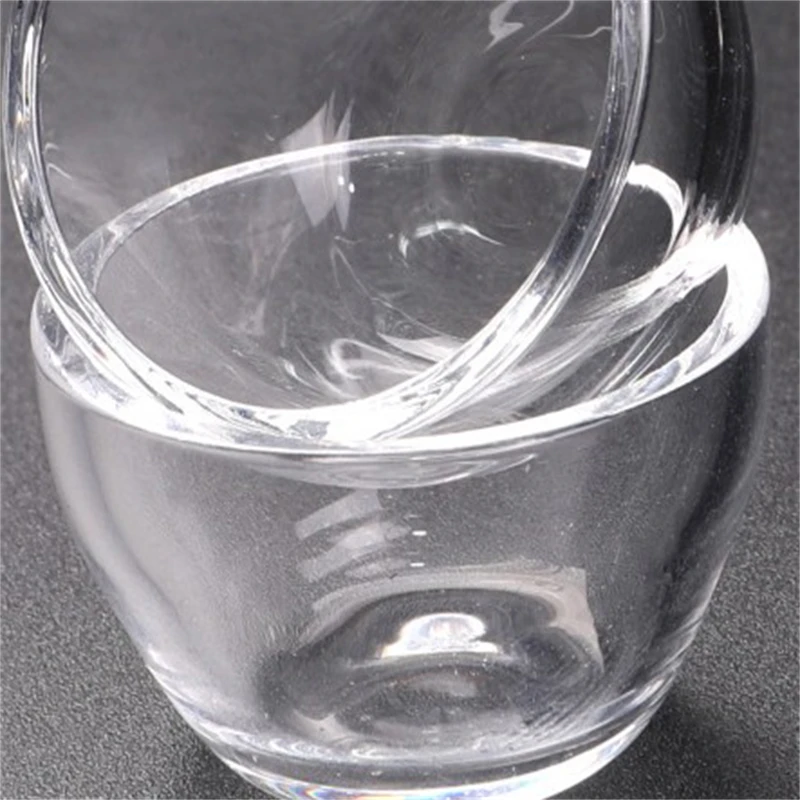

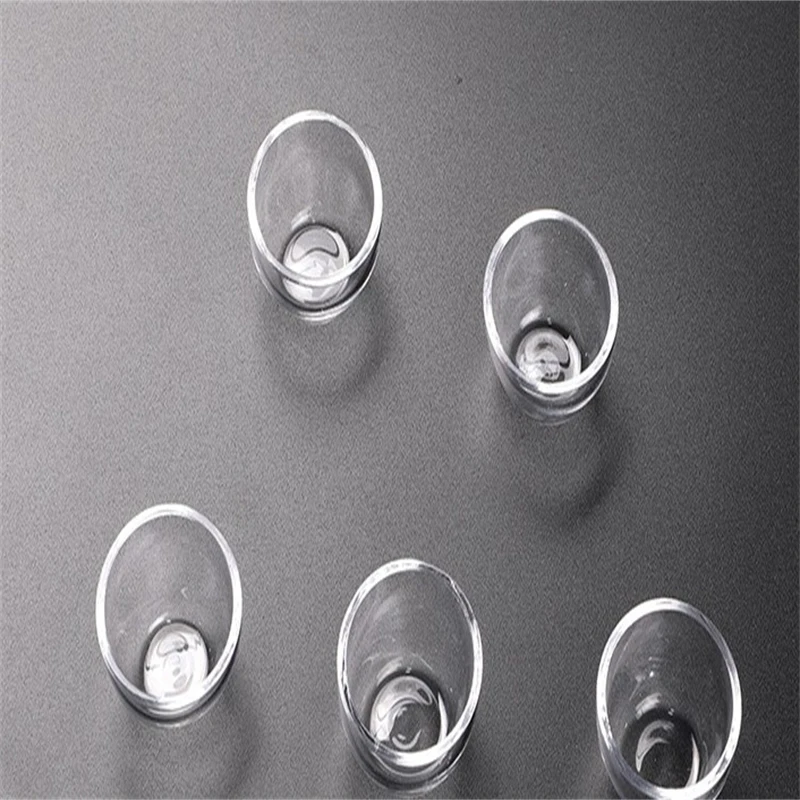

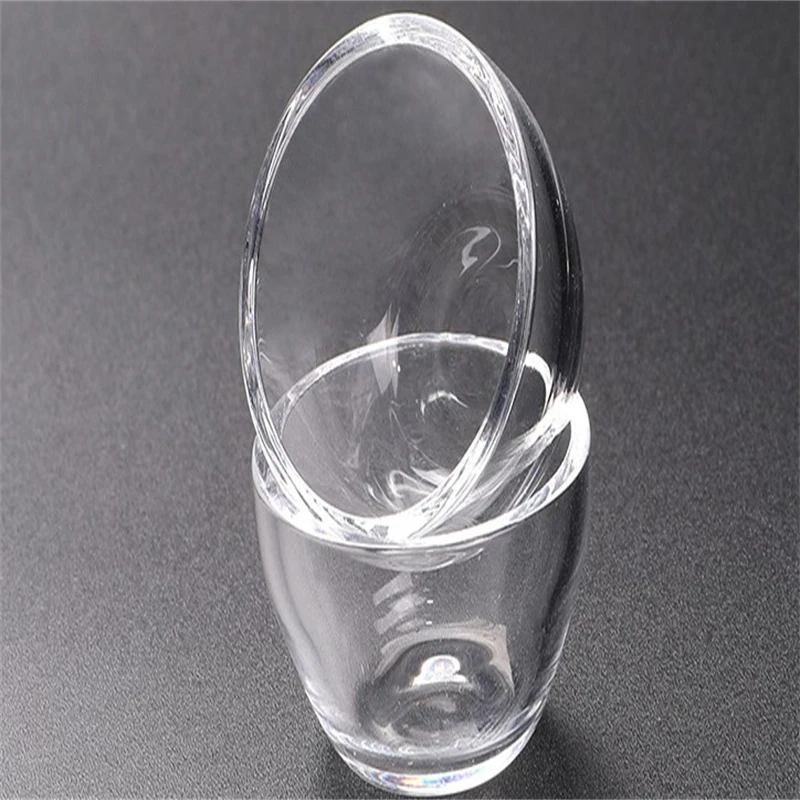

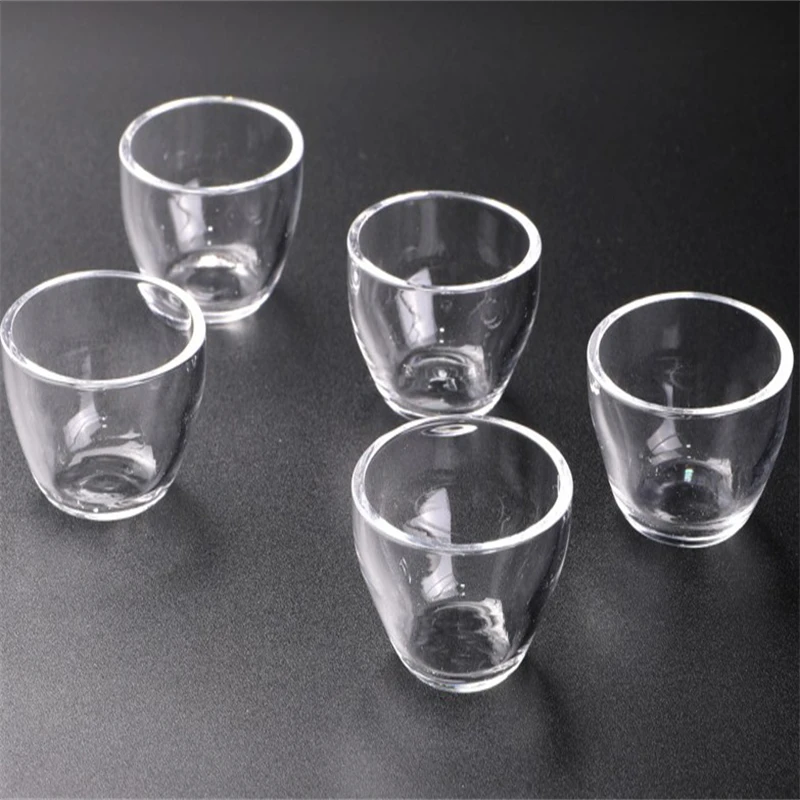

Laboratory Fused Quartz Glass Crucible Silica Crucible for Melting
- Category: >>>
- Supplier: Hoyue Technology (lianyungang) Co. Ltd.
Share on (1600440639481):
Product Overview
Description
Product Description
Laboratory Fused Quartz Glass Crucible | ||
*Brand | quartz glass | |
*SIO2 | 99.99% | |
*Density | 2.2(g/cm³） | |
*Degree of hardness moh’ scale | 6.6 | |
*Melting point | 1732℃ | |
* Working temperature | 1100℃ | |
*Annealing point | 1180℃ | |
*Softening point | 1630℃ | |
*Ligth Transmittance | >92% | |
*Resistance Value | 1000 times than ordinary glass | |
Laboratory Fused Quartz Glass Crucible Silica Crucible for Melting
Volume：
15ml/25ml/30ml/50ml/80ml/100ml etc.
Material properties of quartz glass bottle: High Durability High heat resistance High Corrosion Resistance Low Thermal Expansion
Coefficient
it can be used in chemical analysis for burning and precipitation, and to detect the composition of solid mineral samples by
weight loss method.
Volume：
15ml/25ml/30ml/50ml/80ml/100ml etc.
Material properties of quartz glass bottle: High Durability High heat resistance High Corrosion Resistance Low Thermal Expansion
Coefficient
it can be used in chemical analysis for burning and precipitation, and to detect the composition of solid mineral samples by
weight loss method.
Application:
Quartz crucible is widely used in PV and Semi domain. It can support solar and semi customer continuous long time pulling under
high temperature.
Quartz crucible has the integrated performance which other materials dont have. There are excellent performance of resist thermal
vibration, very high temperature of deformation and softening, very low performance of heat transmit and dielectric losing, the
optical capacity of very wide UV spectra.
Arc quartz crucible is widely used in the semiconductor.
Specification
Density | 2.2x103 kg/m3 | Hardness | 5.5 - 6.5 Mohs' Scale 570 KHN 100 |
Design Tensile Strength | 4.8x107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
Bulk Modulus | 3.7x1010 Pa (5.3x106 psi) | Rigidity Modulus | 3.1x1010 Pa (4.5x106 psi) |
Softening Point | 1730°C | Annealing Point | 1215°C |
Mohs Hardness | 5.5~6.5 | ||
Transformation Point | 1280°C | ||
Softening Point | 1780°C | ||
Annealing Point | 1250°C | ||
Specific Heat (20 ~ 350 °C) | 670J/kg.°C | ||
Thermal Conductivity (20 °C) | 1.4W/m.°C | ||
Short-term Working Temperature | 1300°C | ||
Long-term Working Temperature | 1100°C | ||
Strain | 1270 C Fused The Quartz Glass Brick |
Packing & Delivery
Our Service
Company Profile
Hoyue technology is one of the manufacturers and suppliers of high-quality quartz glass and precision ceramics in China.
Our products include ceramic rods, ceramic tubes, ceramic plates, ceramic sheets, ceramic blocks, ceramic nozzles, ceramic plungers,cerami washers,ceramics pacers, ceramic substrates and precision parts for industrial, quartz tube, quartz plate,cuvette, silicon wafer. We have all-line high precision equipment from ceramic forming, sintering to precision machining. Hope fora wide range of sincere cooperation with customers at domestic and abroad.
Our products include ceramic rods, ceramic tubes, ceramic plates, ceramic sheets, ceramic blocks, ceramic nozzles, ceramic plungers,cerami washers,ceramics pacers, ceramic substrates and precision parts for industrial, quartz tube, quartz plate,cuvette, silicon wafer. We have all-line high precision equipment from ceramic forming, sintering to precision machining. Hope fora wide range of sincere cooperation with customers at domestic and abroad.
