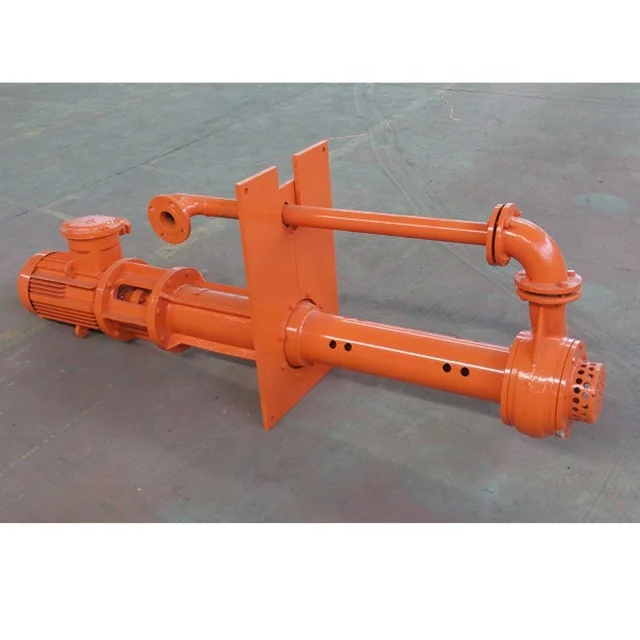

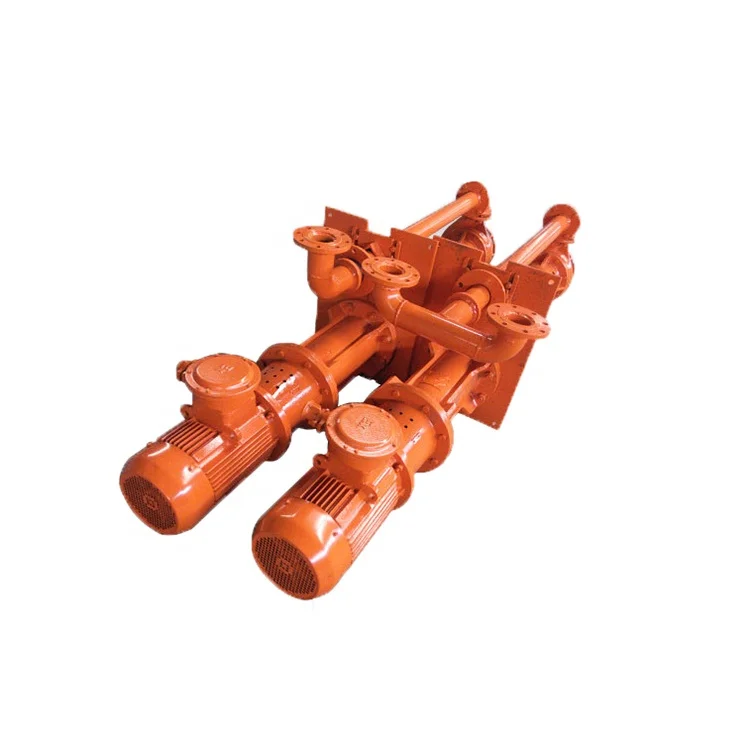

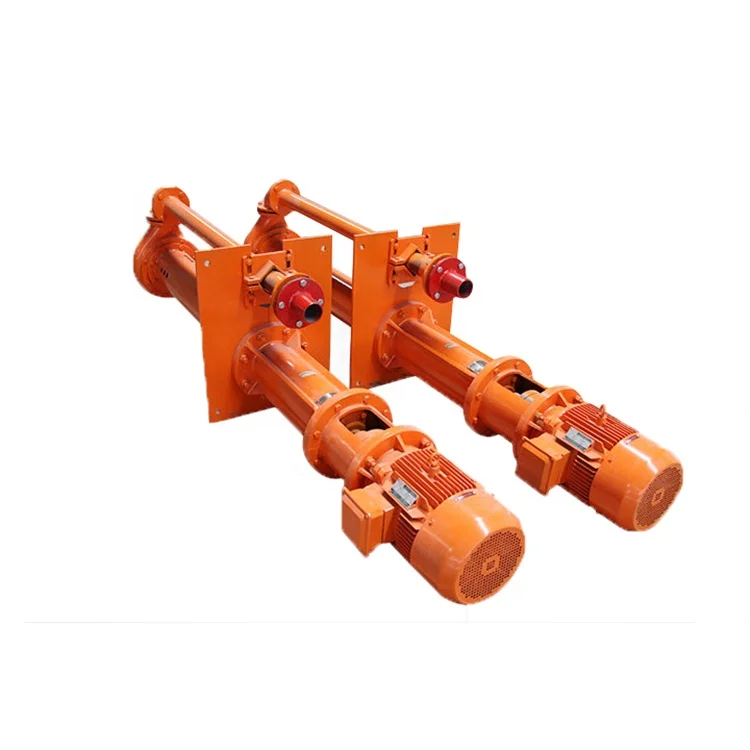

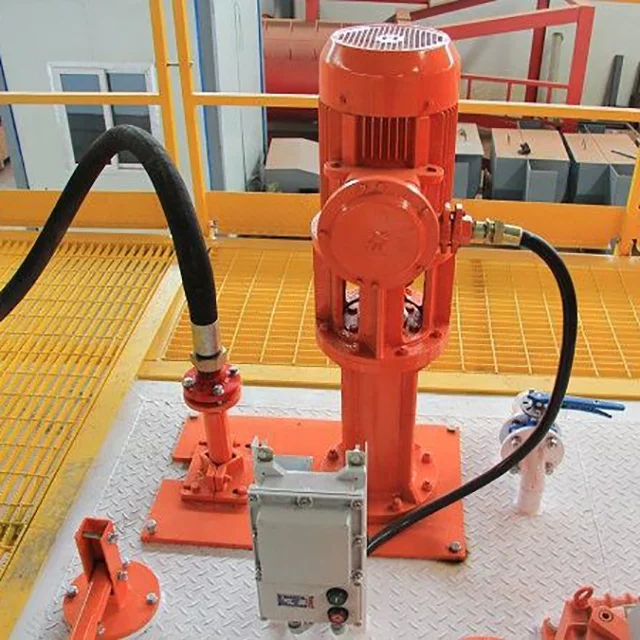

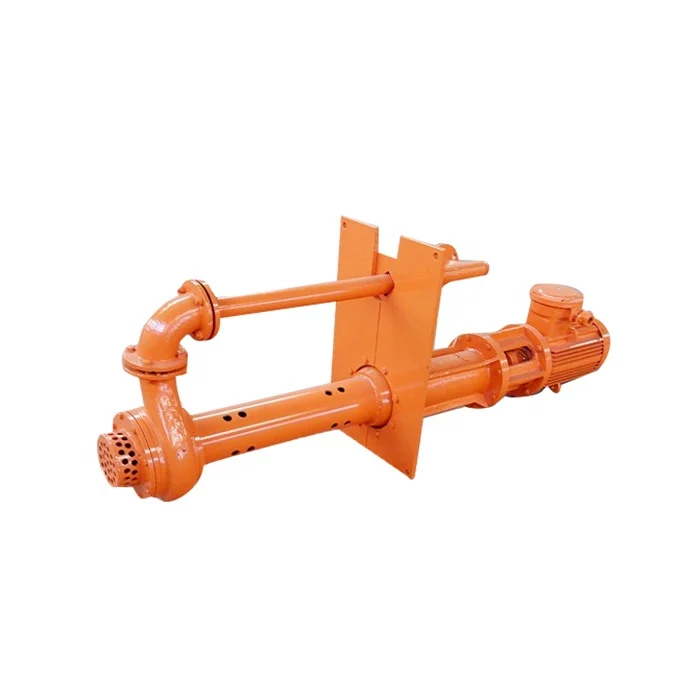

Vertical 3000W Motor Power Submersible Mud Pump for Transfer Mud
- Category: >>>
- Supplier: Yantai Sunrise Machinery Co. Ltd.
Share on (1600440652877):
Product Overview
Description
Product Paramenters
Model | Flowrate(m³/h) | Head (m) | Rotation speed(RPM) | Efficiency (%) | Power (kw) |
50YZ-20-18 | 20 | 18 | 1450 | 42 | 3 |
50YZ40-10 | 40 | 10.5 | 1450 | 47 | 4 |
50YZ50-12 | 60 | 10.8 | 1450 | 55 | 5.5 |
80YZ50-20 | 60 | 18 | 1450 | 48 | 7.5 |
80YZ80-20B | 80 | 13.4 | 1450 | 51 | 7.5 |
80YZ80-20A | 90 | 15 | 1450 | 51 | 11 |
100YZ100-30 | 100 | 31 | 1450 | 54 | 22 |
100YZ100-30A | 110 | 24 | 1450 | 54 | 18.5 |
100YZ160-38B | 164 | 26 | 1450 | 50 | 30 |
150YZ250-40B | 240 | 24 | 1450 | 50 | 37 |
150YZ250-40A | 270 | 30 | 1450 | 51 | 45 |
Products Description
Submersible Slurry Pump
Submerged slurry pump is a vertical single-stage single suction cantilever centrifugal pump, which is made of wear-resistant alloy and can transport medium containing large concentration of solid particles; Because there is no bearing and shaft seal between
impeller and pump shell, it is maintenance free and high temperature resistant. It is a supporting equipment to provide power for desander, desilter and centrifuge.
Features:
1. In the mud system, the equipment that supplies slurry to the shale shaker from the mud pit. At the same time, it can also be used as the slurry supply pump of desander and desilter.
2. There is no bearing and shaft seal between the propeller and the pump body, which is maintenance free and high temperature resistant.
Submerged slurry pump is a vertical single-stage single suction cantilever centrifugal pump, which is made of wear-resistant alloy and can transport medium containing large concentration of solid particles; Because there is no bearing and shaft seal between
impeller and pump shell, it is maintenance free and high temperature resistant. It is a supporting equipment to provide power for desander, desilter and centrifuge.
Features:
1. In the mud system, the equipment that supplies slurry to the shale shaker from the mud pit. At the same time, it can also be used as the slurry supply pump of desander and desilter.
2. There is no bearing and shaft seal between the propeller and the pump body, which is maintenance free and high temperature resistant.
Company Profile
FAQ
1.How to get free samples? Send your address,your telephone number,post code,and express account number to our mail box,and told us which samples you need and samples specification.
2.Can you produce products with my own brand?
Yes,we can offer OEM services.
3.Do you have any international certificate?
Yes,we have API, ISO and etc.
4.How long does my order take to be delivered? It usually takes 5 to 30 days,which generally depends on the quantity of your order and our storage.
2.Can you produce products with my own brand?
Yes,we can offer OEM services.
3.Do you have any international certificate?
Yes,we have API, ISO and etc.
4.How long does my order take to be delivered? It usually takes 5 to 30 days,which generally depends on the quantity of your order and our storage.
