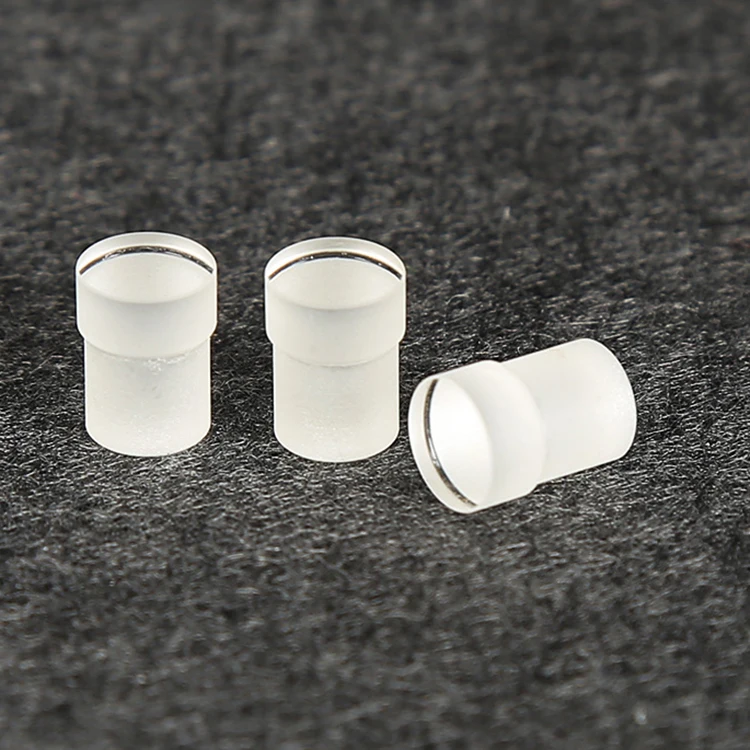

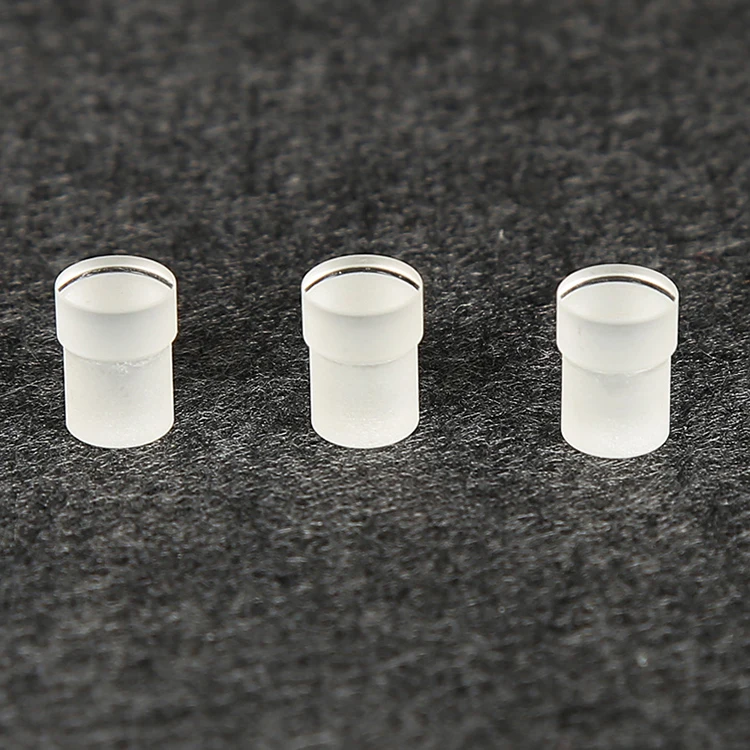

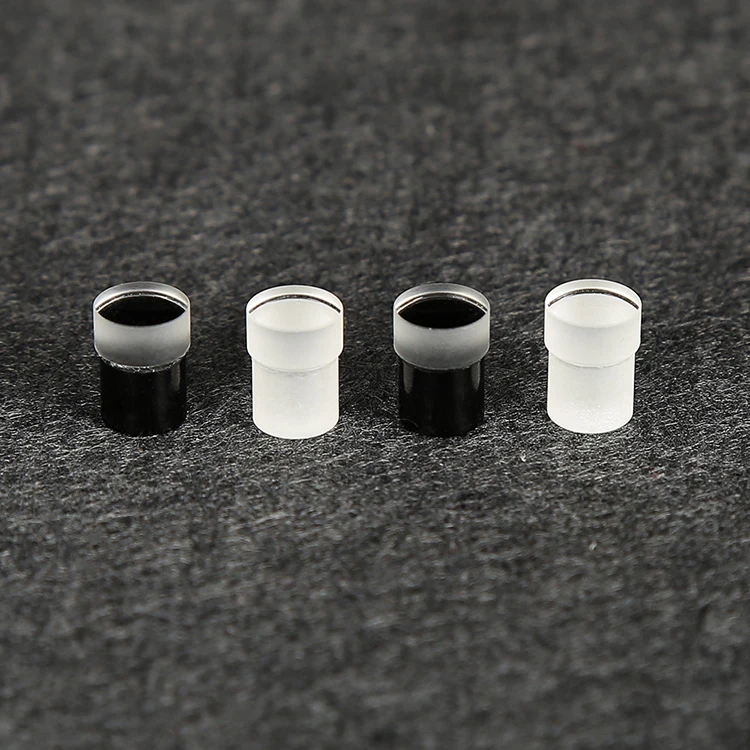

factory direct sale good quality customized coating quartz rod lens optical cylindrical lens for optical equipment

Product Overview

Description

factory direct sale good quality customized coating quartz rod lens optical cylindrical lens for optical equipment

Product name	Cylindrical lens
Material	optical glass, laser crystal, fused silica, anti-radiation glass, ultraviolet and infrared materials, metal materials, such as SiO2, CaF2, BaF2, ZnSe, ZnS, etc.
diameter	1.5-300mm
Design wavelength	400nm-1100nm or customized
Tolerance of focal length	±2%
Shape tolerance	±0.01-±0.2mm
Thickness tolerance	±0.01-±0.2mm
Surface accuracy	λ/20~λ/2 / ∅100mm
Finish	National standard three, 10/5 ~ 80/50 (reference value)
Eccentricity	30 "~5'
Effective aperture	>90%
Inverted side	<0.2×45°



Description:

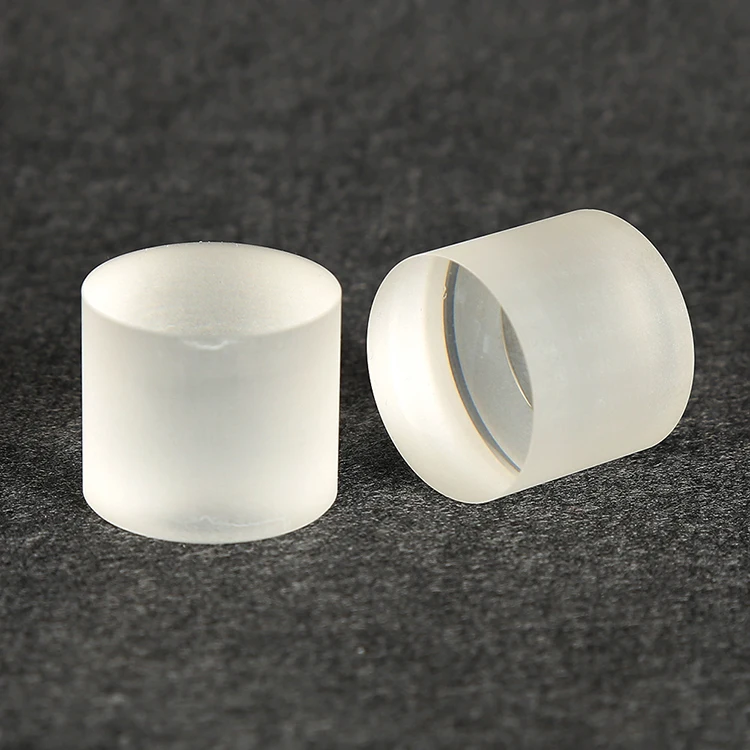

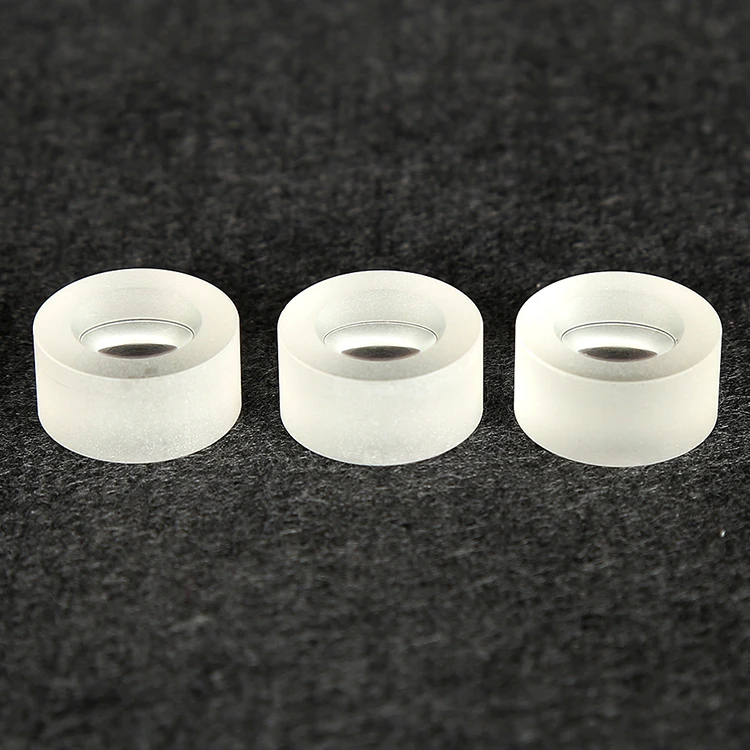

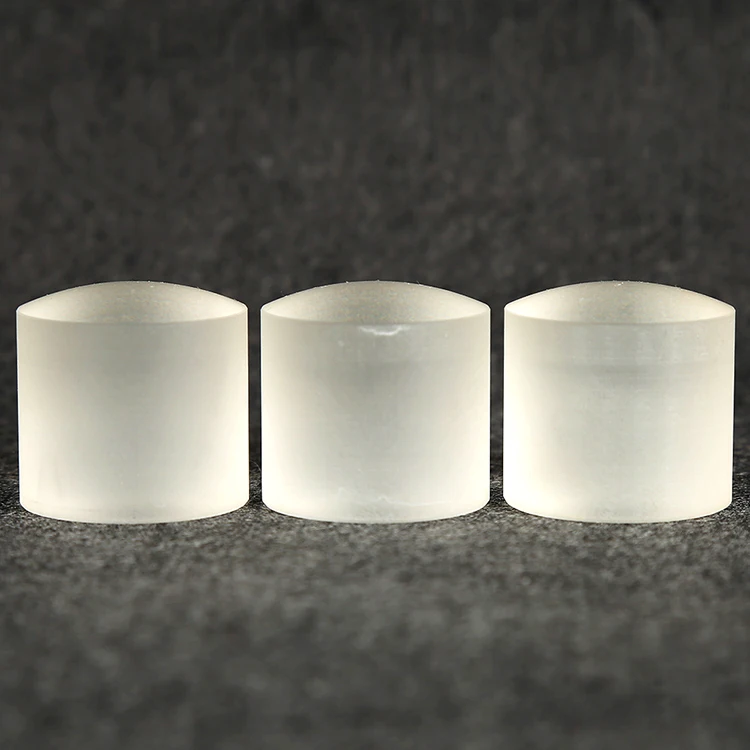

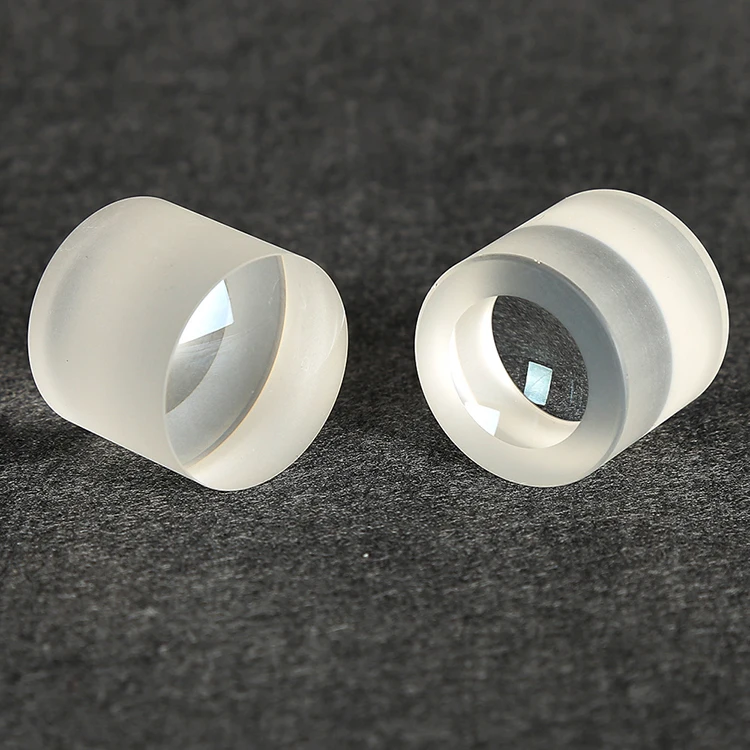

Cylindrical lens are designed for applications that require one-dimensional shaping of the light source. They have flat-concave and flat-convex structures, both of which are used to diverge or converge the beam. It is generally used to focus incident light on a line or to change the aspect ratio of the image. Cylindrical mirrors have a cylindrical surface that enables incident light to be focused in a certain dimension and stretch the image. The focal length of the cylindrical lens can be negative or positive, which is suitable for laser line generation or deformed beam shaping to circulate the laser output.



Application:

Cylindrical lenses are widely used in high-precision testers and devices, synchrotron radiation beam lines, bar code scanners and strong laser systems, electronic optical metrology verification, laser scanners, spectroscopy, laser diode output light shaping beauty, light sheet lighting fixtures It is widely used in manufacturing industries such as microscope imaging.
