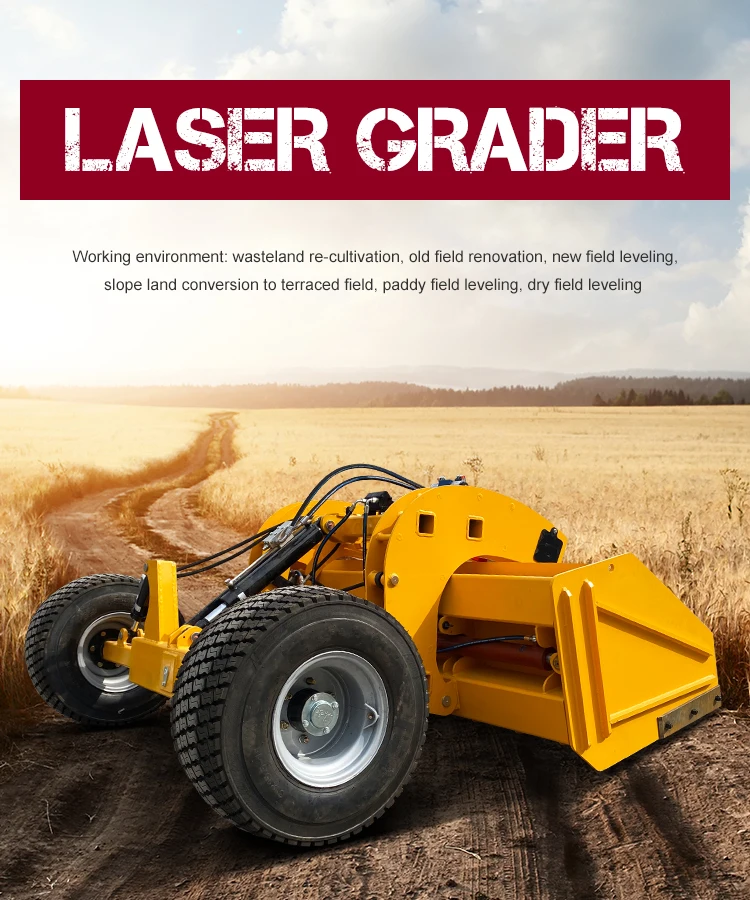

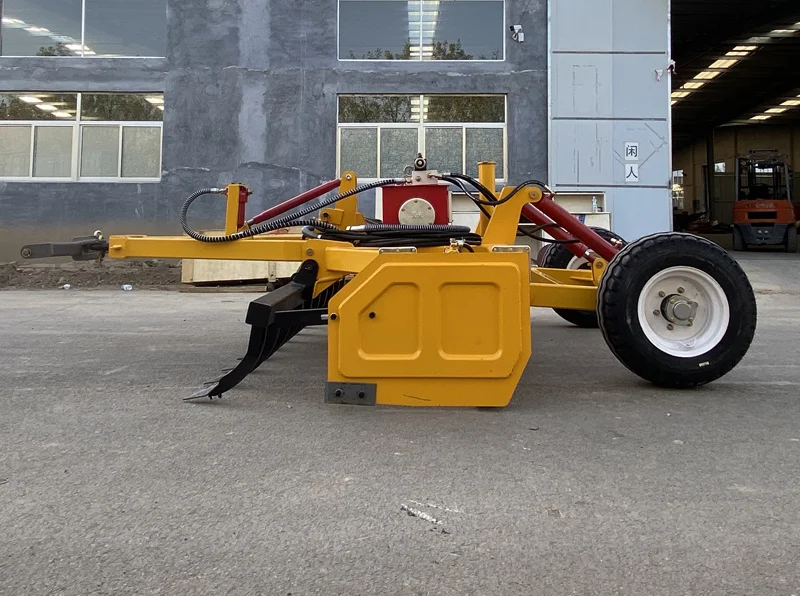

Factory Direct Sales Laser Leveler And Measure 2.5 3.5M Laser Leveler Agriculture For Agriculture
- Category: >>>
- Supplier: Yucheng Agro Helper Machinery Co. Ltd.
Share on (1600440659462):
Product Overview
Description
Product Description
Specification
Technical Parameters | ||||||||||||||
Model | Unit | YN-PJ200 | YN-PJ250 | YN-PJ300 | YN-PJ350 | |||||||||
Working width | mm | 2000 | 2500 | 3000 | 3500 | |||||||||
Matched power | kW | 45-55 | 55-65 | 65-88 | 88-120 | |||||||||
Efficiency | H m2/h | 1.1-1.6 | 1.3-1.8 | 1.6-2.0 | 1.9-2.3 | |||||||||
Working speed | Km/h | 5-15 | ||||||||||||
Working distance | mm | 500 | ||||||||||||
Max buried depth | mm | 240 | ||||||||||||
Ejector/acceptor | LS526/LS709 | |||||||||||||
Receiving controller | V | 11-30DC | ||||||||||||
Automatic leveling angle | ° | ±5 | ||||||||||||
Signal reception angle | ° | 360 | ||||||||||||
Flatness | Mm/100 square m | ±15 | ||||||||||||
Moldboard lift speed | mm/s | LIFT≥50, Down≥60 | ||||||||||||
Cylinder settlement | mm/h | ≤12 | ||||||||||||
Working dip angle | ° | 10±2 | ||||||||||||
Hydraulic oil pressure | Mpa | 16±0.5 | ||||||||||||
Wheel-base | mm | 1590 | 1790 | 1990 | 2190 | |||||||||

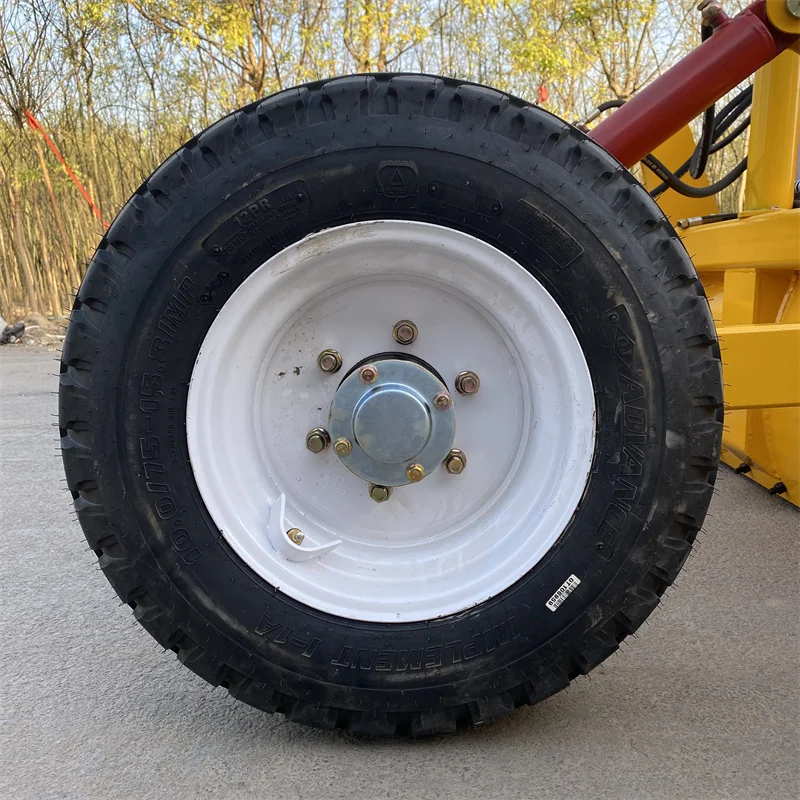

Wheel Type | 235/85R16 | |||||||||||||
Pressure | kPa | 200-250 | ||||||||||||
Structural style | Traction | |||||||||||||
Ambient temperature | ℃ | 5-40 | ||||||||||||
Dimensions | mm | 3000 | 3000 | 3000 | 3000 | |||||||||
mm | 2050 | 2650 | 3050 | 3550 | ||||||||||
mm | 3650 | 3650 | 3650 | 3650 | ||||||||||
Weight | kg | 1050 kg | 1250 kg | 1400 kg | 1500 kg | |||||||||
Matched Power | HP | 45-75 | 55-85 | 65-95 | 88-150 | |||||||||
Package size | M | 2.25 X 1.6 X 1.6 M | 2.75 X 1.6 X 1.6 M | 3.25 X 1.6 X 1.6 M | 3.75 X 1.6 X 1.6 M | |||||||||
Land scraper only (not inculde system) | 4050 usd | 4250 usd | 4550 usd | 4850 usd | ||||||||||

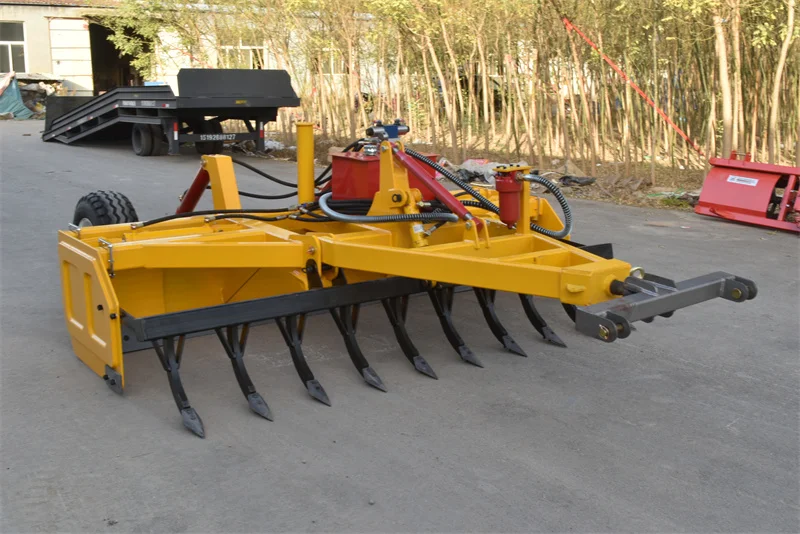

Land scraper with subsoiler (not inculde system) | 4435 usd | 4650 usd | 4980 usd | 5350 usd | ||||||||||
China Laser system single controller | 5450 usd | 5750 usd | 5780 usd | 6115 usd | ||||||||||
China Laser system double controller | 6825 usd | 6950 usd | 7150 usd | 7500 usd | ||||||||||
Germany Moba system single controller | 8300 usd | 8450 usd | 8650 usd | 8955 usd | ||||||||||
Recommend Products
Company Profile
Certifications
Customer Photos
Payment & Delivery

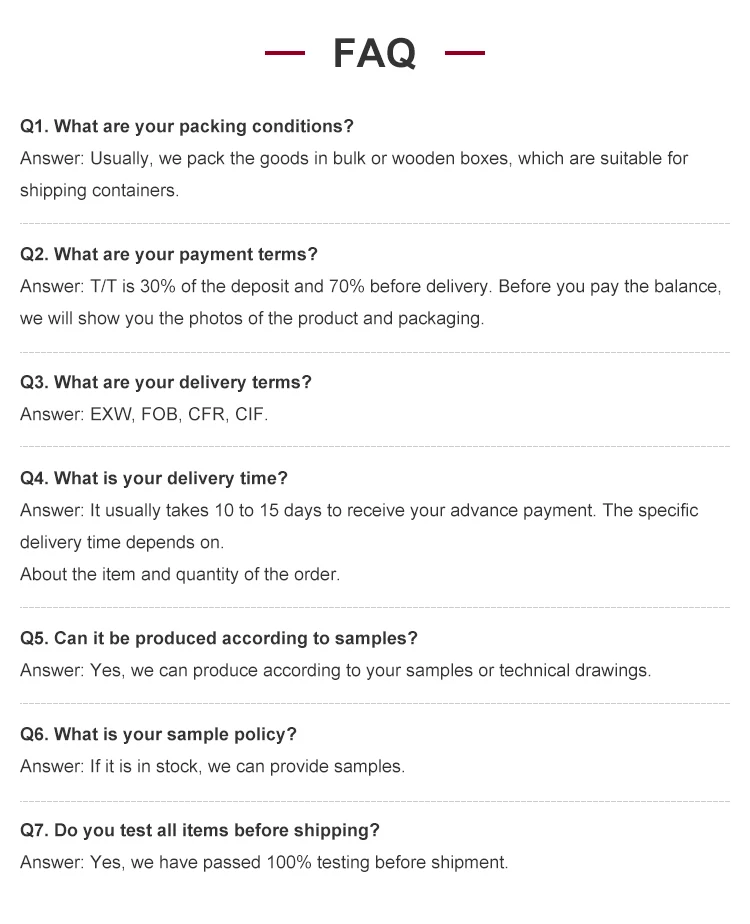

FAQ
