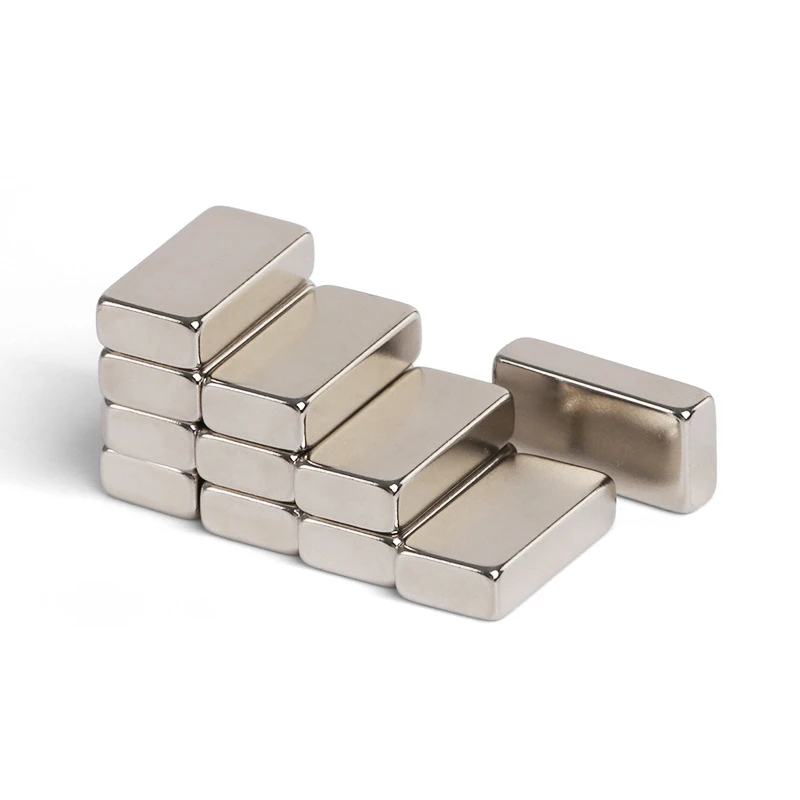

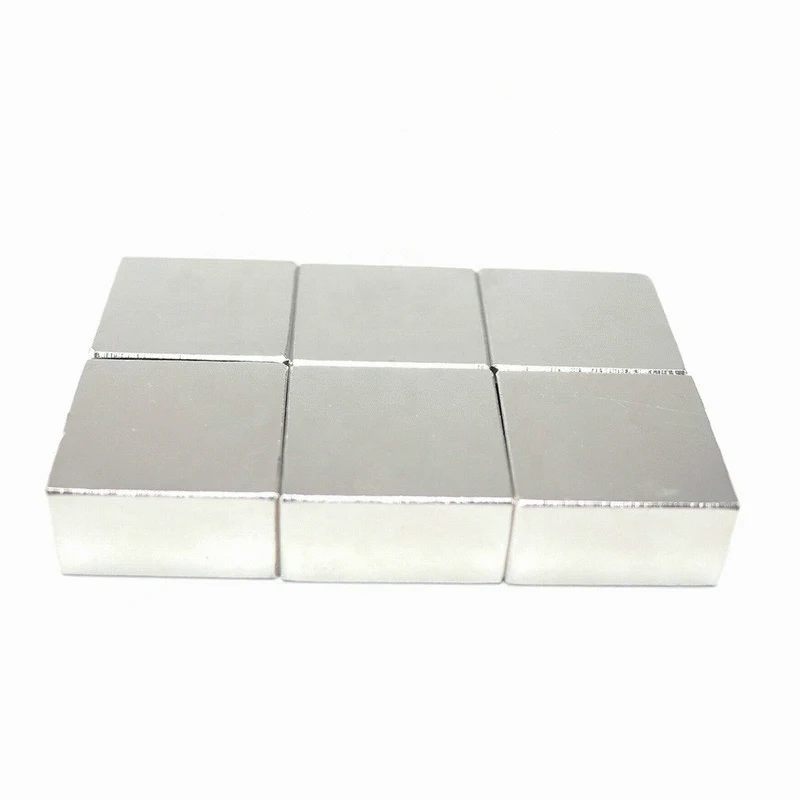

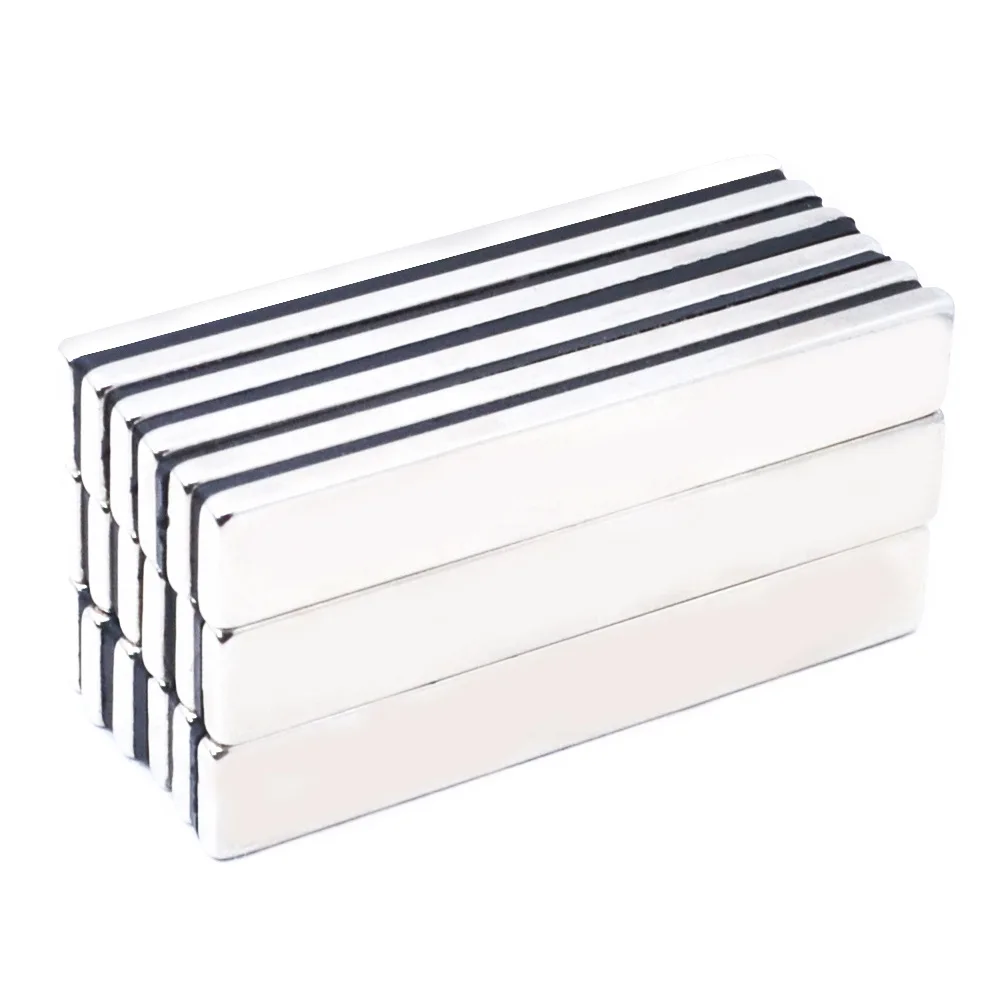

Magtoon Custom Super Strong N35 N42 N52 Ndfeb Square Magnetic Block Neodymium Magnet
- Category: >>>
- Supplier: Dongguan Magtoon Magnetic Products Co. Ltd.
Share on (1600440675860):
Product Overview
Description
Product Description
Product name | Permanent magnet strong magnet / Nd-Fe-B |
Product material | NdFeB |
Cladding material process | Three layer electroplated nickel copper nickel (anti-corrosion and anti rust) |
Product performance | N35-N28EH |
Product specification | Customized according to customer needs |
working temperature | The maximum temperature is 80 ℃ (permanent magnet at normal temperature). High temperature can be customized |
Product characteristics | Hard, brittle and fragile (avoid collision and falling) |
Sintering magnetic and physical properties
Performance grade | Intensity of remanence induction | Coercivity | Intrinsic coercivity | Maximum magnetic energy product | Recommended maximum operating temperature | ||||||||
Model | Br | T(KGs) | Hcb | kOekA/m | Hci | kOe(kA/m) | (BH)max | mGOe(kJ/m3) | ℃ | ||||
N35 | 11.7-12.1 | 1.17-1.21 | ≥10.9 | ≥868 | ≥12 | ≥955 | 33-36 | 263-287 | 80 | ||||
N38 | 12.1-12.5 | 1.21-1.25 | ≥11.3 | ≥899 | ≥12 | ≥955 | 36-39 | 287-310 | 80 | ||||
N40 | 12.5-12.8 | 1.25-1.28 | ≥11.6 | ≥923 | ≥12 | ≥955 | 38-41 | 302-326 | 80 | ||||
N42 | 12.8-13.2 | 1.28-1.32 | ≥11.6 | ≥923 | ≥12 | ≥955 | 40-43 | 318-342 | 80 | ||||
N45 | 13.2-13.8 | 1.32-1.38 | ≥11.0 | ≥876 | ≥12 | ≥955 | 43-46 | 332-366 | 80 | ||||
N48 | 13.8-14.2 | 1.38-1.42 | ≥10.5 | ≥835 | ≥11 | ≥876 | 46-49 | 366-396 | 80 | ||||
N50 | 13.8-14.5 | 1.38-1.45 | ≥10.5 | ≥835 | ≥11 | ≥876 | 47-51 | 374-406 | 80 | ||||
N35M | 11.7-12.1 | 1.17-1.21 | ≥10.9 | ≥868 | ≥14 | ≥1114 | 33-36 | 263-287 | 100 | ||||
N38M | 12.1-12.5 | 1.21-1.25 | ≥11.3 | ≥899 | ≥14 | ≥1114 | 36-39 | 287-310 | 100 | ||||
N40M | 12.5-12.8 | 1.25-1.28 | ≥11.6 | ≥923 | ≥14 | ≥1114 | 38-41 | 302-326 | 100 | ||||
N42M | 12.8-13.2 | 1.28-1.32 | ≥12.1 | ≥963 | ≥14 | ≥1114 | 40-43 | 318-342 | 100 | ||||
N45M | 13.2-13.8 | 1.32-1.38 | ≥12.5 | ≥995 | ≥14 | ≥1114 | 43-46 | 342-366 | 100 | ||||
N30H | 10.8-11.3 | 1.08-1.13 | ≥10.2 | ≥812 | ≥17 | ≥1353 | 28-31 | 223-247 | 120 | ||||
N33H | 11.3-11.7 | 1.13-1.17 | ≥10.6 | ≥844 | ≥17 | ≥1353 | 31-33 | 247-263 | 120 | ||||
N35H | 11.7-12.1 | 1.17-1.21 | ≥11.0 | ≥876 | ≥17 | ≥1353 | 33-36 | 263-287 | 120 | ||||
N38H | 12.1-12.5 | 1.21-1.25 | ≥11.2 | ≥890 | ≥17 | ≥1353 | 36-39 | 287-310 | 120 | ||||
N40H | 12.5-12.8 | 1.25-1.28 | ≥11.5 | ≥915 | ≥17 | ≥1353 | 38-41 | 302-326 | 120 | ||||
N42H | 12.8-13.2 | 1.28-1.32 | ≥11.9 | ≥947 | ≥17 | ≥1353 | 40-43 | 318-342 | 120 | ||||
N30SH | 10.8-11.3 | 1.08-1.13 | ≥10.0 | ≥796 | ≥20 | ≥1592 | 28-31 | 223-247 | 150 | ||||
N33SH | 11.3-11.7 | 1.13-1.17 | ≥10.5 | ≥836 | ≥20 | ≥1592 | 31-33 | 247-263 | 150 | ||||
N35SH | 11.7-12.1 | 1.17-1.21 | ≥11.0 | ≥876 | ≥20 | ≥1592 | 33-36 | 263-287 | 150 | ||||
N38SH | 12.1-12.5 | 1.21-1.25 | ≥11.4 | ≥907 | ≥20 | ≥1592 | 36-39 | 287-310 | 150 | ||||
N40SH | 12.5-12.8 | 1.25-1.28 | ≥11.6 | ≥923 | ≥20 | ≥1989 | 38-41 | 302-326 | 150 | ||||
N30UH | 10.8-11.3 | 1.08-1.13 | ≥10.2 | ≥812 | ≥25 | ≥1990 | 28-31 | 223-247 | 180 | ||||
N33UH | 11.3-11.7 | 1.13-1.17 | ≥10.5 | ≥836 | ≥25 | ≥1990 | 31-33 | 247-263 | 180 | ||||
N35UH | 11.7-12.1 | 1.17-1.21 | ≥10.7 | ≥852 | ≥25 | ≥1990 | 33-36 | 263-287 | 180 | ||||
N28EH | 10.4-10.8 | 1.04-1.08 | ≥9.5 | ≥756 | ≥30 | ≥2388 | 26-29 | 207-231 | 200 | ||||
Product Features
Neodymium iron boron magnet: neodymium iron boron is the highest commercialized magnet found at present. It is called magneto king. It has extremely high magnetic properties, and its maximum magnetic energy product (BHmax) is more than 10 times higher than that of ferrite. Therefore, it is also commonly known as: strong magnetic, magnetic steel, etc. Its machining performance is also quite good. The working temperature can reach up to 200 ℃. Moreover, it has hard texture, stable performance and good cost performance, so it is widely used. However, because of its strong chemical activity, its surface must be treated.
Nd-Fe-B permanent magnet material is a permanent magnet material based on intermetallic compound Nd2Fe14B. Compared with cast Al Ni Co permanent magnet materials and ferrite permanent magnet materials, Nd-Fe-B has very high magnetic energy product and coercivity, and can absorb 640 times of its own weight. The advantages of high energy density make NdFeB permanent magnet materials widely used in modern industry and electronic technology, which makes it possible to miniaturize, lightweight and thin instruments, electroacoustic motors, magnetic separation magnetization and other equipment. Material characteristics NdFeB has the advantages of high performance price ratio, good mechanical properties and easy machining; The disadvantage is that the Curie temperature point is low, the temperature characteristics are poor, and it is easy to be powdered and corroded. It must be improved by adjusting its chemical composition and adopting surface treatment methods in order to meet the requirements of practical application. Manufacturing process NdFeB is manufactured by powder metallurgy process. Raw materials containing a certain proportion, such as neodymium, dysprosium, iron, cobalt, niobium, praseodymium, aluminum, copper and ferroboron, are smelted into alloy steel ingots by medium frequency induction melting furnace, and then crushed into 3 ~ 5 μ M powder and pressed in a magnetic field. The formed green body is sintered in a vacuum sintering furnace and tempered for aging. In this way, a permanent magnet blank with certain magnetic properties is obtained. After grinding, drilling, slicing and other processing procedures, and then surface treatment, the finished Nd-Fe-B products required by users are obtained.
Matters Needing Attention
1. Operating temperature
When selecting NdFeB magnets, customers should select their own magnet brand according to their working temperature. If the working temperature is higher than the bearing temperature of the magnet brand, the magnet will demagnetize slowly until there is no magnetism. Please confirm the working temperature and the brand suitable for your use before ordering. 2. Use environment
If the magnet device used is in the sealed state, it can be considered to select the magnet without electroplating or white zinc plating on the surface, which can save the cost. If the magnet is exposed to humid air, especially in the salt spray state, it is recommended to consider the magnet with nickel plating treatment on the surface. Magnets should be stored in a dry and constant temperature environment. Plastic, wood chips, hard paper, foam and so on should be separated and wrapped. Keep away from ironware and easily magnetized items, such as monitors, bank cards, computers, televisions, mobile phones, etc.
If the magnet device used is in the sealed state, it can be considered to select the magnet without electroplating or white zinc plating on the surface, which can save the cost. If the magnet is exposed to humid air, especially in the salt spray state, it is recommended to consider the magnet with nickel plating treatment on the surface. Magnets should be stored in a dry and constant temperature environment. Plastic, wood chips, hard paper, foam and so on should be separated and wrapped. Keep away from ironware and easily magnetized items, such as monitors, bank cards, computers, televisions, mobile phones, etc.

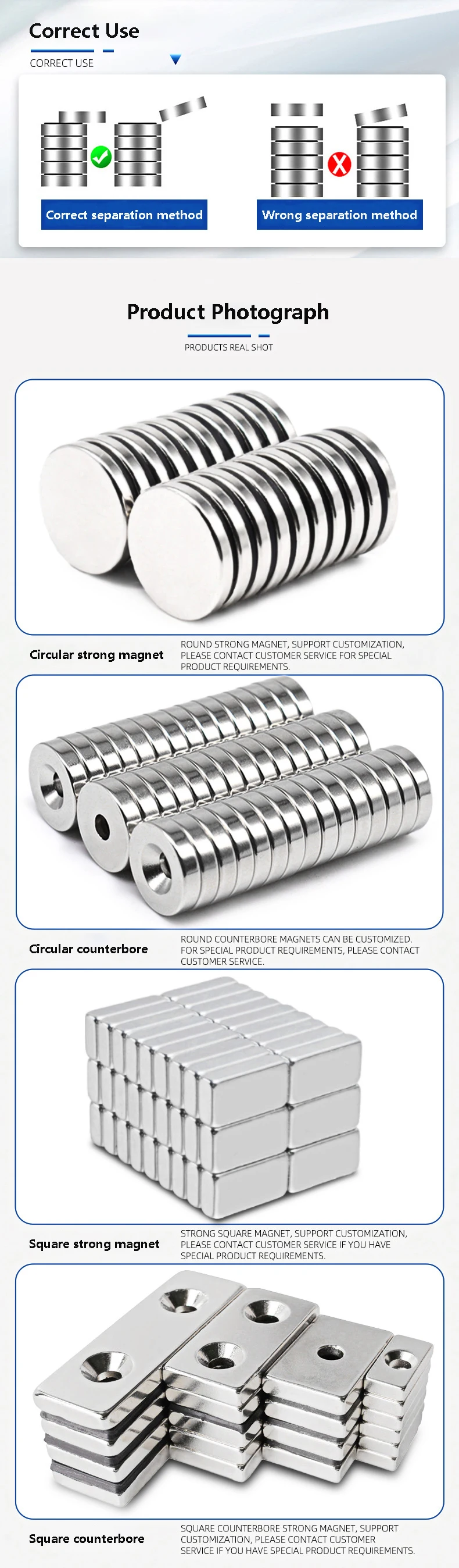

3. Access and use
When the magnets cannot be separated from each other, it is recommended to push horizontally and stagger, and do not pry hard. Fix the whole magnet with your left hand, match your right hand with your index finger and thumb, and move the magnet horizontally. After moving out, don't throw the moved magnet back into the magnet pile immediately. Please isolate the magnet immediately. Handle with care. It is safer to wrap the paper taken out in a place far away from iron or magnetic objects (about 16 cm) or in paper. If you need to put the magnet back into the whole magnet, please put it back slowly and move it in close from the edge. Be sure to hold the magnet in your hand until the magnet has moved in.
When the magnets cannot be separated from each other, it is recommended to push horizontally and stagger, and do not pry hard. Fix the whole magnet with your left hand, match your right hand with your index finger and thumb, and move the magnet horizontally. After moving out, don't throw the moved magnet back into the magnet pile immediately. Please isolate the magnet immediately. Handle with care. It is safer to wrap the paper taken out in a place far away from iron or magnetic objects (about 16 cm) or in paper. If you need to put the magnet back into the whole magnet, please put it back slowly and move it in close from the edge. Be sure to hold the magnet in your hand until the magnet has moved in.
4. Handling and storage
NdFeB strong magnetic material is hard, brittle and has a strong magnetic field. It should be handled with care (especially large specifications and sheets). When the strong magnet itself or is attracted or separated from other irons, it should be operated carefully without impact. Otherwise, it is easy to cause collision and damage the magnet or pinch the fingers. Because Nd-Fe-B is a multi-metallic alloy material with a density of about 7.45, it has the characteristics of heavy and brittle. Therefore, special care should be taken when handling to avoid magnetic breakage. The storage environment should also be kept dry. It should not be stacked directly on the ground. It should be padded with thick cardboard or placed on the shelf.
NdFeB strong magnetic material is hard, brittle and has a strong magnetic field. It should be handled with care (especially large specifications and sheets). When the strong magnet itself or is attracted or separated from other irons, it should be operated carefully without impact. Otherwise, it is easy to cause collision and damage the magnet or pinch the fingers. Because Nd-Fe-B is a multi-metallic alloy material with a density of about 7.45, it has the characteristics of heavy and brittle. Therefore, special care should be taken when handling to avoid magnetic breakage. The storage environment should also be kept dry. It should not be stacked directly on the ground. It should be padded with thick cardboard or placed on the shelf.

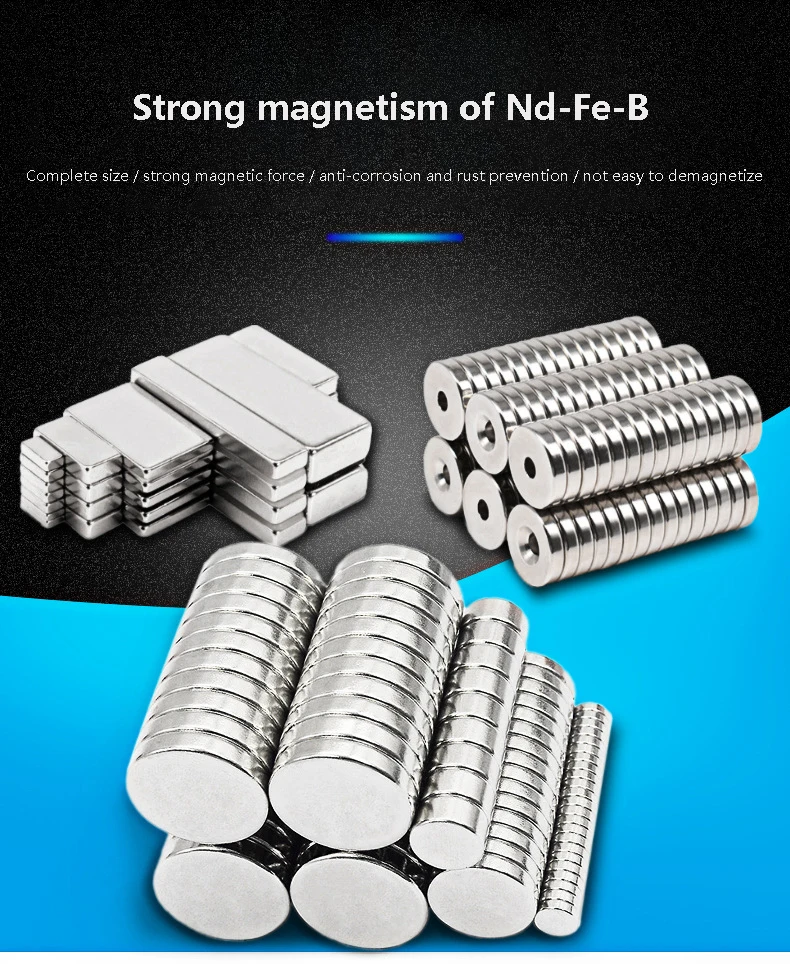

Small volume also has large magnetic force, permanent magnetism, durable magnet!
Size, performance and electroplating can be customized

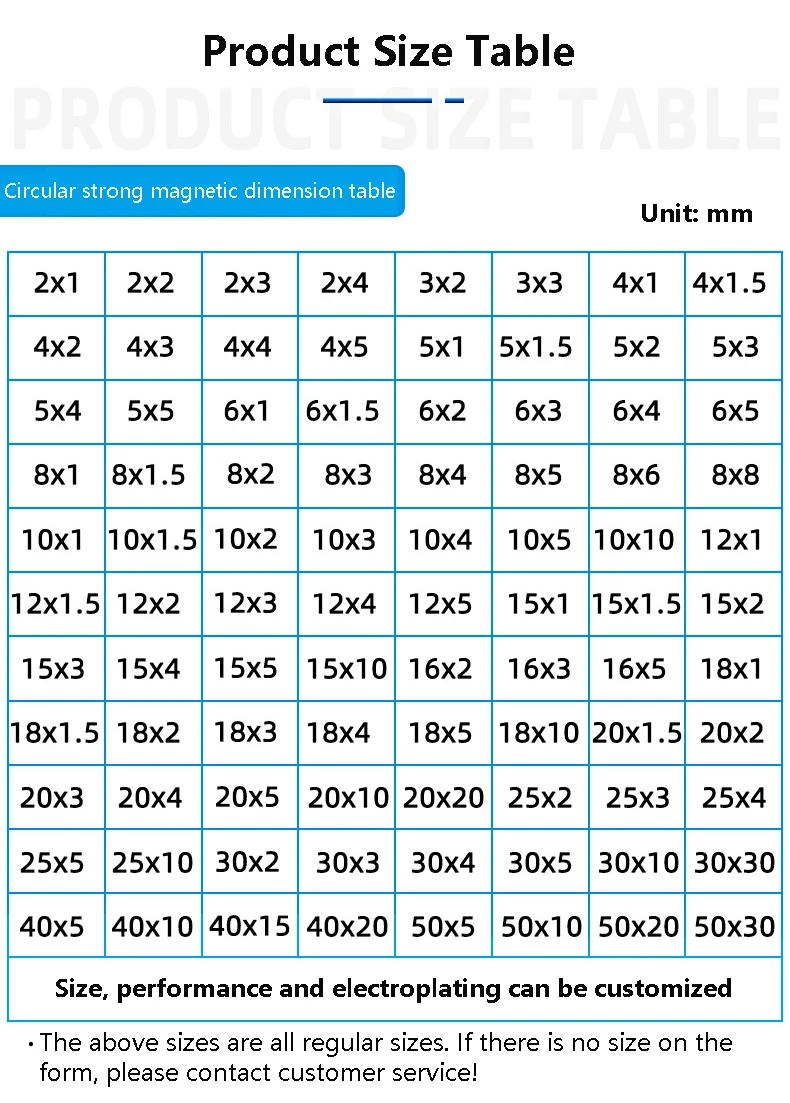

The above size list is conventional size. If there is no desired size on the size list, please contact me!
The above size list is conventional size. If there is no desired size on the size list, please contact me!

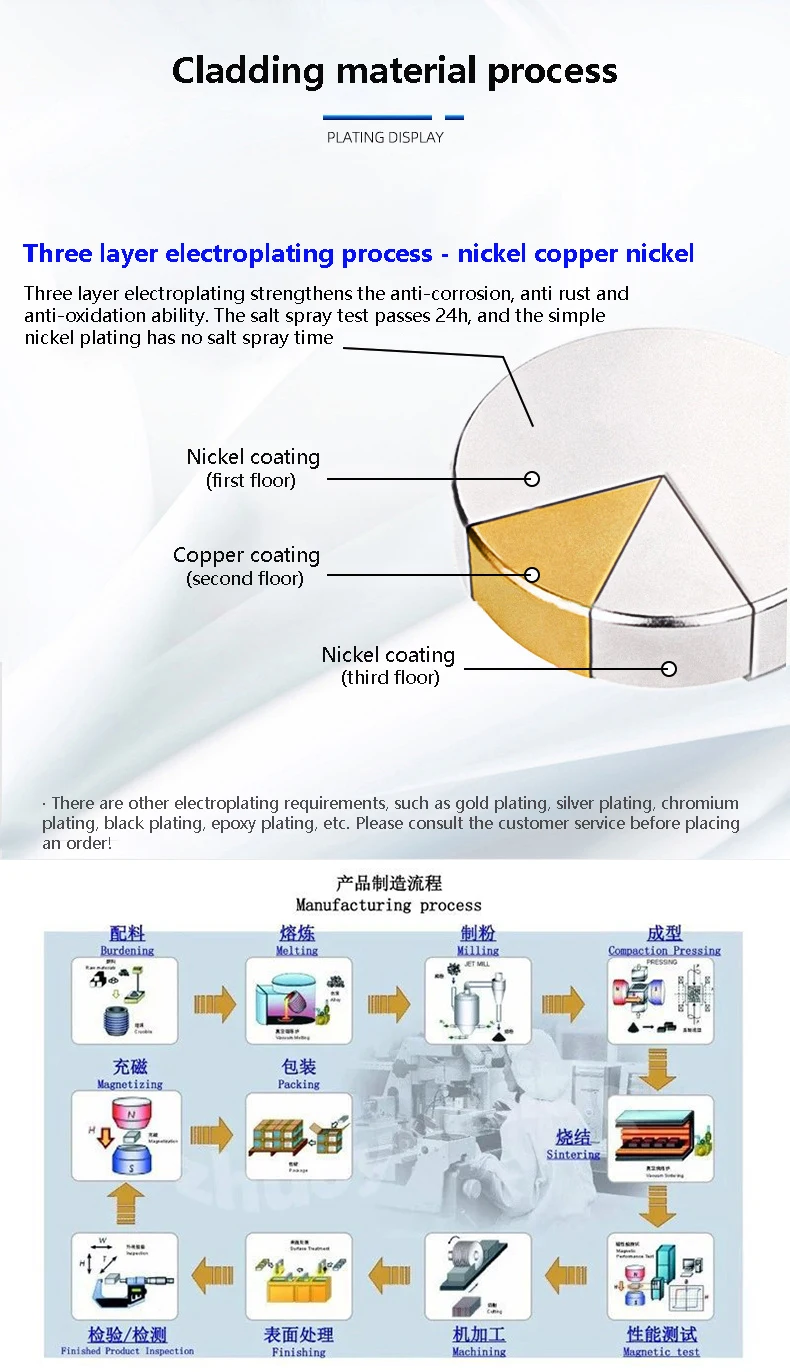

Three layer electroplating process - nickel copper nickel
Three layer electroplating strengthens the anti-corrosion, anti rust and anti-oxidation ability. The salt spray test passes 24h, and the simple nickel plating has no salt spray time
First layer: nickel coating
Second layer: copper coating
Third layer: nickel coating
There are other electroplating requirements, such as gold plating, silver plating, chromium plating, black plating, epoxy plating, etc. Please consult me before placing an order!
First layer: nickel coating
Second layer: copper coating
Third layer: nickel coating
There are other electroplating requirements, such as gold plating, silver plating, chromium plating, black plating, epoxy plating, etc. Please consult me before placing an order!

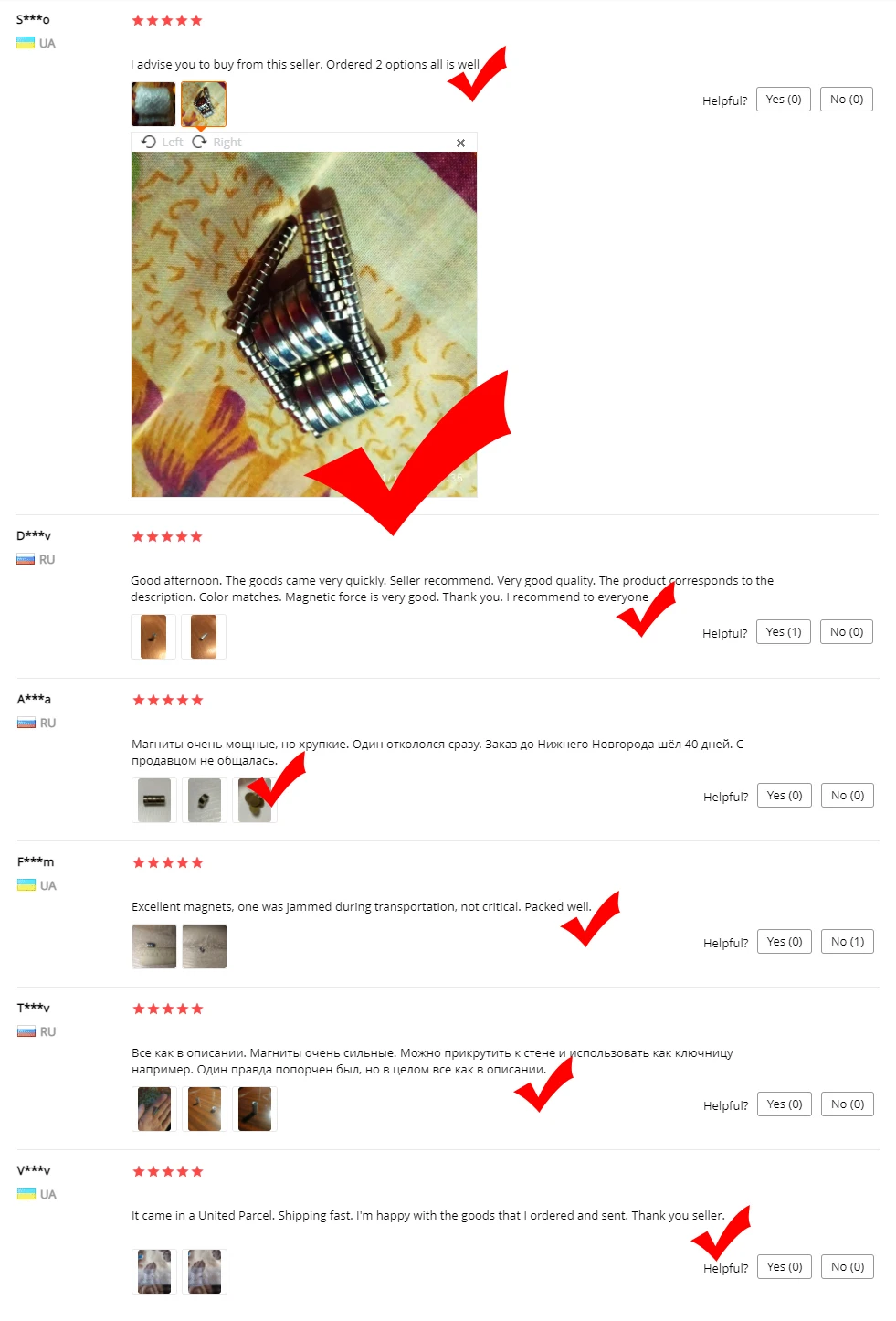

Buyer Feedback
Customization Process
1. contact customer service
Provide: material, size, quantity, customer service quotation
2. Provide documents
The designer of our company will issue the renderings for your confirmation
3. Confirm the drawing
3. Confirm the drawing
Arrange proofing after the effect drawing is confirmed to be correct, or directly produce large goods
4. Advance deposit
4. Advance deposit
A deposit shall be paid for large orders, and the factory shall complete production within the agreed time
5. Inspection and payment
5. Inspection and payment
The goods can be inspected according to the customer's requirements, and the balance payment can be paid for delivery after confirmation
Company Profile
Dongguan Magtoon Magnetic Products Co., Ltd. is a manufacturer specialized in producing rubber magnets, magnetic strips, fridge magnets and various magnetic products.
Our company is dedicated to producing all kinds of magnetic products and components with good quality at reasonable prices. We also offer solutions for special magnetic products.
We're able to produce good magnetic products with any given designs. We can design products for you as well.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
Our company is dedicated to producing all kinds of magnetic products and components with good quality at reasonable prices. We also offer solutions for special magnetic products.
We're able to produce good magnetic products with any given designs. We can design products for you as well.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
Quality Inspection Report & Cooperative Brand
Product packaging
