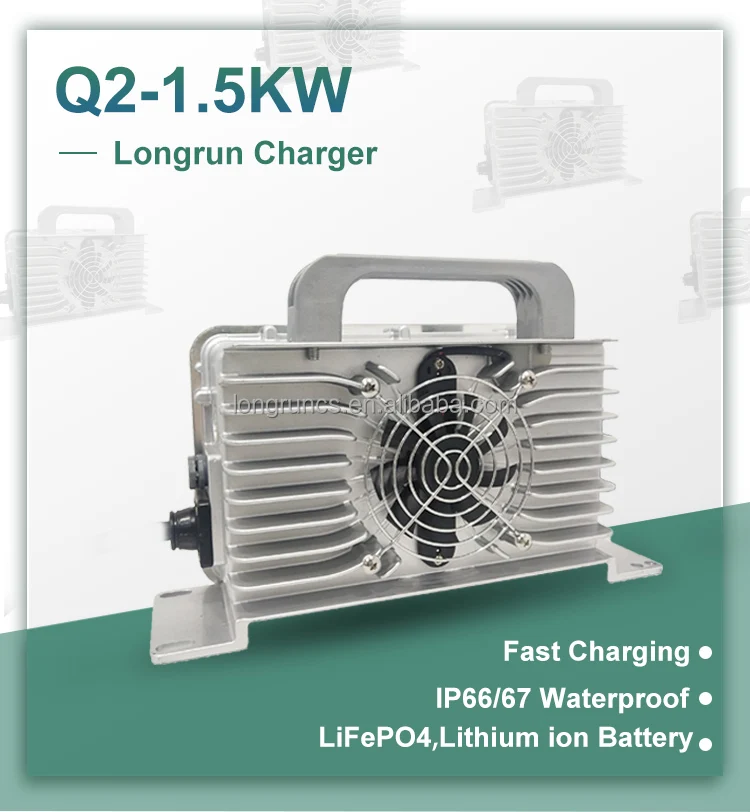

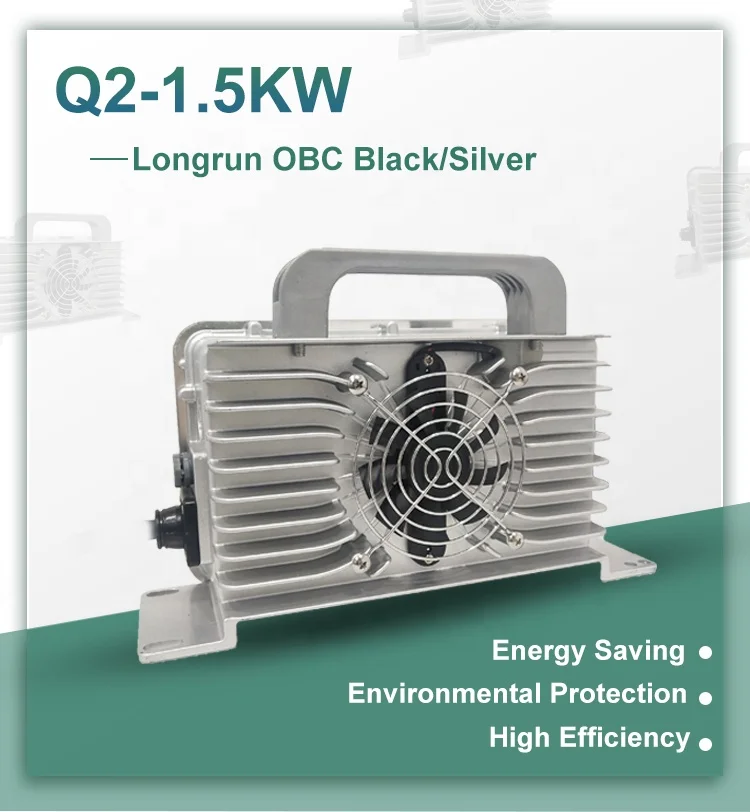

1500W Max CAN Waterproof 24V 36V 48V 60V 72V 84V 96V Sealed Lead Acid LiFePO4 Lithium ion Power Battery Charger
- Category: >>>
- Supplier: Chengdu Longrun Chuangshi Technology Co. Ltd.
Share on (1600440686368):
Product Overview
Description
24V 36V 48V 60V 72V 84V 96V Sealed Lead Acid LiFePO4 Lithium ion Power Battery Charger |
Product Paramenters
Q2-1.5KW Input ≤11a CAN/12v3a Optional | ||||||||||
Rated Voltage(v) | Battery Type(Strings) | Max Charging Voltage(v) | Max Output Current(a) | Others | ||||||
AC220V | AC110V | |||||||||

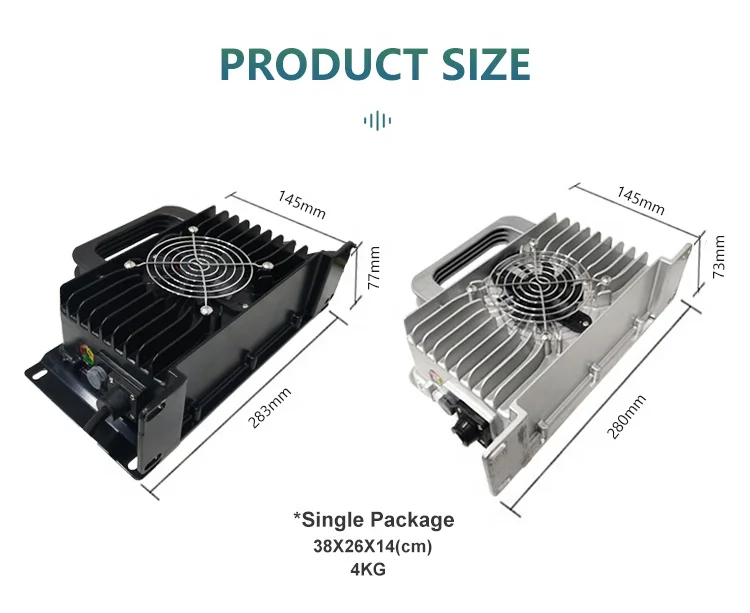

12 | 4S LiFePO4 | 15 | 30 | 30 | Size: 282x146x82mm | |||||
24 | 8S LiFePO4 | 30 | 30 | 30 | ||||||
36 | 12S LiFePO4 | 45 | 25 | 25 | ||||||
48 | 15S/16S LiFePO4 | 60 | 25 | 20 | ||||||
60 | 18S Li-ion | 75 | 20 | 15 | Net weight: 2.7kg | |||||
72 | 20S Li-ion | 90 | 18 | 12 | ||||||
80 | 22S/23S Li-ion | 100 | 15 | |||||||
96 | 30S LiFePO4 | 120 | 10 | |||||||
102 | 32S LiFePO4 | 127 | 7 | |||||||
Technical Parameters | ||
Input | Output | |
Input Voltage | 90-264v(220v/110v) | Max Output Current（a） | 30a | ||
Input Frequency | 40-70HZ | Charge Code | CC-CV | ||
Power Factor | ≥0.98 | Efficiency | ≥93 | ||
Plug | Schuko plug(EU), UK,US,India plug,ZA plug,BR plug, AU plug..... | Connector | Andersen 50, M8/10,C13/14,T60/90...... | ||
Indicator | Red:Charging | ||||
Green:Fully Charge | |||||
Features | IP 66 Waterproof/shockproof Onboard/Off board Fast Charging | ||||
Application | For Battery: 24V/36V/48V LiFePO4 Charger, 60V/72V/84V Li-ion Charger,20S NMC Charger, 48V/60V/72V Lead acid Charger,LTO Charger For Electric Vehicle: 12v30a RV Charger24v30a AGV Charger 48v25a Golf Cart Charger 48v20a Golf Cart Charger 72v18a Motorcycle Charger 84v Motorcycle Charger | ||||
Products Description
Package &Shipping

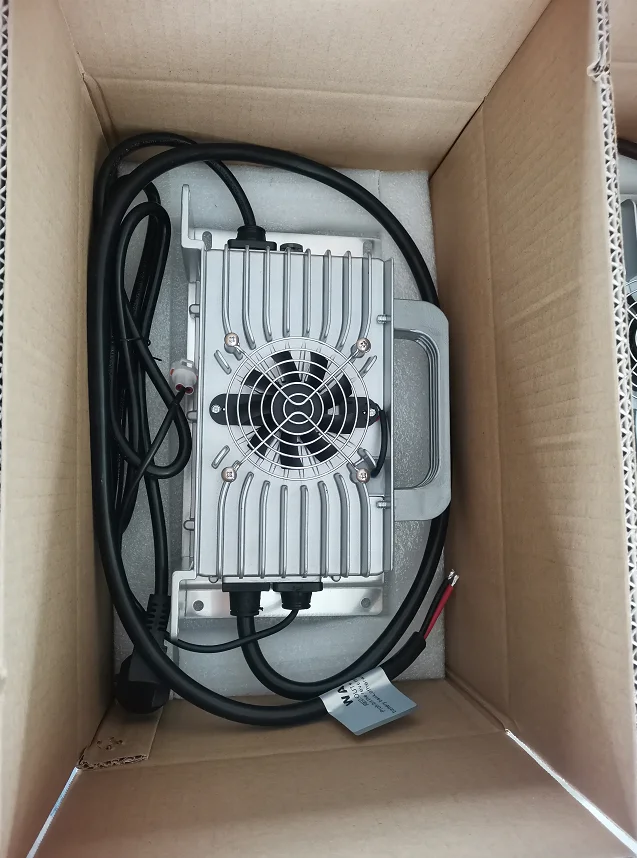

Packages
For express air transportation: anti-collision foam, double-layer carton packaging, one per box.
For sea transportation: anti-collision foam, double-layer carton packaging, 4 chargers in a box, palletized, wooden frame, waterproof tape on the outermost side.
Customized packaging: We are very happy to customize cartons, printing logos, box size.
Customized packaging: We are very happy to customize cartons, printing logos, box size.
Company Profile
Chengdu Longrun Chuangshi Technology Co., Ltd
Longrun variable frequency pulse charger series adopt "superposition combined pulse rapid charging and discharging technology" and "automatic detection programmed regulation charging and discharging innovativeprocess", It can significantly improve the charging efficiency and quality, greatly shorten the charging time, effectively extendthe battery life, innovate the charging state of electric vehicles, and realize "high efficiency, environmental protection and energy saving".
Production Process
Exhibition
Certifications
FAQ
1. Who are we? Chengdu Longrun Chuangshi Technology Co., LTD.Located in Chengdu, China, Engaged in Electric Vehicle Charging System, AC Servo Control System,as well as electronic information and the battery internalizes system. 2. How can we guarantee quality? Always a pre-production sample before mass production.Always final Inspection before shipment. 3.What can you buy from us? On board charger,ev charger,car charger,Lifepo4,Lithium ion etc.We offer OEM and ODM. 4. Why choose us? *More competitive price! As a manufacturer, we have our own factory and R&D team, so the price will be more competitive. *Fast delivery! Mature factory, experienced engineers and efficient workers. *Good shipping service! We have long term cooperation with DHL, UPS and EMS, so we can promise to save more shipping cost and provide better service. *Experienced and professional service! Over 20 years of professional R&D team and experience. Keep good relationship with more than 200 distributors. Have a good reputation in the industry. |
