Product Overview
Description
Fuel consumption temperature Weight monitoring anti-theft vehicle gps tracker
Product Description

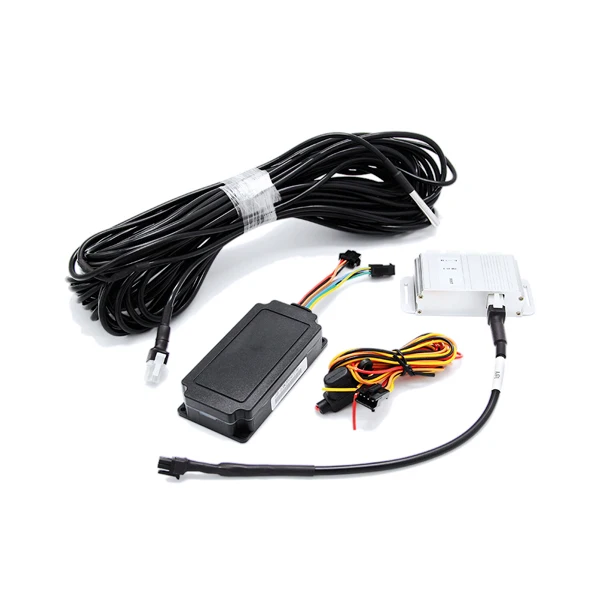

UniGuard Advanced GPS Tracker UM777 Multi functions: |
Hardware Features: |
1 Quad band GSM/GPRS 850/900/1800/1900 MHz. 4G version available |
2 High Performance Internal Antennas |
3 Digital Inputs (ignition) |
4 Digital Output (Engine immobilization) |
5 RS232 or RS485 interface for ultrasonic fuel sensor or temperature sensor or weight sensor |
6 Built-in Backup Battery |
7 Real-time Tracking by Web and APP |
8 FOTA |
9 Dual core CPU |
10 9V to 100V DC power supply |
11 IP67 Water proof |
12 Shock alert |
13 Fatigue driving monitoring (OP) |
14 Vehicle collision and harsh driving alarm (OP, need connect CAN box) |

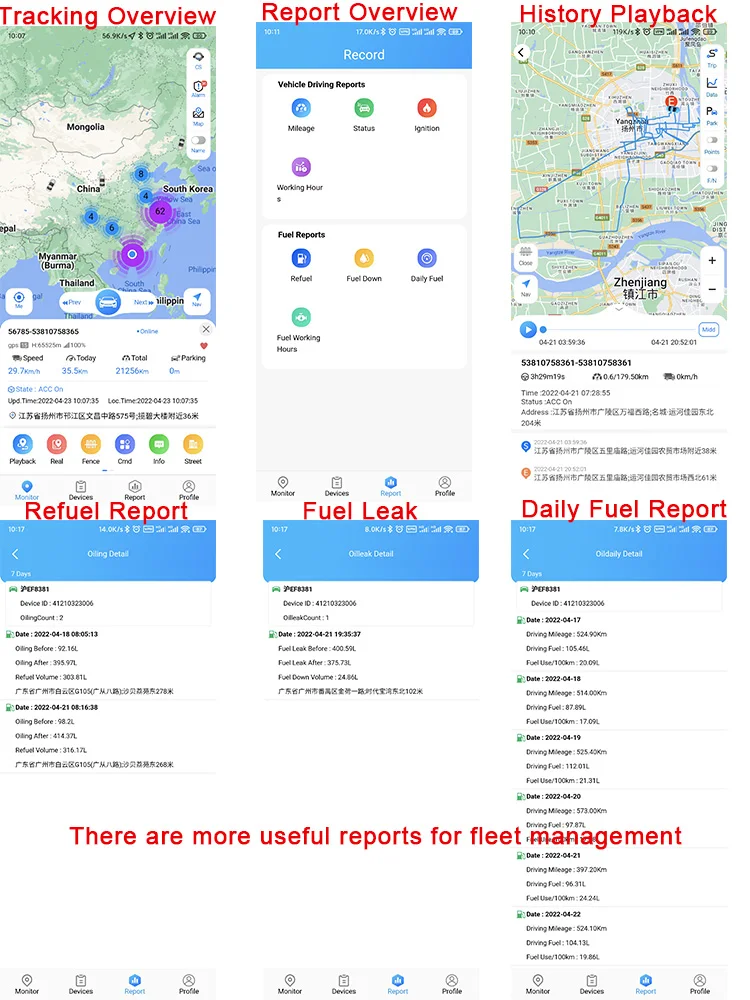

Software Features: |

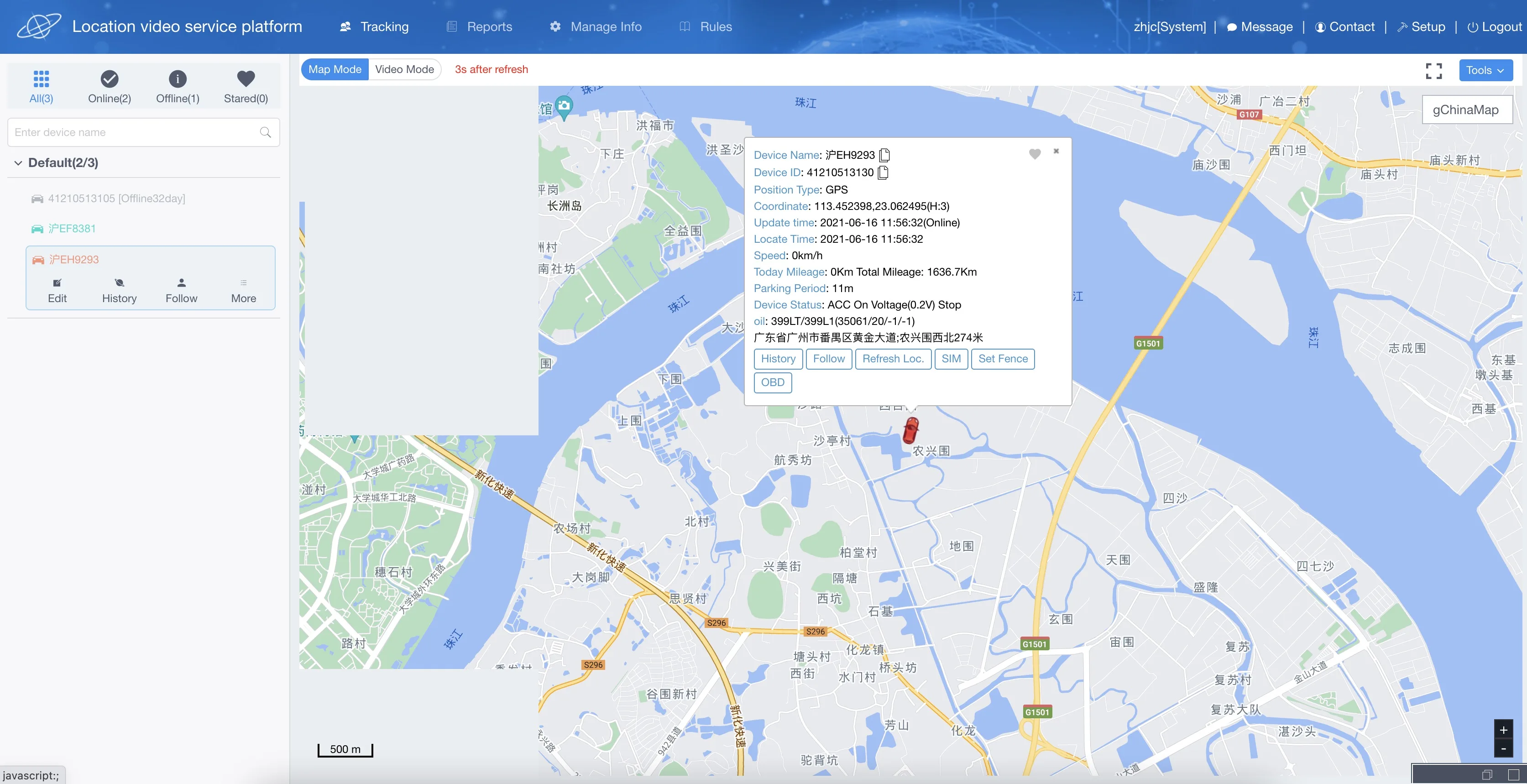

1 Real time tracking by Web and APP |
2 Geo-fence |
3 History report and Playback |

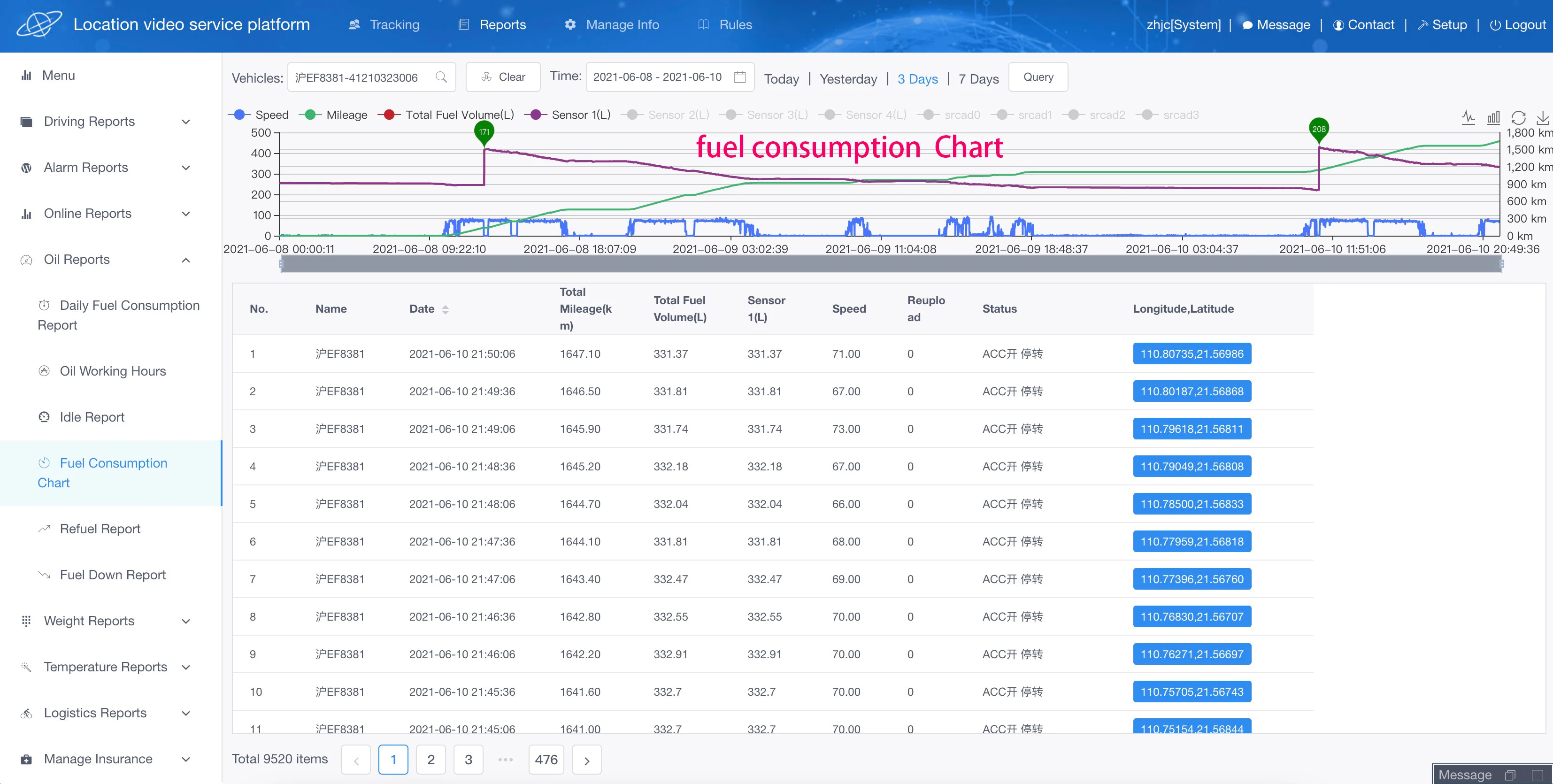

4 Fuel consumption/ leak / adding report (Support at most 5 RS232 connection sensors) |
5 Temperature monitoring (Support at most 4 channel temperature sensors) |
6 Weight sensor (0 to 100T. Above 100T need customization) |
7 Location Report |
8 Mileage Overview and Mileage Month report |
9 Parking report |
10 Ignition Status report |
11 Rotation sensor report |
12 Device Online/Offline report Daily and Monthly |
13 Engine idle report |
14 Sub user management |
15 Insurance records management |
Specification
UniGuard Advanced GPS Tracker UM777 Specifications | ||
Items | Specifications | |
Model | UM777 | |
2G GSM 850/900/1800/1900Mhz 4G TD-LTE: B34/B38/B39/B40/ B41 FDD-LTE: B1 /B2/B3/B4/B5/B6/B8/B18/B19/B26 WCDMA: B1 /B2/B4/B5/B6/B8/B19 | ||
Communication Protocol | TCP/IP | |
GPS and BeiDou and GLONASS Location accuracy: 10m Speed accuracy: 0.1m/s Capturing sensitivity: -148dbm Tracking sensitivity: -165dbm Cool start: <32s Hot start: <2s | ||
GNSS antenna | 25*25*2 mm Built in. | |
Memory | 32mb + 32mb +128KB | |
Switch | On/Off | |
SIM card | Micro-SIM | |
Signal light | Blue for GPS, Green for GSM, Red for power | |
Battery | 200mAh 3.7V Li-polymer Industry battery | |
Working voltage | 9-100V DC / 24mAh (12VDVC) / 12mA (24VDVC) | |
Interface | 5V output for alarm speaker control Support RS232 or RS485 Support engine immobilize | |
Working temperature | -20 °C to 70 °C | |
Working humidity | 5 -95% RH | |
AGPS | Support | |
Size | 96* 43* 20 mm | |
Weight | 110 g | |
FAQ

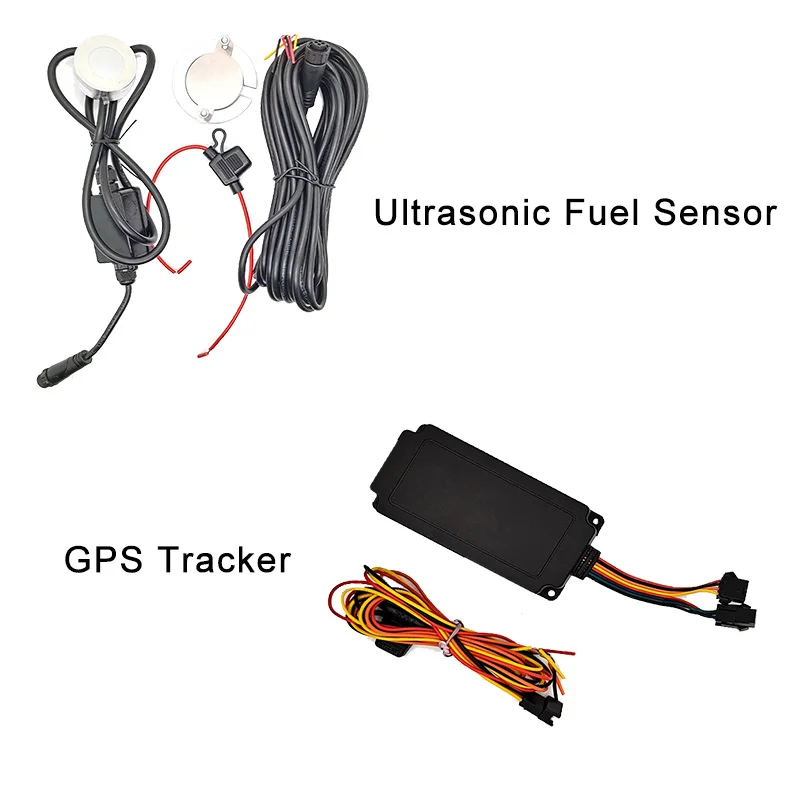

Q: How to monitor vehicle fuel? A: GPS fuel tracker UM777 can connect with GPS fuel sensor, ultrasonic fuel sensor or probe fuel sensor. All the collected fuel data shall be upload to gps tracking software, so as to monitor fuel consumption real time.
Q: Can it monitor truck fuel usage?
A: YES. It perfects works on truck fuel tank to offer 99% accurate fuel consumption. As well, with ultrasonic fuel sensor, it can also monitor fuel usage of car, whose tank is irregular.
Q: My truck has 2 tanks, can it work?
A: YES. The device supports connection with at most 4 fuel sensors and to monitor each tank fuel usage. Each tank fuel consumption data shall be displayed on web clearly with detailed reports of each tank as well.
Q: Is there any report if there is refuel or leak?
A: YES. The Refuel/leak report shall report exactly when and where the fuel is added or leaked.
Q: How do you support me and what is the warranty?
A: We offer real time support by Phone, Email and Whatsapp. 24 months warranty available.
Q: Do you supply also fuel sensor?

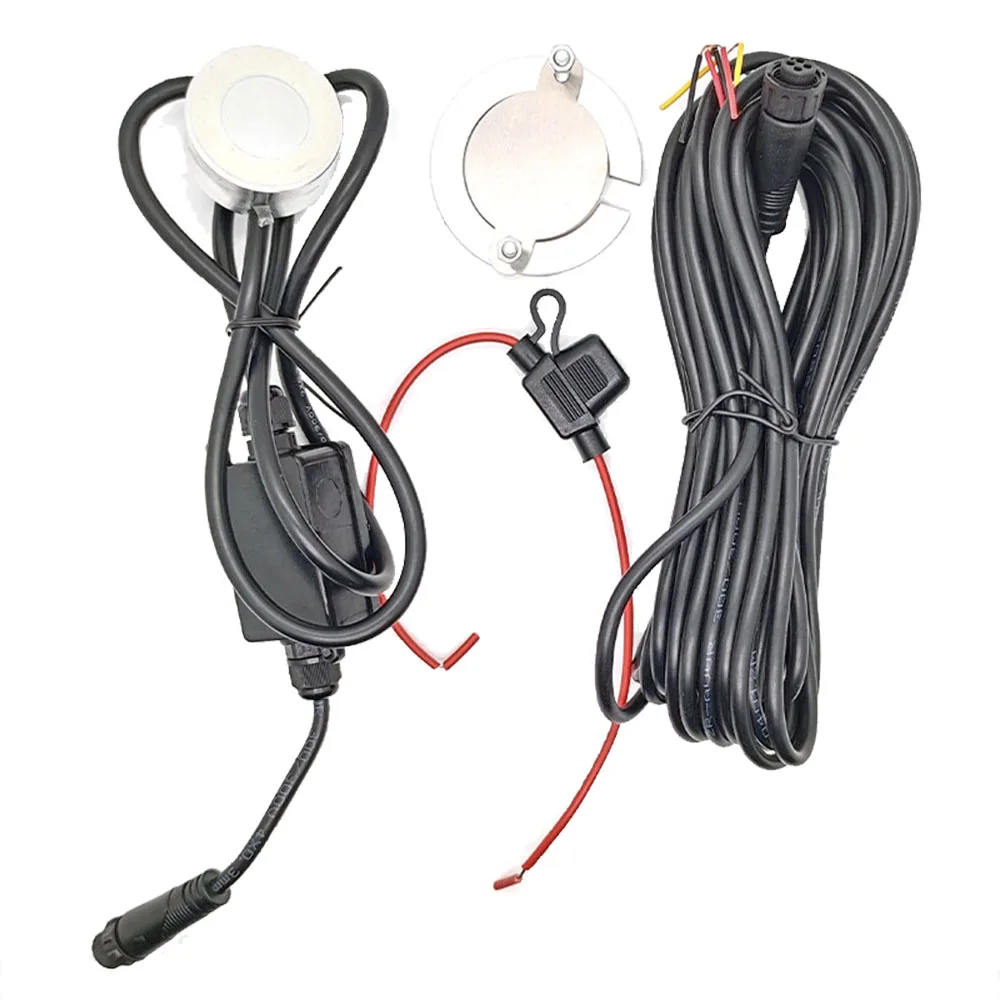

A: YES. We supply mainly ultrasonic fuel level sensor. Cost is competitive and easy installation.
