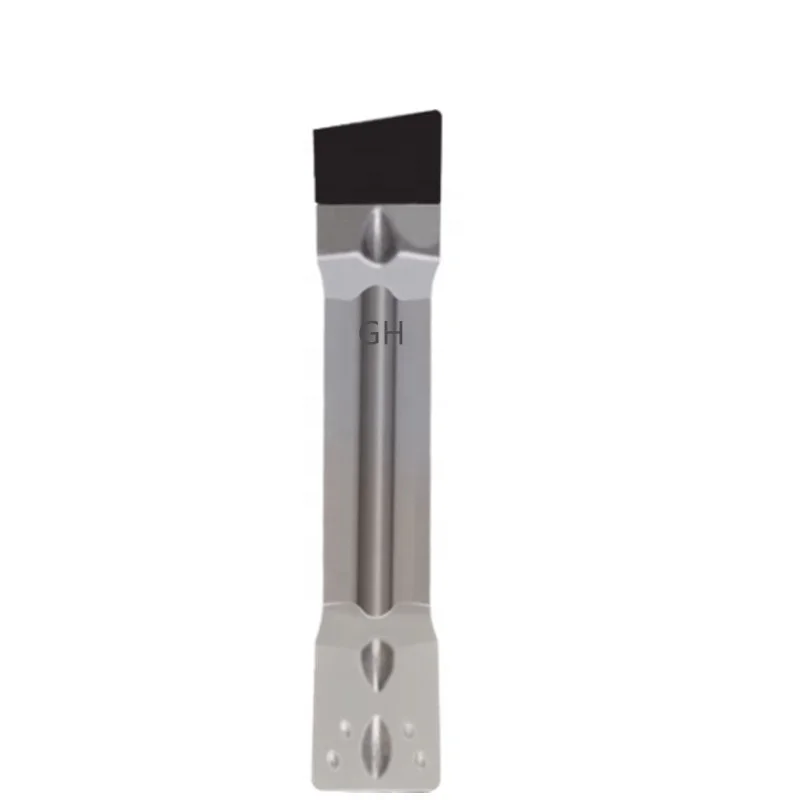

High wear resistance CNC Turning Grooving tools Diamond Bevel Grooving insert MGMN for aluminum
High wear-resistance CNC Turning Grooving tools Diamond Bevel Grooving insert MGMN for aluminum
High wear-resistance CNC Turning Grooving tools Diamond Bevel Grooving insert MGMN for aluminum
High wear-resistance CNC Turning Grooving tools Diamond Bevel Grooving insert MGMN for aluminum
High wear-resistance CNC Turning Grooving tools Diamond Bevel Grooving insert MGMN for aluminum
High wear-resistance CNC Turning Grooving tools Diamond Bevel Grooving insert MGMN for aluminum
High wear-resistance CNC Turning Grooving tools Diamond Bevel Grooving insert MGMN for aluminum

High wear resistance CNC Turning Grooving tools Diamond Bevel Grooving insert MGMN for aluminum

Share on (1600440700190):


Price:$7.30 - $7.60

Quantity:


Product Overview

Description


High wear-resisting CNC Diamond PCD grooving tools PCD CBN grooving inserts MGMN MRMN for aluminum steel



Product Description












l  PCD


PCD(Polycrystalline Diamond)is a synthesized, extremely tough, intergroup mass of randomly orientated diamond particles in a metal matrix. It is produced by sintering together selected diamond particles at high pressure and temperature.





44


Features:





































Name



PCD Bevel grooving inserts



ITEMS



MGMN



Type number



MGMN150, MGMN200, MGMN250, MGMN300,MGMN400,MGMN500



PCD processing



aluminum, brass, carbide, glass fibre…



Advantages



imported pcd , E6







sharp cutting, high abrasive resistance, anti-collapse







Turning smoothly, Durable






Diamond pcd grooving tools


Diamond grooving tools and profile turning tools with extremely high precision for manufactoring pistons.


These tools are used mainly for the grooving of piston head rings.


For external grooving, groove turning, profiling and undercutting. Various PCD materials and CBN materials find application to the workpiece material.








 grooving insert 2.jpg

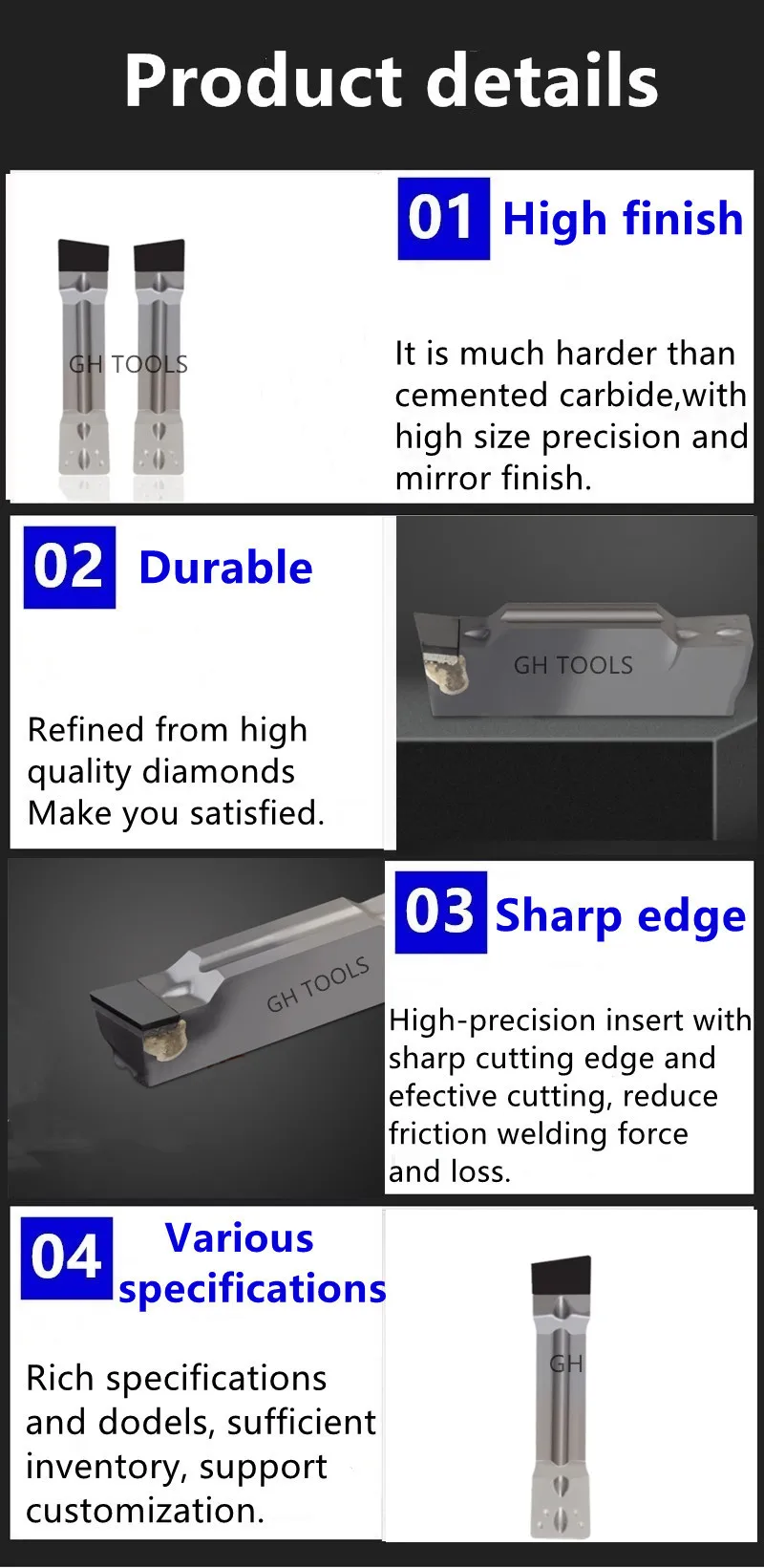

grooving insert spec.jpg

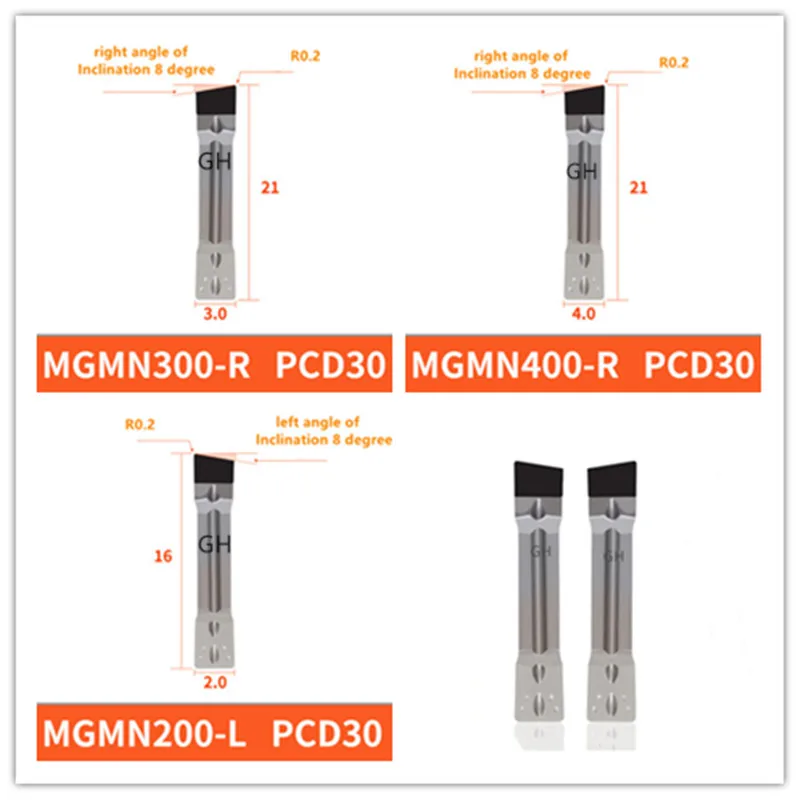

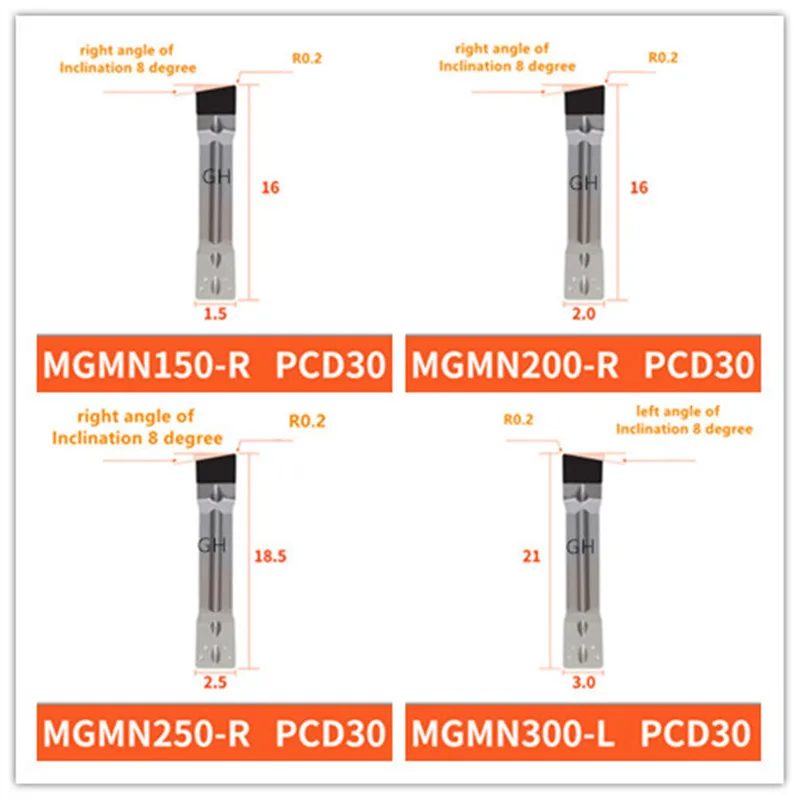

grooving insert sizes_1.jpggrooving insert sizes.jpg

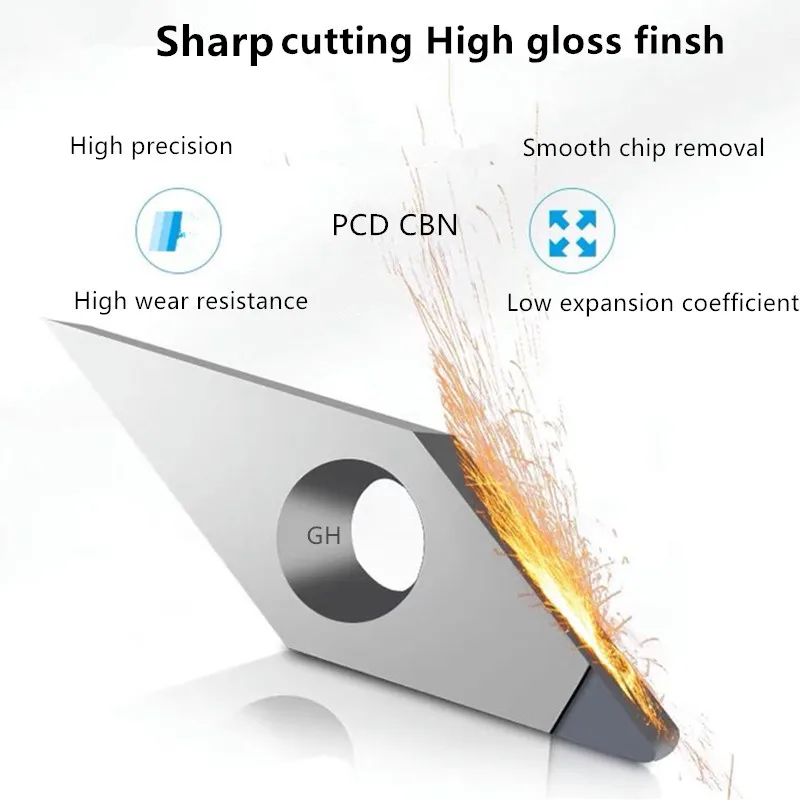

pcd cbn inserts spec

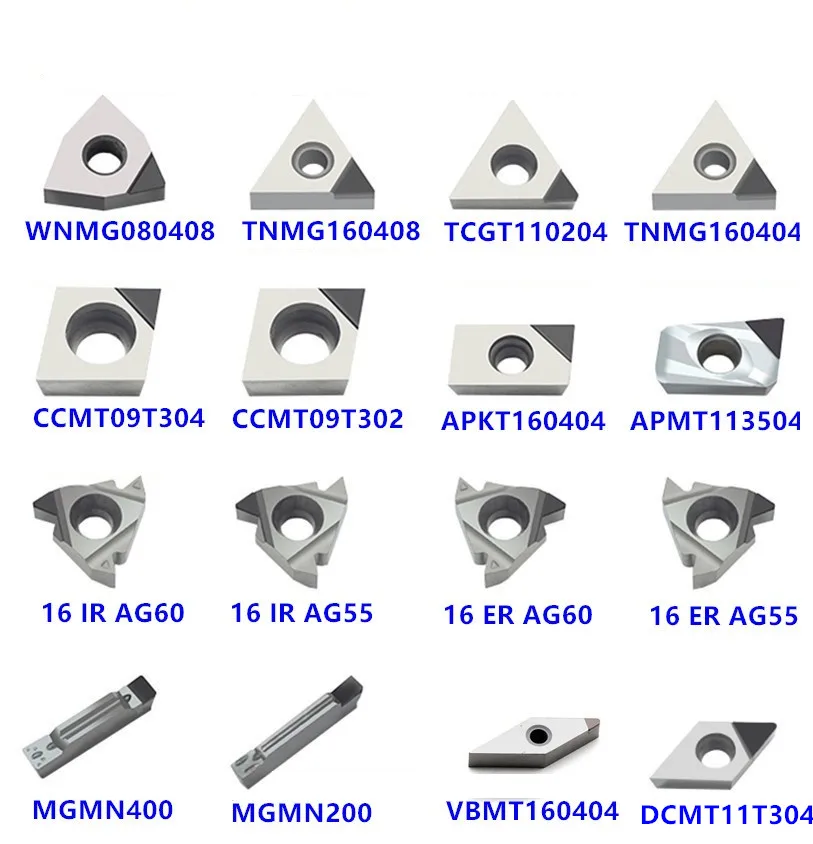

PCD CBN INSERT


PCD PCBN parameters

















































































PCD Recommended Cutting Condition



Work piece



Cutting Speed



Depth of Cut



Feed Rate



(m/min)



(mm)



(mm/rev)



Aluminum(5~8% SI )



350~1600



0.05~2.50



0.10~0.40



Aluminum(8~12% SI )



350~1300



0.05~2.50



0.10~0.40



Aluminum(14~18% SI )



160~800



0.05~2.50



0.05~0.25



Copper



350~1000



0.15~2.50



0.05~0.20



Sintered Carbid



15~25



0.05~0.60



0.10~0.20



Glass Fiber



100~800



0.15~0.50



0.03~0.25



Carbon



160~700



0.15~2.50



0.15~0.40



High Aluminum



70~250



0.05~1.50



0.03~0.15



Ceramics



Wood



1000-2500



0.2~5.0



010~0.50

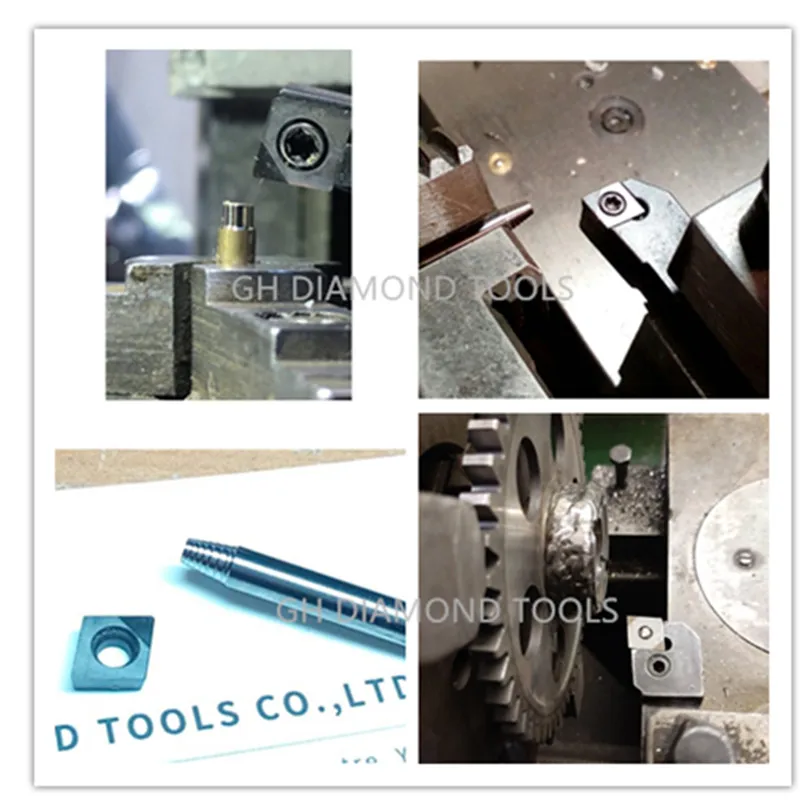

pcd cbn insert processing














0301






Company Information


 ._


GH Diamond Tools Co., LTD specializes PCD (polycrystalline diamond) and PCBN (polycrystalline cubic boron nitride) tools.



Main Products:   PCD insert,PCBN Inserts,PCBN &PCD Turning and Milling Tools.PCD woodworking cutter ,Diamond Wire Drawing Die Blanks. Diamond Glass Scribing Wheel And axle.



We could maketools in accordance with your drawing or specifications.





We serve from start to finish
