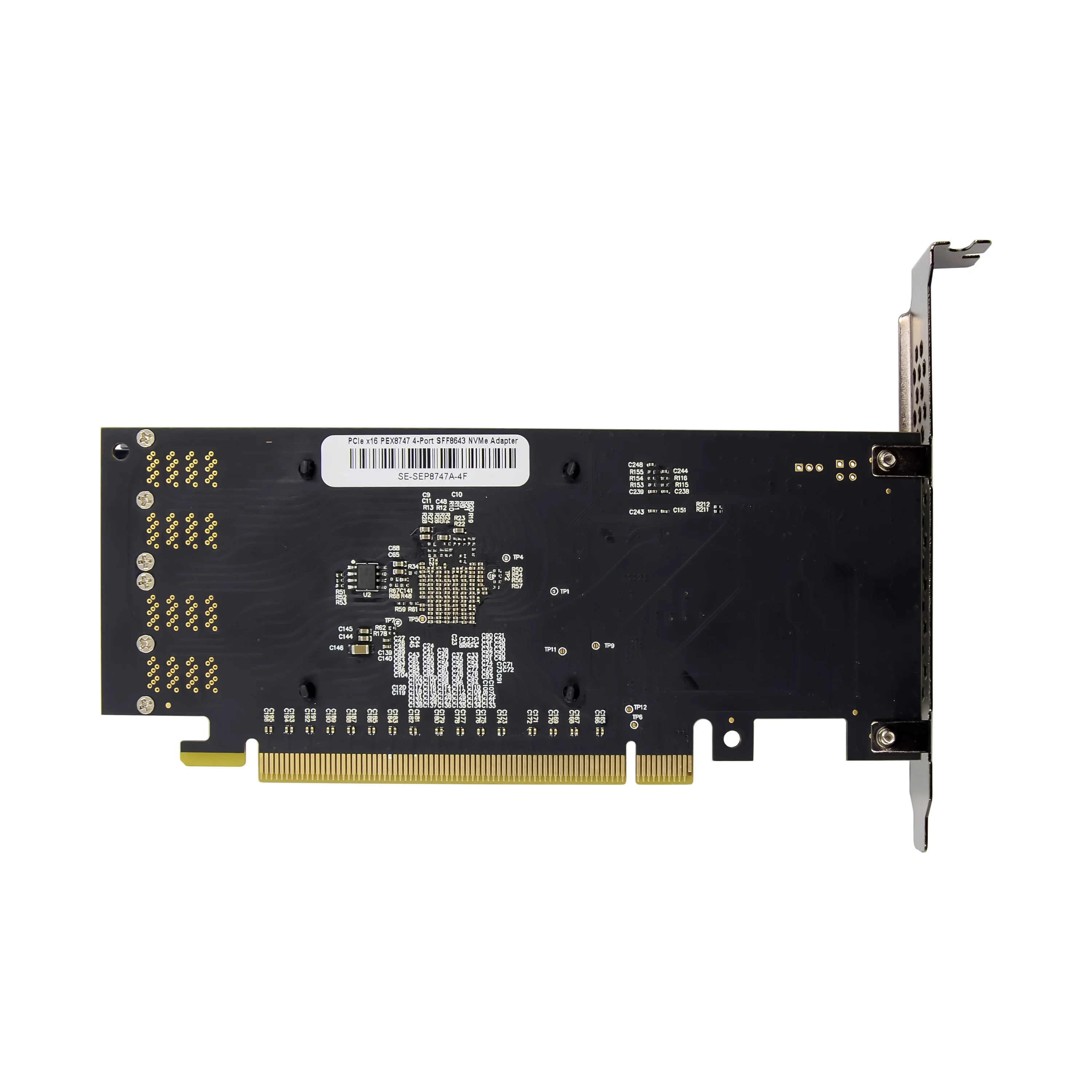

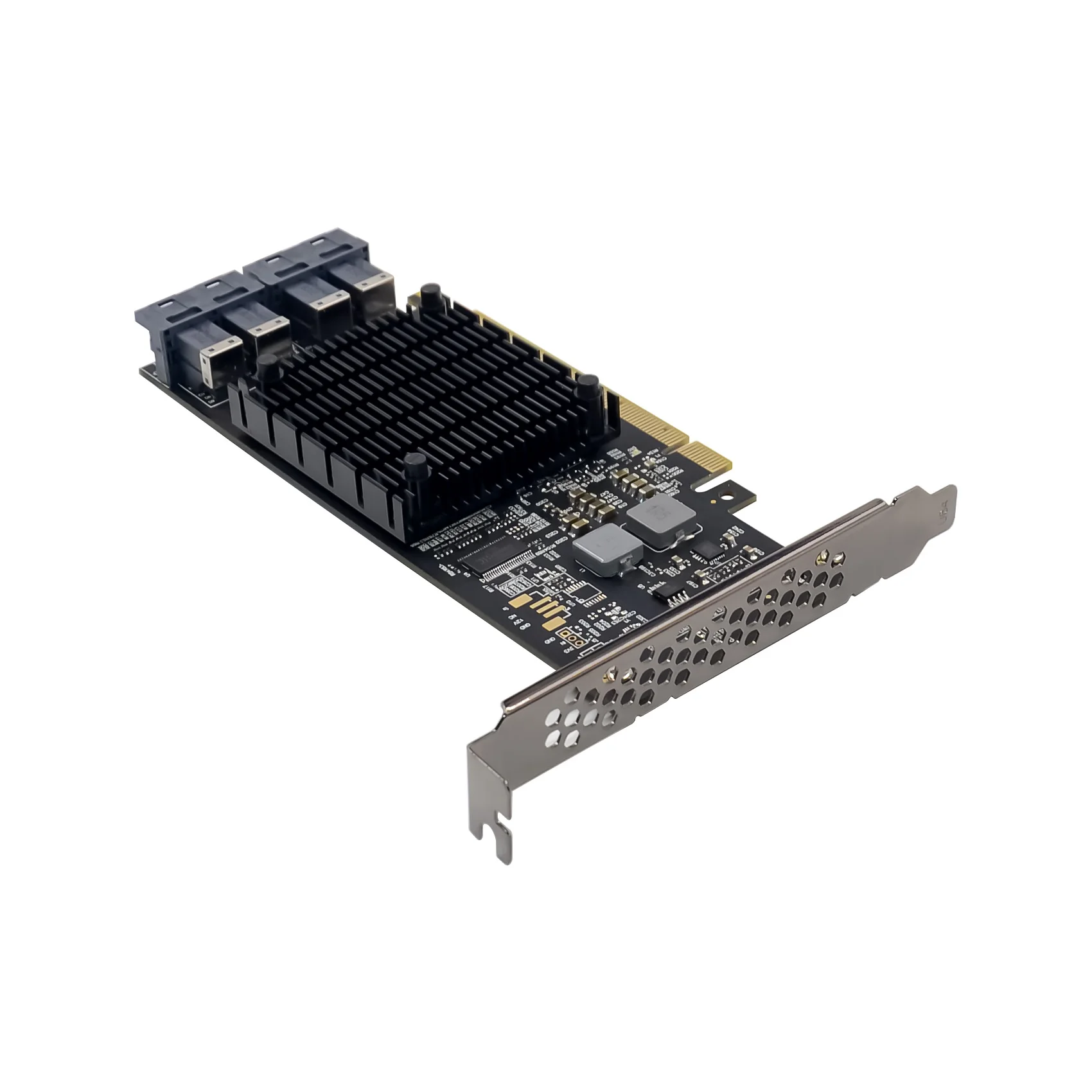

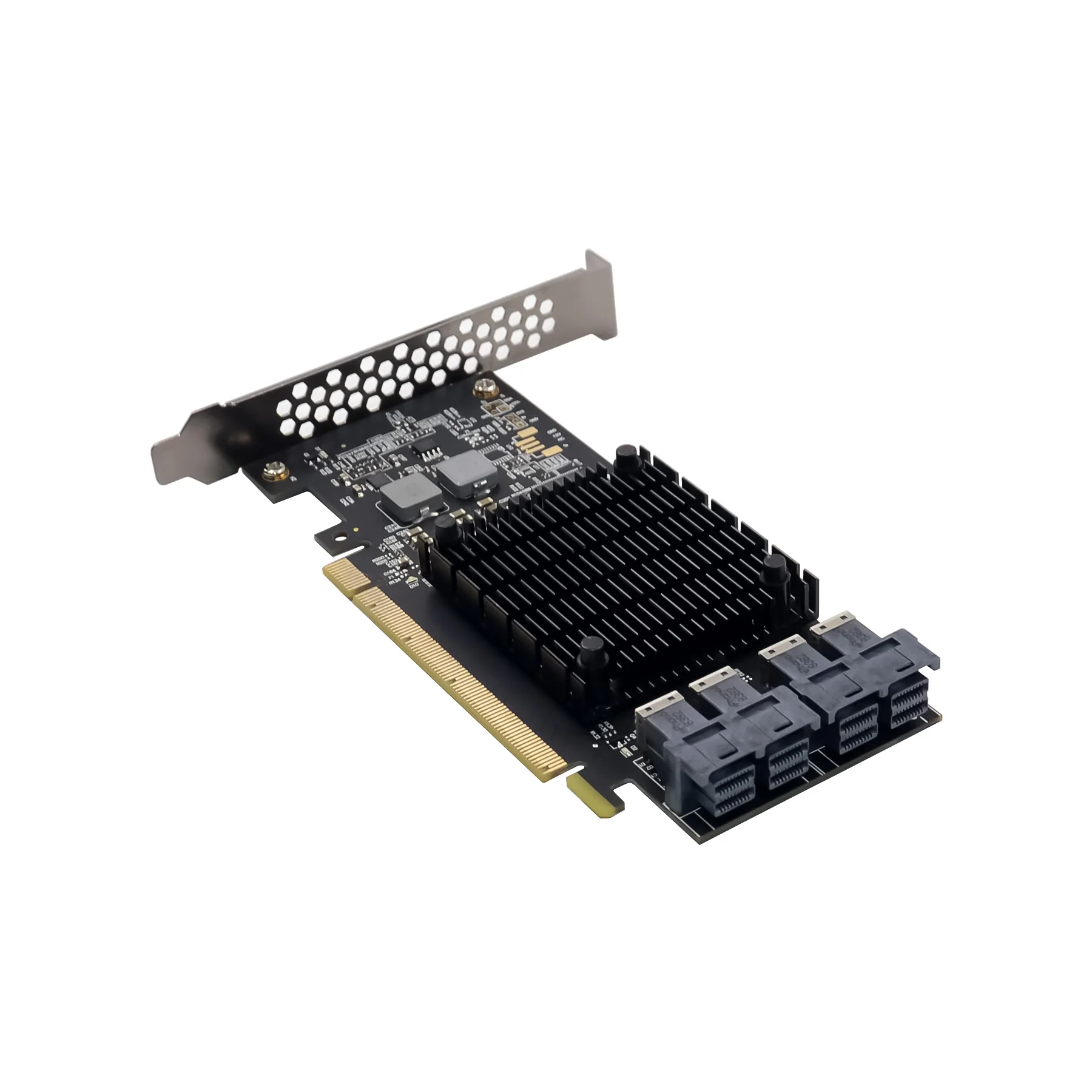

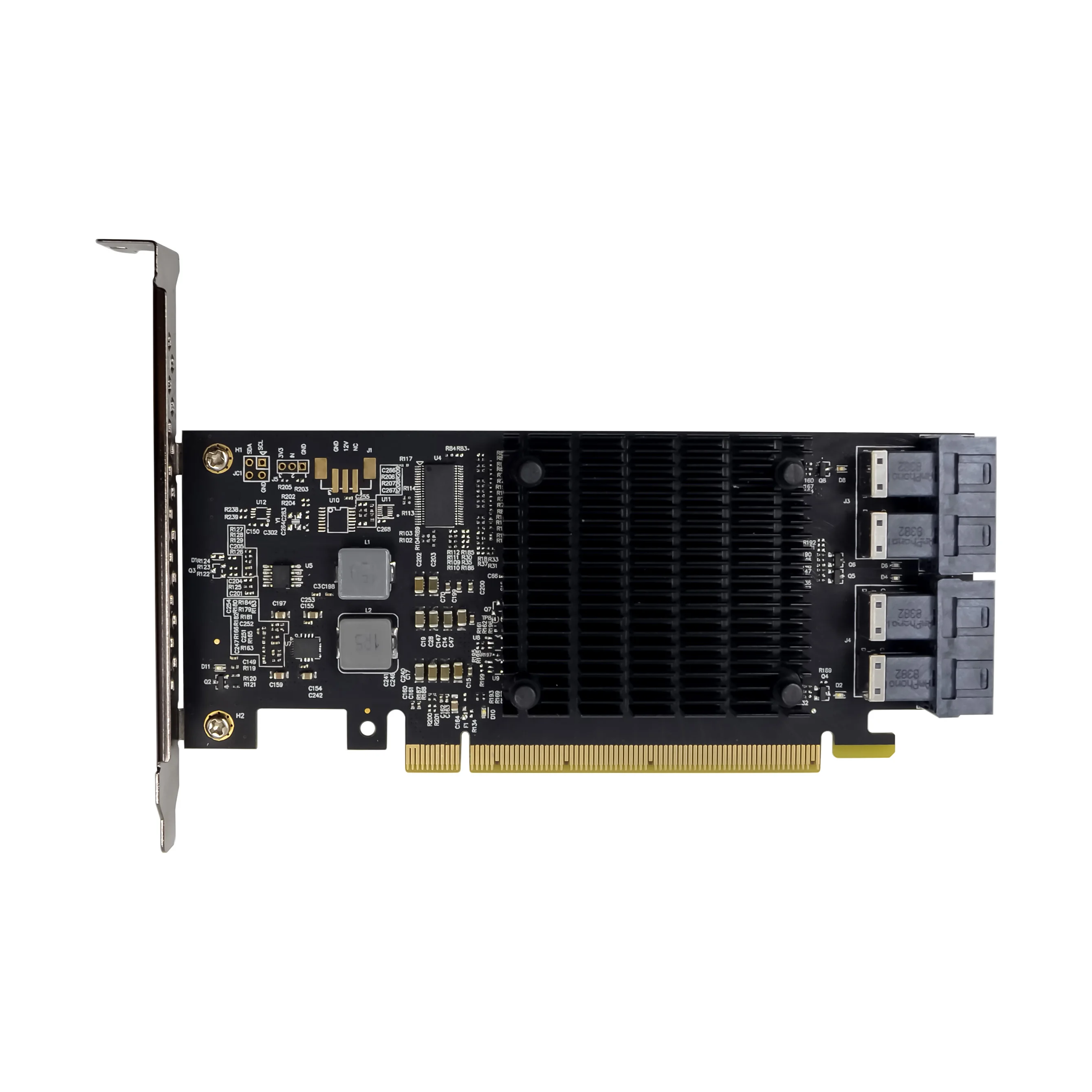

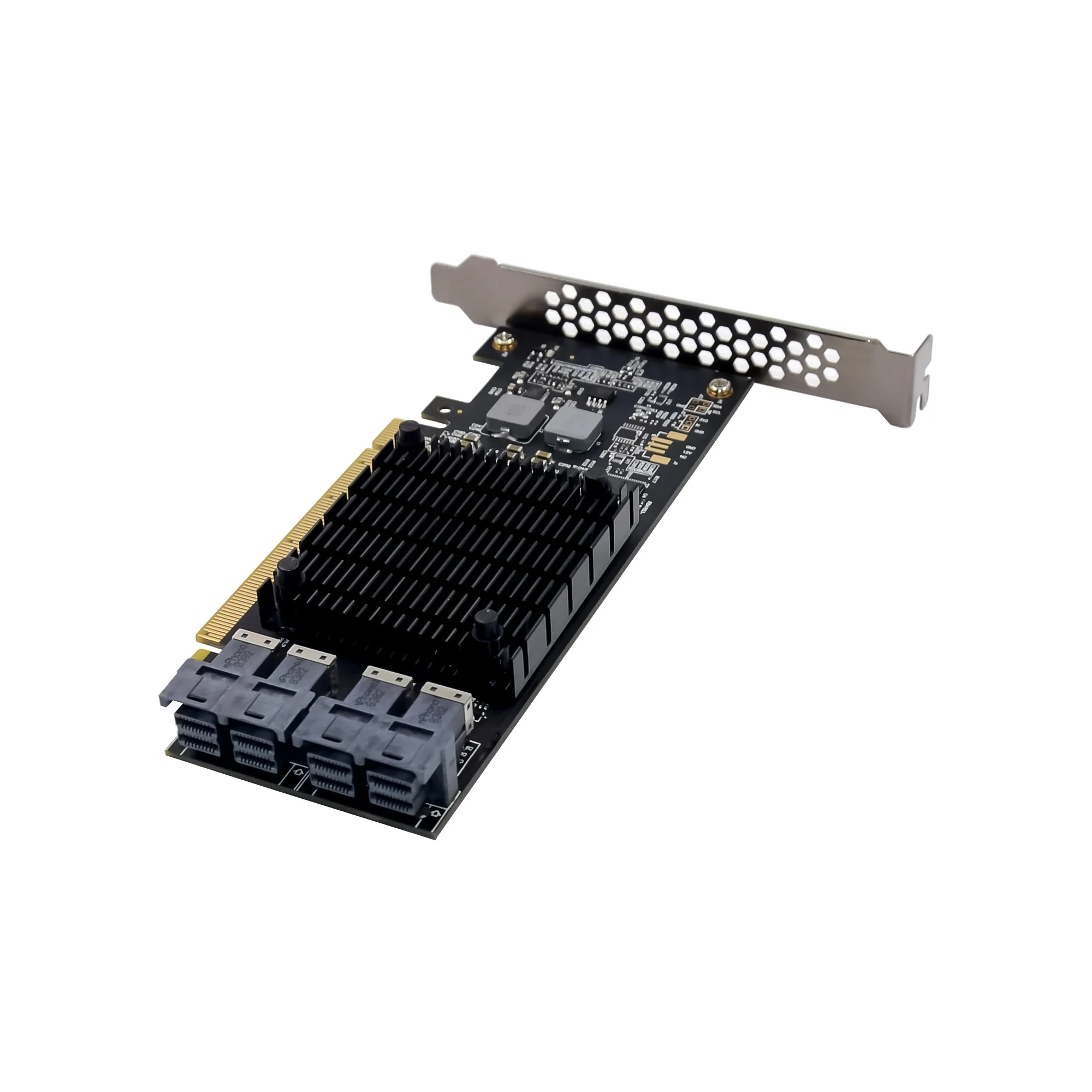

ST583 PCIe X16 PEX8747 U.2 4 Ports SFF8643 SSD NVMe Card Expansion device Adapter 32GB/s

The ExpressLane™ PEX 8747 device offers Multi-Host PCI Express
switching capability enabling users to connect a host to its respective
endpoints via scalable, high bandwidth, non-blocking interconnection
to a variety of graphics applications. The PEX 8747 is optimized to
support high-resolution graphics while supporting peer-to-peer traffic
and multicast for maximum performance
Specification

* PEX 8747 General Features
o 48-lane, 5-port PCIe Gen 3 switch
- Integrate 8.0 GT/s SerDes d
o 27 x 27mm2, 676-pin FCBGA package
o Typical Power: 8.0 Watts

PEX 8747 Key Features
o St ndards Compliant a
- PCI Express Base Specification, r3.0
(compatible w/ PCIe r1.0a/1.1 & 2.0)
- PCI Power Management Spec, r1.2
- Microsoft Vista Compliant
- Supports Access Control Services
- Dynamic link-width control
- Dynamic SerDes speed control
o Hi Performance gh
♦ performancePAK
-Read Pacing (bandwidth throttling)
-Multicast
-Dynamic Buffer/FC Credit Pool
- Non-blocking switch fabric
- Full line rate on all ports
- Packet Cut-Thru with 100ns max packet
latency (x16 to x16)
- 2KB Max Payload Size

o Flexible Configuration
- Ports configurable as x8 or x16
- Registers configurable with strapping
pins, EEPROM, I2C, or host software
- Lane and polarity reversal
- Compatible with PCIe 1.0a PM
o Quality of Service (QoS)
- Eight traffic classes per port
- Weighted round-robin source
port arbitration

o Reliability, Availability, Serviceability
♦ visionPAK
-- Per Port Performance Monitoring
-- Per port payload & header counters
-- SerDes Eye Capture
-- PCIe Packet Generator
-- Error Injection and Loopback
- All ports hot plug capable thru I2C
(Hot Plug Controller on every port)
- ECRC and Poison bit support
- Data Path parity
- Memory (RAM) Error Correction
- INTA# and FATAL_ERR# signals
- Advanced Error Reporting
- Port Status bits and GPIO available
• Per port error diagnostics
- JTAG AC/DC boundary scan

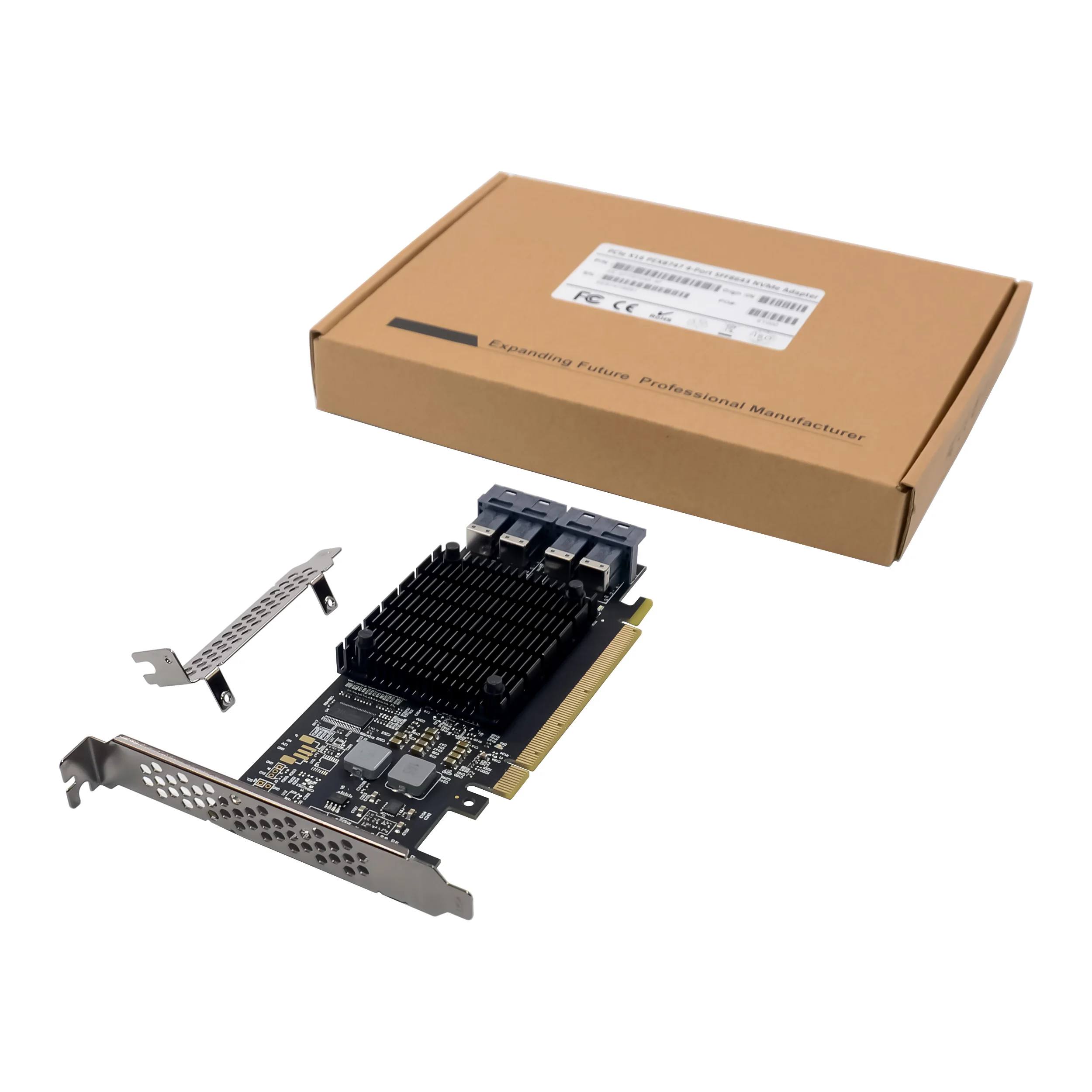

Package content

1 x PCIe x16 PEX8747 4-Port SFF8643 adapter
* 1 x User’s Manual
* 1 x Low profile bracket

System Requirements

* Linux kernel3.17 or above, MAC OSX, Vmware, FreeBSD,Win7,Win Server2008,Win8,Win8.1,Win Server2012,Win10,Win Server2016 32 or 64bit
* One available PCI Express x8/x16 slot
