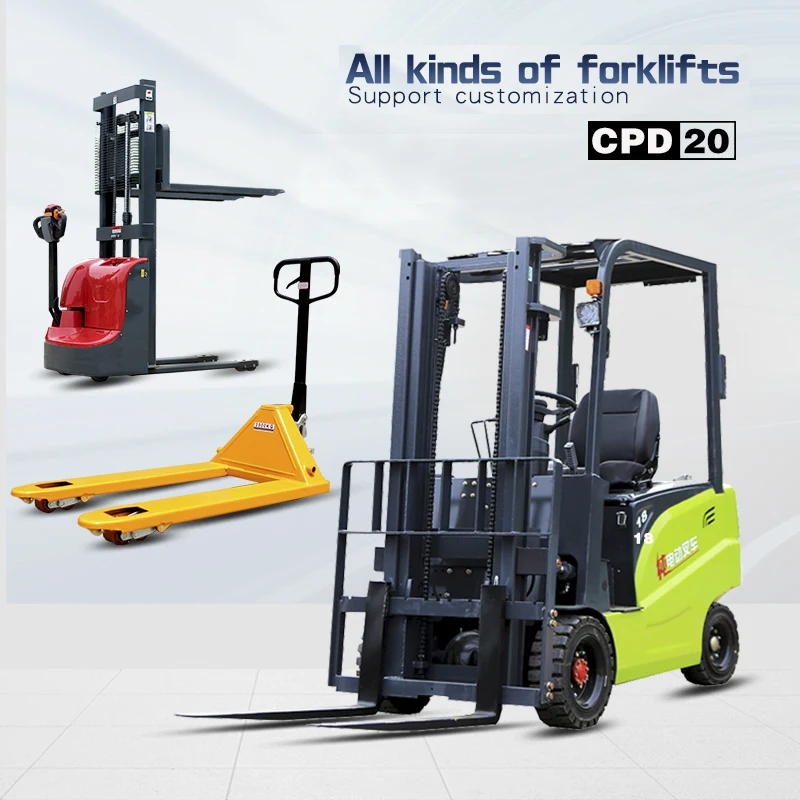

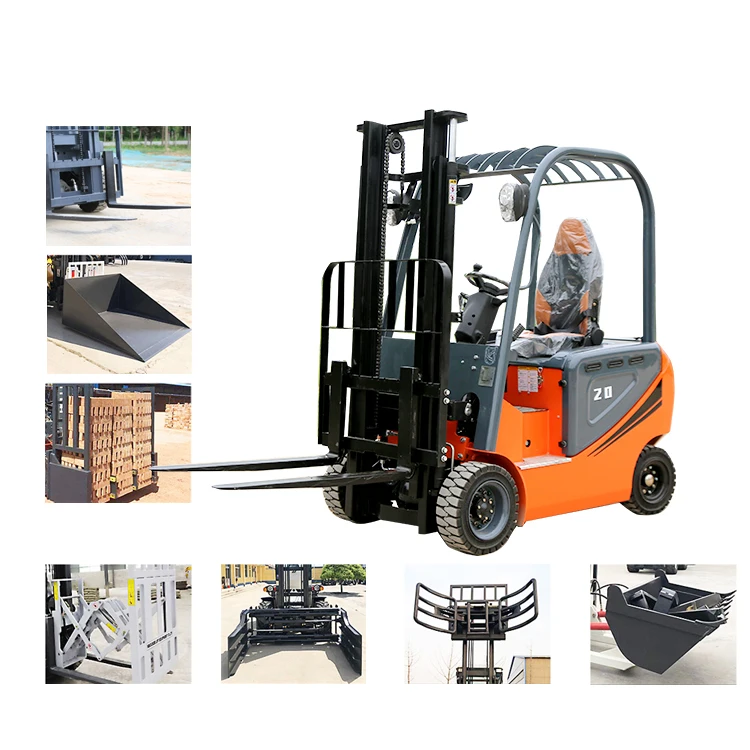

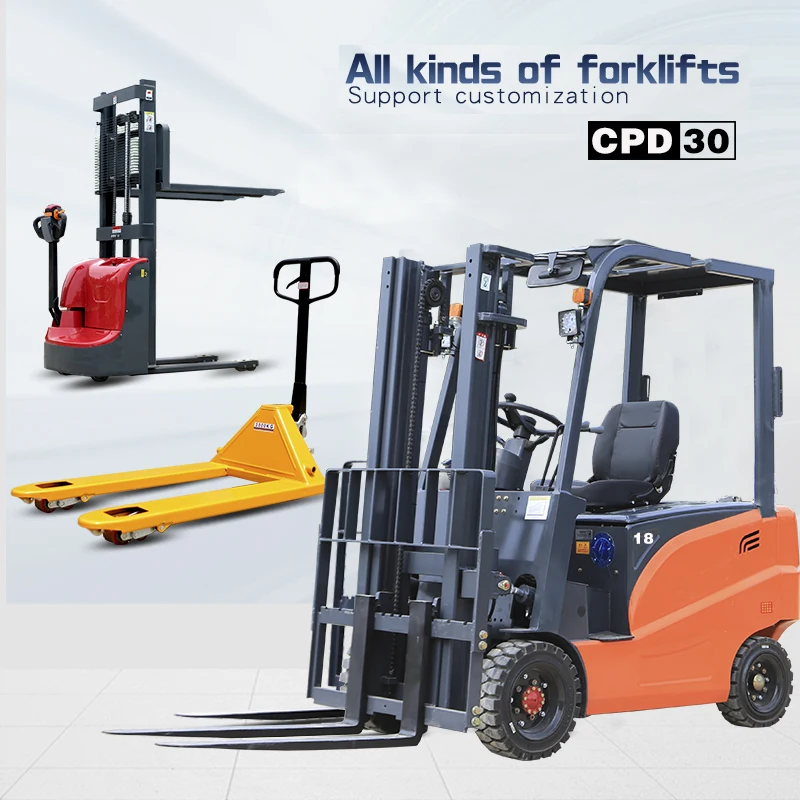

1.8ton New Battery Hydraulic Forklift Truck Stackused Electric Forklift With Attachment
- Category: >>>
- Supplier: Shanding Machinery (Shandong) Group Co. Ltd.
Share on (1600440726640):
Product Overview
Description
Multi-site work, green and environmental protection
Everyone who bought it is buying these
All products can be customized
Distance from seat surface to roof guard L3 | mm | 970 | ||
Wheelbase L4 | mm | 1020 | ||
Front overhang Y | mm | 320 | ||
Overhang L5 | mm | 315 | ||
Front track R | mm | 840 | ||
Rear track P | mm | 740 | ||
Min.ground clearance F | mm | 110 | ||
Standard lifting height H | mm | 3000 | ||
Free lift height H4 | mm | 80 | ||
Fork adjustment range S | mm | 840/200 | ||
Min. turning radius (outside) WA | mm | 1600 | ||
Min.right angle channel width RA | mm | 3120 | ||
Mast angle (front/rear) α/β | （°） | 6/12 | ||
Max.lifting speed without load | mm/s | 250 | ||
Max. lifting speed with full load | mm/s | 220 | ||
Max. operating speed without load | Km/h | 12 | ||
Max.operating speed with full load | 11 | |||
Max. gradeability with full load | % | 15 | ||
Whole machine weight under standard no-load condition | Kg | 1650 | ||
Number of wheels = drive wheel / steering wheel | 2/2 | |||
Tyre type (front/rear) | Solid tire | |||
Tire size (front) | 15×4 1/2-8 | |||
Tire size (rear) | 3.50-5 | |||
Brakes/service brakes | Hydraulic·Pedal | |||
Parking brake | Mechanical/Manual | |||
Battery voltage/capacity | V/Ah | 48V/100 | ||
Drive motor power | Kw | 4 | ||
Oil pump motor power | Kw | 4 | ||
Product advantages：
1.The vehicle has a low center of gravity, good stability and a comfortable driver. Adjustable small-diameter steering wheel, the driver feels good, the seat can be adjusted back and forth 150mm range, the operator can choose the best driving position;
2.The damping buffer oil system, the falling speed is automatically slowed down, so that the goods and pallets do not hit the ground, effective Protect the cargo and the ground;
3.The wide-view frame is not easy to block the operator's line of sight. The size of the fork frame is increased and the field of view is wide.
4.The steering bridge and the frame joint are shock-damped, and the vehicle vibration is reduced by 30%.
5.The sealing parts at the key parts of the cylinder adopt NOK imported parts, the sealing is reliable and the quality is stable.
6.All hoisting gantry pipes are equipped with explosion-proof safety valves to ensure safety during lifting of heavy objects;
7.Fully hydraulic power steering mechanism, flexible and light to turn;
8.High-mounted rear-end combination lamp, high-level signal light, high visibility, longer working life of LED indicator light, reliable operation;
9.The intake muffler is used to suppress the intake pulse by expanding and interfering with the airflow, thereby reducing the intake noise.
2.The damping buffer oil system, the falling speed is automatically slowed down, so that the goods and pallets do not hit the ground, effective Protect the cargo and the ground;
3.The wide-view frame is not easy to block the operator's line of sight. The size of the fork frame is increased and the field of view is wide.
4.The steering bridge and the frame joint are shock-damped, and the vehicle vibration is reduced by 30%.
5.The sealing parts at the key parts of the cylinder adopt NOK imported parts, the sealing is reliable and the quality is stable.
6.All hoisting gantry pipes are equipped with explosion-proof safety valves to ensure safety during lifting of heavy objects;
7.Fully hydraulic power steering mechanism, flexible and light to turn;
8.High-mounted rear-end combination lamp, high-level signal light, high visibility, longer working life of LED indicator light, reliable operation;
9.The intake muffler is used to suppress the intake pulse by expanding and interfering with the airflow, thereby reducing the intake noise.
Details Images
FAQ
Q: Are you a trader or a manufacturer?
A. Our pure factory, the factory is located in Dezhou City, Shandong Province, and the sales department is located in Jinan City.
Q. Compared with other trading companies/processors, what are our advantages?
A.1) Reliable quality: spare parts such as engines, bridges, transmissions, etc. are carefully selected from regular manufacturers, and many self-designed and produced parts are always selected from the best materials
A.2) Fast delivery: Under normal circumstances, we can deliver the goods at the factory within 7 working days after receiving the advance payment from the customer.
Q: What payment terms can we accept?
A.1) Usually we can handle T/T or L/C.
Q: Can we provide OEM service?
A. Customized products can be provided according to customer requirements, OEM and ODM are both acceptable.
A. Our pure factory, the factory is located in Dezhou City, Shandong Province, and the sales department is located in Jinan City.
Q. Compared with other trading companies/processors, what are our advantages?
A.1) Reliable quality: spare parts such as engines, bridges, transmissions, etc. are carefully selected from regular manufacturers, and many self-designed and produced parts are always selected from the best materials
A.2) Fast delivery: Under normal circumstances, we can deliver the goods at the factory within 7 working days after receiving the advance payment from the customer.
Q: What payment terms can we accept?
A.1) Usually we can handle T/T or L/C.
Q: Can we provide OEM service?
A. Customized products can be provided according to customer requirements, OEM and ODM are both acceptable.
