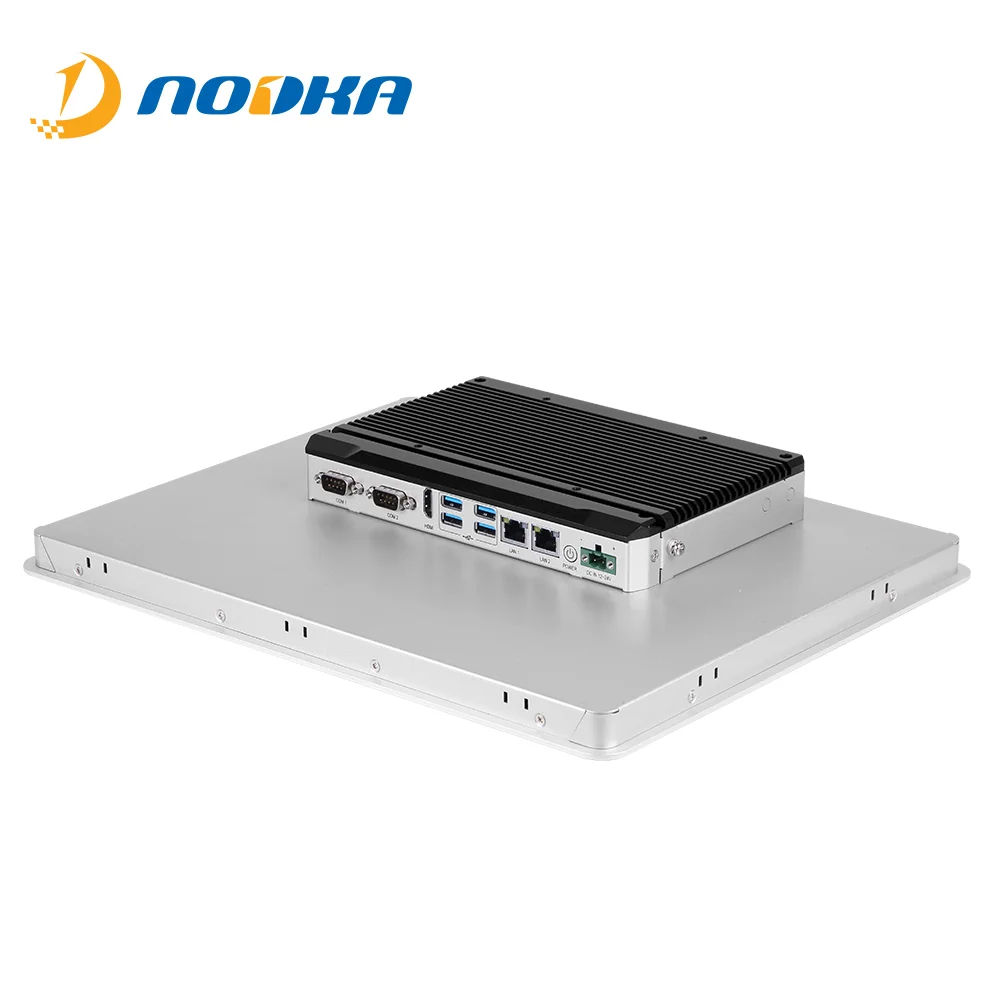

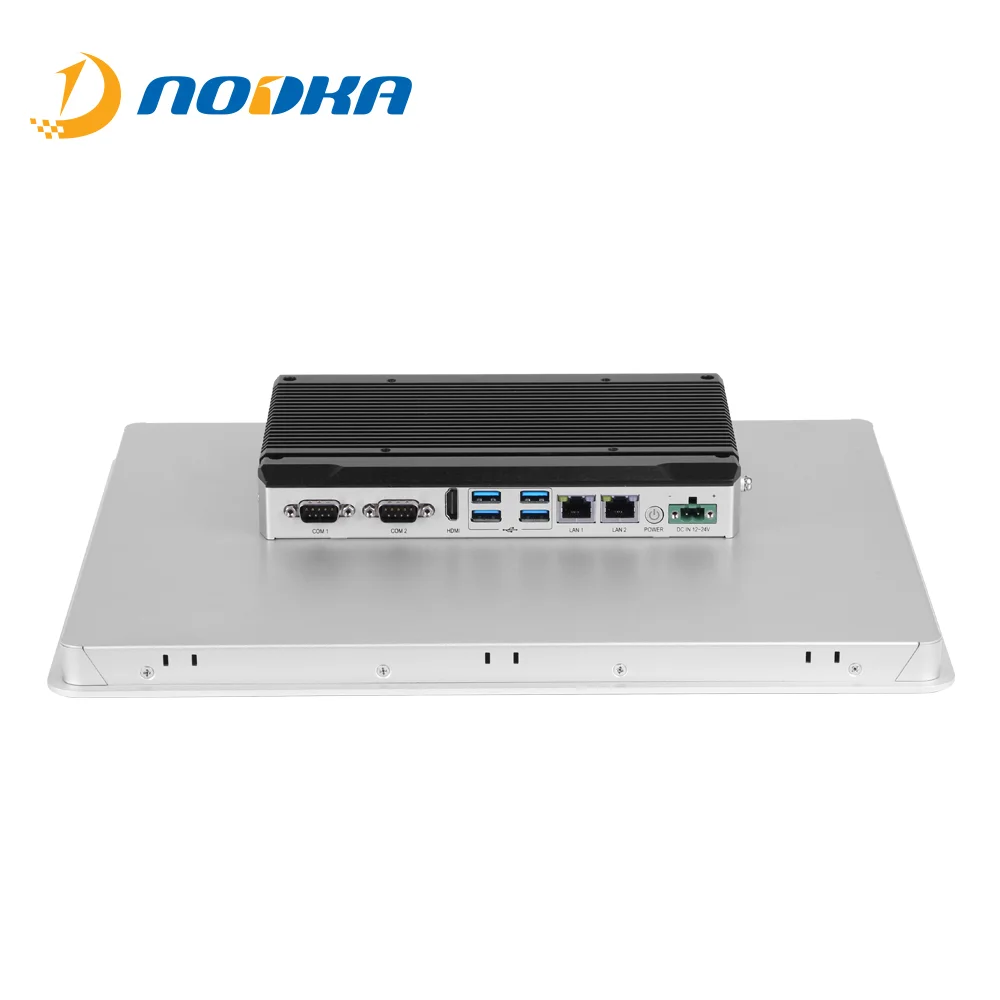

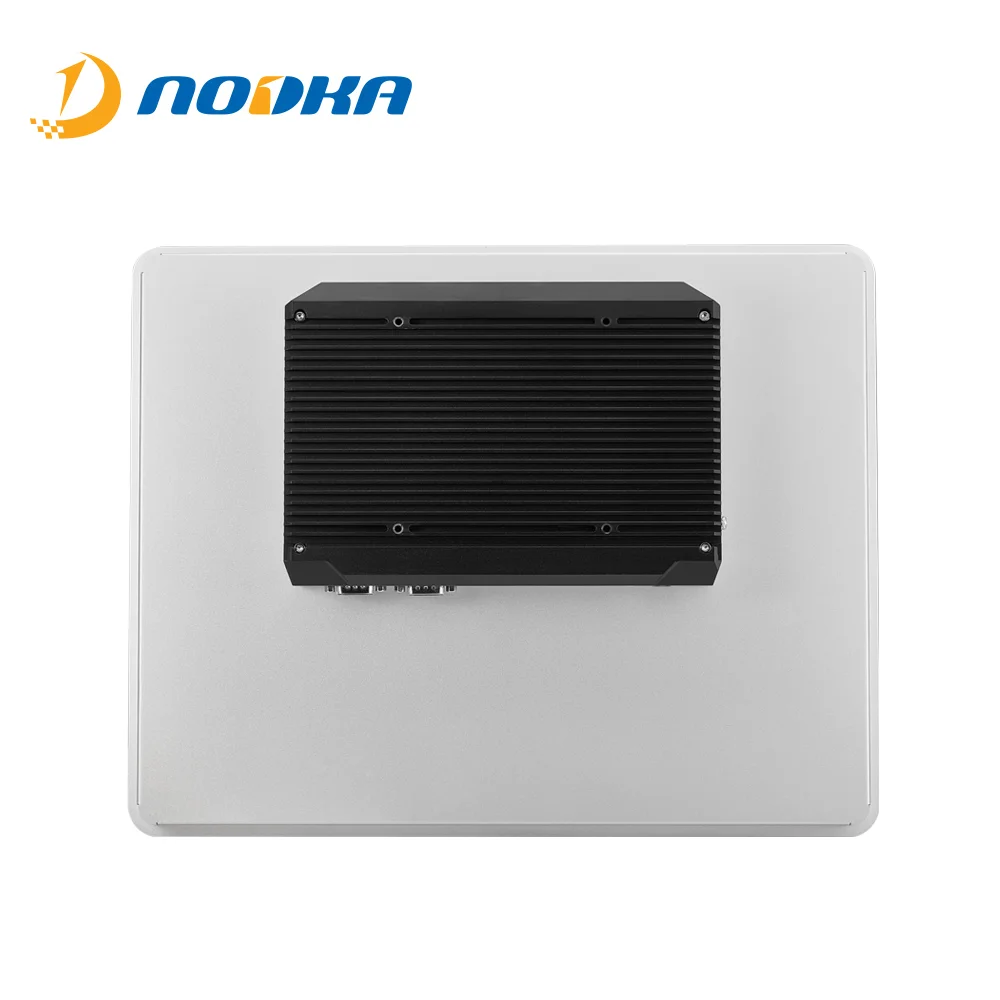

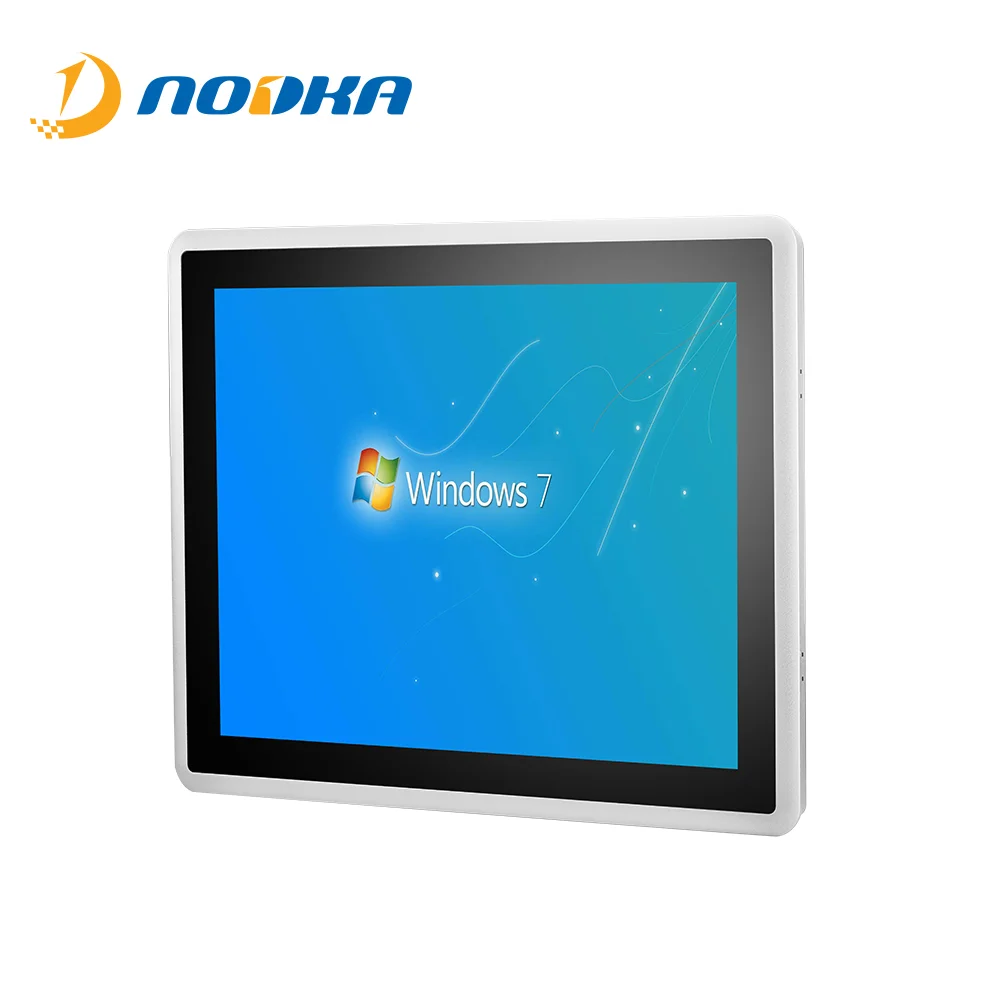

Compact design 15 inch Touch Screen Fanless 2lan tablet PC
Compact design 15 inch Touch Screen Fanless 2lan tablet PC
Compact design 15 inch Touch Screen Fanless 2lan tablet PC
Compact design 15 inch Touch Screen Fanless 2lan tablet PC
Compact design 15 inch Touch Screen Fanless 2lan tablet PC
Compact design 15 inch Touch Screen Fanless 2lan tablet PC
Compact design 15 inch Touch Screen Fanless 2lan tablet PC

Compact design 15 inch Touch Screen Fanless 2lan tablet PC

Share on (1600440734067):


Price:

Quantity:


Product Overview

Description



Products Description


System
CPU
Celeron J1900／i5-7200U
Memory
DDR3L-1333MHz, up to 8GB
DIMM
1 x 204-pin SODIMM
Storage
1x mini SATA
COM
2 x RS232/RS485
LAN
2 x In-tel i211AT Gbe LAN controller
USB
1 x USB3.0, 3x USB2.0
Mini PCIe
1 x mini PCIe slot ( option 3G/4G with SIM holder, WIFI)
OS
Windows 7, Windows8, Windows10, Linux
Voltage  Input
12~24VDC ±10%
Maximum Power Consumption
38.6W
Mounting
VESA mounting, Panel mounting
Dimensions(LxWxH)
368mm x 292mm x 55mm
Cabinet hole size
358mm x 282mm (W x H)
Net Weight
3.98kg
Work Temperature
-10~50°C(Wide temperature SSD)
Storage Temperature
-20~70°C
Relative humidity
10~95%(Non condensation)
Shake
SSD applied:1.5Grms, IEC60068-2-64, random,5~500 Hz, 1 hr/axis
Shock
SSD applied:10G, IEC60068-2-64, Half-sine wave, 11ms duration
EMC
CE/FCC Class B
Water-proof
Front panel IP65
LCD Type
15" TFT, 1024x768
Colors
16.7MB
Active Area
304.13mm x 228.10mm
Backlight
LED
MTBF
30000hours
Pixel Pitch (H x V)
0.297 x 0.97mm
Luminance
420cd/m2
Contrast Ratio
800:1
Viewing Angle
(L) 80 / (R) 80 / (T) 60 / (B) 80
Touch Screen type
Multi-points Capacitive touch screen
Transmittance
>87%
Controller interface
USB
Driver support
Win7,Win8,Win10,Linux

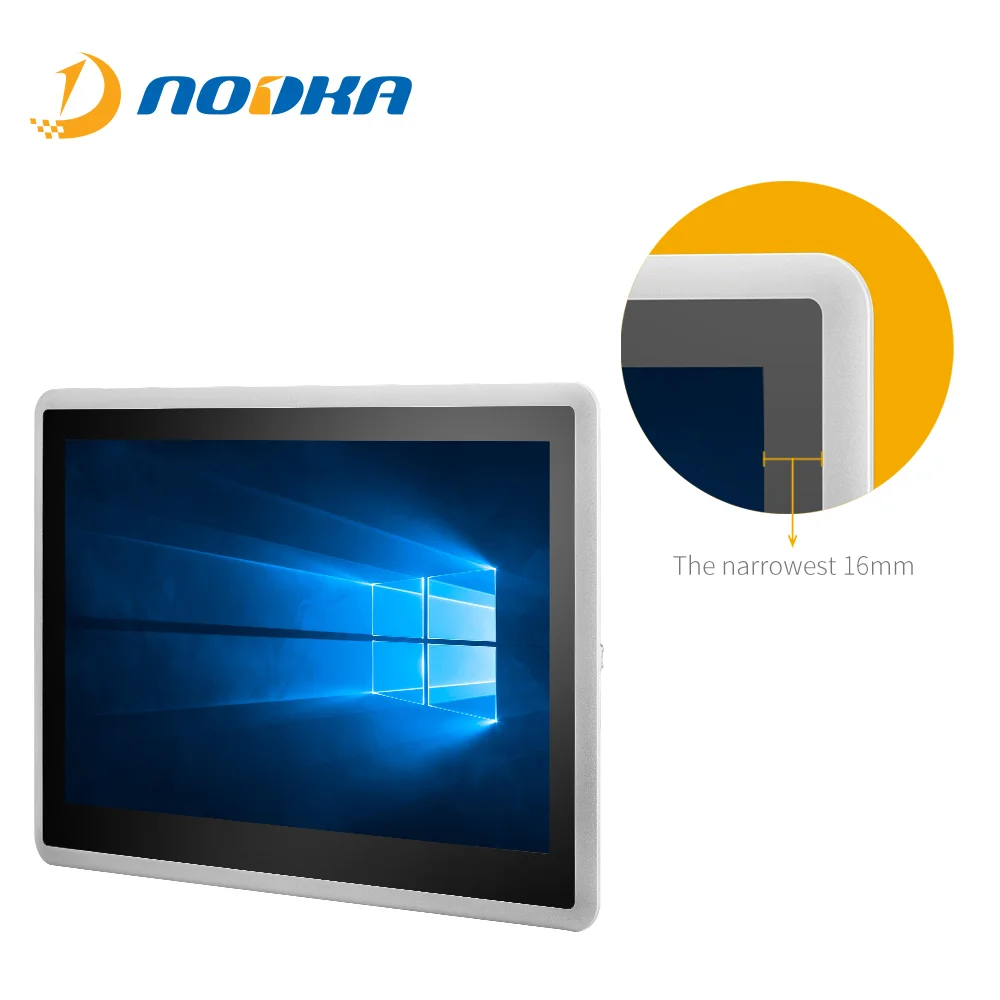

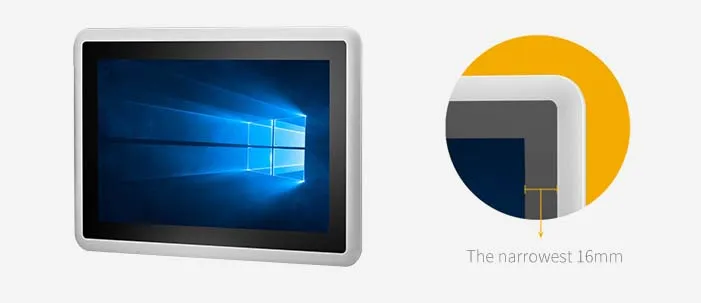

Die-casting and Ultra-thin design for front panel, without any LOGO, IP65 water proof.
333


Module Design

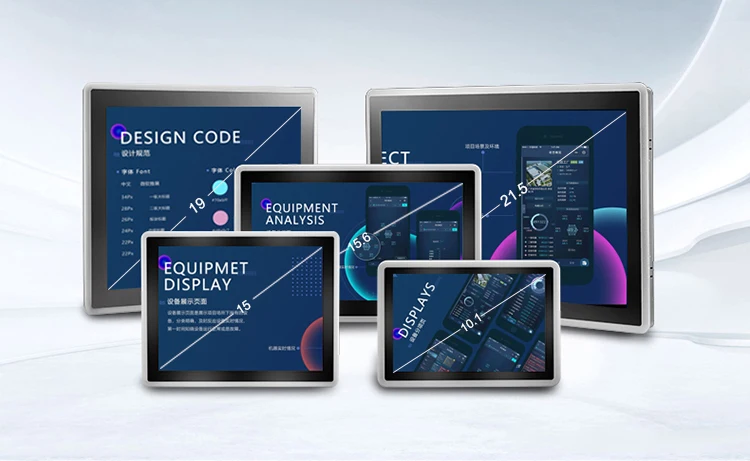

The same back box for each size.

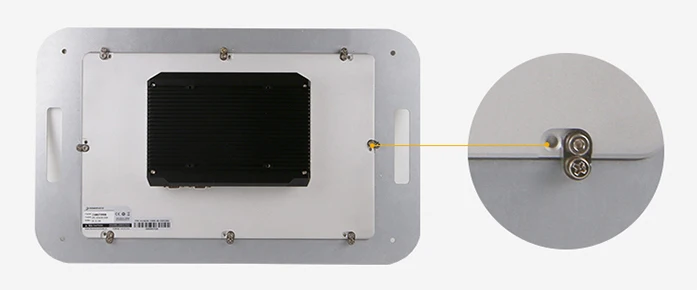

New design of the mounting block, lock and unlock so easy.

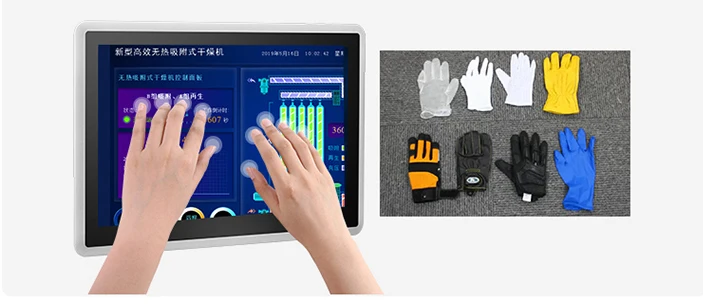

Capacitive Multi-touch screen, various gloves are available.



COMLAC Inside design.

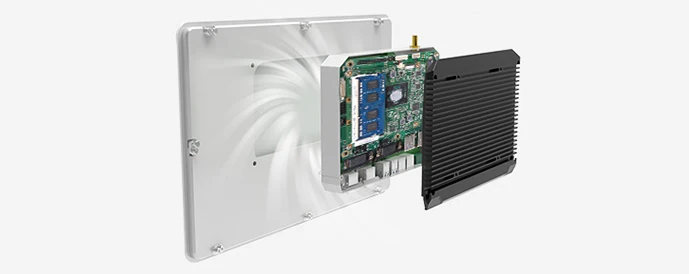

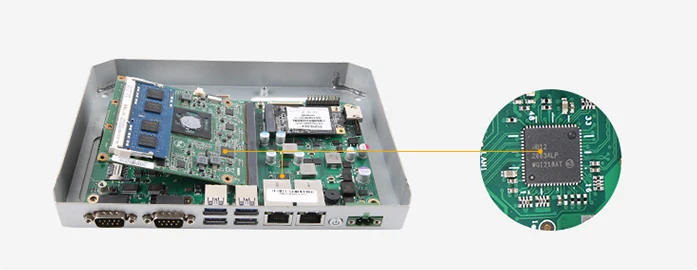

Separate Courier board and CPU module, it is convenient for CPU upgrade.

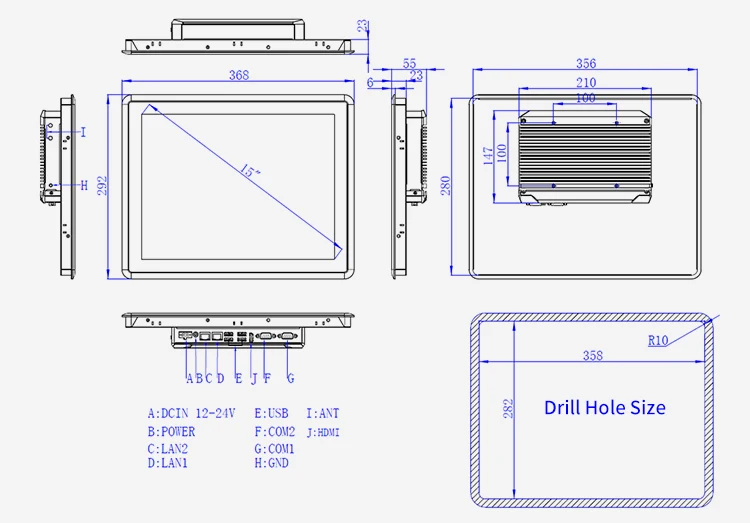

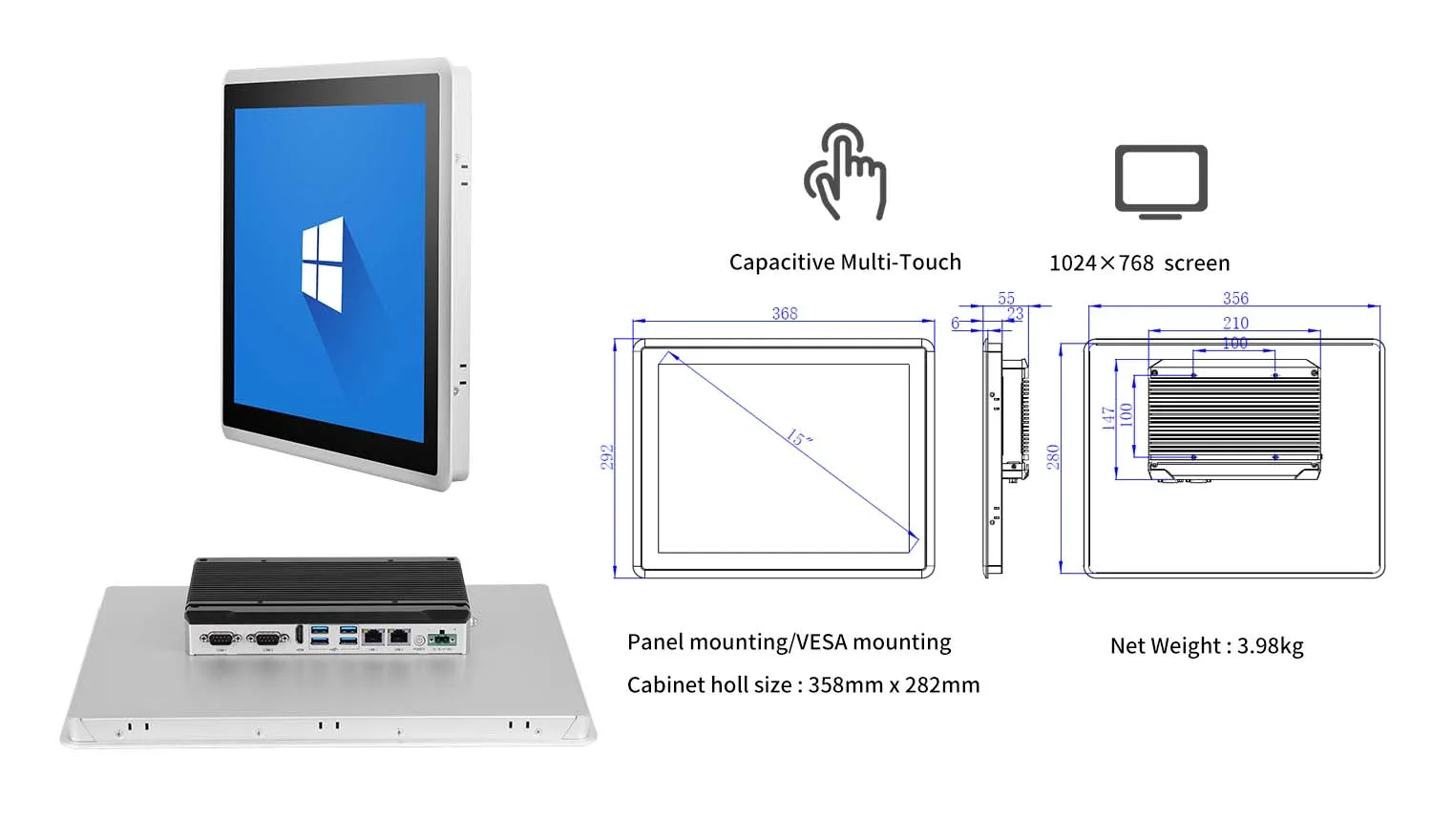

Dimensions




Ordering Information


Model Name
Specification
iTPC-H1502-J1900
15"LCD/Intel J1900 2.0GHz Quad core CPU / 2*RS232 (option RS485)/ 2*LAN /1*USB3.0/ 3*USB2.0/ Capacitive Touch/ Resolution
1024*768/DC12V-24V input
iTPC-H1502-SL7200U
15"LCD/Intel I5-7200U 2.5GHz Dual core CPU / 2*RS232 (option RS485)/ 2*LAN /1*USB3.0/ 3*USB2.0/ Capacitive Touch/ Resolution
1024*768/DC12V-24V input
