CE Certified Skid Steer Loader with EPA T4/Euro 5 Emission Standards & Rated load of 830 kg | Brand New Chinese Mini Loader
- Category: >>>
- Supplier: Qingdao Weitai Intelligent Equipment Co. Ltd.
Share on (1600440745215):
Product Overview
Description
PRODUCT OVERVIEW

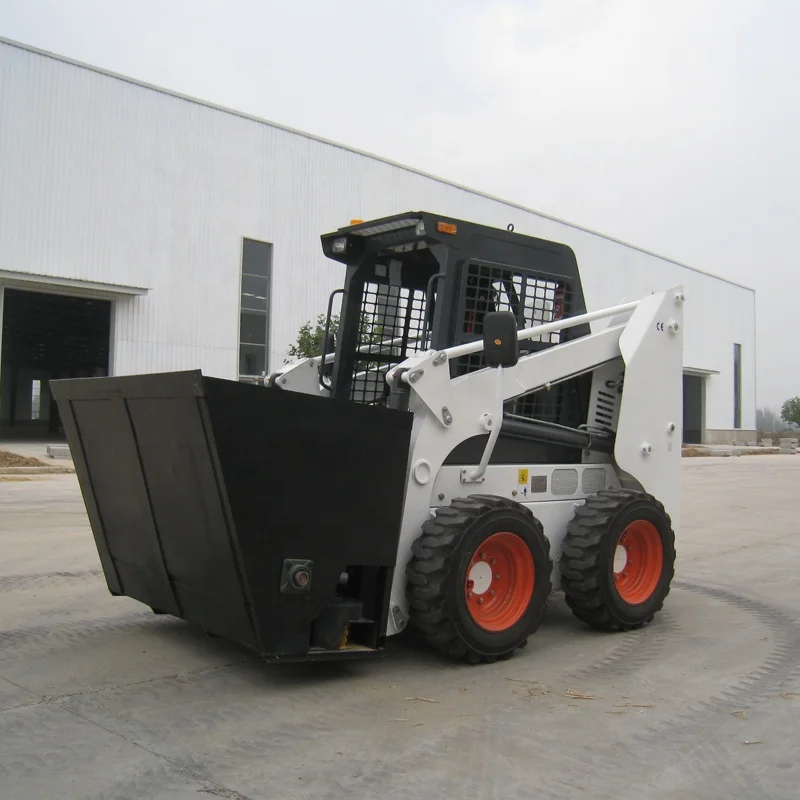

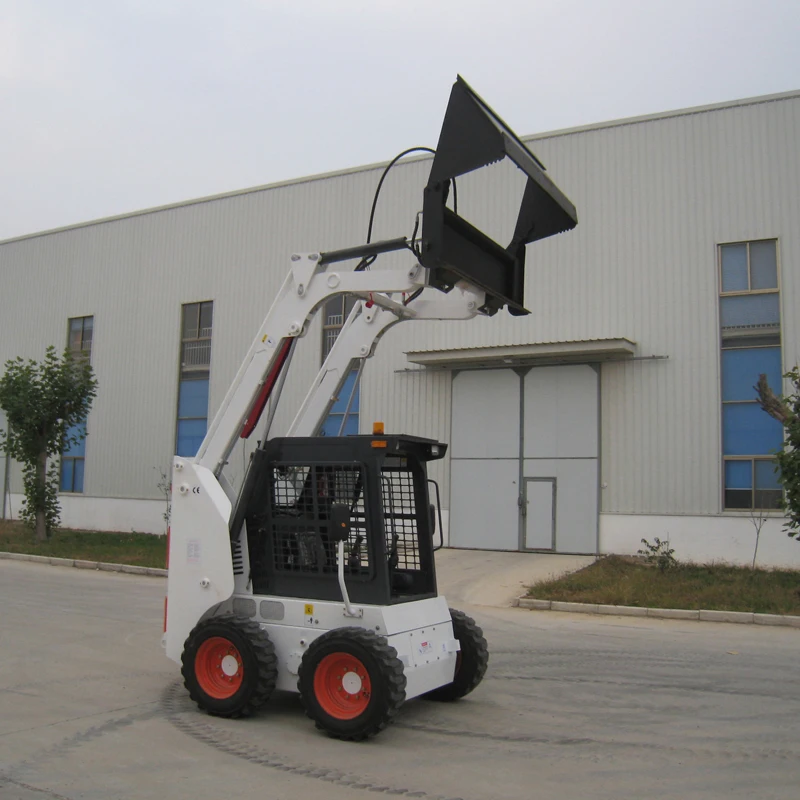

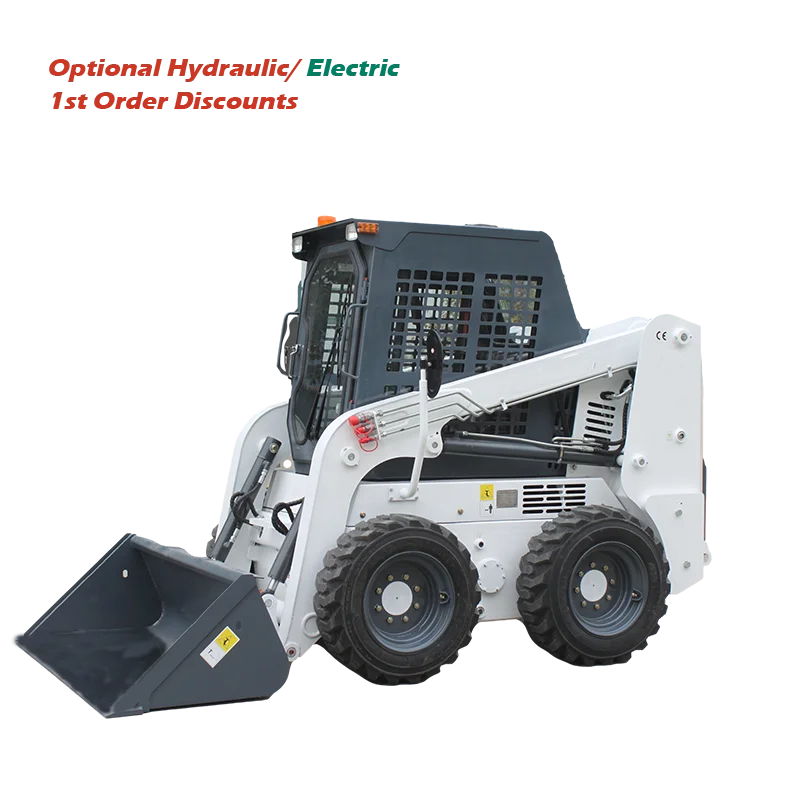

WSL 830 Skid Steer Loader
· 830 kg. rated load capacity
· Danfoss piston pump & Poclain/Rexroth drive motor (optional)
· Compatible with Bobcat attachments
· Air conditioning (optional)
FEATURES AT A GLANCE
· EPA T4 or EURO V Engine (optional)
60-65 HP (45-48 KW)
· Powerful Danfoss Hydraulic System
· Advanced Structure
· Automatic Bucket Leveling
· Advanced Structure
· Automatic Bucket Leveling

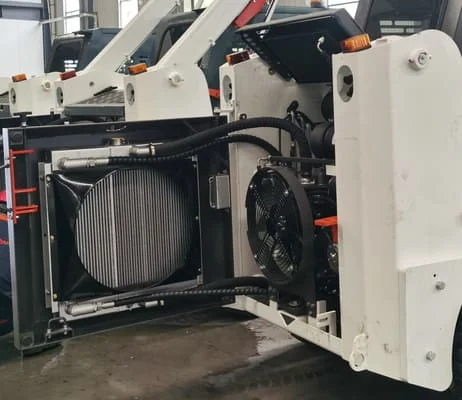

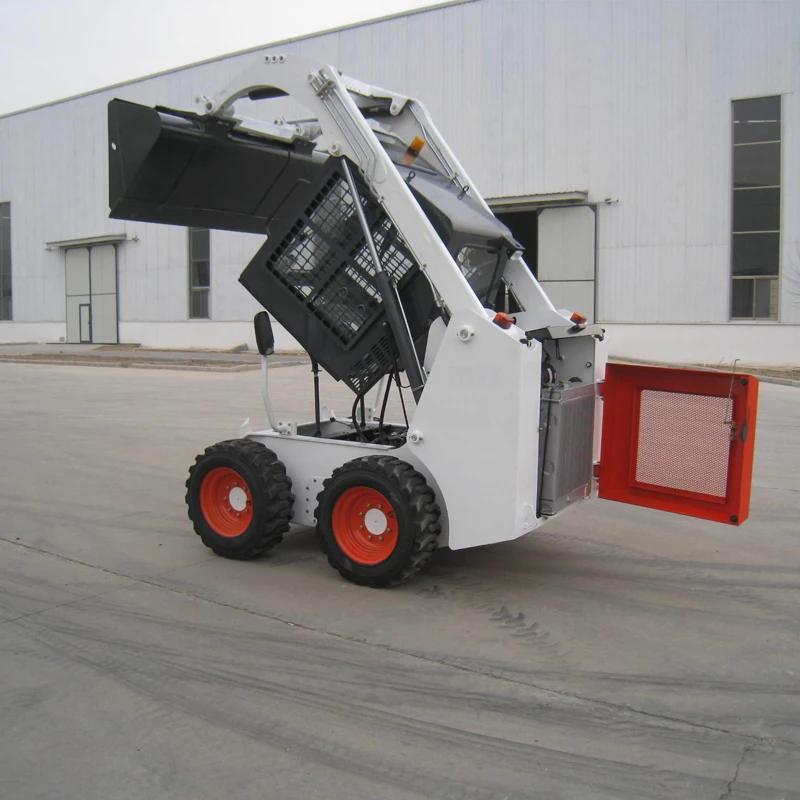

· Easy Maintenance
· Simple Control
· Various Attachments
· Simple Control
· Various Attachments
Hydraulic Servo operation
Full electric control is an option.
PRODUCT CONFIGURATION
PERFORMANCE | UNIT | WSL 830 |
Rated Operating Capacity | kg | 830 |
Rated Power | KW | 45-48 |
Operating Capacity | kg | 1660 |
Operating Weight | kg | 3100 |
Bucket Volume | m³ | 0.47 |
Travel Speed | km/h | 11.2 |
Fuel Tank Capacity | L | 79 |
Tubeless Tire | 10-16.5 |
Successful Project
Garden Equipment
Road Maintenance
Ranch Equipment

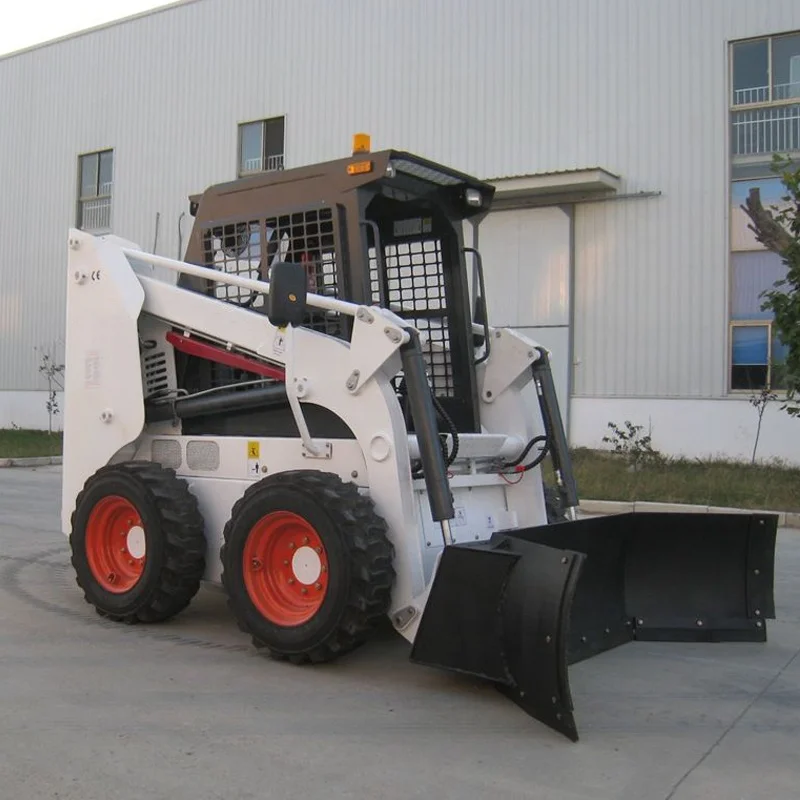

Snow Removal

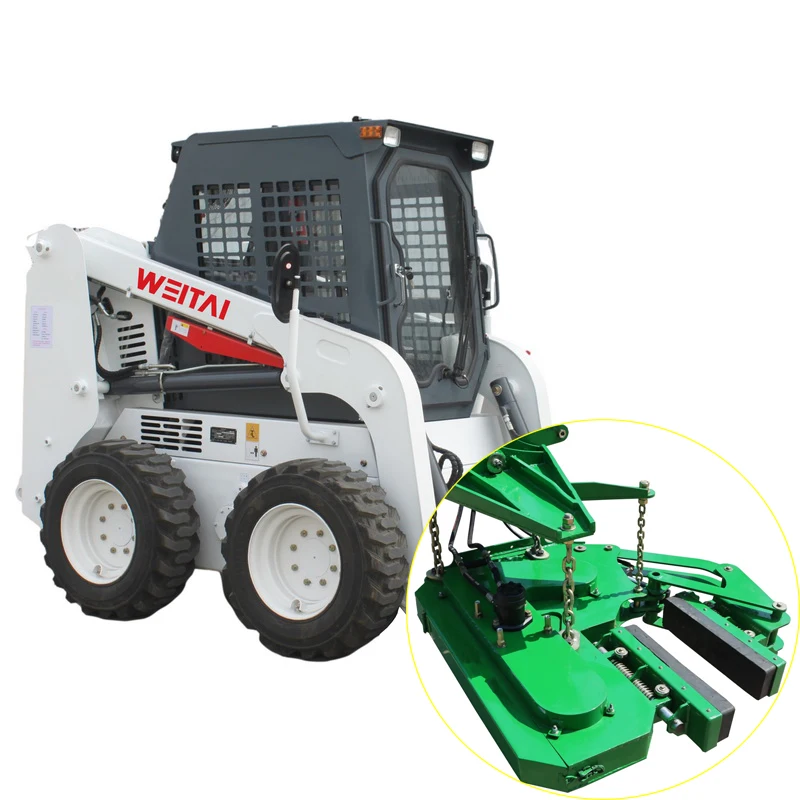

ATTACHMENTS
Standard Bucket Rock Bucket 4-in-1 Bucket Pallet Fork Sweeper Angle Broom Breaker Planer Trencher | Snow Blower Snow Blade Scraper Snow Bucket Auger Backhoe Concrete Mixer Drop Hamrer Tree Spade | Bale Fork Chipper Grapple Landplane Tiller Vibratory Roller Lift Boom Wheel Saw Steel Track |

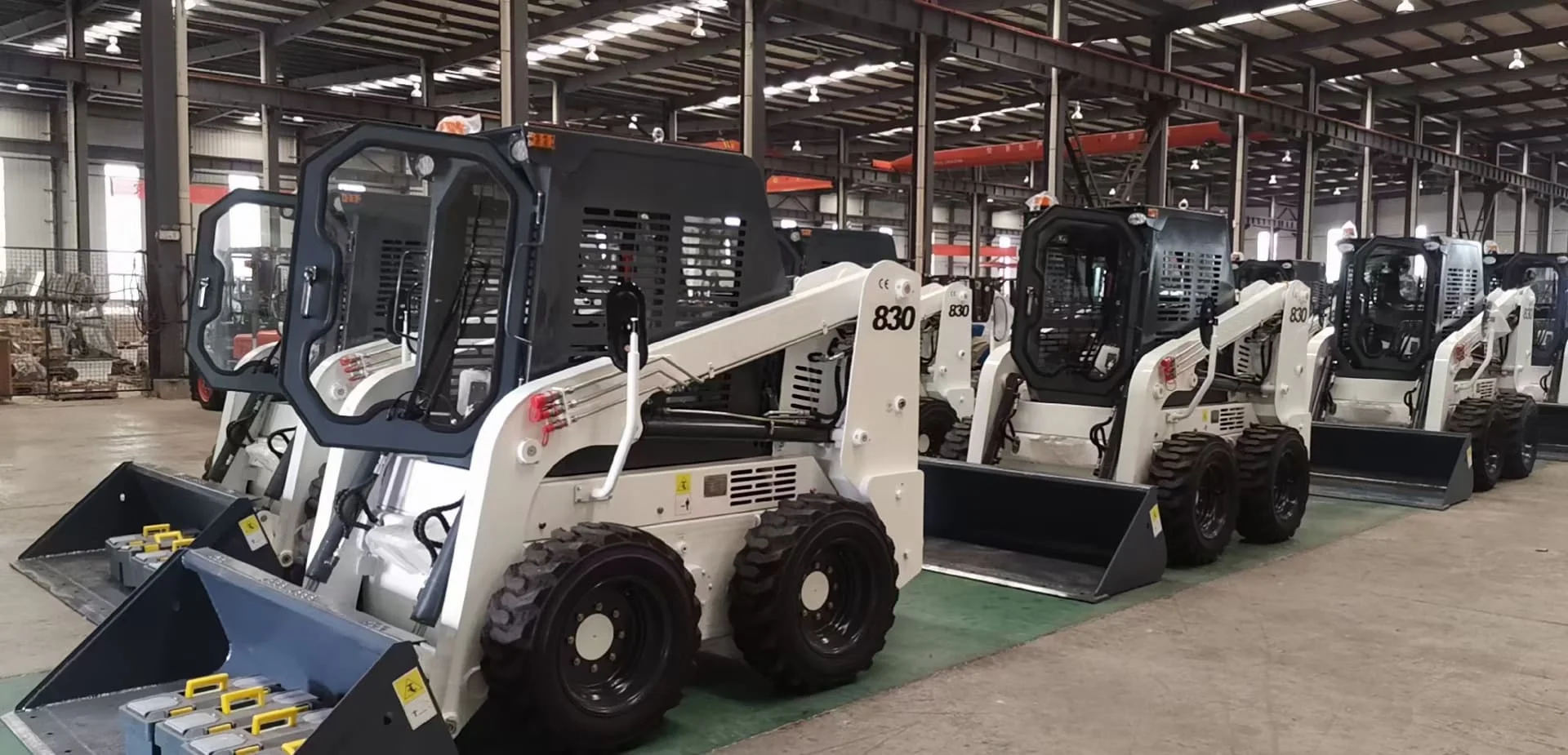

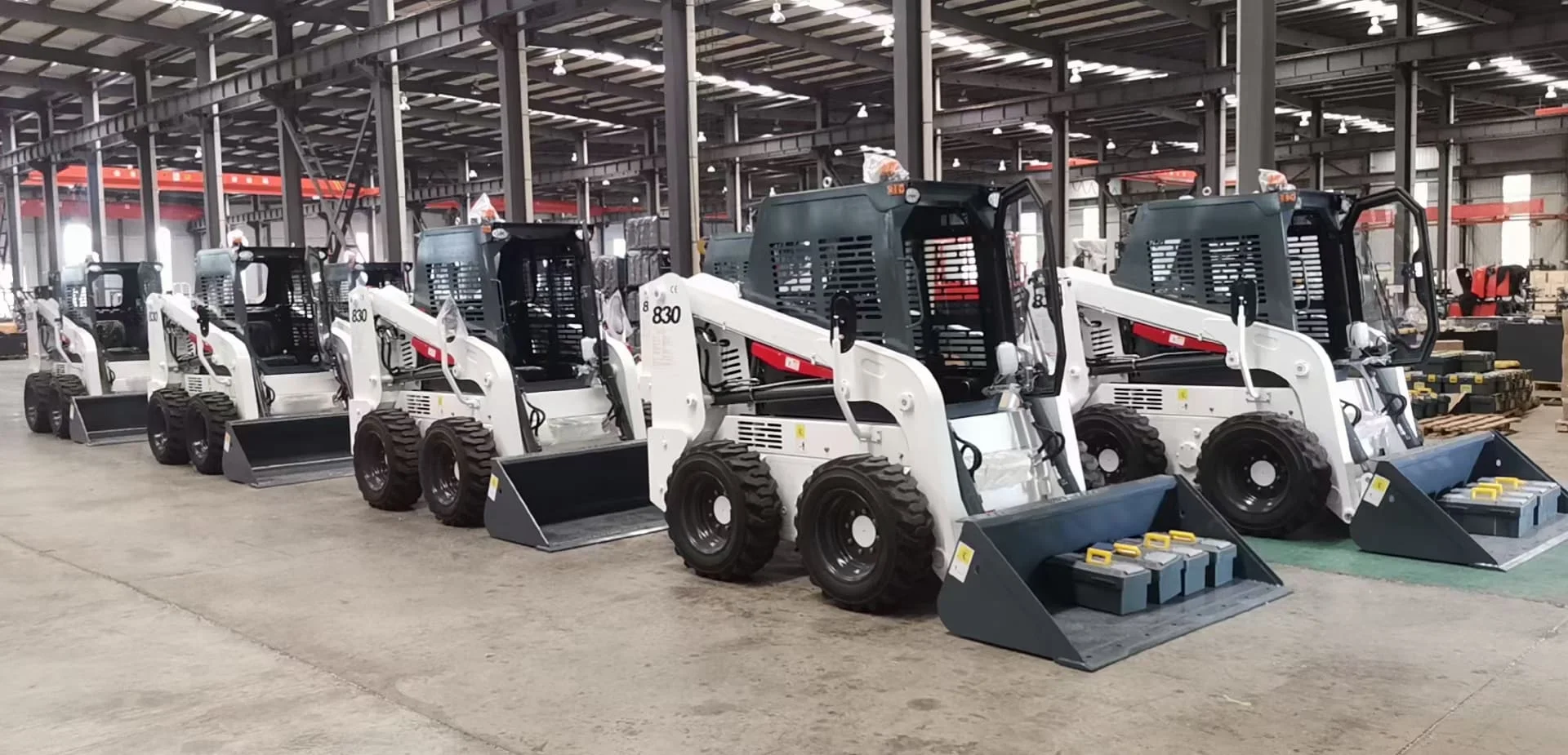

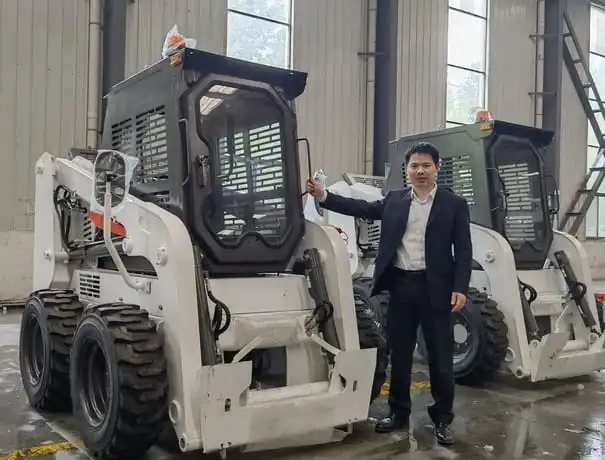

WORKSHOP

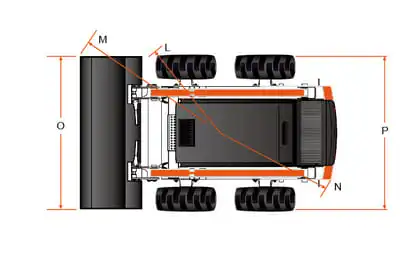

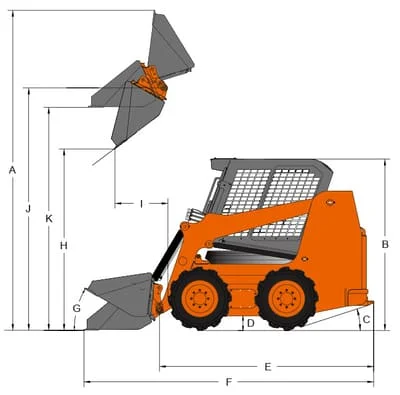

PRODUCT DIMENSIONS
No. | Item | Unit | Data |
A | Operating Height | mm | 3910 |
B | Height with Operator Cab | mm | 2070 |
C | Angle of Departure | ° | 30 |
D | Ground Clearance | mm | 210 |
E | Length without Attachment | mm | 2520 |
F | Length with Standard Bucket | mm | 3350 |
G | Rollback @ Carry Position | ° | 25 |
H | Dump Height with Standard Bucket | mm | 2265 |
I | Dump Reach @ Maximum Height | mm | 660 |
J | Height to Bucket Hinge Pin | mm | 2985 |
K | Height to Bottom of Level Bucket | mm | 2860 |
L | Front Turning Radius without Bucket | mm | 1380 |
M | Front Turning Radius | mm | 2030 |
N | Rear Clearance of Machine | mm | 1530 |
O | Width over Bucket | mm | 1800 |
P | Width with Standard Tire | mm | 1730 |

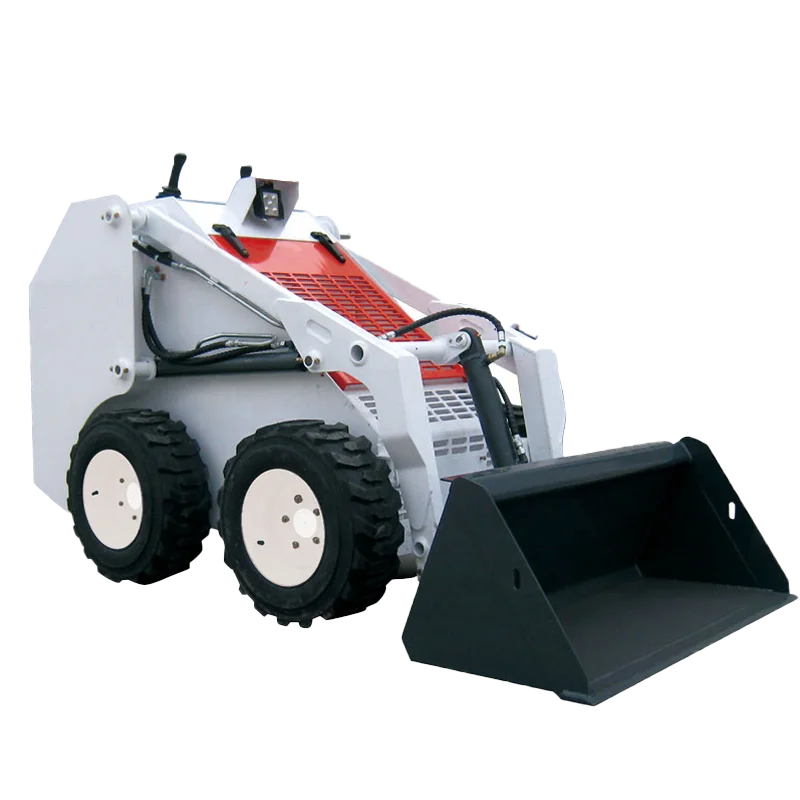

SIMILAR PRODUCTS
