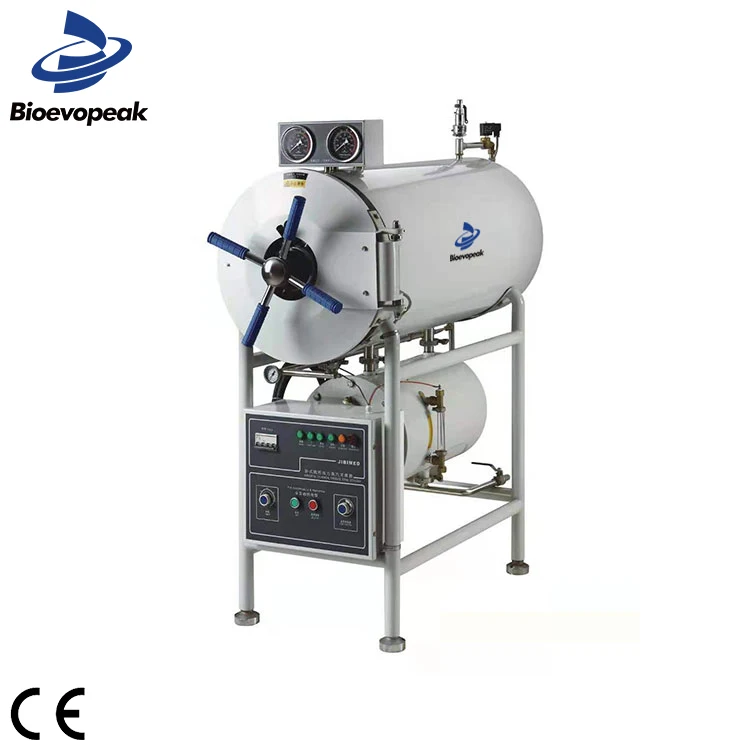

Bioevopeak Manufacturer Class N Horizontal Type and High Sterilizing Chamber Volume Autoclave

Share on (1600440750649):


Price:

Quantity:


Product Overview

Description


111


Autoclave, Class N, Horizontal Type, STH Series









Features


 1. Sterilizing course automatic controlled, easy to operate.
2. With drying function, suitable dressing drying.
3. With over-temperature, over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa. It can’t start if the door doesn’t close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam will exhaust to the water tank.
6. The power is automatically cut off, and it will cut off and alarm when the machine is short of water.
7. The chamber of the sterilizer is made of stainless steel.





Specifications
















































































Technical DataSTH-150STH-200STH-280STH-400STH-500
Sterilizing Chamber Volume150L
φ440×1000mm
200L
φ515×1000mm
280L
φ600×1000mm
400L
Φ700×1100mm
500L
Φ700×1300mm
Working Pressure0.22MPa
Working  Temperature134℃
Temperature Range105℃ – 134℃
Time of Sterilization0-60 mins
Time of Drying0-60 mins
Heat Average≤±2℃
Power9KW/380V 50Hz9KW/380V 50Hz12KW/380V 50Hz18KW/380V 50Hz18KW/380V 50Hz
Package1400×600×13001400×670×16501400×770×17801430×880×18301800×900×1820
Transport Dimension1550×750×18501560×820×18501680×920×21001600×1050×21001850×1050×2100
G.W/N.W320/240 KG350/260 KG465/365 KG530/420 KG580/470 KG




Certifications


fff





About us


-(1)(1)-01





Packaging & Shipping


sss





FAQ


Q: How about quality of the goods?


A:All the running products comply with CE standards.


Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.


Well-known third-party testing service available, such as SGS, BV, and TUV, etc.





Q: What are your pre- and after-sales services?


A:Timely reply to pre-sales enquiries


Real-time update of manufacturing and shipment status


Contracted third-party maintenance company in over 60 countries


Assured availability of parts supply for 10 years at least





Q: Is OEM service available.


A: Most of the running products are available for OEM customization, including logo, package and function, if attainable, customization.





Q: How long is the lead time:


A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For those non-stocked products, the manufacturing lead time is around 20 days.
