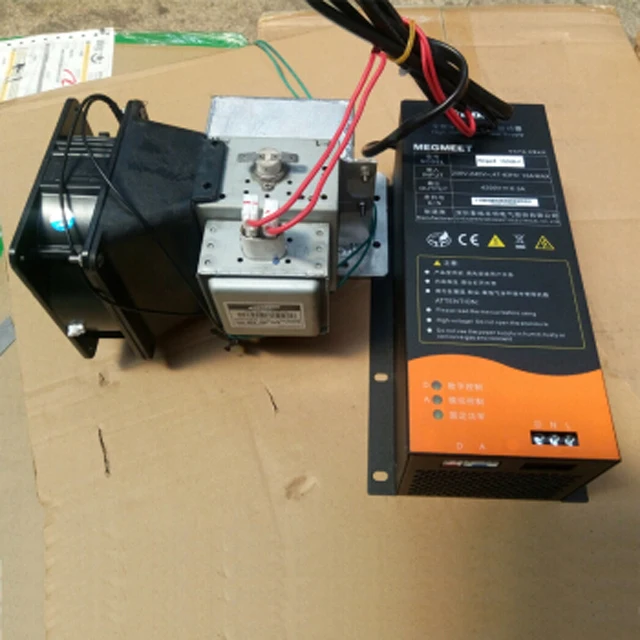

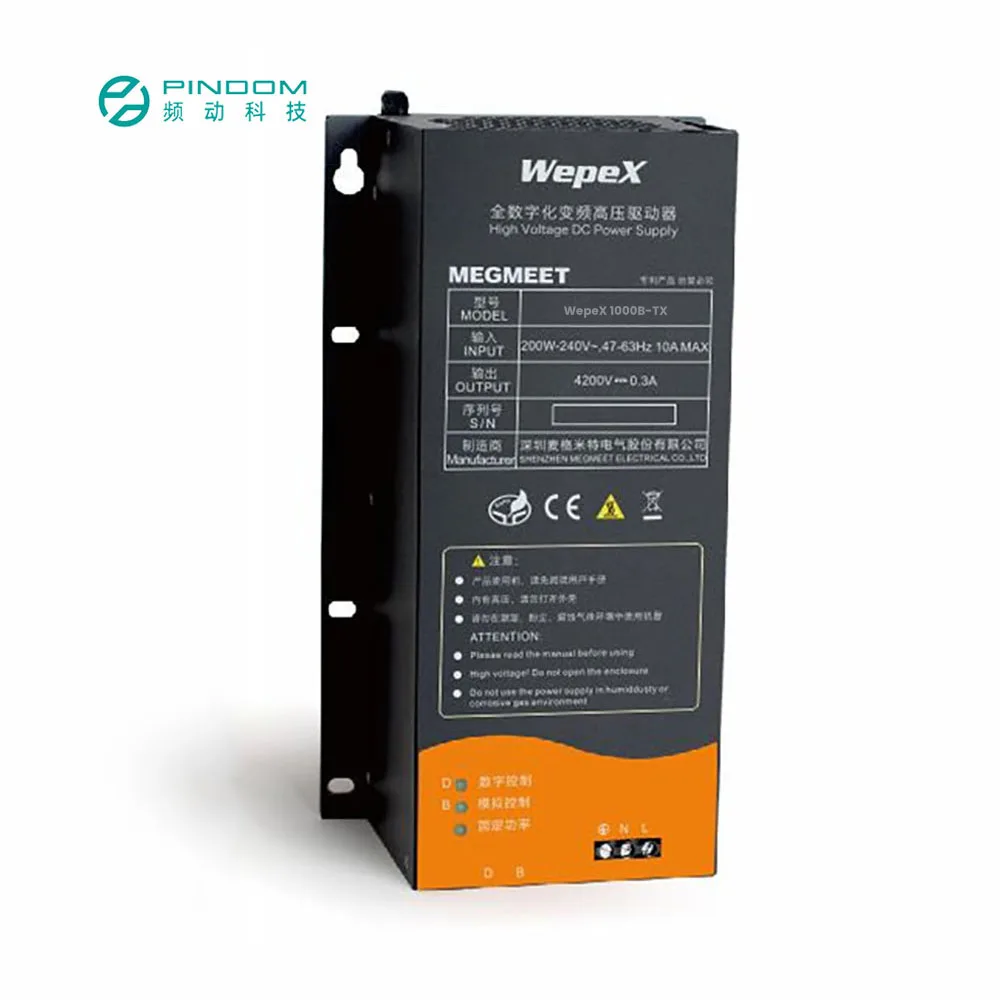

Factory industry microwave power supply output range 250w 1500w microwave dc power
- Category: >>>
- Supplier: Zhuhai Pindom Technology Co. Ltd.
Share on (1600440750805):
Product Overview
Description
Specification

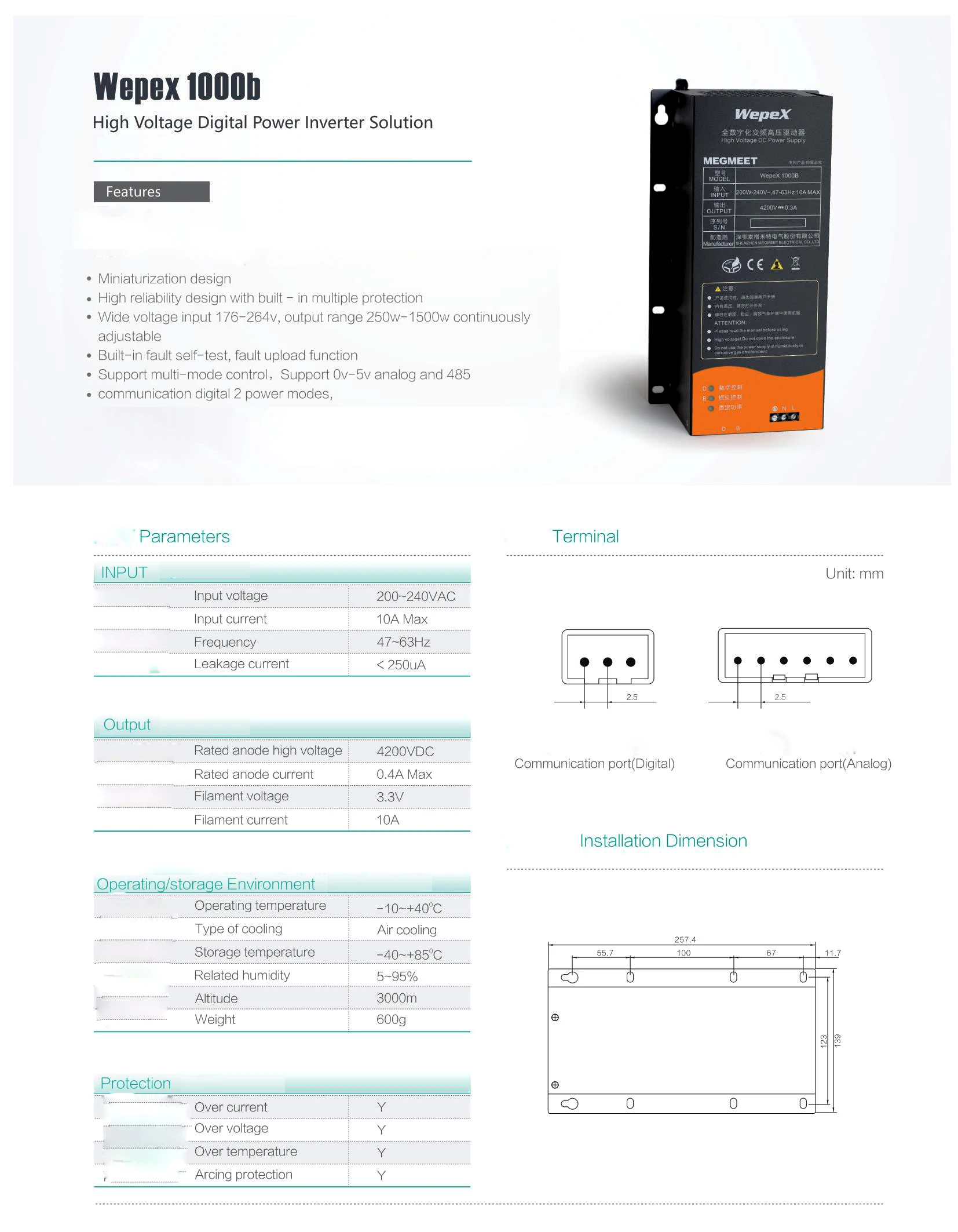

Item | Factory industry microwave power supply output range 250w-1500w microwave dc power |
Input voltage range | 180Vac to 264Vac |
Normal voltage range | 200Vac to 240Vac |
Frequency range | 47Hz--63Hz |
Max input ac current | 10A max. at full load condition |
Leakage Current | Less Than 0.5mA,@ 240Vac input |
Normal input power（220VAC） | WepeX 1000B 1300W |
WepeX 1000B-F 1350W | |
WepeX 1000B-S 1500W | |
WepeX 1000B-TX default power 1280W, 300-2000W between analog and digital control adjustable | |
Max. endure input voltage | 300Vac (Power supply cannot be damaged) |
Rated Output Anode HV （typ.） | 4200Vdc |
Rated Anode Output Current | 330mA |
Rated Filament Voltage | 3.3V |
Rated Filament Current | 10A |
Please feel free to contact us with any questions. We have professional engineers on staff, ready to address your questions or concerns.
Product Description

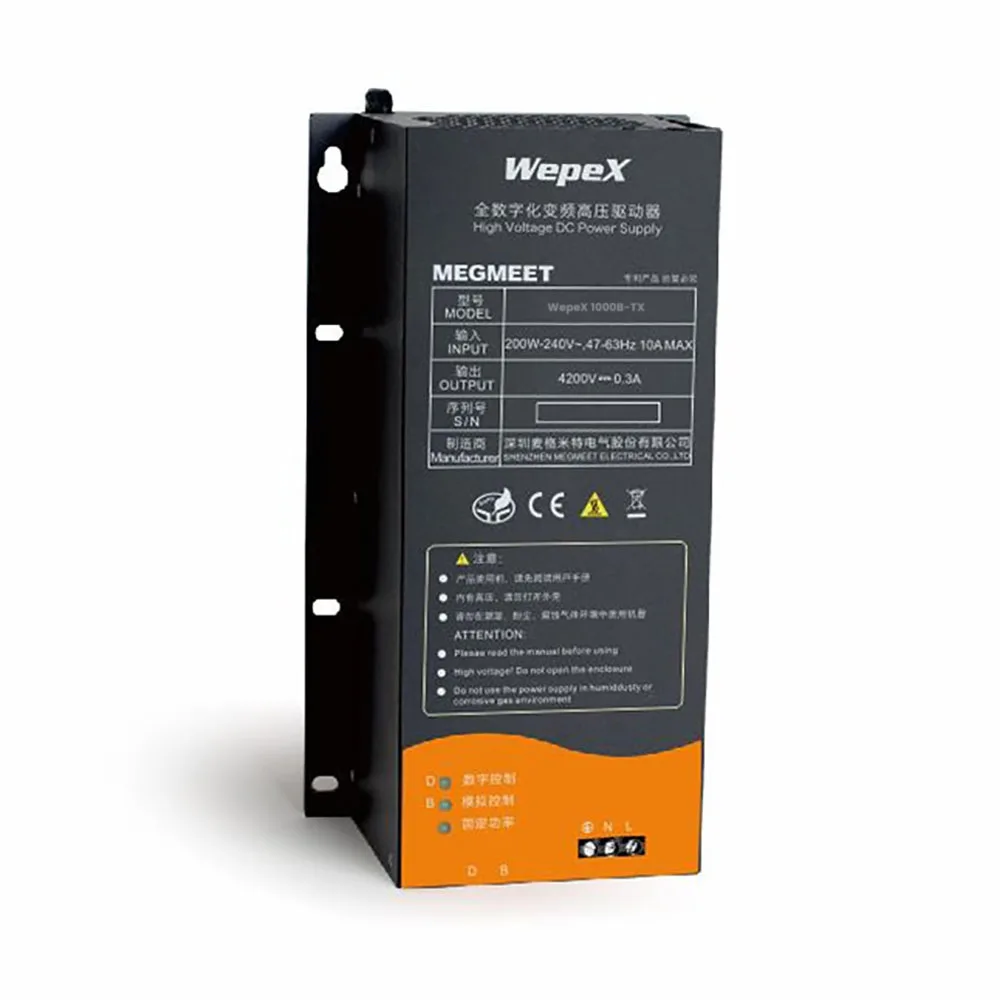

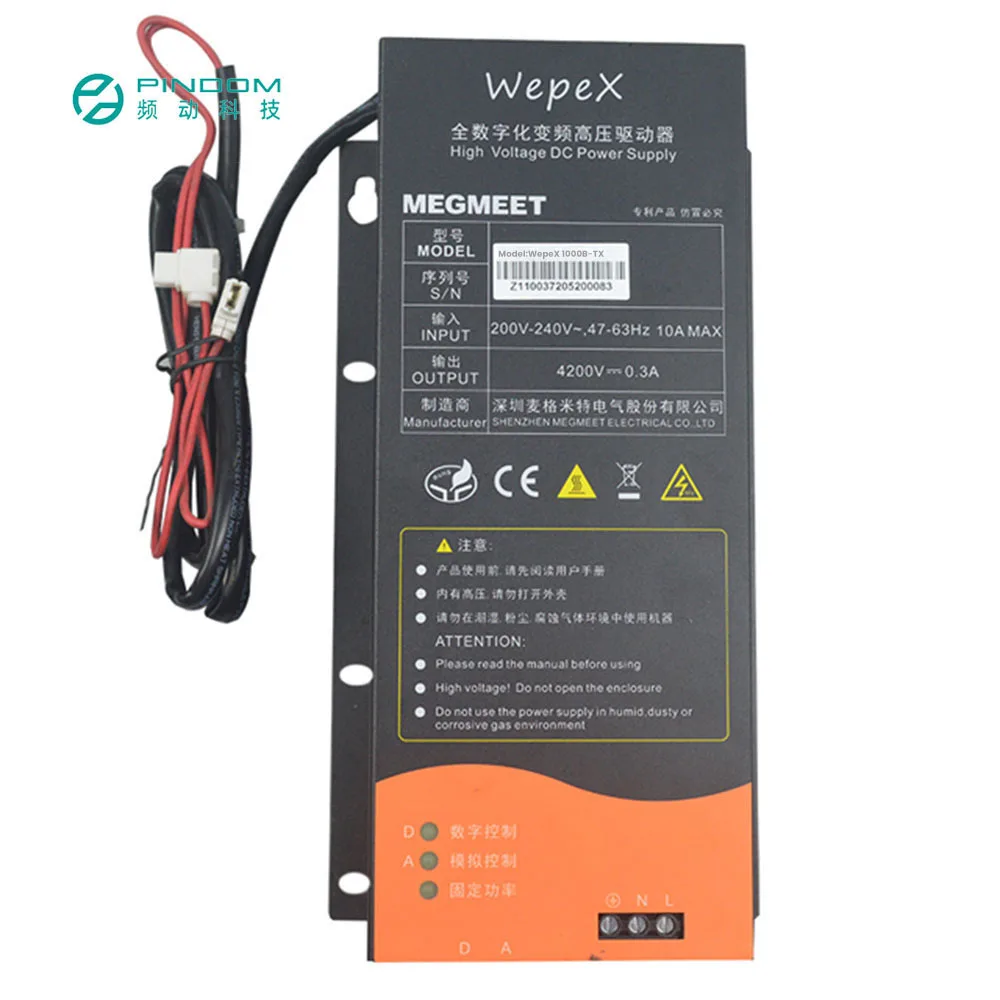

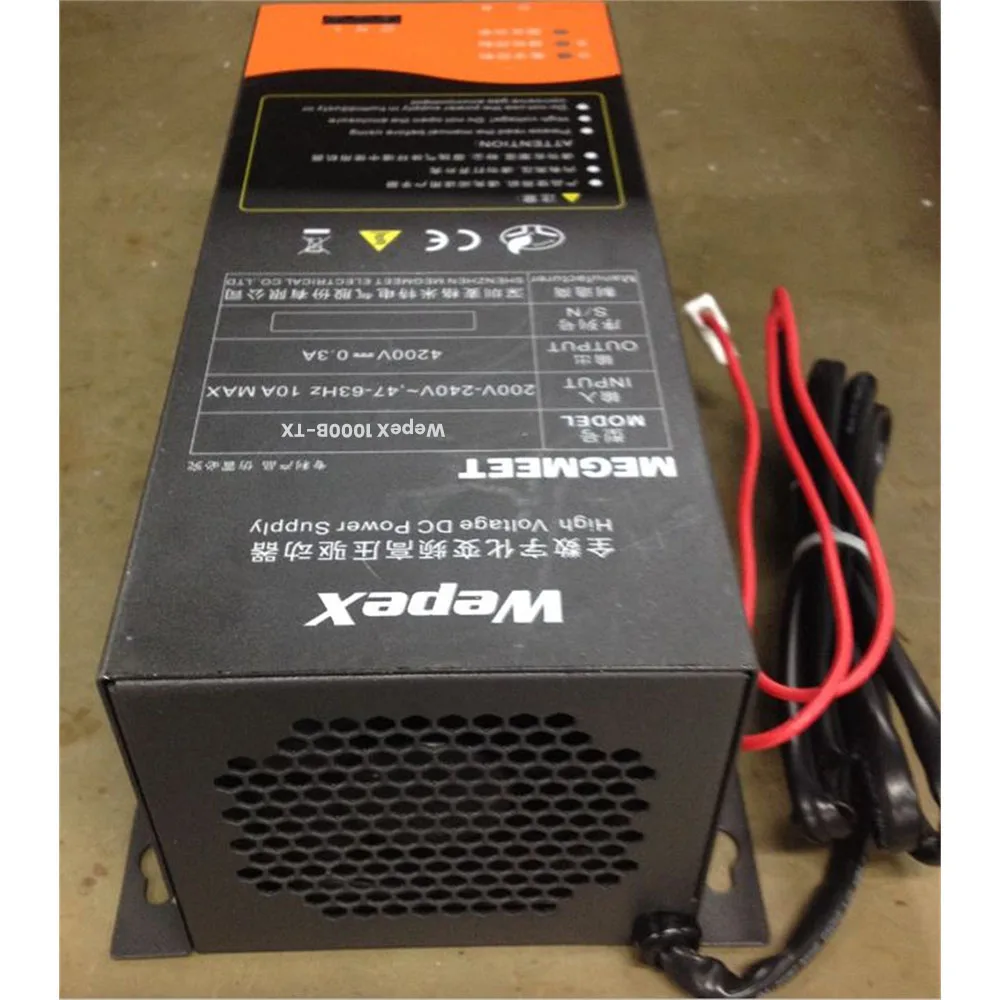

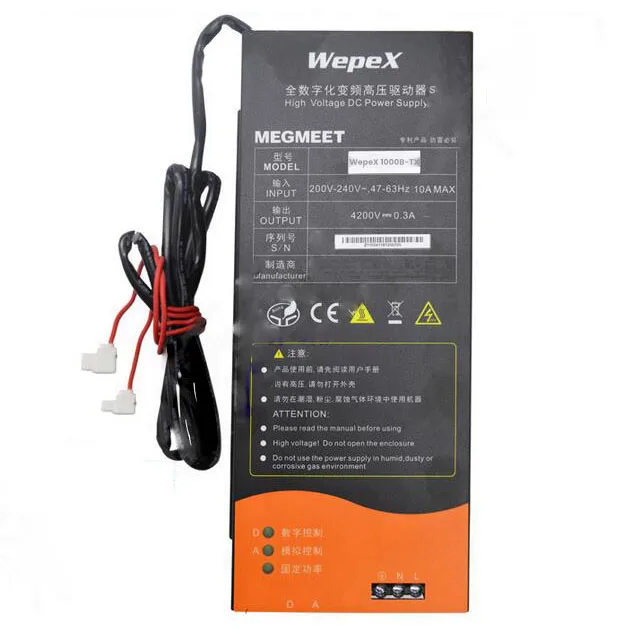

Full digital industrial microwave frequency conversion power supply WepeX 1000B-TX

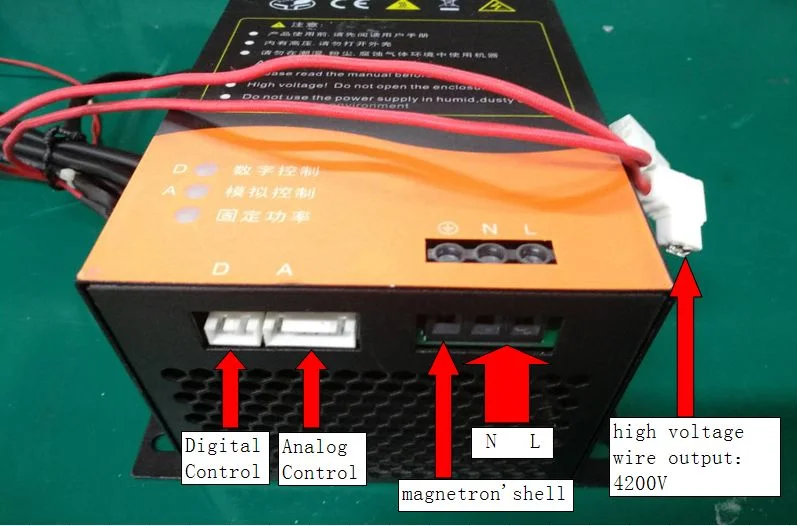

Semi-enclosed design, natural air cooling design, can realize analog 0-5V and RS485 two communication modes, power adjustable minimum 250W-1320W continuous adjustable, magnetron support 1KW-1.5KW
Humidity
Operating: From 10% to 90% relative humidity (non-condensing).
Storage :
From 5 to 95% relative humidity (non-condensing).
Altitude
Operating: -60 to 3000 m
Storage:
Up to 5000 meters
Cooling Method :
Forced Air
Operating: From 10% to 90% relative humidity (non-condensing).
Storage :
From 5 to 95% relative humidity (non-condensing).
Altitude
Operating: -60 to 3000 m
Storage:
Up to 5000 meters
Cooling Method :
Forced Air
Cautions

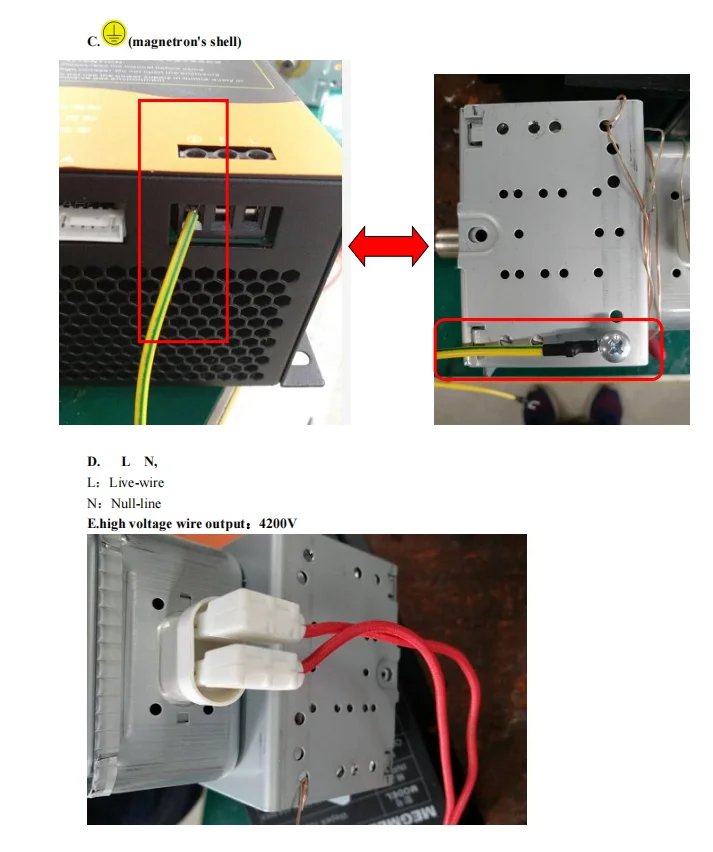

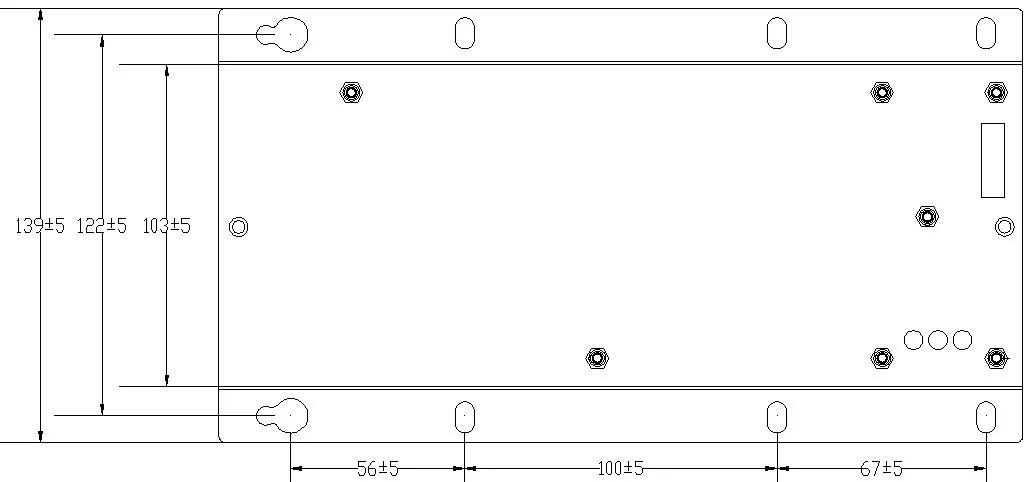

1.The two holes on the case edge are only used for earth ground connection,MUST
connect them to earth ground derectly.
connect them to earth ground derectly.
2.Cooling air should be considered properly when mounting the inverter to a microwave
equipment, pool cooling may cause the reliability decreased.
equipment, pool cooling may cause the reliability decreased.
3.More than 8KV high voltage inside the inverter, do not touch any components on the
board before disconnect the inverter.
board before disconnect the inverter.
