CR Best Quality Seamless Tape Heat Press Sewing Machine Waterproof Raincoat Hot Air Seam Sealing Machine for PPE Covers
- Category: >>>
- Supplier: Changzhou Wujin Dongnan Machinery & Electrical Appliance Co. Ltd.
Share on (1600440787489):
Product Overview
Description
Product Description

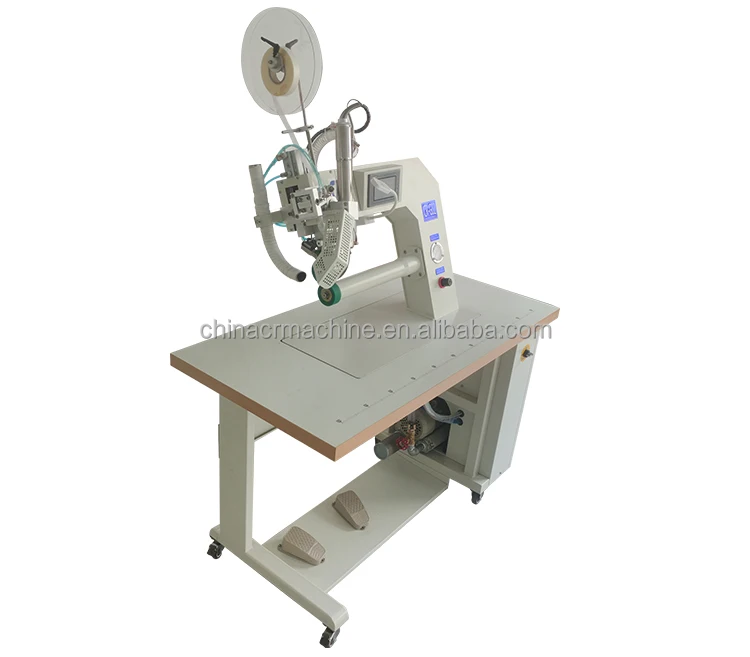

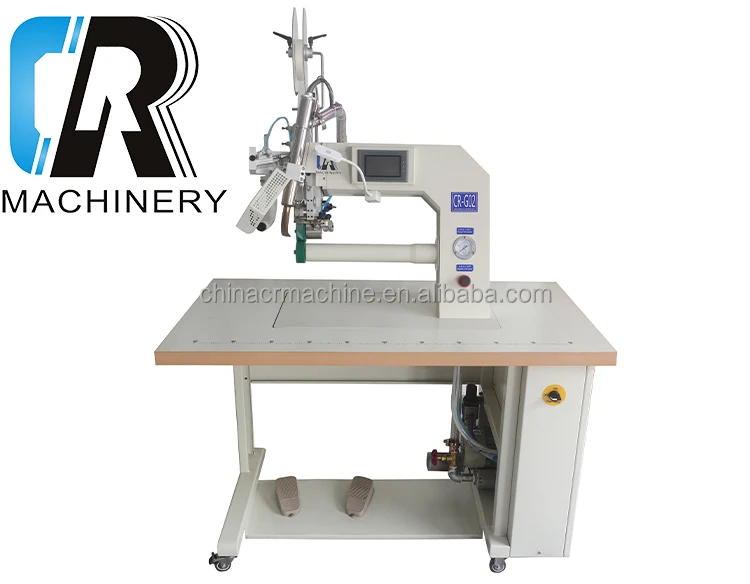

Feature of hot air seam sealing machine CR-G02
1. PLC control, touch screen digital display, setting parameters can be adjusted according to your needs.2. Automatic temperature control, stable operation, temperature accuracy ±1°C, temperature upper limit alarm design, protection of heating wire.
3. The upper and lower rollers can adjust the speed difference.
4. Two-foot control, two modes of jog or self-locking can be selected, easy to operate, not easy to be fatigued, and suitable for long-term operation.
5. Independent heating tube control program, shutdown delay function to protect the heating tube.
6. 24-hour production to improve production efficiency.
7. Automatic cutting, feeding and sealing to reduce material loss, Auto limited tape length cutting function saves 15% tape.
8. Adopting stepping motor control, accurate numerical value.
9. Blowing-in hot air is filtrated without any water and oil.
10. Special cross arm design, suitable for more shapes of products seam sealing.
Product name | Hot air seam sealing machine | ||||||
Model | CR-G02 | ||||||
Voltage | AC 220 V 50-60 HZ | ||||||
Power | 2500W | ||||||
Heat control | Up to 700℃ | ||||||
Speed | 1-24 m/min | ||||||
Air pressure | 0.35-0.5 Mpa | ||||||
Roller width | 25mm | ||||||
Upper roller lift | 25-35mm | ||||||
Optional size of roller | 8-25mm | ||||||
Dimension | 1300*600*1600mm | ||||||
Net weight | 160kg | ||||||

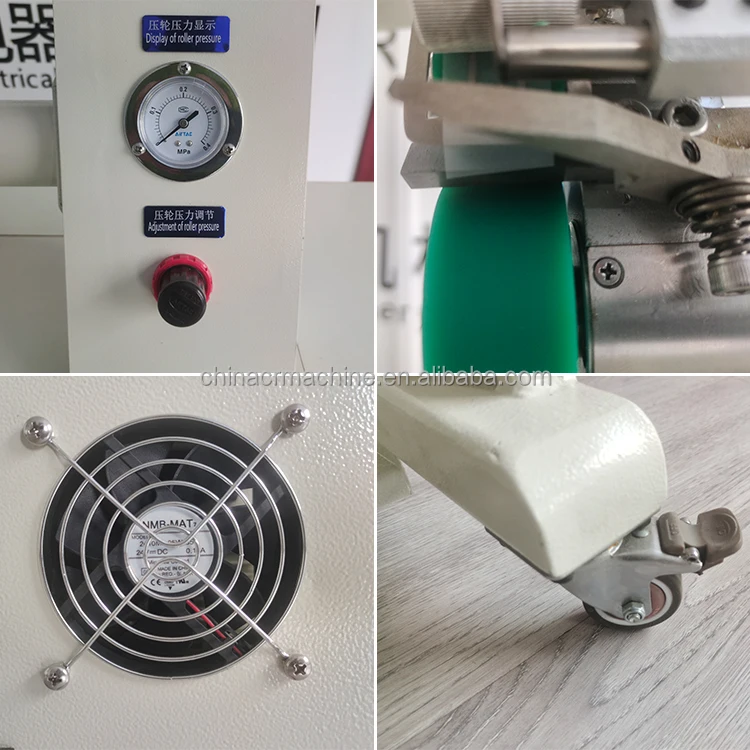

Details Images
1. Adopt PLC easy to read, high definition touch type multi functional display screen to clearly display speed and operation programming.
2. The function of auto tape is cutting, feeding and finishing reduce the wastage of material.
3. The double foot control program is designed according to human mechanics, which is comfortable to operate and not easy to fatigue, suitable for long time operation.
4. Independent heating tube control program, shutdown delay function to protect the heating tube.
Applicable Products
Company Profile
Changzhou Wujin Dongnan Machinery & Electrical Appliance Co.,Ltd. is one of the leading companies in manufacturing ultrasonic machines and hot air welding machines. Founded in 1994, Changzhou Wujin Dongnan Machinery & Electrical Appliance Co.,ltd. has more than two decades of experience in the design, research and manufacturing of ultrasonic machine, hot air seam sealing machine in strict compliance with ISO and CE standards. Our machines include: Ultrasonic Lace Sewing Machine, Ultrasonic Quilting Machine, Ultrasonic Surgical Gown Making Machine, Ultrasonic Spot Welding Machine, Ultrasonic Cutting Machine, Ultrasonic Non Woven Machine, Bouffant Cap Making Machine, Shoe Cover Making Machine, Hot Air Seam Sealing Machine, Hot Air Welding Machine etc. Also, we can design automatic machines with customer’s request.
With the superior technique in the field of machinery and software, our corporation has got a rapid growth in home-textile and apparel industries. And what’s more, our machinery enjoys many ready international markets including Europe, South America, Russia, India, Vietnam, Pakistan and Middle East countries etc. At Present, CR Machinery has gained a big and stable market share in domestic and international markets. The well going sales and after-sales service have been preliminarily set up. CR branded products will be available everywhere through the agents spread in the main countries in the near future.
Our brand CR, means Creative and Reliable. Our products will be your best choice!
Our brand CR, means Creative and Reliable. Our products will be your best choice!
Our Advantages
Exhibition
FAQ
Q:What about the mechanical quality?
A:You may rest assured that all of our machines have passed the inspection before they leave
the factory , and we provide a one-year warranty.
the factory , and we provide a one-year warranty.
Q:can the machine be used directly if you get it?
A:Yes, we are all debugged out of the factory, just need to plug in the power.
Q:How about the speed of logistics?
A:Domestic we use the way of logistics, we ship ferries abroad, also can choose to air.
Q:Can the pattern of machine's roller to be customerized?
A:Yes, our engineers only need pictures from you.
