Smart LoRaWAN Remote Reading Ultrasonic Water Meter AMR
- Category: >>>
- Supplier: Shanghai Panda Machinery (group) Co. Ltd.
Share on (1600440788113):
Product Overview
Description
Product Description
Features:
*Stainless Steel Pipe Material
*Range Is Up To 400
*No Moving Parts, Accuracy Will Not Change After Long Term Working
*With Functions of Self-diagnosis, Flow Sensor Alarm, Temperature Sensor Alarm, Over Range Alarm and Battery Under Voltage Alarm
*Low Consumption Design, Battery Can Continuously Work For 6 Years
*With Optic Electric Interface, Hand-held Infrared Meter Reading Tool Can Read Directly
*Stainless Steel 316L Is Optional, Meet The Measurement Of Direct Drinking Water
*Bi-directional Measuring Forward And Reverse Flow
*According To Sanitary Standard For Drinking Water
Product Parameters
Technical Specification:
Max. Working Pressure | 1.6Mpa |
Temperature Class | T30 |
Accuracy Class | ISO 4064, Accuracy Class 2 |
Body Material | Stainless SS304(opt. SS316 or SS316L) |
Battery Life | 6 Years (Consumption<0.6uA) |
Protection Class | IP68 |
Environmental Temperature | -40~+70℃,≤100%RH |
Pressure Loss | ΔP16, ΔP25 |
Climatic And Mechanical Environment | Class O |
Electromagnetic Class | E2 |
Communication | RS485(ModBus), M-bus Opt. OCT Pulse |
Display | 8 digits LCD display volume(m3,L,GAL), flow rate(m3/h,L/min,GPM), low battery power alarm, flow direction, output. |
Connection | Thread Connection |
Flow Profile Sensitivity Class | U5/D3 |
Data Storage | Store the data of Day, Month and Year. The data can be permanently saved even power off. |
Frequency | 1-4times/second |
Application
Related Products

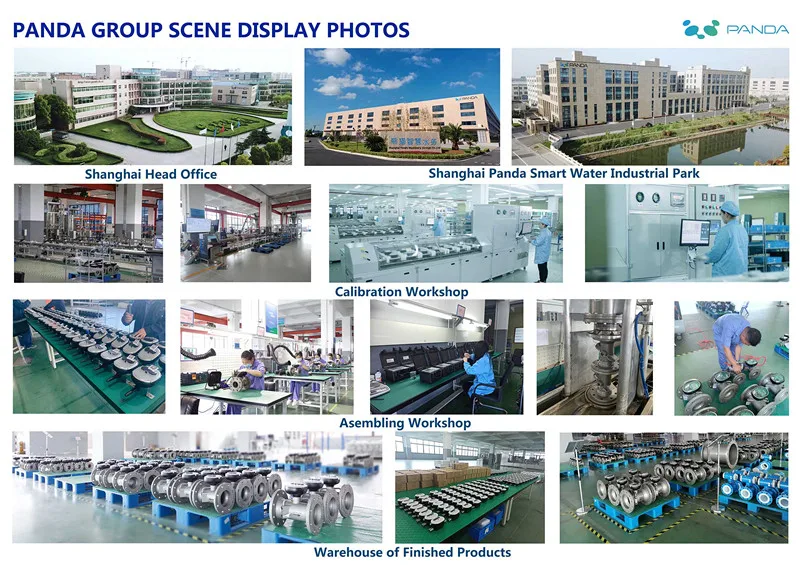

Company Profile
