Product Overview
Description

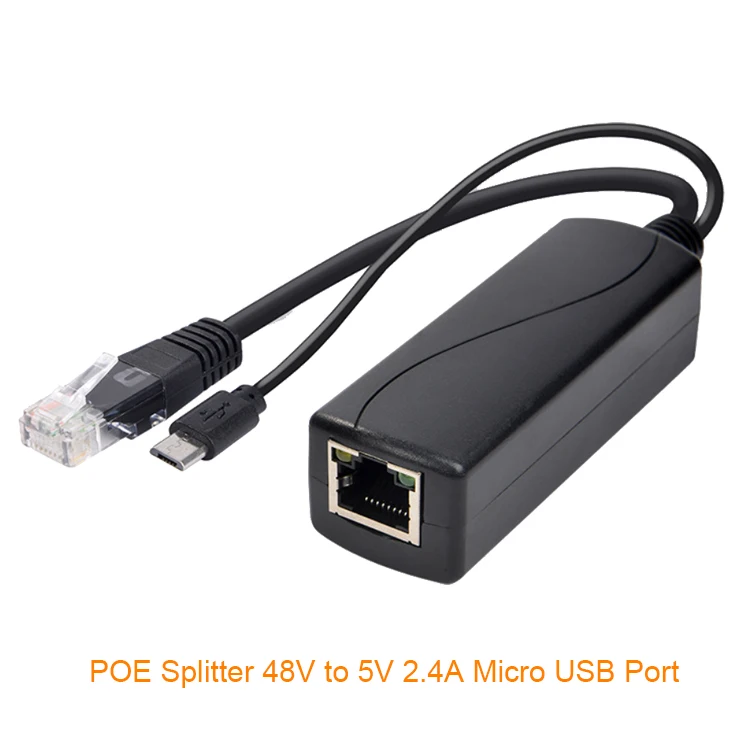

48V to 5V2.4A DC POE Splitter
Descriptions:

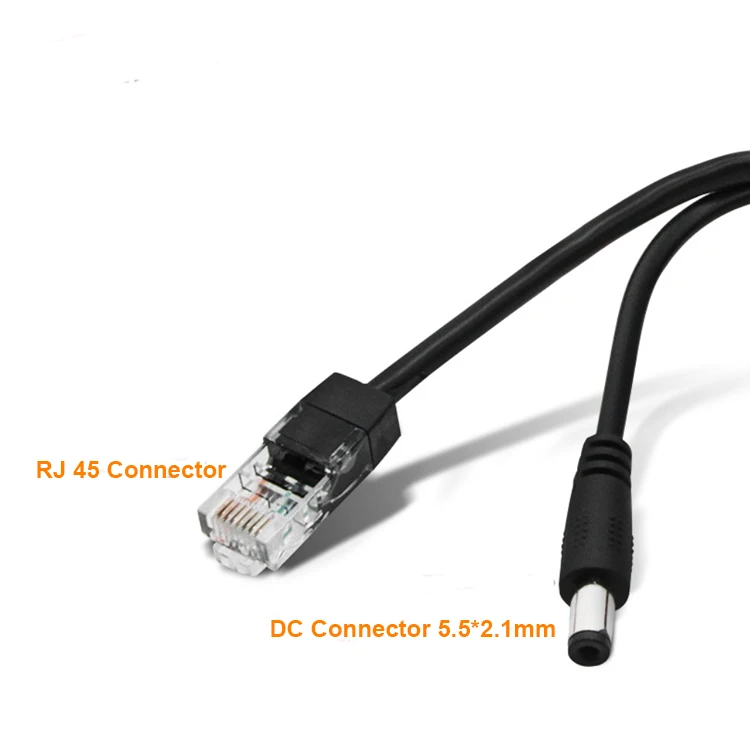

CREDEK 48V to 5V 2.4A POE Splitter With RJ45 port and DC Jack 5.5*2.1mm（or can choose Type-C, Micro-USB ）it is an economical and practical PoE remote power equipment base on IEEE802.3af/at standard. It can separate the power and data via cable transmission. Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af/at, Provides power and data at the same time for the terminal device does not support PoE.
CREDEK 48V to 5V 2.4A POE Splitter With RJ45 port and DC Jack 5.5*2.1mm（or can choose Type-C, Micro-USB ）it is an economical and practical PoE remote power equipment base on IEEE802.3af/at standard. It can separate the power and data via cable transmission. Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af/at, Provides power and data at the same time for the terminal device does not support PoE.
Features
* Support international standard IEEE802.3 af/at(30W);
* Support 10/100Mbps data transmission
* PD support 44V-57V voltage transmission,Automatically detects power supply from PSE power supply module
* 12V power output,easy to access Poe network for non-poe terminal
* Support the isolation circuit protection,can effectively protect electrical equipment.
* Support the short circuit,overvoltage protection
* Support overvoltage protection，short circuit protection，overcurrent protection，overheating protection
* High Performance Network Fliter For Gigabit+1500V High voltage isolation POE transformer
* Support international standard IEEE802.3 af/at(30W);
* Support 10/100Mbps data transmission
* PD support 44V-57V voltage transmission,Automatically detects power supply from PSE power supply module
* 12V power output,easy to access Poe network for non-poe terminal
* Support the isolation circuit protection,can effectively protect electrical equipment.
* Support the short circuit,overvoltage protection
* Support overvoltage protection，short circuit protection，overcurrent protection，overheating protection
* High Performance Network Fliter For Gigabit+1500V High voltage isolation POE transformer
Product Paramenters
Model | PS-SP6001AT |
Transfer Rate | 10/100M |
Power | Input 44-57 , Output 12V/2A |
Standard | IEEE802.3 af/at |
TRNF | 1/2(+),3/6(-);4/5(+),7/8(-) |
Interface Type | 1 Input RJ45 port, 1 output RJ45 port, 1 DC output |
Standard | IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE802.3 af ， IEEE802.3at |
LED | Yellow and Green 12V lamp |
Environment | Work within -20~50°,Storage within -30~60° |
Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing | |
Dimension | 81*28*24mm |
Weight | 0.1kg |
