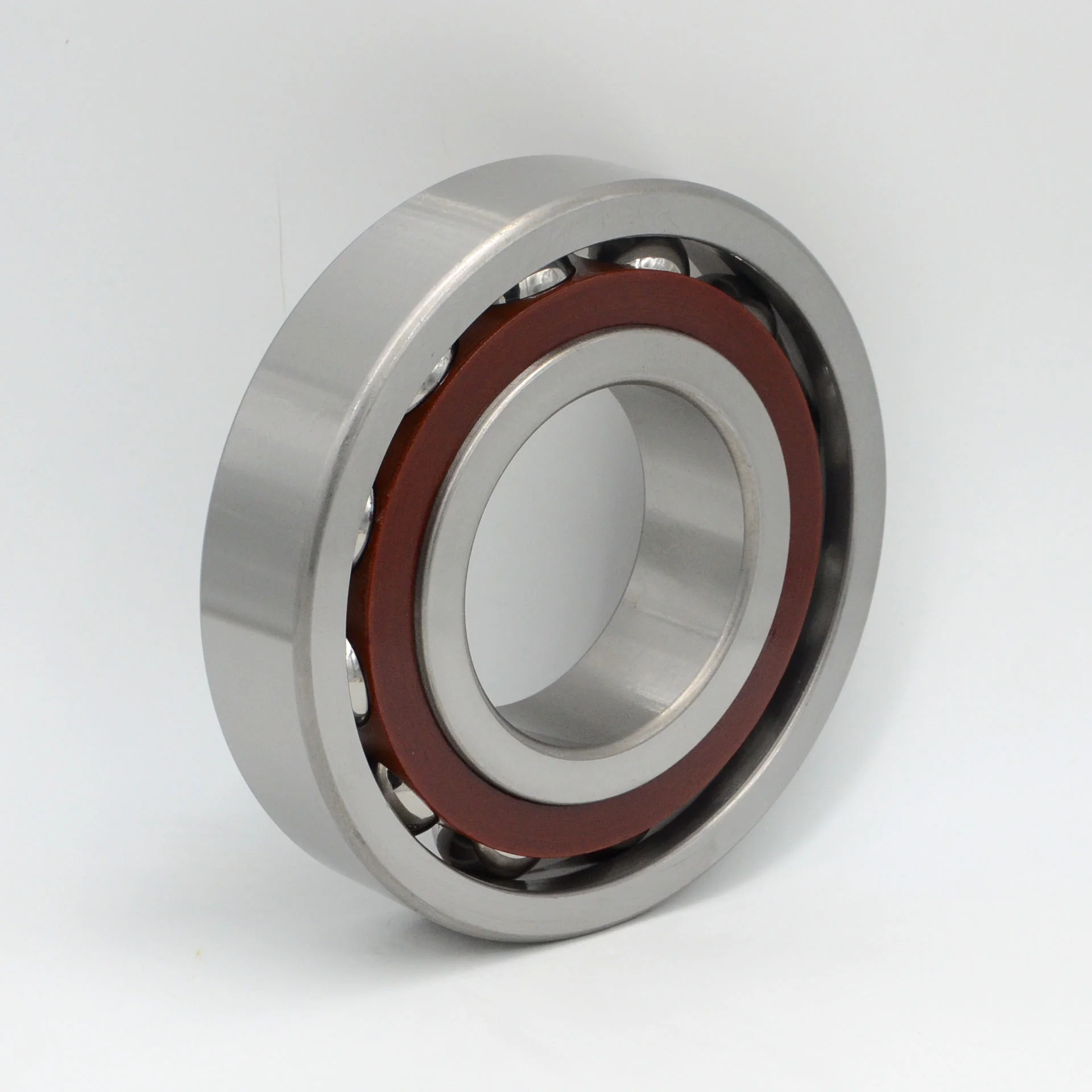

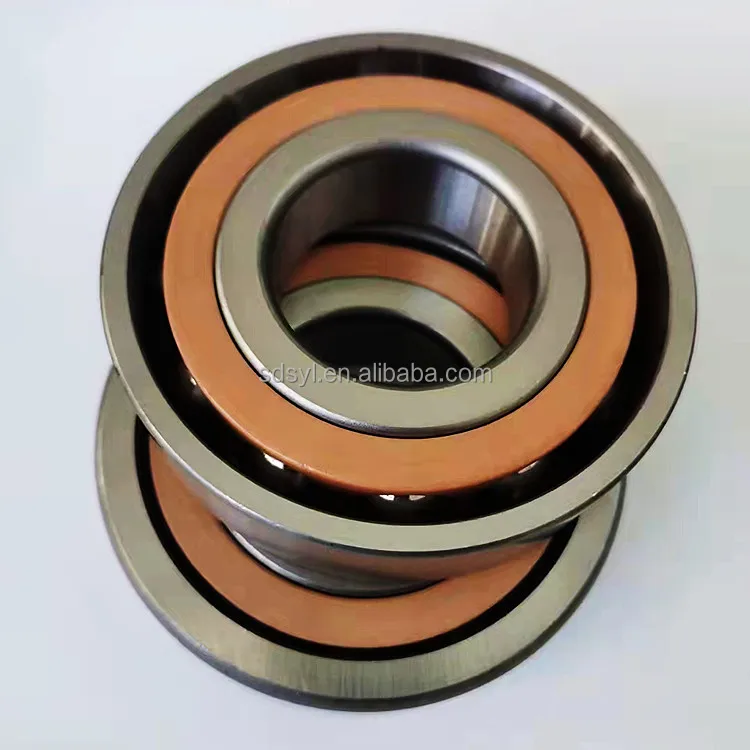

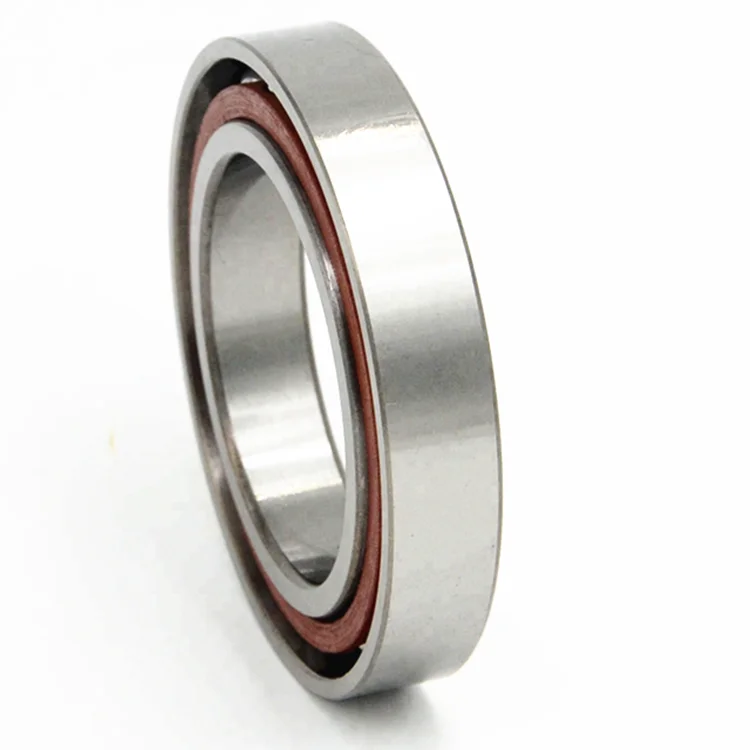

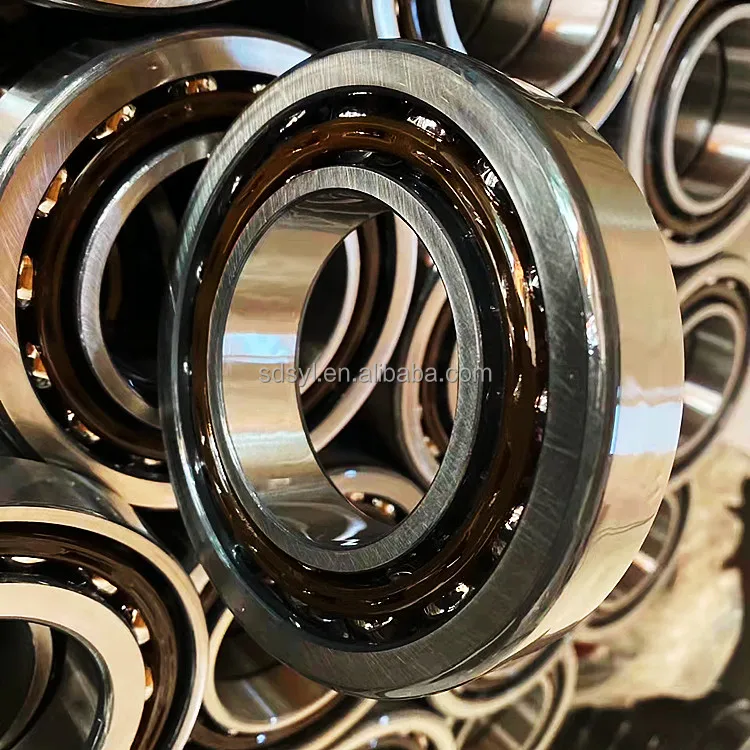

Original NTN bearing 7008 7012 CTYNSULP4 7008 Spindle angular contact ball bearing
- Category: >>>
- Supplier: Shandong shuangyoulong Bearing CO. LTD
Share on (1600440821379):
Product Overview
Description
Angular contact ball bearing
is consist of outer ring, inner ring, steel balls, seals and grease, with features that the contact angle between the line connecting the ball and the raceway contact point and the radial plane vertical to the bearing axis line is generally between 0° and 45°. Common angle is 15°, 25°, 40°. According to the number of rows of the steel balls, bearings are divided into single row angular contact ball bearing, double row angular contact bearing etc.
Product Description

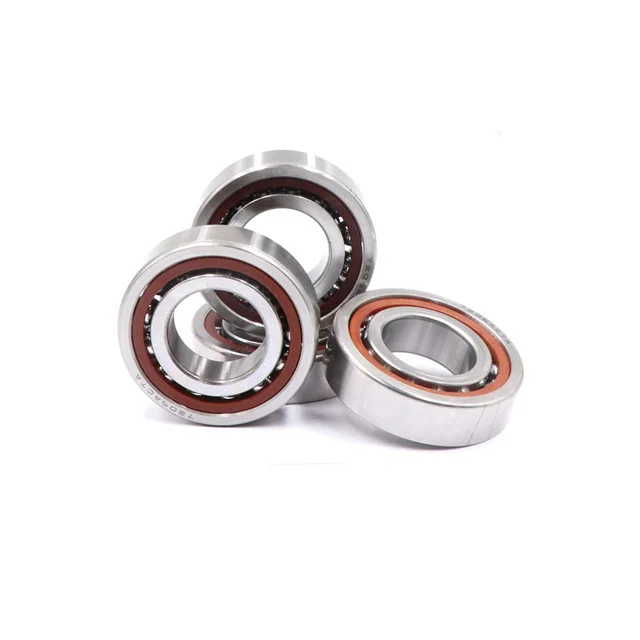

Angular contact ball bearings
Customizable
* Standards：GOST/ASTM/GB
* Inner diameter：10mm-280mm
* Outer diameter：20mm-400mm
* Weight：0.2kg-300kg
* Common angles：15°, 25° 40°
* Structures：Outer ring, inner ring, steel balls, seals and grease
* Applications of Double row bearing：oil pumps, blowers, air compressors, fuel injection pumps, various types of reducers
* Inner diameter：10mm-280mm
* Outer diameter：20mm-400mm
* Weight：0.2kg-300kg
* Common angles：15°, 25° 40°
* Structures：Outer ring, inner ring, steel balls, seals and grease
* Applications of Double row bearing：oil pumps, blowers, air compressors, fuel injection pumps, various types of reducers
SYL angular contact ball bearings can support radial and axial composite loads, also bear pure axial loads. They have the traditional advantages of ball bearings that high speed, low noise, etc. The greater the contact angle, the higher ability to withstand axial loads. If the axial load increases, the actual contact angle of the angular contact ball bearing will also increase. Single row angular contact ball bearings can only withstand axial loads in one direction.
product name | Original 7008ACM |
Brand | SYL NTN SPZ VPZ CRAFT INA IKO |
Size | 40*68*15mm |
Weight | 0.21kg |
material | chrome steel(Gcr15), Gcr15SiMn, stainless steel |
feature | low noise, less vibration, high precision and long life |
tolerance level | ABEC-1(P0), ABEC-3(P6) |

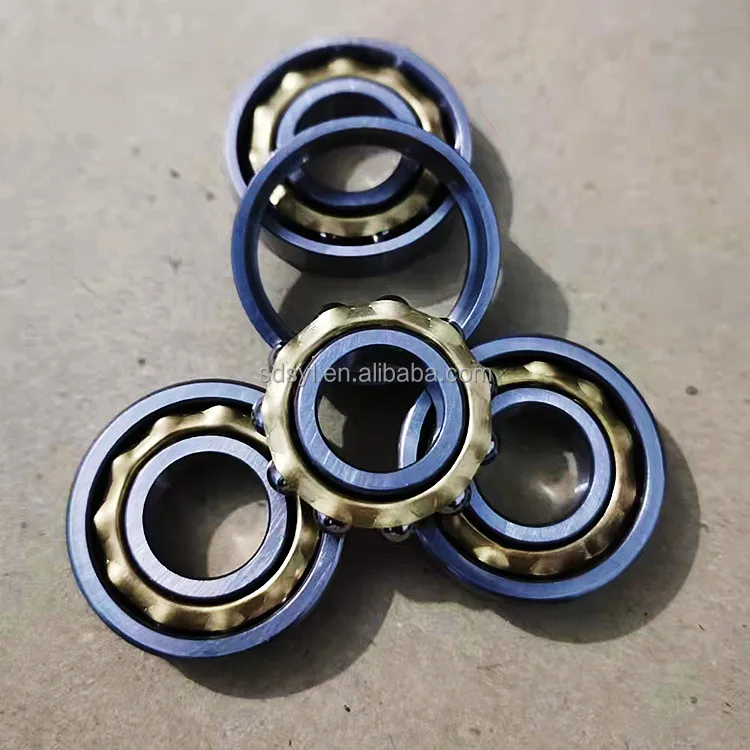

Bearing cage
The high-quality cage used by SYL bearings ensure that the balls are evenly distributed in the bearing rings and can be rotated properly.
The cage has stamped steel wave type, stamped steel rivet type, nylon or phenolic plastic.
SYL offers a wide range of advice and options depending on the operating conditions.
The cage has stamped steel wave type, stamped steel rivet type, nylon or phenolic plastic.
SYL offers a wide range of advice and options depending on the operating conditions.
Seals
In order to prevent contaminants from entering the inside of the bearing, SYL uses a metal dust cover or a rubber seal with a metal skeleton.
SYL are able to choose two types as a combination seals according to your working conditions, or choose different kinds of seal materials, such as nitrile rubber BUNA, acrylic rubber HYCAR, fluoro rubber VITON.
SYL are able to choose two types as a combination seals according to your working conditions, or choose different kinds of seal materials, such as nitrile rubber BUNA, acrylic rubber HYCAR, fluoro rubber VITON.
Type of lubrication
Lubricating oil is the basic lubricant for ball bearings. Previously most of the lubricating oil was extracted from petroleum. Synthetic oils are now acceptable due to improved performance, such as two lipid synthetic oils, silicones and fluorocarbon synthetic oils. In general, lipid synthetic oils have better low temperature properties, lower volatility, and better temperature characteristics and viscosity compared than petroleum refined oils. Essentially all lubricants contain additives to inhibit chemical changes, prevent metal corrosion, and improve physical properties (antifoam, etc.).
The silicone and fluorocarbon synthetic oils that adopted by SYL have lower volatility and wider temperature/viscosity characteristics.
The silicone and fluorocarbon synthetic oils that adopted by SYL have lower volatility and wider temperature/viscosity characteristics.
Radial clearance
The radial clearance is the gap between the steel ball and the ring. SYL is precisely tailored to customer's temperature conditions, interference fit, misalignment of the bearing's axis, required noise level and speed.
Service life and the rated load
The bearing life is the number of bearing rotations before the fatigue occurs on the ring or any rolling element (or the rotation time at a constant speed). However, the same set of bearings will not necessarily have the same life under the same conditions. In this case, the rated life is the number of rotations that 90% of the bearings in this group can reach or exceed before bearing weariness (or the rotation time at a constant speed). The service life of SYL series bearings are 10%-20% longer than other bearings of the same model, through strict production process, high standard material selection, precision control.
The classification of non-standard angular contact ball bearings
SYL are able to provide sealed angular contact ball bearings, angular contact ball bearings with snap grooves on the outer ring,etc. SYLcan make new design for customized bearings according to customer need, such as the bearings with irregular contact angle.
Angular contact ball bearings are classified into general dust cap seals, non-contact rubber seals and contact rubber seals.Usually, the sealed bearings are filled with grease lubricant. The amount of grease is 25% to 40% of the effective space of the bearing. If there are special requirements, we can make corresponding adjustments.
Angular contact ball bearings are classified into general dust cap seals, non-contact rubber seals and contact rubber seals.Usually, the sealed bearings are filled with grease lubricant. The amount of grease is 25% to 40% of the effective space of the bearing. If there are special requirements, we can make corresponding adjustments.
Specification
Type | Angular Contact BALL |
Applicable Industries | oil pumps, blowers, air compressors, fuel injection pumps, various types of reducers |
Brand Name | SYL NTN SPZ VPZ CRAFT INA IKO or OEM |
Precision Rating | P0 P6 P2 P4 P5 |
Number of Row | Single row row |
Cage | Steel Cage.copper Cage.nylon Cage |
Feature | 1.Load capacities are higher than deep groove ball bearing of same dimensions. 2.Used for bearing radial-axial combined loads or pure thrust loads. 3.Low operating friction and high limiting speed. |

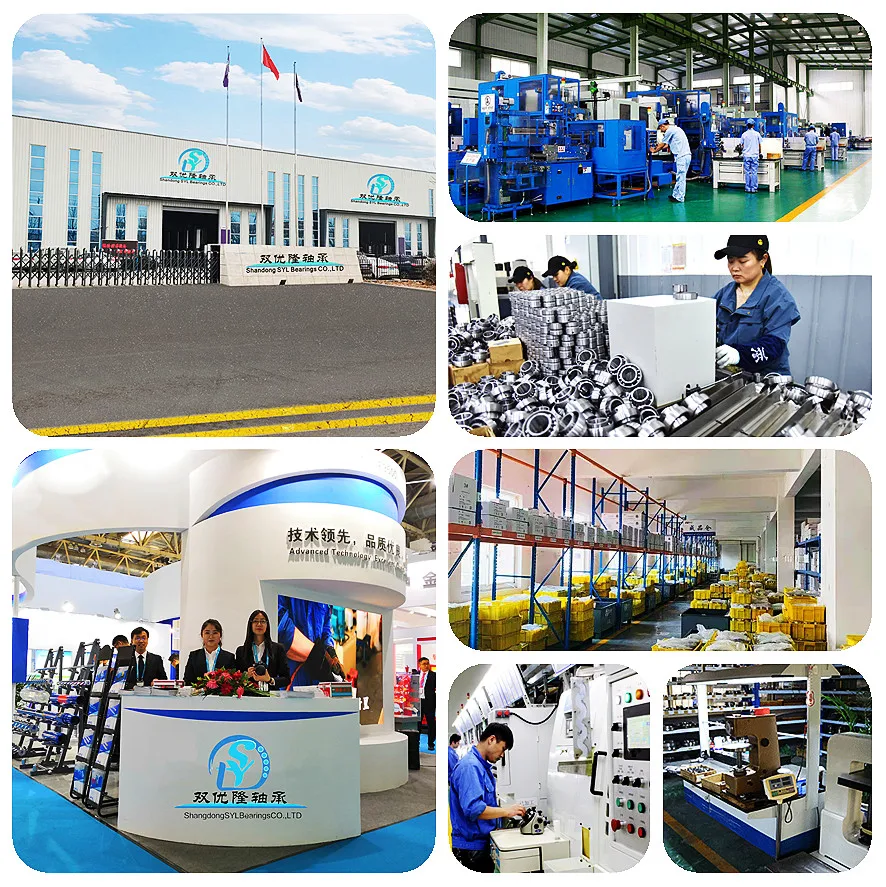

Company Profile
Established in 2006,Shandong SYL bearing co., ltd is located in jinan western industrial area, jinan city, shandong province. Our company is an enterprise integrating R&D, production, sales and service. The company specializes in the production of industrial bearing, agriculture bearing, Automotive bearings, Petroleum Drilling Bearing and so on. We can provide hub units, wheel bearing and kits, tensioner pulley, clutch assembly bearing, gearbox bearing and other bearings for lada, Korean car, Japanese car, Germany car, American car and so on .

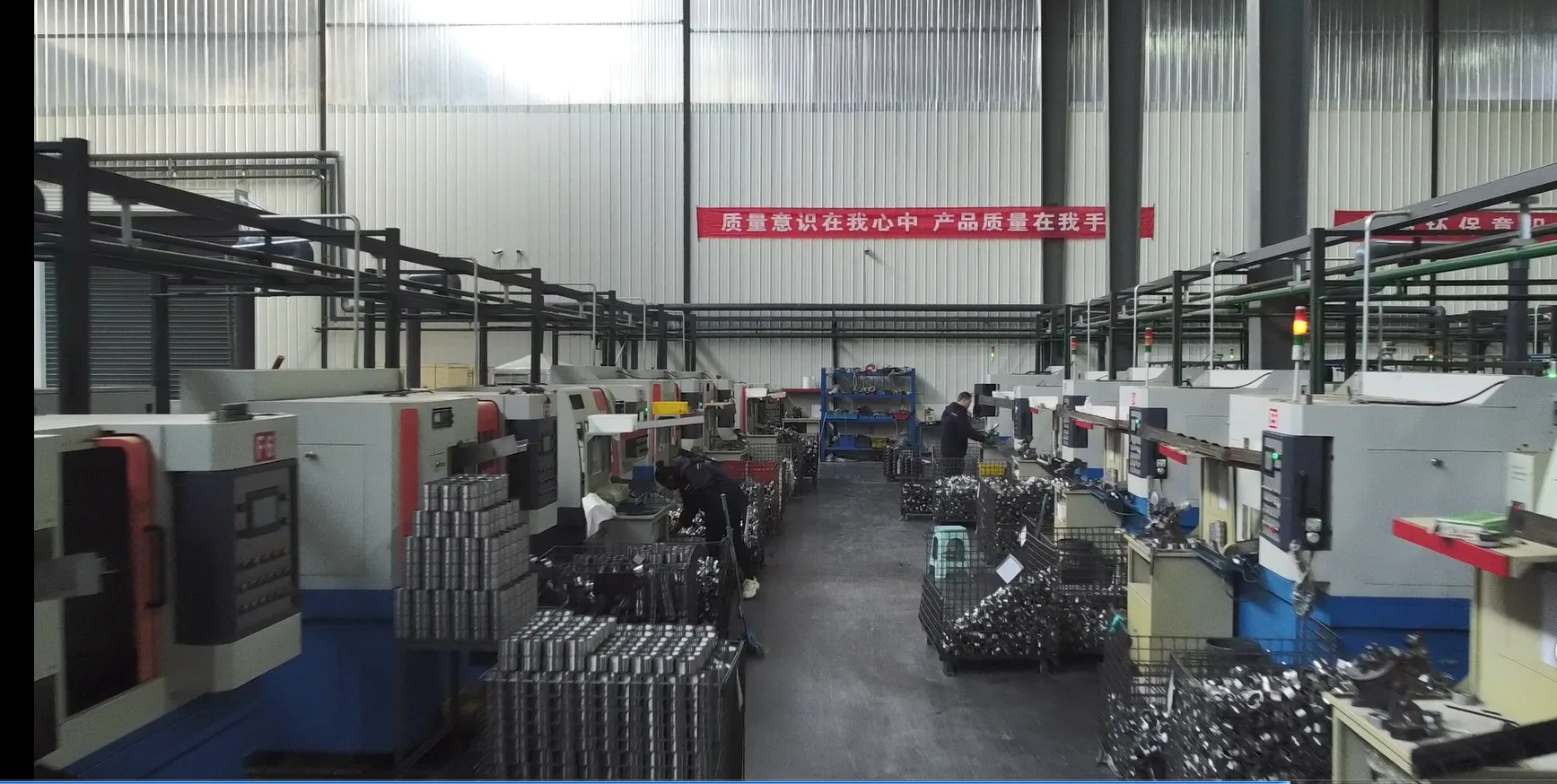

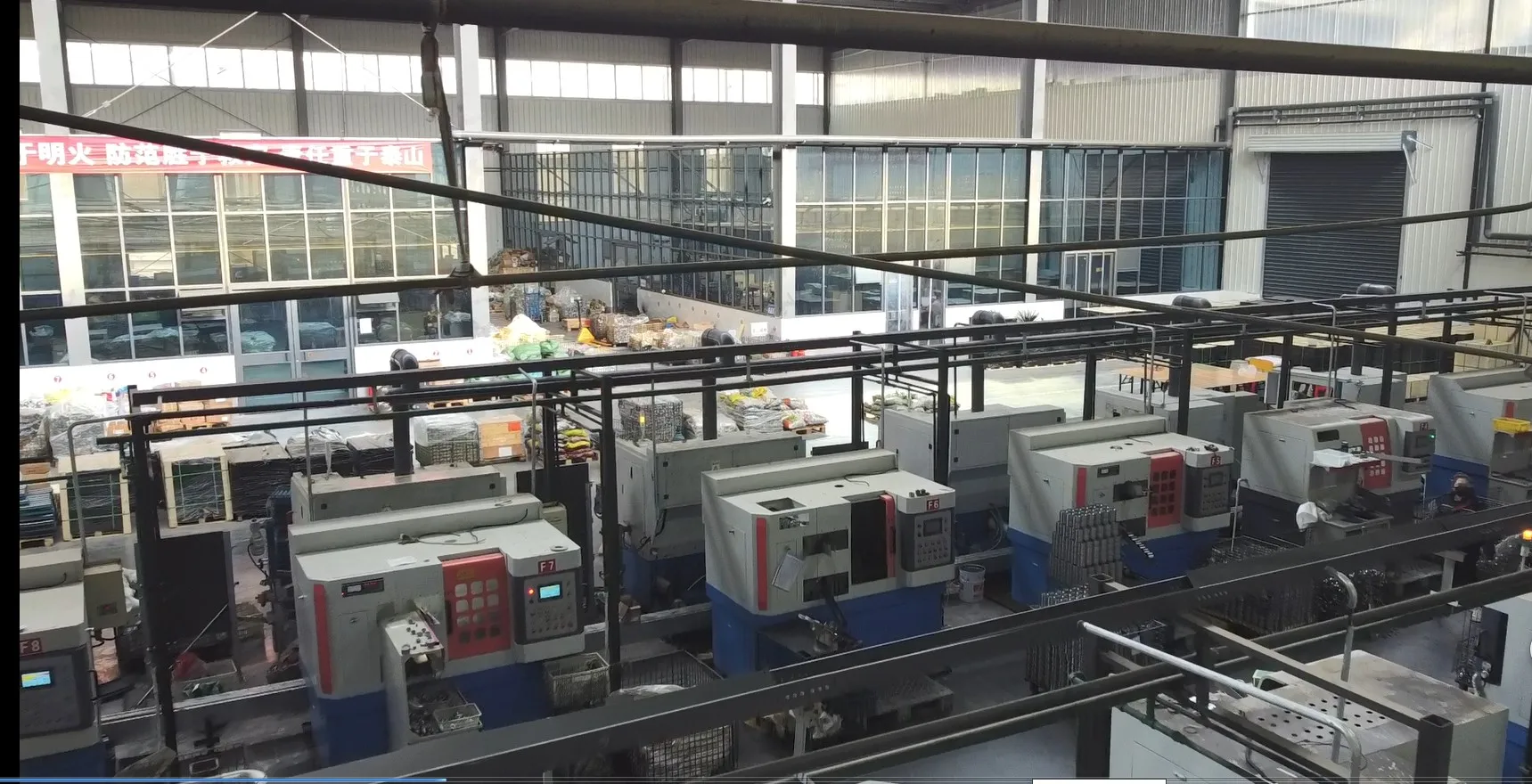

We work every day
Quality inspection
In the production process, the implementation of high standards and strict requirements of the principle.

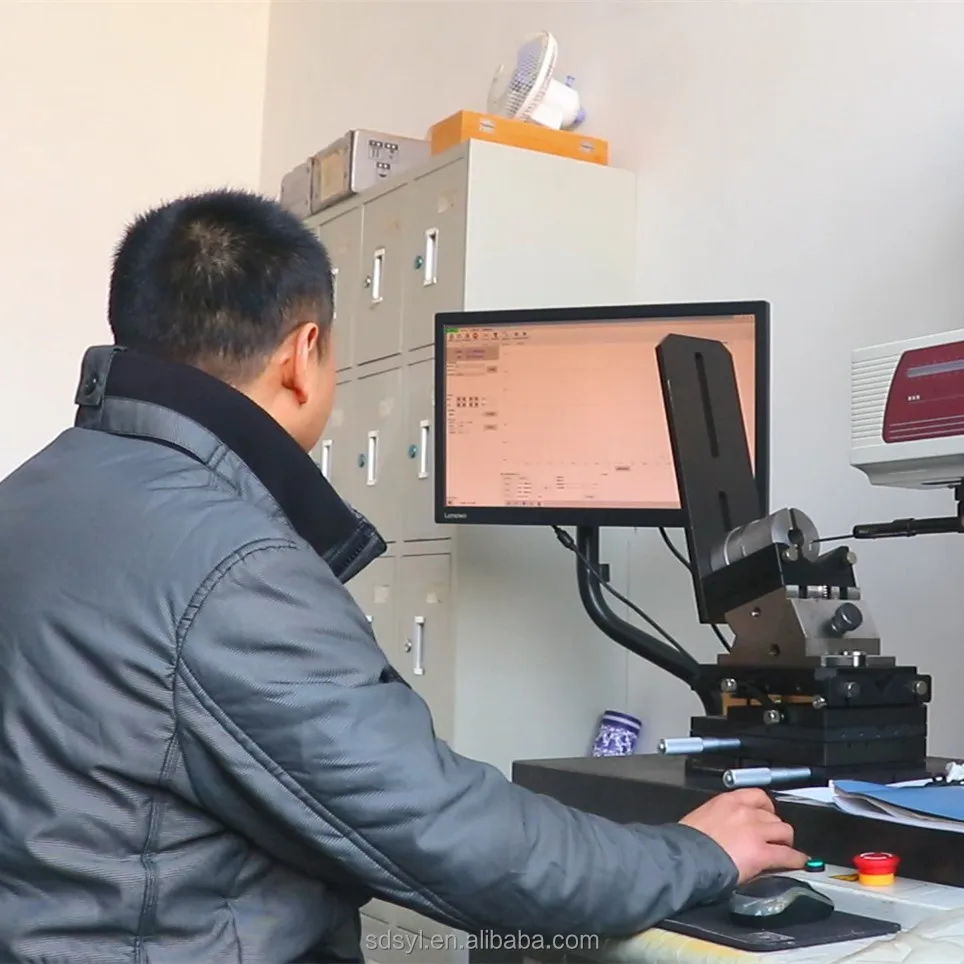

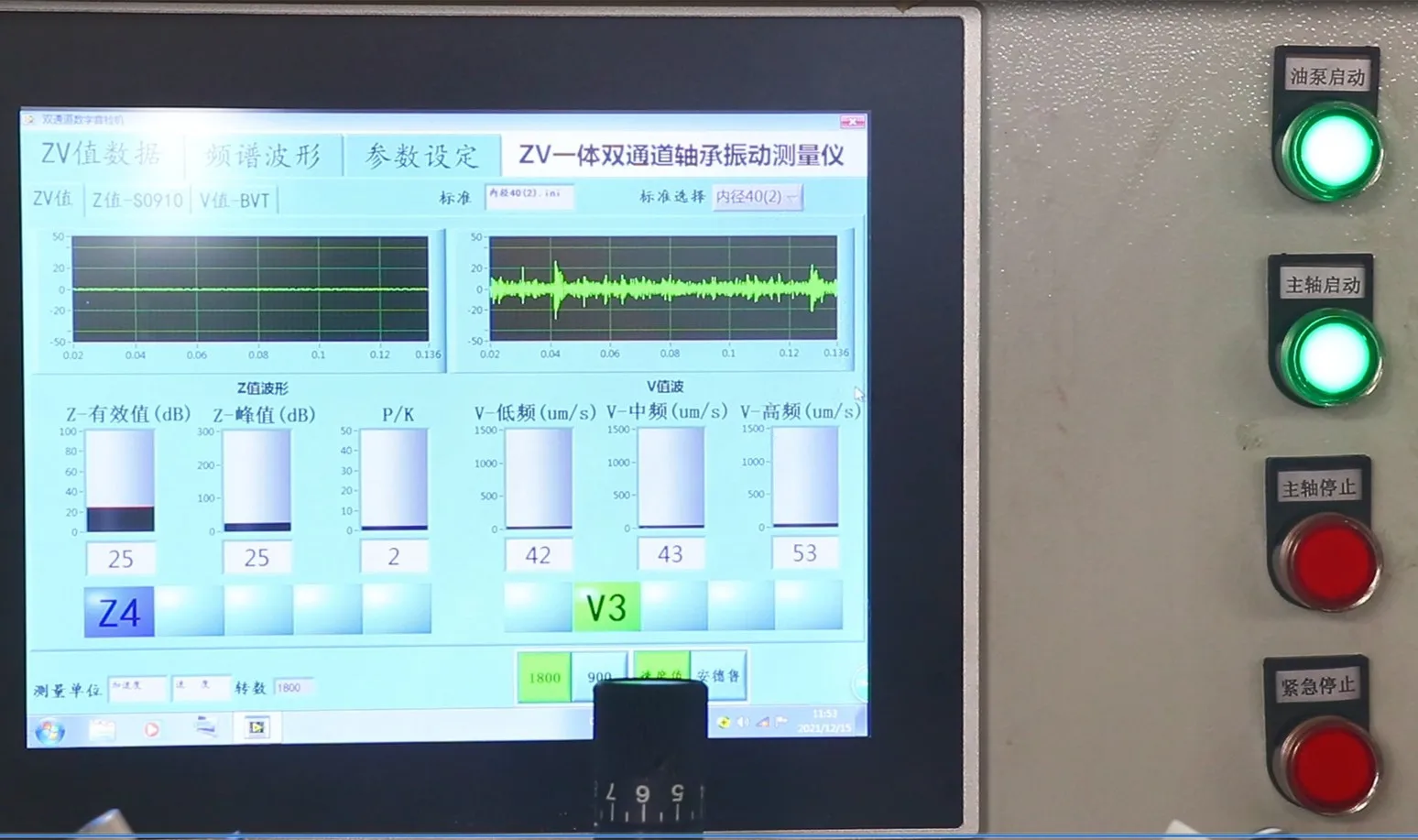

Noise detection
The noise level can be known through instrument detection

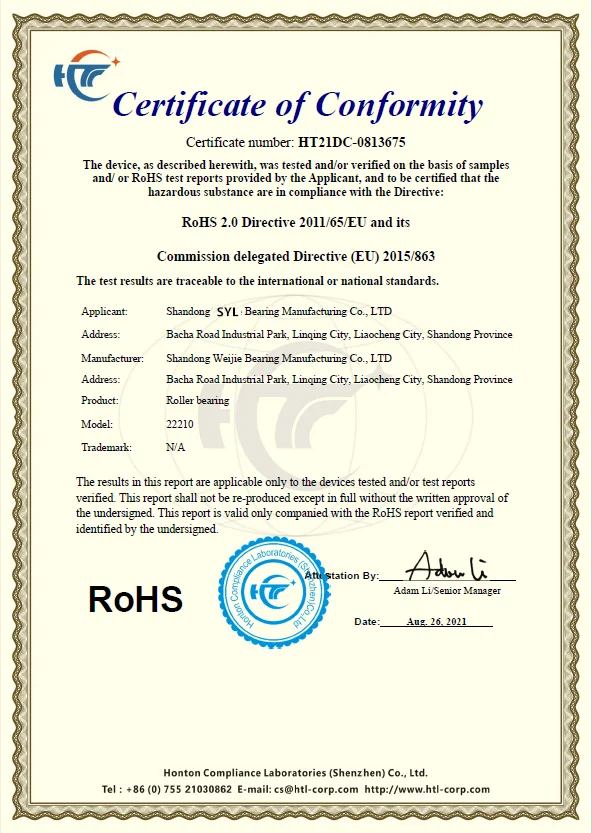

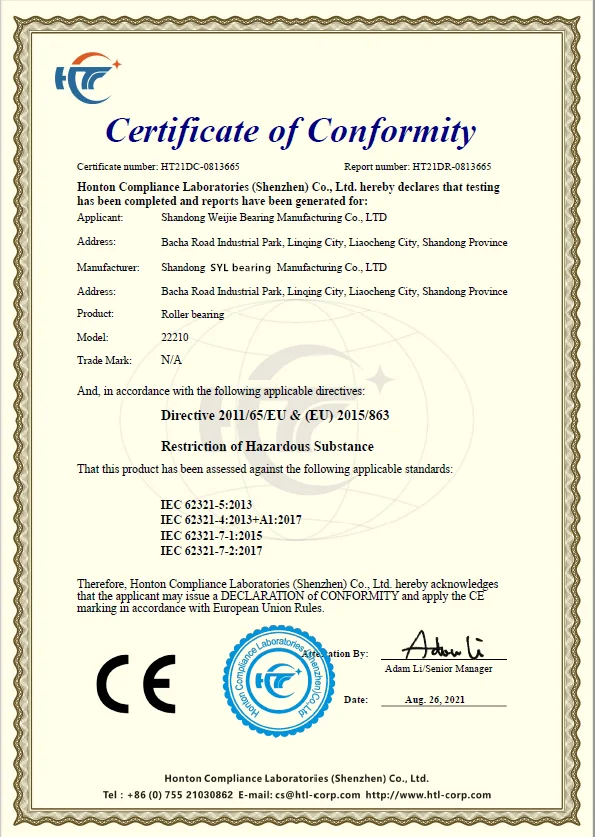

Our certificate
We are at the exhibition

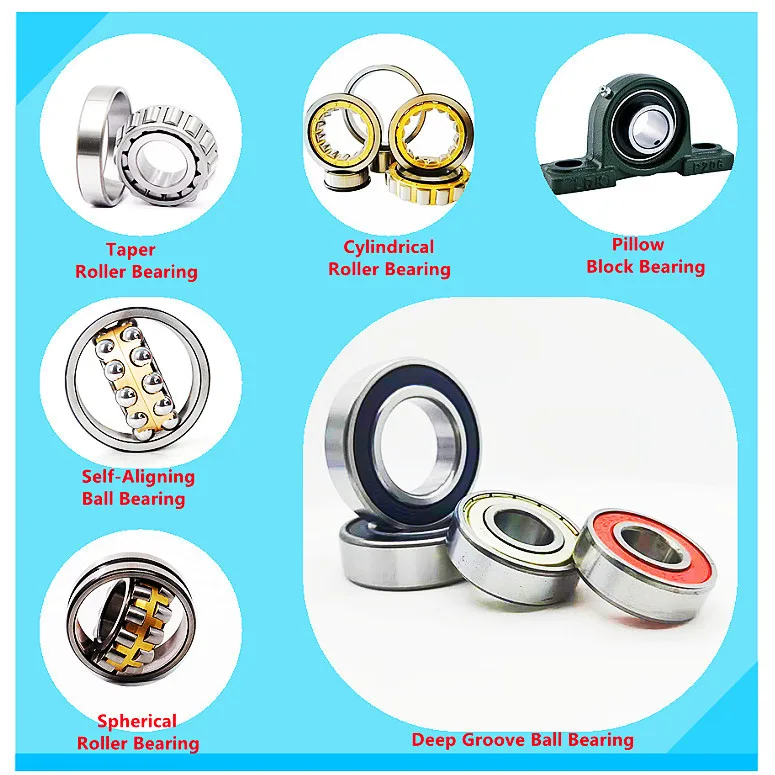

Hot sale model
New Code | Old Code | Dimension, mm ( d*D*B) | New Code | Old Code | Dimension, mm ( d*D*B) |
7000C | 36100J | 10*26*8 | 7008CETA/P4A | 40*68*15 | |
7000CTA | 36100KJ | 10*26*8 | 7008CL | 36108L | 40*68*15 |
7000CETA | 36100KJ-SH | 10*26*8 | 7009C | 36109J | 45*75*16 |
7000CETA/P4A | 10*26*8 | 7009CTA | 36109KJ | 45*75*16 | |
7001C | 36101J | 12*28*8 | 7009CETA | 36109KJ-SH | 45*75*16 |
7001CTA | 36101KJ | 12*28*8 | 7009CETA/P4A | 45*75*16 | |
7001CETA | 36101KJ-SH | 12*28*8 | 7010C | 36110J | 50*80*16 |
7001CETA/P4A | 12*28*8 | 7010CTA | 36110KJ | 50*80*16 | |
7002C | 36102J | 15*32*9 | 7010CETA | 36110KJ-SH | 50*80*16 |
7002CTA | 36102KJ | 15*32*9 | 7010CETA/P4A | 50*80*16 | |
7002CETA | 36102KJ-SH | 15*32*9 | 7011C | 36111J | 55*90*18 |
7002CETA/P4A | 15*32*9 | 7011CTA | 36111KJ | 55*90*18 | |
7003C | 36103J | 17*35*10 | 7011CETA | 36111KJ-SH | 55*90*18 |
7003CTA | 36103KJ | 17*35*10 | 7011CETA/P4A | 55*90*18 | |
7003CETA | 36103KJ-SH | 17*35*10 | 7012C | 36112J | 60*95*18 |
7003CETA/P4A | 17*35*10 | 7012CTA | 36112KJ | 60*95*18 | |
7004C | 36104J | 20*42*12 | 7012CETA | 36112KJ-SH | 60*95*18 |
7004CTA | 36104KJ | 20*42*12 | 7012CETA/P4A | 60*95*18 | |
7004CETA | 36104KJ-SH | 20*42*12 | 7013C | 36113J | 65*100*18 |
7004CETA/P4A | 20*42*12 | 7013CTA | 36113KJ | 65*100*18 | |
7004ATA | 46104KY | 20*42*12 | 7013CETA | 36113KJ-SH | 65*100*18 |
7005C | 36105J | 25*47*12 | 7013CETA/P4A | 65*100*18 | |
7005CTA | 36105KJ | 25*47*12 | 7014C | 36114J | 70*110*20 |
7005CETA | 36105KJ-SH | 25*47*12 | 7014CTA | 36114KJ | 70*110*20 |
7005CETA/P4A | 25*47*12 | 7014CETA | 36114KJ-SH | 70*110*20 | |
7006C | 36106J | 30*55*13 | 7014CETA/P4A | 70*110*20 | |
7006CTA | 36106KJ | 30*55*13 | 7015C | 36115J | 75*115*20 |
7006CETA | 36106KJ-SH | 30*55*13 | 7015CTA | 36115KJ | 75*115*20 |
7006CETA/P4A | 30*55*13 | 7015CETA | 36115KJ-SH | 75*115*20 | |
7007C | 36107J | 35*62*14 | 7015CETA/P4A | 75*115*20 | |
7007CTA | 36107KJ | 35*62*14 | 7016C | 36116J | 80*125*22 |
7007CETA | 36107KJ-SH | 35*62*14 | 7016CTA | 36116KJ | 80*125*22 |
7007CETA/P4A | 35*62*14 | 7016CETA | 36116KJ-SH | 80*125*22 | |
7008C | 36108J | 40*68*15 | 7016CETA/P4A | 80*125*22 | |
7008CTA | 36108KJ | 40*68*15 | 7017C | 36117J | 85*130*22 |
