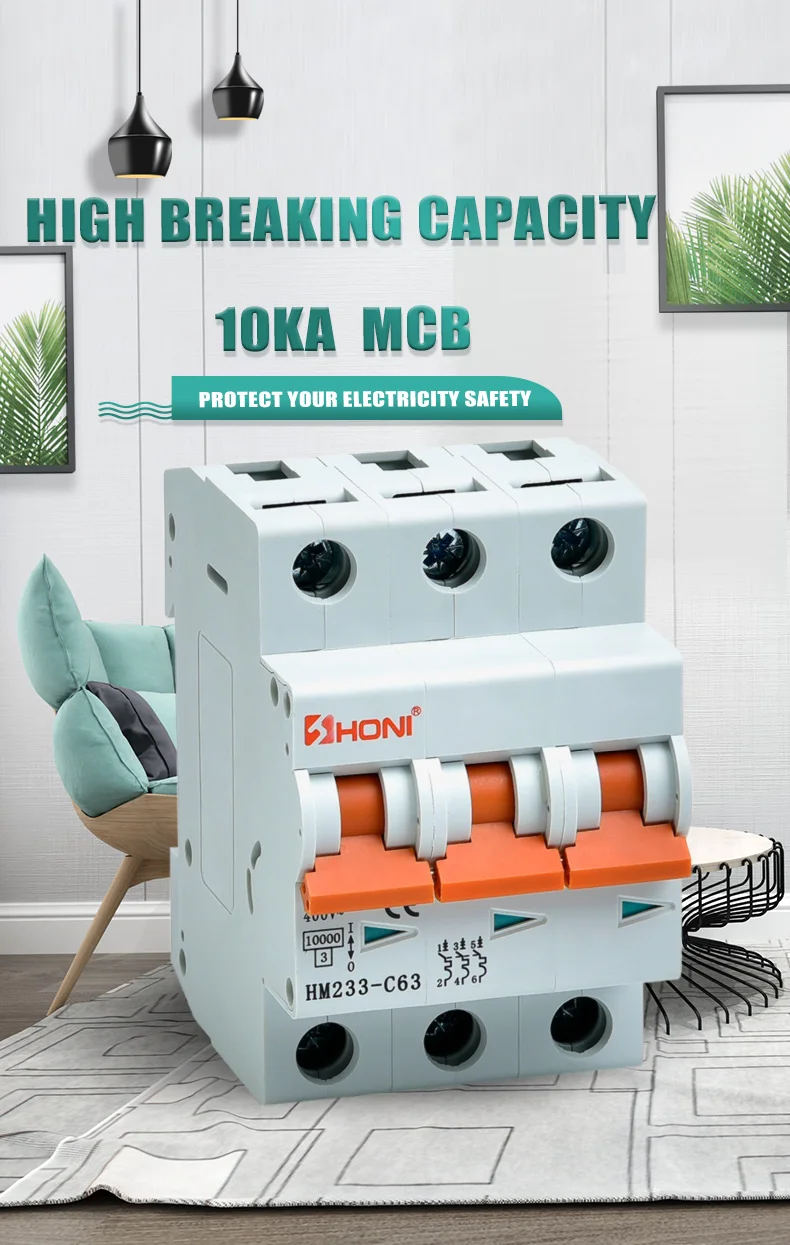

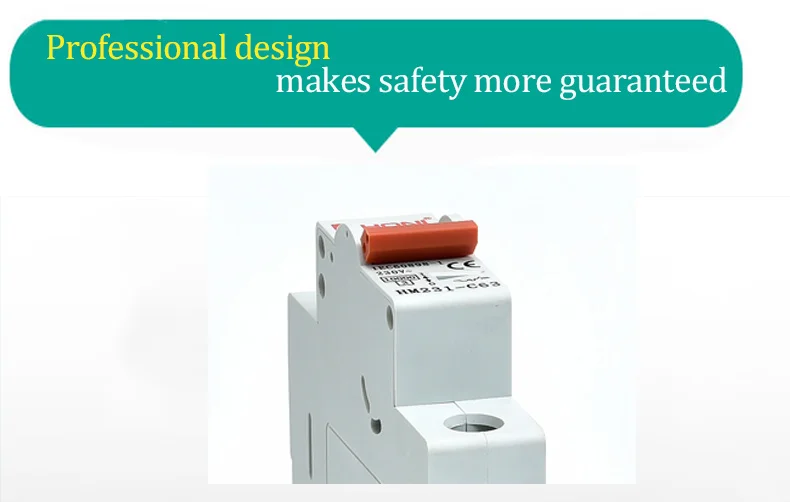

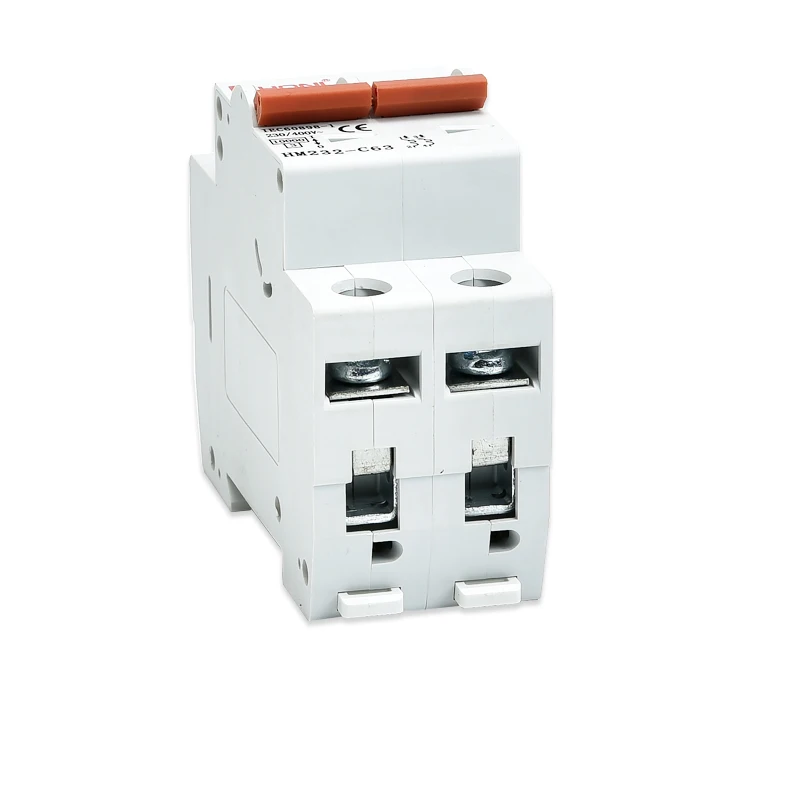

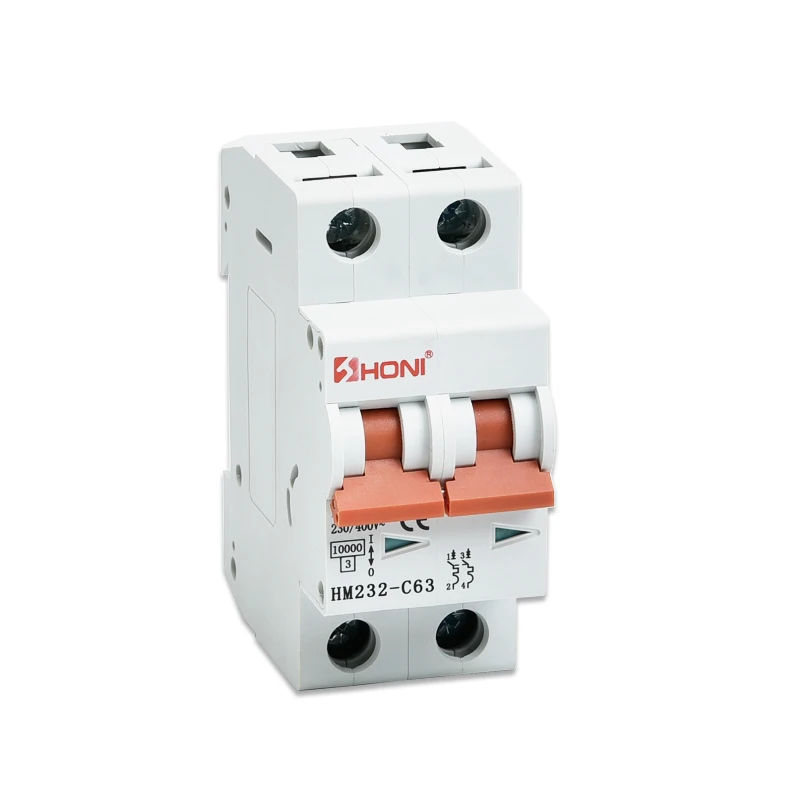

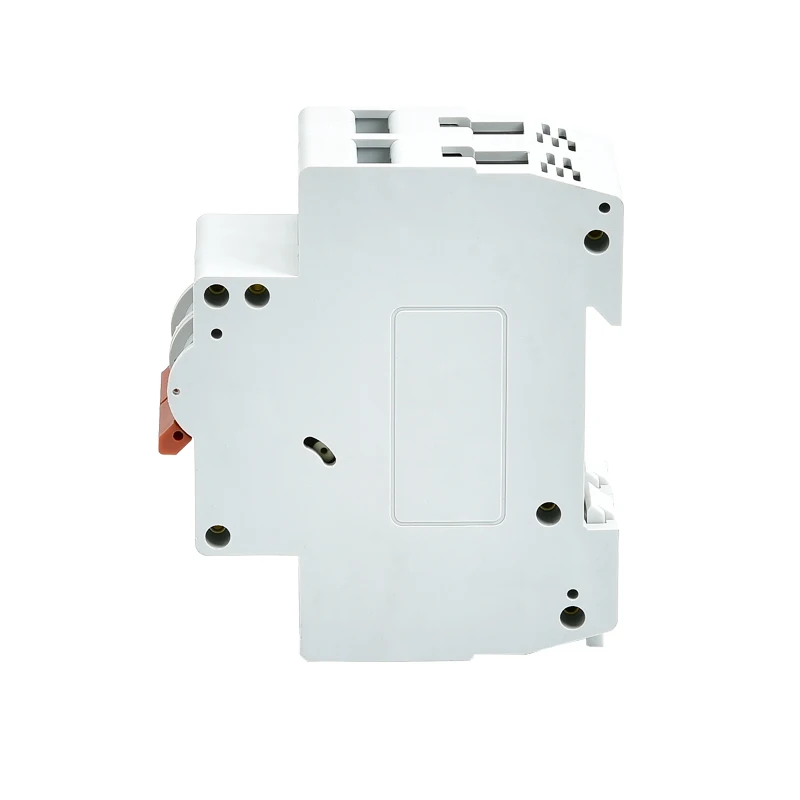

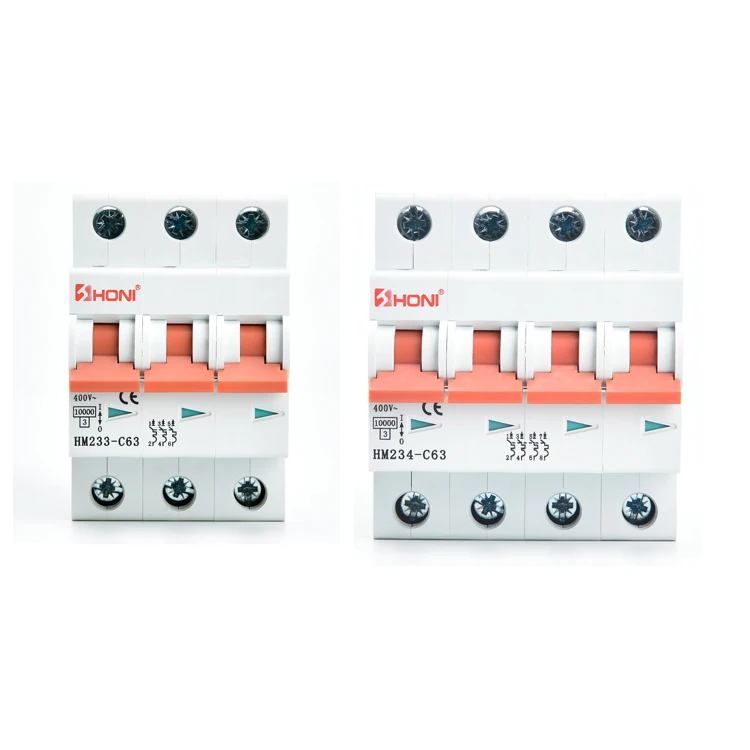

electric 2p 32A 40A 20amp MCB 6KA/10KA 230/240V 63A SAA CE Ac Miniature Circuit Breaker

Product Overview

Description



Construction and Feature

Protection against both overload and short circuit

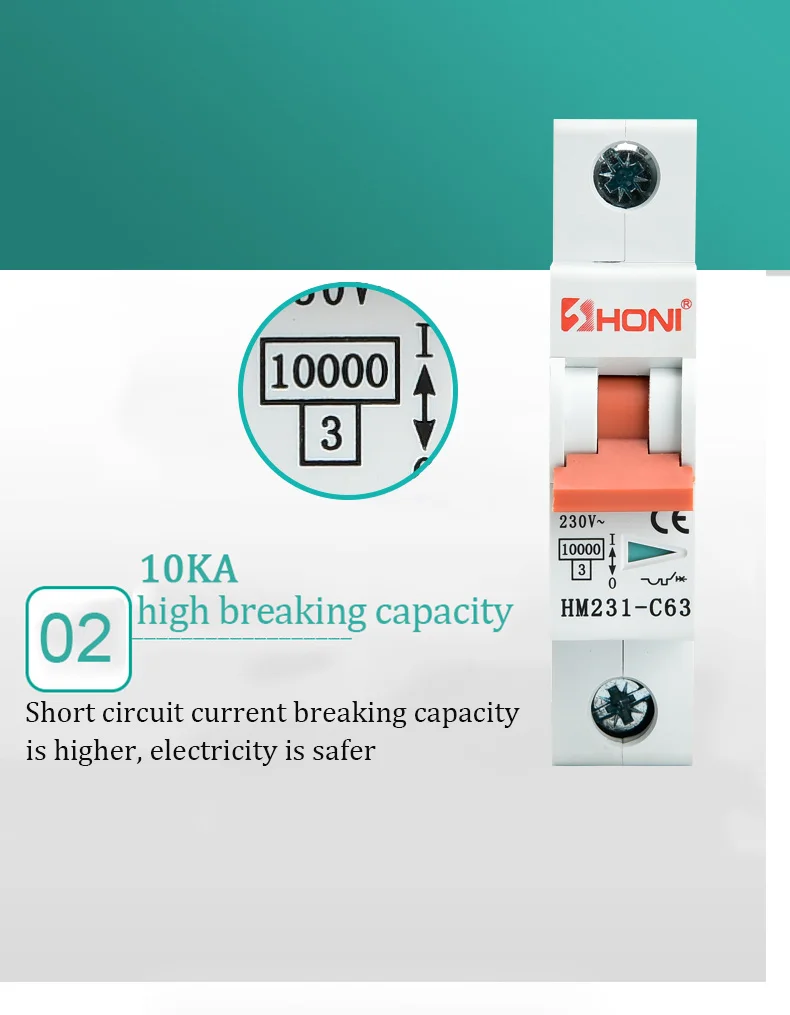

High short-circuit capacity

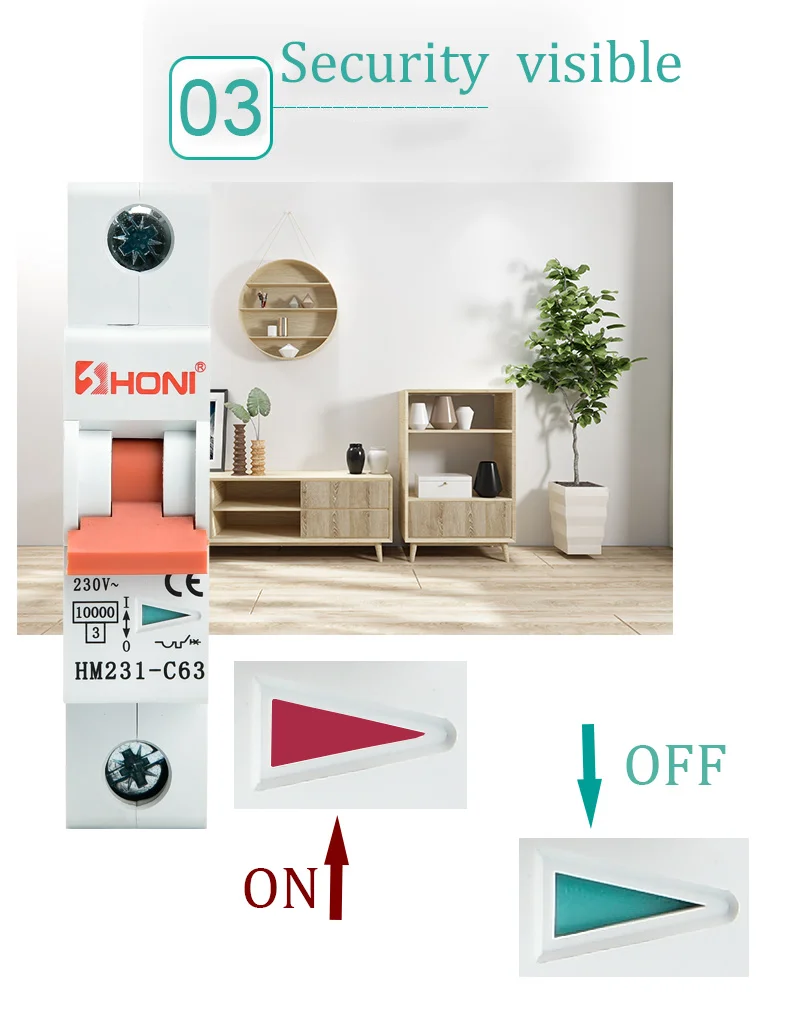

Contact position indication

Applicable to terminal and pin/fork type busbar connection

Easy mounting onto 35mm DIN rail





Technical Data

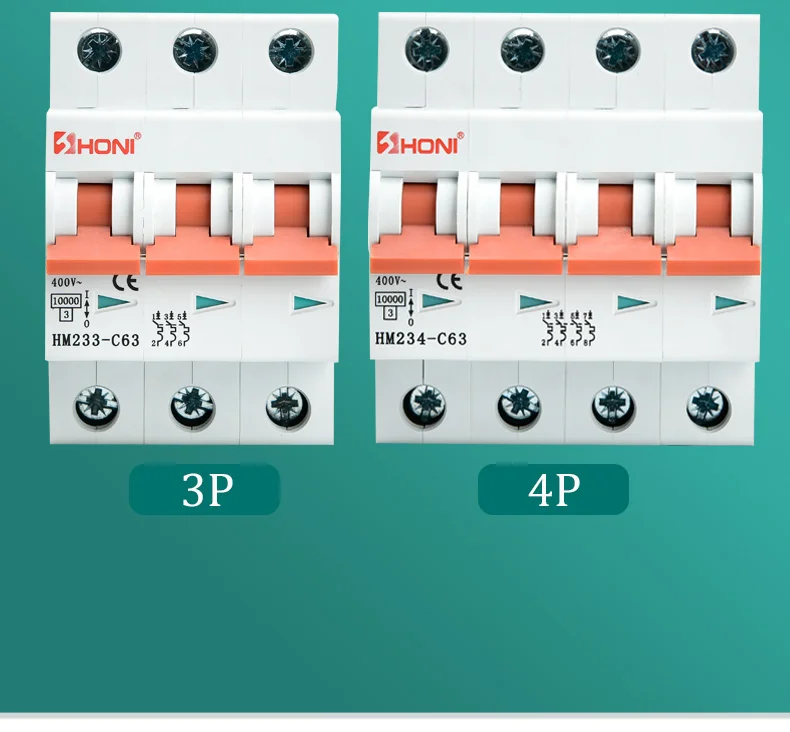

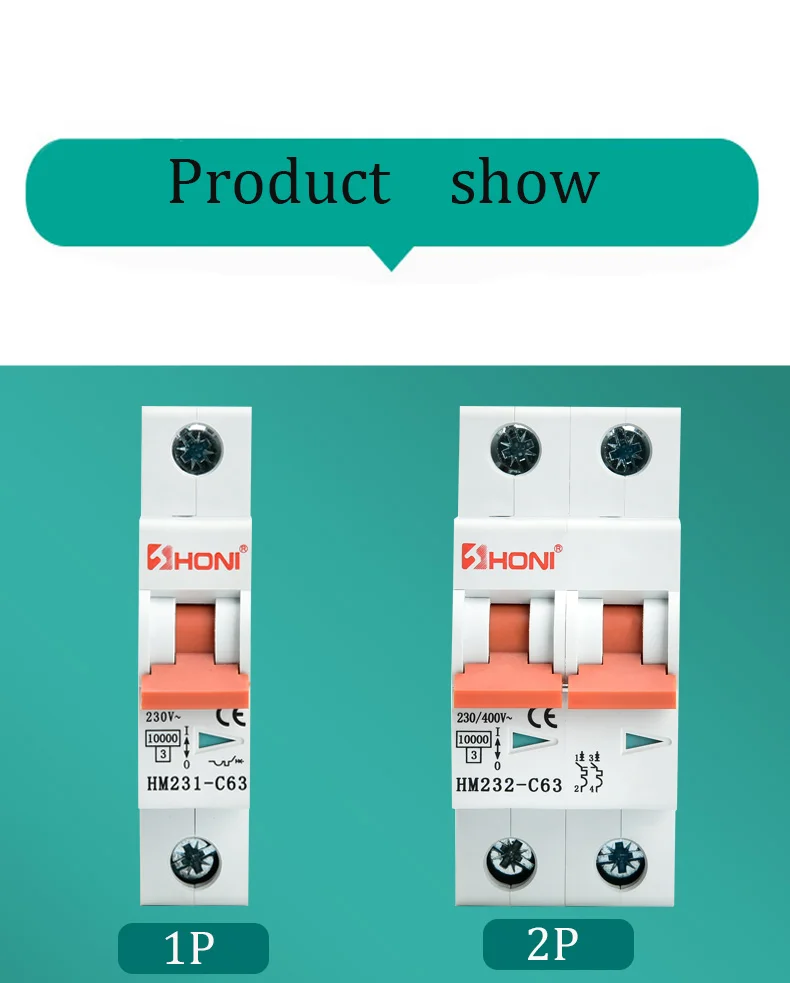

Pole No.	1P ,2P, 3P, 4P
Rated voltage	AC 230V/400V
Rated current (A)	1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63;
Tripping curve	B, C ,D
ated short-circuit capacity (Icn)	10kA
Rated frequency	50/60Hz
Energy limiting class	3
Rated impulse withstand voltage	6.2kV
Electro-mechanical endurance	6000
Connection terminal	Screw terminal Pillar terminal with clamp
Connection capacity	Rigid conductor up to 25mm2
Fastening torque	2.0Nm
Installation	On symmetrical DIN rail 35mm Panel mounting
